Aeroflow

AF8006-6000

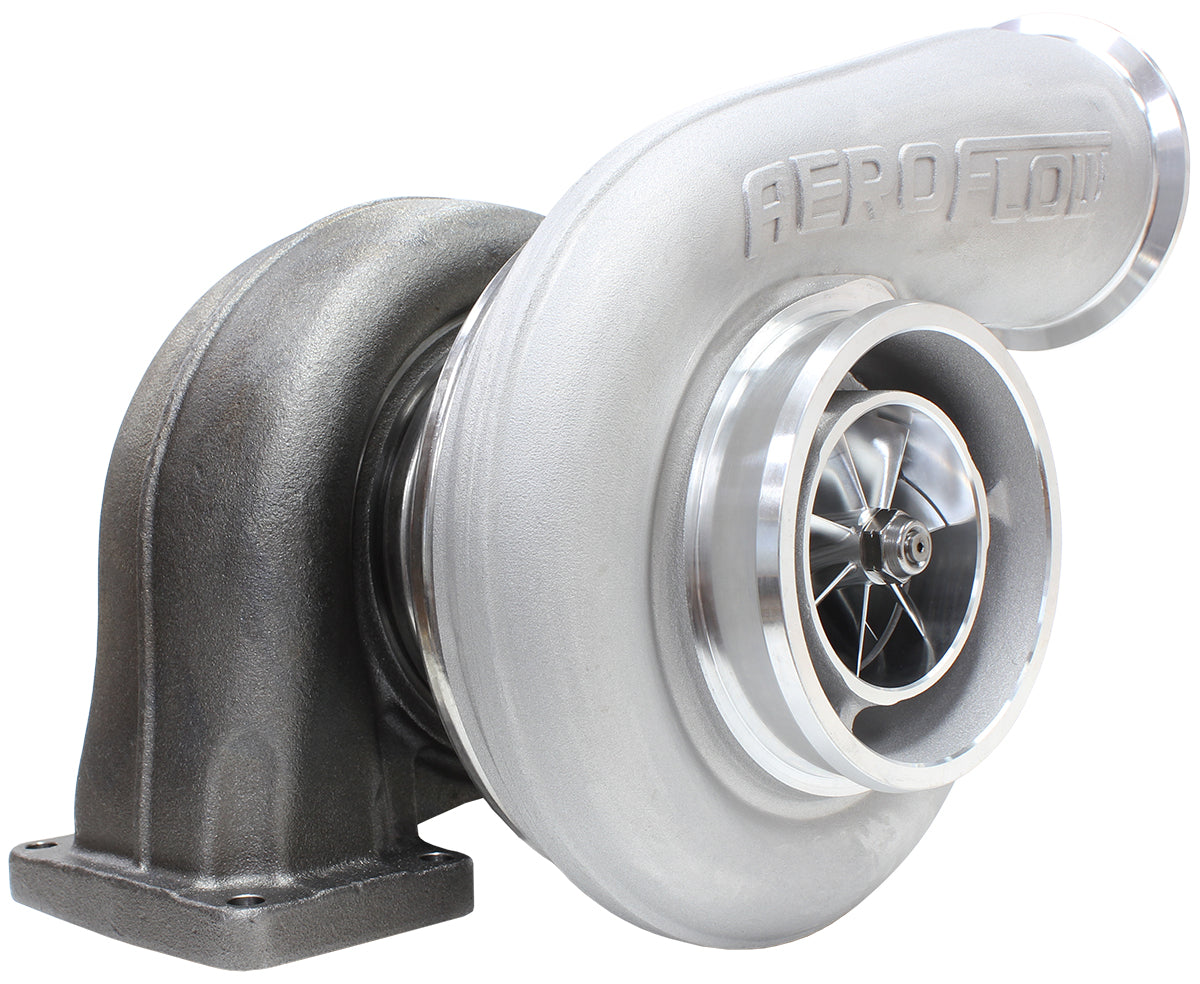

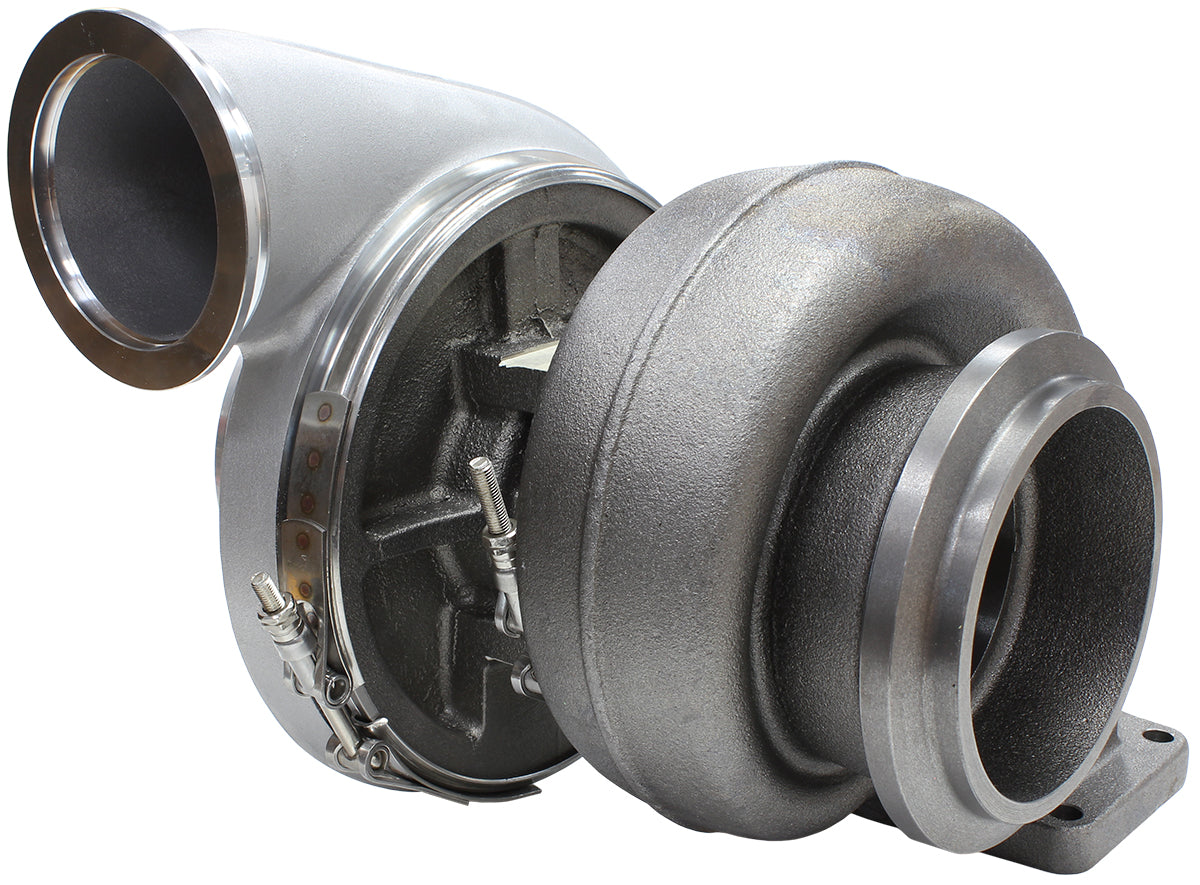

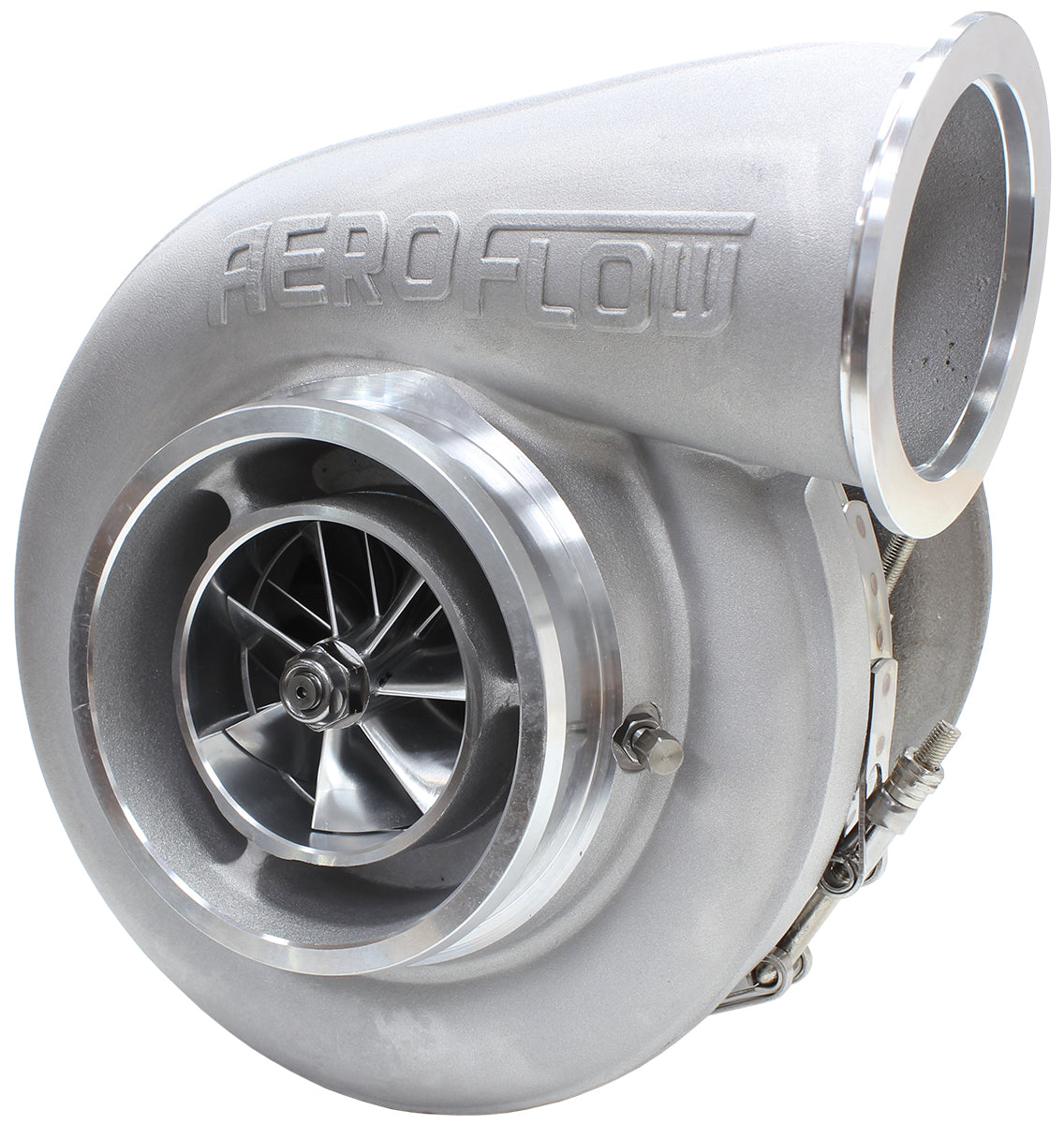

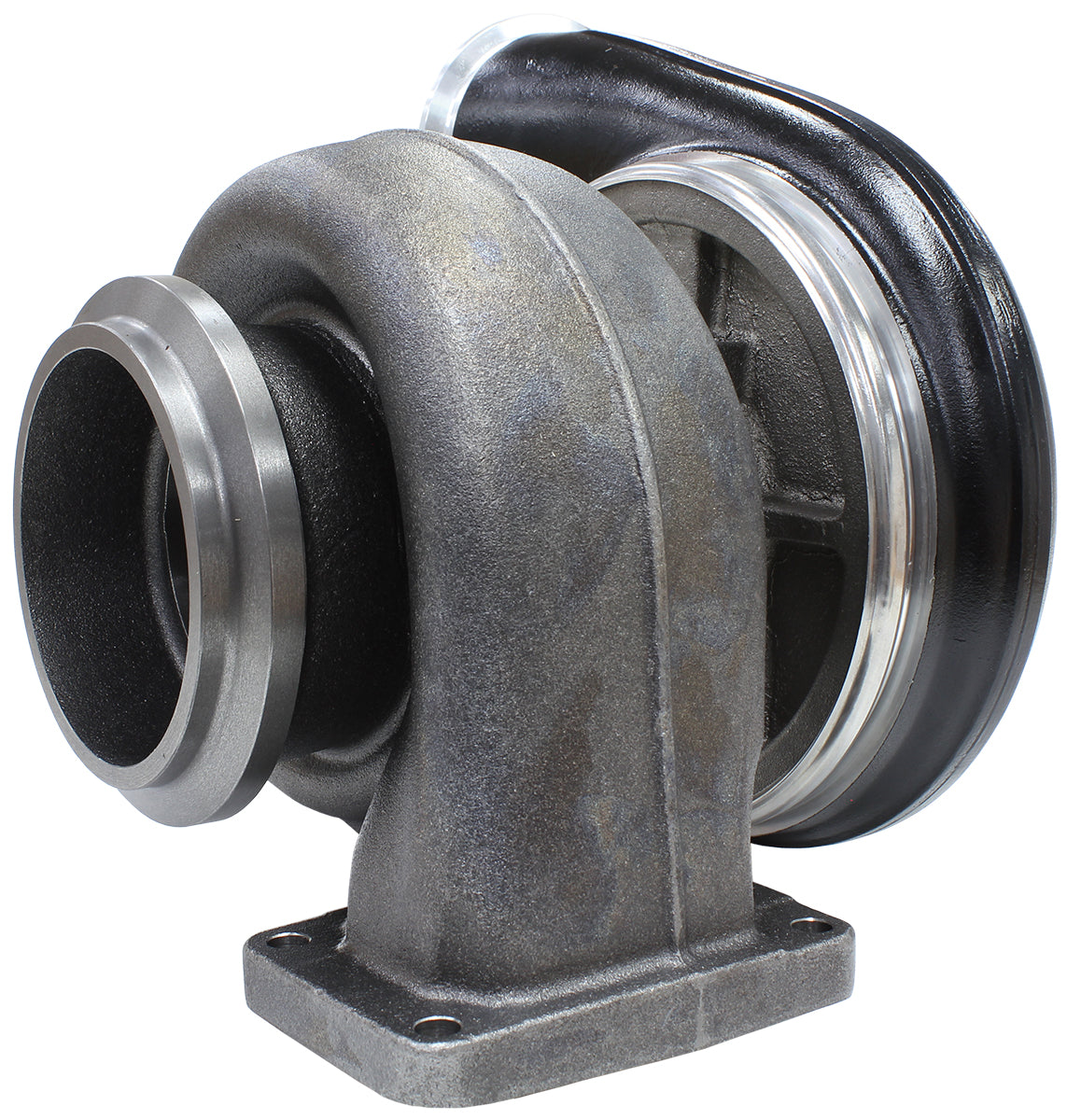

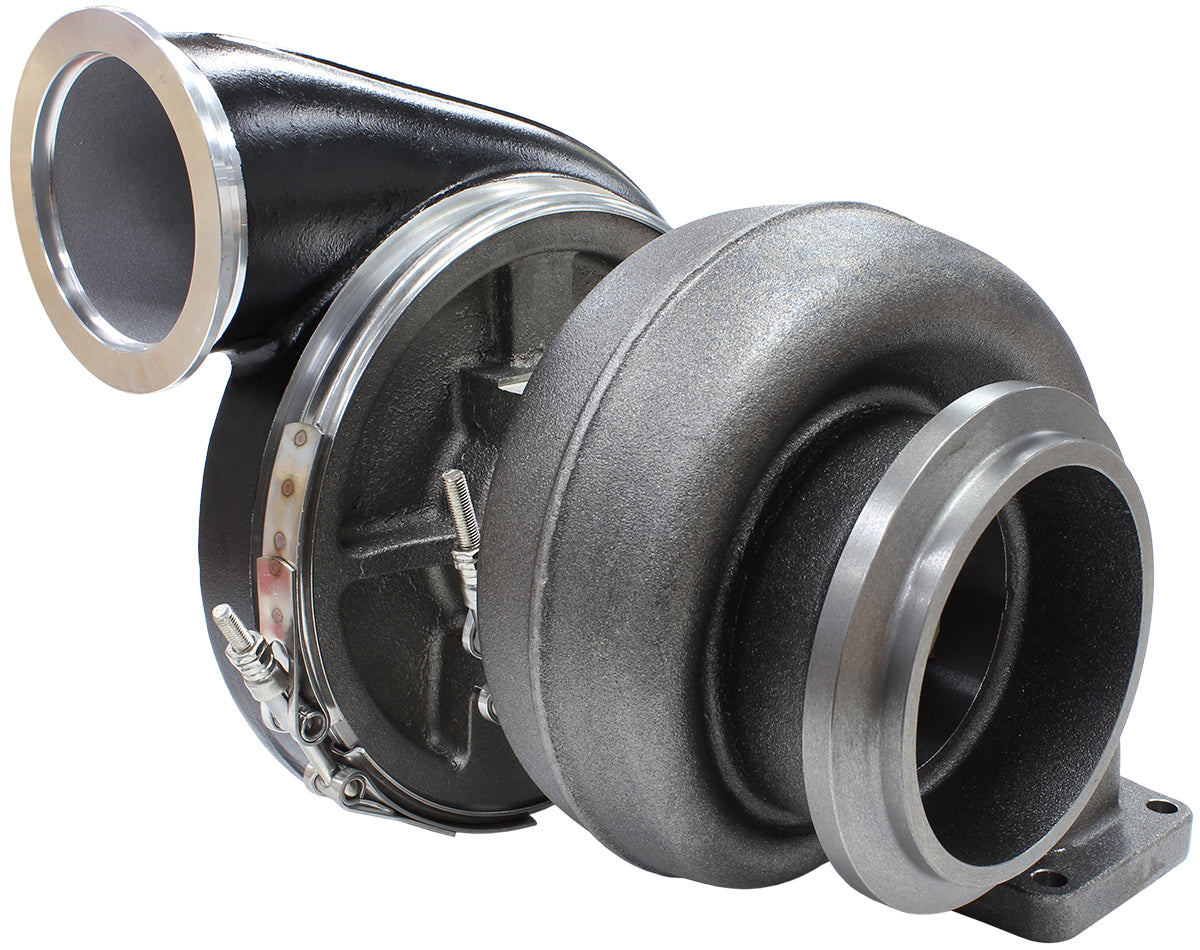

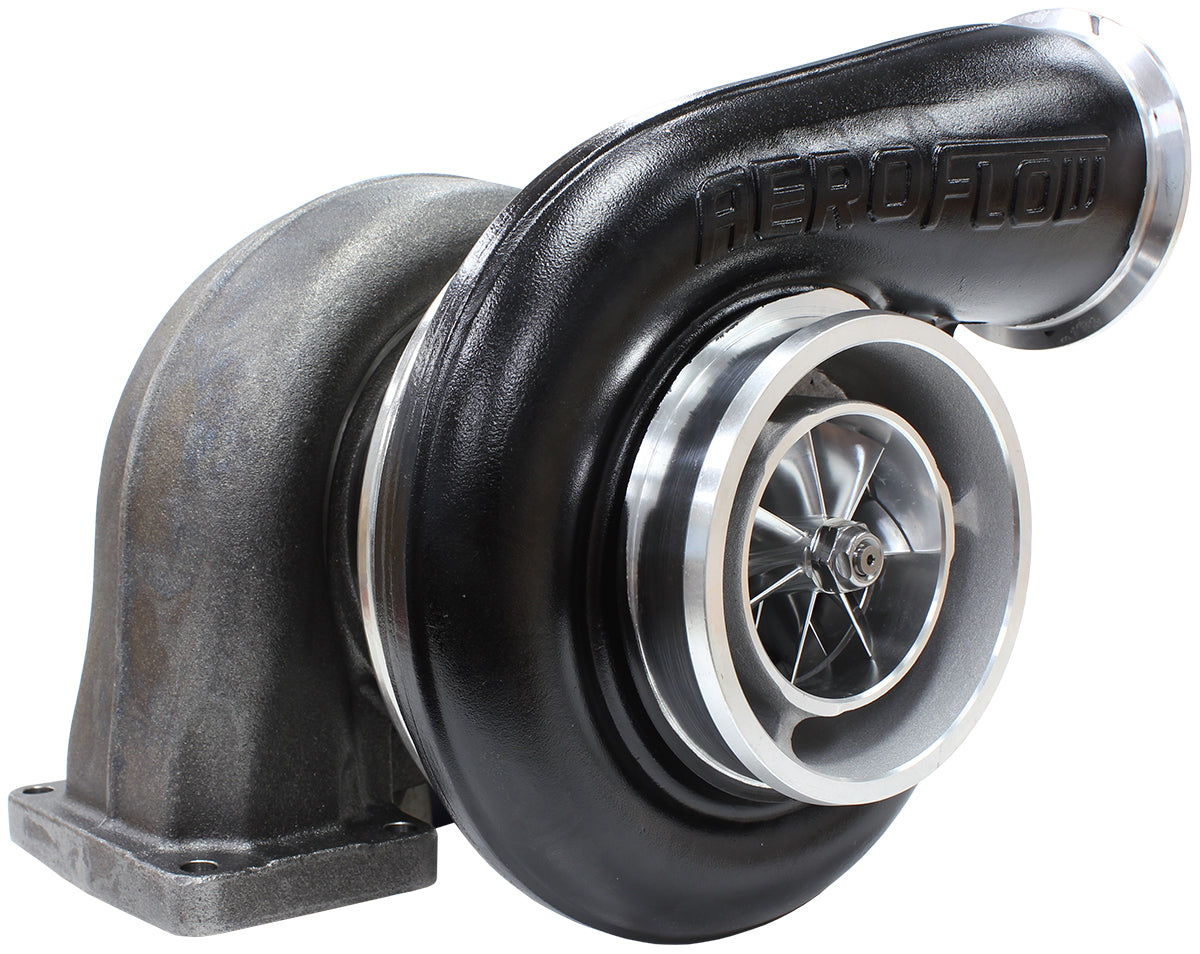

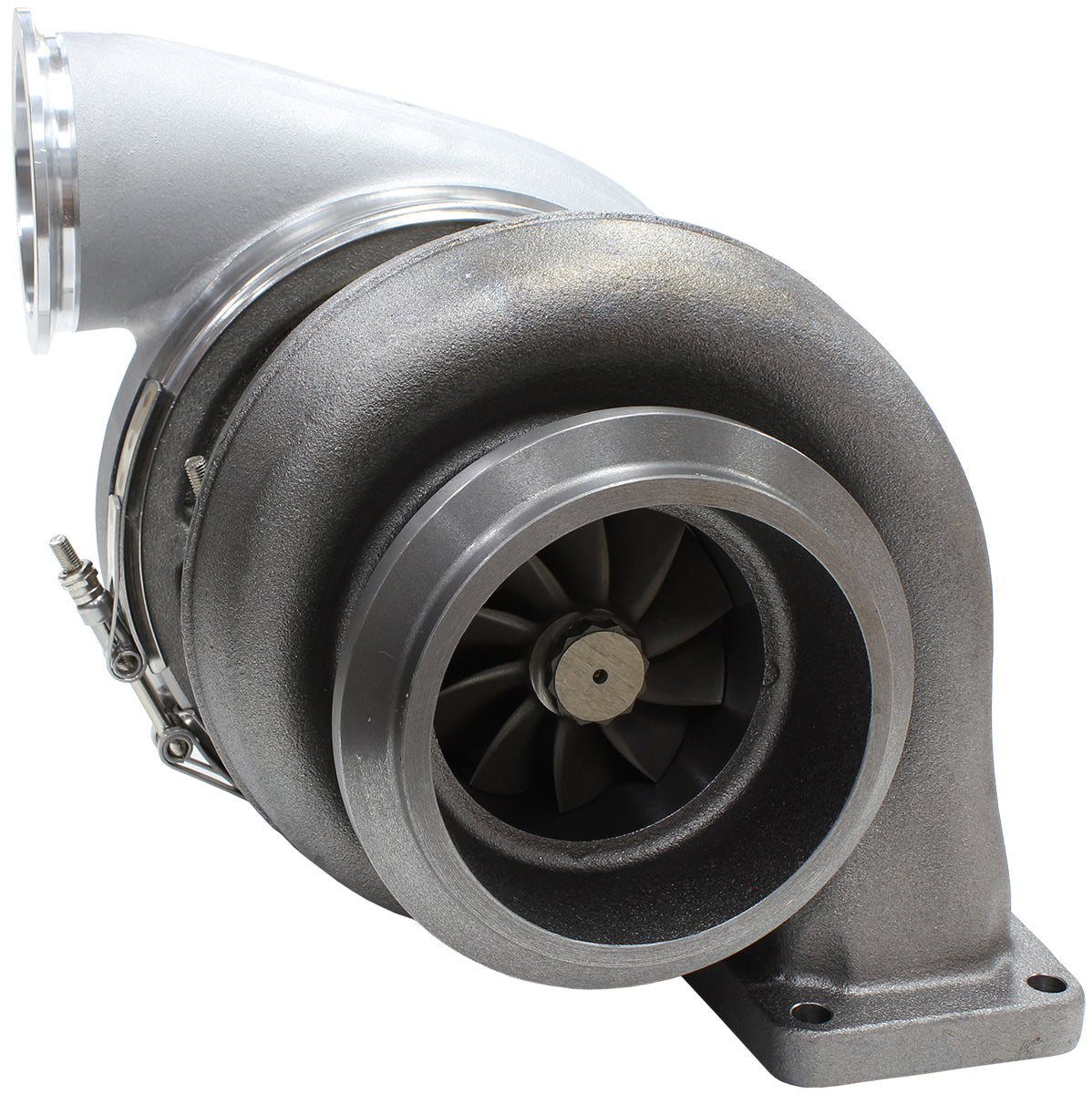

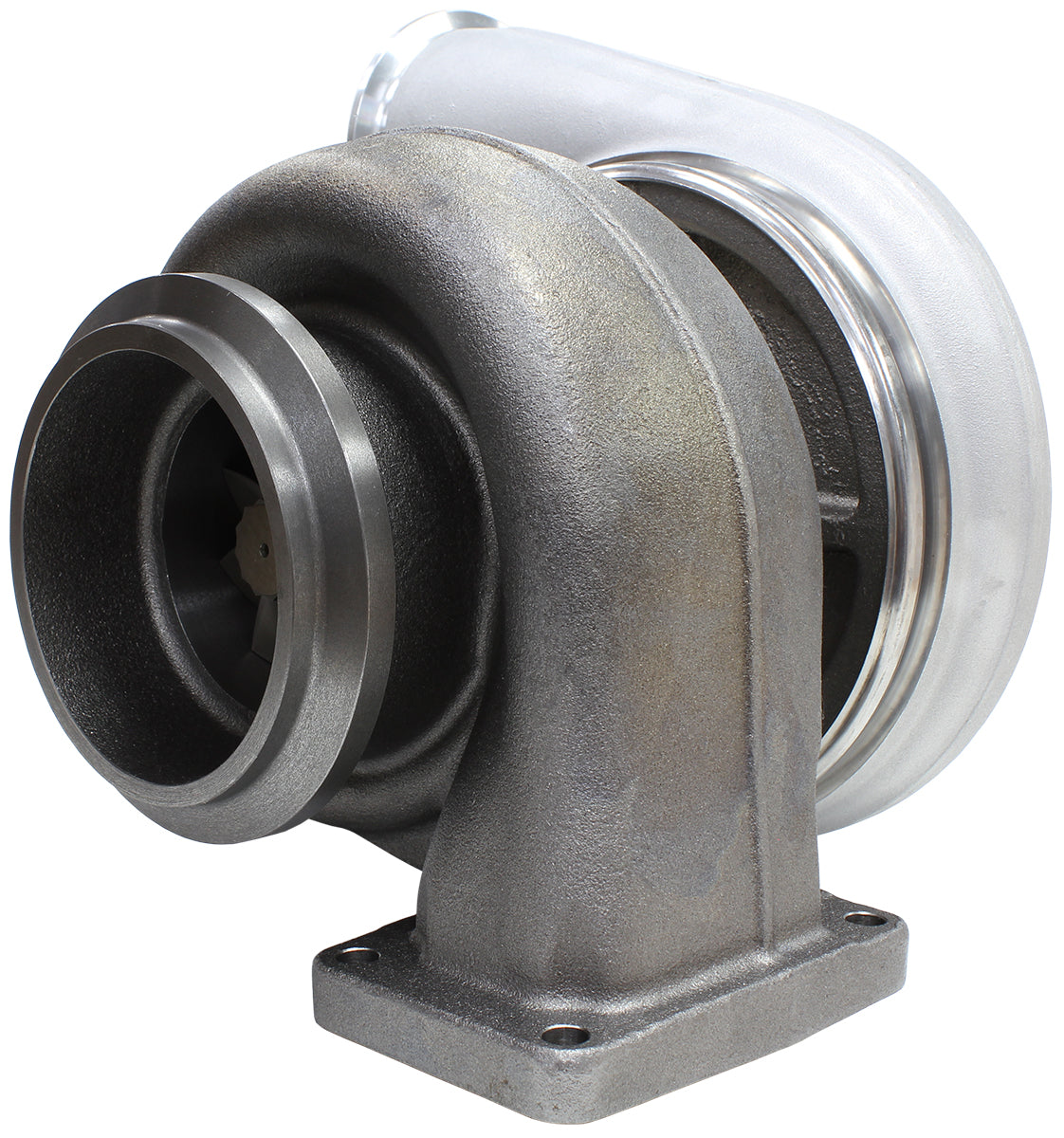

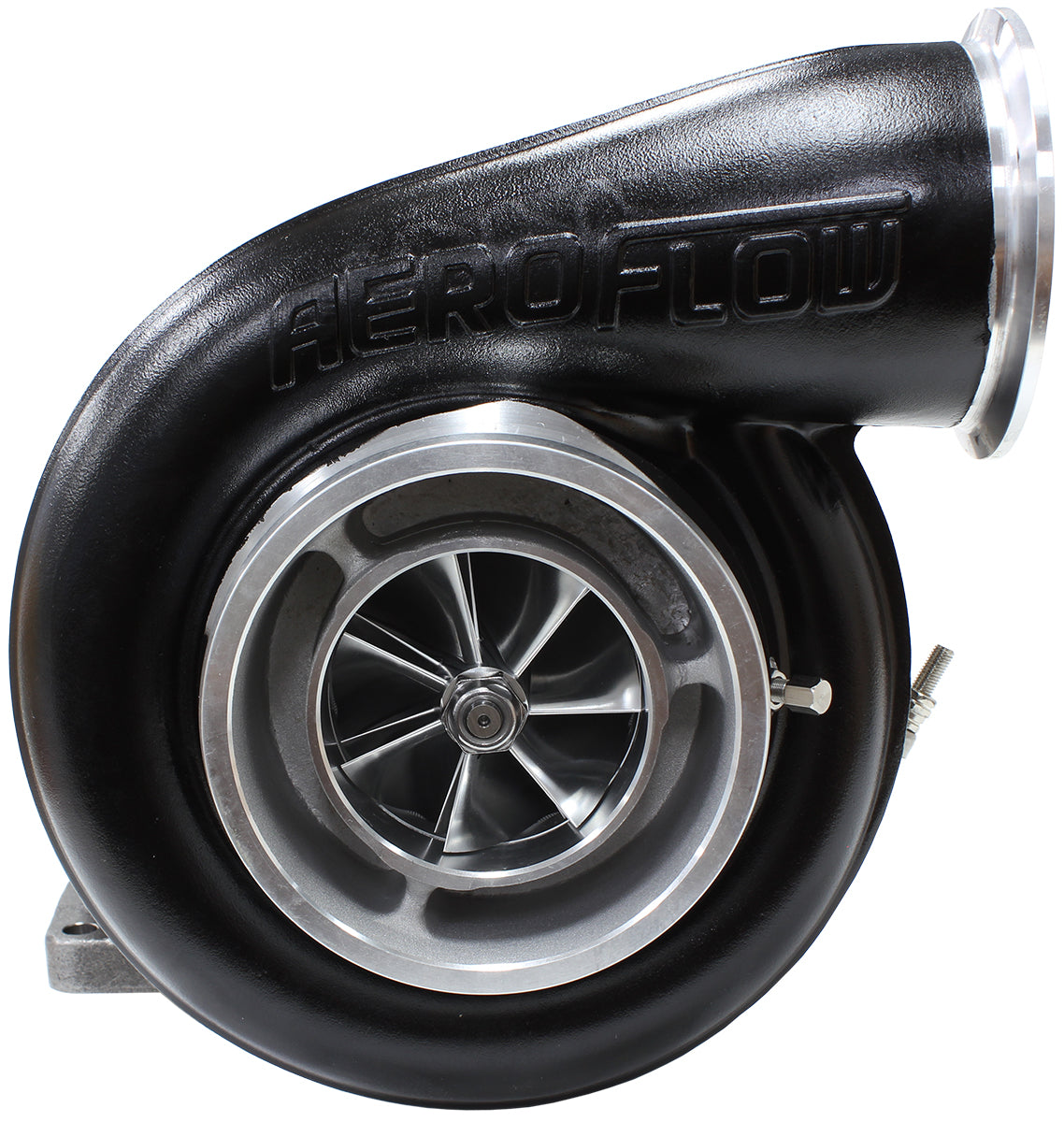

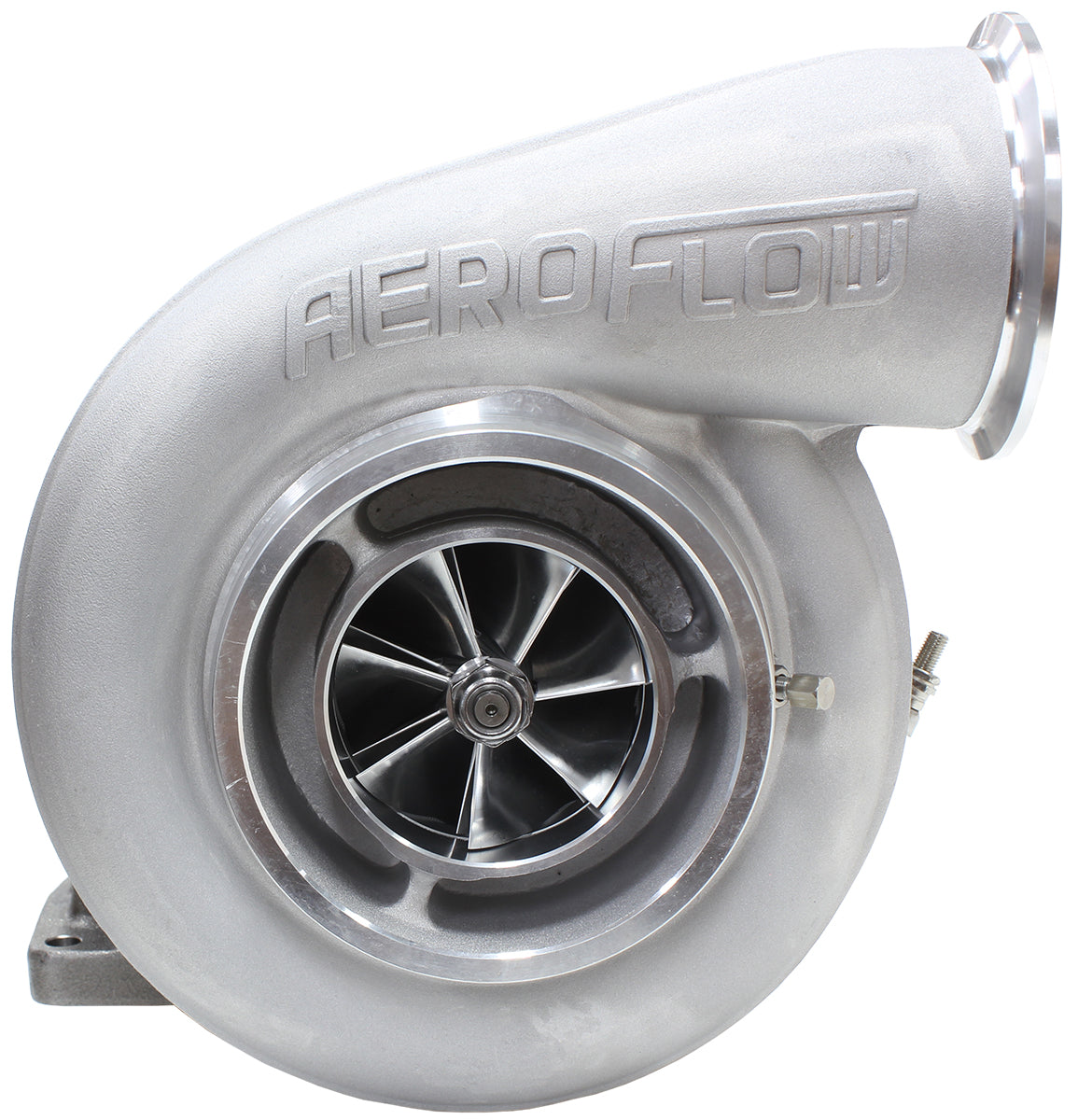

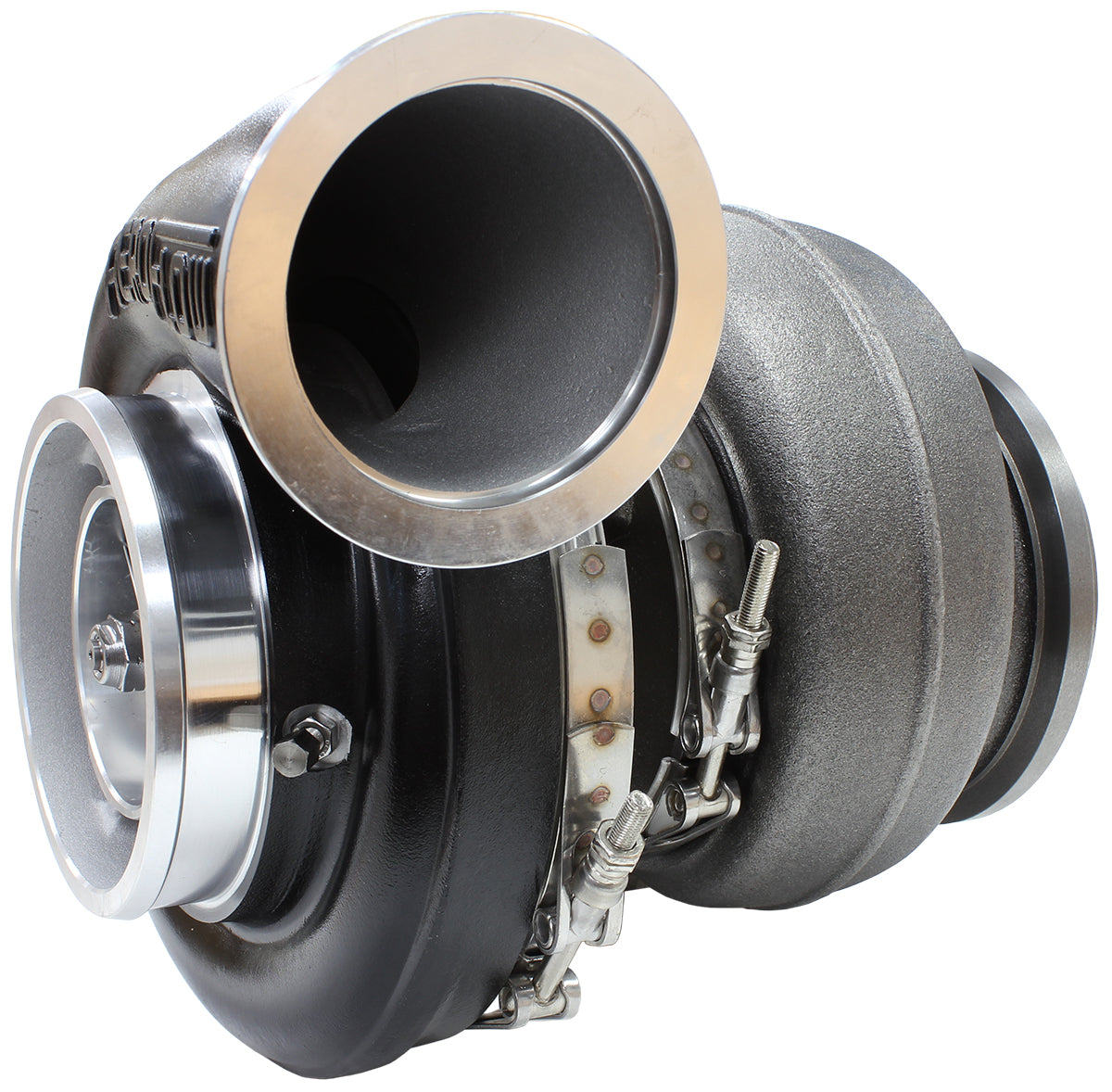

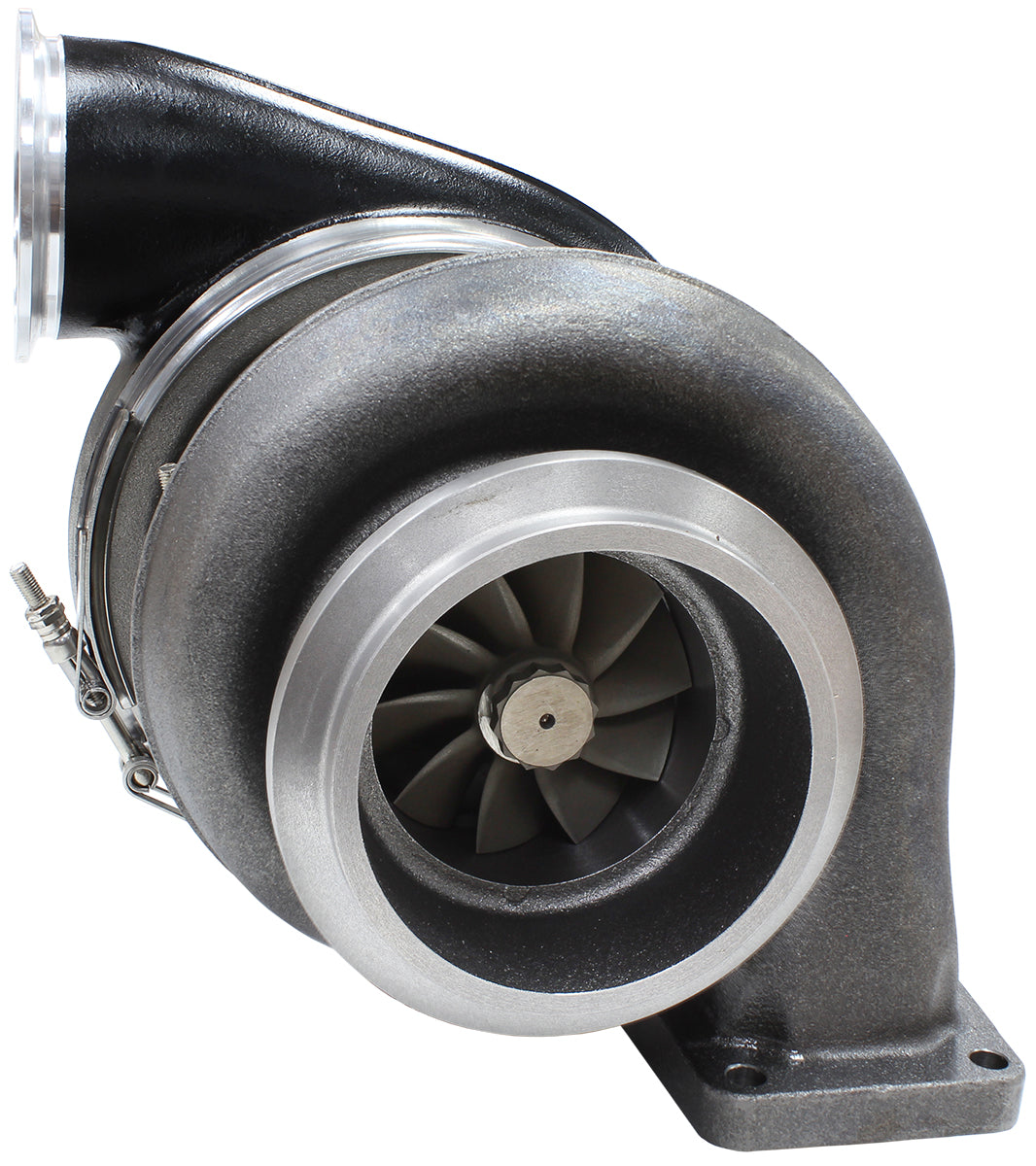

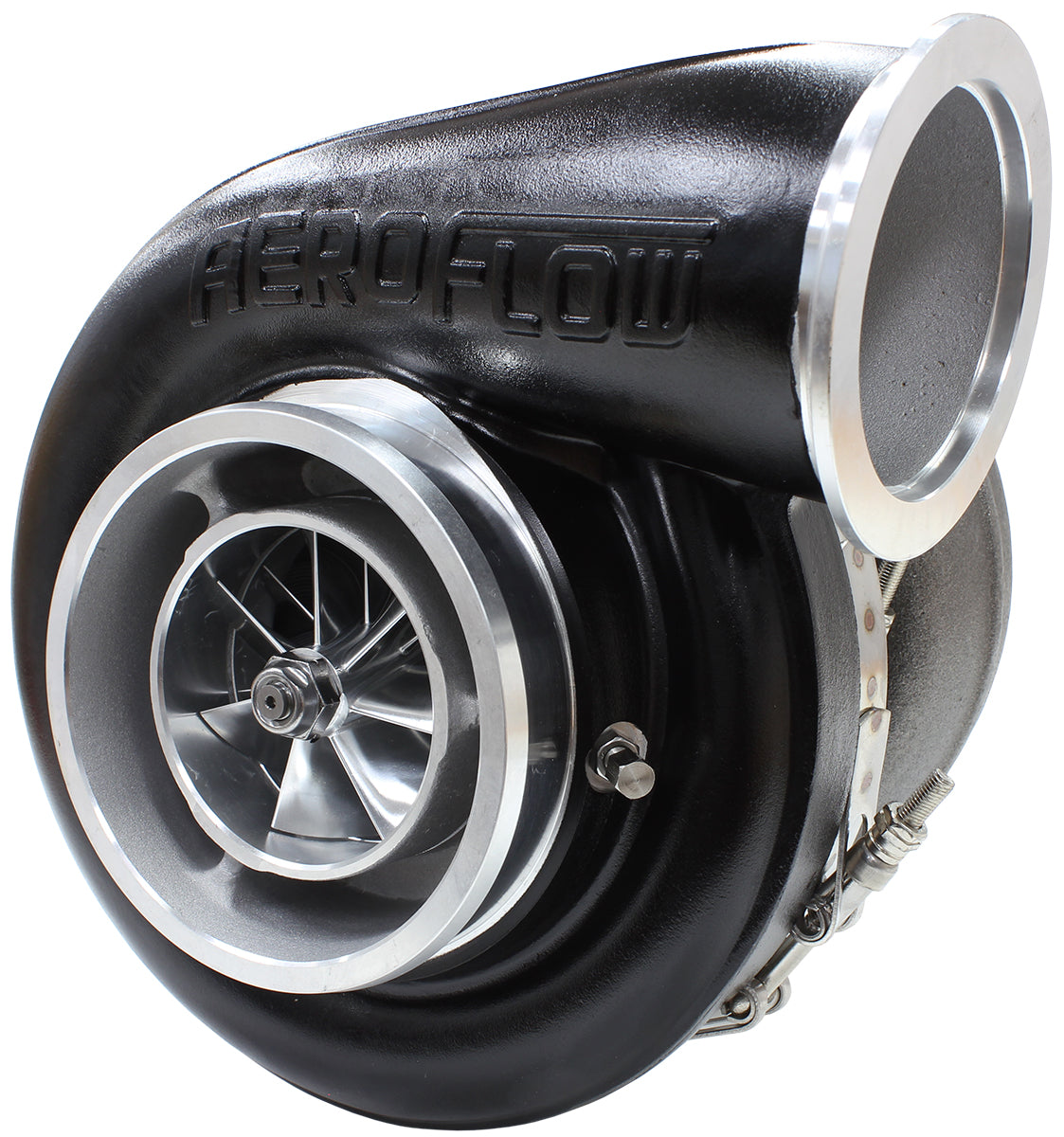

BOOSTED 7588 1.32 T6 TWIN ENTRY V-BAND OUTLET BW S475

BOOSTED 7588 1.32 T6 TWIN ENTRY V-BAND OUTLET BW S475

$1,302.00NZD
$1,400.00NZD $1,302.00NZD
Sale Sold out
Shipping calculated at checkout.
COLOUR
BOOSTED 7588 T6 Turbocharger Specifications

Recommended horsepower rating:  1150-1500HP
Recommended engine displacement:  3.0L to 7.0L

- 360° journal bearing
- 7075 billet 7 + 7 compressor wheel
- Ported shroud compressor cover
- This is an oil cooled turbocharger
- Speed sensor port included in compressor cover (Speed sensor sold separately, AF8050-1010)
- External wastegate sold separately
- Inlet flange gasket and turbo drain gasket included in turbo kit
- Must use a -6AN oil feel line to maintain core temperature (Warranty VOID if not used)

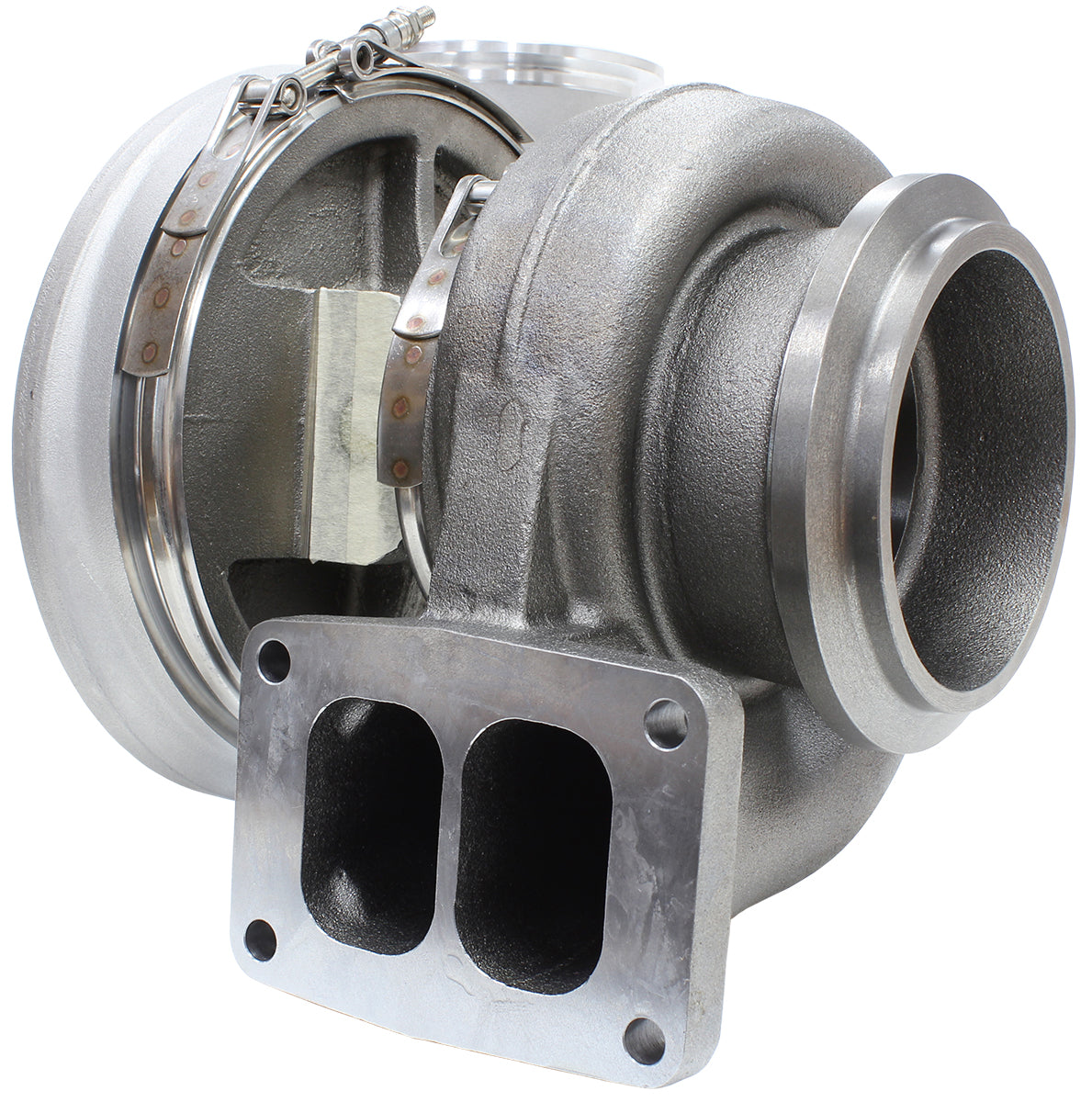

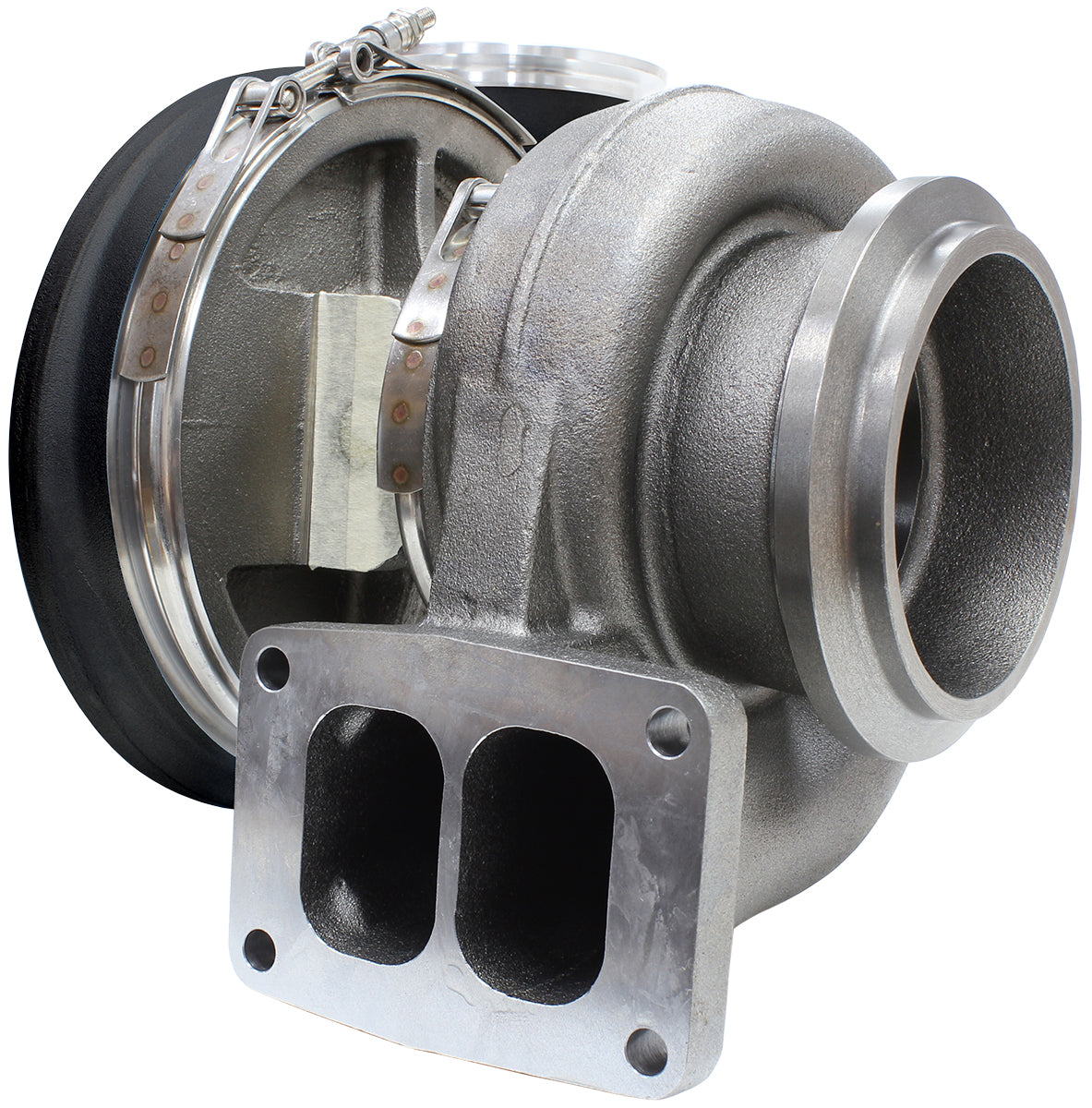

- T6 twin entry turbine inlet flange
- SiMo-nodular cast iron rear housing
- V-Band turbine outlet flange
- V-Band compressor outlet flange
- 1/4" NPT oil feed fitting (sold separately) or a 38mm 2-bolt oil feed plate with M8 x 1.25mm thread size
- 50.80mm bolt centre turbo drain flange with M8 x 1.25mm thread size

Compressor Specifications
Inducer:  75mm
Exducer:  100.32mm
Extended Tip:  105.90mm
Compressor Inlet:  5" slip fit
Compressor Outlet: V-Band (AF8080-1006)

Turbine Specifications
Inducer:  95.71mm
Exducer:  88mm
A/R:  1.32
Turbine Inlet Flange:  T6
Turbine Outlet Flange:  V-Band (AF8080-1005)

Wastegate
External wastegate
