Recommended horsepower rating:Â 475-770HP Recommended engine displacement:Â 2.0L to 3.5L

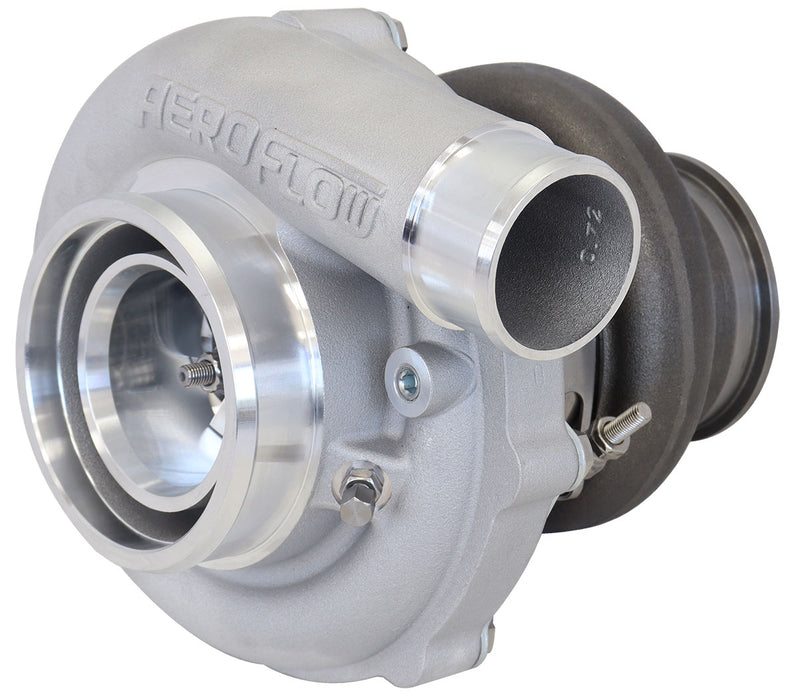

- Dual ceramic ball bearing - Point Milled 7075 billet compressor wheel - Ported shroud compressor cover - Speed sensor port included in compressor cover (Speed sensor sold separately, AF8050-1010) - 1/8" NPT boost reference port - External wastegate sold separately - Inlet flange gasket, turbo drain gasket and -4AN turbo oil feed fitting with restrictor included in turbo kit. (Warranty VOID if not used) - T3 single entry turbine inlet flange - 9 blade turbine wheel - SiMo-nodular cast iron rear housing - V-Band turbine outlet flange - 4 x M14 x 1.5mm coolant ports (Must install water lines on opposite sides of the core) - 7/16"-24 oil feed fitting with in-built restrictor - 38mm bolt centre turbo drain flange with M8 x 1.25mm thread size

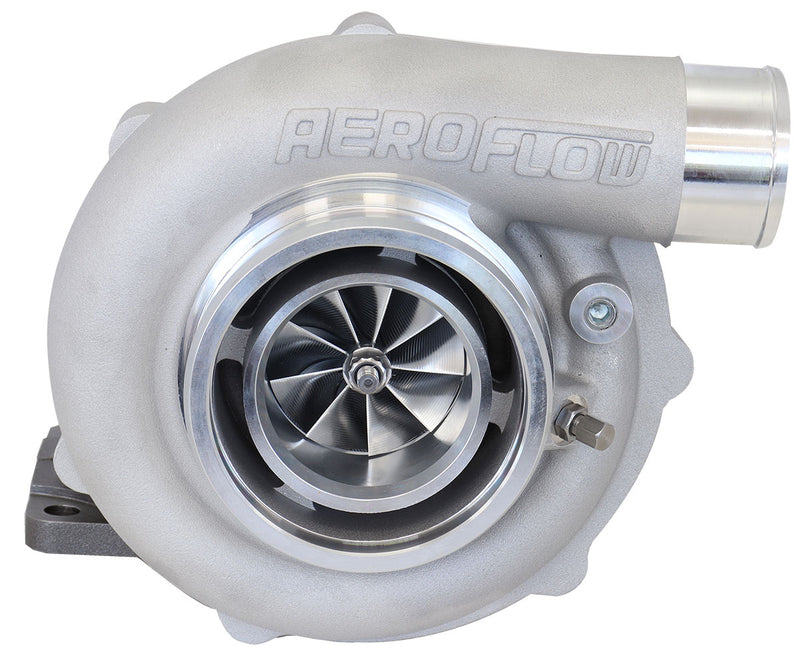

Compressor Specifications Inducer: Â 58mm Exducer:Â 71.40mm Extended Tip:Â 74mm A/R: Â 0.72 Compressor Inlet: Â 4" Slip fit Compressor Outlet: Â 2" Slip fit

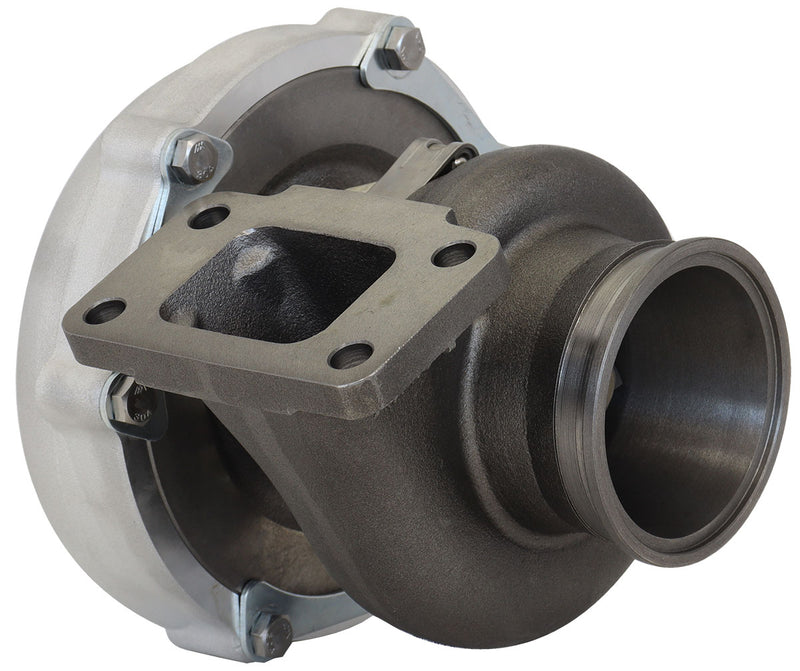

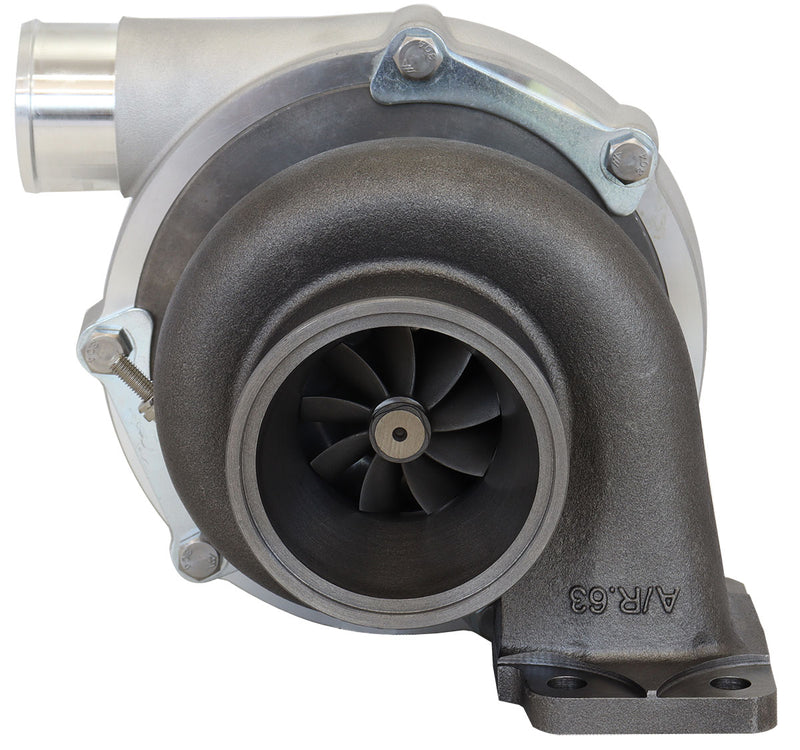

Turbine Specifications Inducer: Â 60mm Exducer: Â 55mm A/R:Â 0.82 Turbine Inlet Flange: Â T3 Turbine Outlet Flange: Â V-Band (AF8080-1000)
Wastegate External wastegate
