Aeroflow
SKU:AF8005-2020

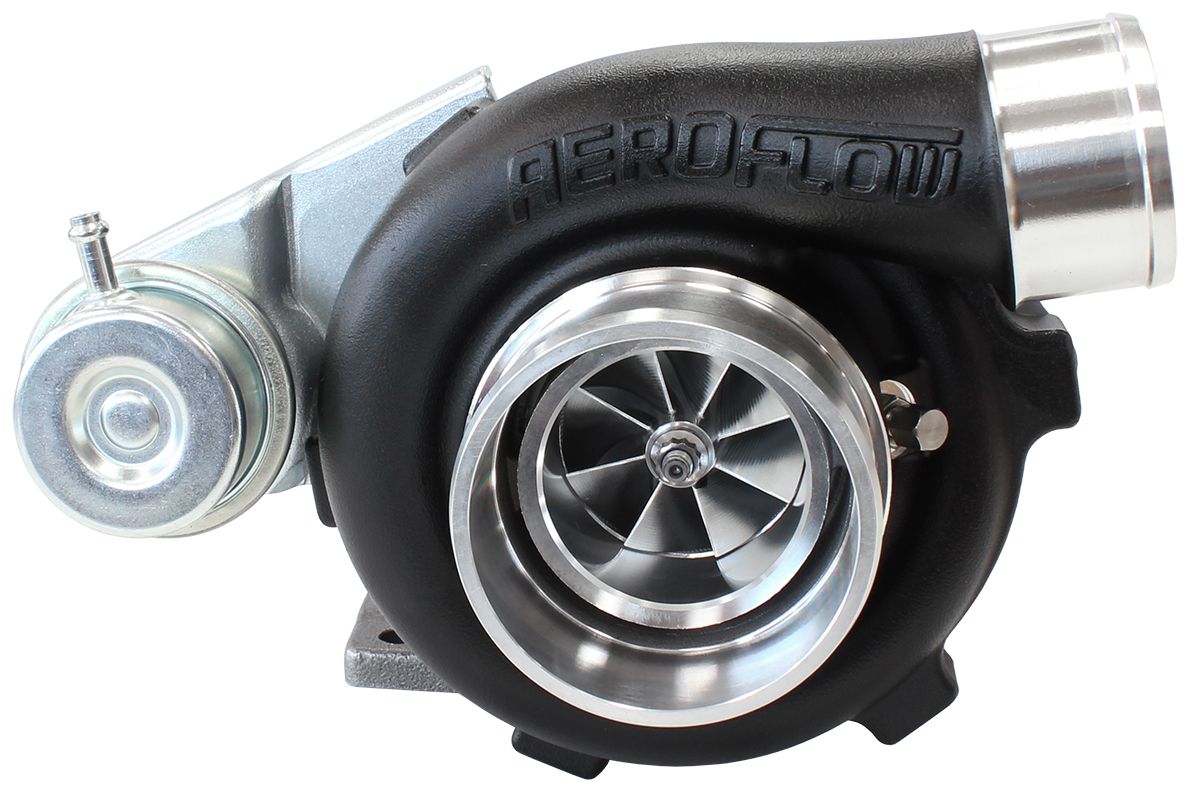

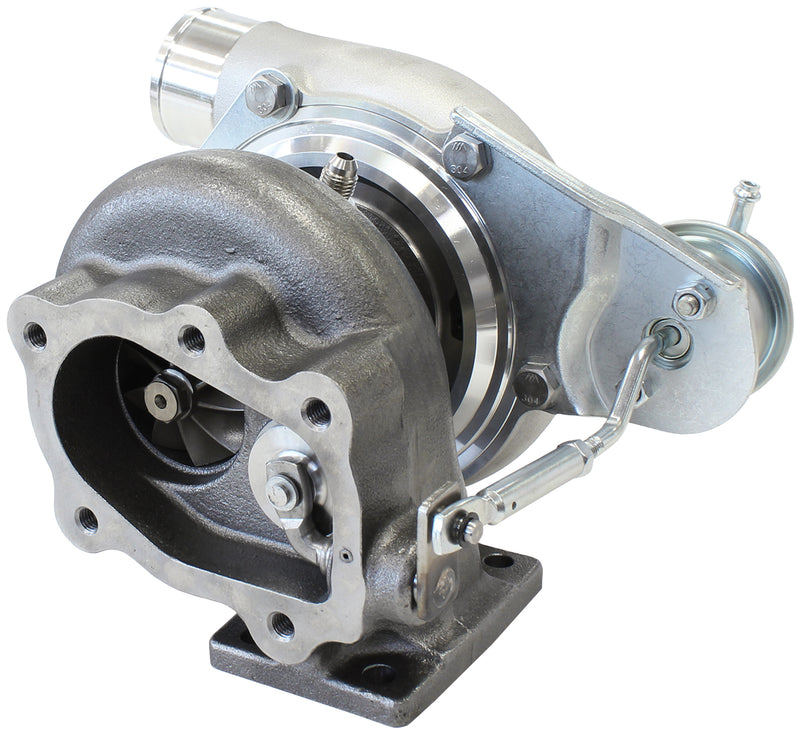

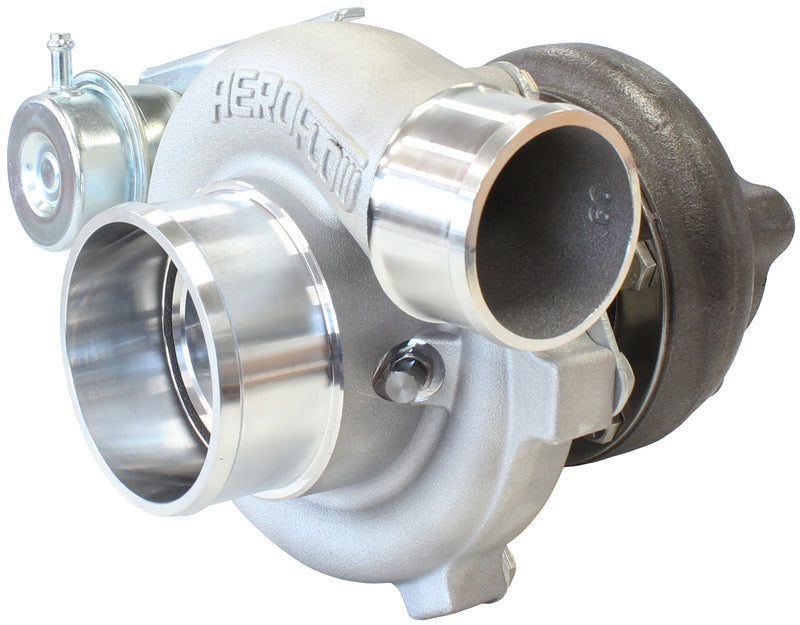

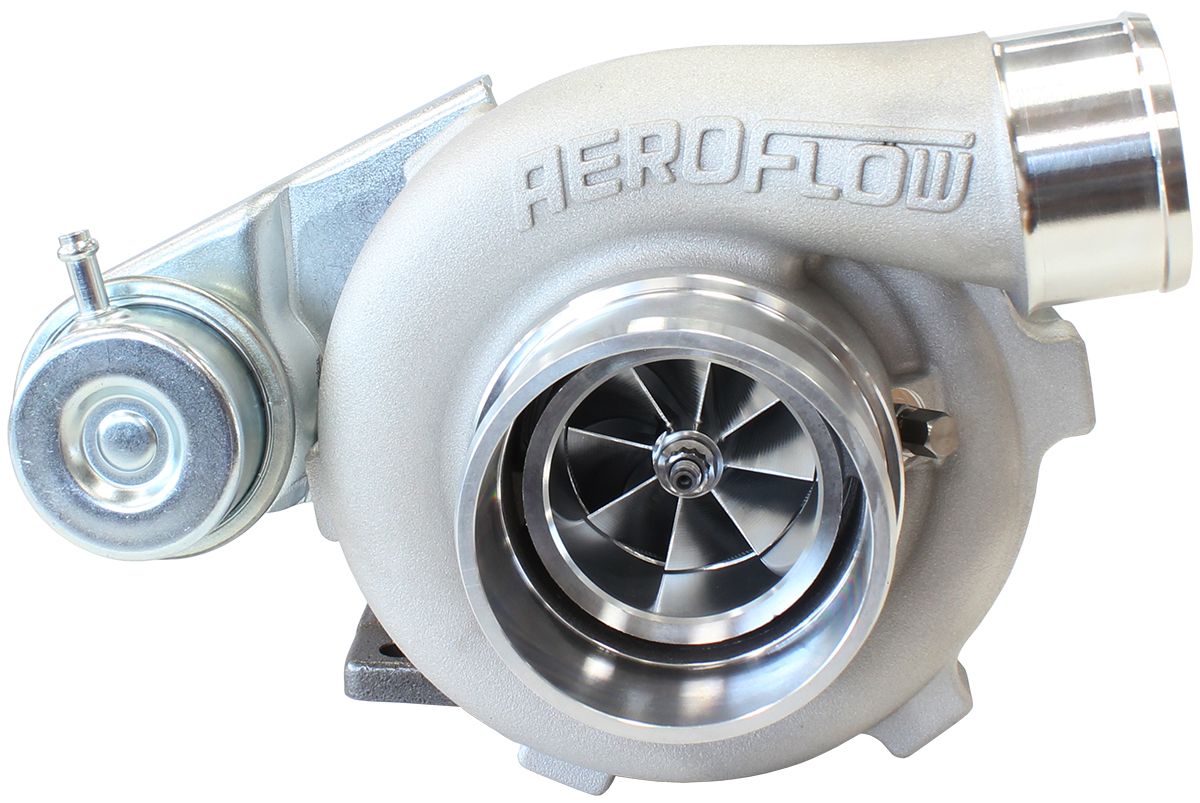

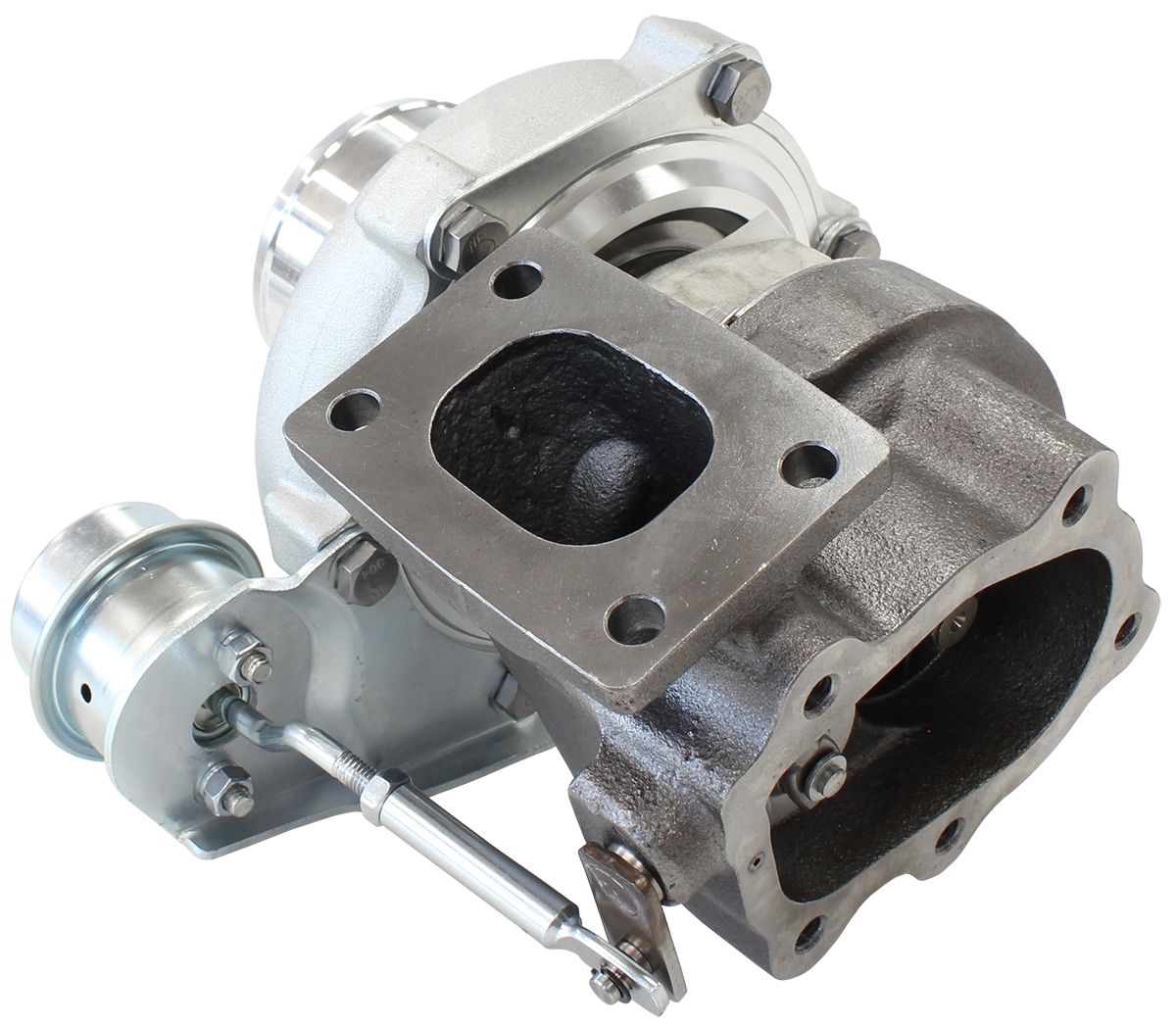

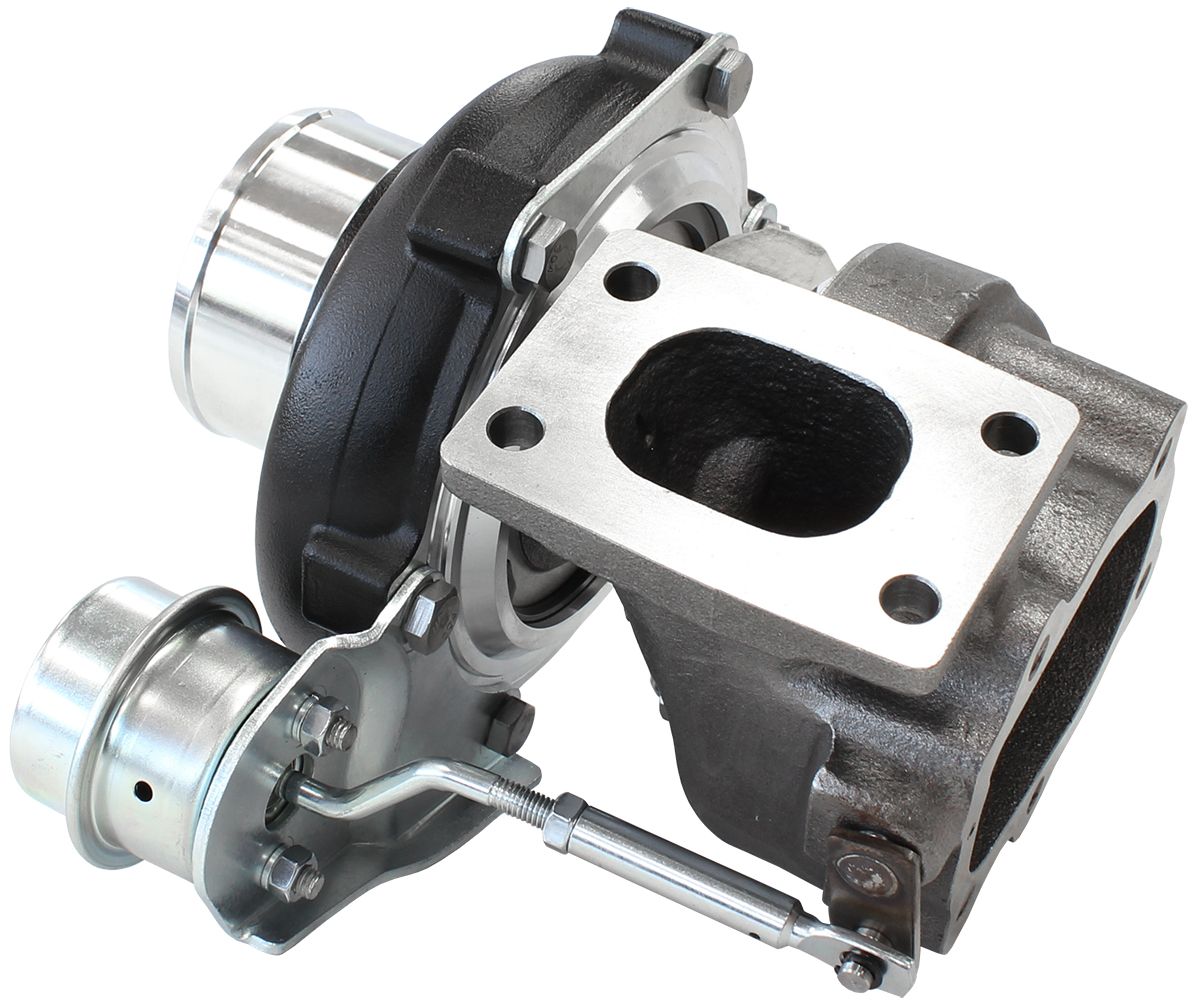

BOOSTED 5047 .64 T28 FLANGE 5 BOLT OUTLET GTX2867
BOOSTED 5047 .64 T28 FLANGE 5 BOLT OUTLET GTX2867
Regular price
$1,209.00NZD
Regular price
$1,300.00NZD
Sale price
$1,209.00NZD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Share
BOOSTED 5047 Turbocharger Specifications
Recommended horsepower rating: Â 275-550HP
Recommended engine displacement: Â 1.4L to 2.5L
- Dual ceramic ball bearing
- Point Milled 7075 billet compressor wheel
- Ported shroud compressor cover
- Speed sensor port included in compressor cover (Speed sensor sold separately, AF8050-1010)
- Inlet flange gasket, turbo drain gasket and -4AN turbo oil feed fitting with restrictor included in turbo kit. (Warranty VOID if not used)
- T25 / T28 single entry turbine inlet flange
- SiMo-nodular cast iron rear housing
- 5-bolt turbine outlet flange
- M14 x 1.5mm coolant port thread
- 7/16"-24 oil feed fitting thread
- 38mm bolt centre turbo drain flange with M8 x 1.25mm thread size
- M8 x 1.25mm 5-bolt turbine outlet flange
- Internal wastegate actuator with 8.7psi spring
Compressor Specifications
Inducer:Â 50mm
Exducer: Â 67mm
Extended Tip: Â 69.64mm
A/R: Â 0.60
Compressor Inlet: Â 3" Slip fit
Compressor Outlet: Â 2" Slip fit
Turbine Specifications
Inducer: Â 53.9mm
Exducer: Â 47mm
A/R: Â 0.64
Turbine Inlet Flange: Â T25 / T28
Turbine Outlet Flange: Â 5-Bolt
Wastegate
Internal wastegate with 8.7psi actuator
Compressor Inlet: Â 3" Slip fit
Compressor Outlet: Â 2" Slip fit
Turbine Specifications
Inducer: Â 53.9mm
Exducer: Â 47mm
A/R: Â 0.64
Turbine Inlet Flange: Â T25 / T28
Turbine Outlet Flange: Â 5-Bolt
Wastegate
Internal wastegate with 8.7psi actuator
Recommended horsepower rating: Â 275-550HP
Recommended engine displacement: Â 1.4L to 2.5L
- Dual ceramic ball bearing
- Point Milled 7075 billet compressor wheel
- Ported shroud compressor cover
- Speed sensor port included in compressor cover (Speed sensor sold separately, AF8050-1010)
- Inlet flange gasket, turbo drain gasket and -4AN turbo oil feed fitting with restrictor included in turbo kit. (Warranty VOID if not used)
- T25 / T28 single entry turbine inlet flange
- SiMo-nodular cast iron rear housing
- 5-bolt turbine outlet flange
- M14 x 1.5mm coolant port thread
- 7/16"-24 oil feed fitting thread
- 38mm bolt centre turbo drain flange with M8 x 1.25mm thread size
- M8 x 1.25mm 5-bolt turbine outlet flange
- Internal wastegate actuator with 8.7psi spring
Compressor Specifications
Inducer:Â 50mm
Exducer: Â 67mm
Extended Tip: Â 69.64mm
A/R: Â 0.60
Compressor Inlet: Â 3" Slip fit
Compressor Outlet: Â 2" Slip fit
Turbine Specifications
Inducer: Â 53.9mm
Exducer: Â 47mm
A/R: Â 0.64
Turbine Inlet Flange: Â T25 / T28
Turbine Outlet Flange: Â 5-Bolt
Wastegate
Internal wastegate with 8.7psi actuator
Compressor Inlet: Â 3" Slip fit
Compressor Outlet: Â 2" Slip fit
Turbine Specifications
Inducer: Â 53.9mm
Exducer: Â 47mm
A/R: Â 0.64
Turbine Inlet Flange: Â T25 / T28
Turbine Outlet Flange: Â 5-Bolt
Wastegate
Internal wastegate with 8.7psi actuator
Note: We strive to maintain a wide range of products in stock. However, some items may be ordered on demand, resulting in a lead time. If your order is urgent, please contact Speedspec in advance. sales@speedspec.co.nz
