Aeroflow
SKU:AF8005-2010

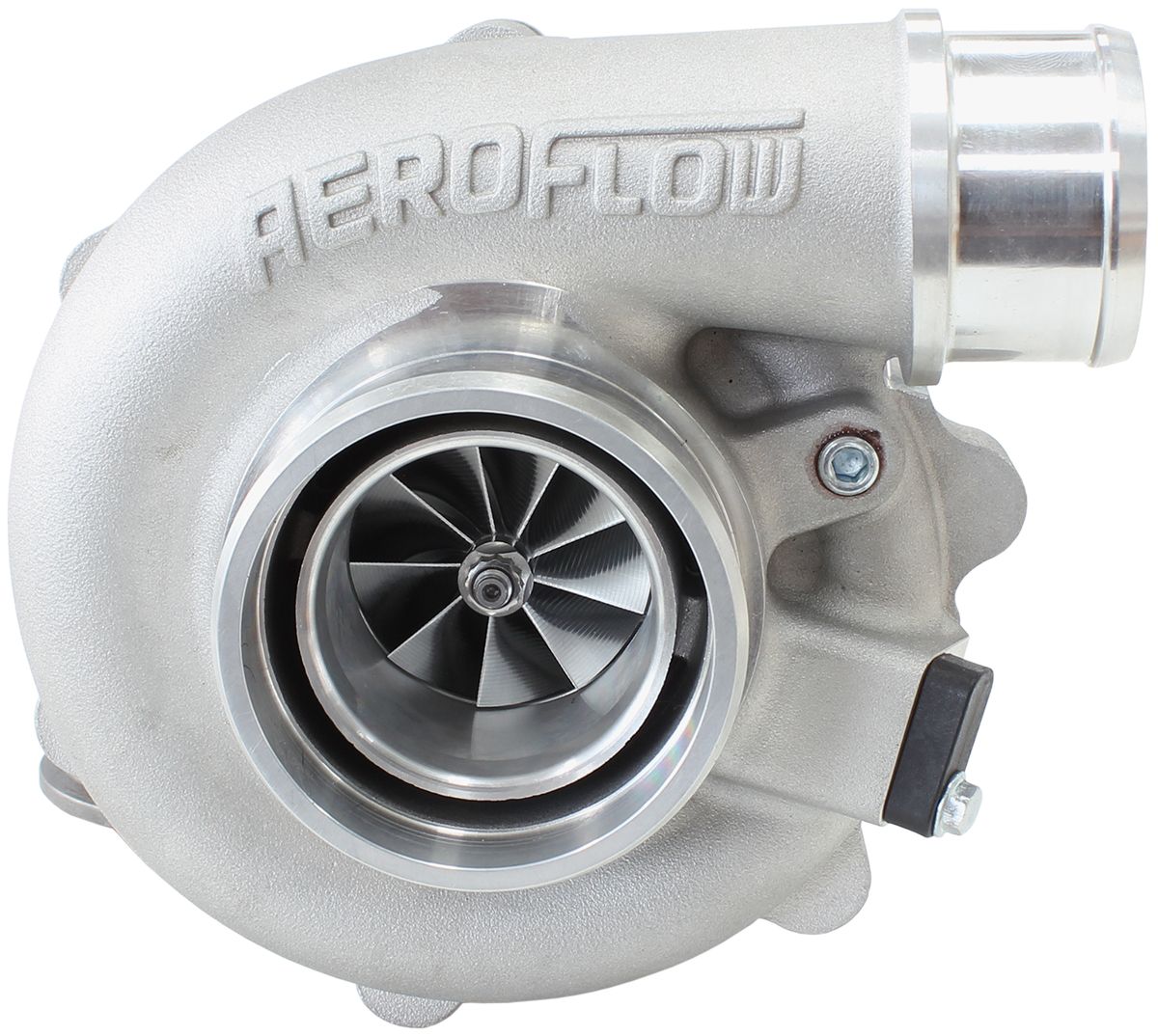

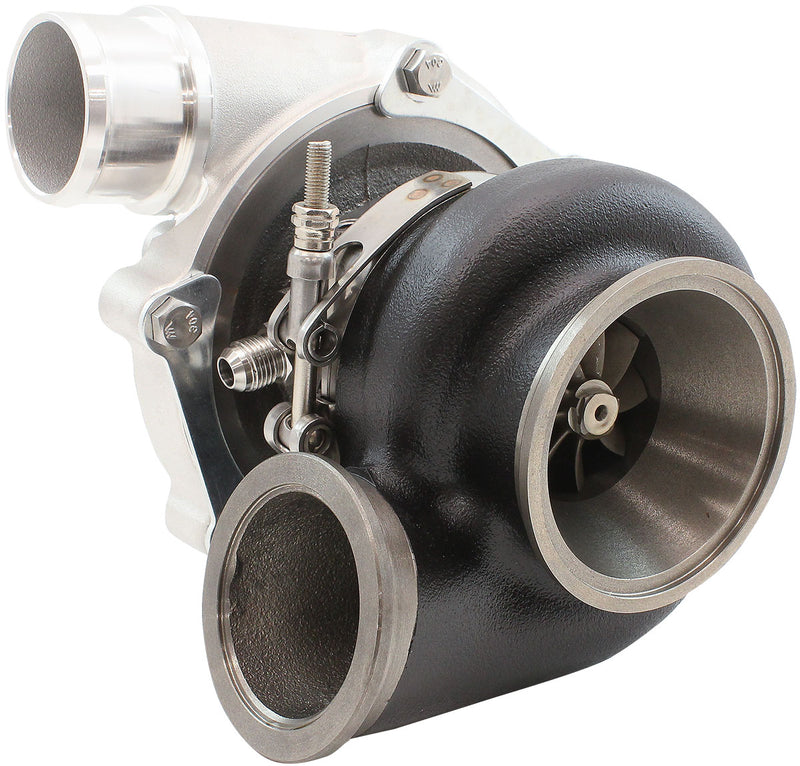

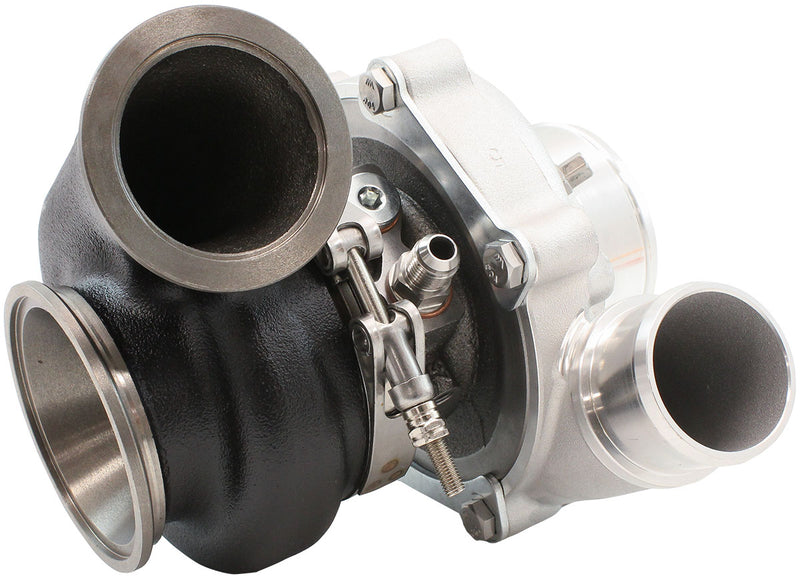

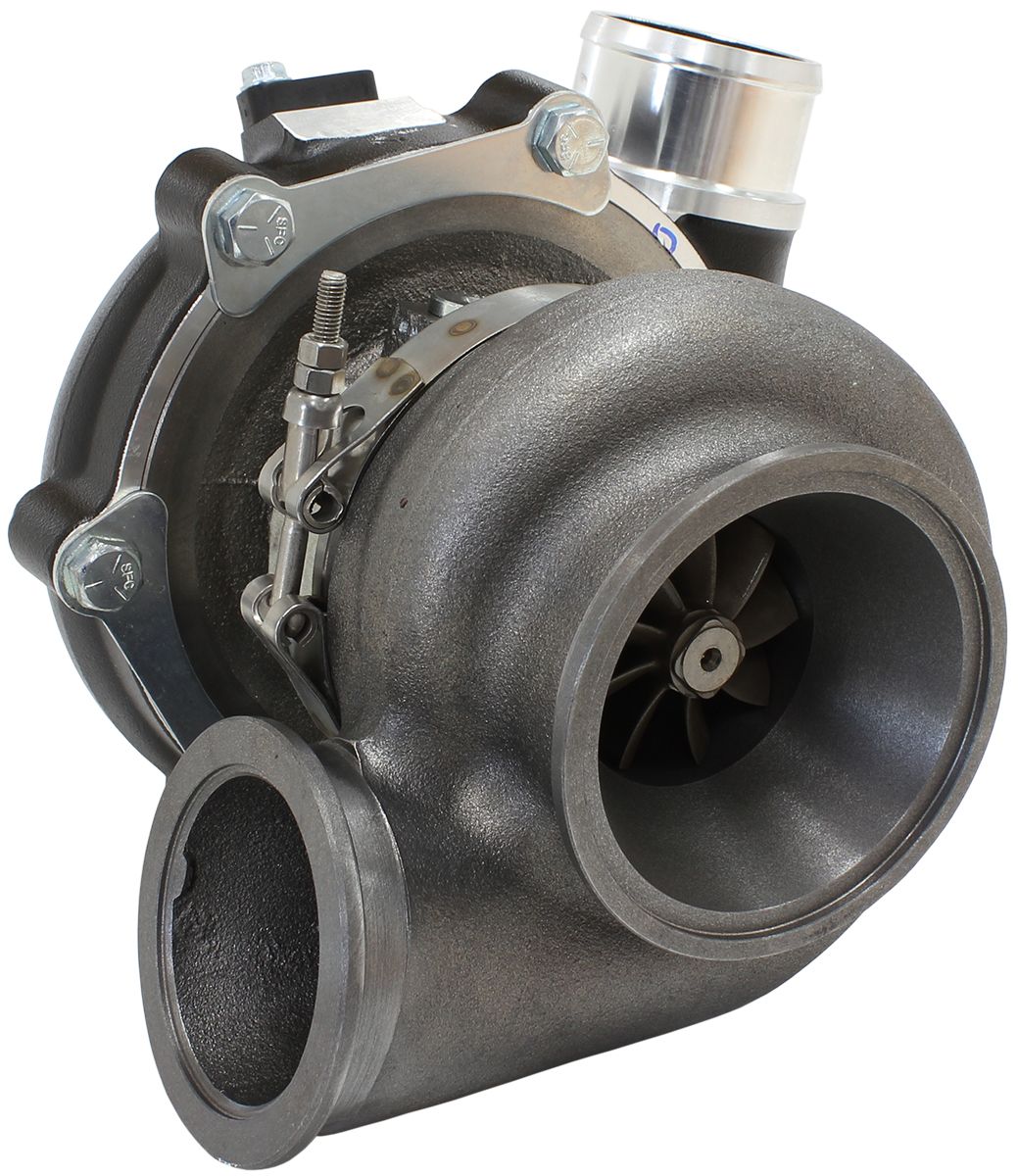

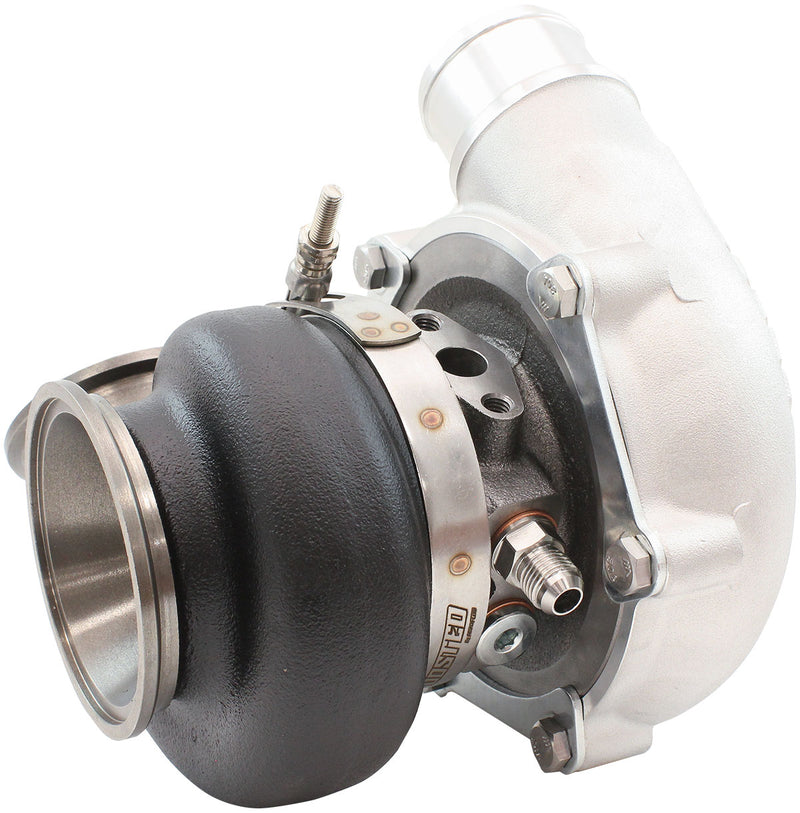

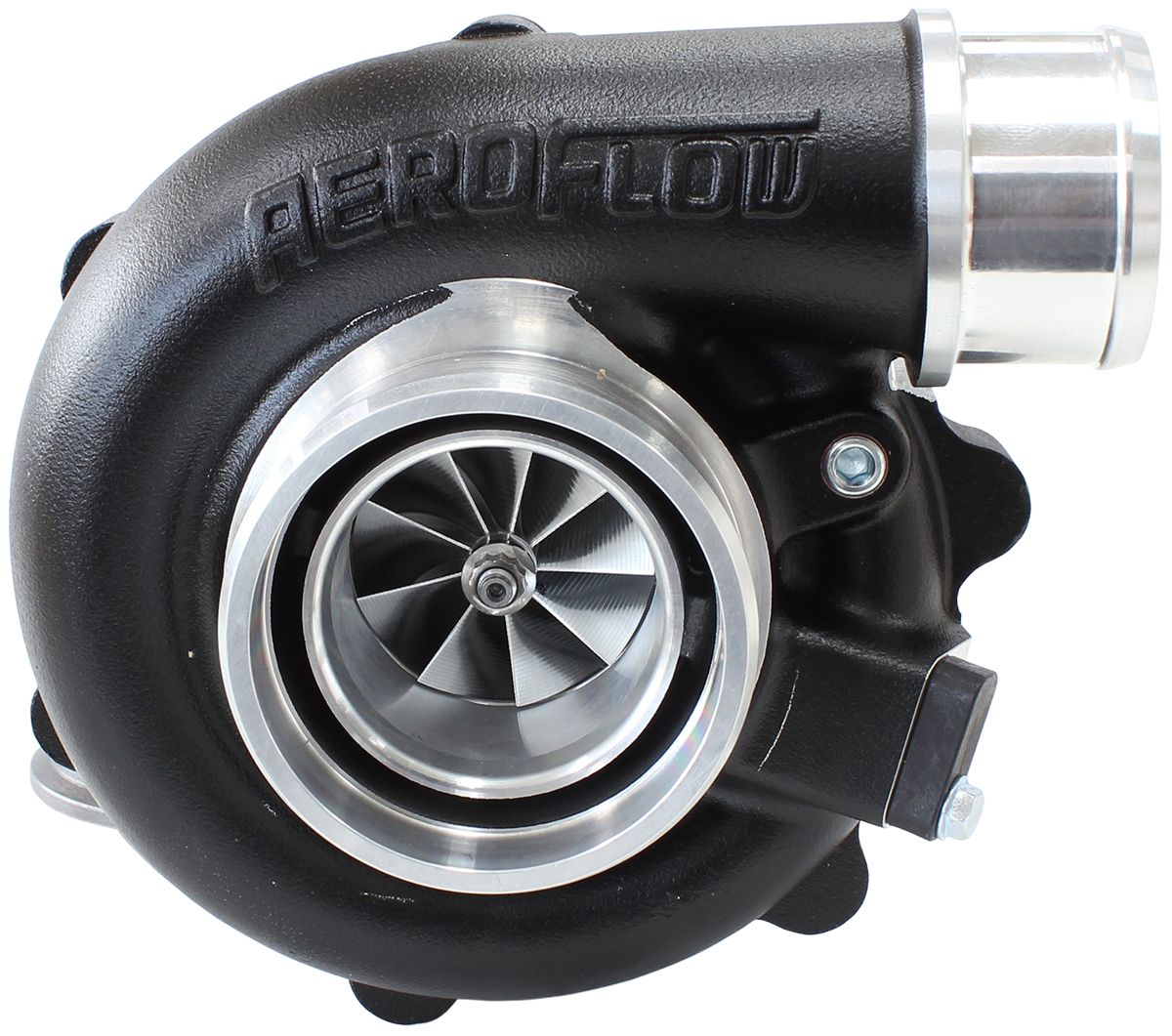

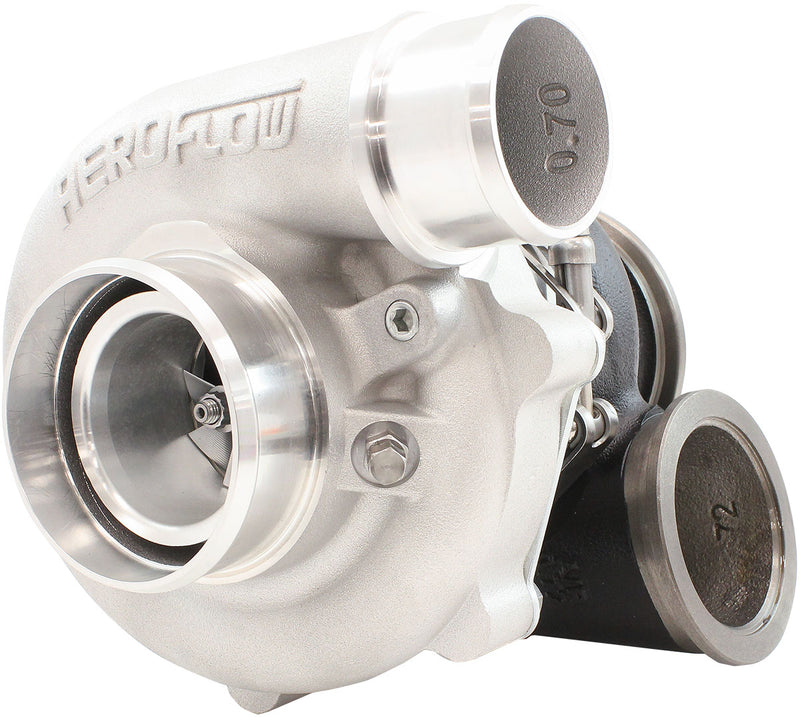

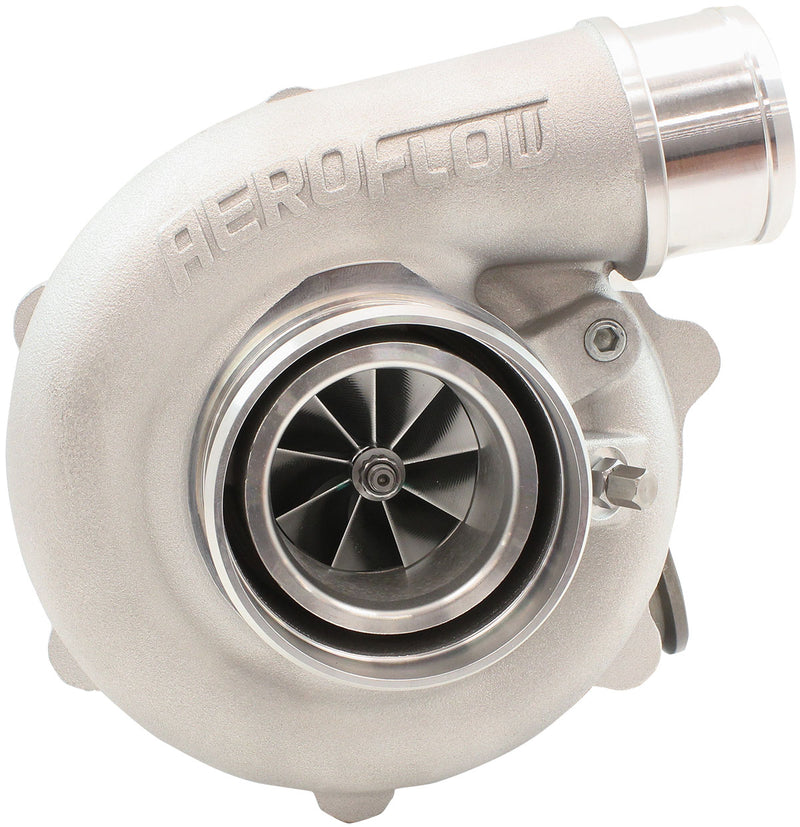

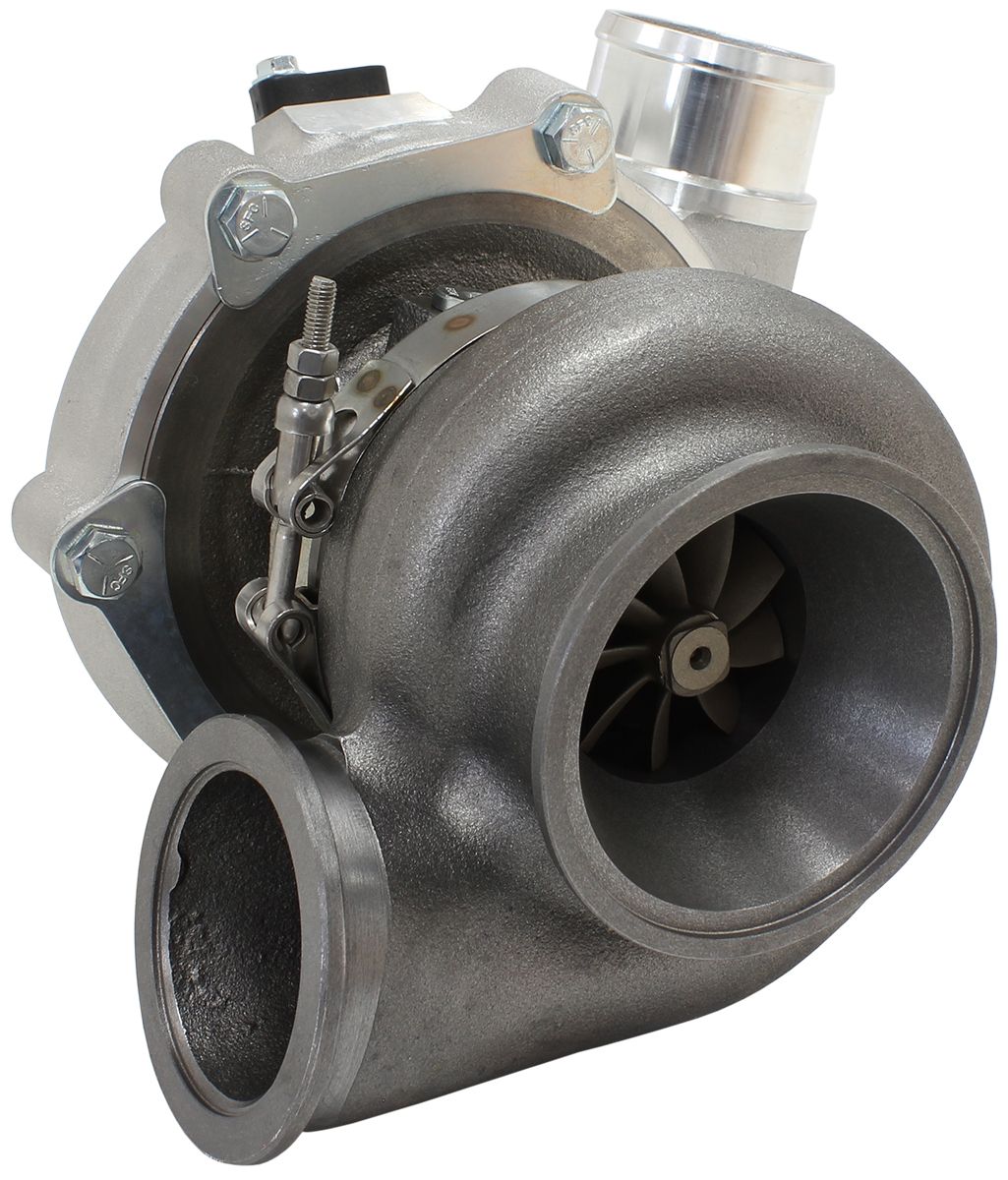

BOOSTED 4849 .72 V BAND FLANGE V BAND OUTLET G25-550
BOOSTED 4849 .72 V BAND FLANGE V BAND OUTLET G25-550
Regular price
$1,395.00NZD
Regular price
$1,500.00NZD
Sale price
$1,395.00NZD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Share
BOOSTED 4849 Turbocharger Specifications
Recommended horsepower rating: Â 300-550HP
Recommended engine displacement: Â 1.4L to 3.0L
- V-Band turbine inlet and outlet
- Dual ceramic ball bearing
- Point Milled 7075 billet compressor wheel
- Ported shroud compressor housing cover
- Speed sensor port included in compressor cover (Speed sensor sold separately, AF8050-1010)
- 1/8" NPT boost reference port
- SiMo-nodular cast iron rear housing
- 4 x M14 x 1.5mm coolant fitting ports (Must install water lines on opposite sides of the core)
- 7/16"-24 oil feed fitting with in-built restrictor (Warranty VOID if not used)
- 38mm bolt centre turbo drain flange with M8 x 1.25mm thread size
- External wastegate
Compressor Specifications
Inducer: Â 48mm
Exducer: Â 62mm
Extended Tip: Â 62mm
A/R: Â 0.70
Compressor Inlet: Â 3" Slip fit
Compressor Outlet: Â 2" Slip fit
Turbine Specifications
Inducer: Â 54mm
Exducer: Â 49mm
A/R: Â 0.72
Turbine Inlet Flange: Â V-Band (AF8080-1016)
Turbine Outlet Flange: Â V-Band (AF8080-1000)
Wastegate
External wastegate
Recommended horsepower rating: Â 300-550HP
Recommended engine displacement: Â 1.4L to 3.0L
- V-Band turbine inlet and outlet
- Dual ceramic ball bearing
- Point Milled 7075 billet compressor wheel
- Ported shroud compressor housing cover
- Speed sensor port included in compressor cover (Speed sensor sold separately, AF8050-1010)
- 1/8" NPT boost reference port
- SiMo-nodular cast iron rear housing
- 4 x M14 x 1.5mm coolant fitting ports (Must install water lines on opposite sides of the core)
- 7/16"-24 oil feed fitting with in-built restrictor (Warranty VOID if not used)
- 38mm bolt centre turbo drain flange with M8 x 1.25mm thread size
- External wastegate
Compressor Specifications
Inducer: Â 48mm
Exducer: Â 62mm
Extended Tip: Â 62mm
A/R: Â 0.70
Compressor Inlet: Â 3" Slip fit
Compressor Outlet: Â 2" Slip fit
Turbine Specifications
Inducer: Â 54mm
Exducer: Â 49mm
A/R: Â 0.72
Turbine Inlet Flange: Â V-Band (AF8080-1016)
Turbine Outlet Flange: Â V-Band (AF8080-1000)
Wastegate
External wastegate
Note: We strive to maintain a wide range of products in stock. However, some items may be ordered on demand, resulting in a lead time. If your order is urgent, please contact Speedspec in advance. sales@speedspec.co.nz
