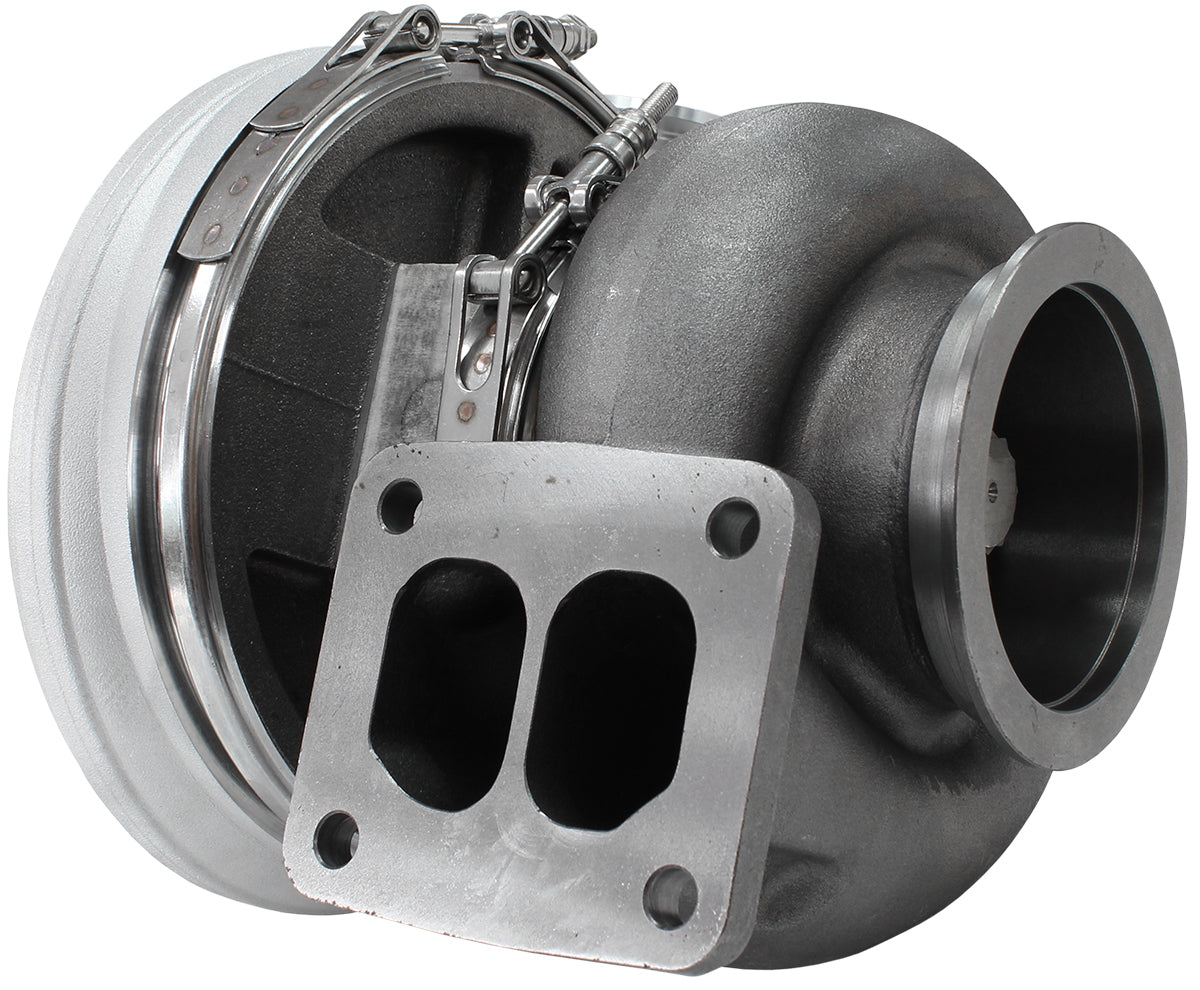

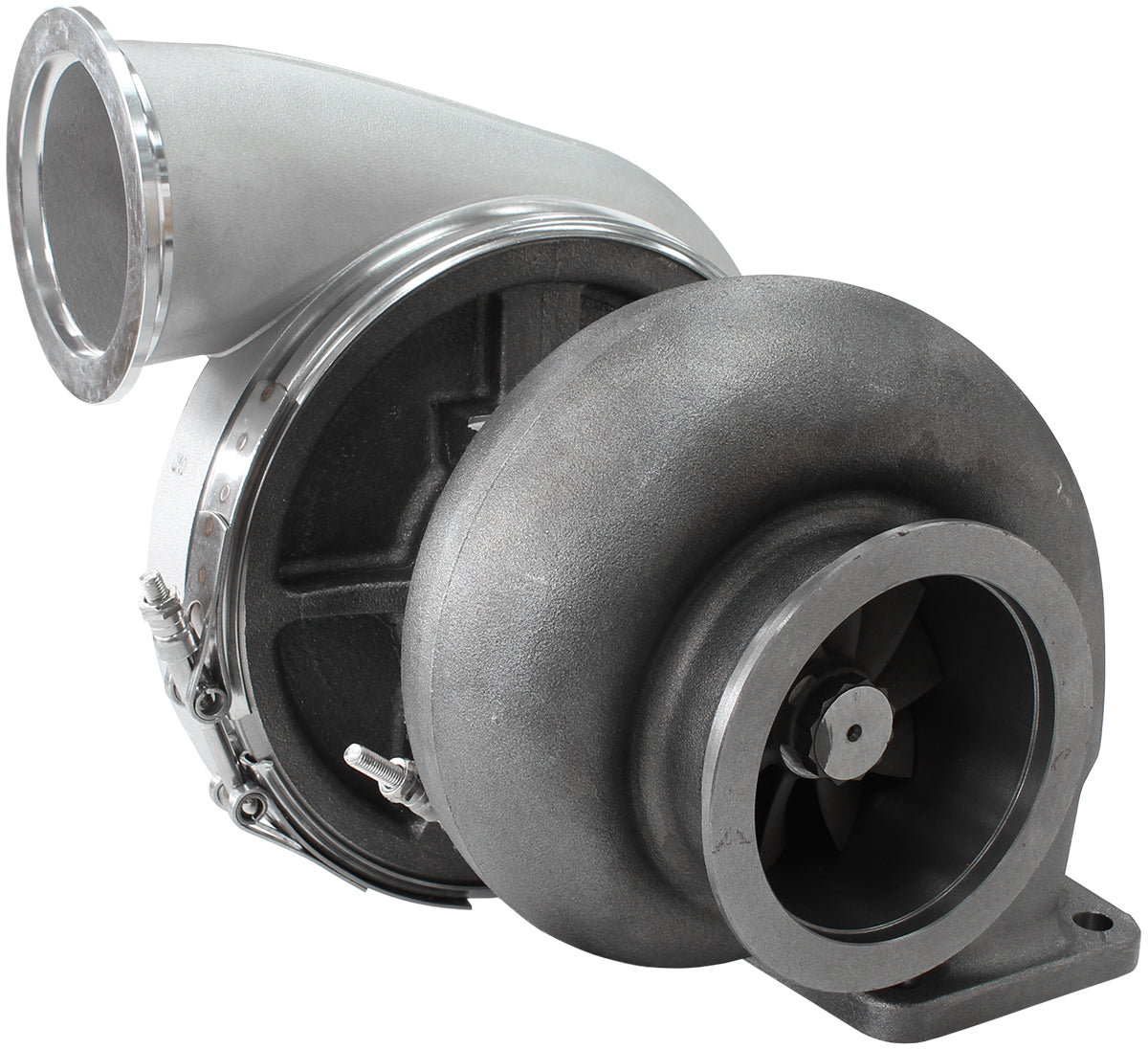

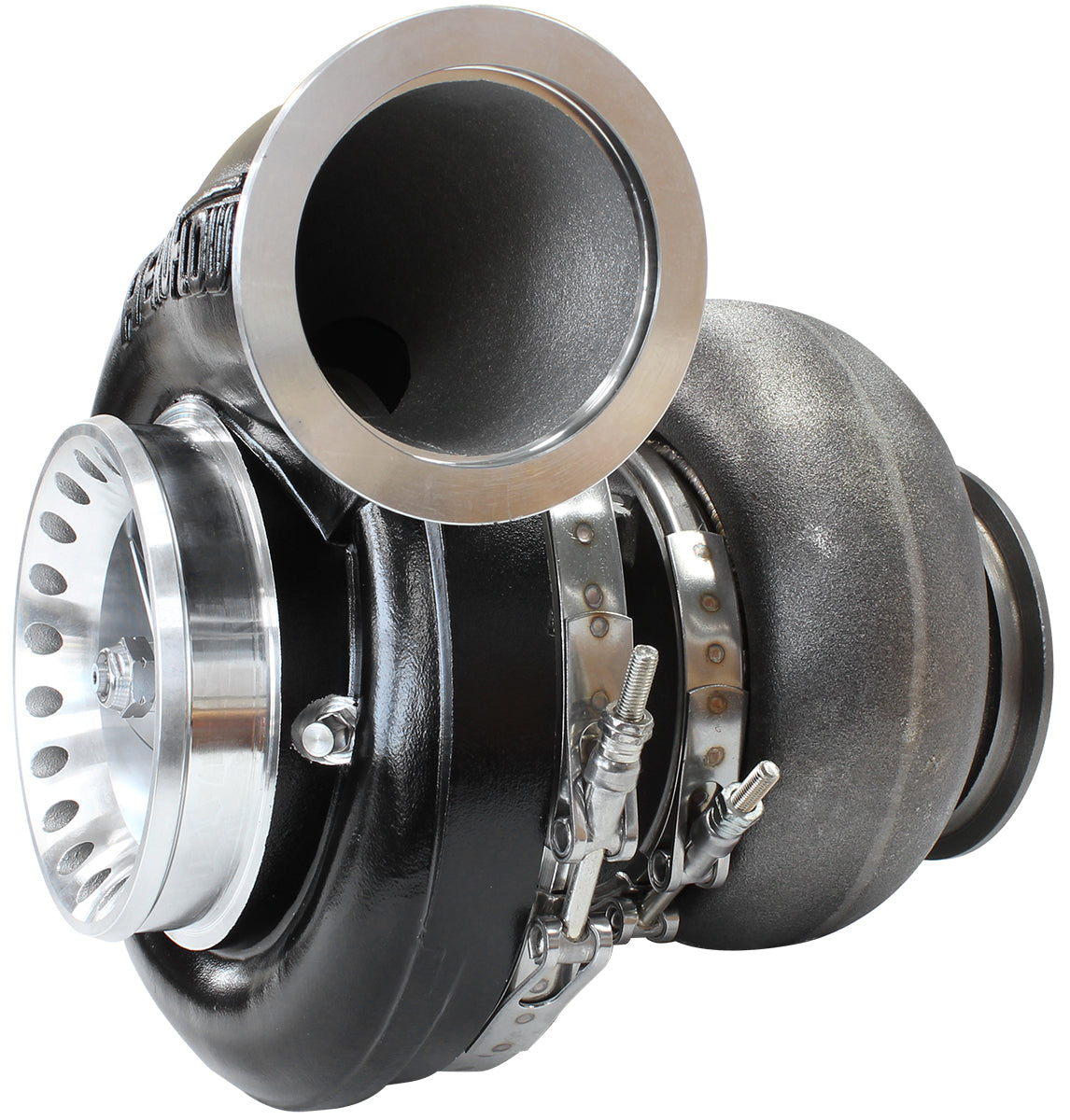

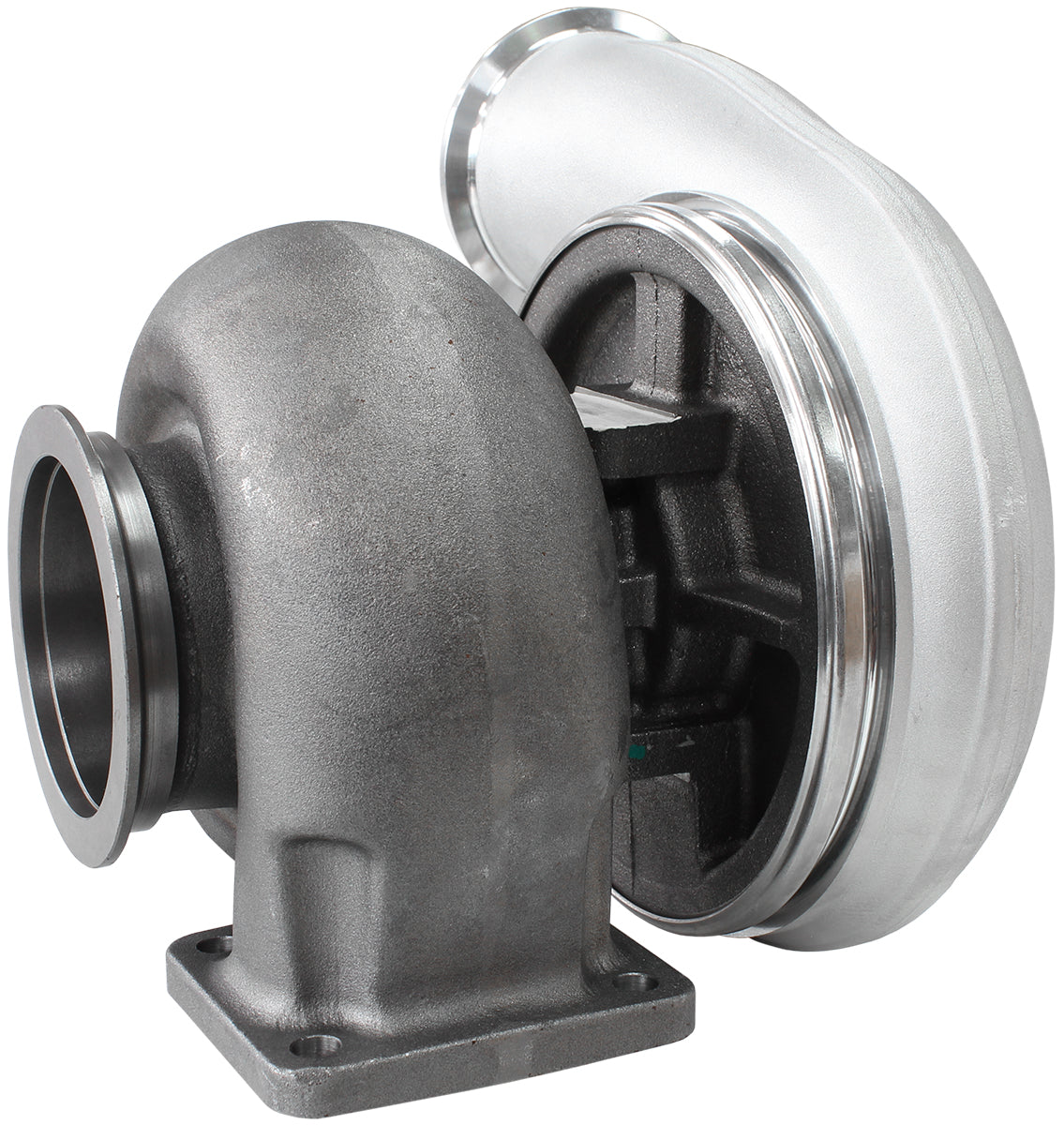

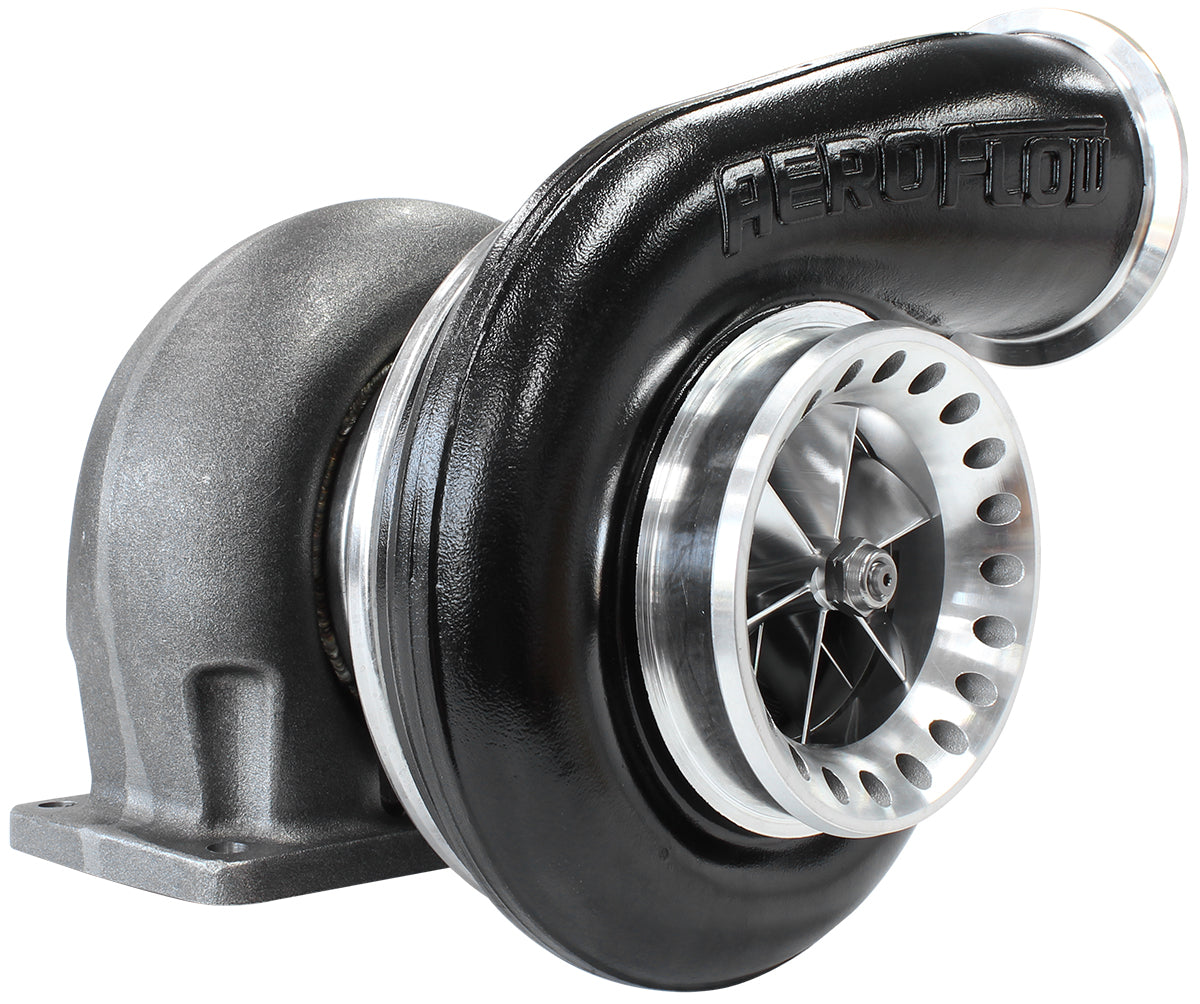

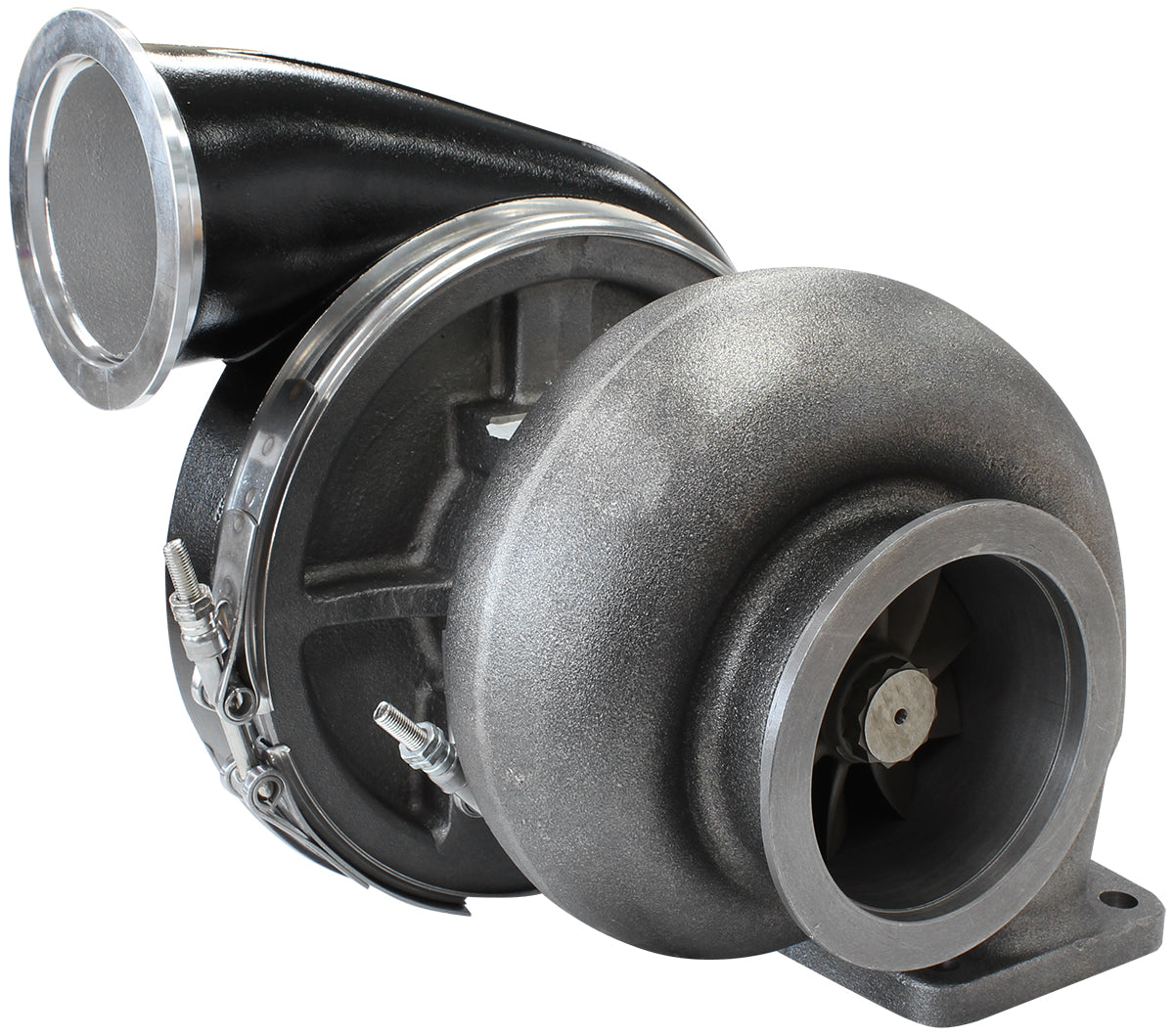

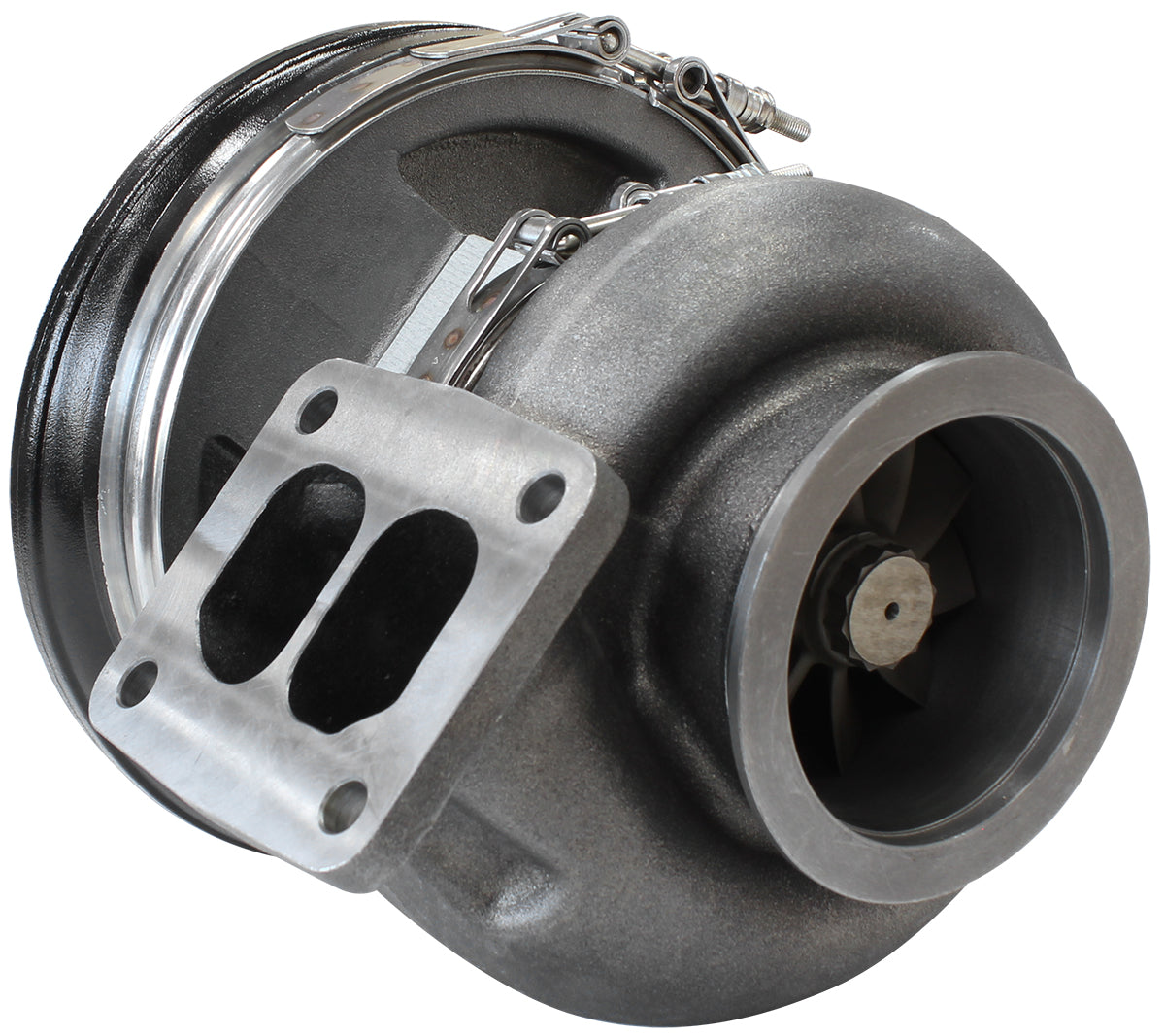

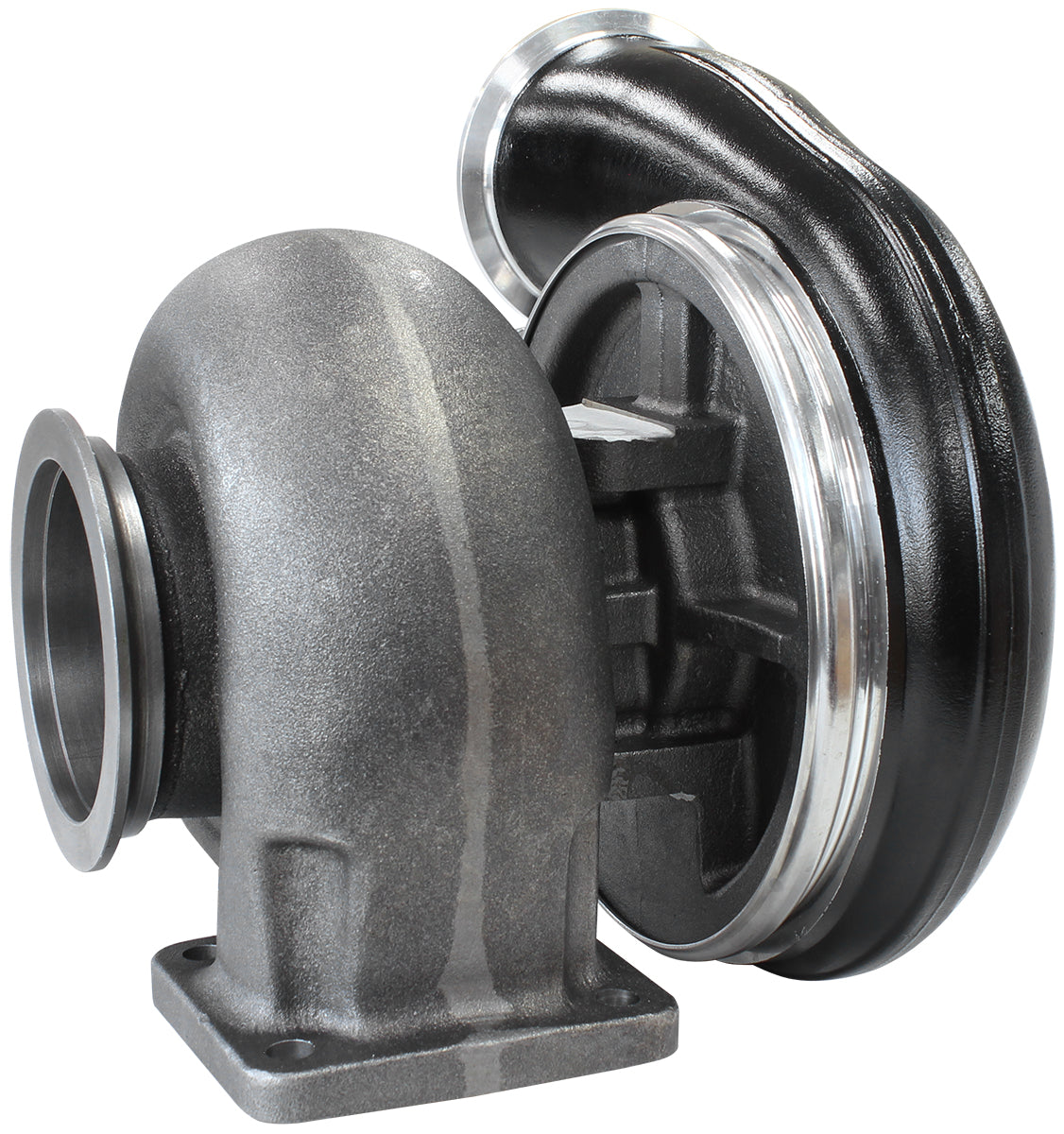

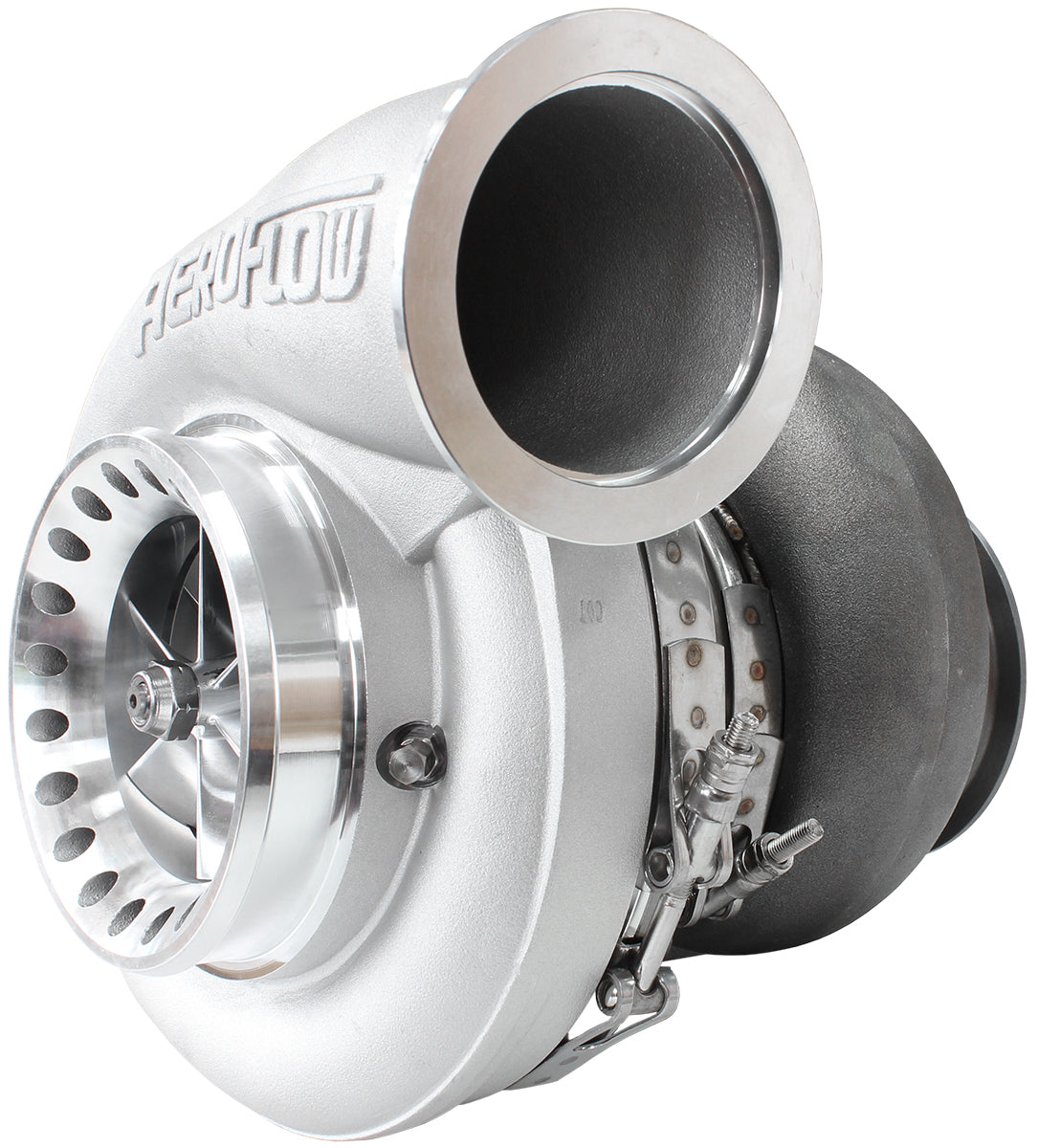

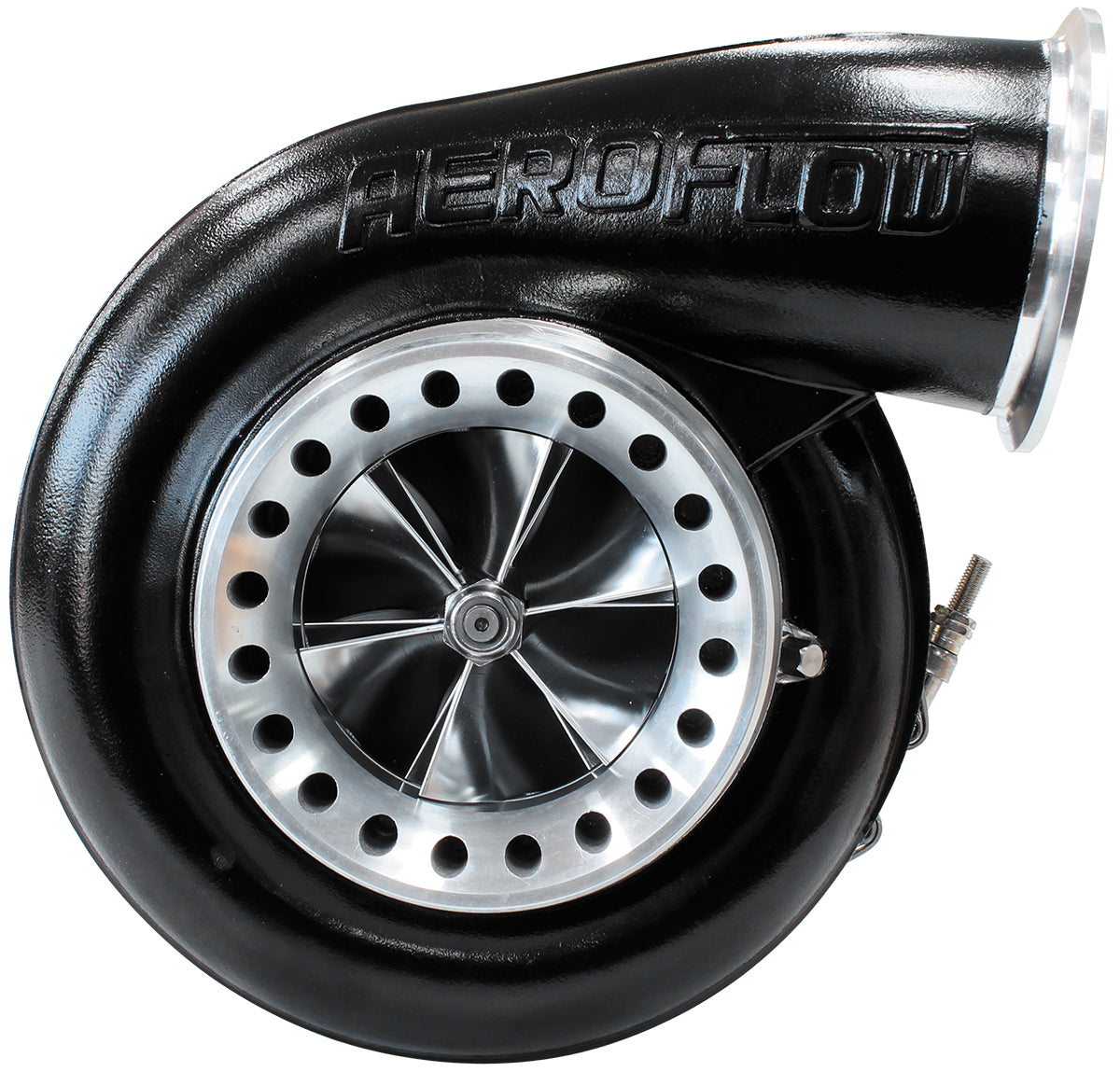

BOOSTED 8888 1.25 T4 TWIN ENTRY V-BAND OUTLET BW S475

BOOSTED 8888 T4 Turbocharger Specifications

Recommended horsepower rating:  1200-1600HP
Recommended engine displacement:  3.0L to 7.0L

- 360° journal bearing
- 7075 billet 6 + 6 compressor wheel
- Ported shroud compressor cover
- This is an oil cooled turbocharger
- Speed sensor port included in compressor cover (Speed sensor sold separately, AF8050-1010)
- External wastegate sold separately
- Inlet flange gasket and turbo drain gasket included in turbo kit
- Must use a -6AN oil feel line to maintain core temperature (Warranty VOID if not used)
- T4 twin entry turbine inlet flange
- SiMo-nodular cast iron rear housing
- V-Band turbine outlet flange
- V-Band compressor outlet flange
- 1/4" NPT oil feed fitting (sold separately)
- 50.80mm bolt centre turbo drain flange with M8 x 1.25mm thread size

Compressor Specifications
Inducer:  88mm
Exducer:  117.36mm
Extended Tip:  124.4mm
Compressor Inlet:  5" slip fit
Compressor Outlet: V-Band (AF8080-1006)

Turbine Specifications
Inducer:  95.71mm
Exducer:  88mm
A/R:  1.25
Turbine Inlet Flange:  T4
Turbine Outlet Flange:  V-Band (AF8080-1001)

Wastegate
External wastegate
