Recommended horsepower rating:Â 1100-1500HP Recommended engine displacement:Â 3.0L to 7.0L

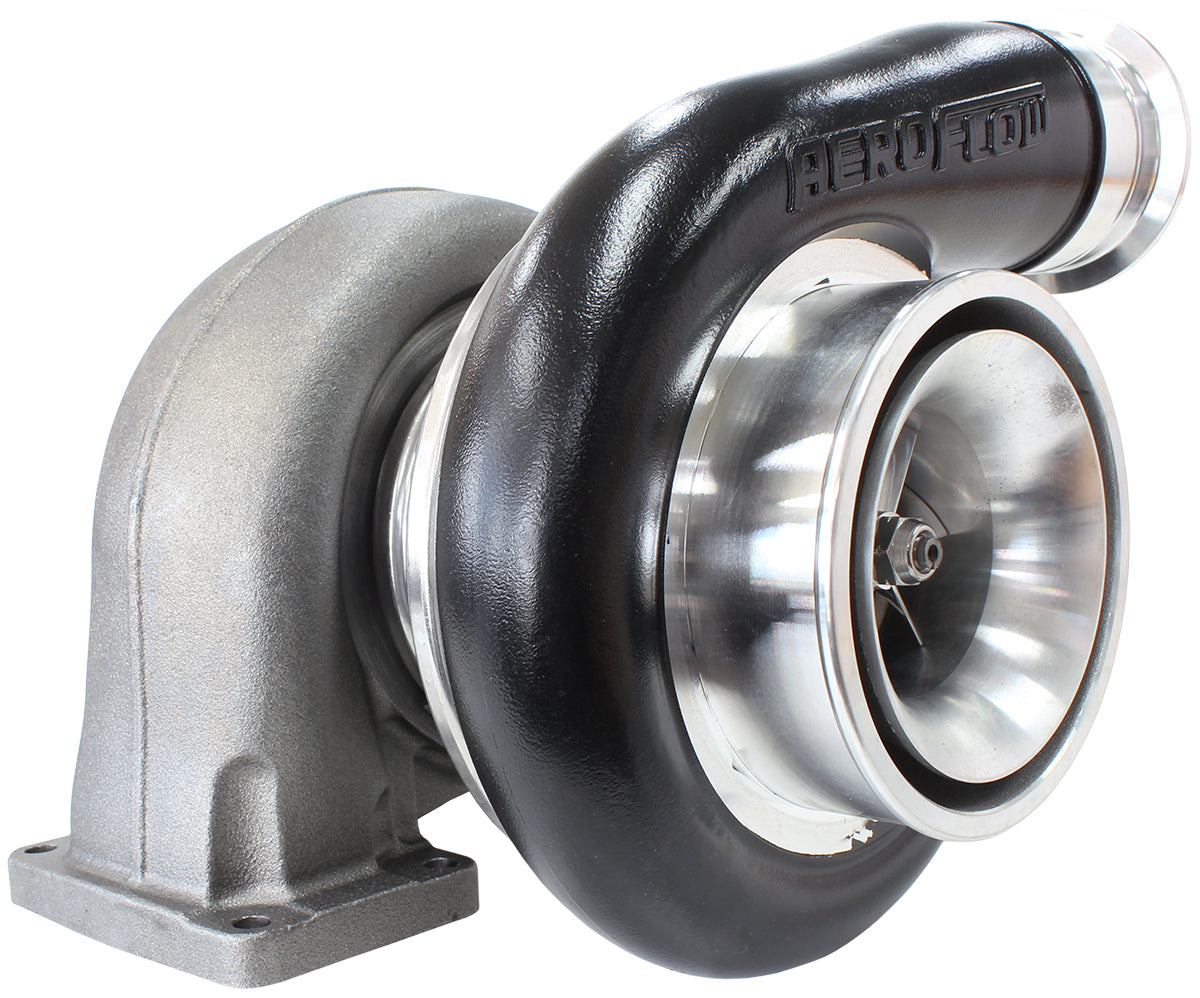

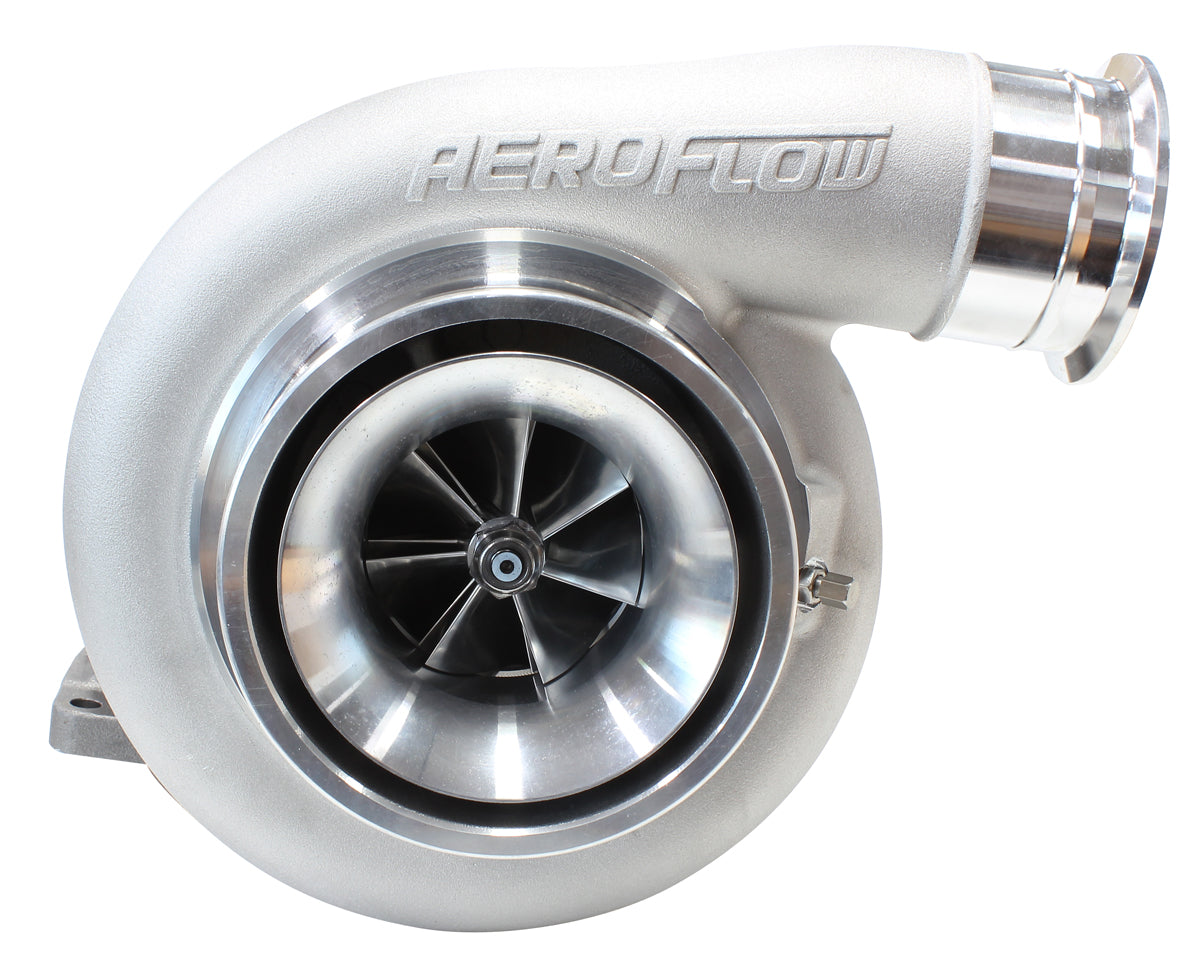

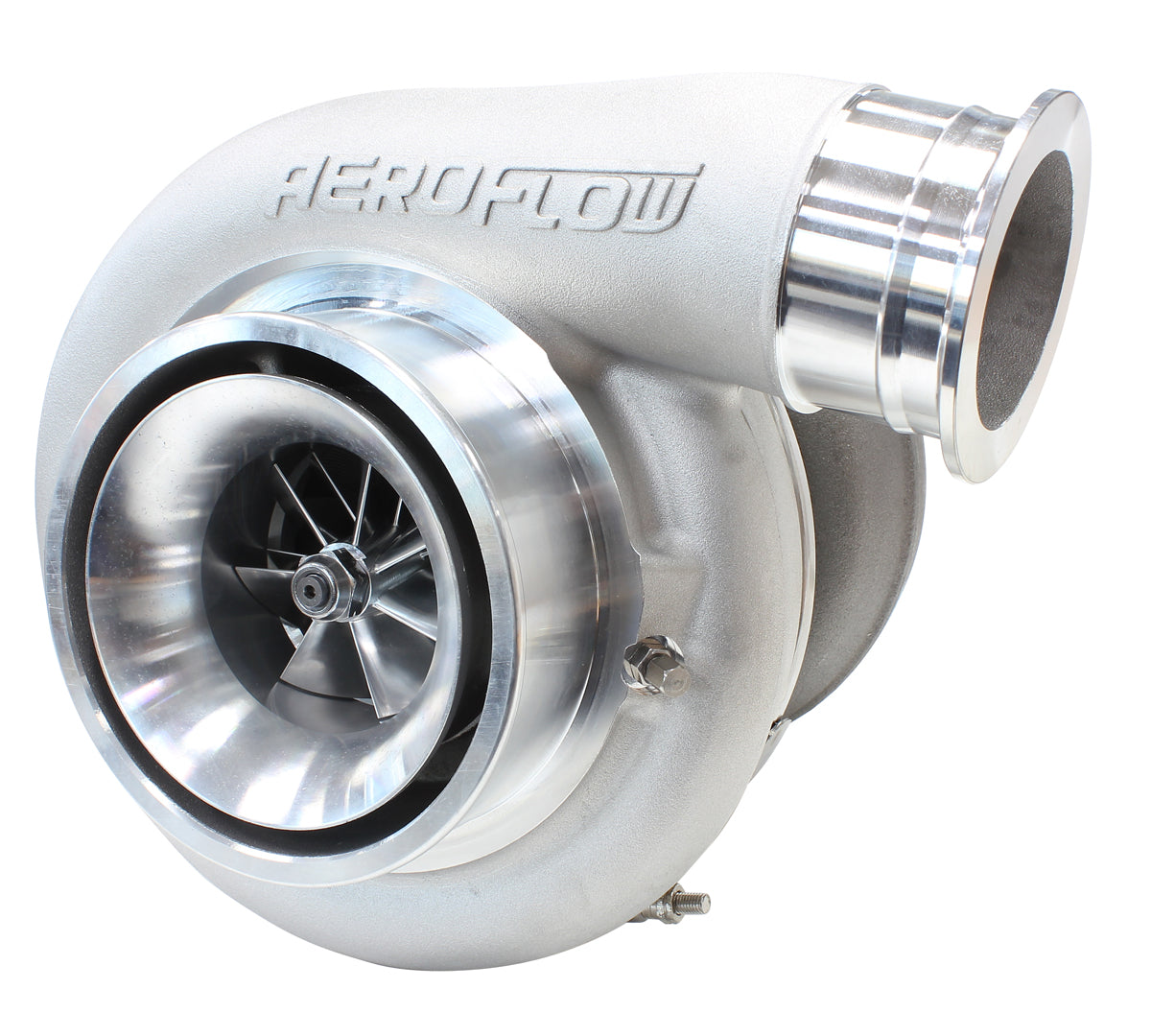

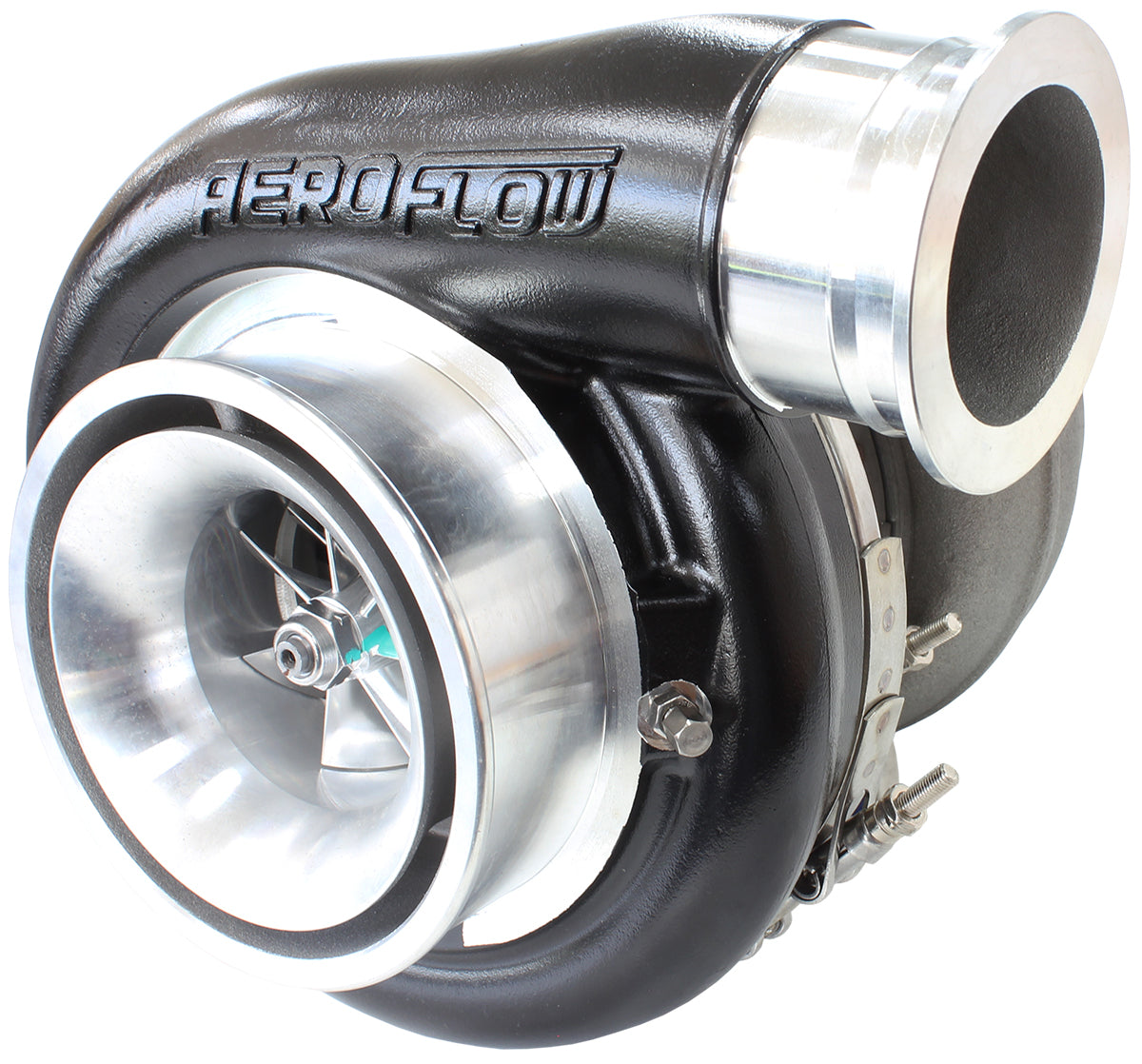

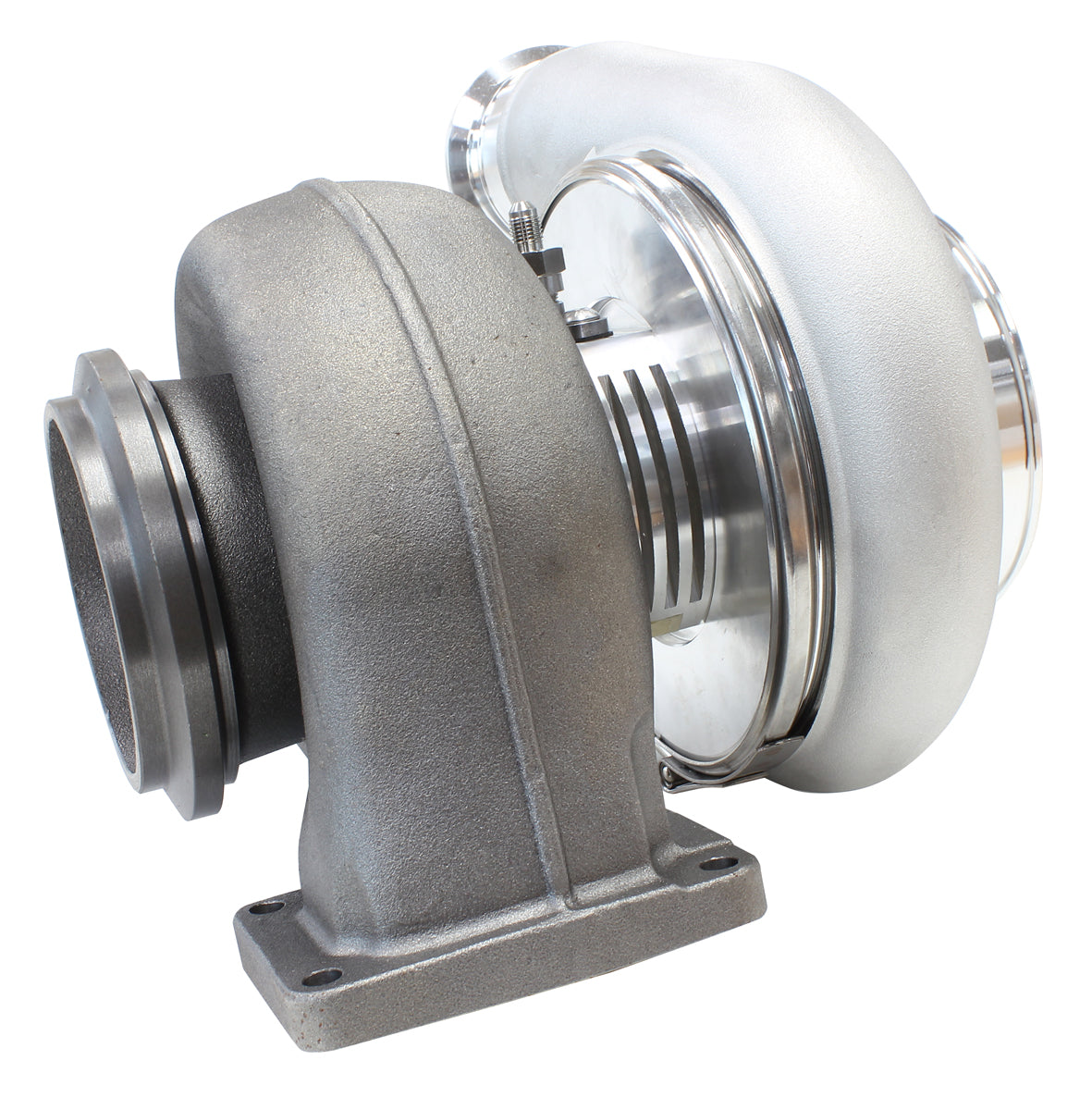

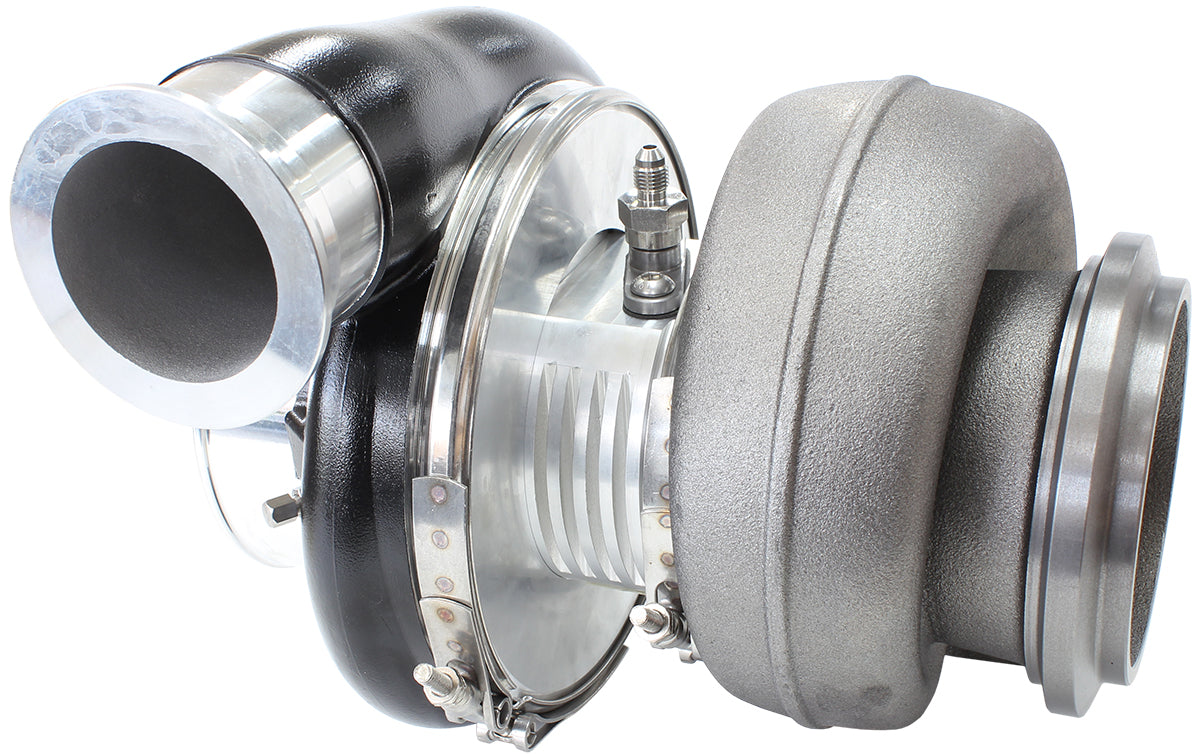

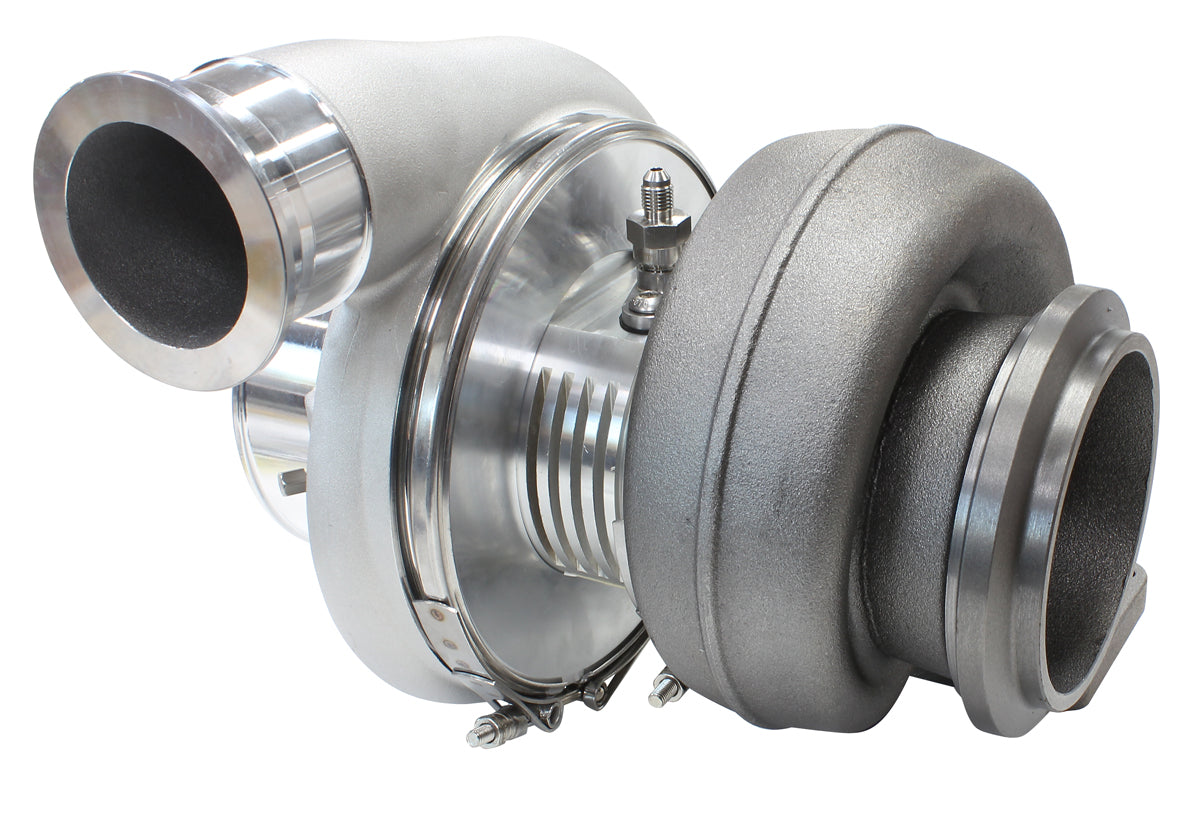

- Dual ceramic ball bearing - 7075 billet 7 + 7 compressor wheel - Ported shroud compressor cover - Billet CNC core - This is an oil cooled turbocharger - Speed sensor port included in compressor cover (Speed sensor sold separately, AF8050-1010) - External wastegate sold separately - Inlet flange gasket, turbo drain gasket and -4AN turbo oil feed fitting with restrictor included in turbo kit. (Warranty VOID if not used) - T6 twin entry turbine inlet flange - SiMo-nodular cast iron rear housing - V-Band turbine outlet flange - V-Band compressor outlet flange or cut off v-band to allow a 3" slip on fit - 1/4" NPT oil feed fitting with in-built restrictor attached to a 38mm 2-bolt oil feed plate with M8 x 1.25mm thread size - 50.80mm bolt centre turbo drain flange with M8 x 1.25mm thread size

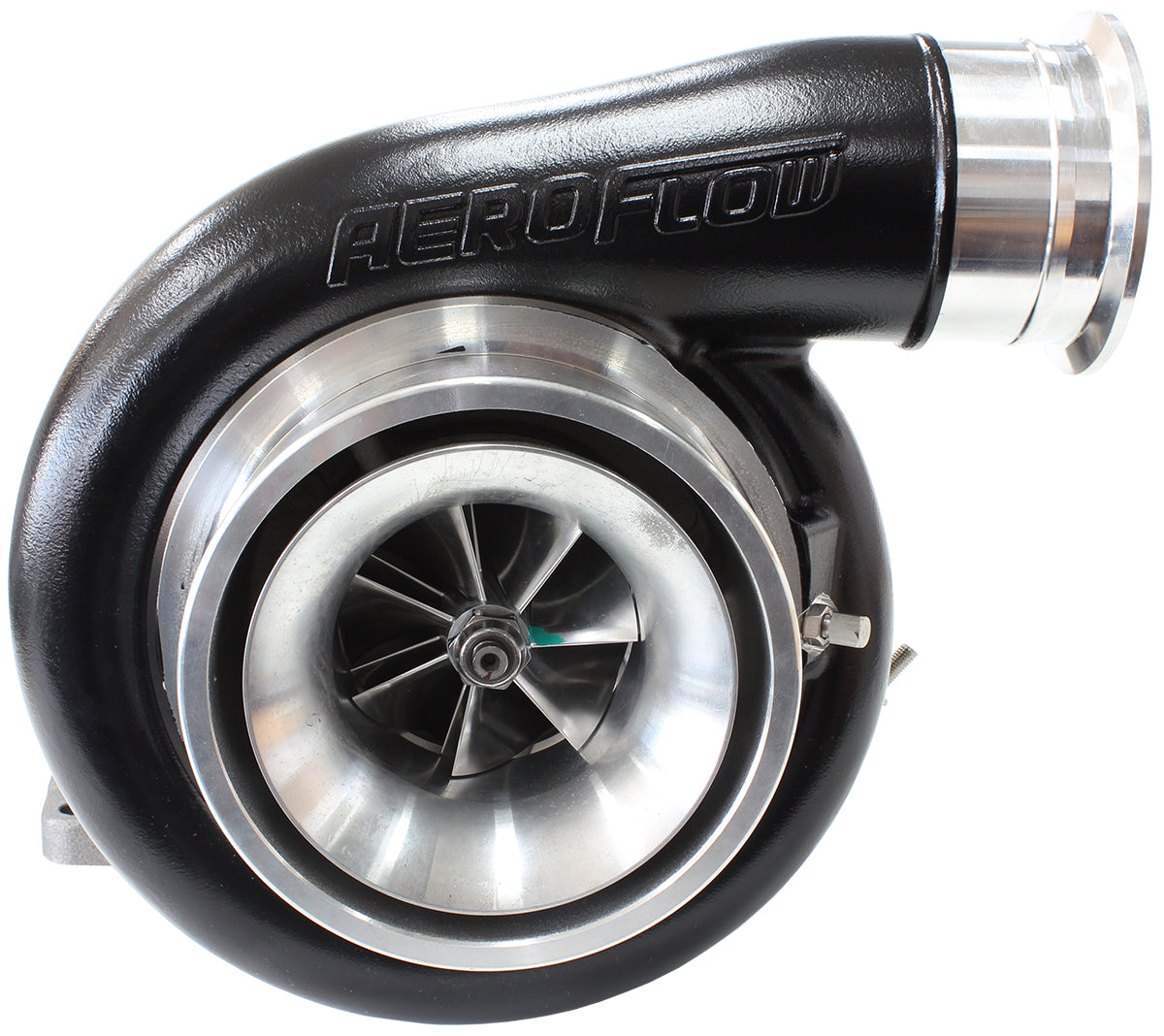

Compressor Specifications Inducer:Â 75mm Exducer:Â 100.32mm Extended Tip:Â 105.90mm Compressor Inlet:Â 5.5" slip fit Compressor Outlet: V-Band (AF8080-1025) or 3" slip fit

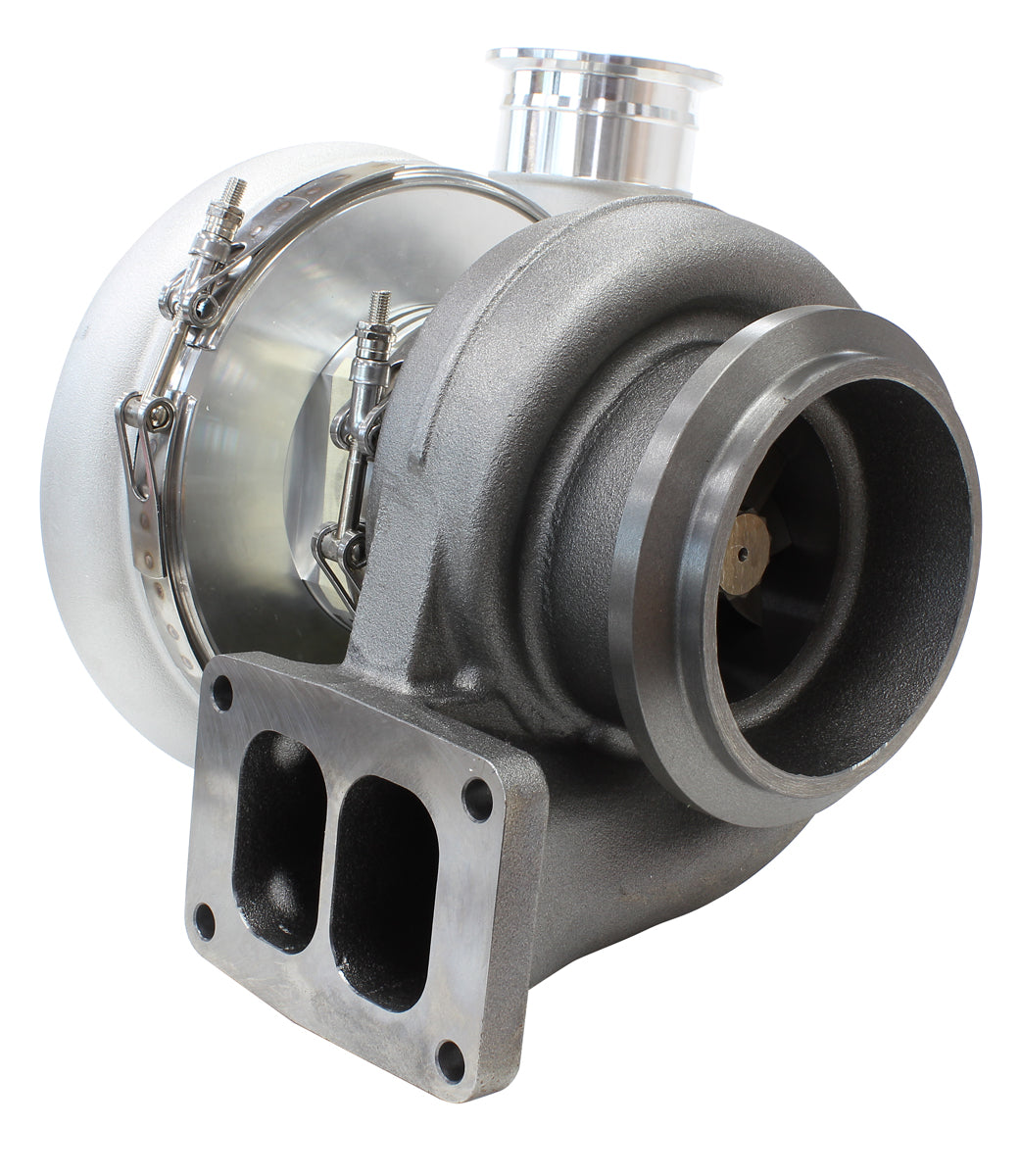

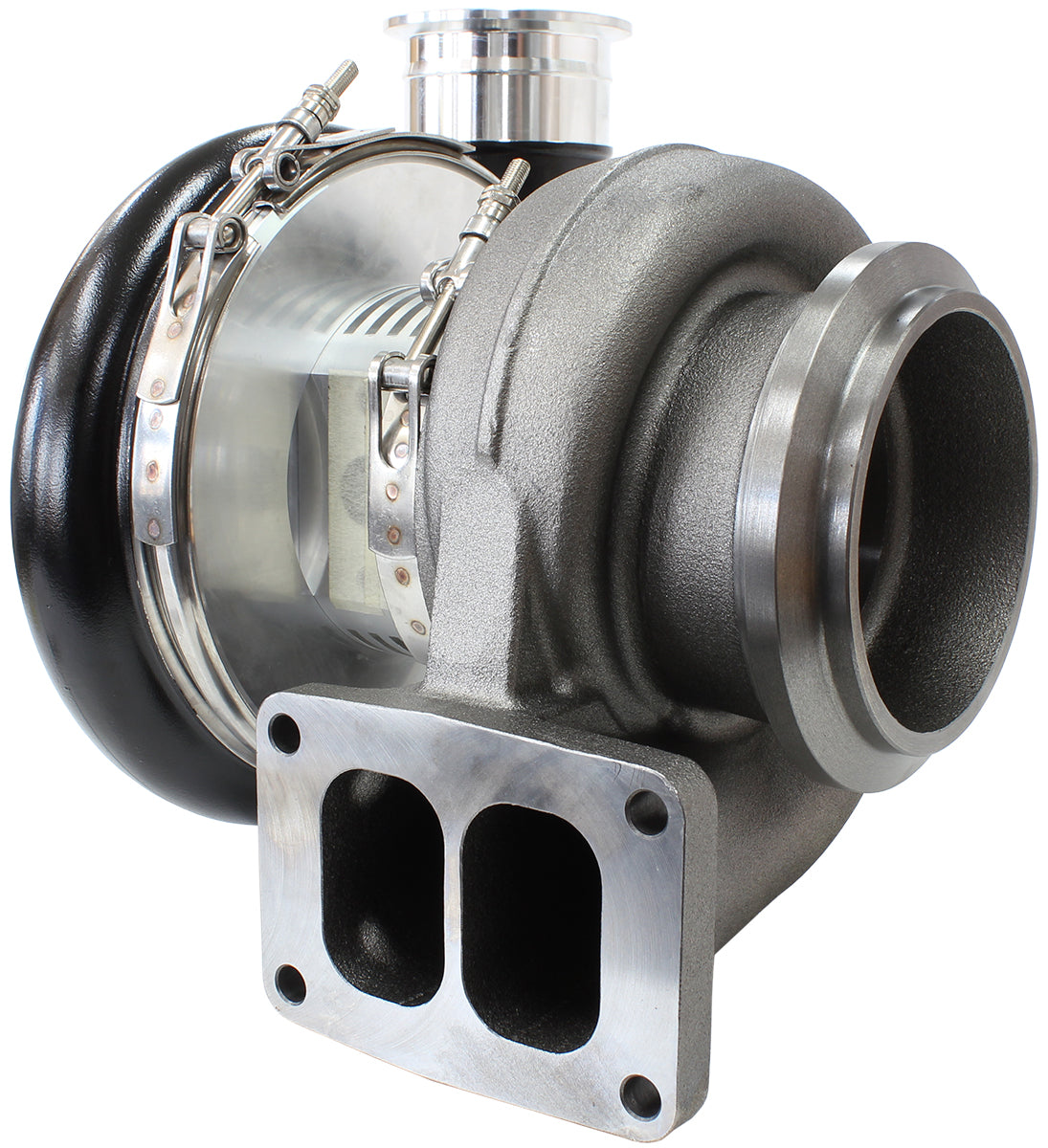

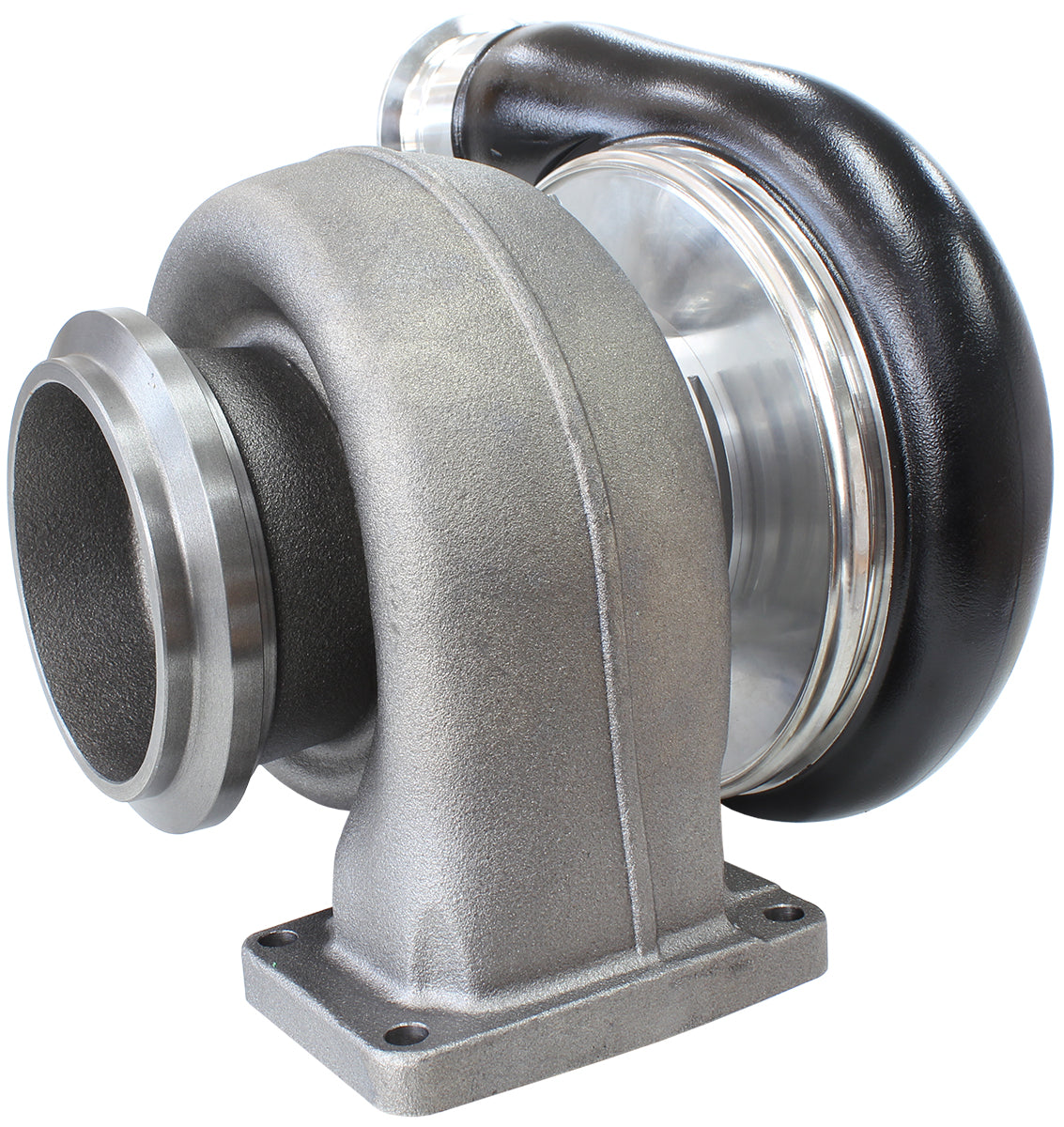

Turbine Specifications Inducer:Â 95.71mm Exducer:Â 88mm A/R:Â 1.32 Turbine Inlet Flange: Â T6 Turbine Outlet Flange: Â V-Band (AF8080-1005)
Wastegate External wastegate
