Recommended horsepower rating:Â 500-1050HP Recommended engine displacement:Â 2.0L to 6.0L

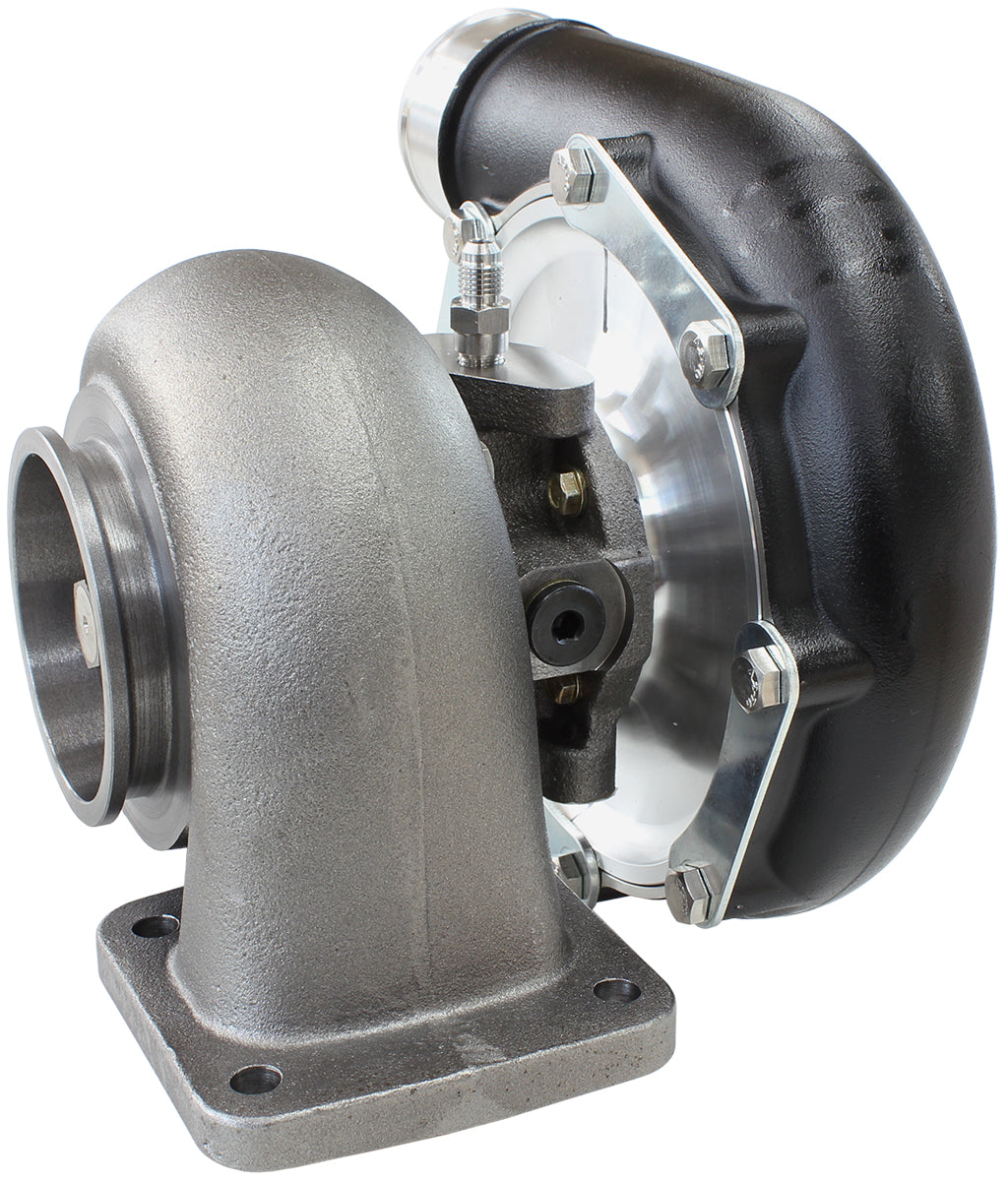

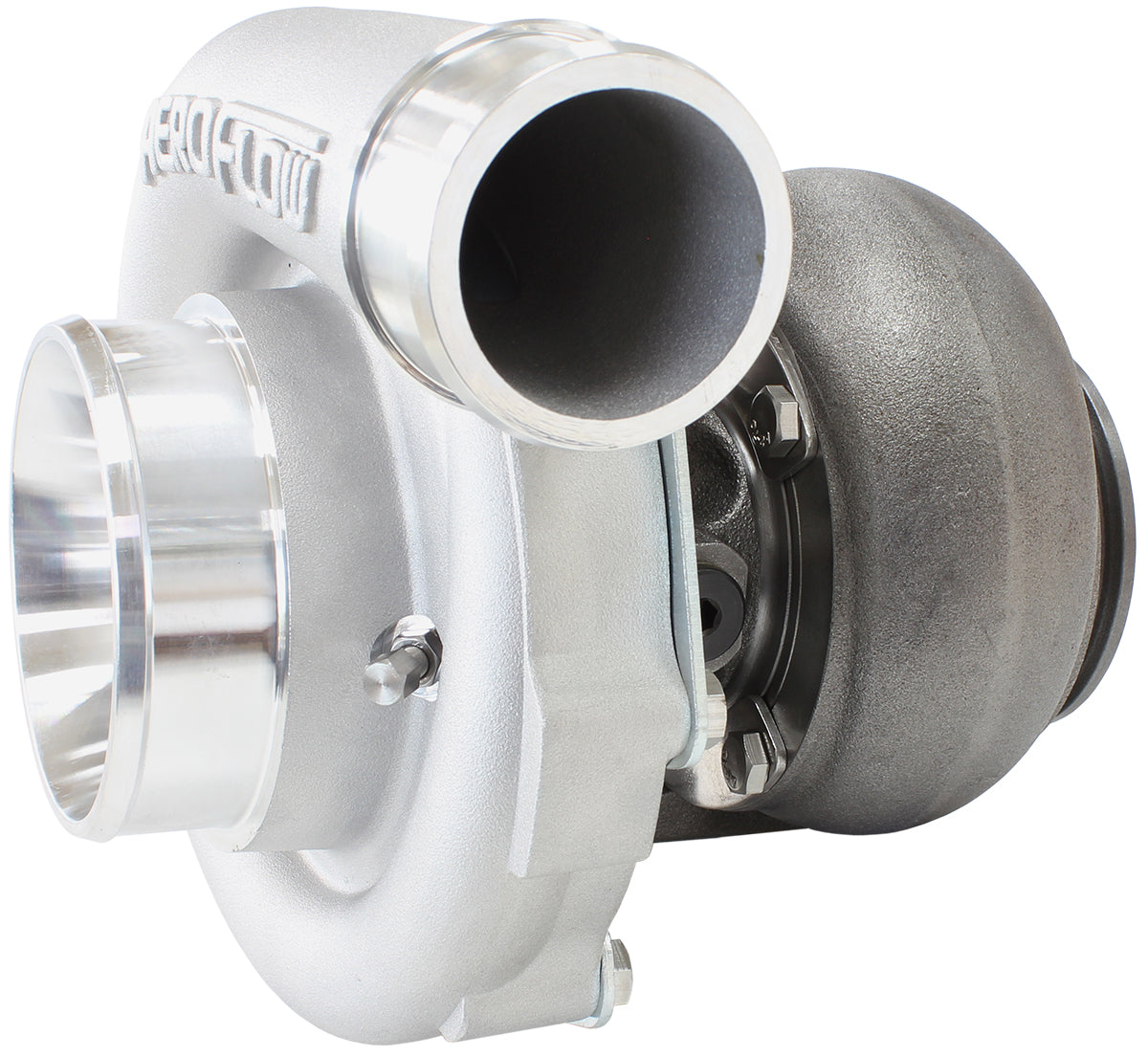

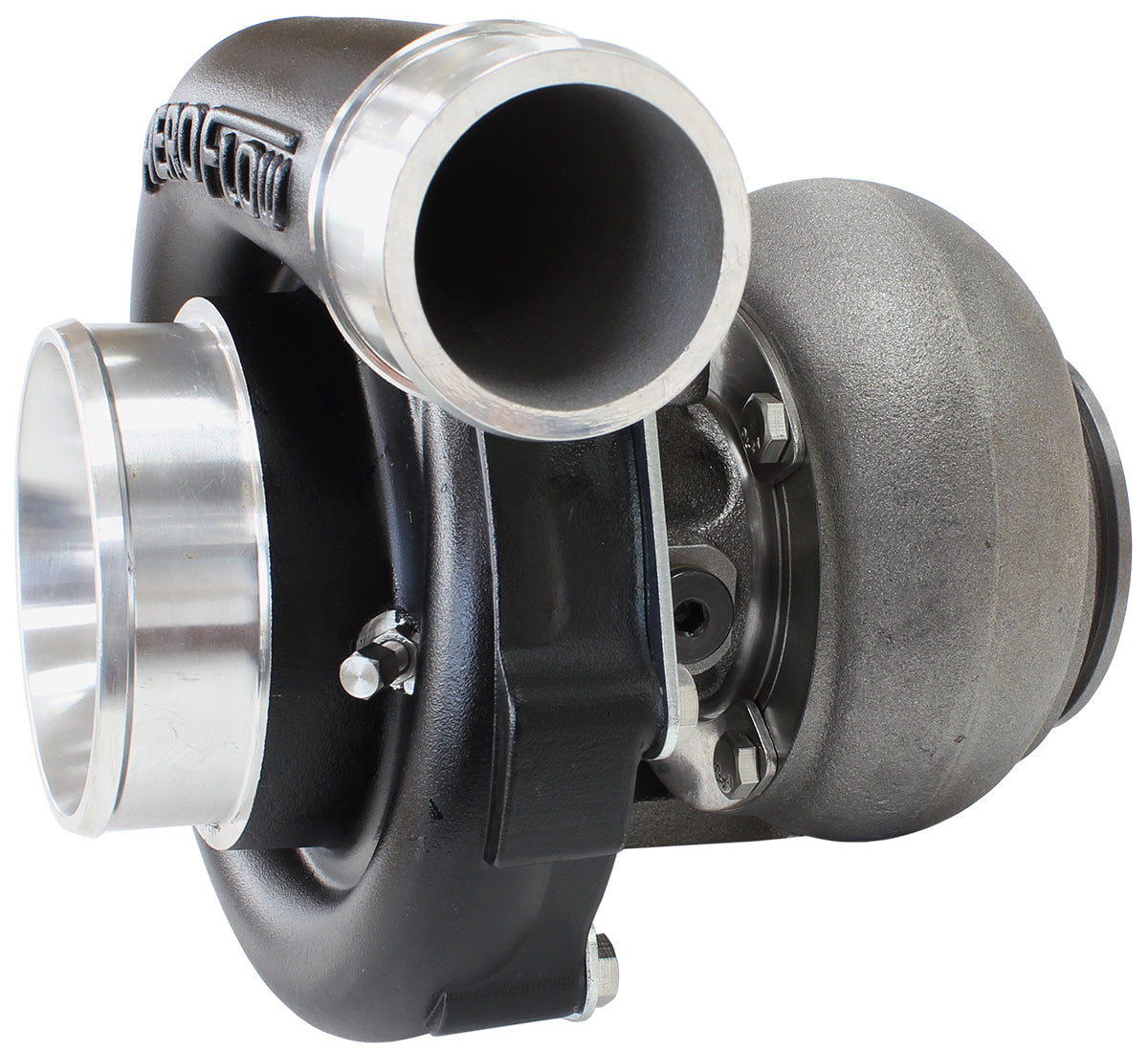

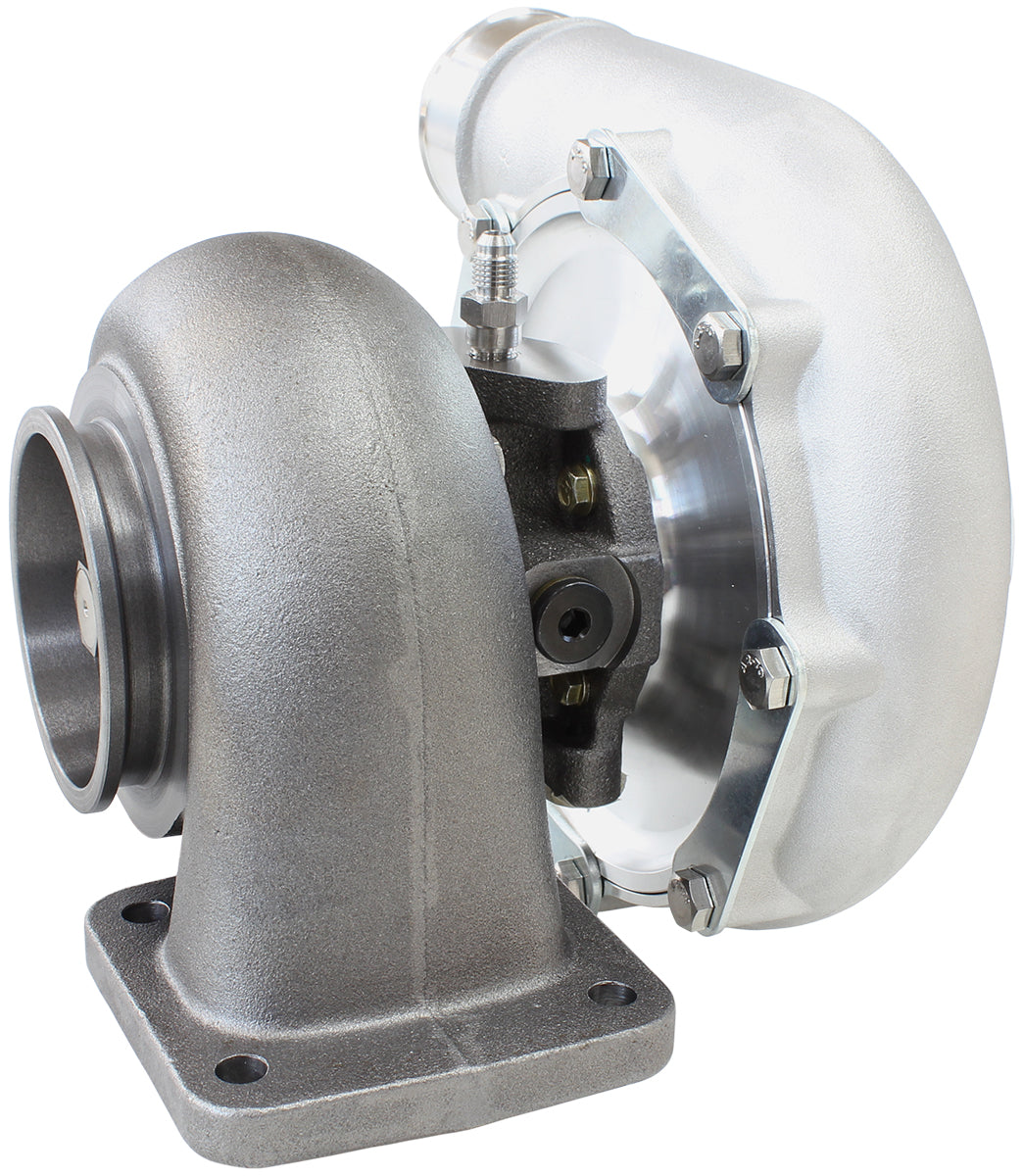

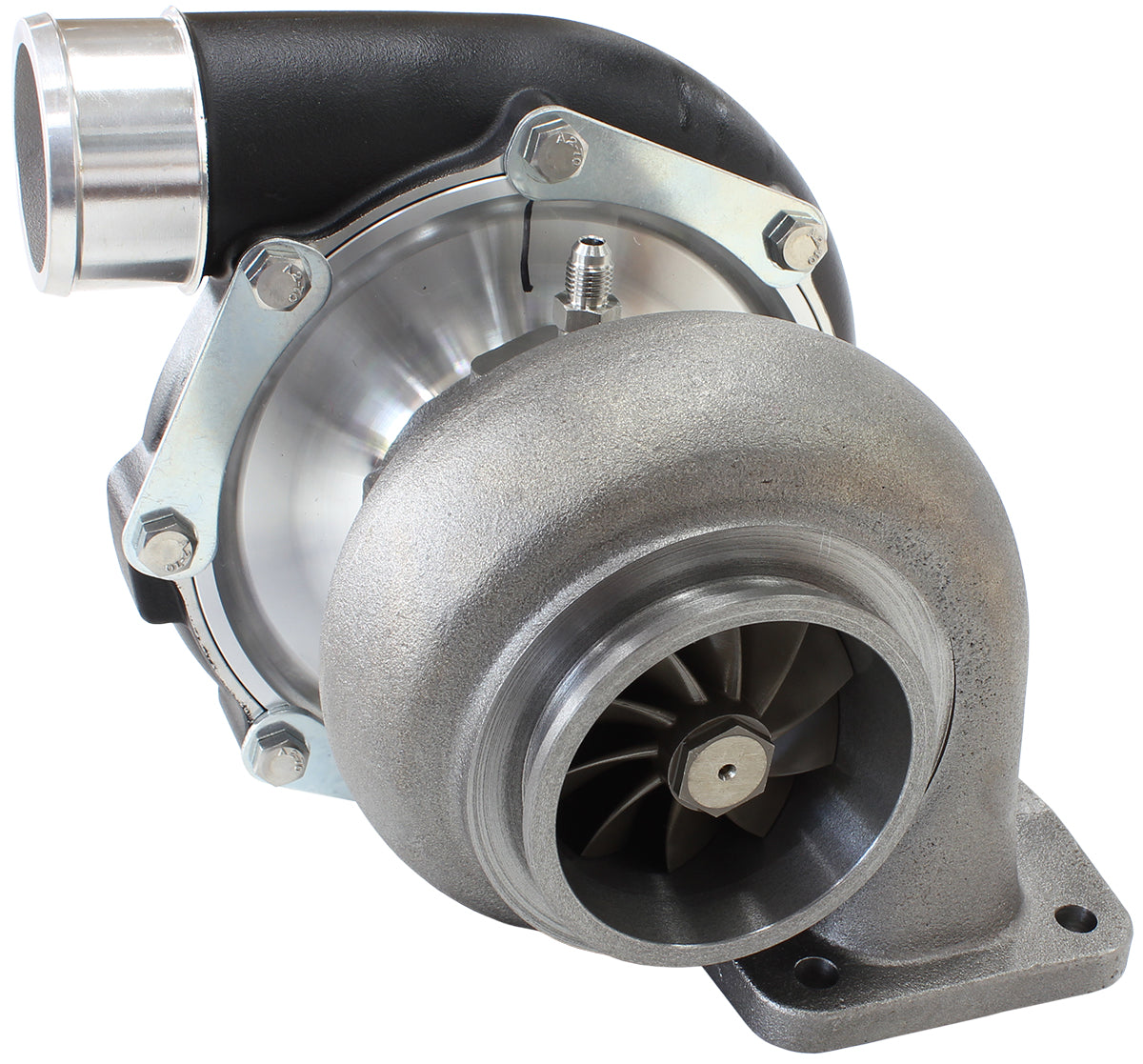

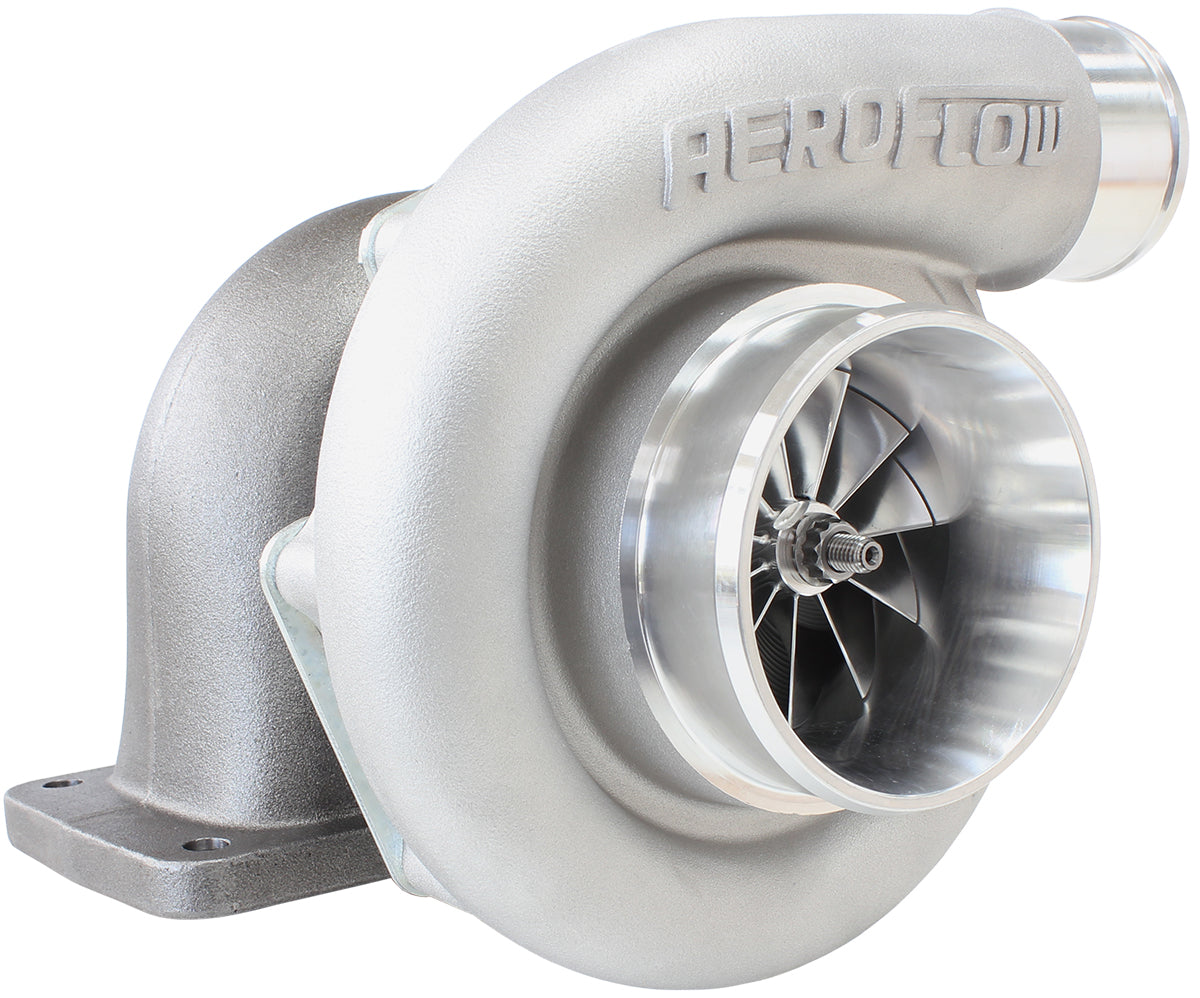

- Dual ceramic ball bearing - 7075 billet compressor wheel - Ported shroud compressor cover - Speed sensor port included in compressor cover (Speed sensor sold separately, AF8050-1010) - External wastegate sold separately - Inlet flange gasket, turbo drain gasket and -4AN turbo oil feed fitting with restrictor included in turbo kit. (Warranty VOID if not used) - T4 single entry turbine inlet flange - SiMo-nodular cast iron rear housing - V-Band turbine outlet flange - M14 x 1.5mm coolant port thread - 7/16"-24 oil feed fitting with in-built restrictor - 50.80mm bolt centre turbo drain flange with M8 x 1.25mm thread size

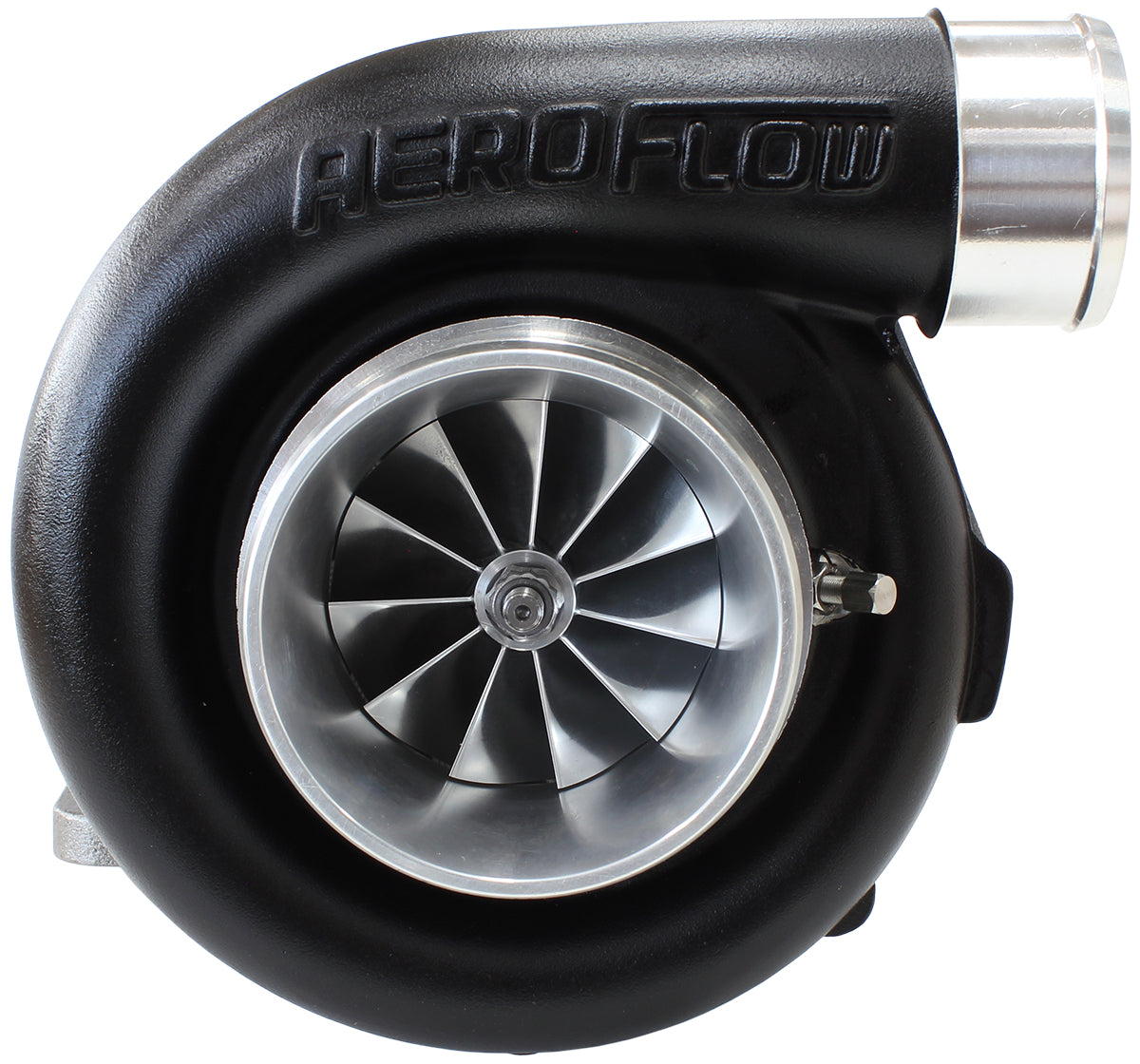

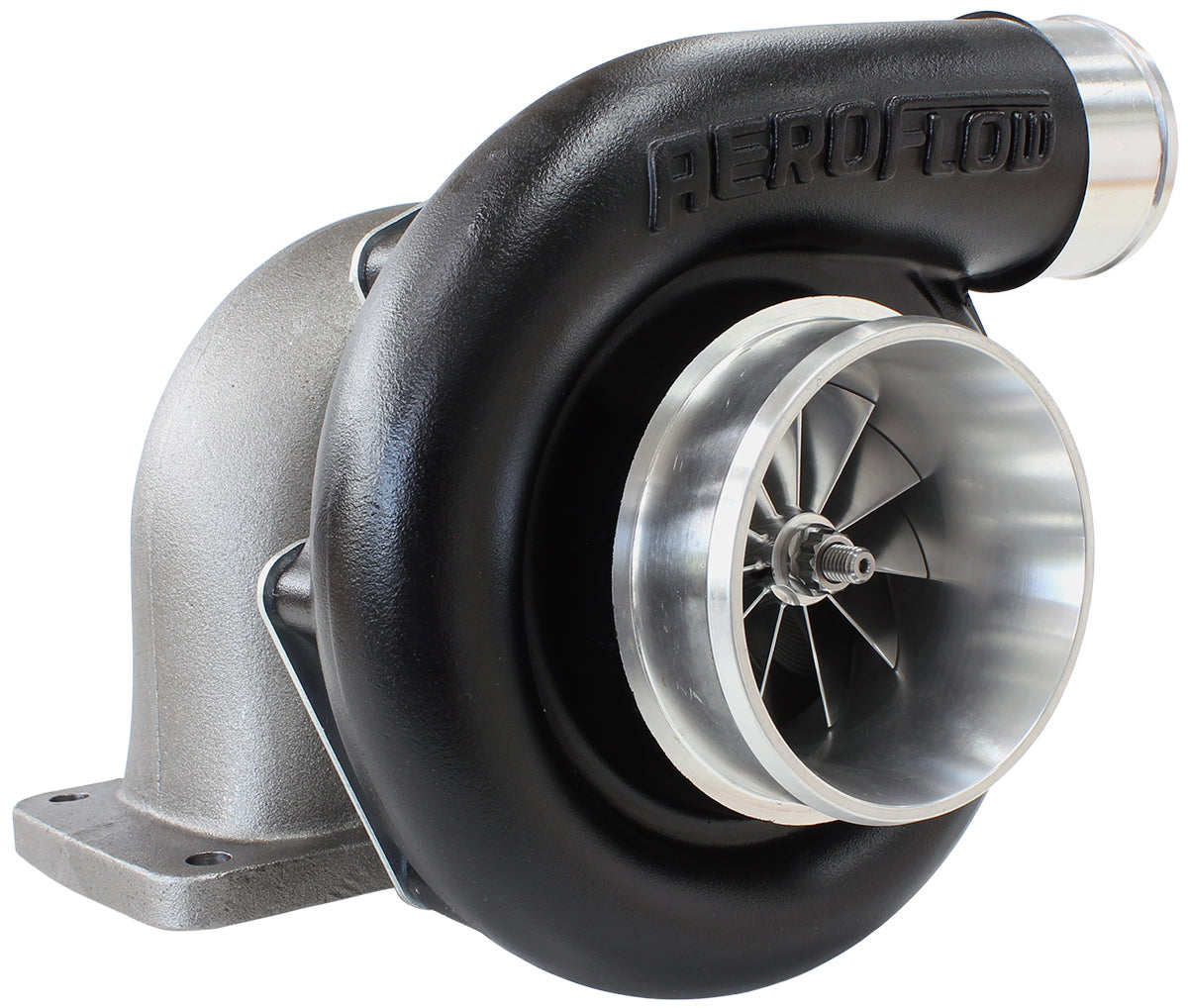

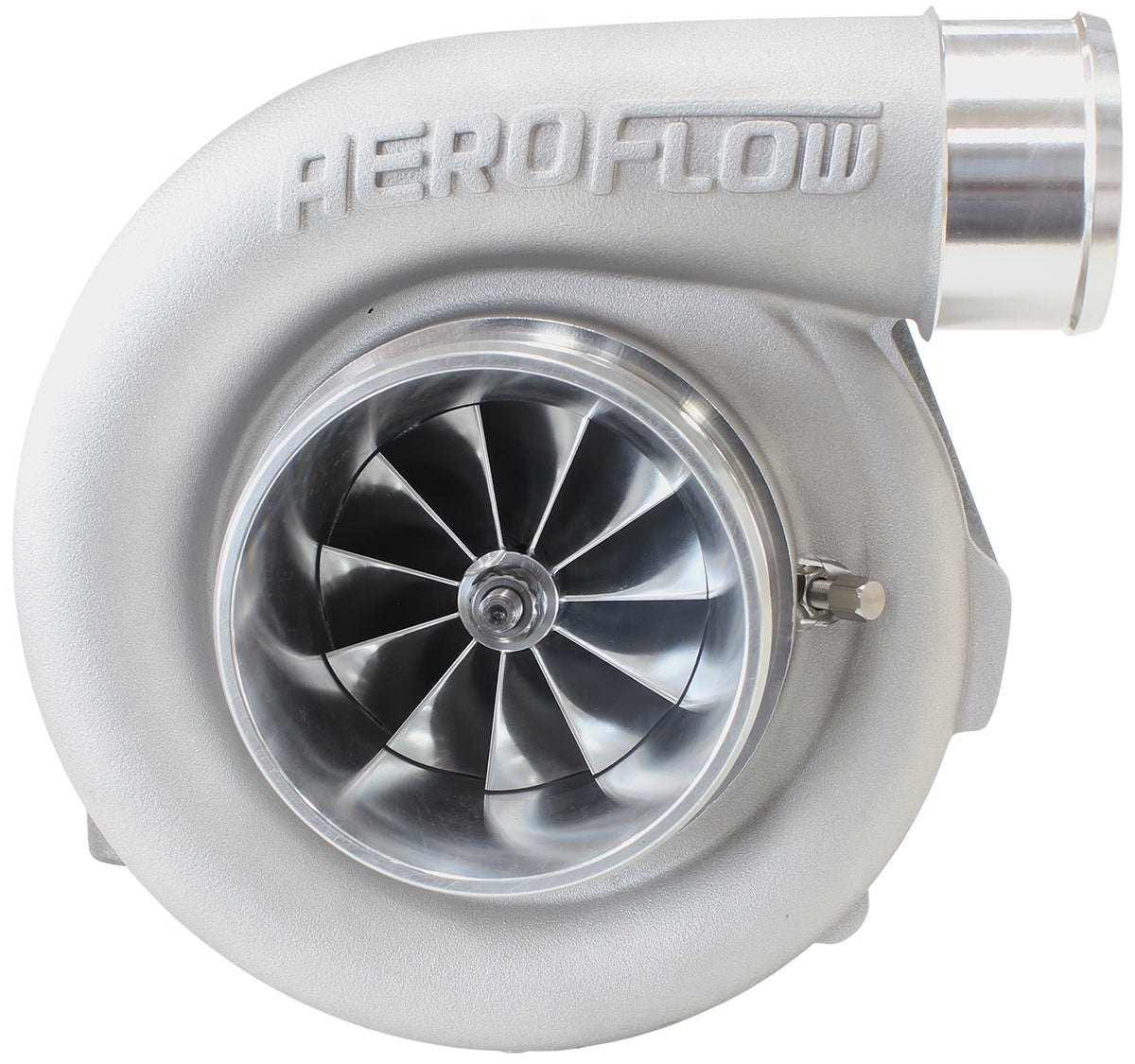

Compressor Specifications Inducer:Â 78.13mm Exducer:Â 102.40mm Extended Tip:Â 106.30mm Compressor Inlet:Â 4" slip fit Compressor Outlet: 2.5" slip fit

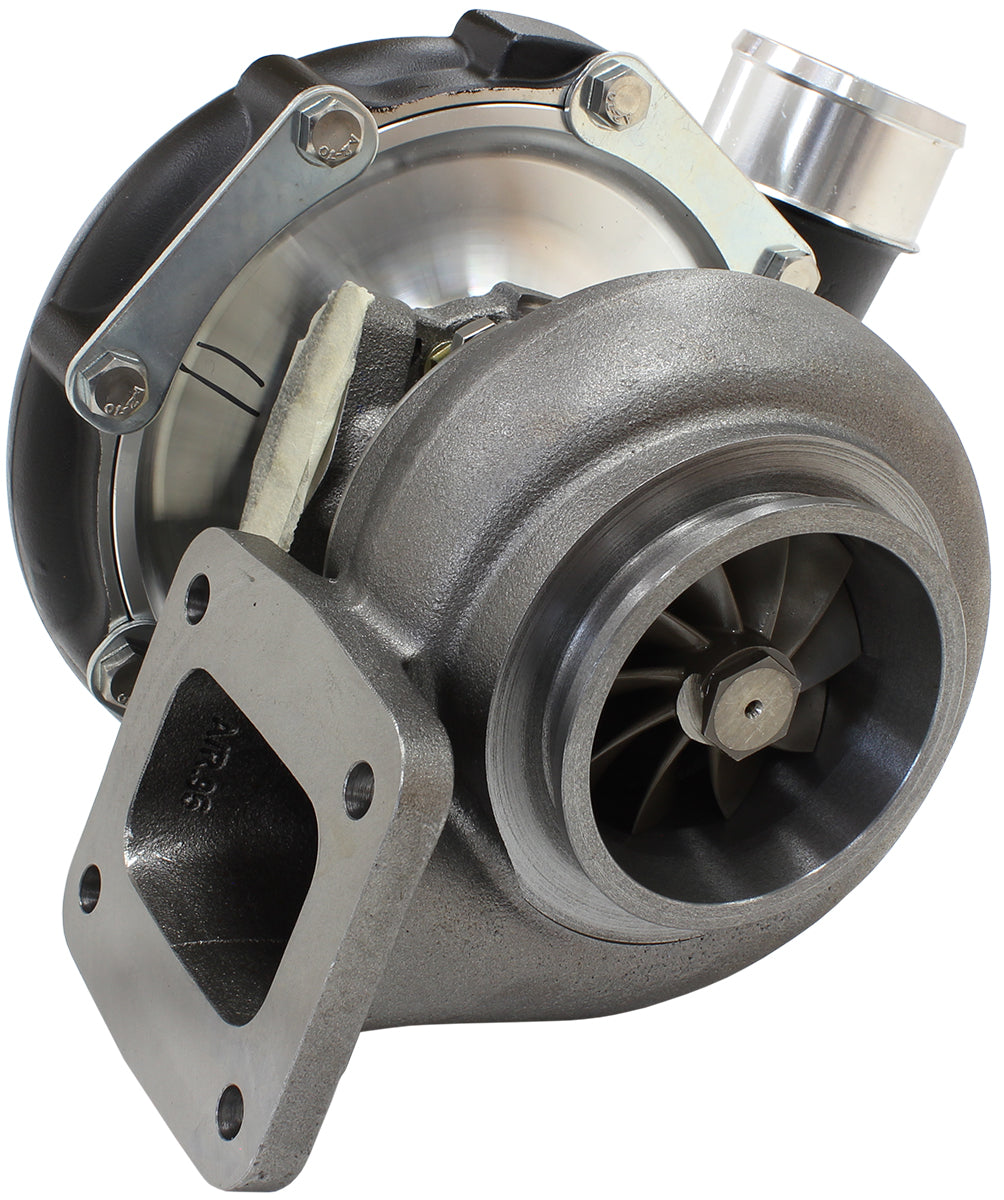

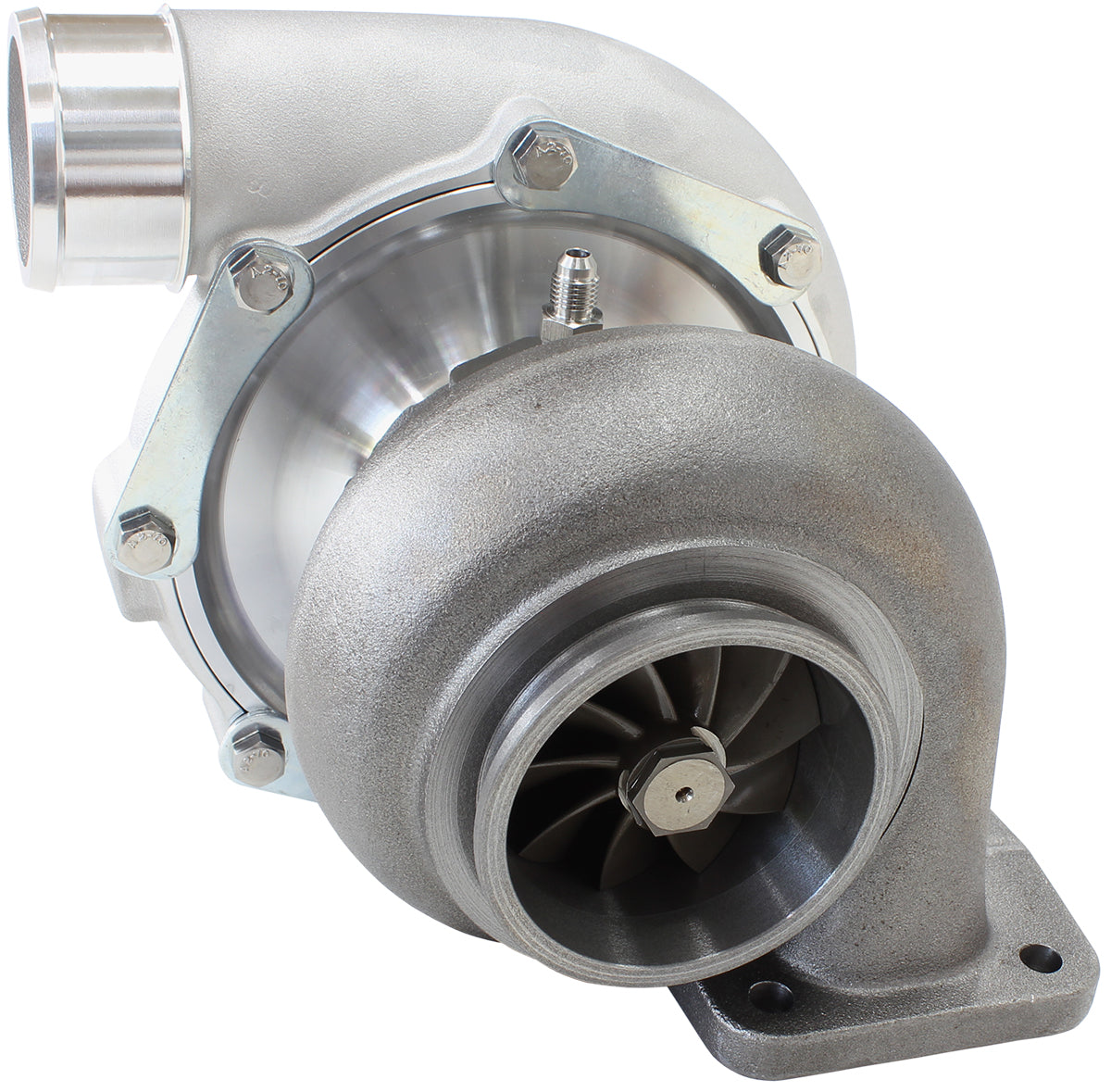

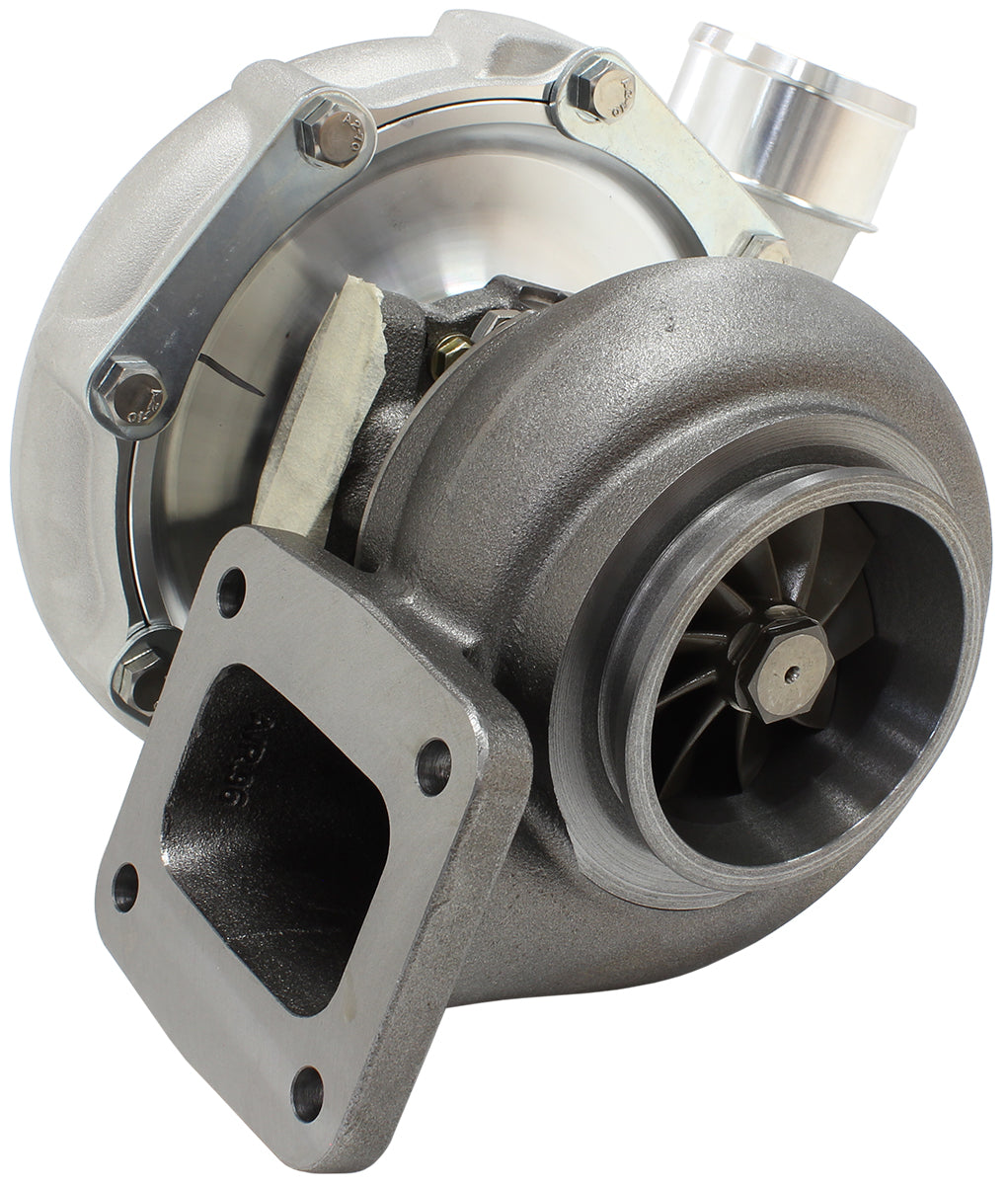

Turbine Specifications Inducer:Â 82mm Exducer:Â 75mm A/R:Â 0.96 Turbine Inlet Flange: Â T4 Turbine Outlet Flange: Â V-Band (AF8080-1024)
Wastegate External wastegate
