Aeroflow
SKU:AF8005-3149
BOOSTED B5855 1.01 VBAND REVERV-BAND OUTLET G30 770
BOOSTED B5855 1.01 VBAND REVERV-BAND OUTLET G30 770
Regular price
$1,534.50NZD
Regular price
$1,650.00NZD
Sale price
$1,534.50NZD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Share

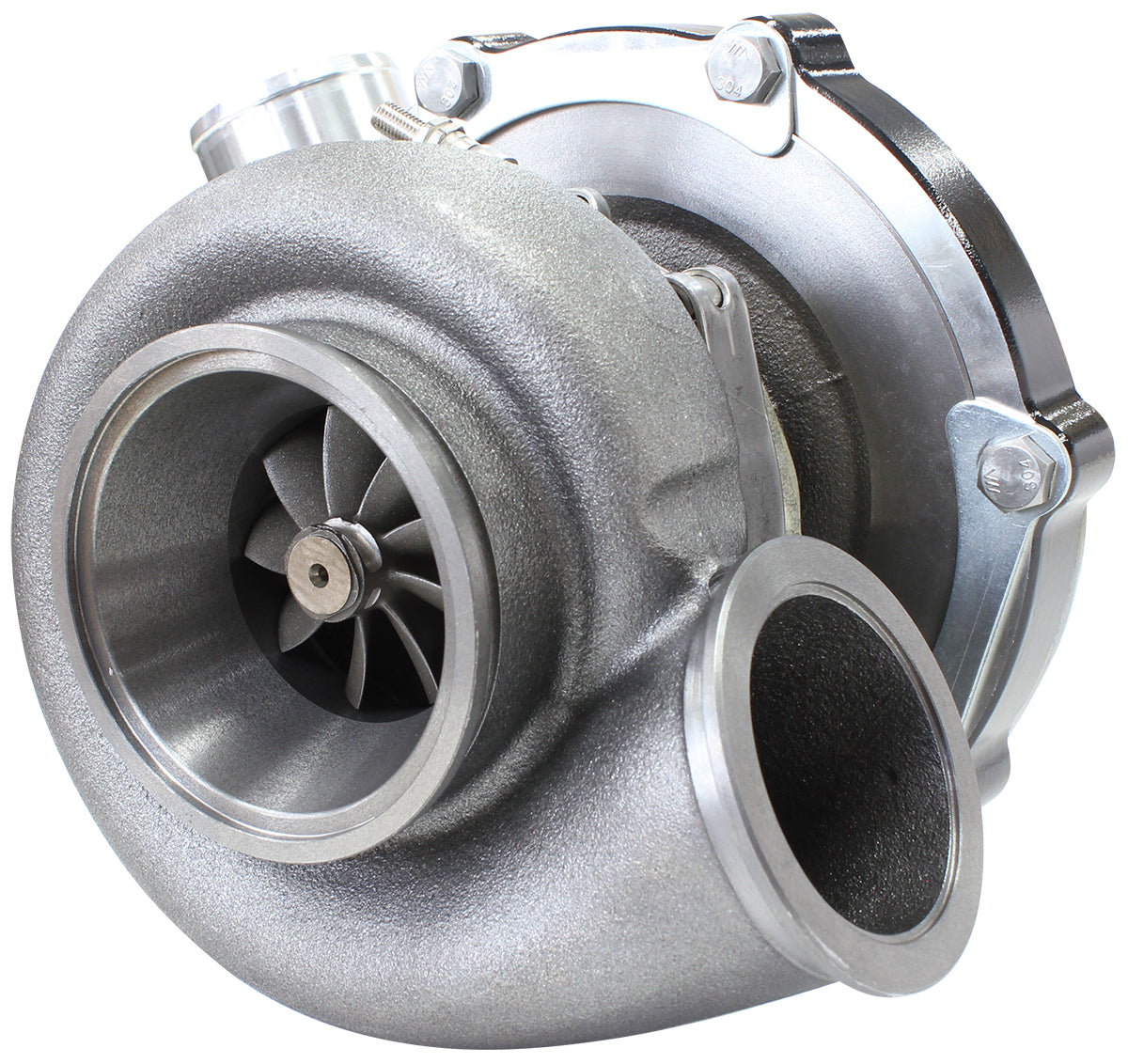

BOOSTED B5855 V-Band Reverse Rotation Turbocharger Specifications
This is a reverse rotation turbocharger for applications that want the perfect twin turbo installation or a single reverse rotation turbo with installation restrictions. Matches Boosted B5855 (AF8005-3048) standard rotation turbocharger.
Recommended horsepower rating:Â 475-770HP
Recommended engine displacement:Â 2.0L to 3.5L
- Dual ceramic ball bearing
- Point Milled 7075 billet compressor wheel
- Ported shroud compressor cover
- Speed sensor port included in compressor cover (Speed sensor sold separately, AF8050-1010)
- 1/8" NPT boost reference port
- External wastegate sold separately
- Turbo drain gasket and -4AN turbo oil feed fitting with restrictor included in turbo kit. (Warranty VOID if not used)
- V-Band single entry turbine inlet flange
- 9 blade turbine wheel
- SiMo-nodular cast iron rear housing
- V-Band turbine outlet flange
- M14 x 1.5mm coolant port thread
- 7/16"-24 oil feed fitting with in-built restrictor
- 38mm bolt centre turbo drain flange with M8 x 1.25mm thread size
Compressor Specifications
Inducer: Â 58mm
Exducer:Â 71.40mm
Extended Tip:Â 74mm
A/R: Â 0.72
Compressor Inlet: Â 4" Slip fit
Compressor Outlet: Â 2" Slip fit
Turbine Specifications
Inducer: Â 60mm
Exducer: Â 55mm
A/R:Â 1.01
Turbine Inlet Flange: V-Band (AF8080-1016)
Turbine Outlet Flange: Â V-Band (AF8080-1000)
Wastegate
External wastegate
This is a reverse rotation turbocharger for applications that want the perfect twin turbo installation or a single reverse rotation turbo with installation restrictions. Matches Boosted B5855 (AF8005-3048) standard rotation turbocharger.
Recommended horsepower rating:Â 475-770HP
Recommended engine displacement:Â 2.0L to 3.5L
- Dual ceramic ball bearing
- Point Milled 7075 billet compressor wheel
- Ported shroud compressor cover
- Speed sensor port included in compressor cover (Speed sensor sold separately, AF8050-1010)
- 1/8" NPT boost reference port
- External wastegate sold separately
- Turbo drain gasket and -4AN turbo oil feed fitting with restrictor included in turbo kit. (Warranty VOID if not used)
- V-Band single entry turbine inlet flange
- 9 blade turbine wheel
- SiMo-nodular cast iron rear housing
- V-Band turbine outlet flange
- M14 x 1.5mm coolant port thread
- 7/16"-24 oil feed fitting with in-built restrictor
- 38mm bolt centre turbo drain flange with M8 x 1.25mm thread size
Compressor Specifications
Inducer: Â 58mm
Exducer:Â 71.40mm
Extended Tip:Â 74mm
A/R: Â 0.72
Compressor Inlet: Â 4" Slip fit
Compressor Outlet: Â 2" Slip fit
Turbine Specifications
Inducer: Â 60mm
Exducer: Â 55mm
A/R:Â 1.01
Turbine Inlet Flange: V-Band (AF8080-1016)
Turbine Outlet Flange: Â V-Band (AF8080-1000)
Wastegate
External wastegate
