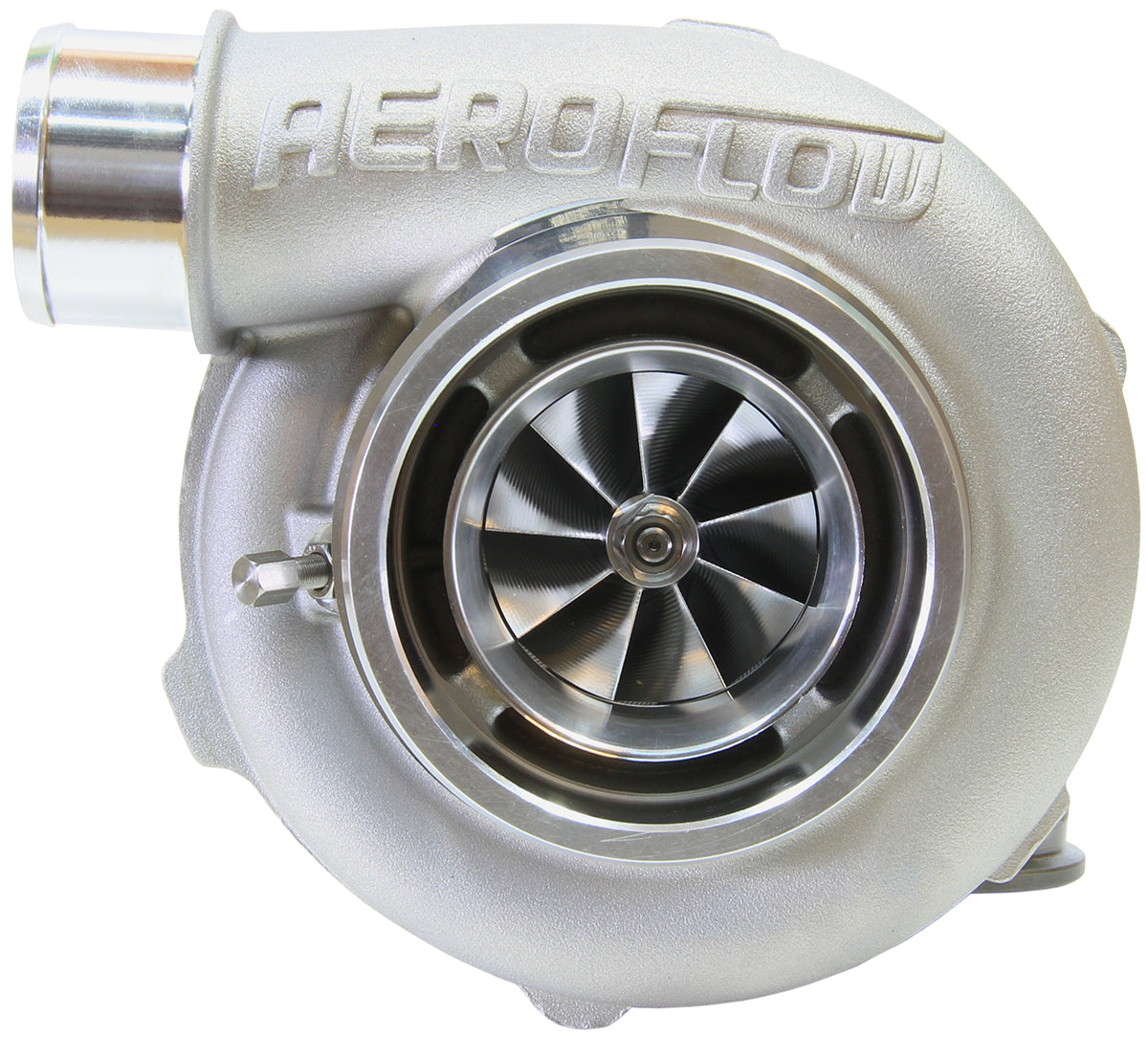

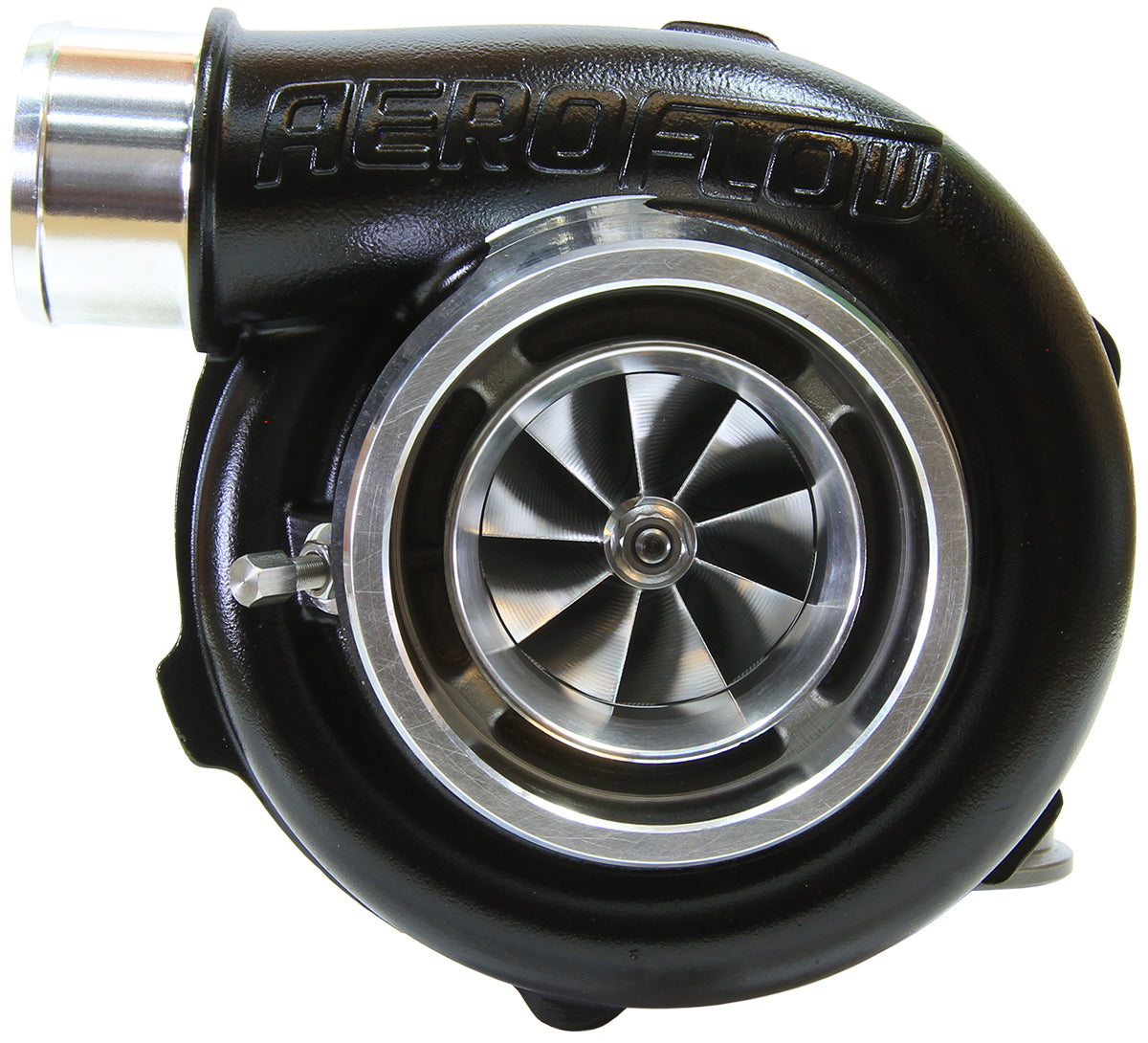

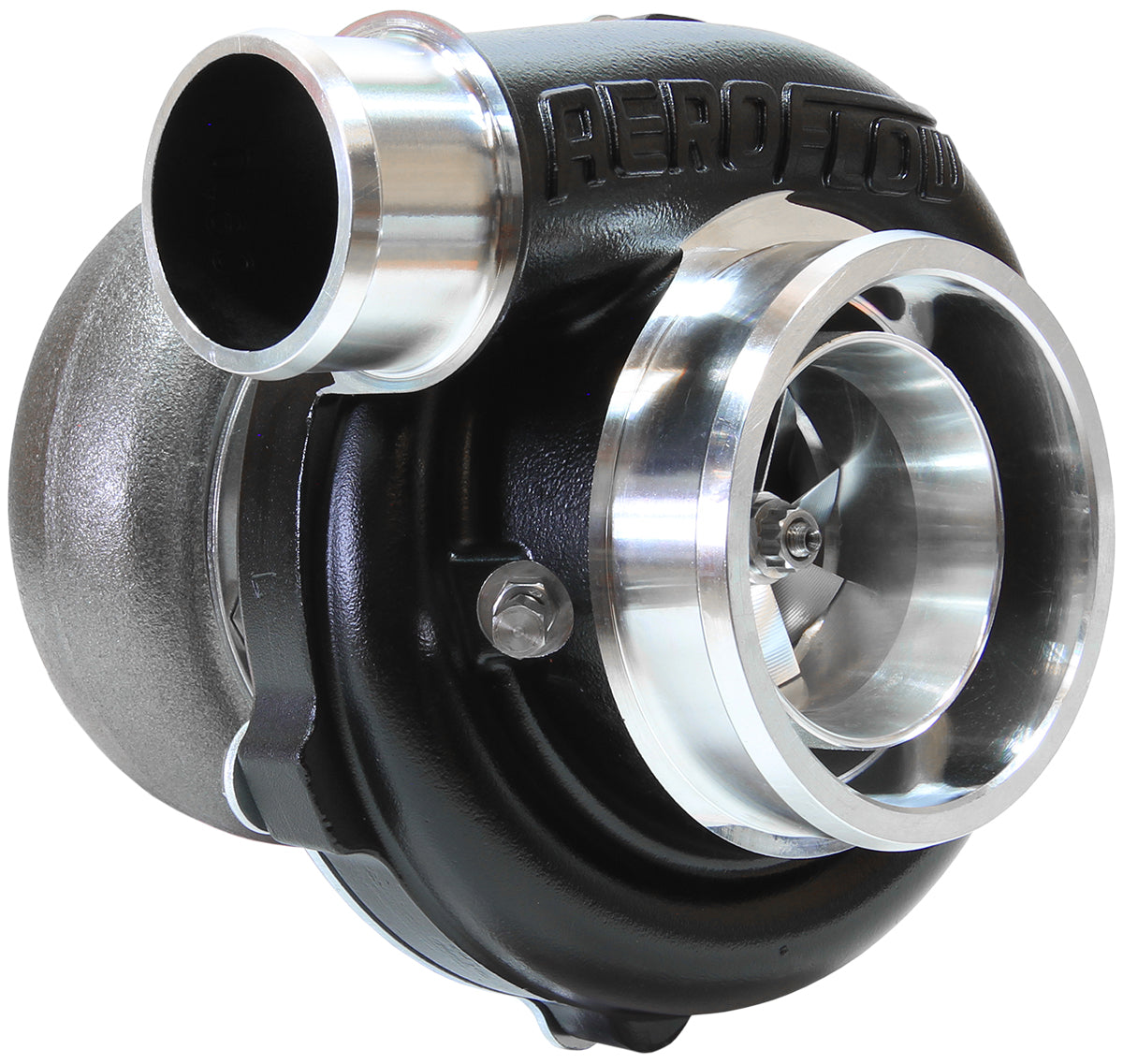

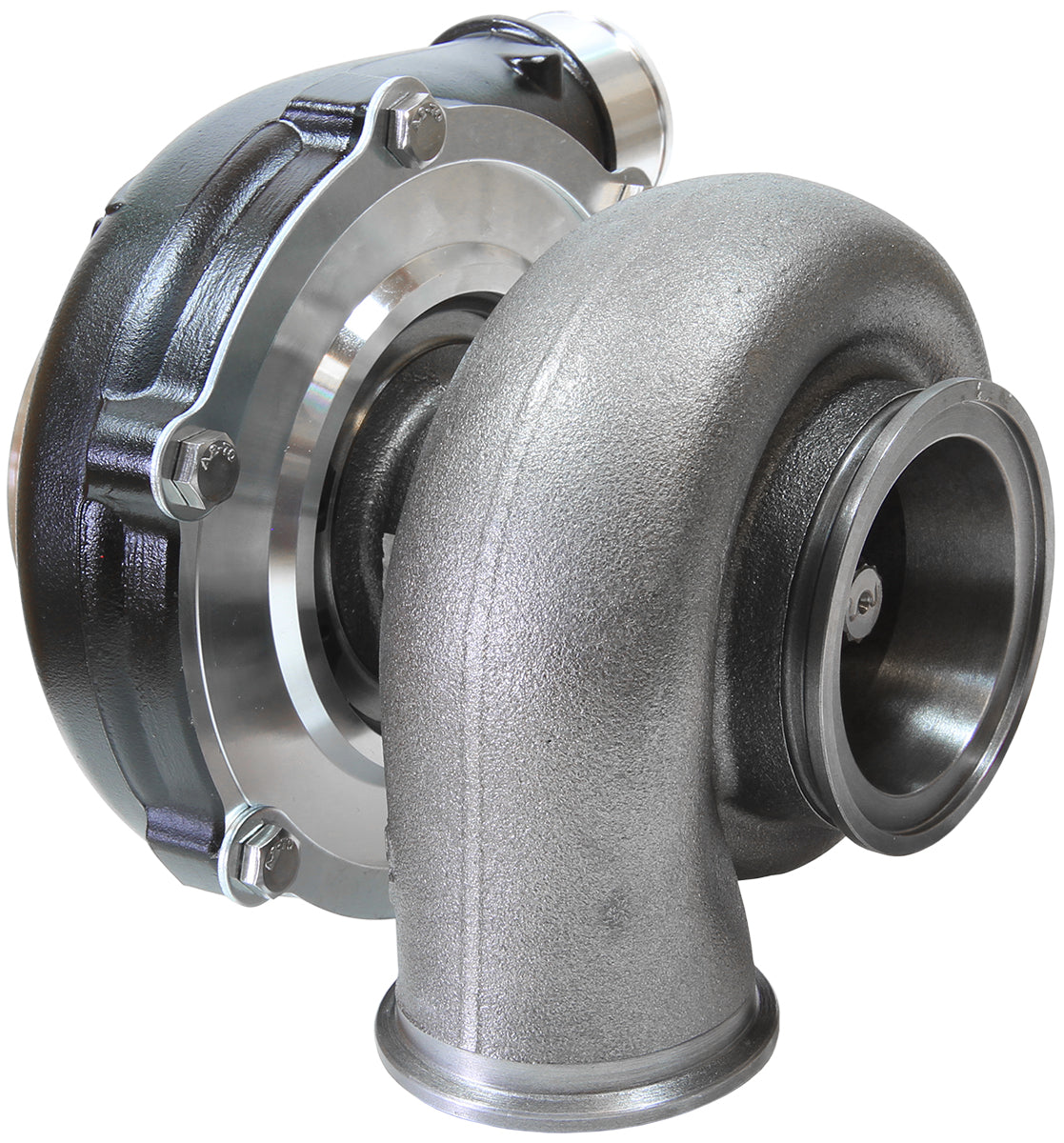

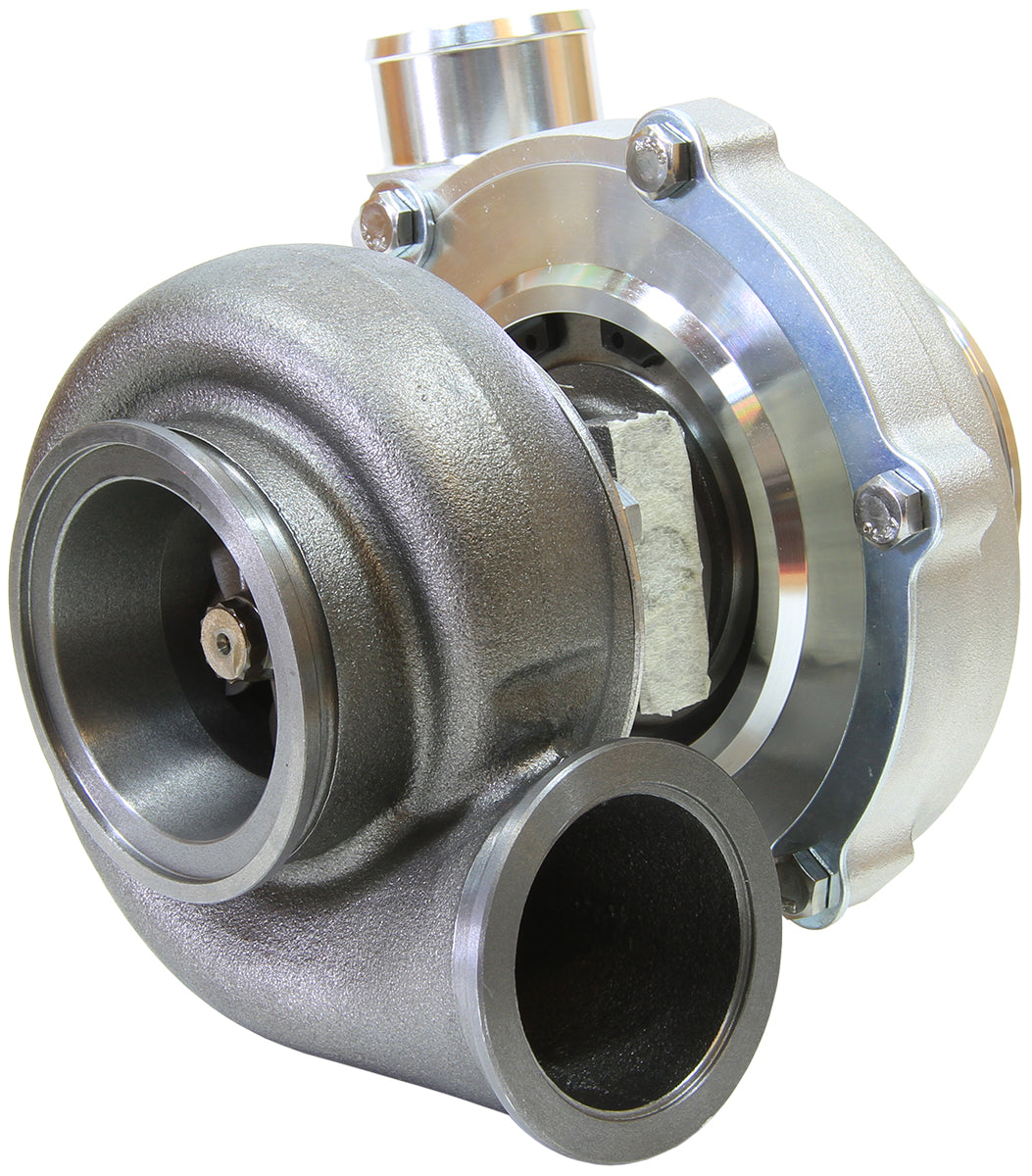

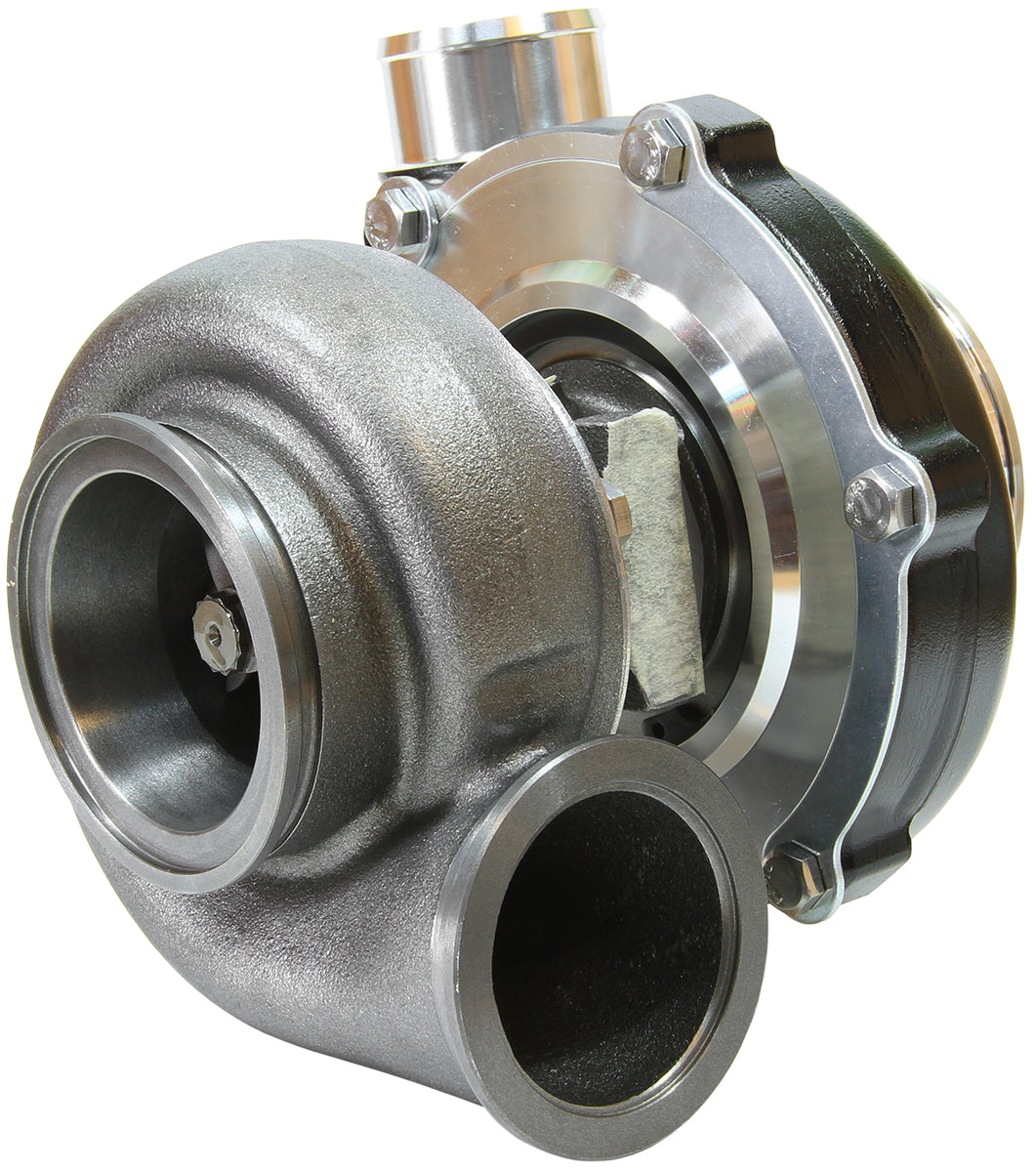

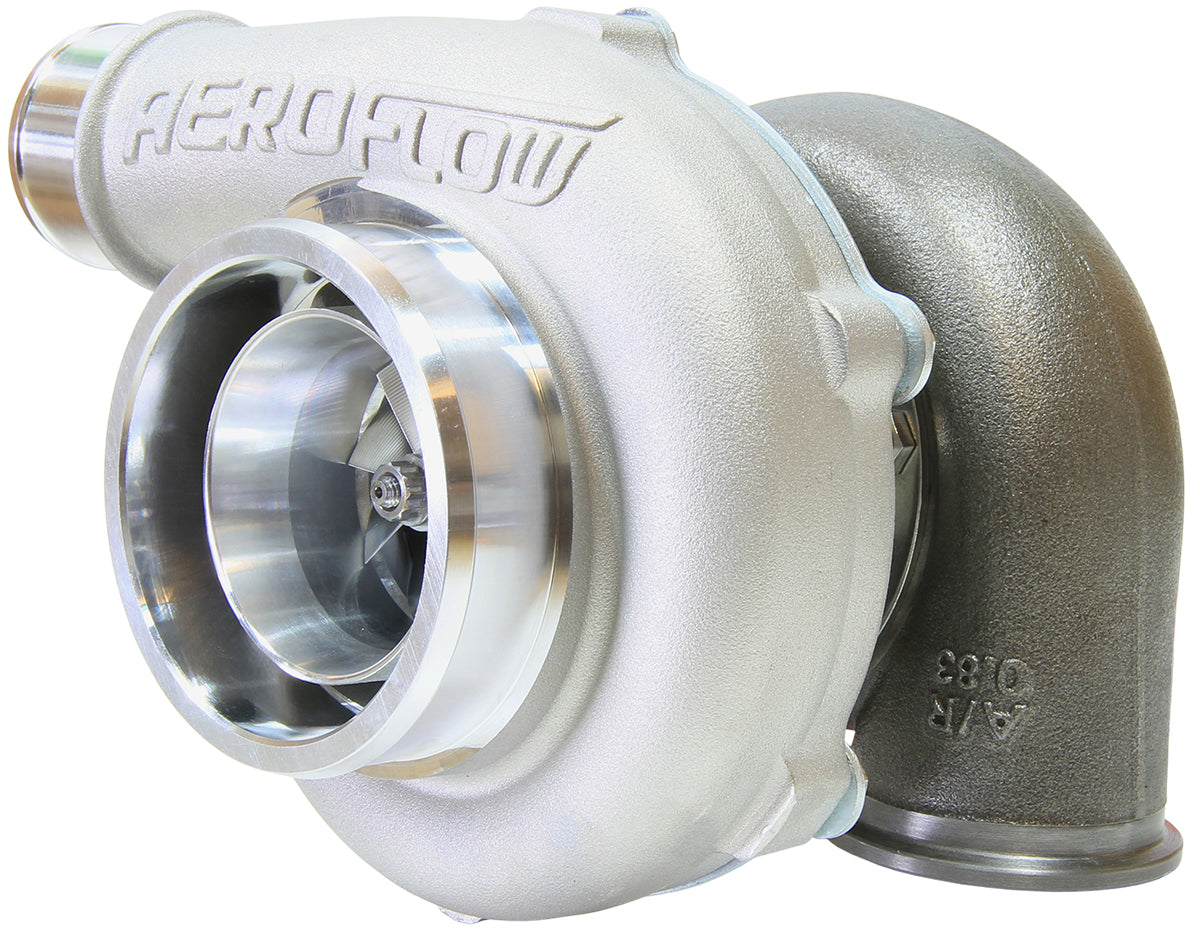

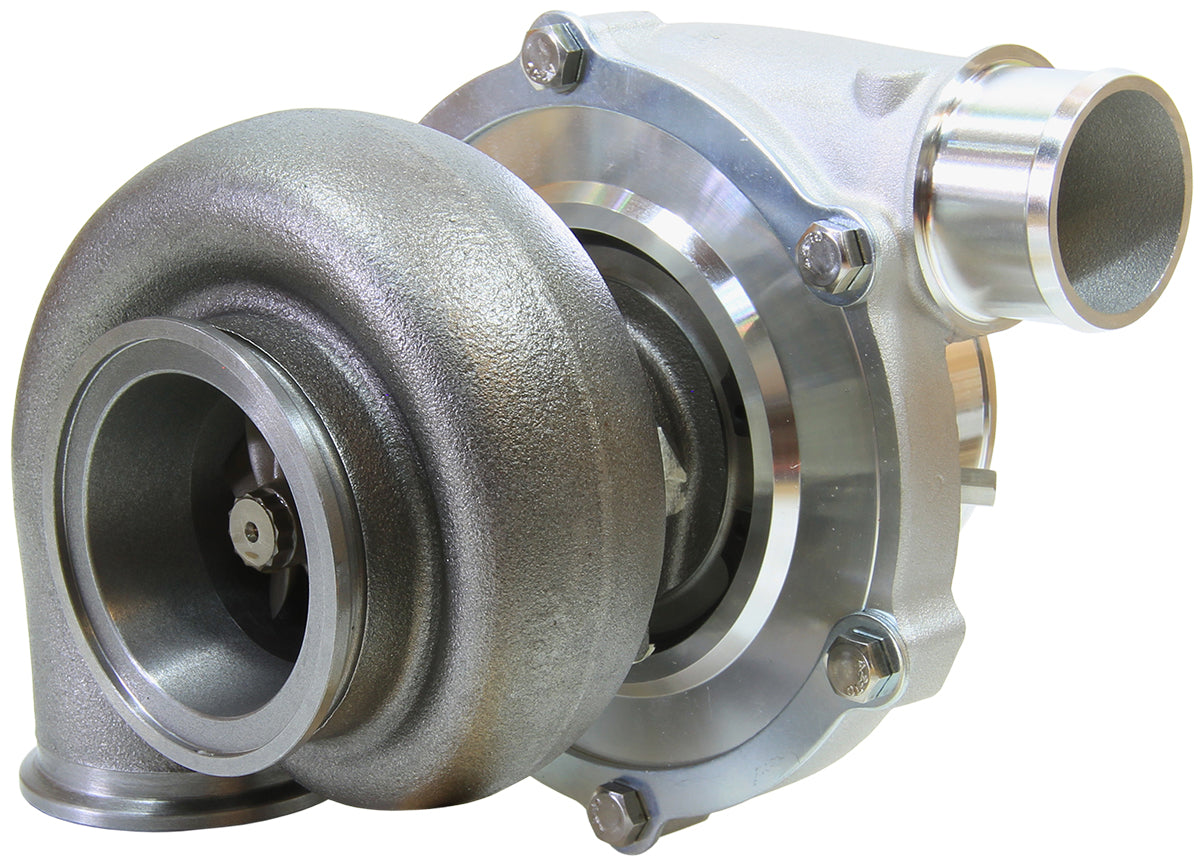

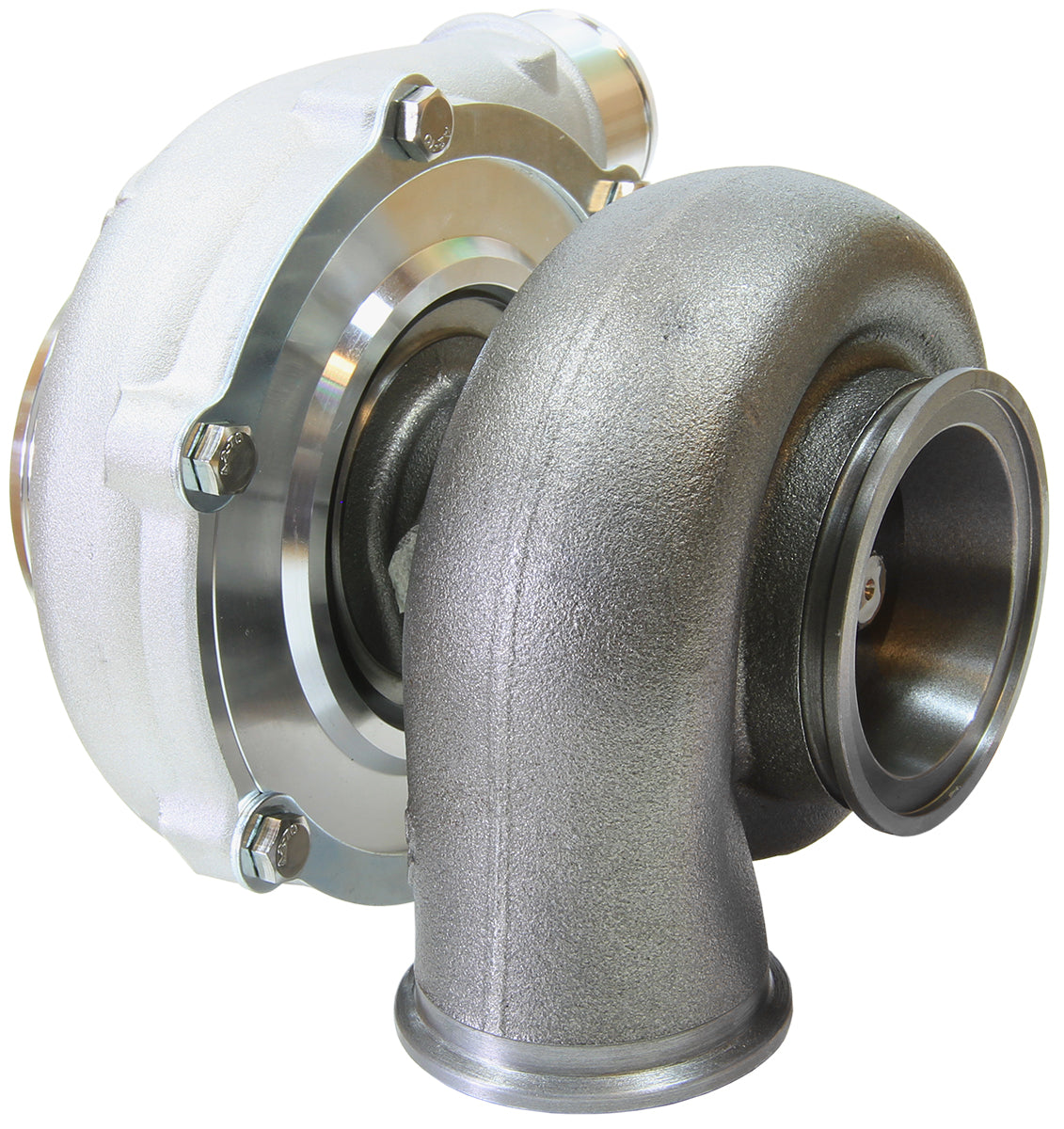

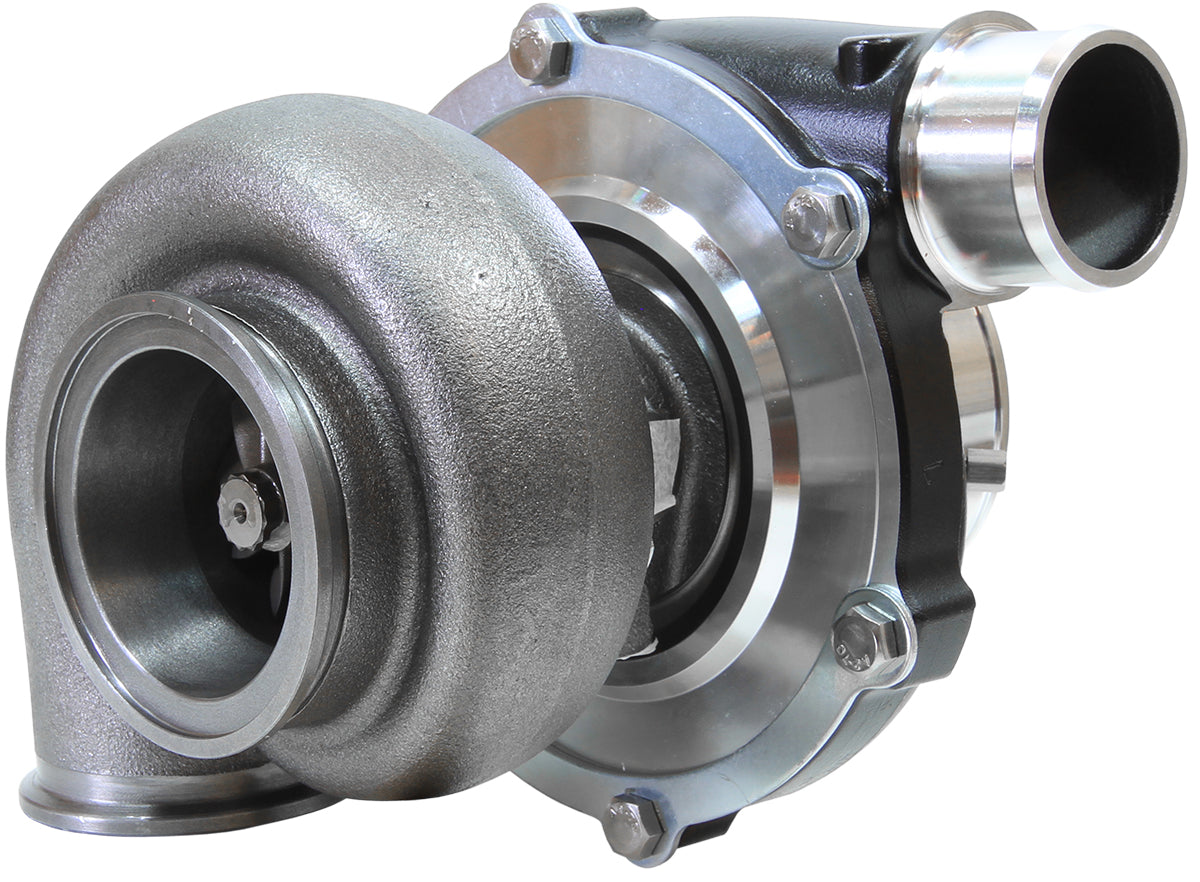

This is a reverse rotation turbocharger for applications that want the perfect twin turbo installation or a single reverse rotation turbo with installation restrictions. Matches Boosted 5855 (AF8005-3033) standard rotation turbocharger
Recommended horsepower rating: Â 400-750HP Recommended engine displacement: Â 1.8L to 3.0L
- Dual ceramic ball bearing - Point Milled 7075 billet compressor wheel - Ported shroud compressor cover - Speed sensor port included in compressor cover (Speed sensor sold separately, AF8050-1010) - External wastegate sold separately - Turbo drain gasket and -4AN turbo oil feed fitting with restrictor included in turbo kit. (Warranty VOID if not used) - V-Band single entry turbine inlet flange - SiMo-nodular cast iron rear housing - V-Band turbine outlet flange - M14 x 1.5mm coolant port thread - 7/16"-24 oil feed fitting with in-built restrictor - 38mm bolt centre turbo drain flange with M8 x 1.25mm thread size
Compressor Specifications Inducer: Â 58mm Exducer: Â 76.2mm Extended Tip: Â 80.42mm A/R: Â 0.60 Compressor Inlet: Â 4" Slip fit Compressor Outlet: Â 2" Slip fit
Turbine Specifications Inducer: Â 60mm Exducer: Â 55m A/R: Â 0.83 Turbine Inlet Flange: Â V-Band (AF8080-1016) Turbine Outlet Flange: Â V-Band (AF8080-1000)
Wastegate External wastegate
