Aeroflow
SKU:AF8005-3072

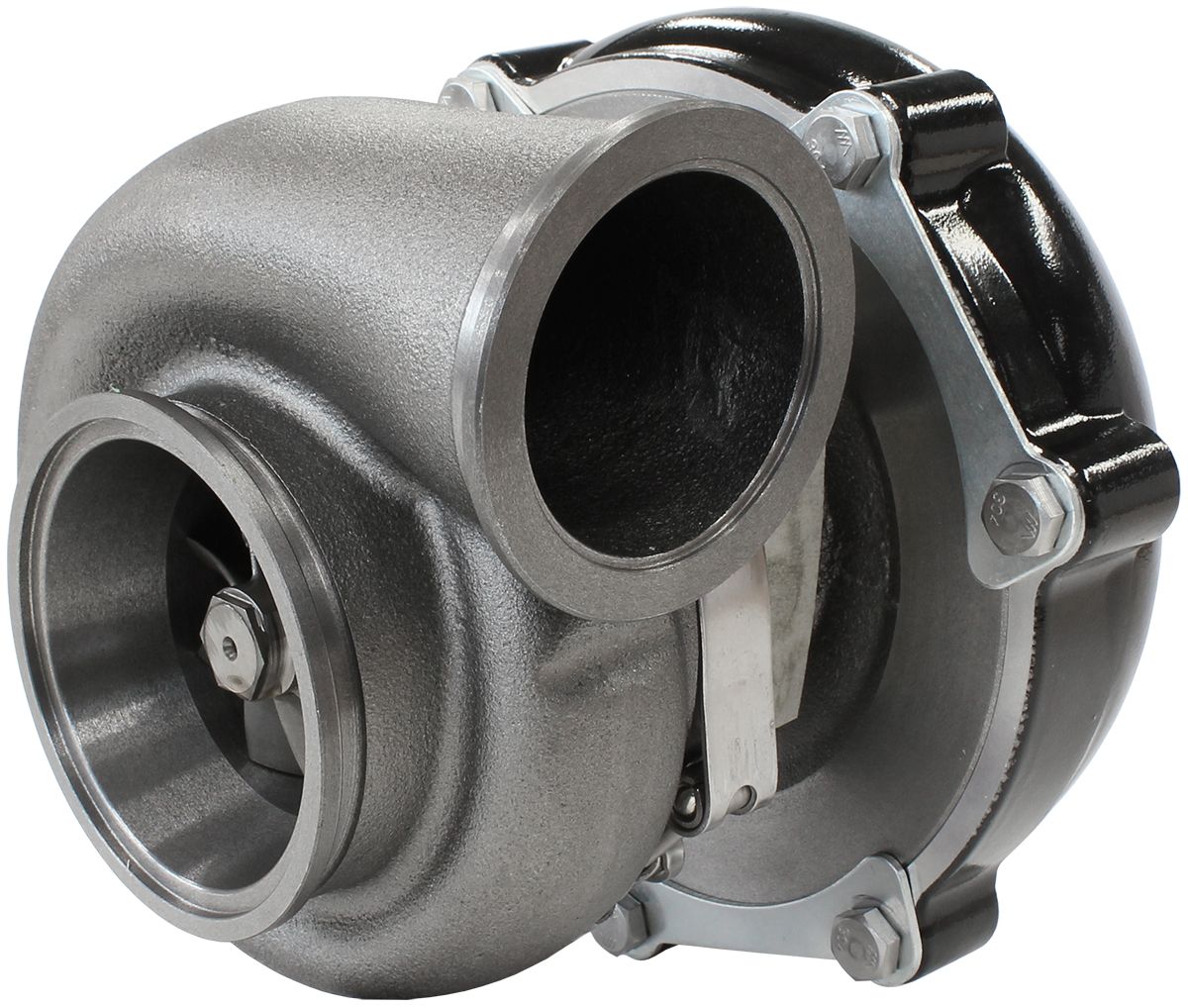

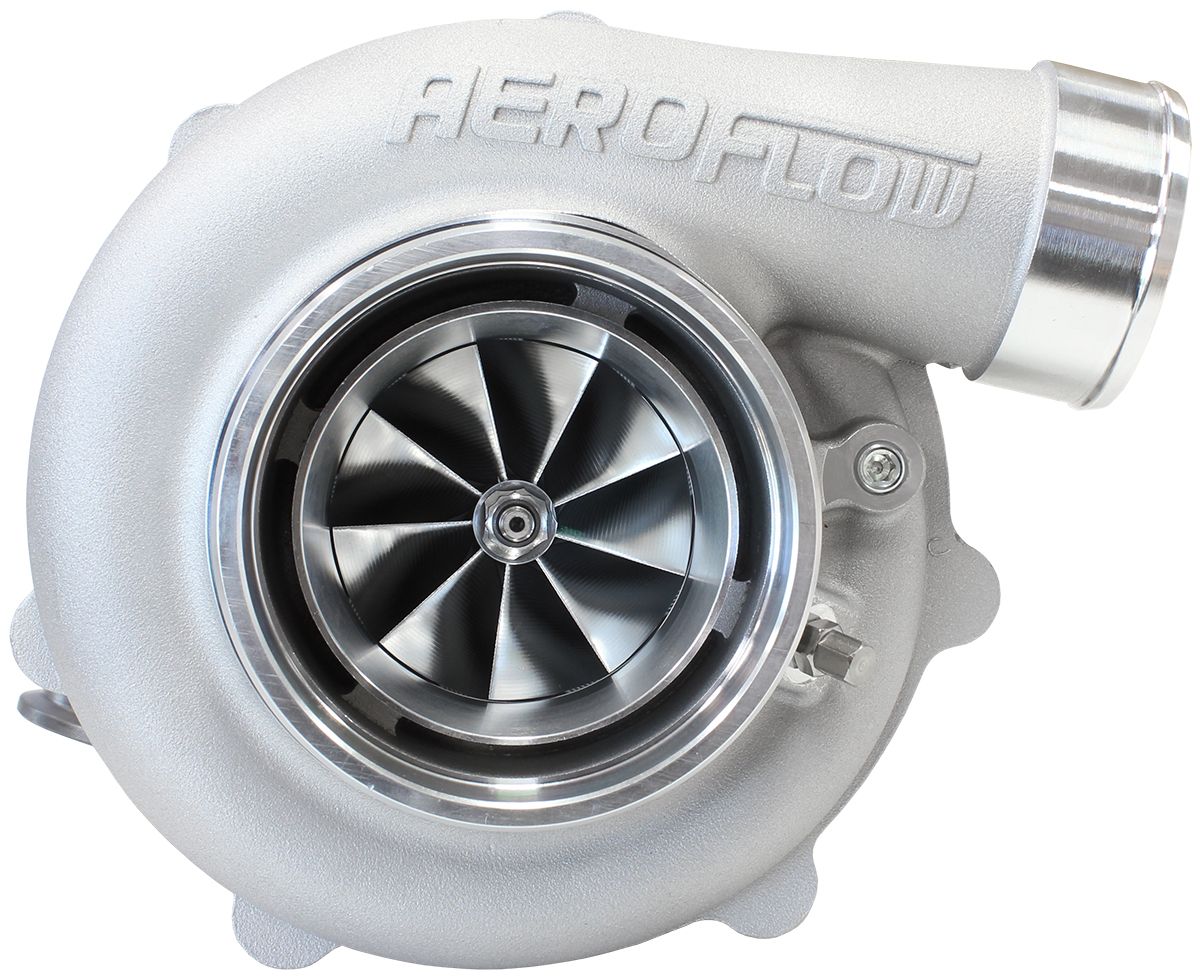

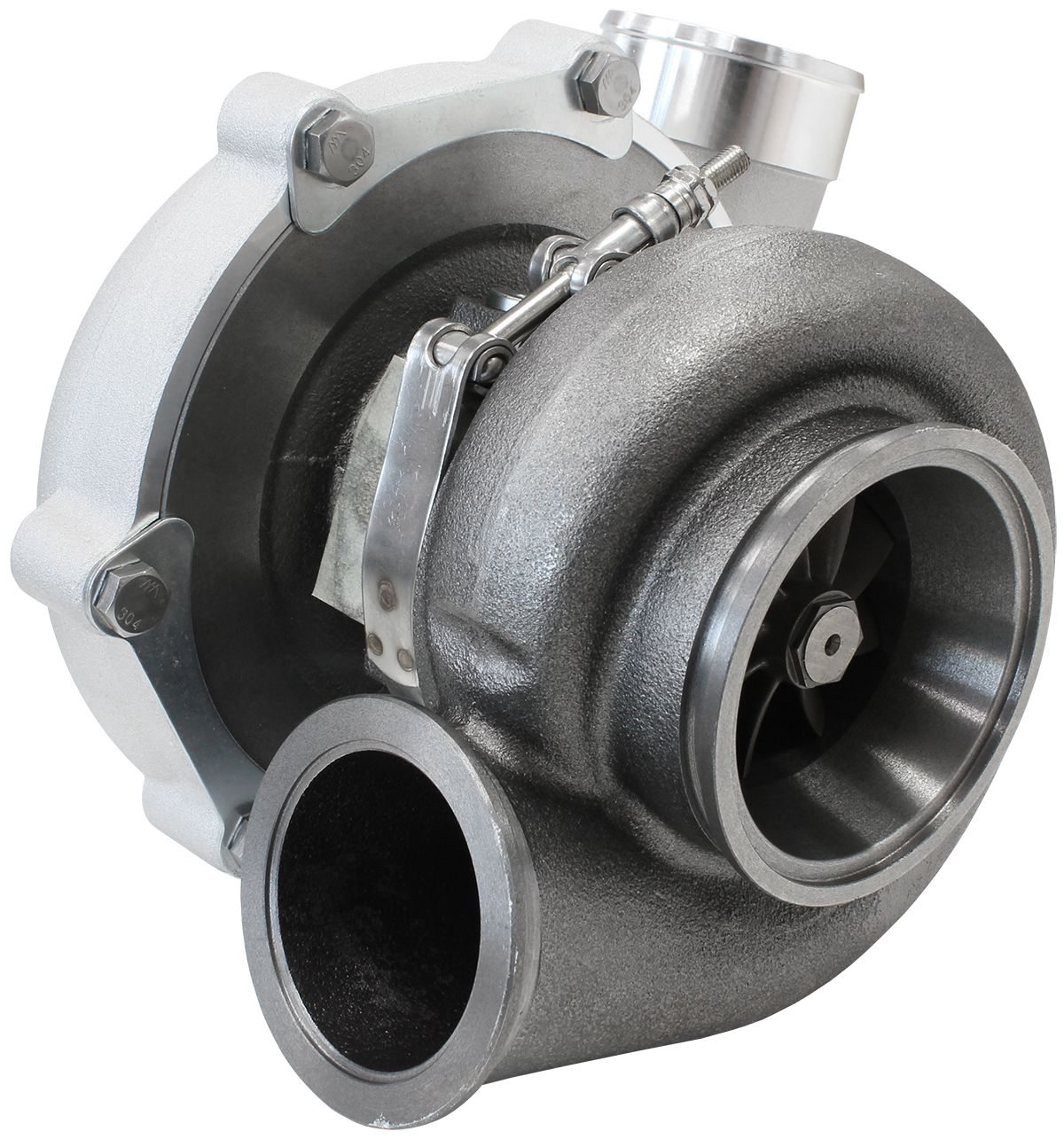

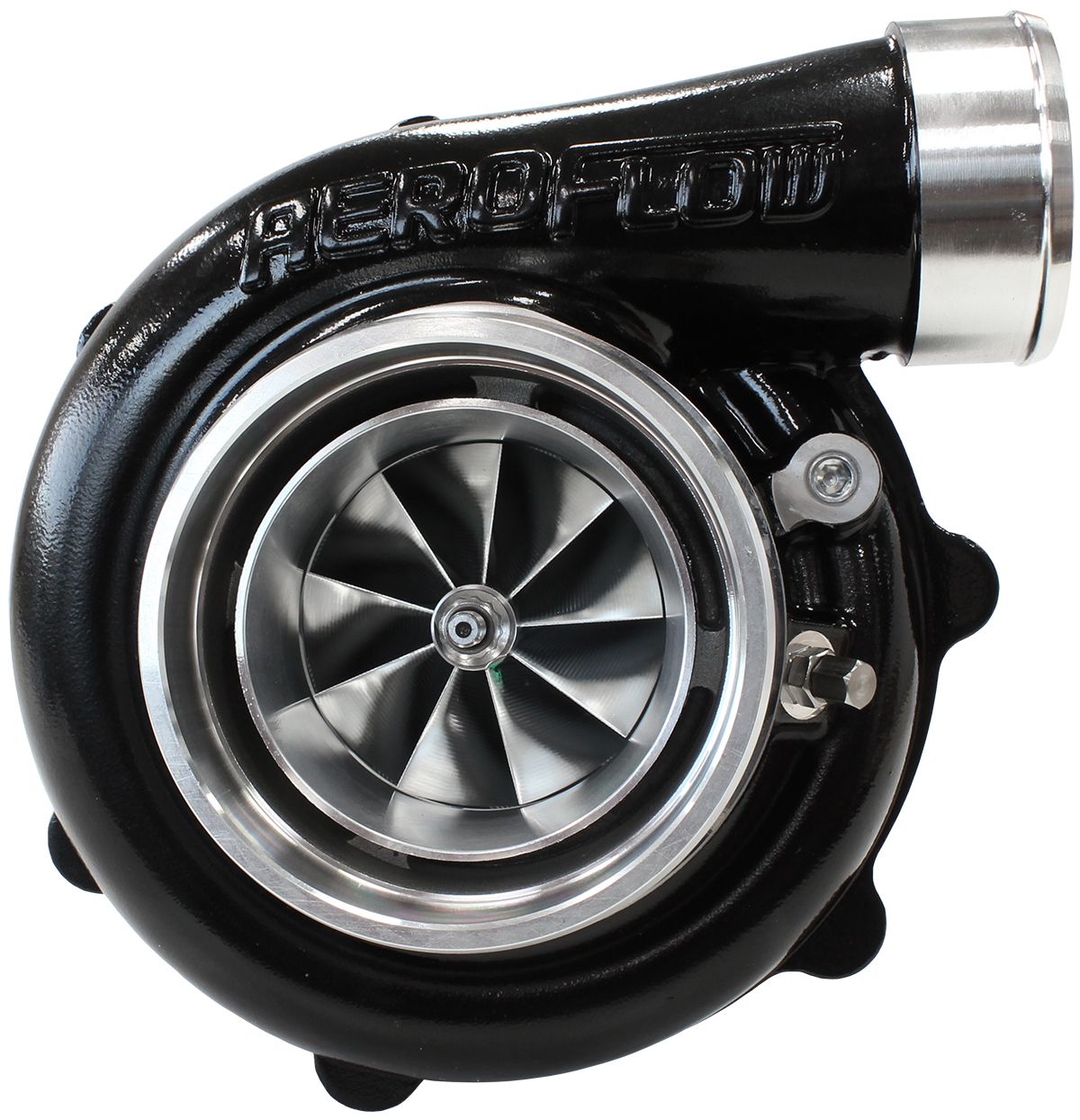

BOOSTED 6862 .83 V-BAND FLANGE V-BAND OUTLET G35 1050
BOOSTED 6862 .83 V-BAND FLANGE V-BAND OUTLET G35 1050
Regular price
$1,674.00NZD
Regular price
$1,800.00NZD
Sale price
$1,674.00NZD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Share
BOOSTED 6862 V-Band Turbocharger Specifications
Recommended horsepower rating:Â 700-1050HP
Recommended engine displacement:Â 2.0L to 5.5L
- Dual ceramic ball bearing
- Point Milled 7075 billet compressor wheel
- Ported shroud compressor cover
- Speed sensor port included in compressor cover (Speed sensor sold separately, AF8050-1010)
- 1/8" NPT boost reference port
- External wastegate sold separately
- Turbo drain gasket and -4AN turbo oil feed fitting with restrictor included in turbo kit. (Warranty VOID if not used)
- V-Band single entry turbine inlet flange
- 9 blade turbine wheel
- SiMo-nodular cast iron rear housing
- V-Band turbine outlet flange
- 4 x M14 x 1.5mm coolant ports (Must install water lines on opposite sides of the core)
- 7/16"-24 oil feed fitting with in-built restrictor
- 38mm bolt centre turbo drain flange with M8 x 1.25mm thread size
Compressor Specifications
Inducer:Â 68mm
Exducer:Â 84.3mm
Extended Tip:Â 87.06mm
A/R: Â 0.75
Compressor Inlet: Â 4" Slip fit
Compressor Outlet: Â 2.5" Slip fit
Turbine Specifications
Inducer:Â 68mm
Exducer:Â 62mm
A/R:Â 0.83
Turbine Inlet Flange: V-Band (AF8080-1016)
Turbine Outlet Flange: Â V-Band (AF8080-1000)
Wastegate
External wastegate
Recommended horsepower rating:Â 700-1050HP
Recommended engine displacement:Â 2.0L to 5.5L
- Dual ceramic ball bearing
- Point Milled 7075 billet compressor wheel
- Ported shroud compressor cover
- Speed sensor port included in compressor cover (Speed sensor sold separately, AF8050-1010)
- 1/8" NPT boost reference port
- External wastegate sold separately
- Turbo drain gasket and -4AN turbo oil feed fitting with restrictor included in turbo kit. (Warranty VOID if not used)
- V-Band single entry turbine inlet flange
- 9 blade turbine wheel
- SiMo-nodular cast iron rear housing
- V-Band turbine outlet flange
- 4 x M14 x 1.5mm coolant ports (Must install water lines on opposite sides of the core)
- 7/16"-24 oil feed fitting with in-built restrictor
- 38mm bolt centre turbo drain flange with M8 x 1.25mm thread size
Compressor Specifications
Inducer:Â 68mm
Exducer:Â 84.3mm
Extended Tip:Â 87.06mm
A/R: Â 0.75
Compressor Inlet: Â 4" Slip fit
Compressor Outlet: Â 2.5" Slip fit
Turbine Specifications
Inducer:Â 68mm
Exducer:Â 62mm
A/R:Â 0.83
Turbine Inlet Flange: V-Band (AF8080-1016)
Turbine Outlet Flange: Â V-Band (AF8080-1000)
Wastegate
External wastegate
