Aeroflow
SKU:AF8005-3056
BOOSTED 6255 .83 VBAND FLANGE V-BAND OUTLET G30 900
BOOSTED 6255 .83 VBAND FLANGE V-BAND OUTLET G30 900
Regular price
$1,441.50NZD
Regular price
$1,550.00NZD
Sale price
$1,441.50NZD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Share

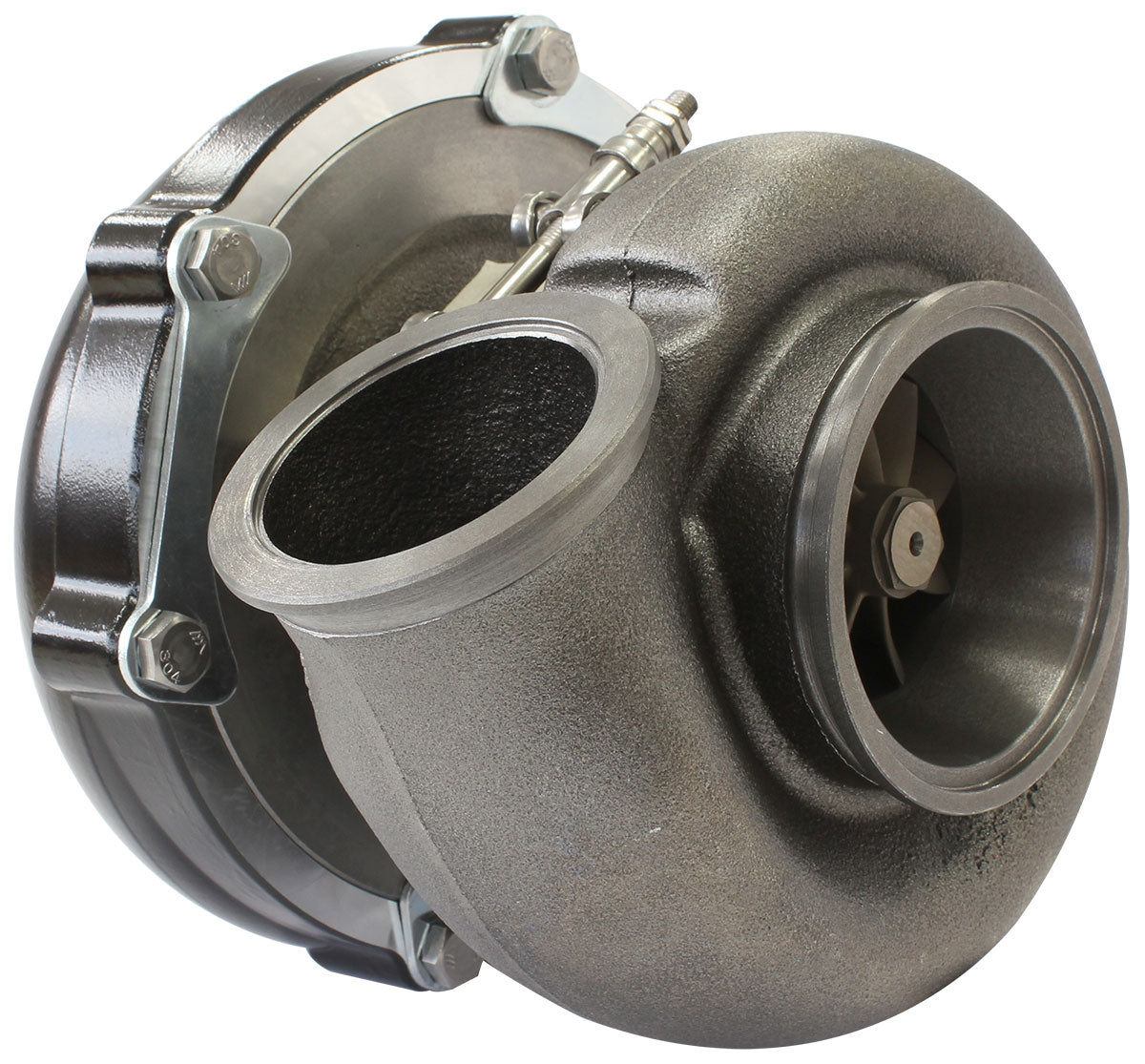

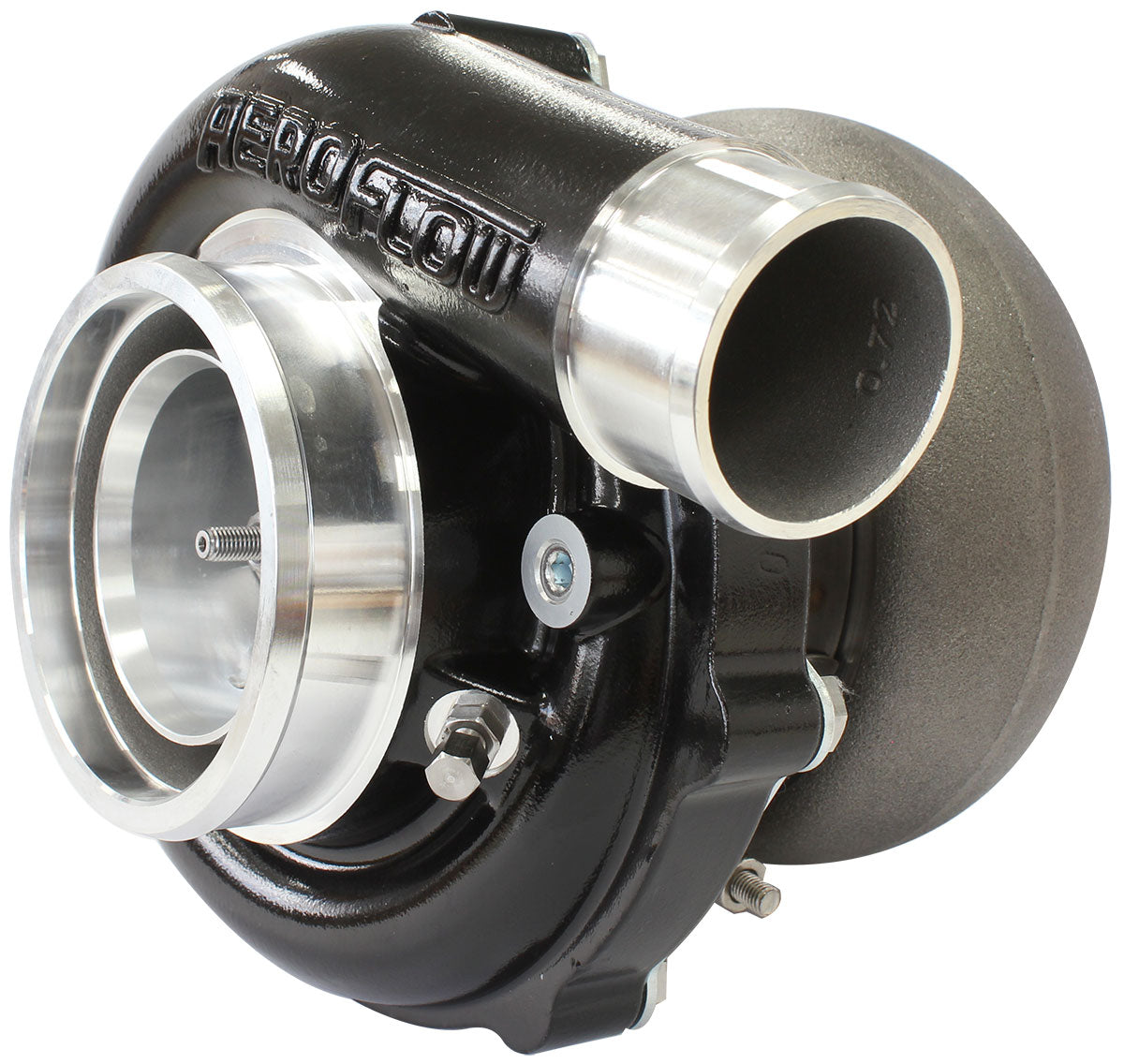

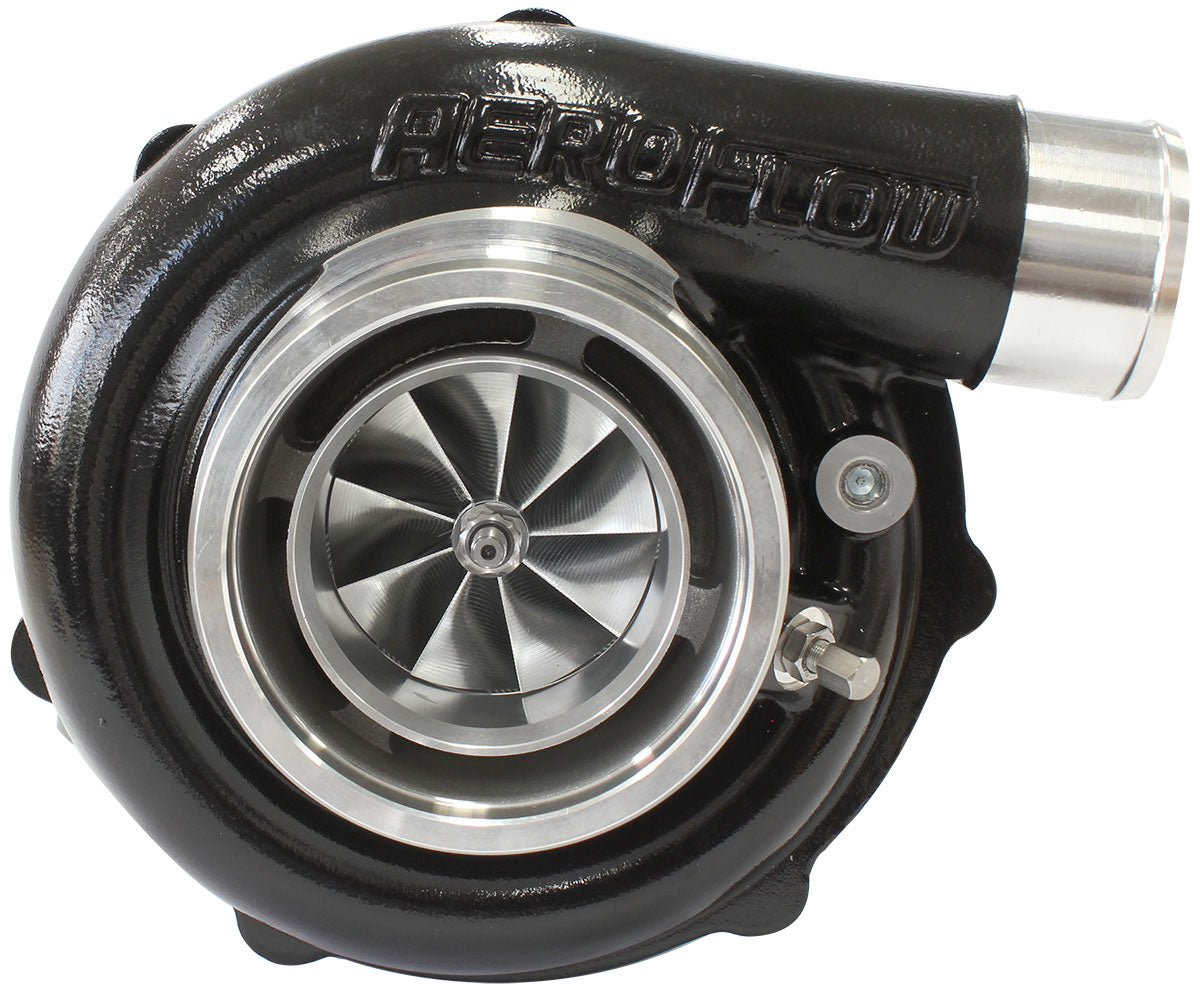

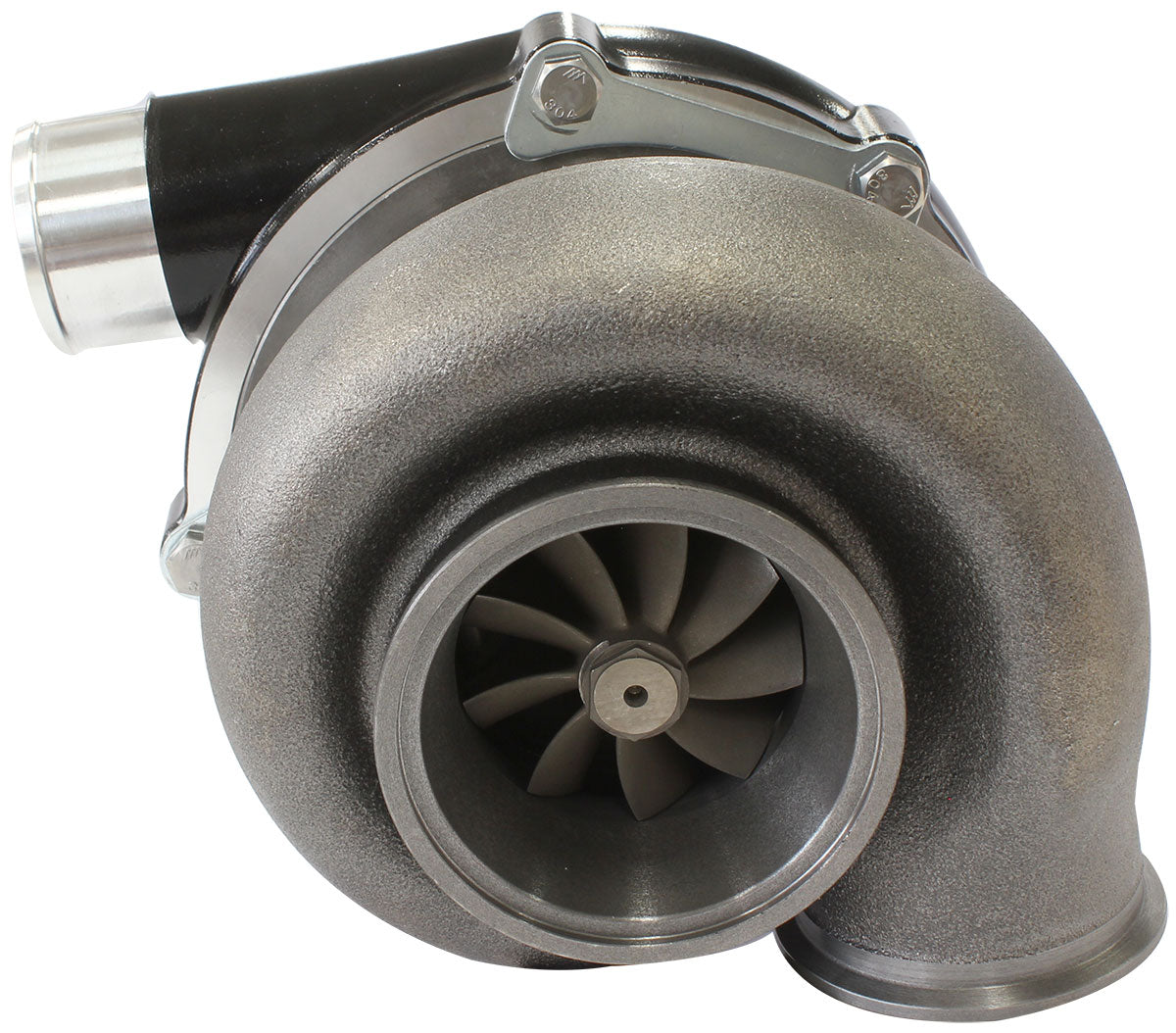

BOOSTED 6255 V-Band Turbocharger Specifications
Recommended horsepower rating:Â 550-900HP
Recommended engine displacement:Â 2.0L to 3.5L
- Dual ceramic ball bearing
- Point Milled 7075 billet compressor wheel
- Ported shroud compressor cover
- Speed sensor port included in compressor cover (Speed sensor sold separately, AF8050-1010)
- 1/8" NPT boost reference port
- External wastegate sold separately
- Turbo drain gasket and -4AN turbo oil feed fitting with restrictor included in turbo kit. (Warranty VOID if not used)
- V-Band single entry turbine inlet flange
- 9 blade turbine wheel
- SiMo-nodular cast iron rear housing
- V-Band turbine outlet flange
- M14 x 1.5mm coolant port thread
- 7/16"-24 oil feed fitting with in-built restrictor
- 38mm bolt centre turbo drain flange with M8 x 1.25mm thread size
Compressor Specifications
Inducer:Â 62mm
Exducer:Â 76mm
Extended Tip:Â 79.42mm
A/R: Â 0.72
Compressor Inlet: Â 4" Slip fit
Compressor Outlet: Â 2" Slip fit
Turbine Specifications
Inducer: Â 60mm
Exducer: Â 55mm
A/R:Â 0.83
Turbine Inlet Flange: V-Band (AF8080-1016)
Turbine Outlet Flange: Â V-Band (AF8080-1000)
Wastegate
External wastegate
Recommended horsepower rating:Â 550-900HP
Recommended engine displacement:Â 2.0L to 3.5L
- Dual ceramic ball bearing
- Point Milled 7075 billet compressor wheel
- Ported shroud compressor cover
- Speed sensor port included in compressor cover (Speed sensor sold separately, AF8050-1010)
- 1/8" NPT boost reference port
- External wastegate sold separately
- Turbo drain gasket and -4AN turbo oil feed fitting with restrictor included in turbo kit. (Warranty VOID if not used)
- V-Band single entry turbine inlet flange
- 9 blade turbine wheel
- SiMo-nodular cast iron rear housing
- V-Band turbine outlet flange
- M14 x 1.5mm coolant port thread
- 7/16"-24 oil feed fitting with in-built restrictor
- 38mm bolt centre turbo drain flange with M8 x 1.25mm thread size
Compressor Specifications
Inducer:Â 62mm
Exducer:Â 76mm
Extended Tip:Â 79.42mm
A/R: Â 0.72
Compressor Inlet: Â 4" Slip fit
Compressor Outlet: Â 2" Slip fit
Turbine Specifications
Inducer: Â 60mm
Exducer: Â 55mm
A/R:Â 0.83
Turbine Inlet Flange: V-Band (AF8080-1016)
Turbine Outlet Flange: Â V-Band (AF8080-1000)
Wastegate
External wastegate
Note: We strive to maintain a wide range of products in stock. However, some items may be ordered on demand, resulting in a lead time. If your order is urgent, please contact Speedspec in advance. sales@speedspec.co.nz
