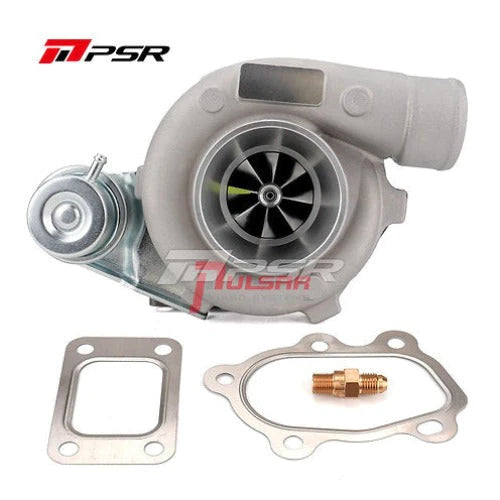

8 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology

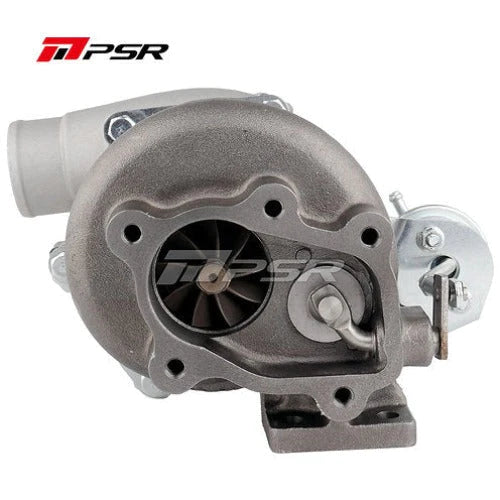

Inconel 713c 9-blade Turbine Wheel
Gen2 Cover Integrated with the Speed Sensor Port
Max Air Flow rate: ~40 lb/min
Compressor Wheel: 45.64/60.07/62mm
Turbine Wheel: 54/47mm
Compressor Inlet: 3″ Hose
Compressor Outlet: 2″ Hose
Turbine Inlet: T25
Turbine Outlet: 5 Bolt
Oil Feed: -4 AN connect to the Oil Restrictor
Oil Drain: Std T3 Flange
Water In/Outlet: M14*1.5
We highly recommended running water cooling for better durability.
