Dual Ceramic ball bearing system provides optimal turbo response & better durability by reducing the shaft-motion
9 Blade PTG-Aero Billet Compressor Wheel with Extended Tapered Tip Technology
9 Blade PTG-Aero Inconel 713c Turbine Wheel

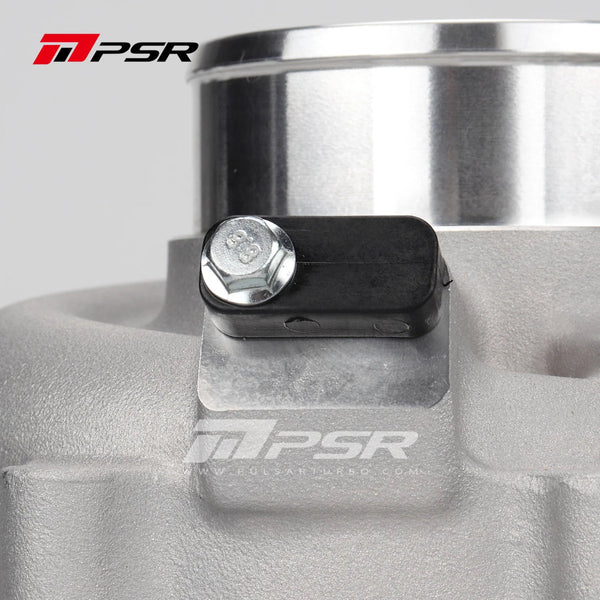

Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
Internally Wastegated, Billet Actuator(12-14 psi)
Compressor Wheel: 48*60mm
Turbine Wheel: 54*49mm
Compressor Inlet: 3″ Hose
Compressor Outlet: 2″ Hose
Turbine Inlet: 2.5″ V-Band (DVB Option)
Turbine Outlet: 3″ V-Band
Water Ports: -6AN
Oil Feed: -4AN to the Oil Restrictor
Oil Drain: Std T3 Oil Drain Flange
