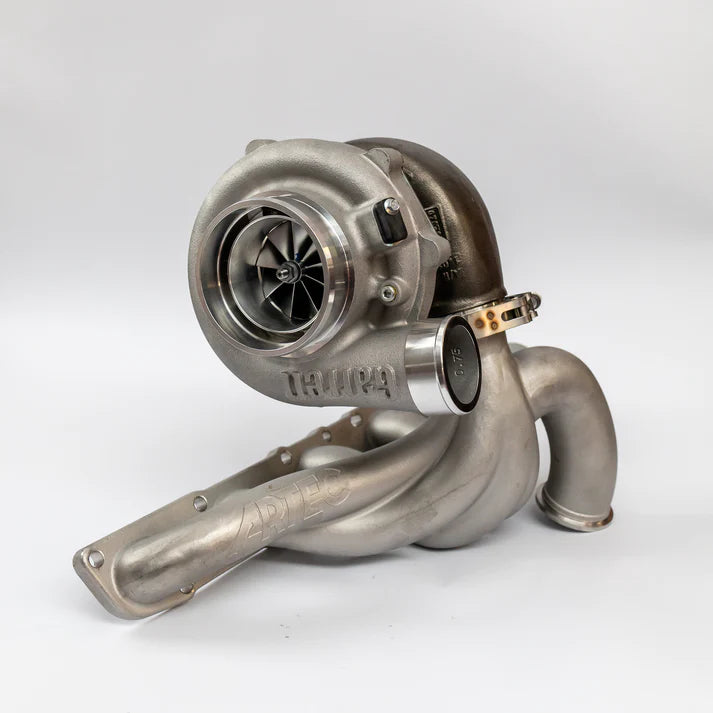

ARTEC X GARRETT G35-1050 (1.01AR) RB26 TURBO KIT

ARTEC x GARRETT G35-1050 (1.01AR) RB26 Turbo Kit

ARTEC Performance Nissan RB V-Band Exhaust Manifold (Reverse Rotation)
SKU: AEXH-RB2X-VBRR

Suits RB20/25/26 DOHC cylinder heads
33MM ID runners and reduced runner length for improved turbo response and reduced lag
Reverse Rotation design with universal V-Band mounting system for easy installation of Reverse Rotation 50-55mm V-Band turbos
Designed to accommodate 44/45/46mm wastegates, with the ability to fit 50mm or larger gates if needed
Compatible with turbos ranging from G25 to G35-1050 and PTE 6266 and 6466

Garrett G35-1050 Super Core (Reverse Rotation)
SKU: 880696-5002S

Horsepower: 700 - 1050HP
Displacement: 2.5 - 5.5L
Garrett® G Series Compressor Aerodynamics for maximum HP.
Fully machined Speed Sensor and pressure ports.
New Turbine Wheel Aero constructed of MAR-M alloy rated 1055ºC
Oil restrictor and water fittings included.
Reverse rotation.
Compressor side: TRIM 65 A/R 0.75
Compressor Air Inlet: Hose 4.00" (101.60mm)
Compressor Air Outlet: Hose 2.00" (51.15mm)
Bearing housing: Water and Oil cooled system.

Garrett G35/1.01 (V-bands) Turbine housing (Reverse Rotation)
SKU: 740902-0114

Stainless Steel turbine housing capable of 1050°C.
TRIM 84 A/R 1.01 - Reverse
Inlet: V-Band 3.00" (76.20mm)
Outlet: V-Band 3.55" (90.16mm)
Free float
Includes V-bands
