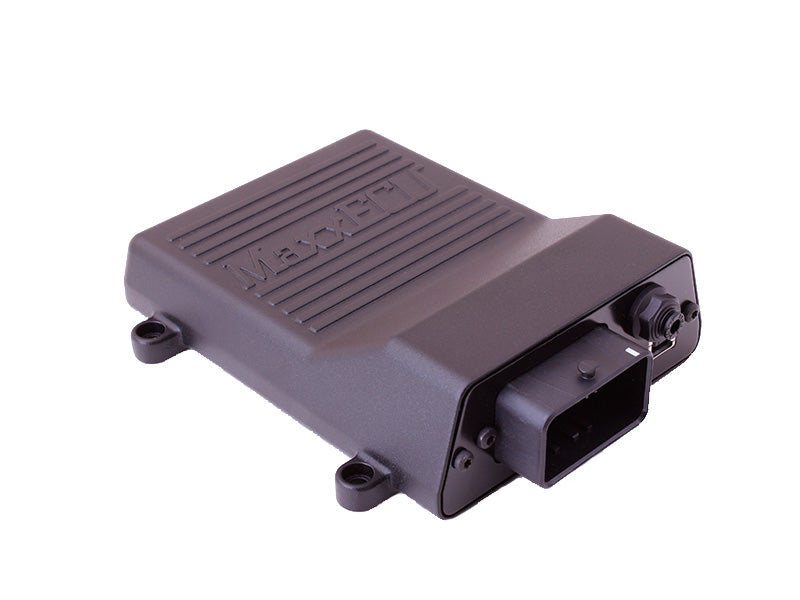

MaxxECU Street

MaxxECU Street

$1,555.00NZD
$1,555.00NZD $1,555.00NZD
Sale Sold out
Shipping calculated at checkout.
KIT TYPE

The Perfect ECU for those no frills budget installs while still offering those Motorsport features you love.

  • Internal wideband
  • 4bar Map sensor
  • 8MB memory for up to 1000Hz internal logging
  • 140x134x42mm (including mounting points, excluding connector)
  • Aluminium casing weighing 520g

Wired Outputs

  • 6x injectors outputs. High impedance only
  • 6x ignition outputs. 5V signal to drive ignition modules, CDI units or coils
  • 4x outputs for extra features. Can be used to control virtually anything. Fuel pumps, idle control, boost solenoids, nitrous, shift lights, fans, warning lights, etc. GPO 1-3 (2A), GPO 8 (5A)

Wired Inputs

  • 4x Temperature
  • 3x Analog inputs
  • 2x Trigger
  • 2x Digital inputs
  • 1x Wideband
  • 1x CANbus

Kit Options

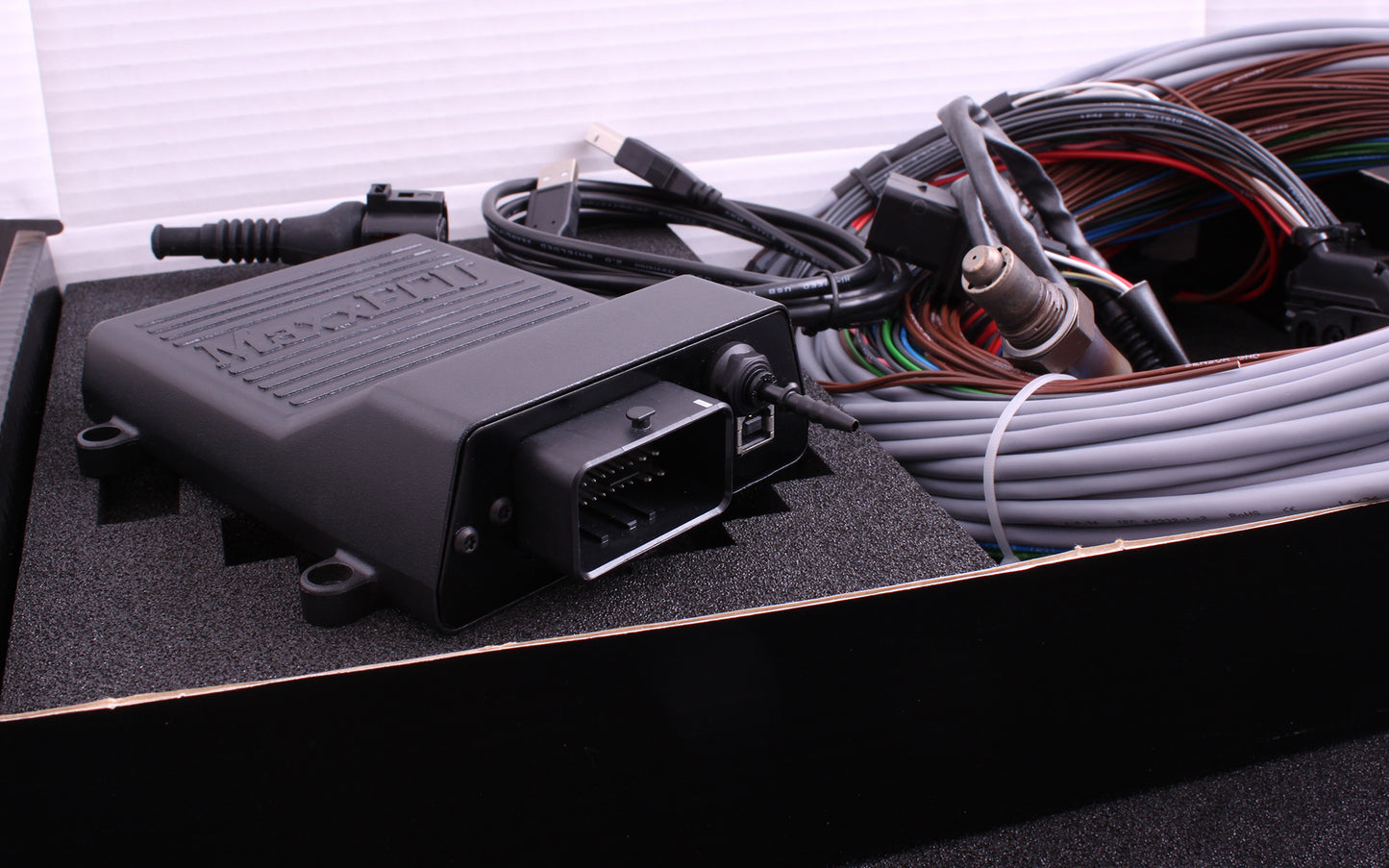

Basic — ECU, Plug and pins, Vacuum hose adaptor, USB cable, ECU Pinout sheet.

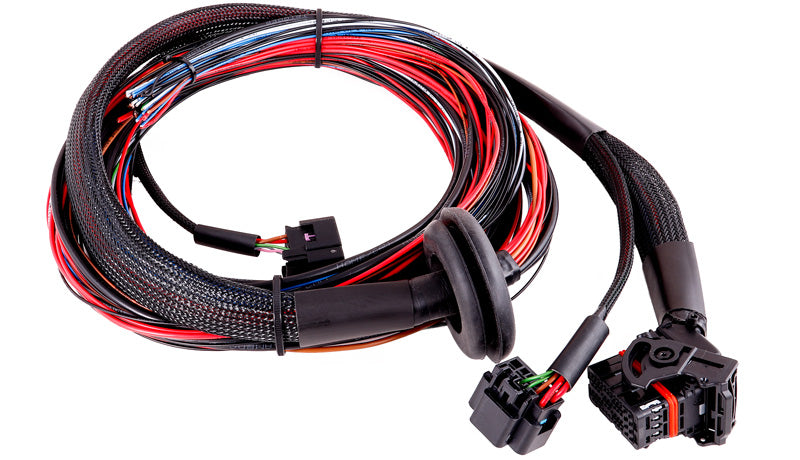

Standard — ECU, 3m loom with additional cable, Push lock hose and fittings, USB cable,  ECU Pinout sheet.
Premium — ECU, 3m loom with additional cable, Push lock hose and fittings, LSU 4.2 and connector, USB cable, ECU Pinout sheet.

Note: We strive to maintain a wide range of products in stock. However, some items may be ordered on demand, resulting in a lead time. If your order is urgent, please contact Speedspec in advance. sales@speedspec.co.nz
