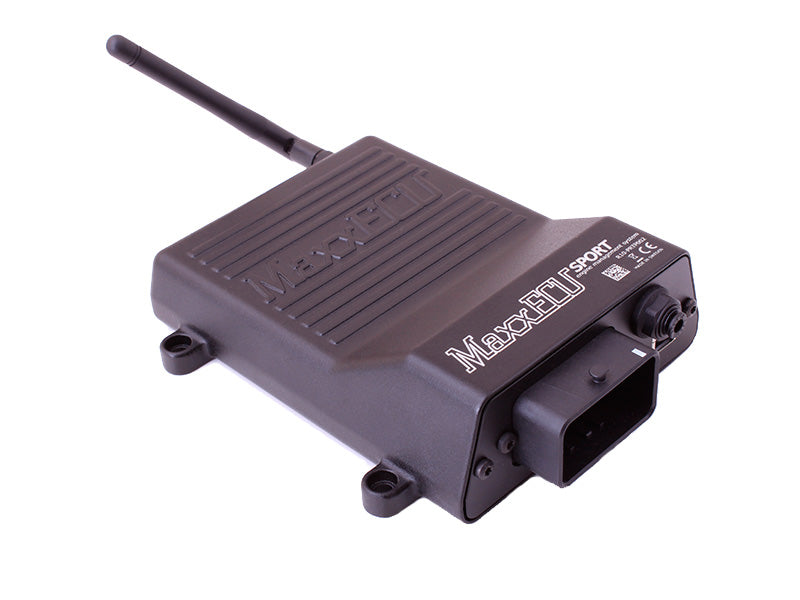

MaxxECU Sport

The Perfect ECU for those after an ECU offering great value and those Motorsport features you love without breaking the bank.

Kit Options

The most second most popular MaxxECU offering a Fantasitic price, packed with features and the Bonus of the MDash App via Bluetooth

• Internal wideband
• 4bar Map sensor
• 8MB memory for up to 1000Hz internal logging
• 140x134x42mm (including mounting points, excluding connector)
• Aluminium casing weighing 590g

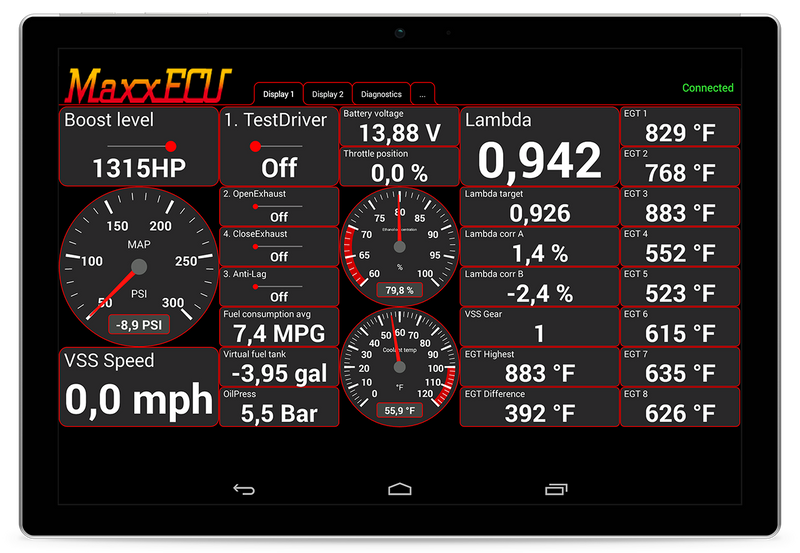

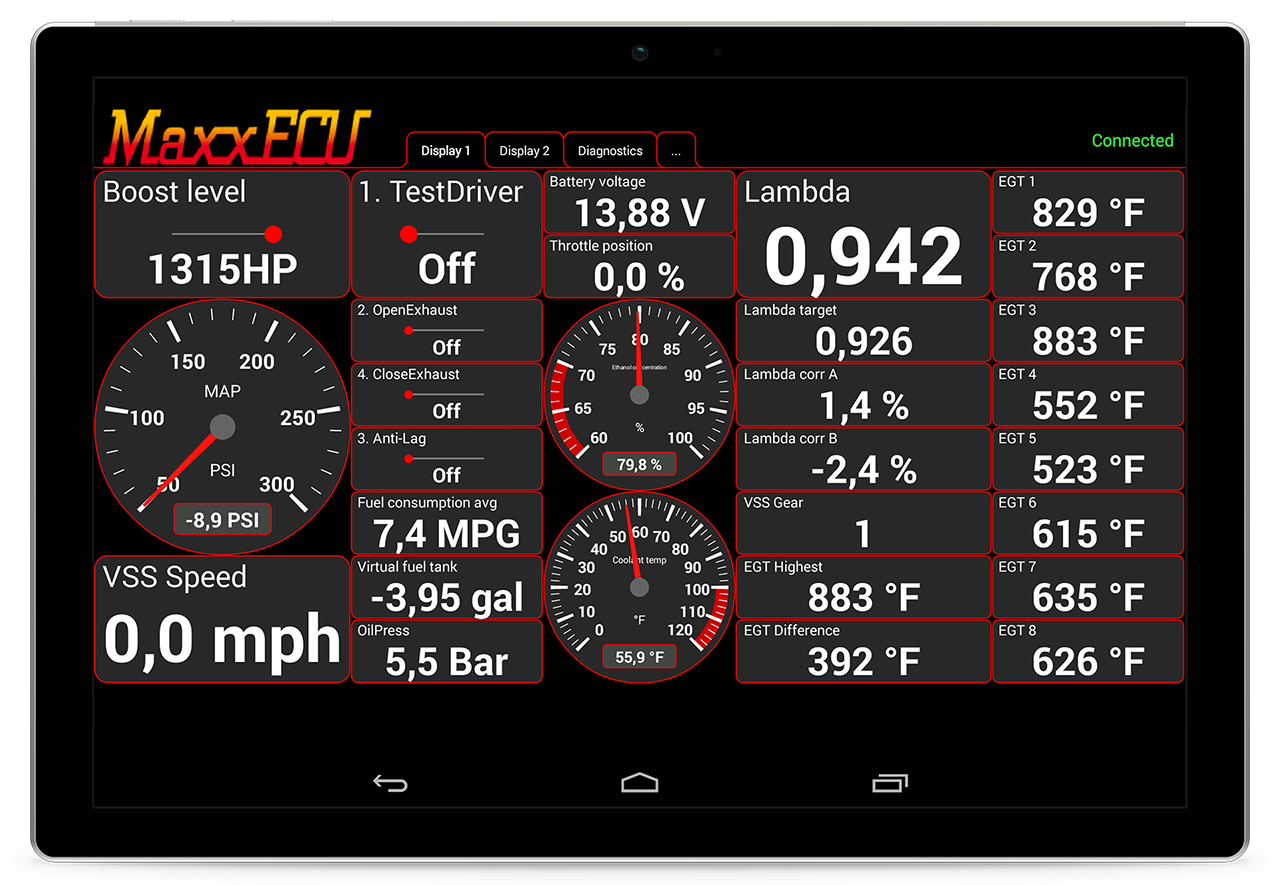

• Bluetooth to Android (MDash App in the google play store)

Wired Outputs

• 6x injectors outputs. High/Low impedance 8 amp per output
• 6x ignition outputs. 5V signal to drive ignition modules, CDI units or coils
• 9x outputs for extra features. Can be used to control virtually anything. Fuel pumps, idle control, boost solenoids, nitrous, shift lights, fans, warning lights, etc. GPO 1-5 (2A), GPO 8 (5A) GPO 9 (2A) GPO 11-12 (2a) E-throttle or other outputs

Wired Inputs

• 4x Temperature
• 7x Analog inputs
• 2x Trigger
• 2x Digital inputs (un-used temps and analogs can be used as well)
• 1x Wideband
• 1x CANbus

Kit Options

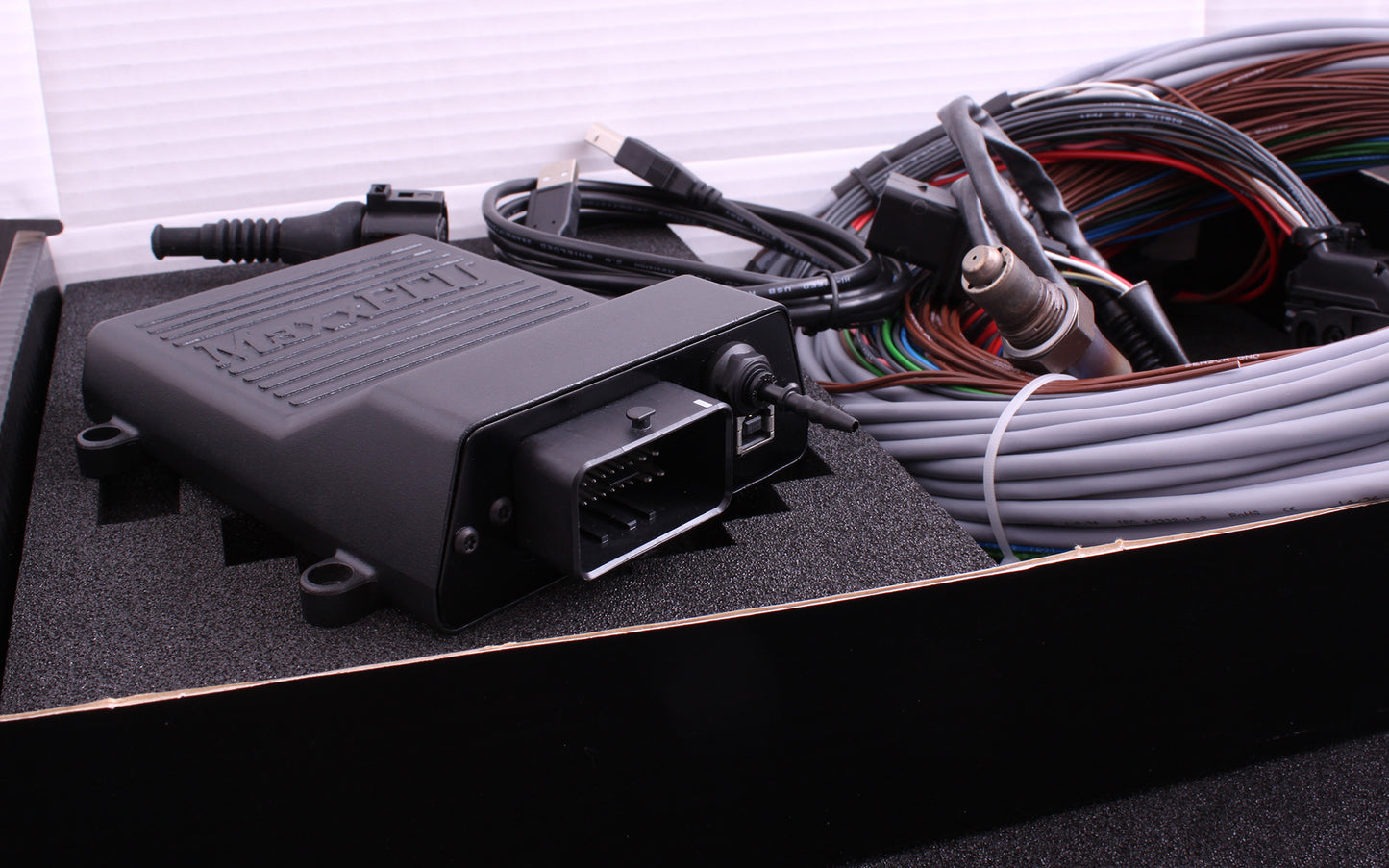

Basic ECU, Plug and pins, Vacuum hose adaptor, USB cable, Bluetooth Aerial, ECU Pinout sheet.
Standard ECU, 3m loom with additional cable, Push lock hose and fittings, USB cable, Bluetooth Aerial, ECU Pinout sheet.
Premium ECU, 3m loom with additional cable, Push lock hose and fittings, LSU 4.2 and connector, USB cable, Bluetooth Aerial, ECU Pinout sheet.
