SpeedSpec

SKU:1816

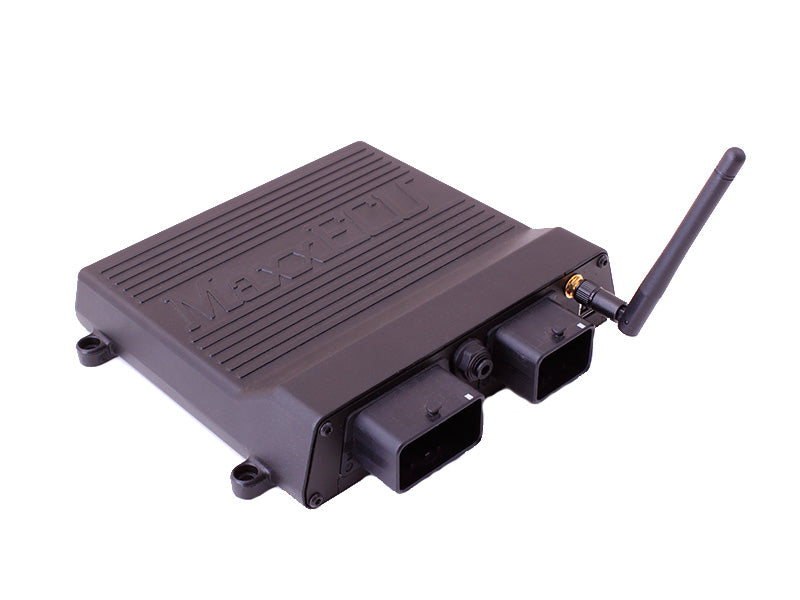

MaxxECU Race

MaxxECU Race

Regular price $2,600.00NZD
Regular price $2,600.00NZD Sale price $2,600.00NZD
Sale Sold out
Shipping calculated at checkout.
KIT TYPE

Available from supplier, ships in 2-10 days

The Perfect ECU for those after an ECU offering those motorsport features you love with out breaking the bank.

MaxxECU Race

  • Internal wideband
  • 4bar Map sensor
  • Bluetooth
  • 8MB memory for up to 1000Hz internal logging
  • 50Hz sampling rate on all EGT inputs
  • 155x195x40mm (including mounting points, excluding connector)
  • Aluminium casing weighing 880g

Wired Outputs

  • 8 peak/hold injector outputs. 1-2 high or low impedance injectors per output. 8A per output
  • 8 ignition outputs. 5V signal to drive ignition modules, CDI units or coils
  • 9 extra LOW DRIVING outputs for additional features. Can be adjusted to control virtually anything like fuel pumps, idle valves.
  • 2 extra +12V DRIVING outputs
  • 4 extra motor outputs (ex E-Throttle).

Wired Inputs

  • 4x Temperature
  • 7x Analog inputs
  • 2x Trigger
  • 4x Digital inputs
  • 2x Knock
  • 8x EGT
  • 1x Wideband
  • 1x CANbus

Kit Options

Basic — ECU, 2x Plug and pins, Vacuum hose adaptor, USB cable, Bluetooth Aerial, ECU Pinout sheet.

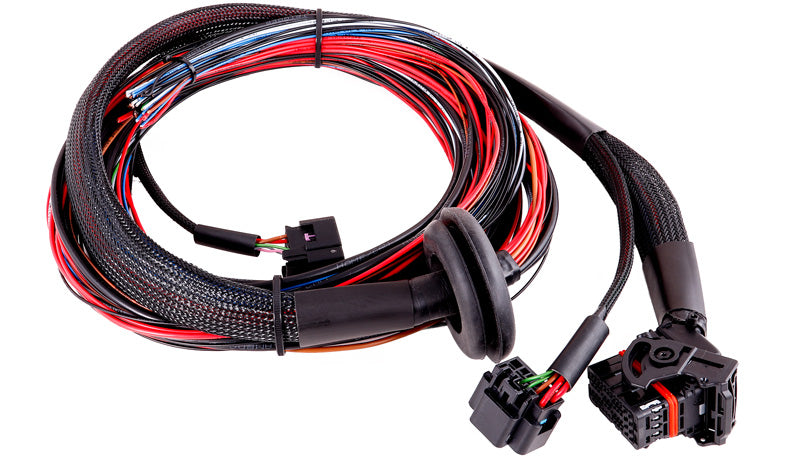

Standard — ECU, 1x 3m loom with additional cable, Push lock hose and fittings, USB cable, Bluetooth Aerial, ECU Pinout sheet.

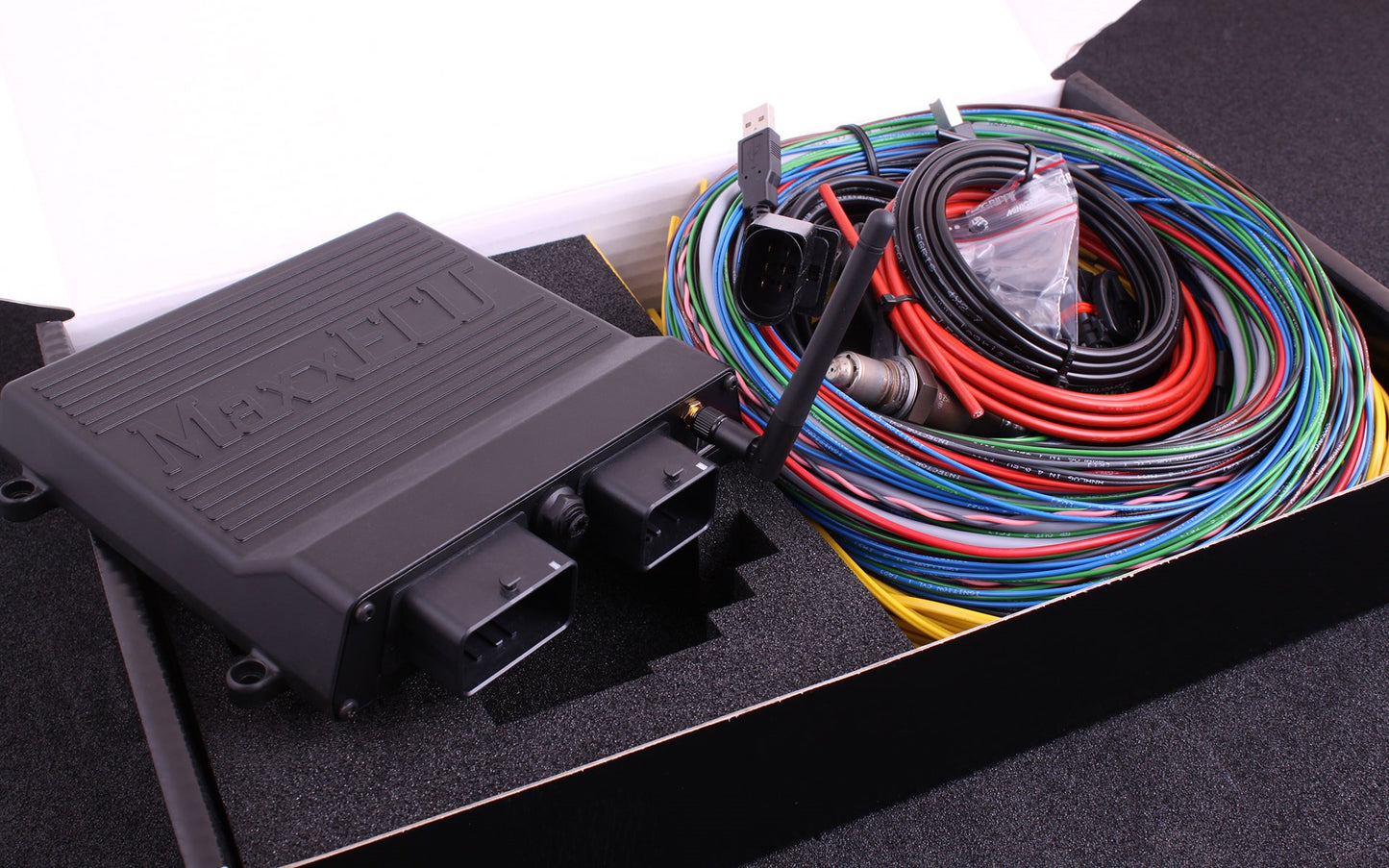

Premium — ECU, 2x 3m loom with additional cable, Push lock hose and fittings, LSU 4.2 and connector, USB cable, Bluetooth Aerial, ECU Pinout sheet.

Note: We strive to maintain a wide range of products in stock. However, some items may be ordered on demand, resulting in a lead time. If your order is urgent, please contact Speedspec in advance. sales@speedspec.co.nz
