Recommended horsepower rating:Â 1000-2500HP Recommended engine displacement:Â 3.0L to 7.0L

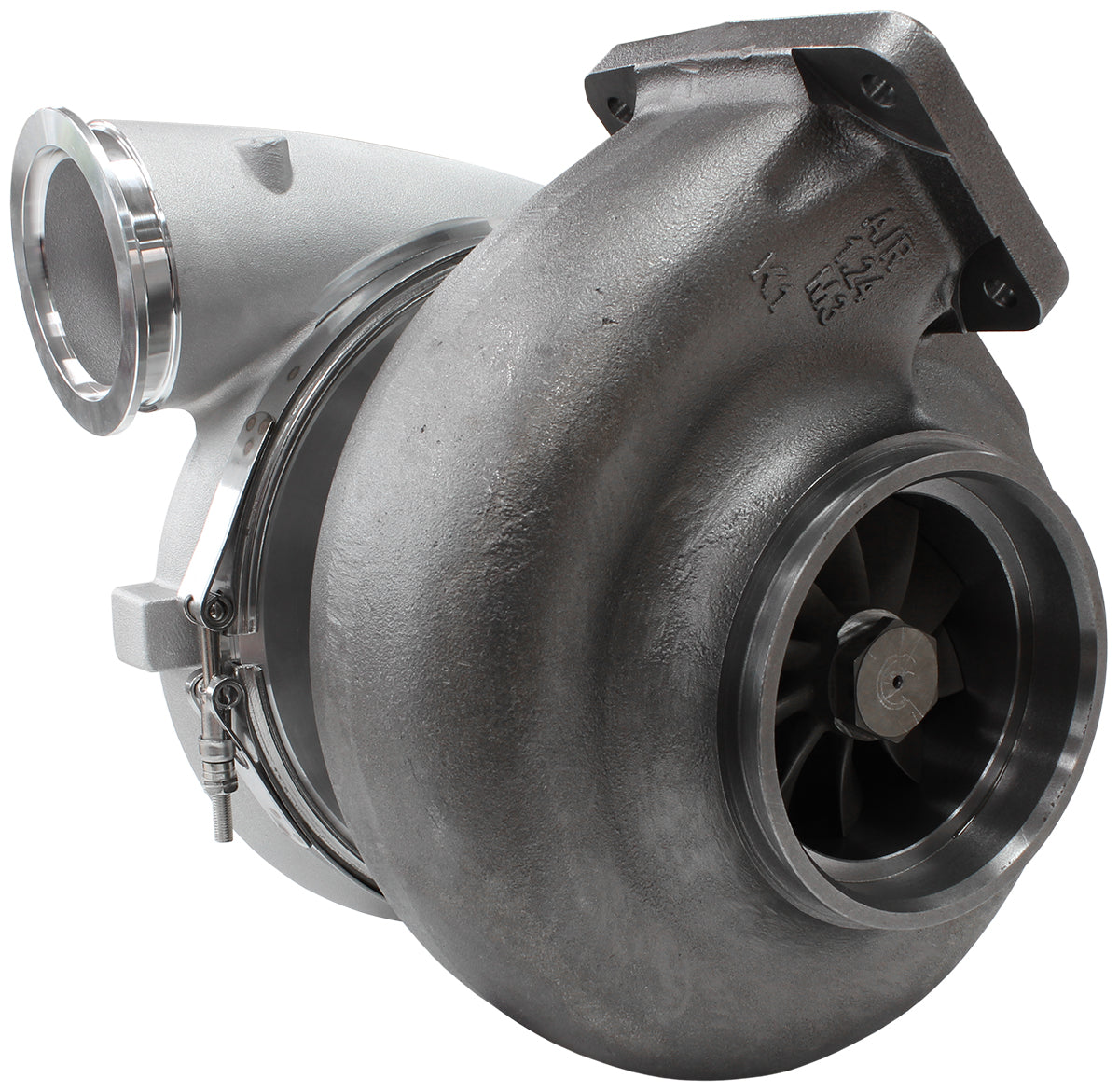

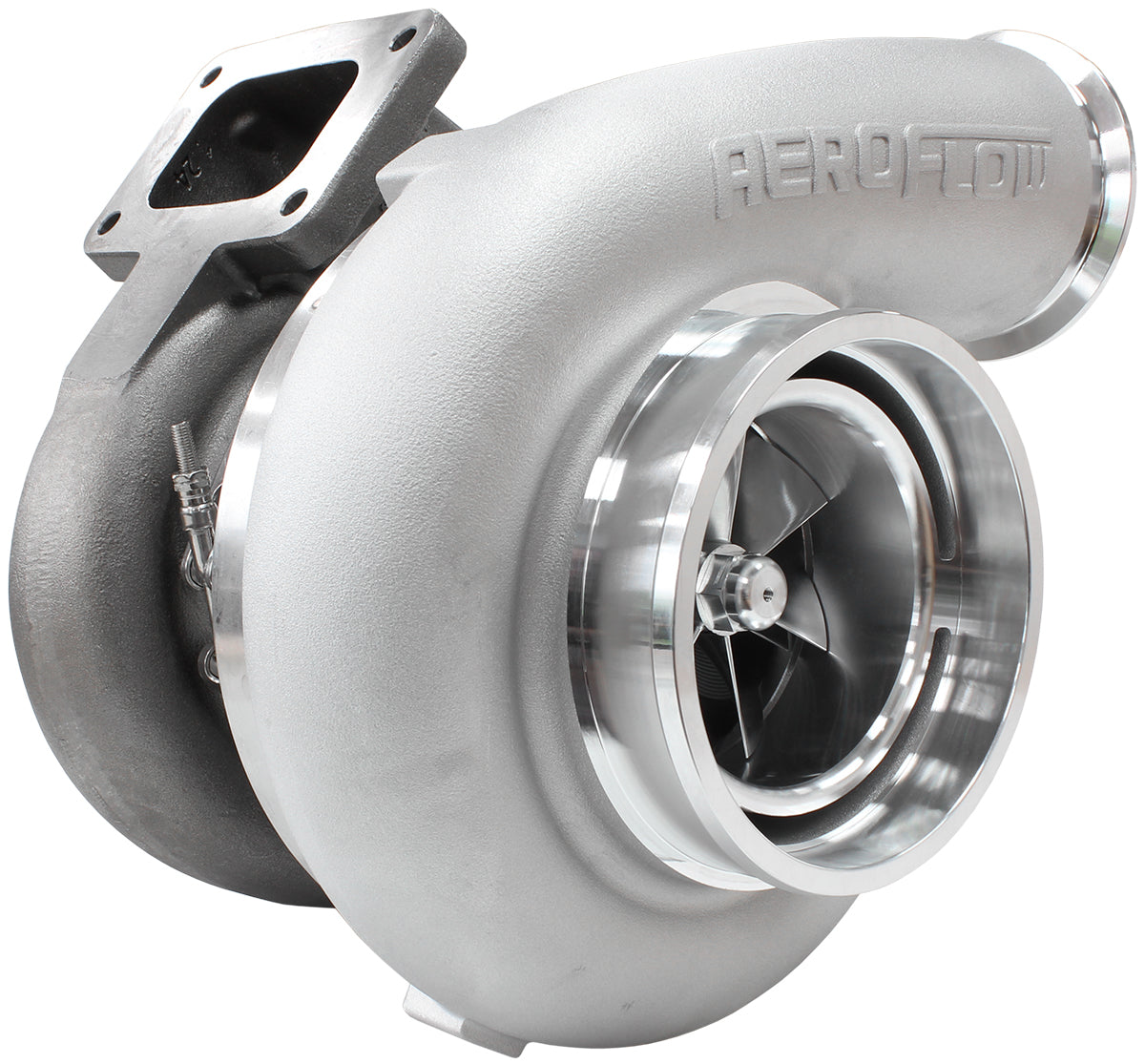

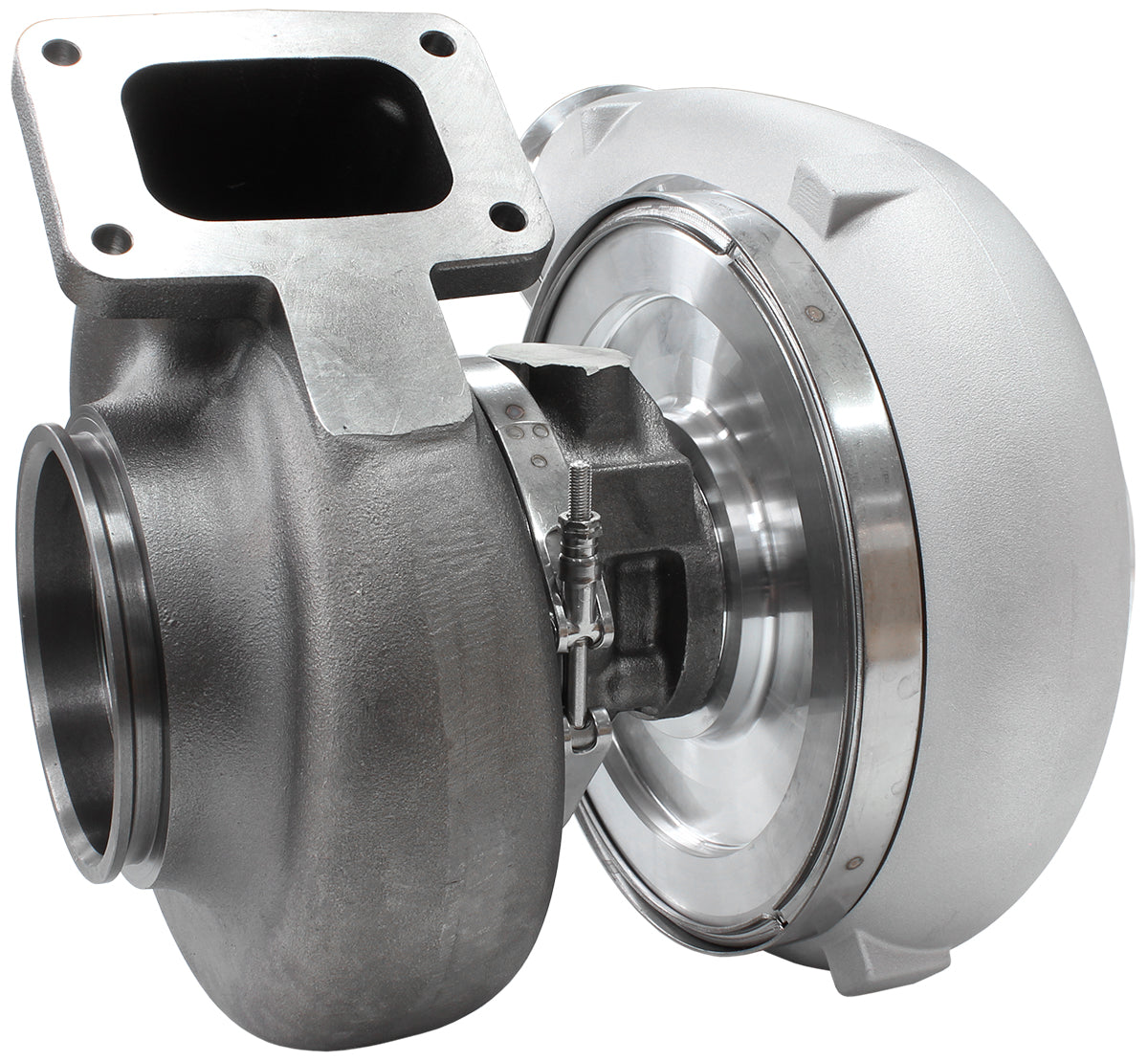

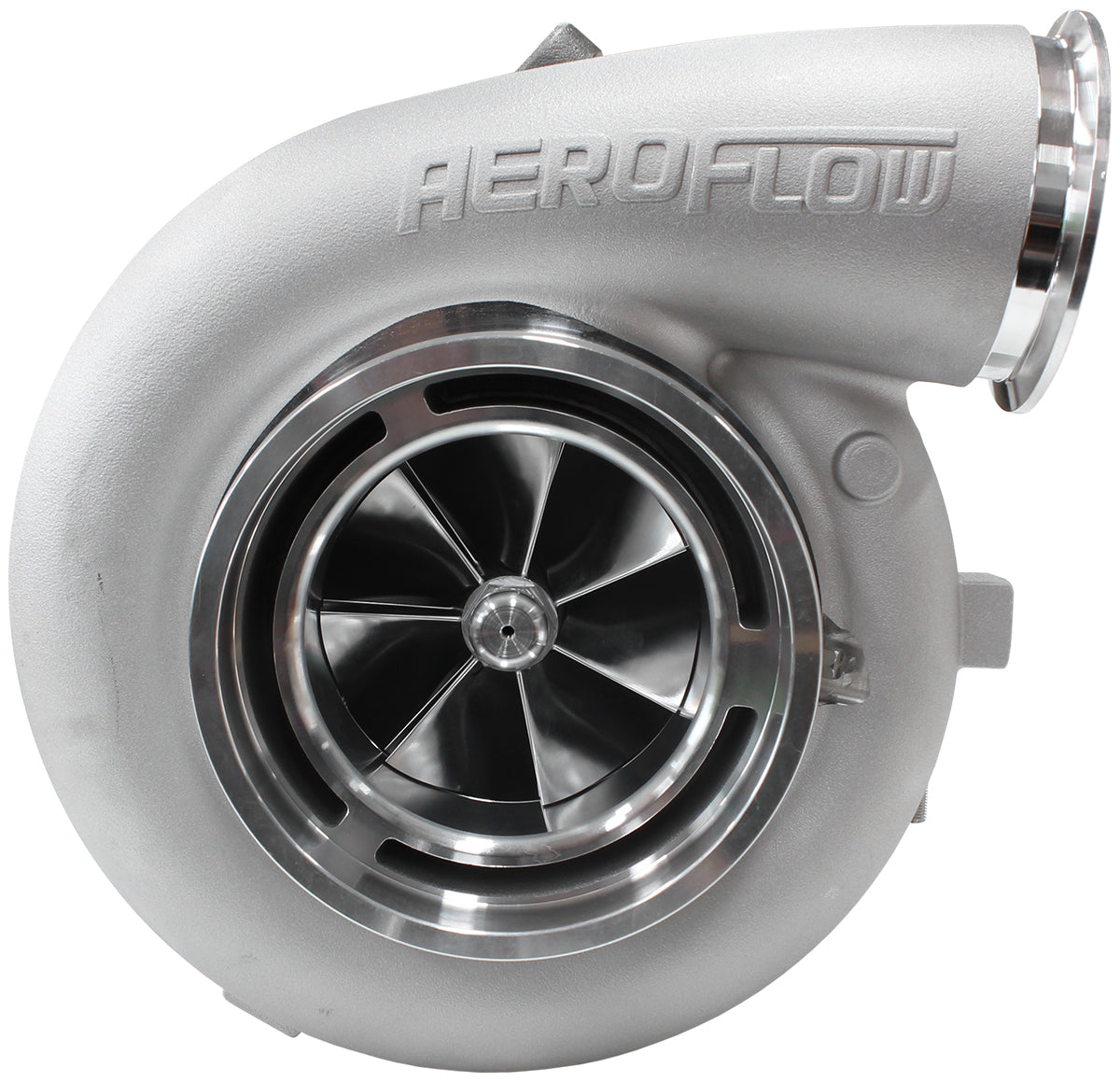

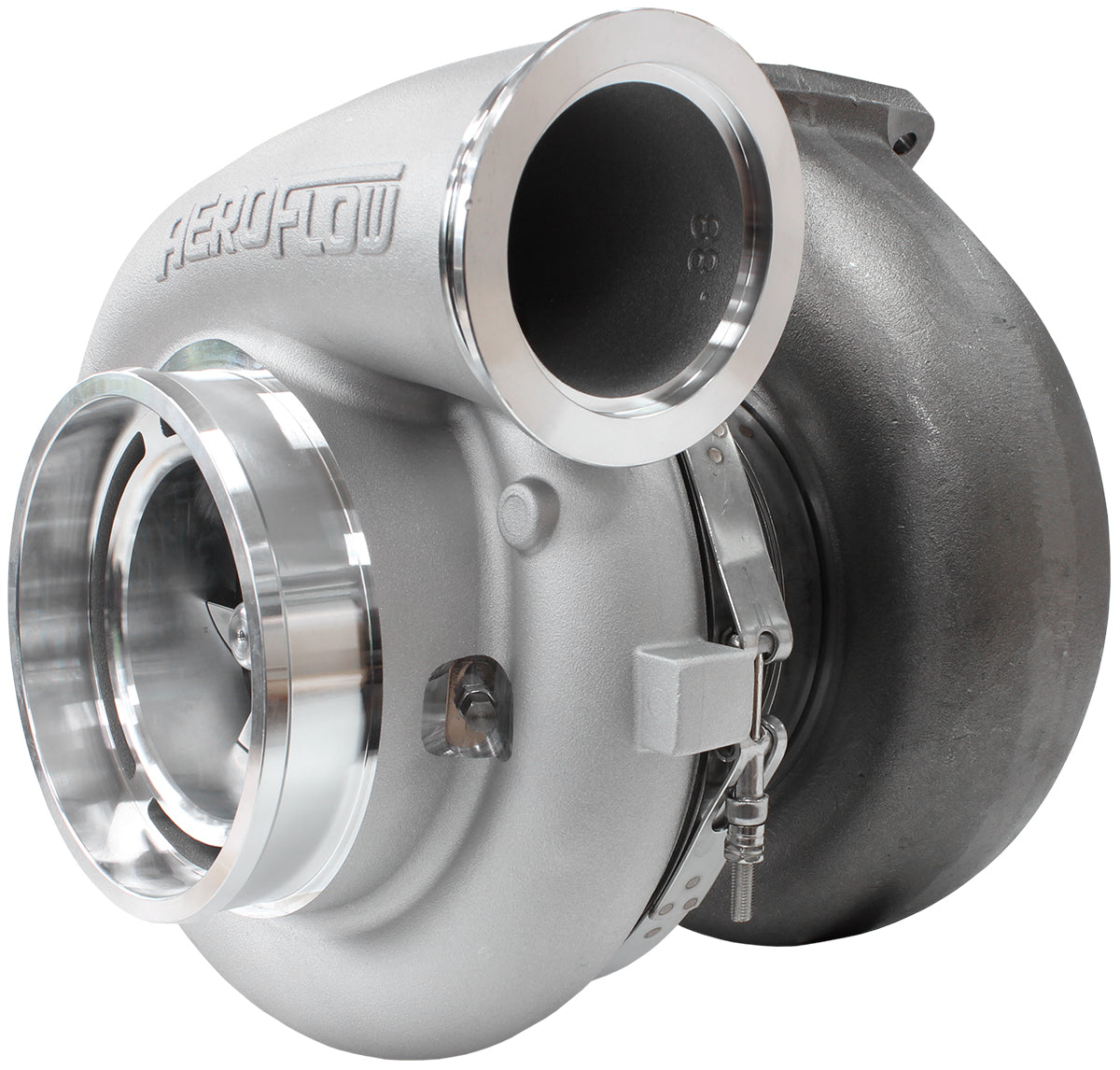

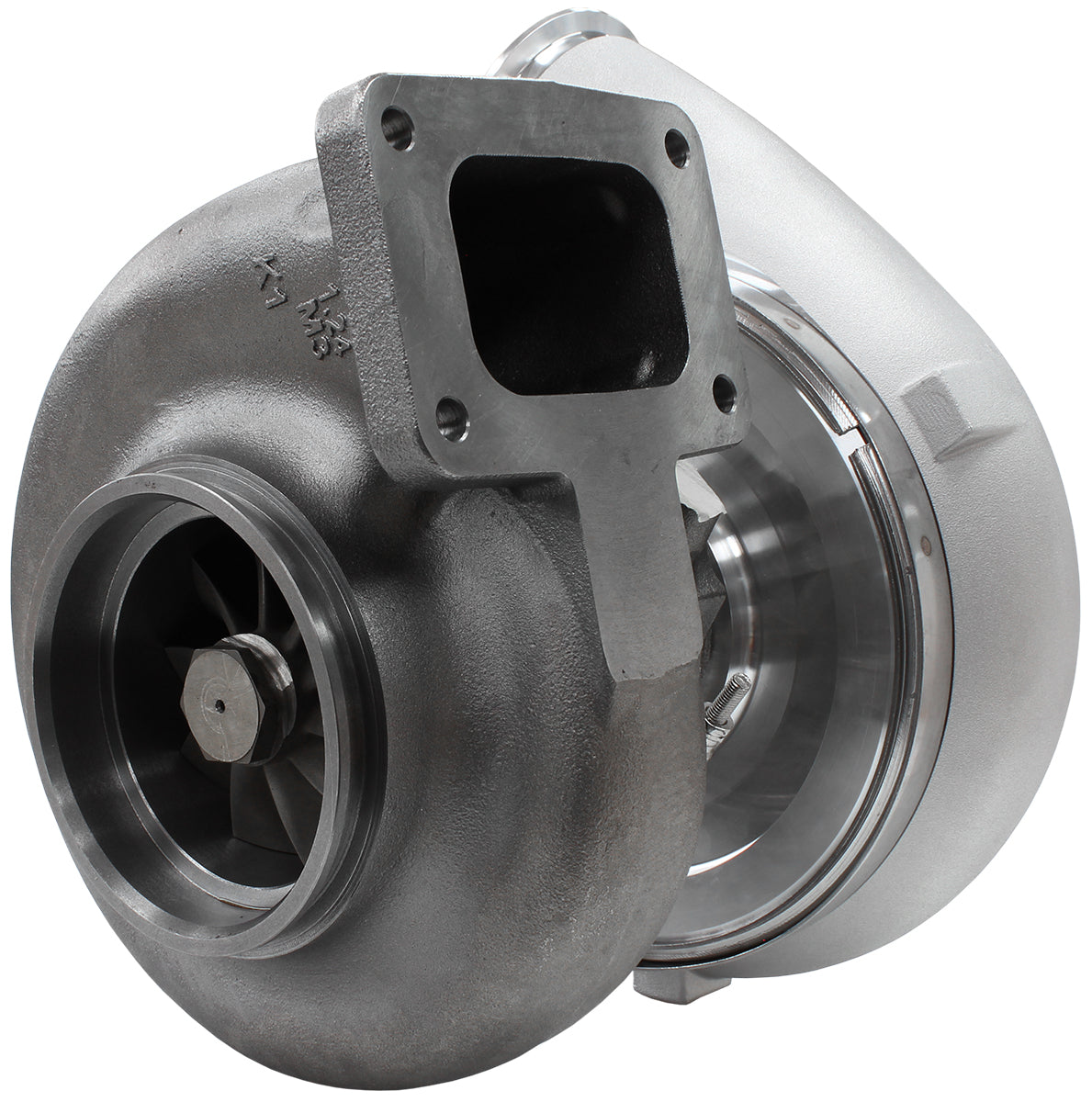

- 360° journal bearing - 7075 billet 7 + 7 compressor wheel - Ported shroud compressor cover - This is an oil cooled turbocharger - Speed sensor port included in compressor cover (Speed sensor sold separately, AF8050-1010) - External wastegate sold separately - Inlet flange gasket and turbo drain gasket included in turbo kit - Must use a -6AN oil feel line to maintain core temperature (Warranty VOID if not used) - T6 single entry turbine inlet flange - SiMo-nodular cast iron rear housing - V-Band turbine outlet flange - V-Band compressor outlet flange - 1/4" NPT oil feed fitting (sold separately) or a 38mm 2-bolt oil feed plate with M8 x 1.25mm thread size - 50.80mm bolt centre turbo drain flange with M8 x 1.25mm thread size
