Recommended horsepower rating:Â 1200-1600HP Recommended engine displacement:Â 3.0L to 7.0L

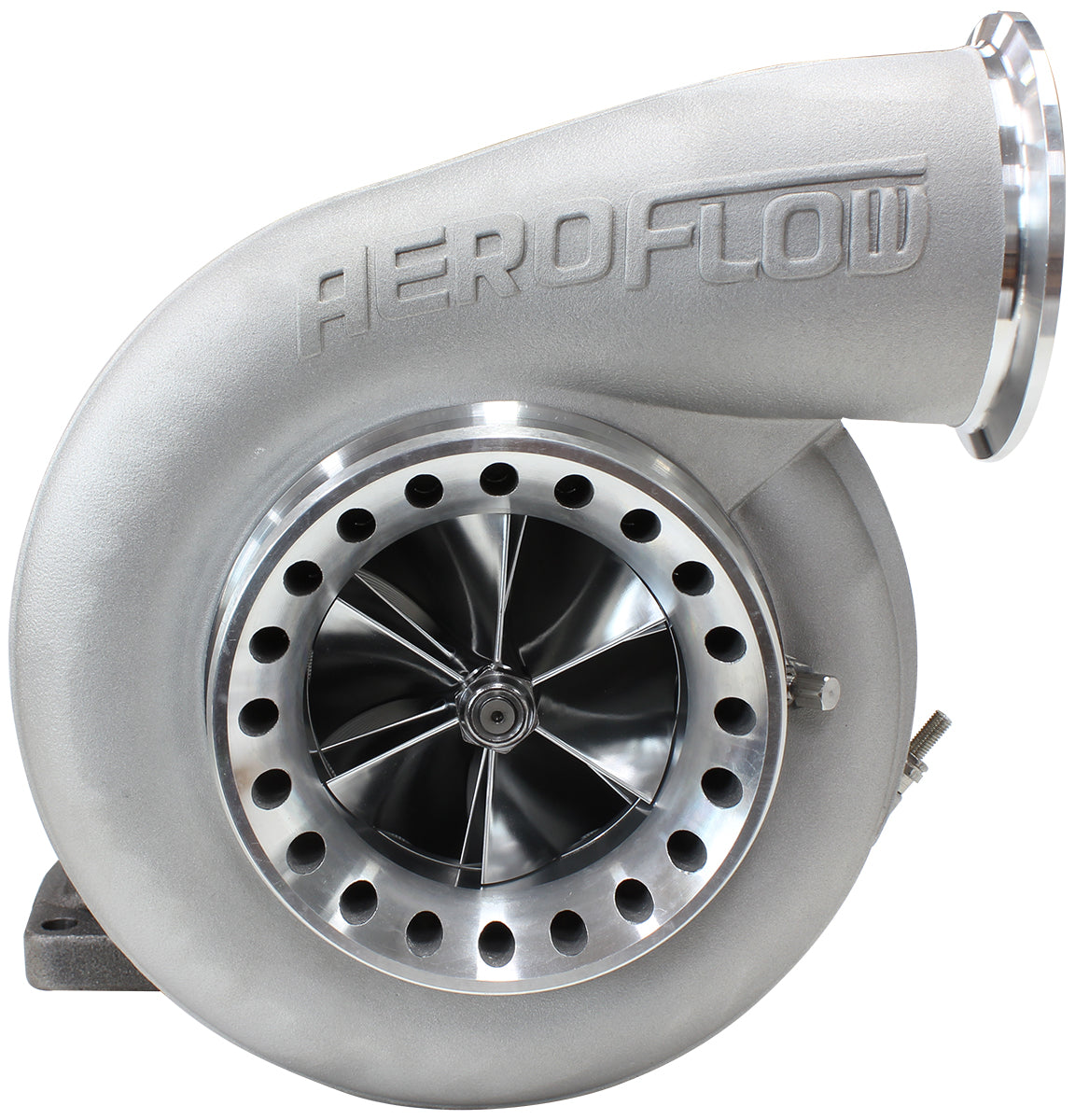

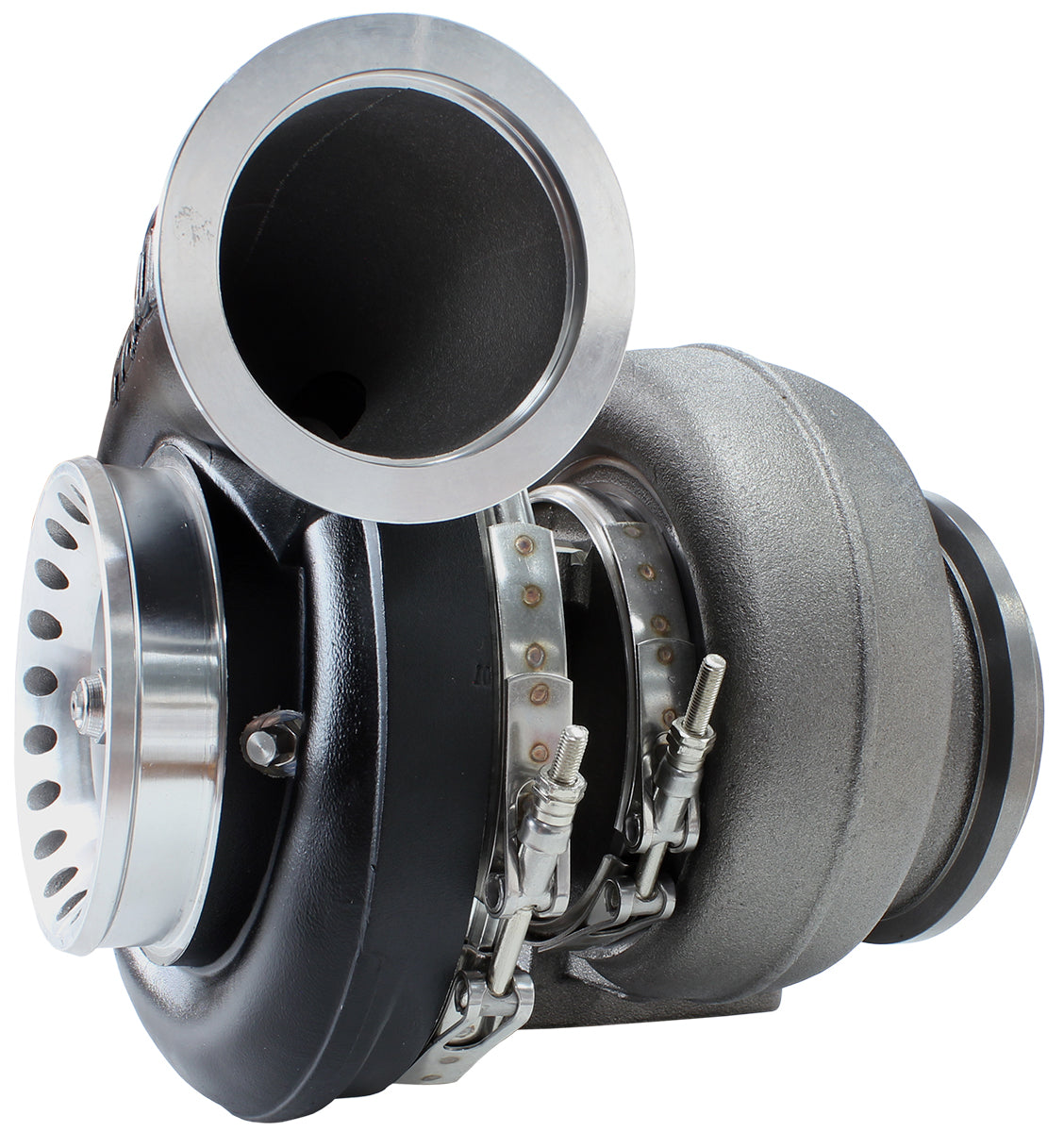

- 360° journal bearing - 7075 billet 7 + 7 compressor wheel - Ported shroud compressor cover - This is an oil cooled turbocharger - Speed sensor port included in compressor cover (Speed sensor sold separately, AF8050-1010) - External wastegate sold separately - Inlet flange gasket and turbo drain gasket included in turbo kit - Must use a -6AN oil feel line to maintain core temperature (Warranty VOID if not used) - T6 twin entry turbine inlet flange - SiMo-nodular cast iron rear housing - V-Band turbine outlet flange - V-Band compressor outlet flange - 1/4" NPT oil feed fitting (sold separately) or a 38mm 2-bolt oil feed plate with M8 x 1.25mm thread size - 50.80mm bolt centre turbo drain flange with M8 x 1.25mm thread size

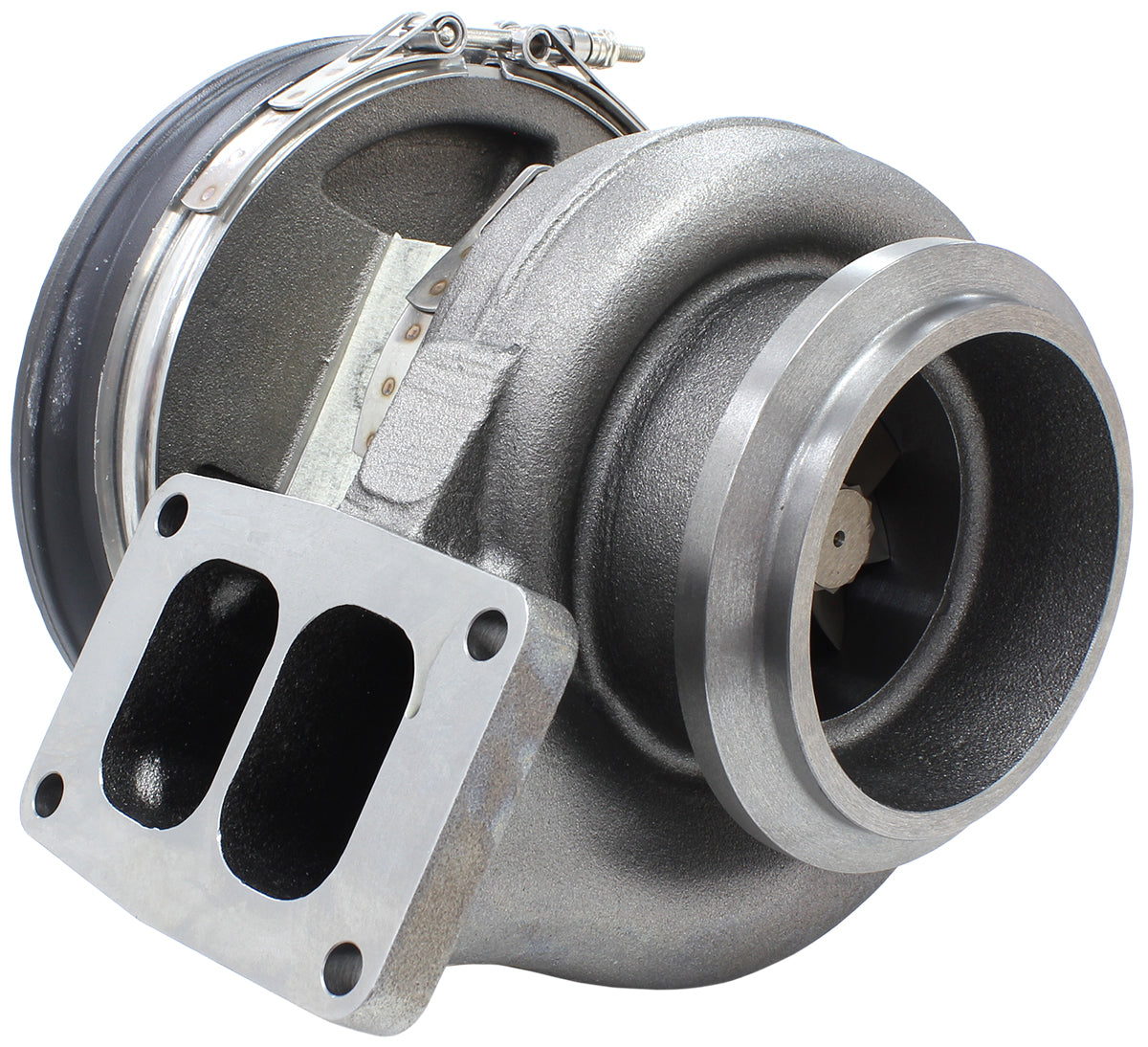

Turbine Specifications Inducer:Â 95.71mm Exducer:Â 88mm A/R:Â 1.32 Turbine Inlet Flange: Â T6 Turbine Outlet Flange: Â V-Band (AF8080-1005)
Wastegate External wastegate
