Aeroflow
SKU:AF8006-4125
BOOSTED B7875 1.28 REVERSE INLET VBAND OUTLE 7875
BOOSTED B7875 1.28 REVERSE INLET VBAND OUTLE 7875
Regular price
$1,255.50NZD
Regular price
$1,350.00NZD
Sale price
$1,255.50NZD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Share

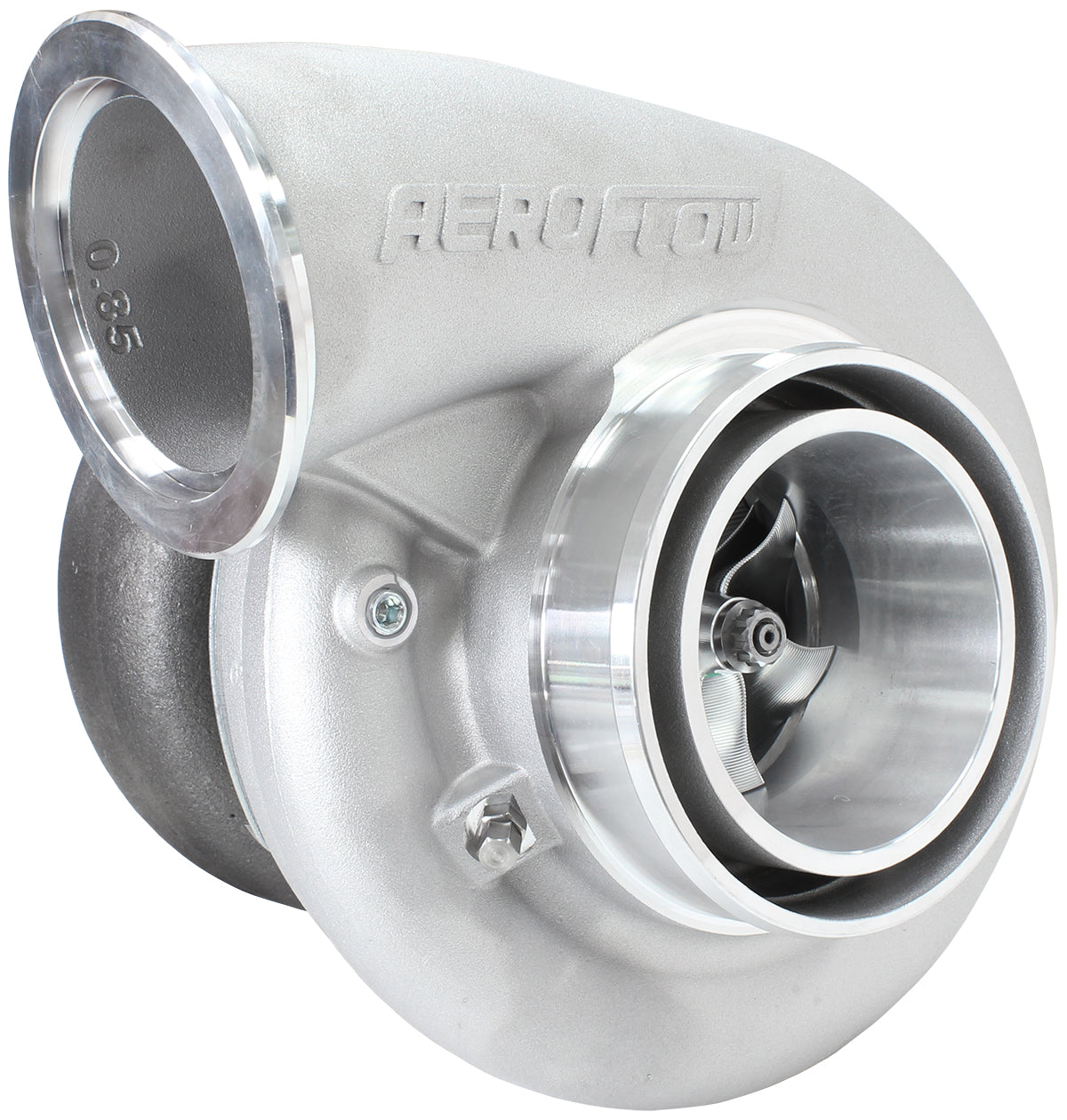

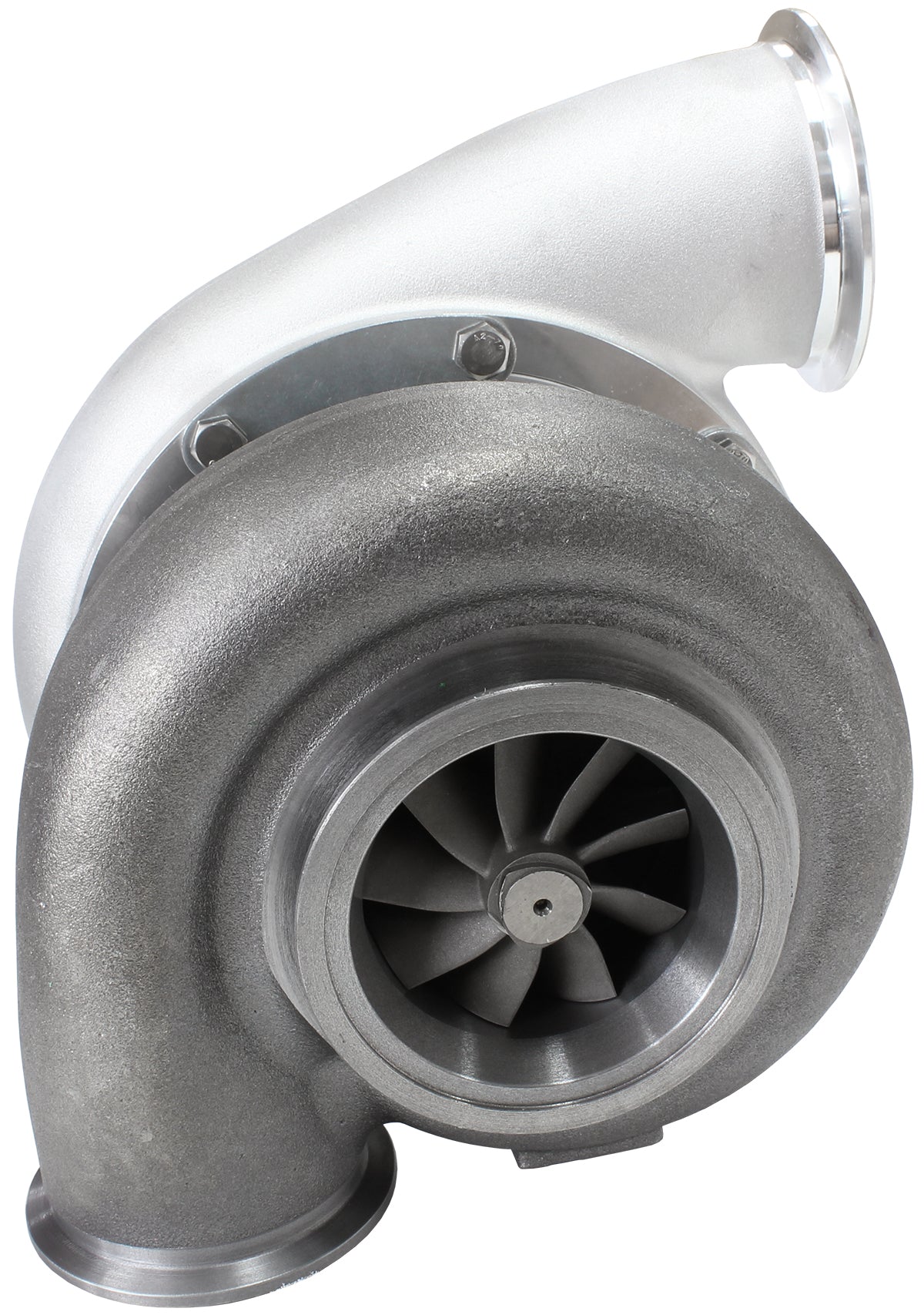

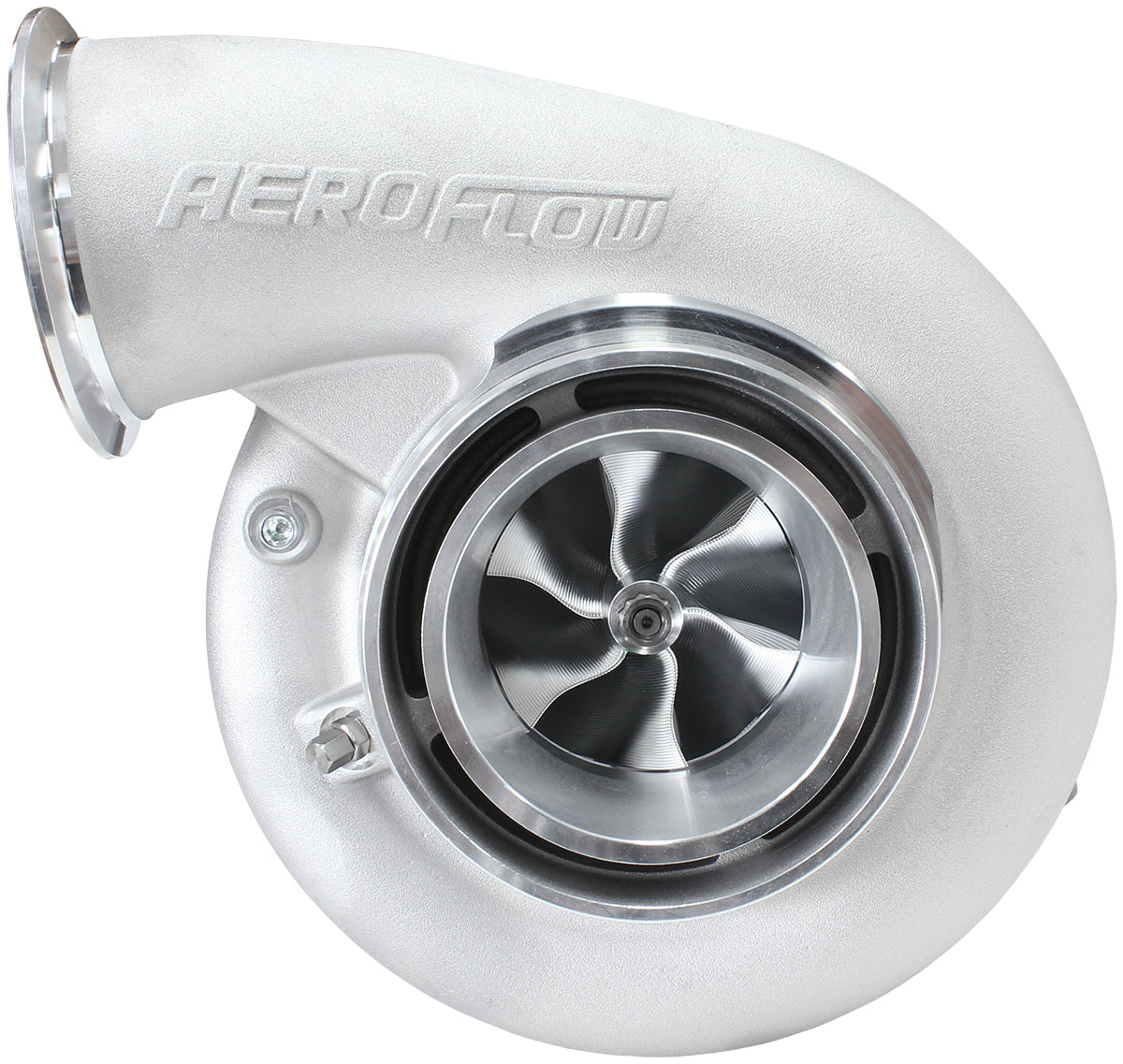

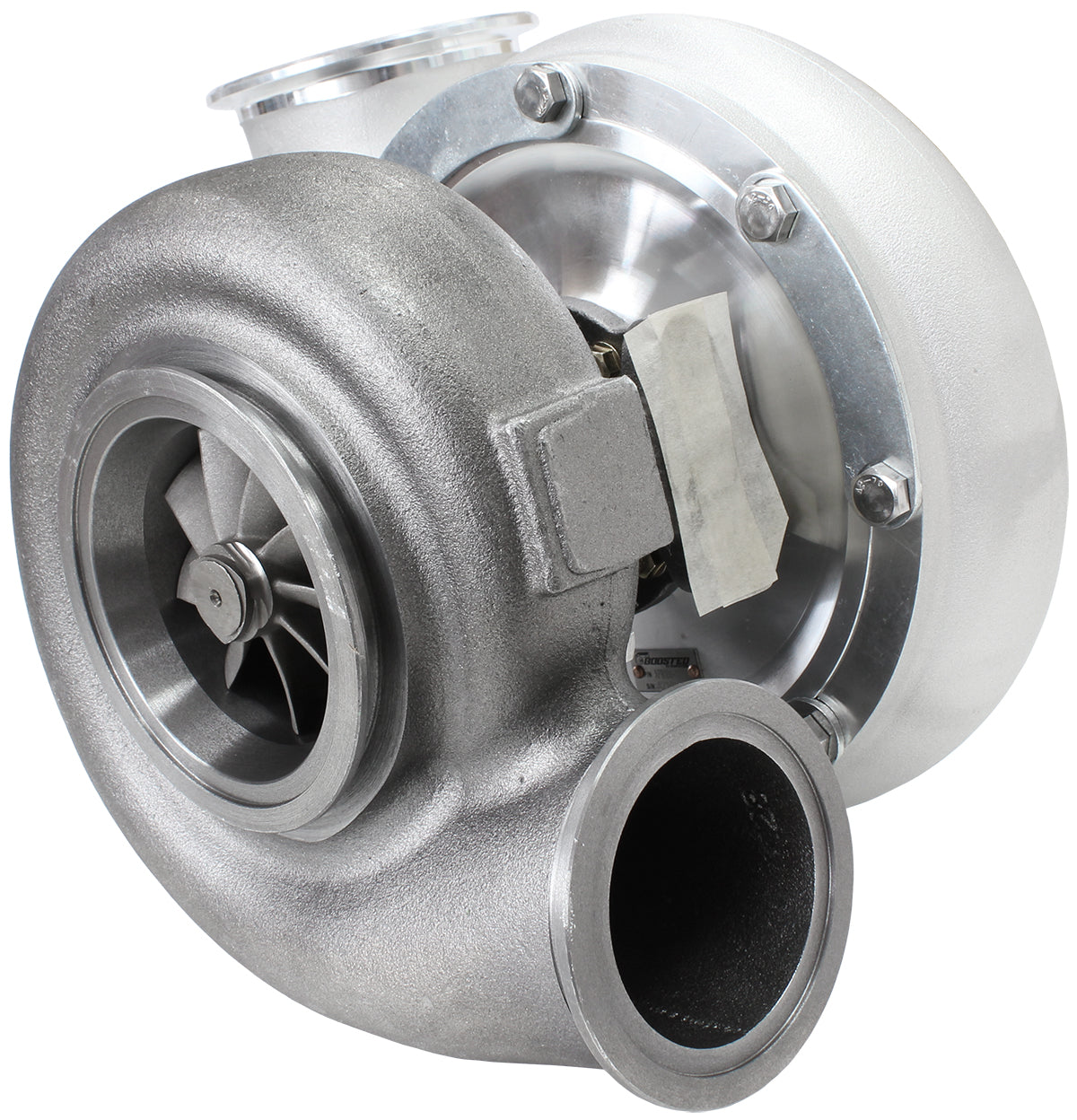

BOOSTED B7875 (Generation 3) V-Band Reverse Rotation Turbocharger Specifications
This is a reverse rotation turbocharger for applications that want the perfect twin turbo installation or a single reverse rotation turbo with installation restrictions. Matches Boosted B7975 (AF8006-4025BLK) standard rotation turbocharger.
Recommended horsepower rating:Â 500-1050HP
Recommended engine displacement:Â 2.0L to 6.0L
- 360° journal bearing
- Point Milled 7075 billet 6 + 6 compressor wheel
- Boosted 7975 ported shroud compressor cover
- Speed sensor port included in compressor cover (Speed sensor sold separately, AF8050-1010)
- This is an oil cooled turbocharger
- External wastegate sold separately
- Turbo drain gasket included in turbo kit
- Must use a -6AN oil feel line to maintain core temperature (Warranty VOID if not used)
- V-Band single entry turbine inlet flange
- SiMo-nodular cast iron rear housing
- 9 blade turbine wheel
- V-Band turbine outlet flange
- 1/8" NPT oil feed fitting (sold separately) or a 38mm 2-bolt oil feed plate with M8 x 1.25mm thread size
- 50.80mm bolt centre turbo drain flange with M8 x 1.25mm thread size
Compressor Specifications
Inducer:Â 78.13mm
Exducer:Â 102.40mm
Extended Tip:Â 106.30mm
Compressor Inlet:Â 5" slip fit
Compressor Outlet: V-Band (AF8080-1009)
Turbine Specifications
Inducer:Â 82mm
Exducer:Â 75mm
A/R:Â 1.28
Turbine Inlet Flange: V-Band (AF8080-1019)
Turbine Outlet Flange: Â V-Band (AF8080-1020)
Wastegate
External wastegate
This is a reverse rotation turbocharger for applications that want the perfect twin turbo installation or a single reverse rotation turbo with installation restrictions. Matches Boosted B7975 (AF8006-4025BLK) standard rotation turbocharger.
Recommended horsepower rating:Â 500-1050HP
Recommended engine displacement:Â 2.0L to 6.0L
- 360° journal bearing
- Point Milled 7075 billet 6 + 6 compressor wheel
- Boosted 7975 ported shroud compressor cover
- Speed sensor port included in compressor cover (Speed sensor sold separately, AF8050-1010)
- This is an oil cooled turbocharger
- External wastegate sold separately
- Turbo drain gasket included in turbo kit
- Must use a -6AN oil feel line to maintain core temperature (Warranty VOID if not used)
- V-Band single entry turbine inlet flange
- SiMo-nodular cast iron rear housing
- 9 blade turbine wheel
- V-Band turbine outlet flange
- 1/8" NPT oil feed fitting (sold separately) or a 38mm 2-bolt oil feed plate with M8 x 1.25mm thread size
- 50.80mm bolt centre turbo drain flange with M8 x 1.25mm thread size
Compressor Specifications
Inducer:Â 78.13mm
Exducer:Â 102.40mm
Extended Tip:Â 106.30mm
Compressor Inlet:Â 5" slip fit
Compressor Outlet: V-Band (AF8080-1009)
Turbine Specifications
Inducer:Â 82mm
Exducer:Â 75mm
A/R:Â 1.28
Turbine Inlet Flange: V-Band (AF8080-1019)
Turbine Outlet Flange: Â V-Band (AF8080-1020)
Wastegate
External wastegate
Note: We strive to maintain a wide range of products in stock. However, some items may be ordered on demand, resulting in a lead time. If your order is urgent, please contact Speedspec in advance. sales@speedspec.co.nz
