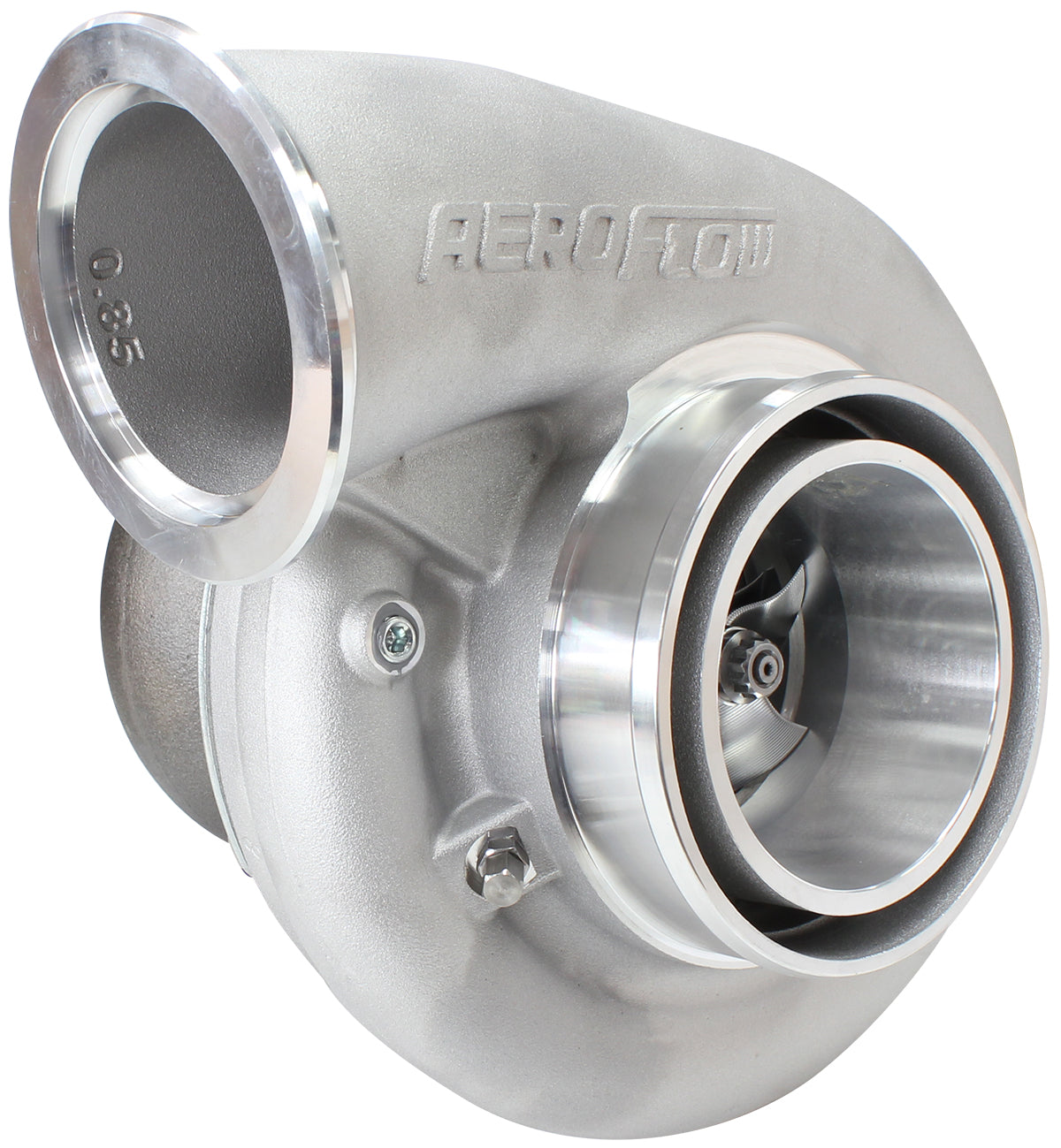

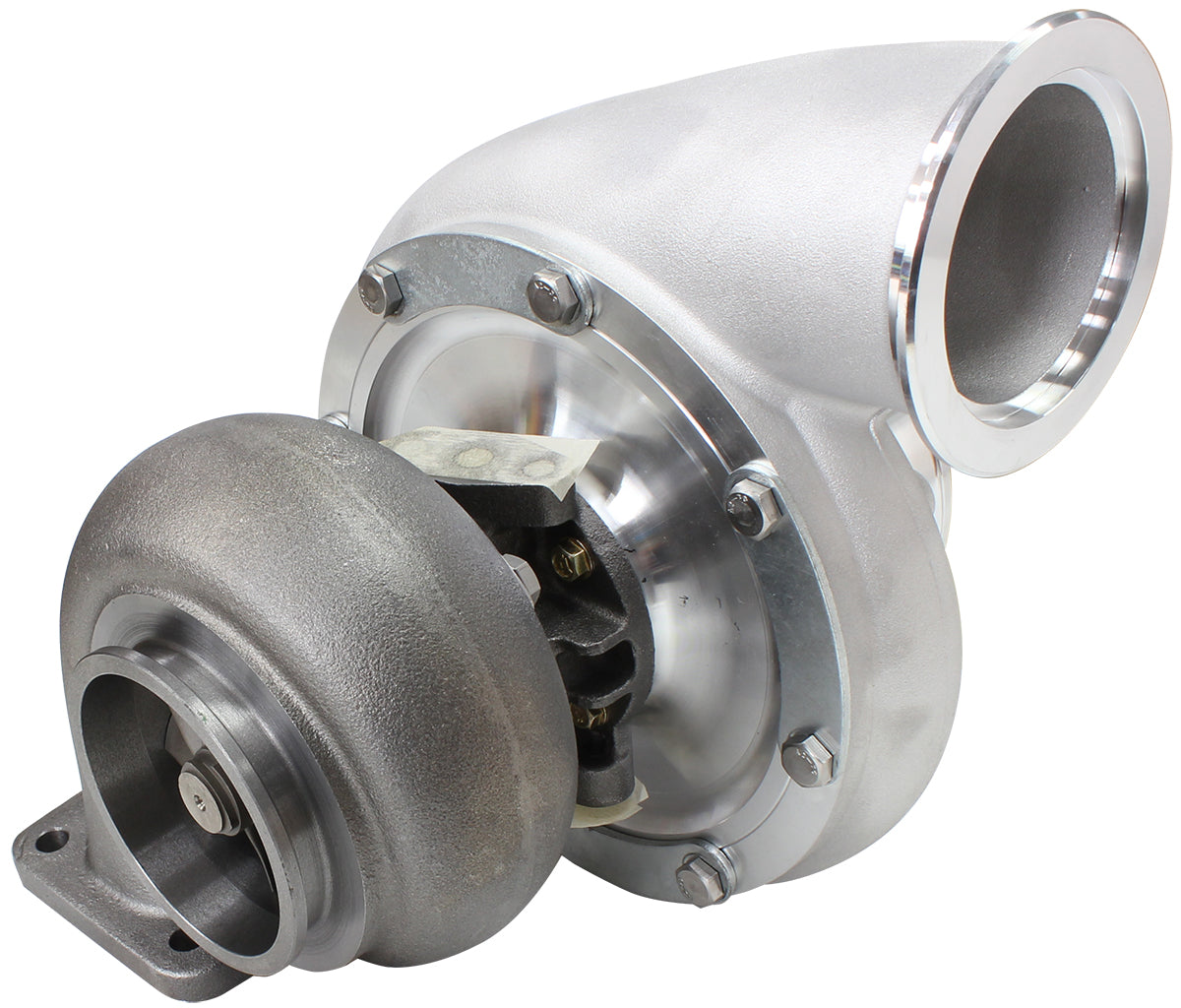

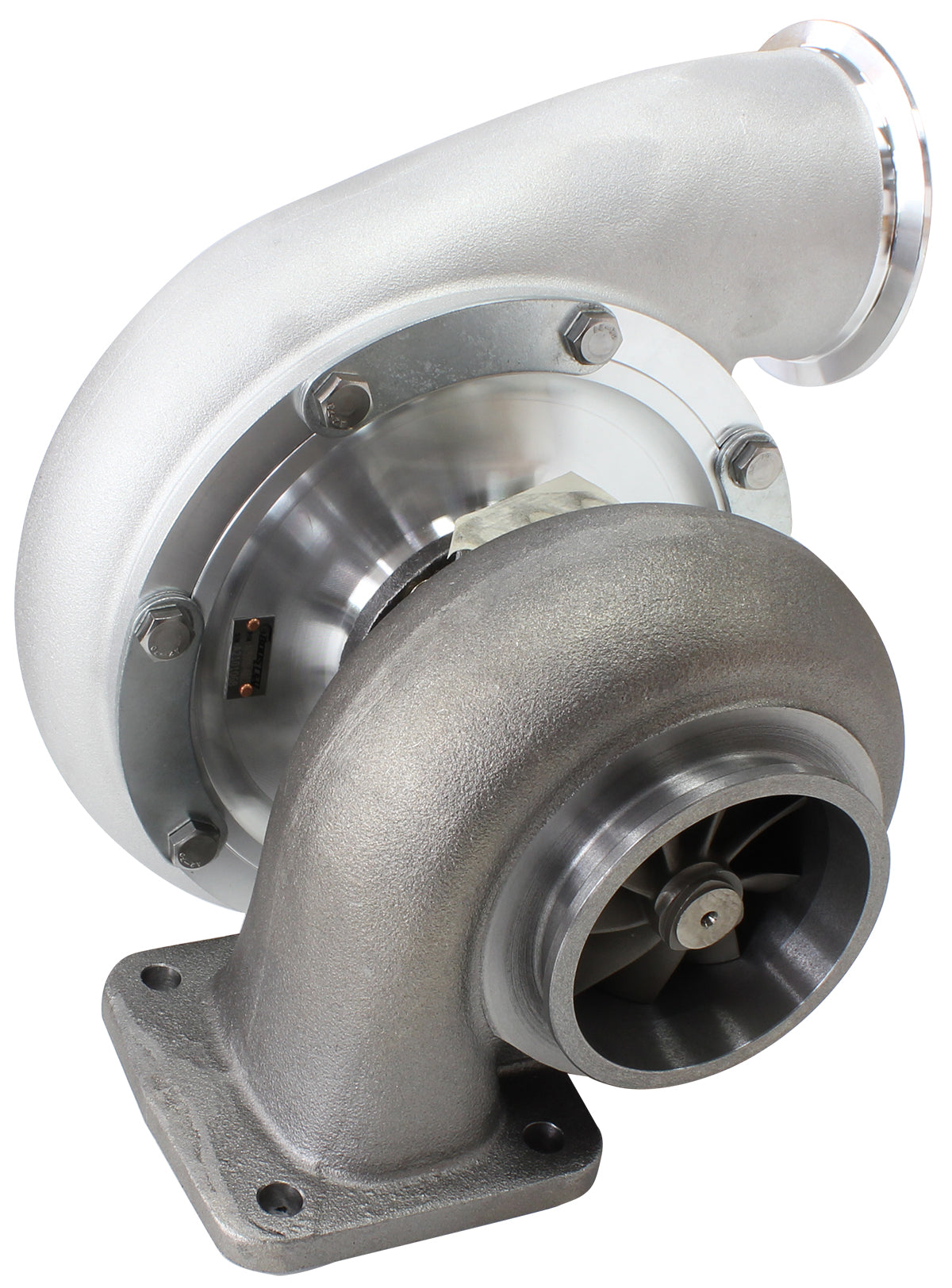

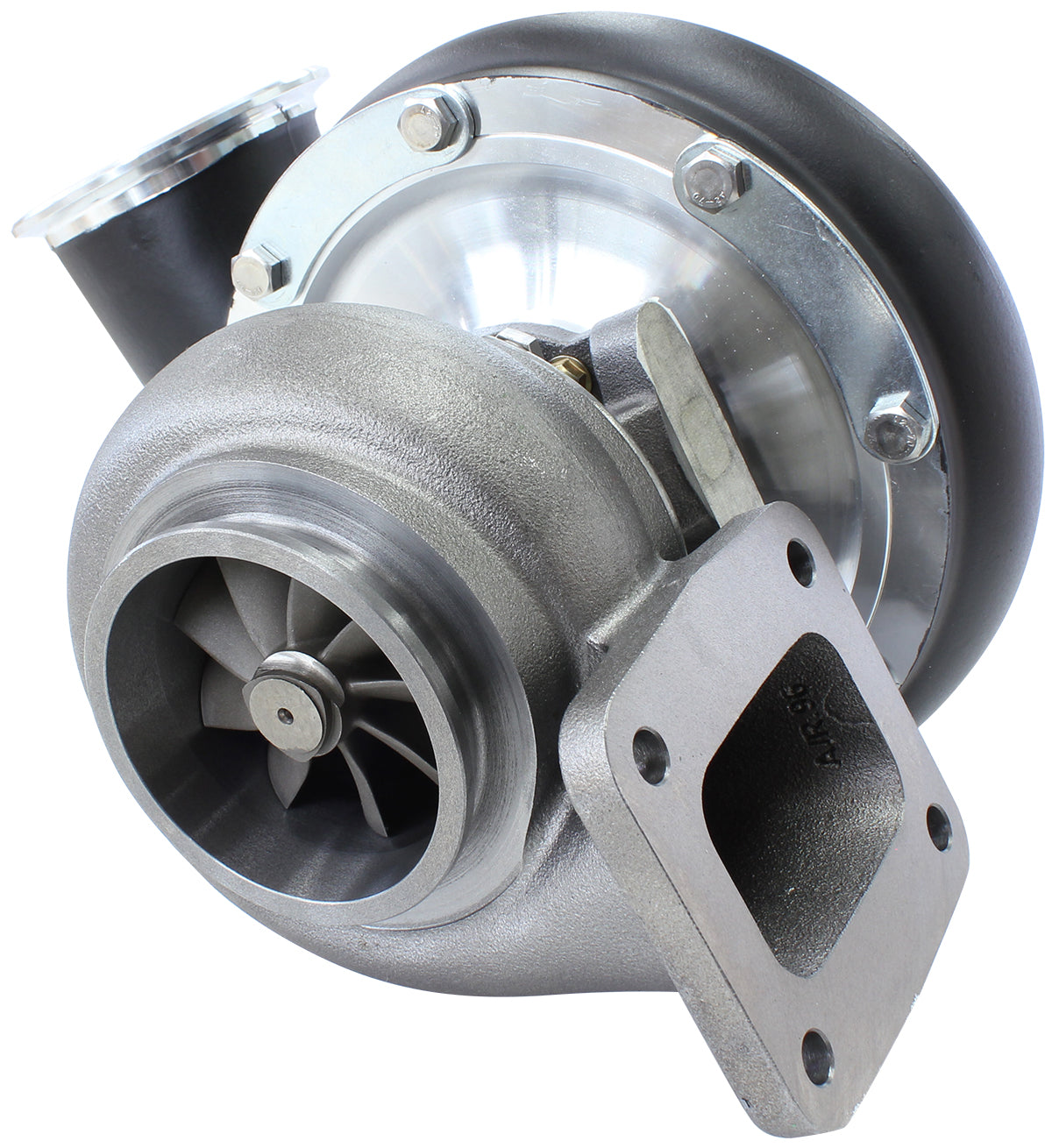

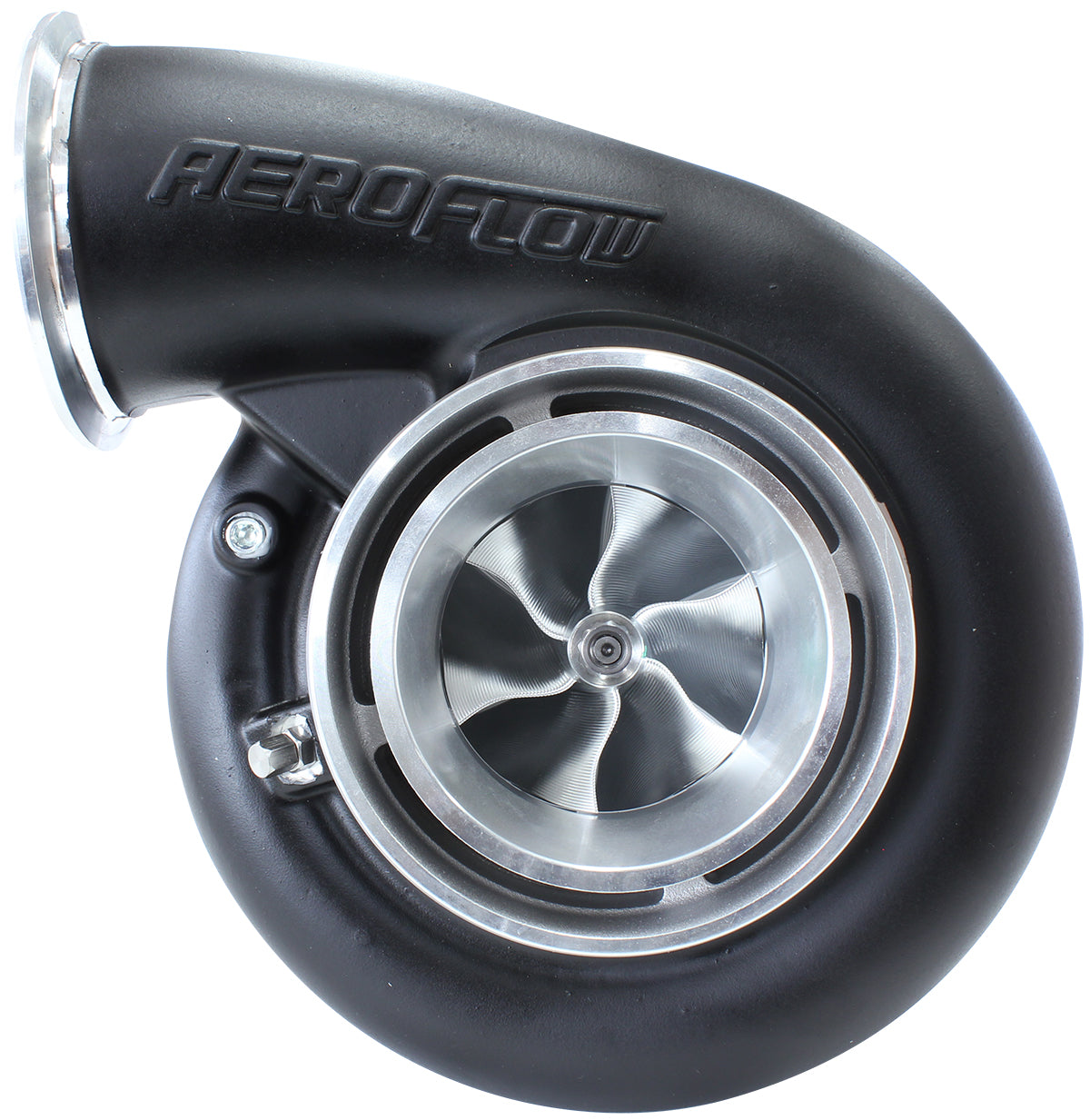

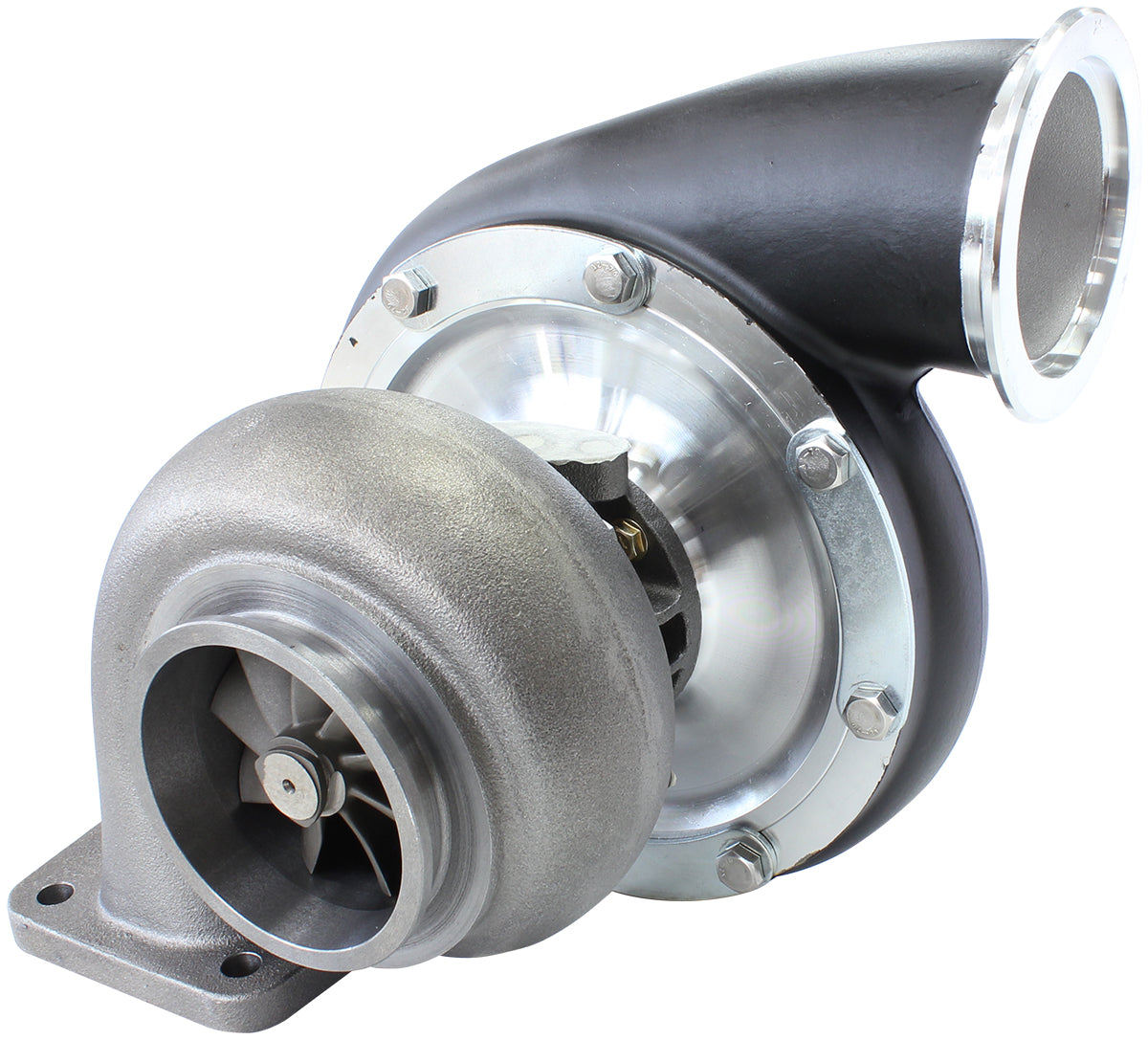

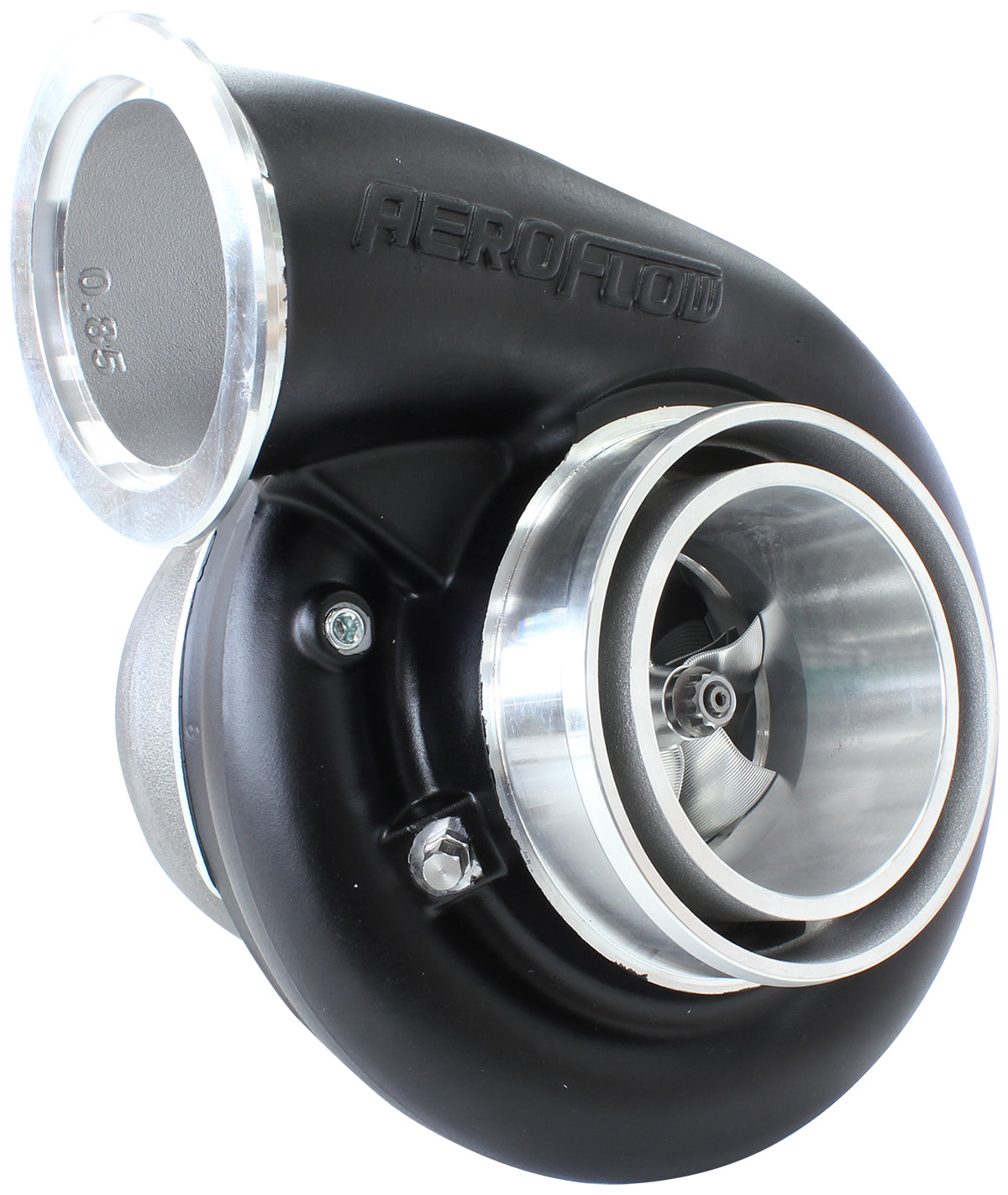

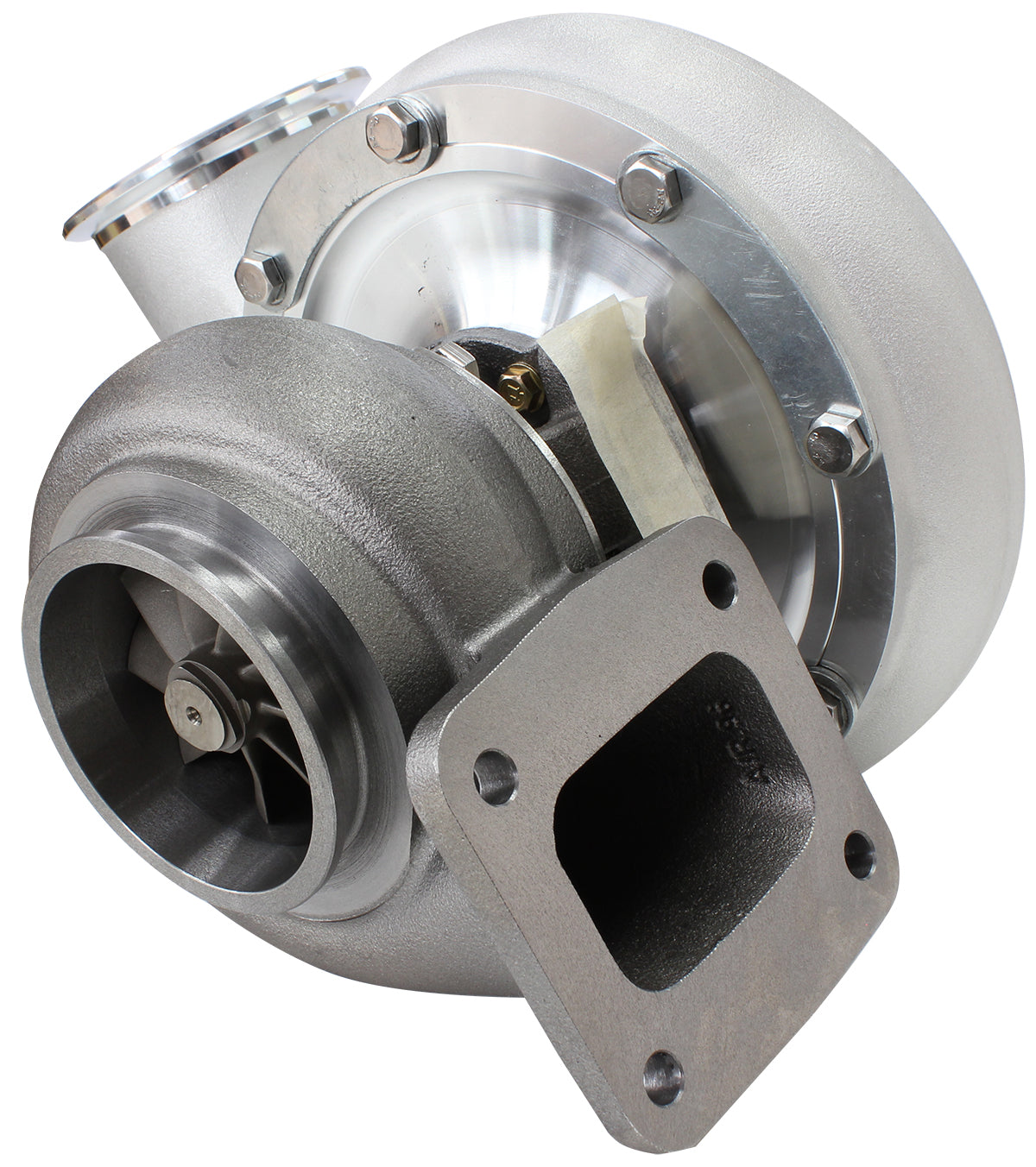

This is a reverse rotation turbocharger for applications that want the perfect twin turbo installation or a single reverse rotation turbo with installation restrictions. Matches Boosted B7975 (AF8006-4022) standard rotation turbocharger.
Recommended horsepower rating:Â 500-1050HP Recommended engine displacement:Â 2.0L to 6.0L
- 360° journal bearing - Point Milled 7075 billet 6 + 6 compressor wheel - Boosted 7975 ported shroud compressor cover - Speed sensor port included in compressor cover (Speed sensor sold separately, AF8050-1010) - This is an oil cooled turbocharger - External wastegate sold separately - Inlet flange gasket and turbo drain gasket included in turbo kit - Must use a -6AN oil feel line to maintain core temperature (Warranty VOID if not used) - T4 single entry turbine inlet flange - SiMo-nodular cast iron rear housing - 9 blade turbine wheel - V-Band turbine outlet flange - 1/8" NPT oil feed fitting (sold separately) or a 38mm 2-bolt oil feed plate with M8 x 1.25mm thread size - 50.80mm bolt centre turbo drain flange with M8 x 1.25mm thread size
