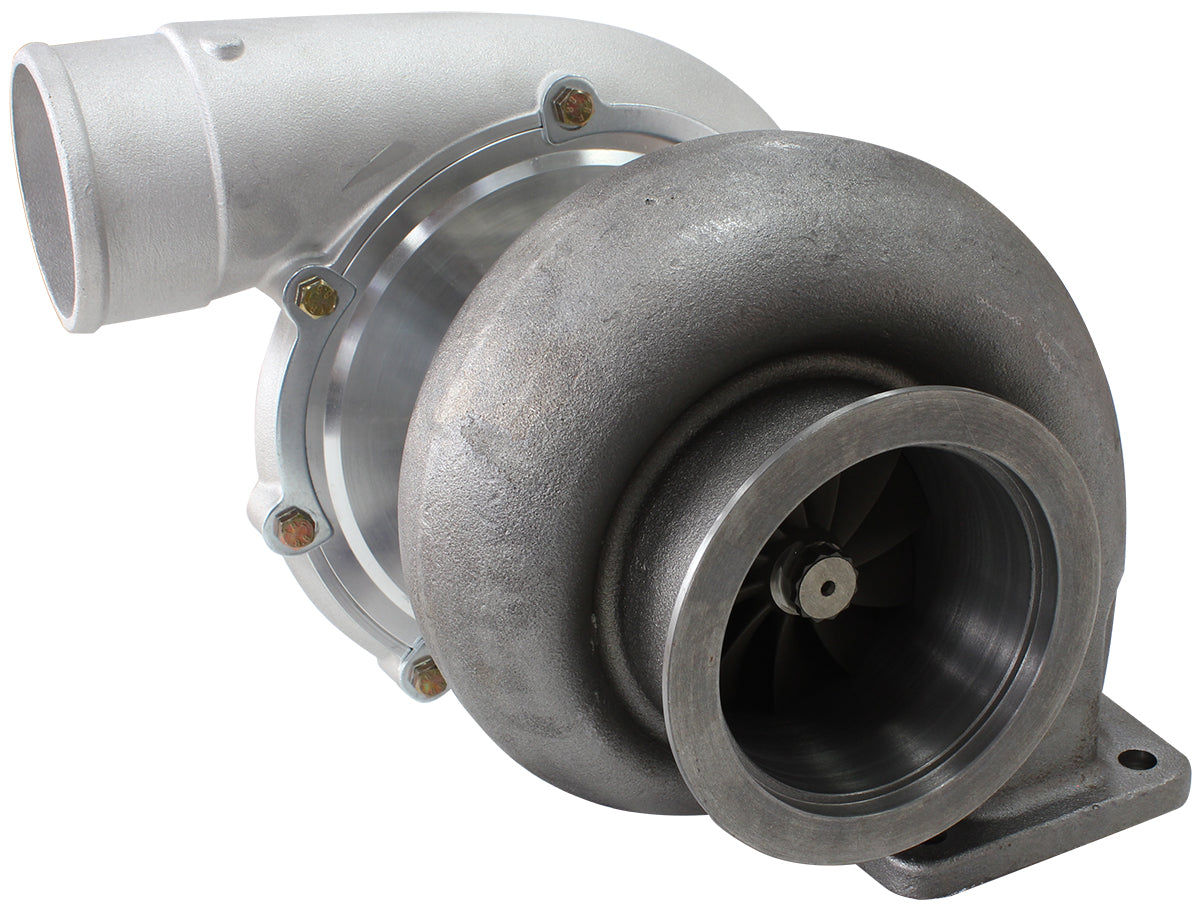

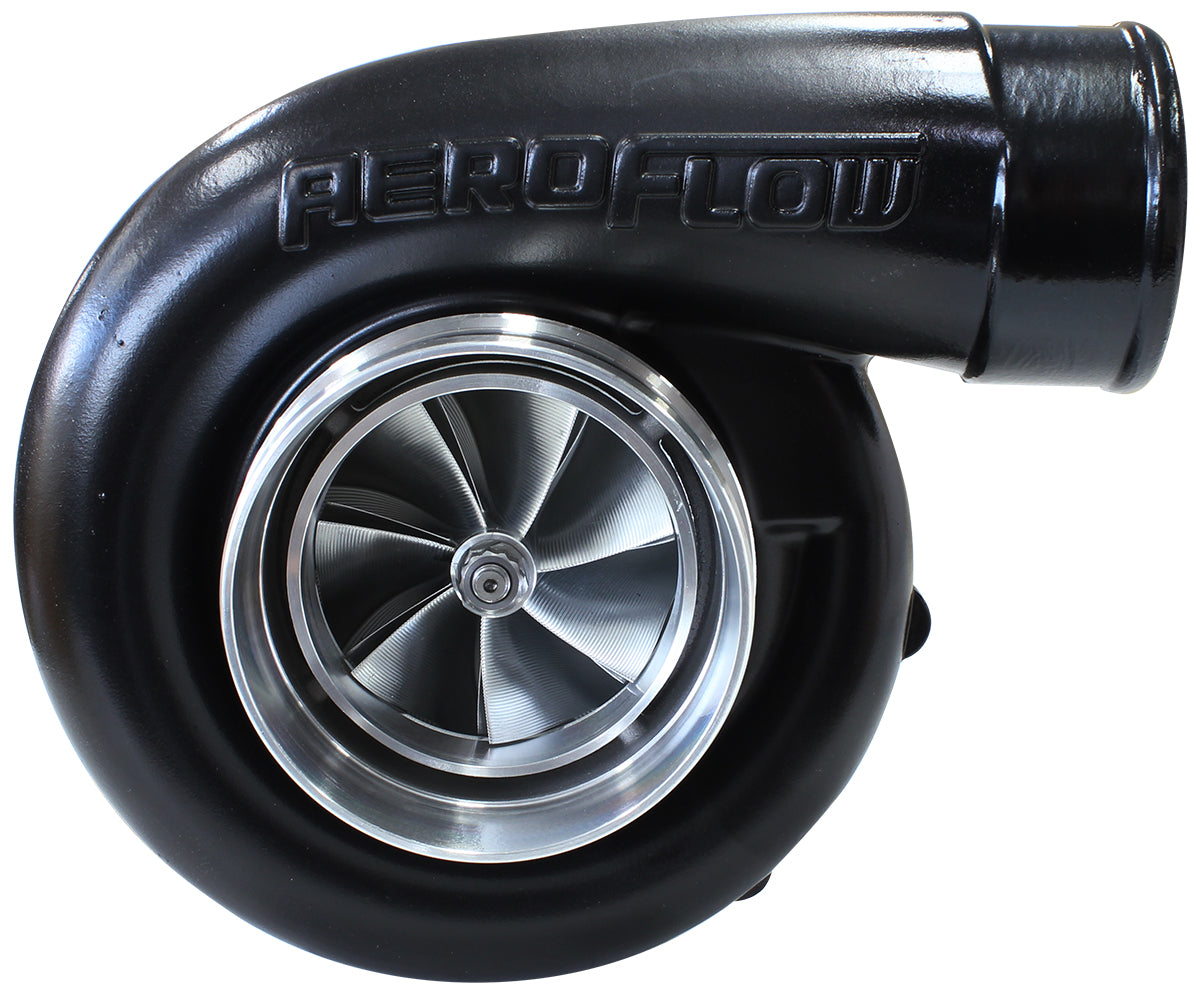

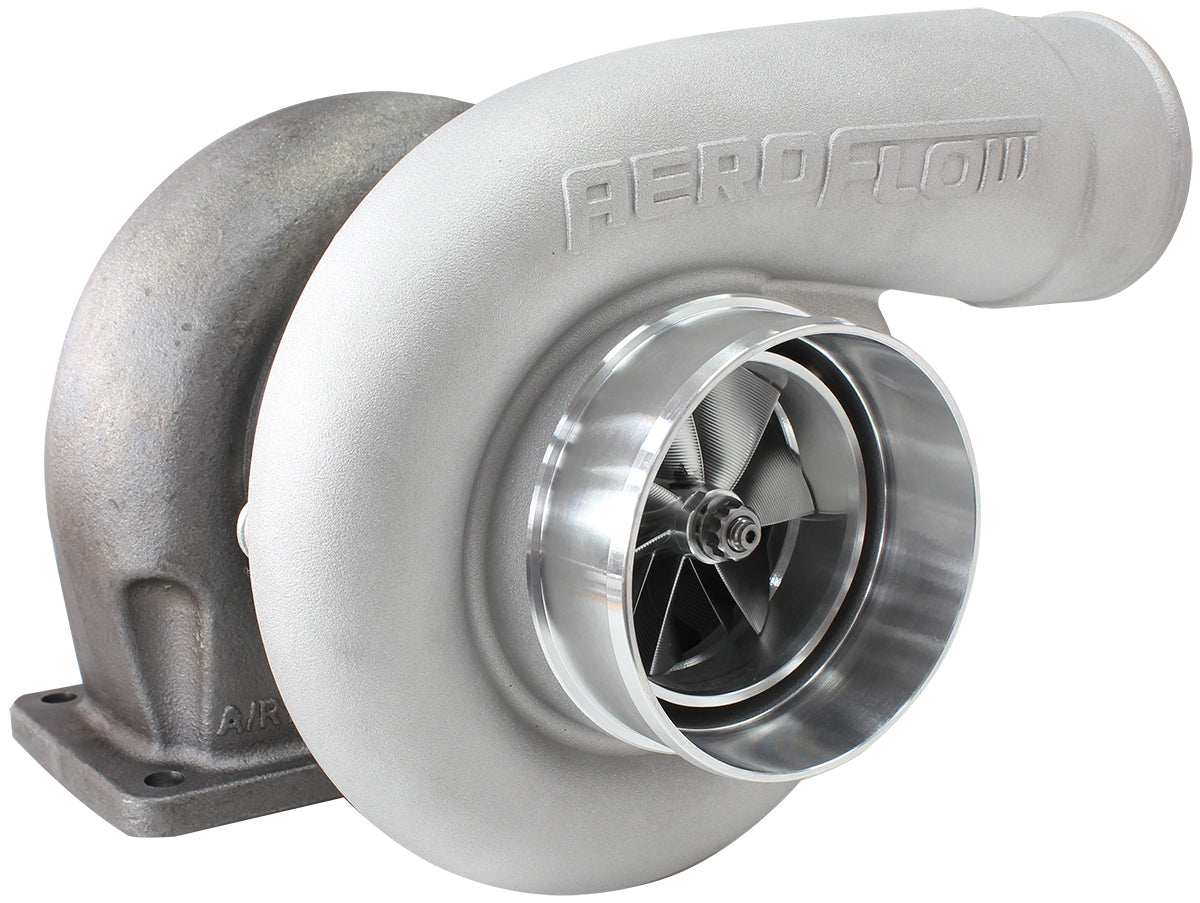

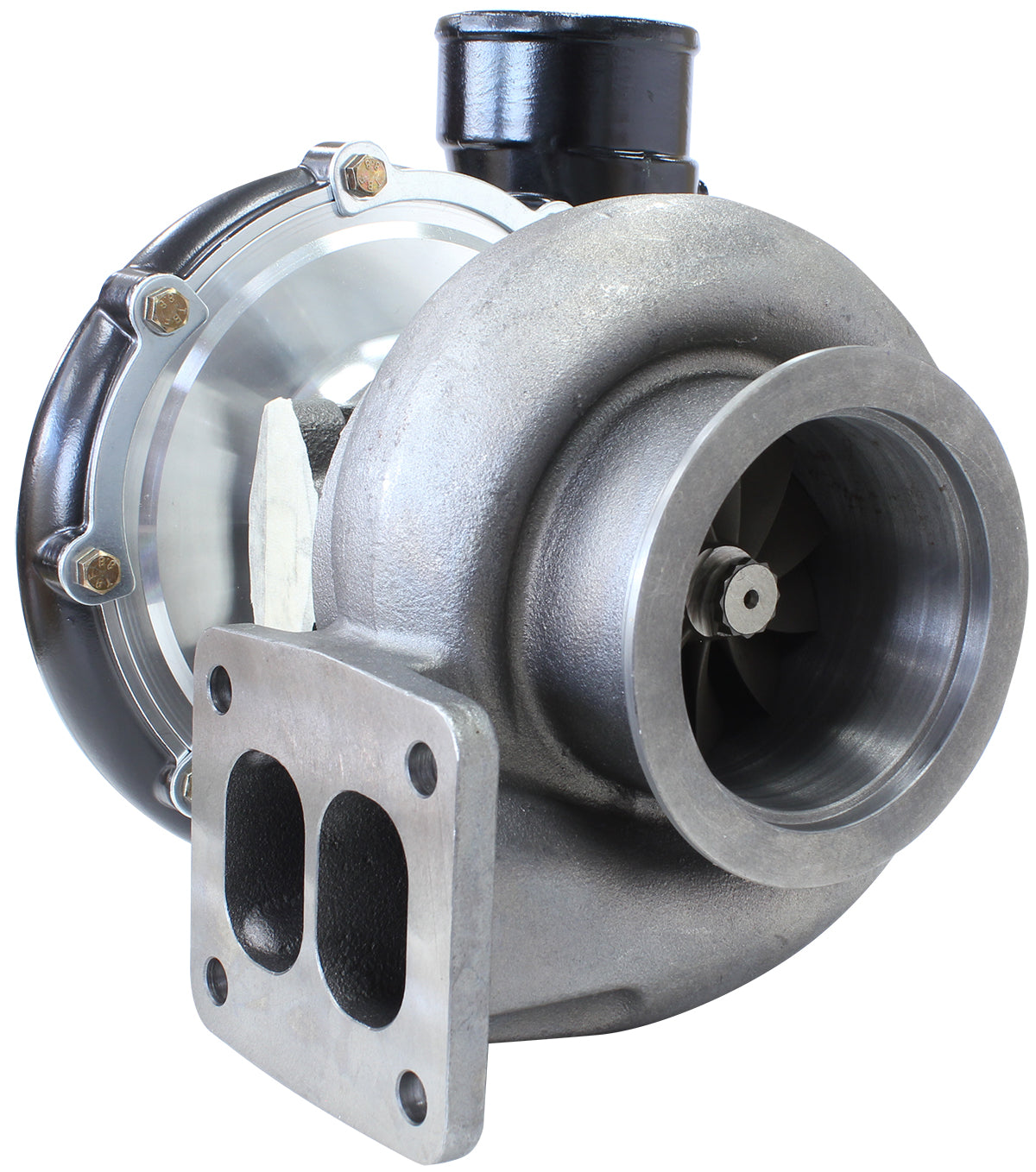

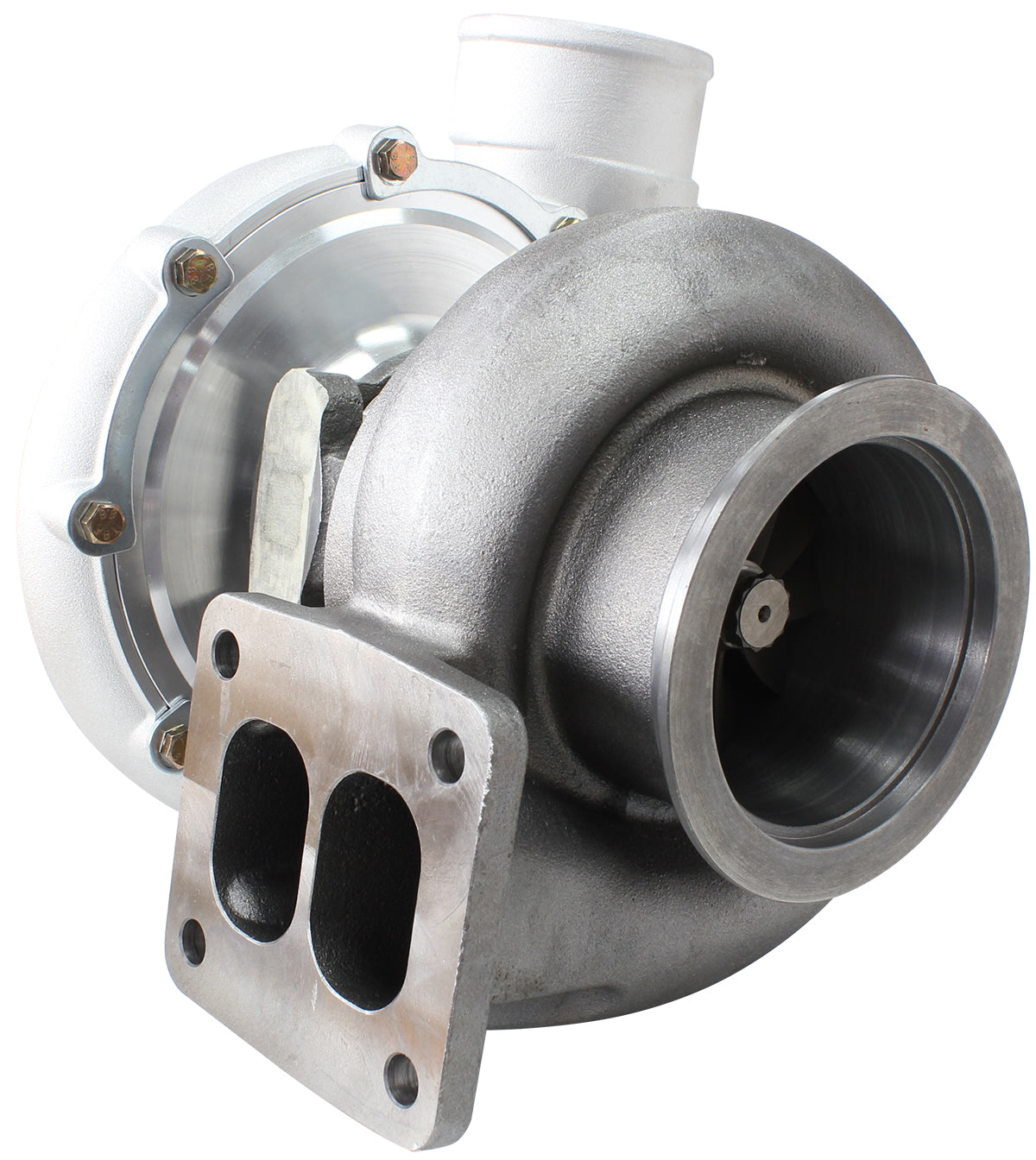

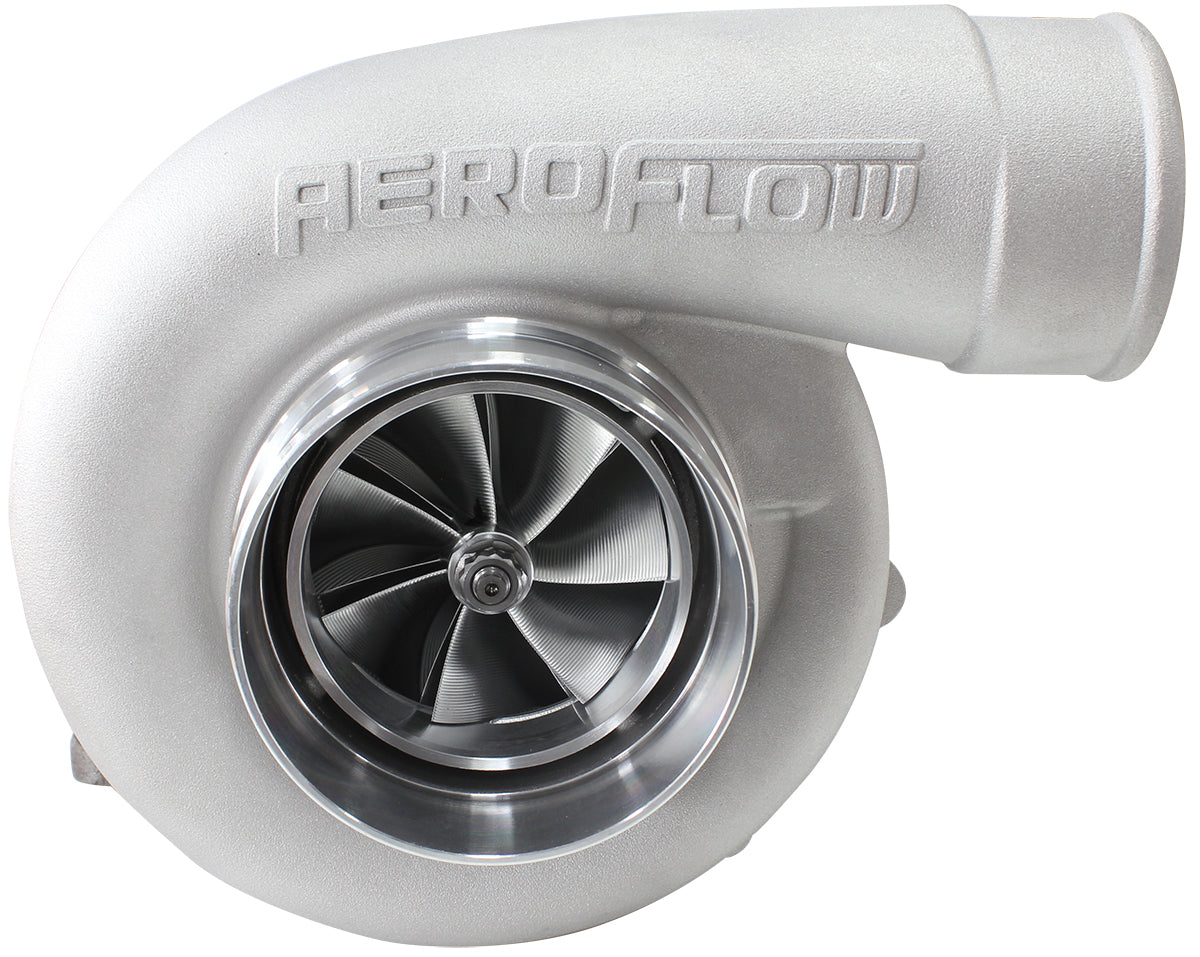

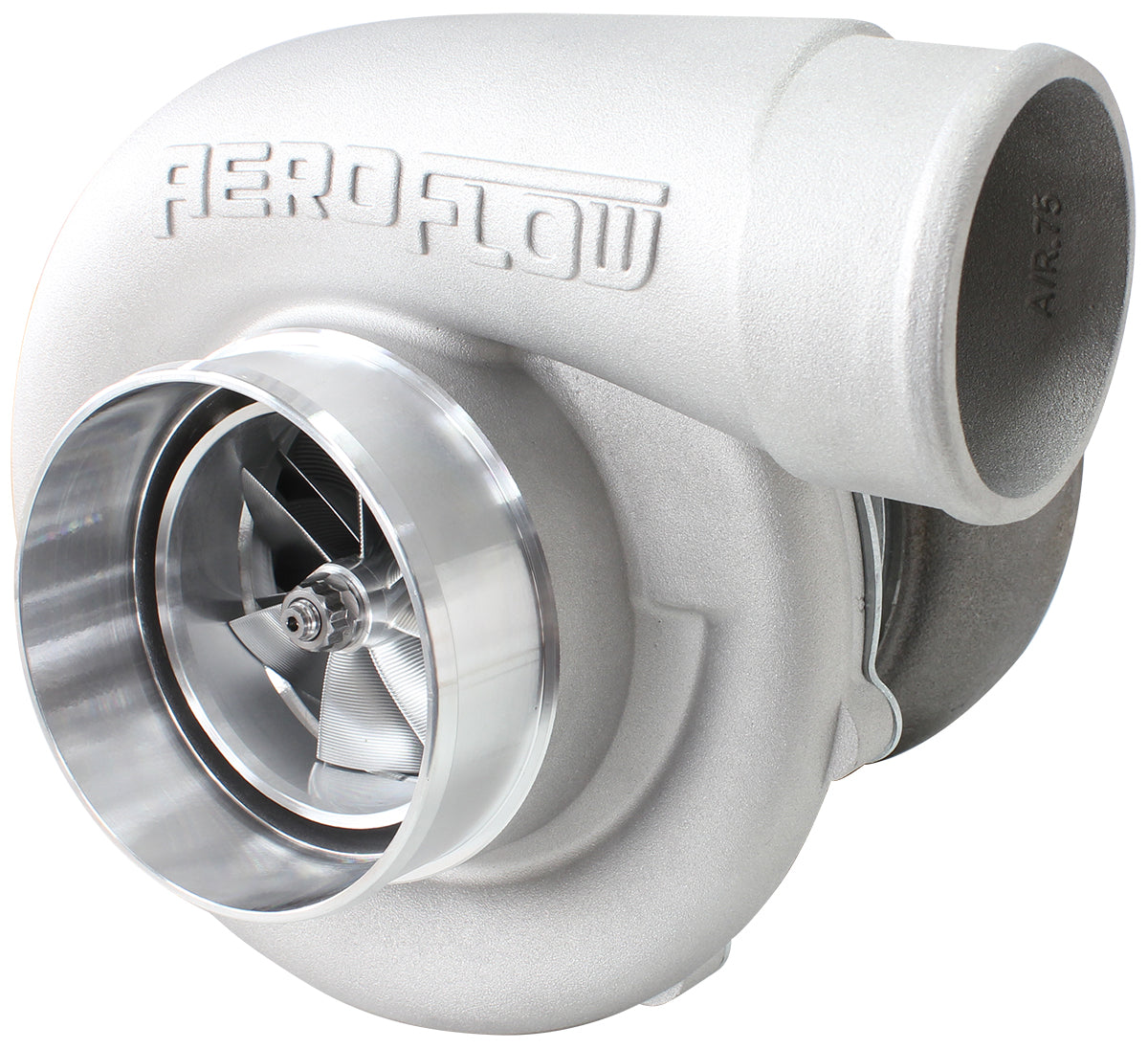

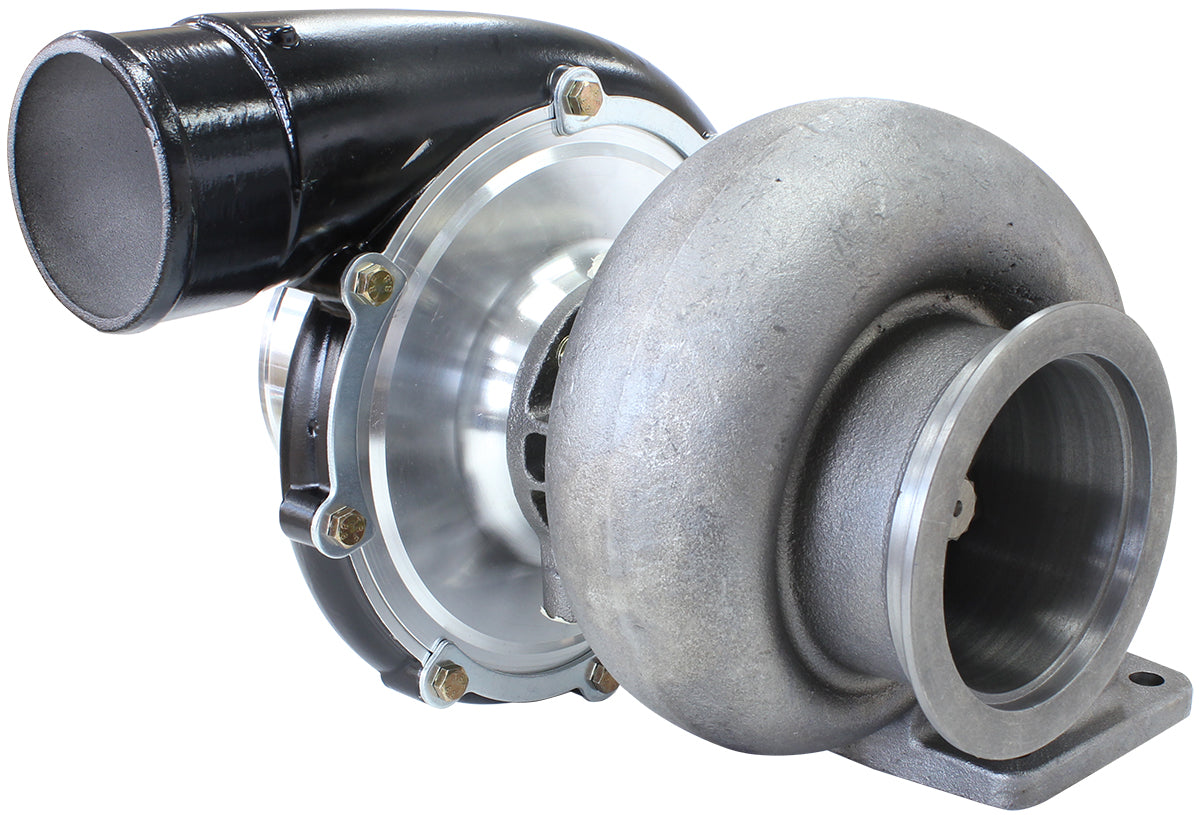

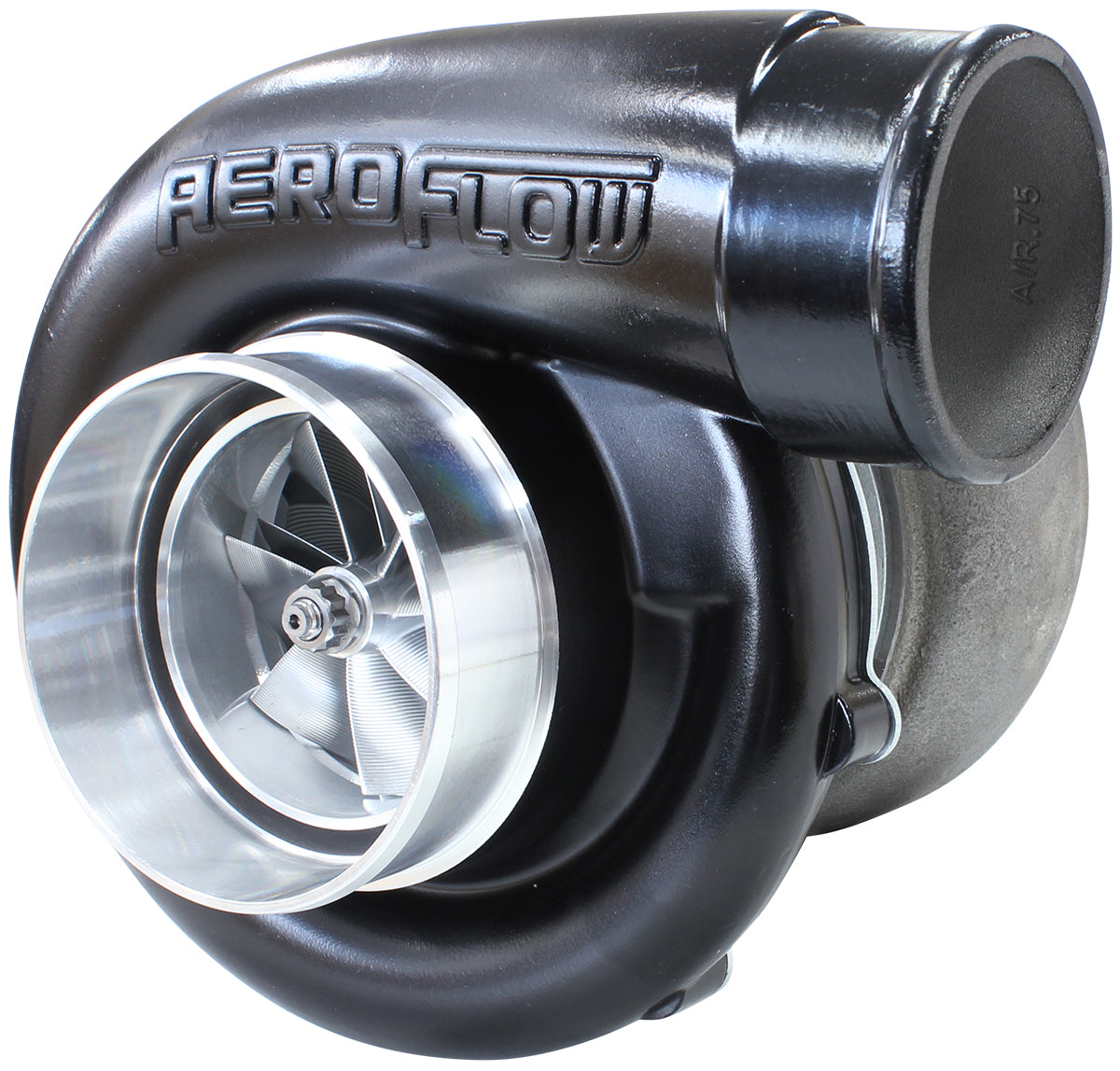

BOOSTED 7885 T4 Pro Compact Turbocharger Specifications
Recommended horsepower rating:Â 500-1450HP Recommended engine displacement:Â 3.0L to 7.0L
- 360° journal bearing - Point Milled 7075 billet 7 + 7 compressor wheel - Ported shroud compressor cover - This is an oil cooled turbocharger - External wastegate sold separately - Inlet flange gasket and turbo drain gasket included in turbo kit - Must use a -6AN oil feel line to maintain core temperature (Warranty VOID if not used) - T4 twin entry turbine inlet flange - SiMo-nodular cast iron rear housing - V-Band turbine outlet flange - 1/8" NPT oil feed fitting (sold separately) or a 38mm 2-bolt oil feed plate with M8 x 1.25mm thread size - 50.80mm bolt centre turbo drain flange with M8 x 1.25mm thread size
Compressor Specifications Inducer:Â 78mm Exducer:Â 102.40mm Extended Tip:Â 106.30mm Compressor Inlet:Â 5" slip fit Compressor Outlet: 3" slip fit
Turbine Specifications Inducer:Â 89mm Exducer:Â 85mm A/R:Â 1.25 Turbine Inlet Flange: Â T4 Turbine Outlet Flange: Â V-Band (AF8080-1026)
Wastegate External wastegate
