Recommended horsepower rating:Â 500-1050HP Recommended engine displacement:Â 2.0L to 6.0L

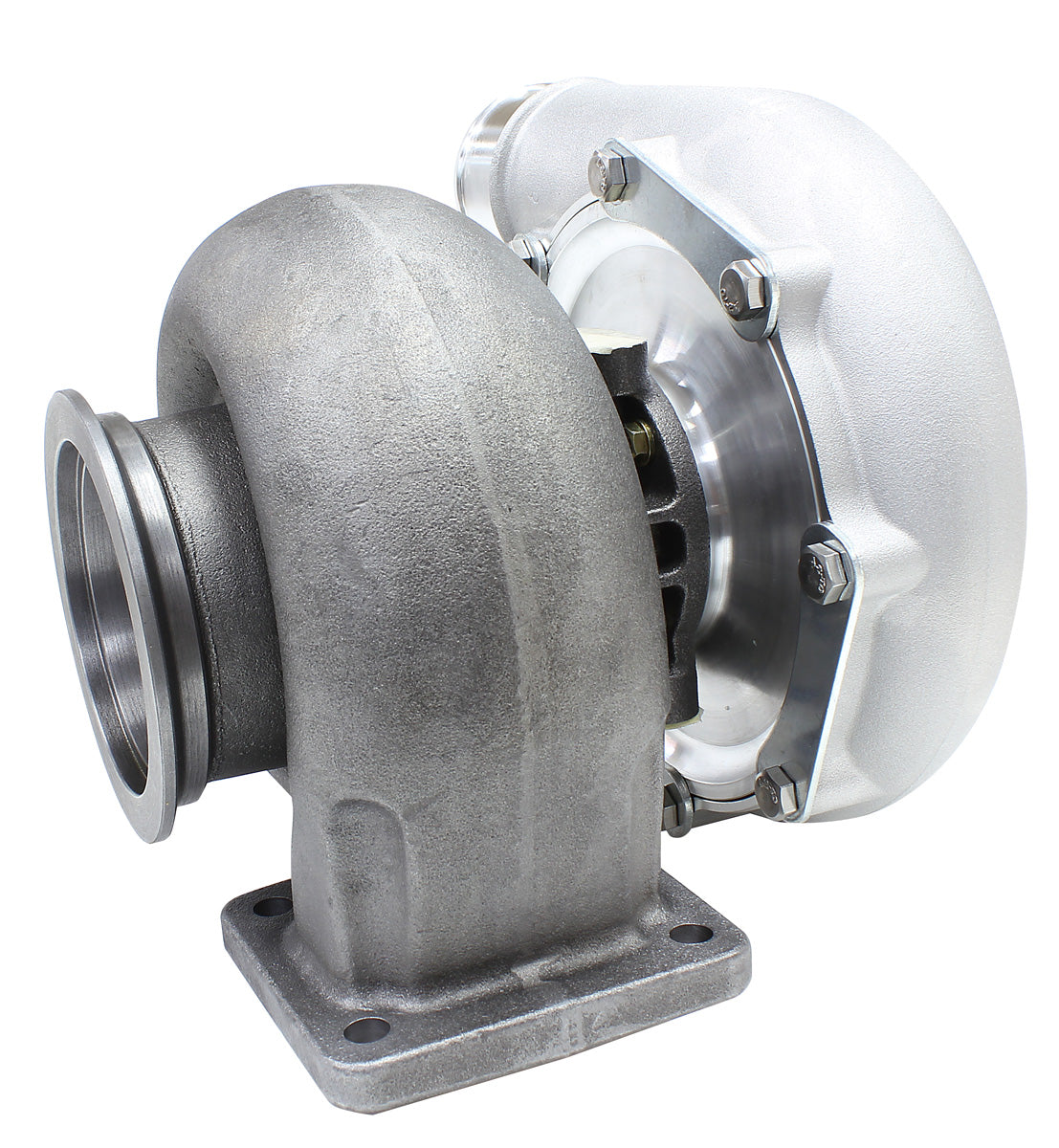

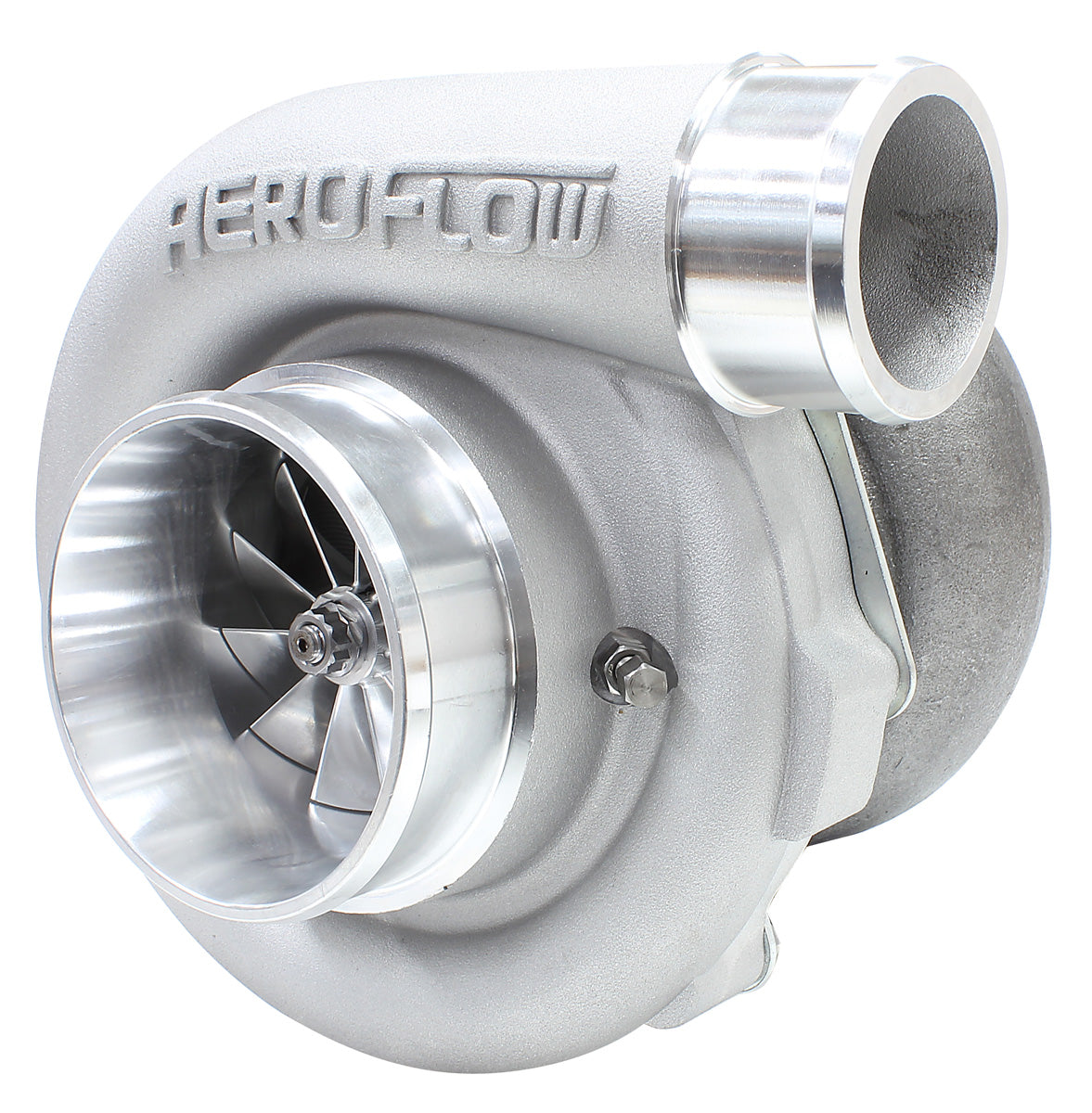

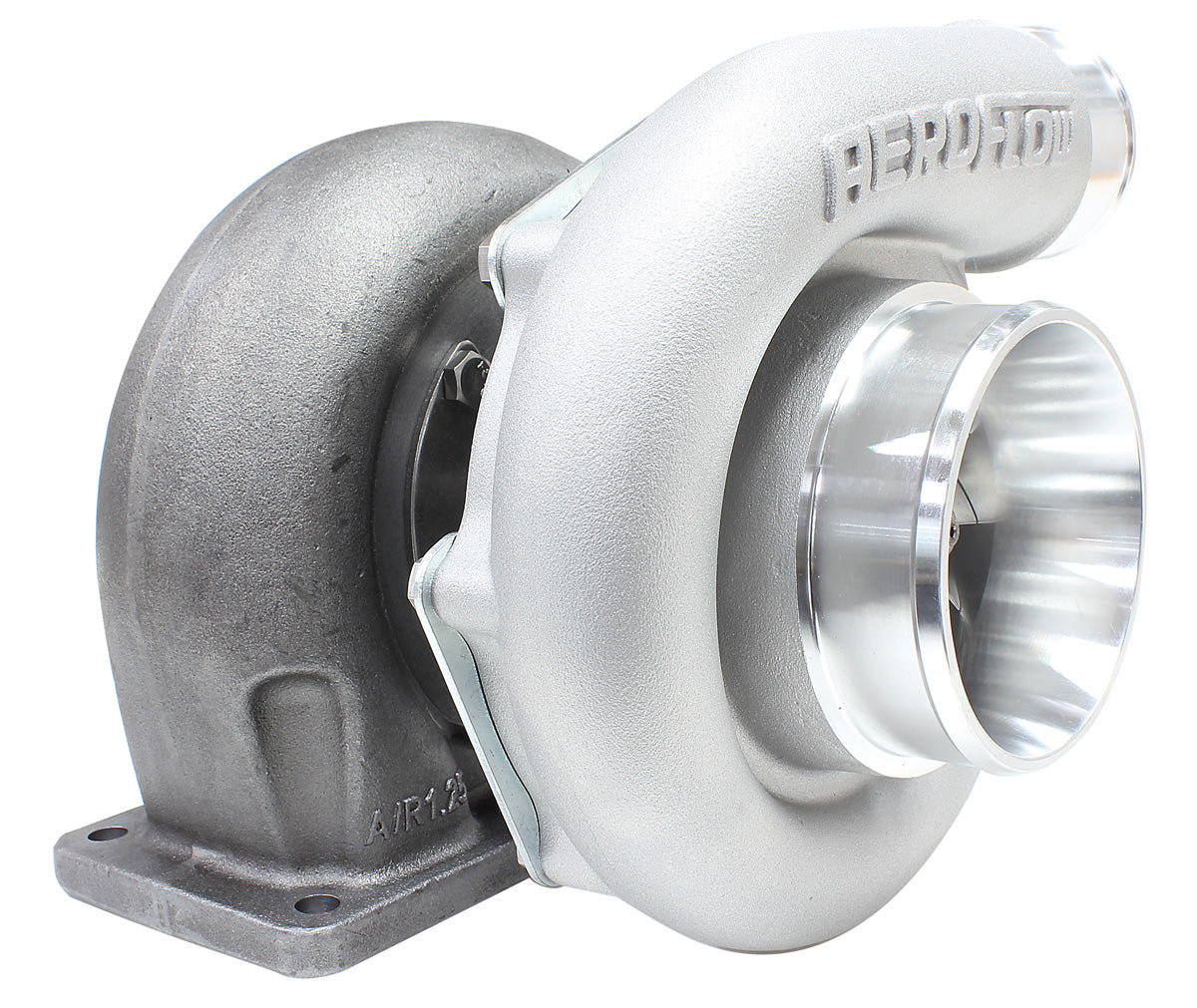

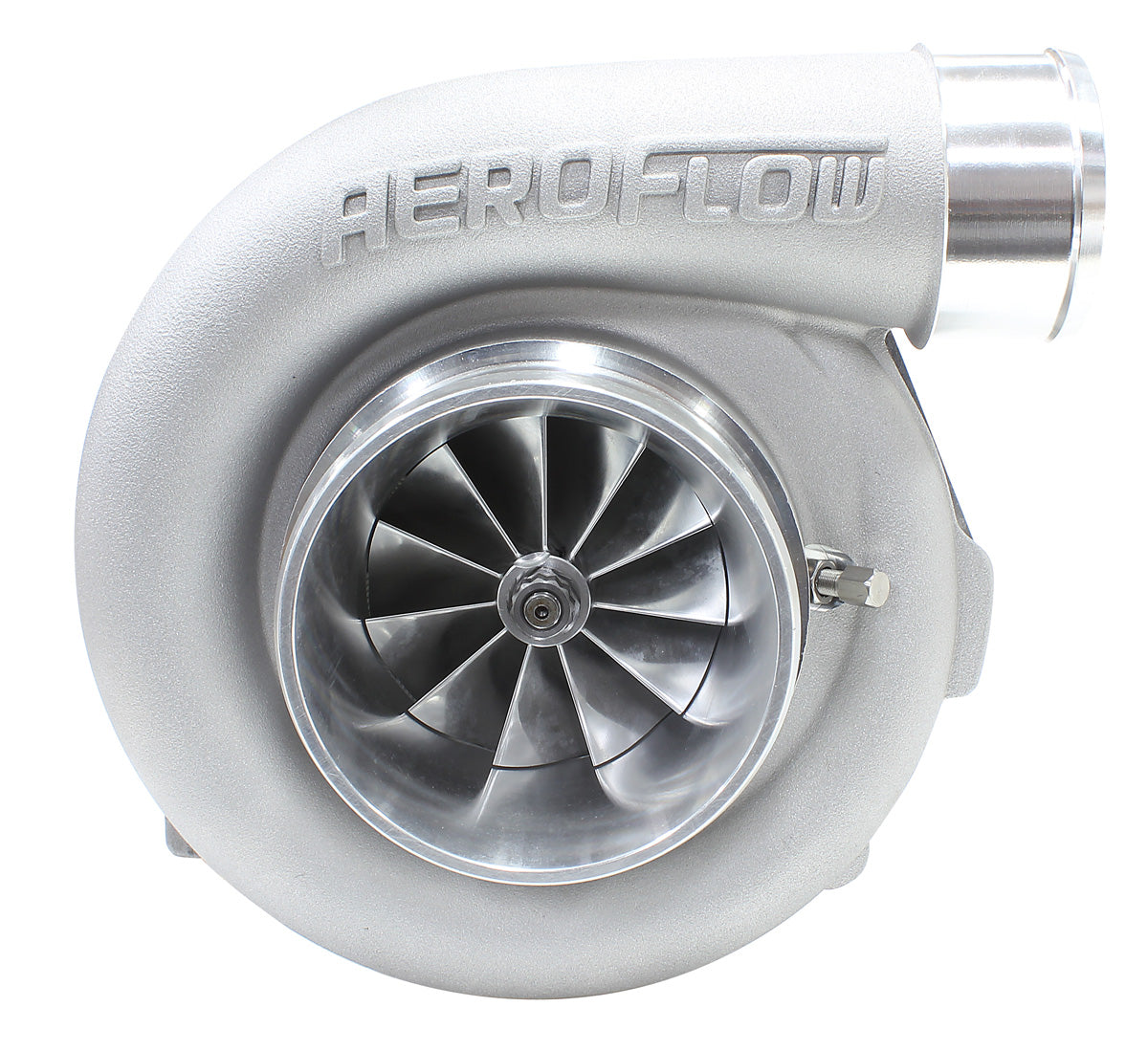

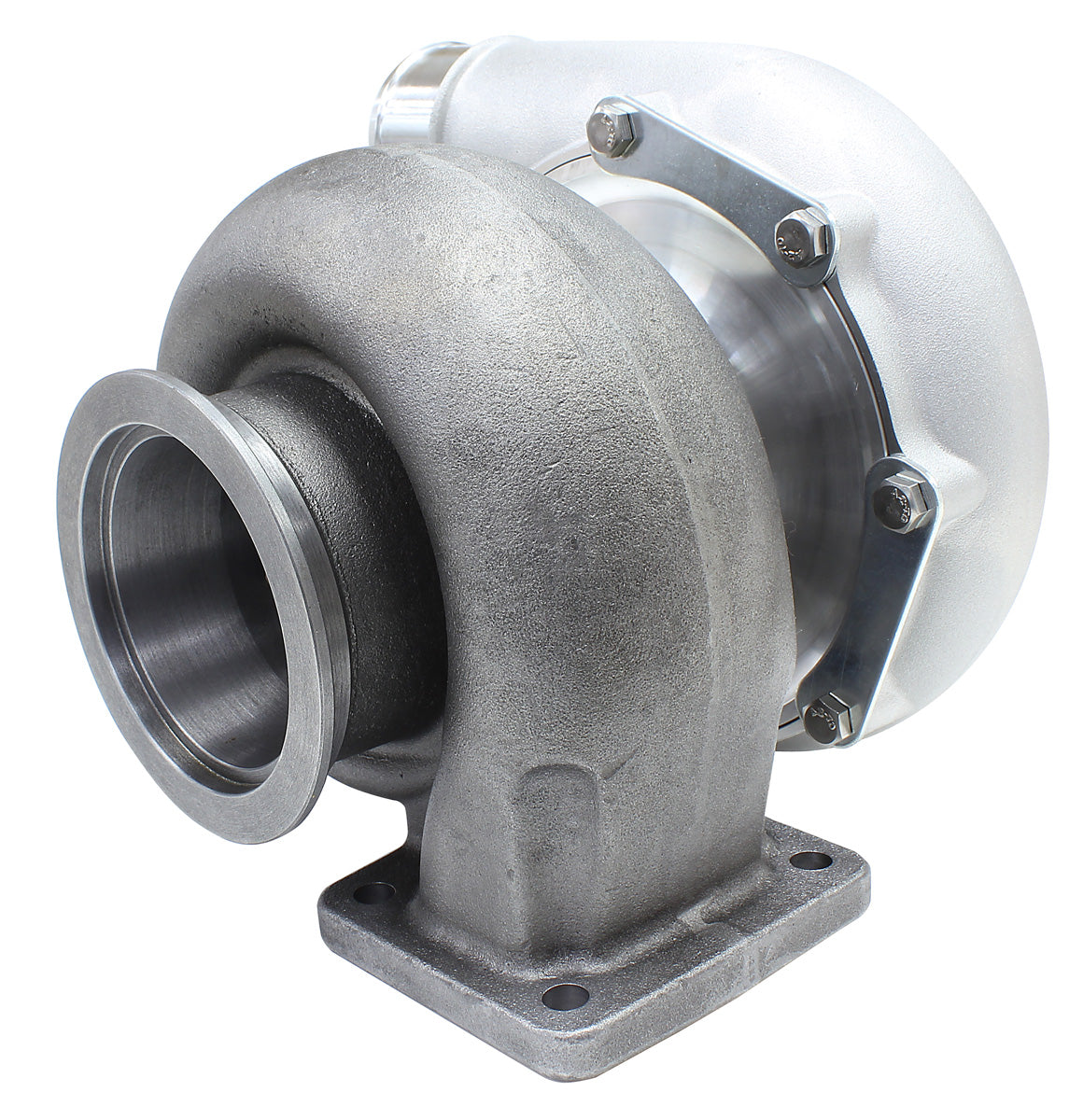

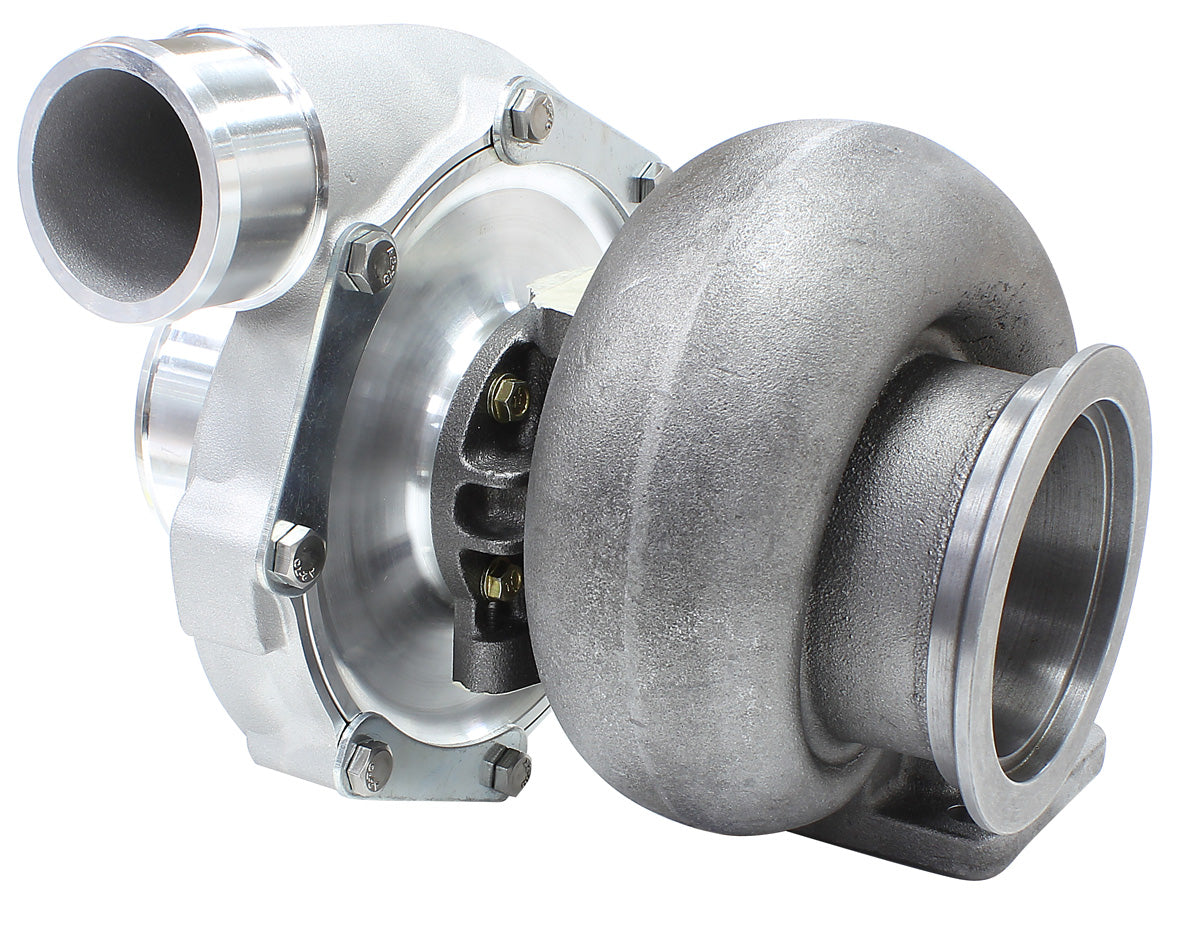

- 360° journal bearing - Point Milled 7075 billet compressor wheel - Ported shroud compressor cover - Speed sensor port included in compressor cover (Speed sensor sold separately, AF8050-1010) - External wastegate sold separately - Inlet flange gasket and turbo drain gasket included in turbo kit - Must use a -6AN oil feel line to maintain core temperature (Warranty VOID if not used) - T4 single entry turbine inlet flange - SiMo-nodular cast iron rear housing - V-Band turbine outlet flange - 1/8" NPT oil feed fitting (sold separately) or a 38mm 2-bolt oil feed plate with M8 x 1.25mm thread size - 50.80mm bolt centre turbo drain flange with M8 x 1.25mm thread size
Compressor Specifications Inducer:Â 78.13mm Exducer:Â 102.40mm Extended Tip:Â 106.30mm Compressor Inlet:Â 4" slip fit Compressor Outlet: 2.5" slip fit
Turbine Specifications Inducer:Â 82mm Exducer:Â 75mm A/R:Â 1.25 Turbine Inlet Flange: Â T4 Turbine Outlet Flange: Â V-Band (AF8080-1026)
Wastegate External wastegate
Note: We strive to maintain a wide range of products in stock. However, some items may be ordered on demand, resulting in a lead time. If your order is urgent, please contact Speedspec in advance. sales@speedspec.co.nz
