Aeroflow
SKU:AF8005-6015
BOOSTED 94103 1.22 V-BAND INLET V-BAND OUTLET GTX5533
BOOSTED 94103 1.22 V-BAND INLET V-BAND OUTLET GTX5533
Regular price
$5,800.00NZD
Regular price
$5,800.00NZD
Sale price
$5,800.00NZD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Share

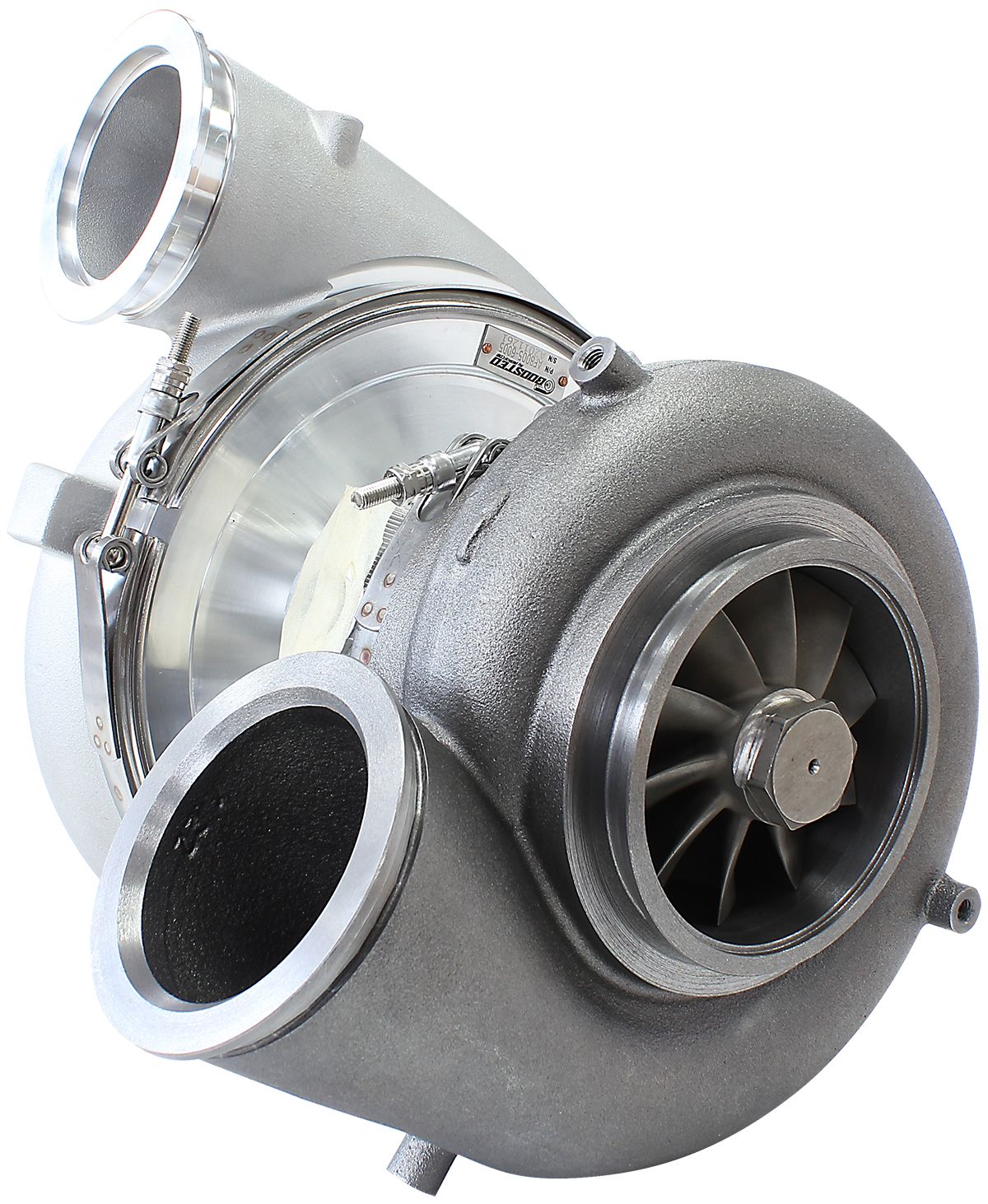

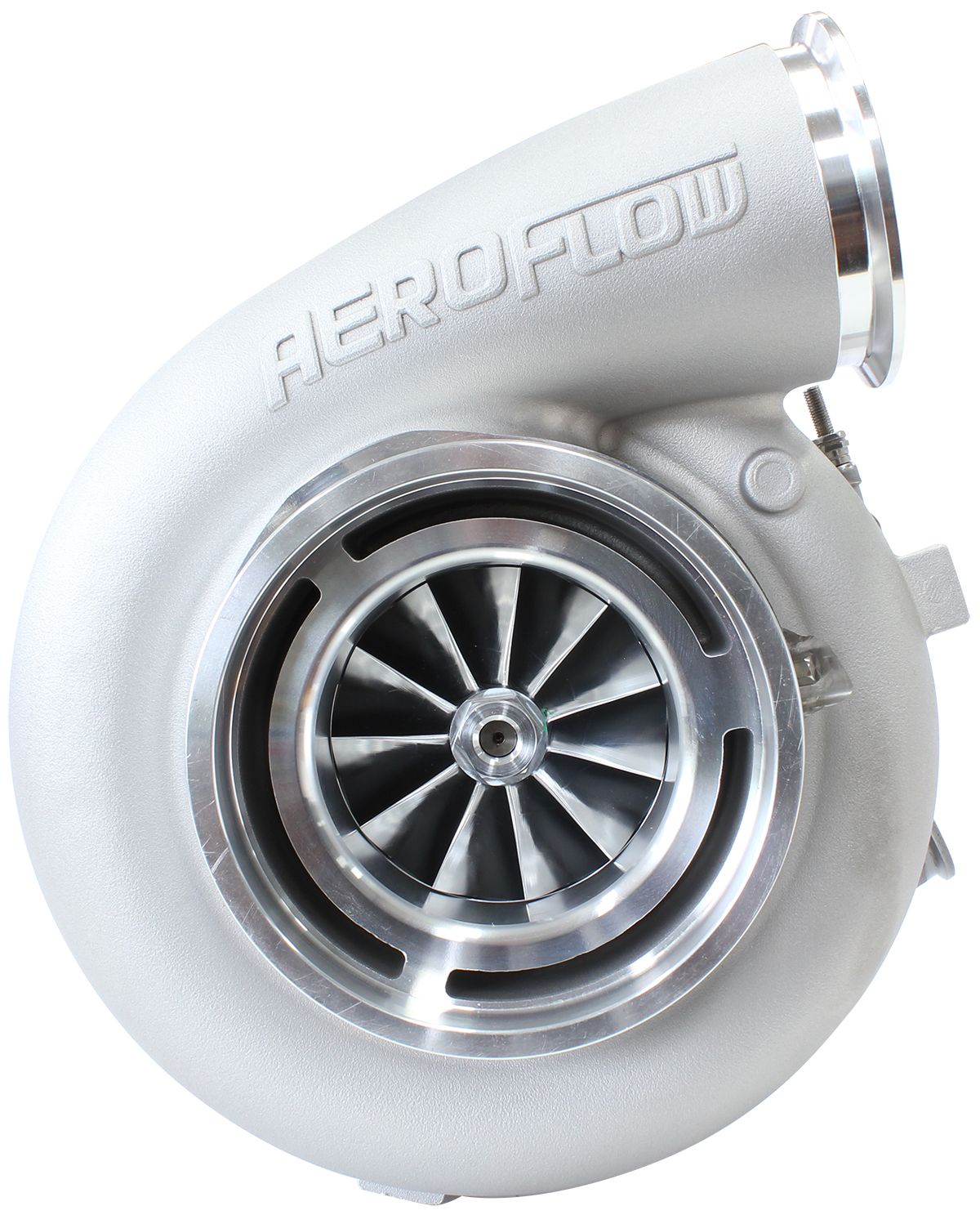

BOOSTED 94103 V-Band Turbocharger Specifications
Recommended horsepower rating:Â 1000-2500HP
Recommended engine displacement:Â 3.0L to 12.0L
- Triple ceramic ball bearing
- 7075 billet compressor wheel
- Ported shroud compressor cover
- Billet CNC core
- This is an oil cooled turbocharger
- Speed sensor port included in compressor cover (Speed sensor sold separately, AF8050-1010)
- External wastegate sold separately
- Turbo drain gasket and -4AN turbo oil feed fitting with restrictor included in turbo kit. (Warranty VOID if not used)
- V-Band single entry turbine inlet flange
- SiMo-nodular cast iron rear housing
- V-Band turbine outlet flange
- V-Band compressor outlet flange
- 1/4" NPT to -4AN oil feed fitting with in-built restrictor attached to a 38mm 2-bolt oil feed plate with M8 x 1.25mm thread size
- 50.80mm bolt centre turbo drain flange with M8 x 1.25mm thread size
Compressor Specifications
Inducer:Â 94mm
Exducer:Â 133.80mm
Extended Tip:Â 138.40mm
A/R: Â 0.88
Compressor Inlet:Â 6" slip fit
Compressor Outlet: V-Band (AF8080-1007)
Turbine Specifications
Inducer:Â 112mm
Exducer:Â 103mm
A/R:Â 1.22
Turbine Inlet Flange: V-Band (AF8080-1028)
Turbine Outlet Flange: Â V-Band (AF8080-1029)
Wastegate
External wastegate
Recommended horsepower rating:Â 1000-2500HP
Recommended engine displacement:Â 3.0L to 12.0L
- Triple ceramic ball bearing
- 7075 billet compressor wheel
- Ported shroud compressor cover
- Billet CNC core
- This is an oil cooled turbocharger
- Speed sensor port included in compressor cover (Speed sensor sold separately, AF8050-1010)
- External wastegate sold separately
- Turbo drain gasket and -4AN turbo oil feed fitting with restrictor included in turbo kit. (Warranty VOID if not used)
- V-Band single entry turbine inlet flange
- SiMo-nodular cast iron rear housing
- V-Band turbine outlet flange
- V-Band compressor outlet flange
- 1/4" NPT to -4AN oil feed fitting with in-built restrictor attached to a 38mm 2-bolt oil feed plate with M8 x 1.25mm thread size
- 50.80mm bolt centre turbo drain flange with M8 x 1.25mm thread size
Compressor Specifications
Inducer:Â 94mm
Exducer:Â 133.80mm
Extended Tip:Â 138.40mm
A/R: Â 0.88
Compressor Inlet:Â 6" slip fit
Compressor Outlet: V-Band (AF8080-1007)
Turbine Specifications
Inducer:Â 112mm
Exducer:Â 103mm
A/R:Â 1.22
Turbine Inlet Flange: V-Band (AF8080-1028)
Turbine Outlet Flange: Â V-Band (AF8080-1029)
Wastegate
External wastegate
Note: We strive to maintain a wide range of products in stock. However, some items may be ordered on demand, resulting in a lead time. If your order is urgent, please contact Speedspec in advance. sales@speedspec.co.nz
