BOOSTED 7375 1.2 V-BAND REVERSE V-BAND OUTLET G42
BOOSTED 7375 1.2 V-BAND REVERSE V-BAND OUTLET G42
Regular price
$2,790.00NZD
Regular price
$3,000.00NZD
Sale price
$2,790.00NZD
Unit price
/
per
Share

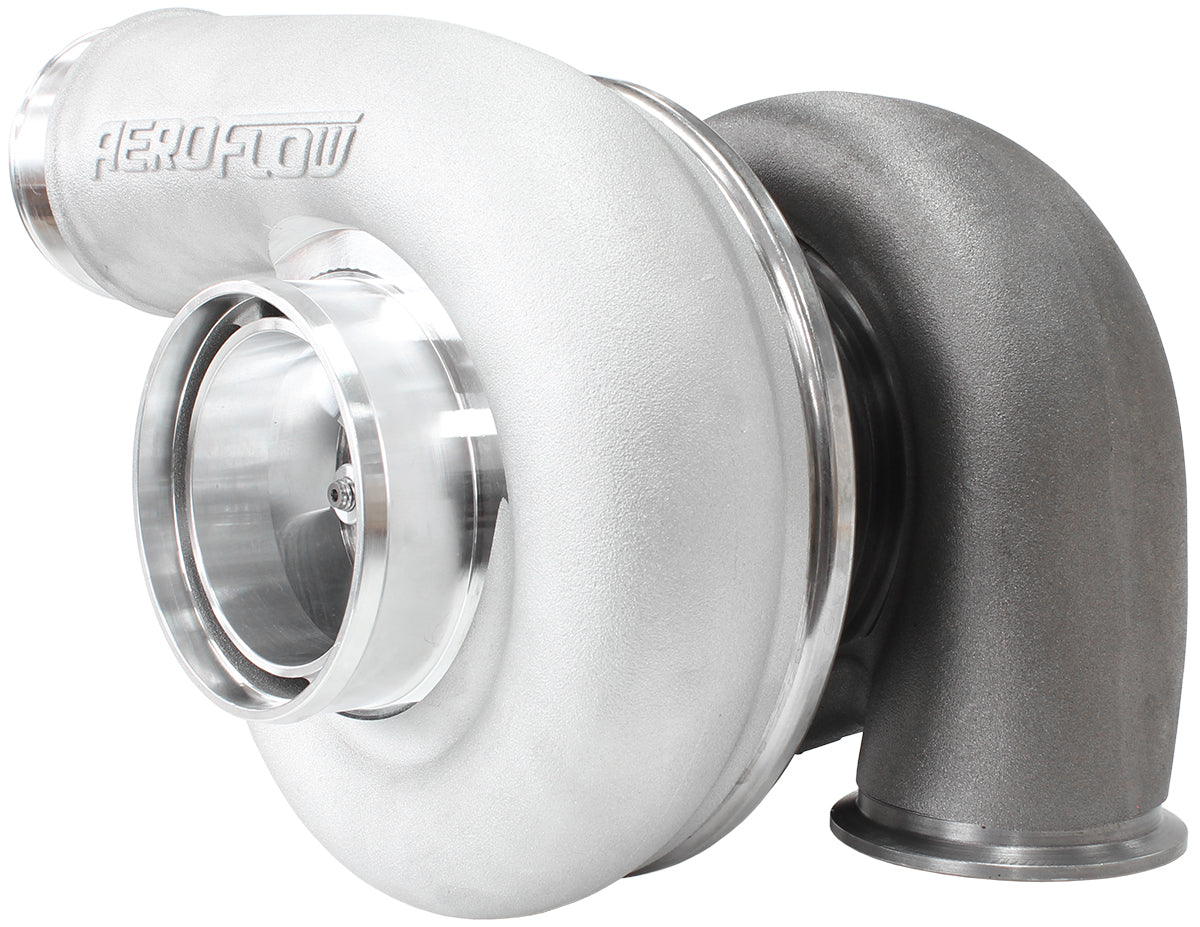

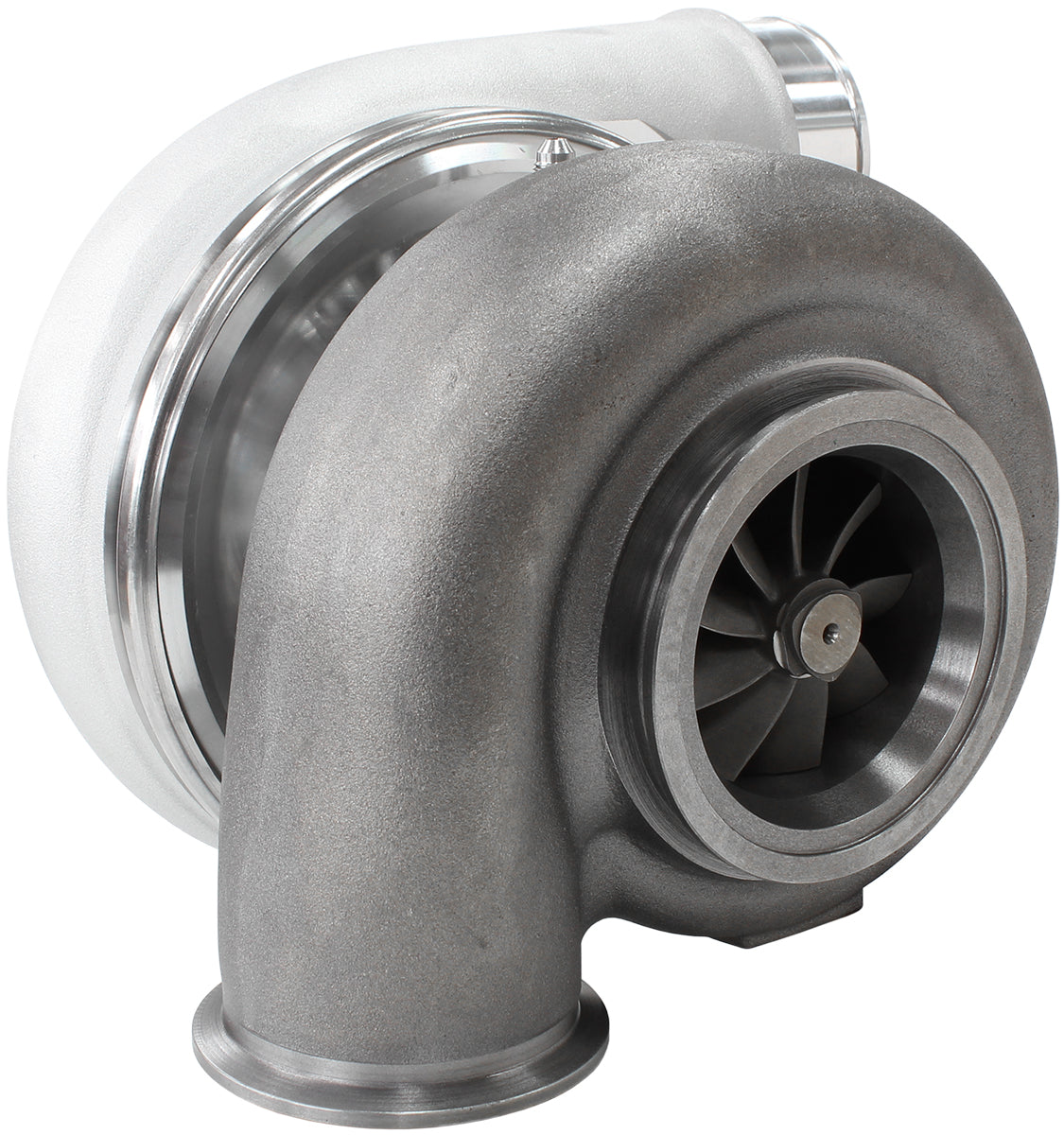

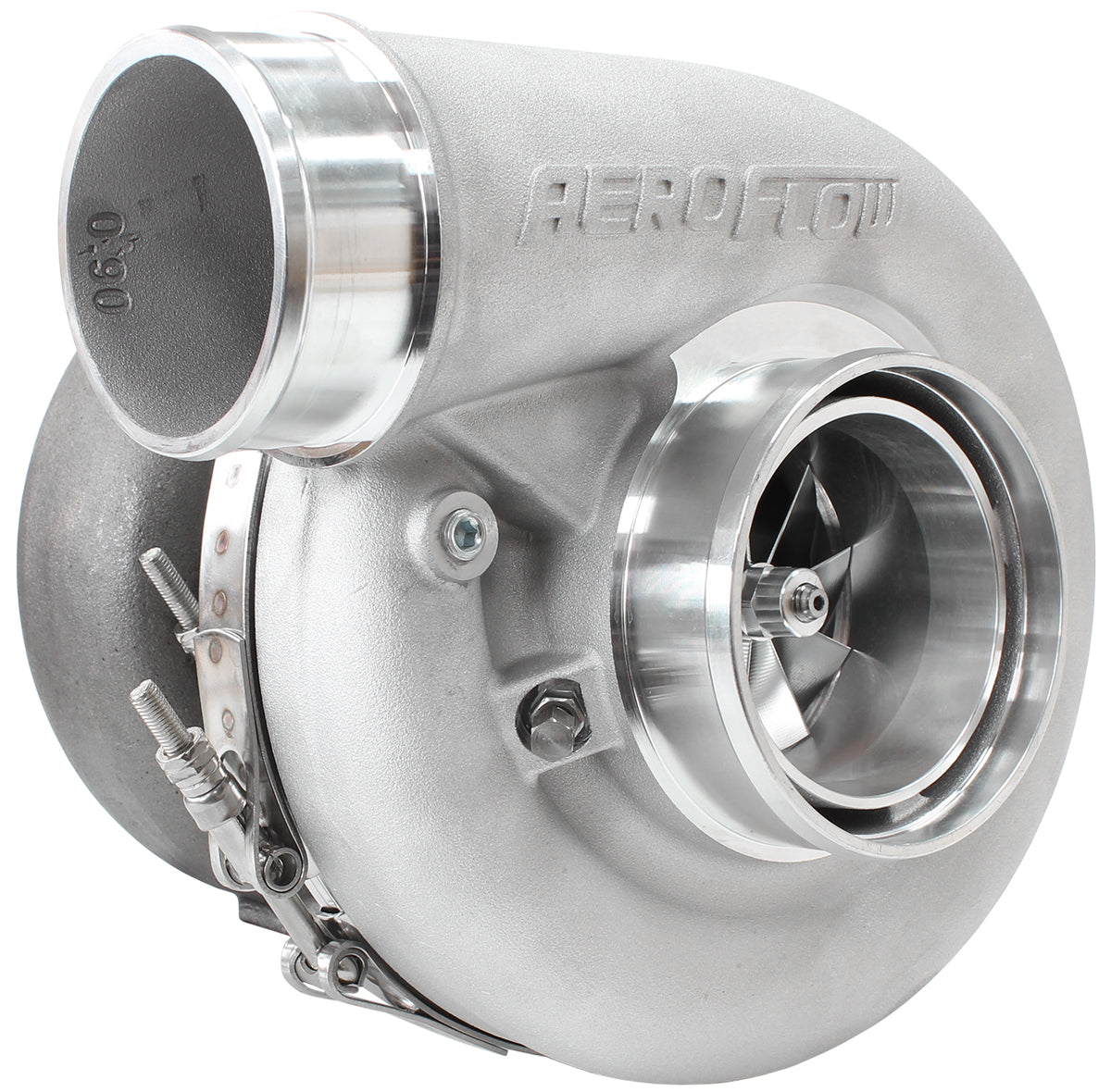

BOOSTED 7375 V-Band Reverse Rotation Turbocharger Specifications
This is a reverse rotation turbocharger for applications that want the perfect twin turbo installation or a single reverse rotation turbo with installation restrictions. Matches Boosted 7375 (AF8005-4009BLK) standard rotation turbocharger.
Recommended horsepower rating:Â 475-1200HP
Recommended engine displacement:Â 2.0L to 7.0L
- Dual ceramic ball bearing
- Point Milled 7075 billet compressor wheel
- Ported shroud compressor cover
- Speed sensor port included in compressor cover (Speed sensor sold separately, AF8050-1010)
- 1/8" NPT boost reference port
- External wastegate sold separately
- Turbo drain gasket and -4AN turbo oil feed fitting with restrictor included in turbo kit. (Warranty VOID if not used)
- V-Band single entry turbine inlet flange
- 9 blade turbine wheel
- SiMo-nodular cast iron rear housing
- V-Band turbine outlet flange
- M14 x 1.5mm coolant port thread
- 1/4" NPT to -4AN oil feed fitting with in-built restrictor attached to a 38mm 2-bolt oil feed plate with M8 x 1.25mm thread size
- 50.80mm bolt centre turbo drain flange with M8 x 1.25mm thread size
Compressor Specifications
Inducer:Â 73mm
Exducer:Â 91mm
Extended Tip:Â 96mm
A/R: Â 0.90
Compressor Inlet: Â 4" Slip fit
Compressor Outlet:Â 3" Slip fit
Turbine Specifications
Inducer:Â 82mm
Exducer:Â 75mm
A/R:Â 1.28
Turbine Inlet Flange: V-Band (AF8080-1019)
Turbine Outlet Flange: Â V-Band (AF8080-1020)
Wastegate
External wastegate
This is a reverse rotation turbocharger for applications that want the perfect twin turbo installation or a single reverse rotation turbo with installation restrictions. Matches Boosted 7375 (AF8005-4009BLK) standard rotation turbocharger.
Recommended horsepower rating:Â 475-1200HP
Recommended engine displacement:Â 2.0L to 7.0L
- Dual ceramic ball bearing
- Point Milled 7075 billet compressor wheel
- Ported shroud compressor cover
- Speed sensor port included in compressor cover (Speed sensor sold separately, AF8050-1010)
- 1/8" NPT boost reference port
- External wastegate sold separately
- Turbo drain gasket and -4AN turbo oil feed fitting with restrictor included in turbo kit. (Warranty VOID if not used)
- V-Band single entry turbine inlet flange
- 9 blade turbine wheel
- SiMo-nodular cast iron rear housing
- V-Band turbine outlet flange
- M14 x 1.5mm coolant port thread
- 1/4" NPT to -4AN oil feed fitting with in-built restrictor attached to a 38mm 2-bolt oil feed plate with M8 x 1.25mm thread size
- 50.80mm bolt centre turbo drain flange with M8 x 1.25mm thread size
Compressor Specifications
Inducer:Â 73mm
Exducer:Â 91mm
Extended Tip:Â 96mm
A/R: Â 0.90
Compressor Inlet: Â 4" Slip fit
Compressor Outlet:Â 3" Slip fit
Turbine Specifications
Inducer:Â 82mm
Exducer:Â 75mm
A/R:Â 1.28
Turbine Inlet Flange: V-Band (AF8080-1019)
Turbine Outlet Flange: Â V-Band (AF8080-1020)
Wastegate
External wastegate
Note: We strive to maintain a wide range of products in stock. However, some items may be ordered on demand, resulting in a lead time. If your order is urgent, please contact Speedspec in advance. sales@speedspec.co.nz
