Aeroflow
SKU: AF8005-4025
Regular price
$1,900.00NZD
Regular price
$1,900.00NZD
Sale price
$1,900.00NZD
Unit price
/
per
Sale
Sold out
COLOUR
CASTVariant sold out or unavailable
BLACKVariant sold out or unavailable
Couldn't load pickup availability
Refresh
Share
Share

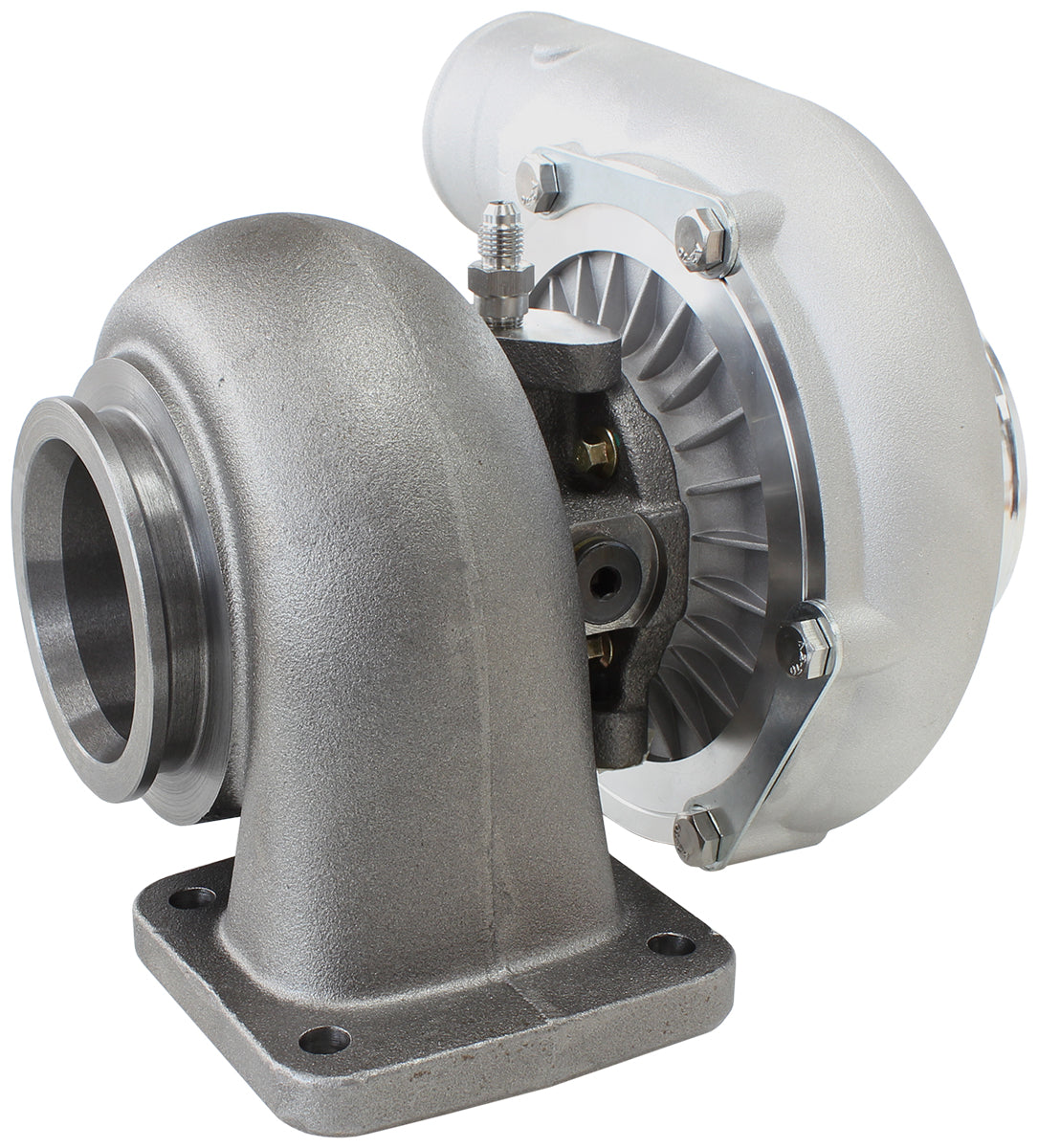

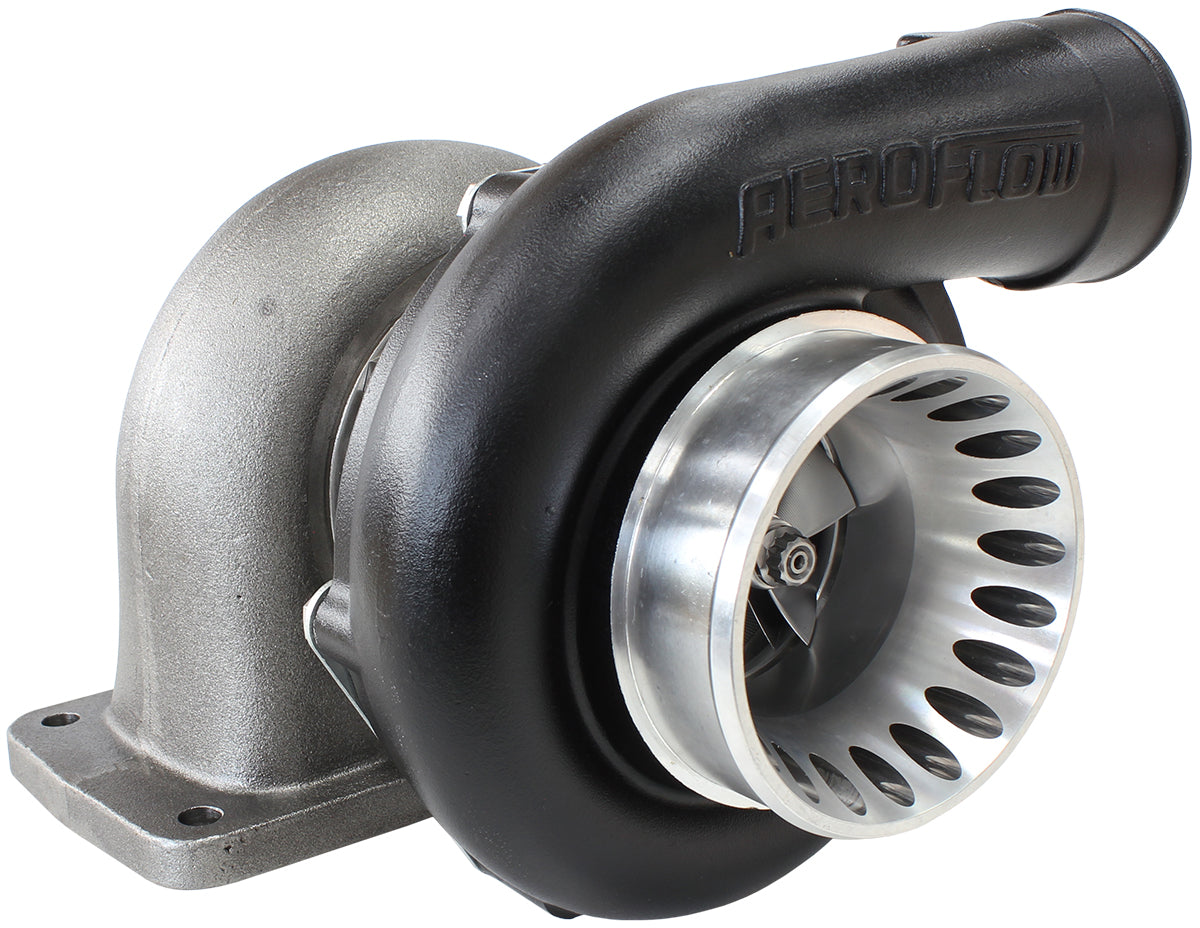

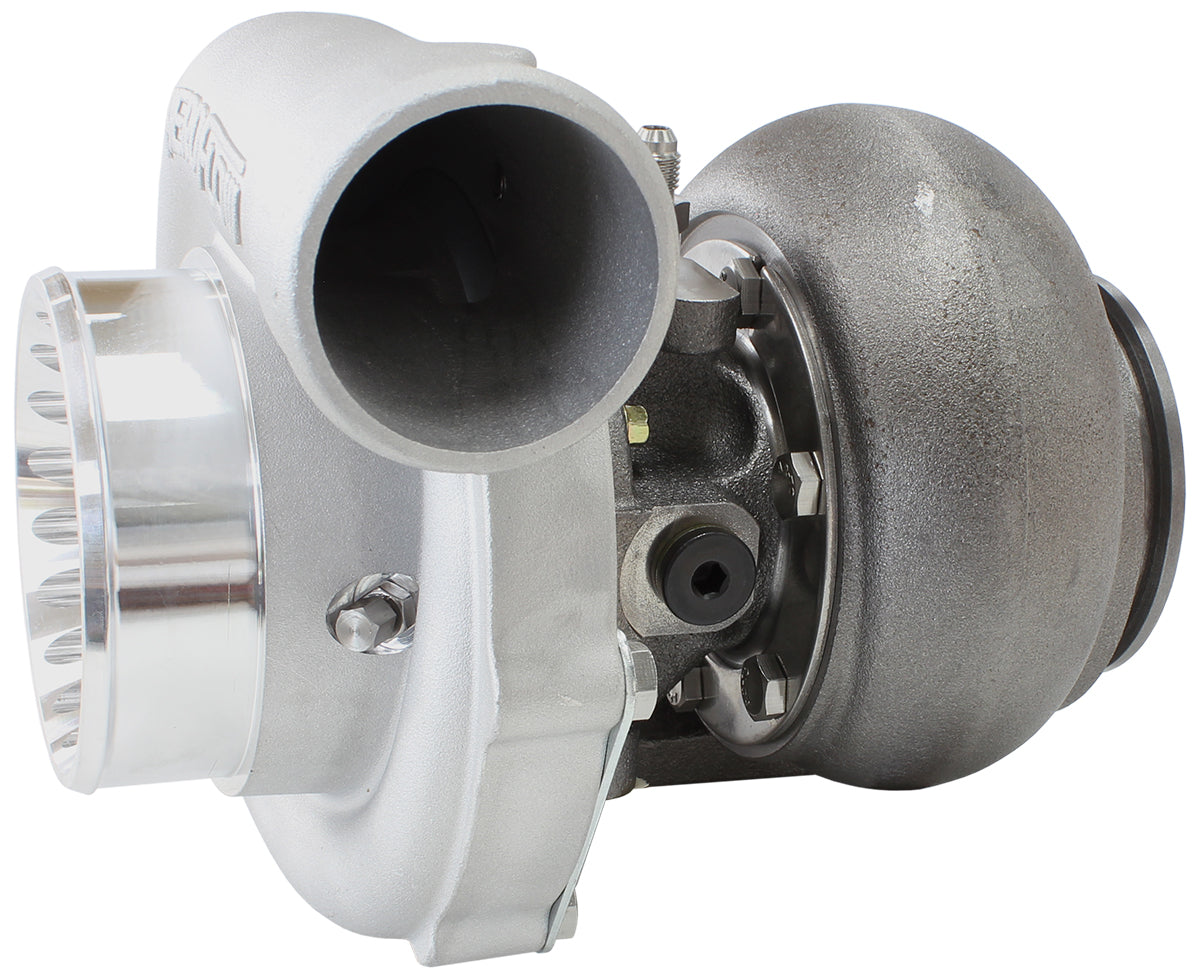

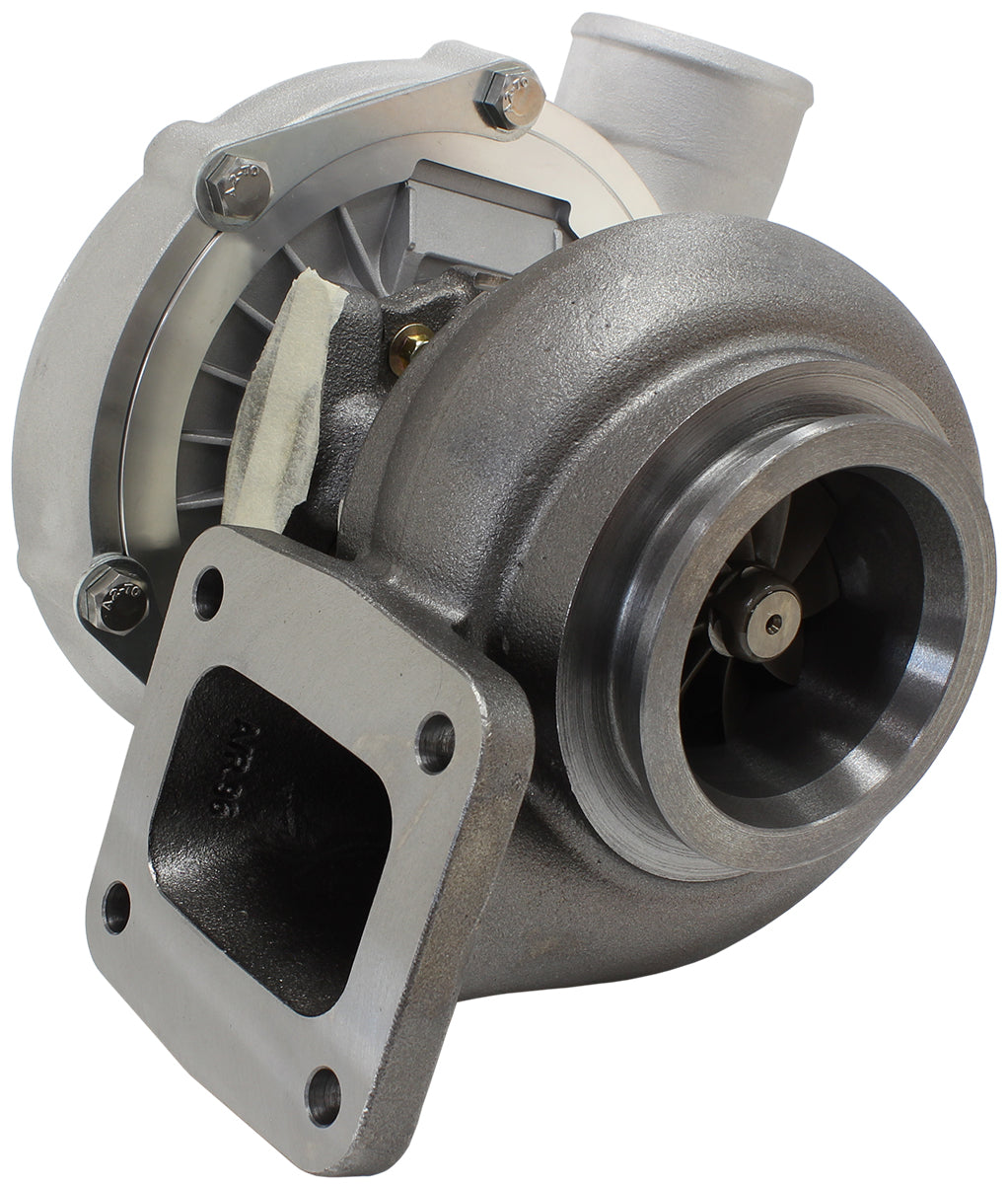

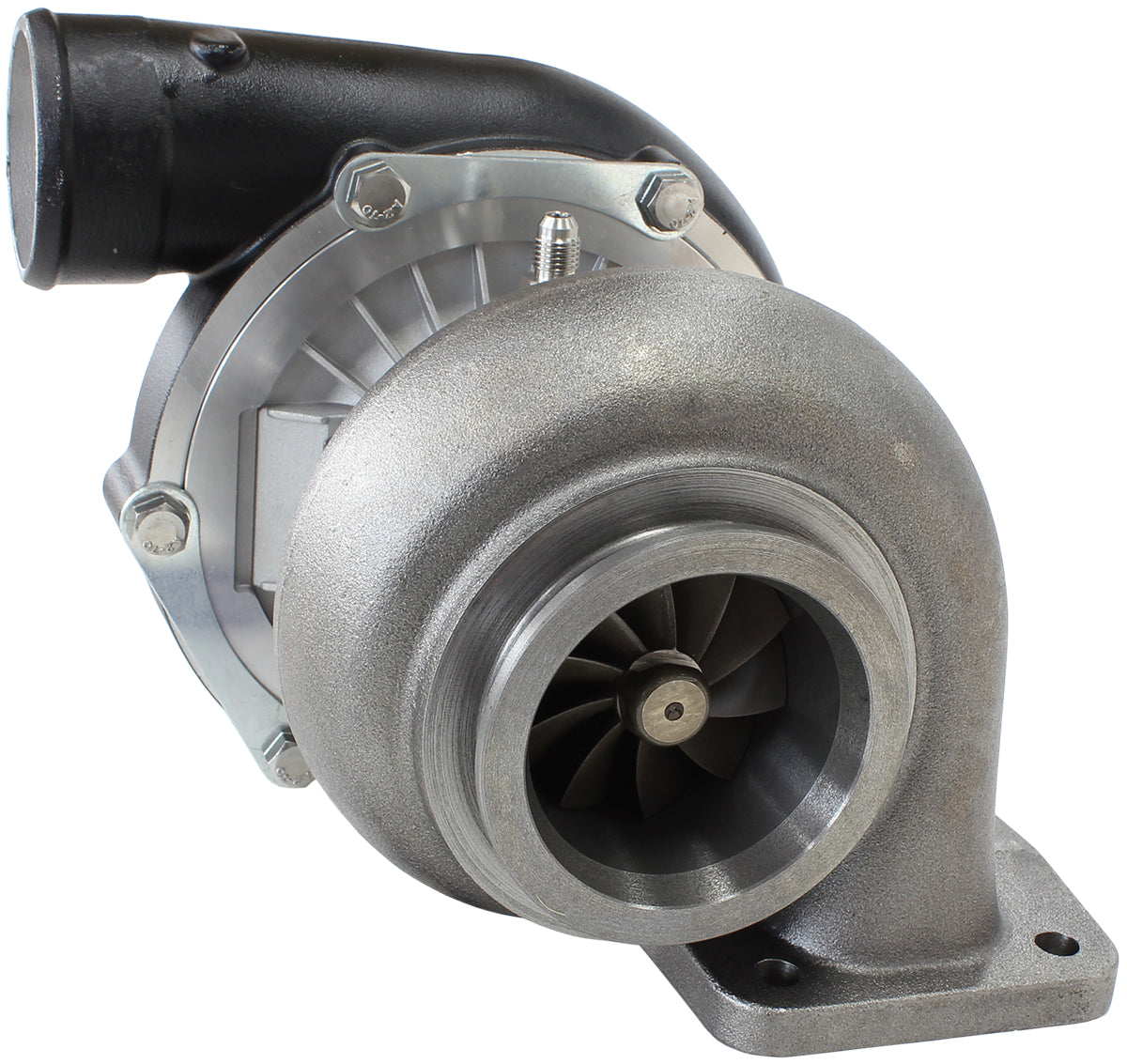

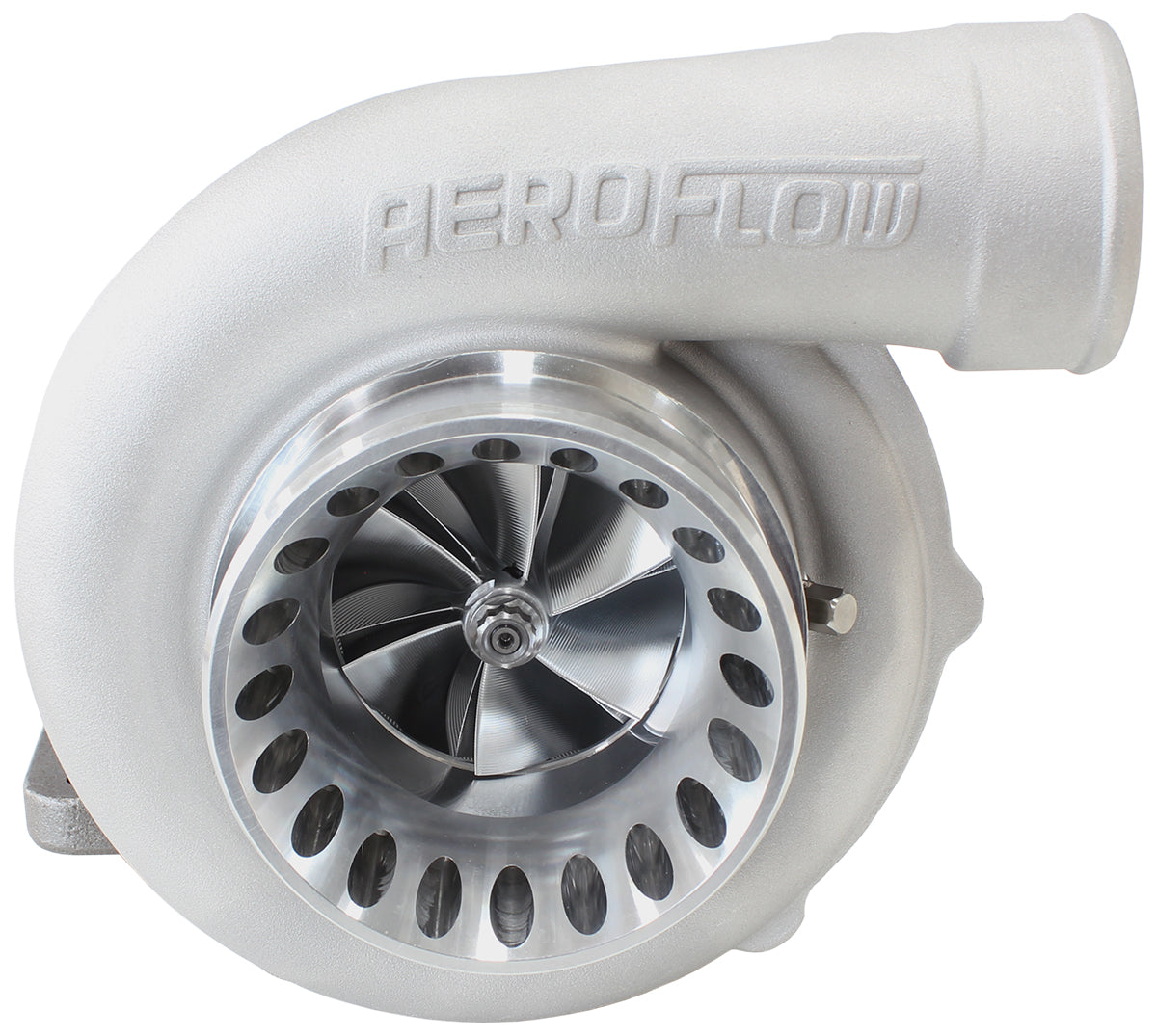

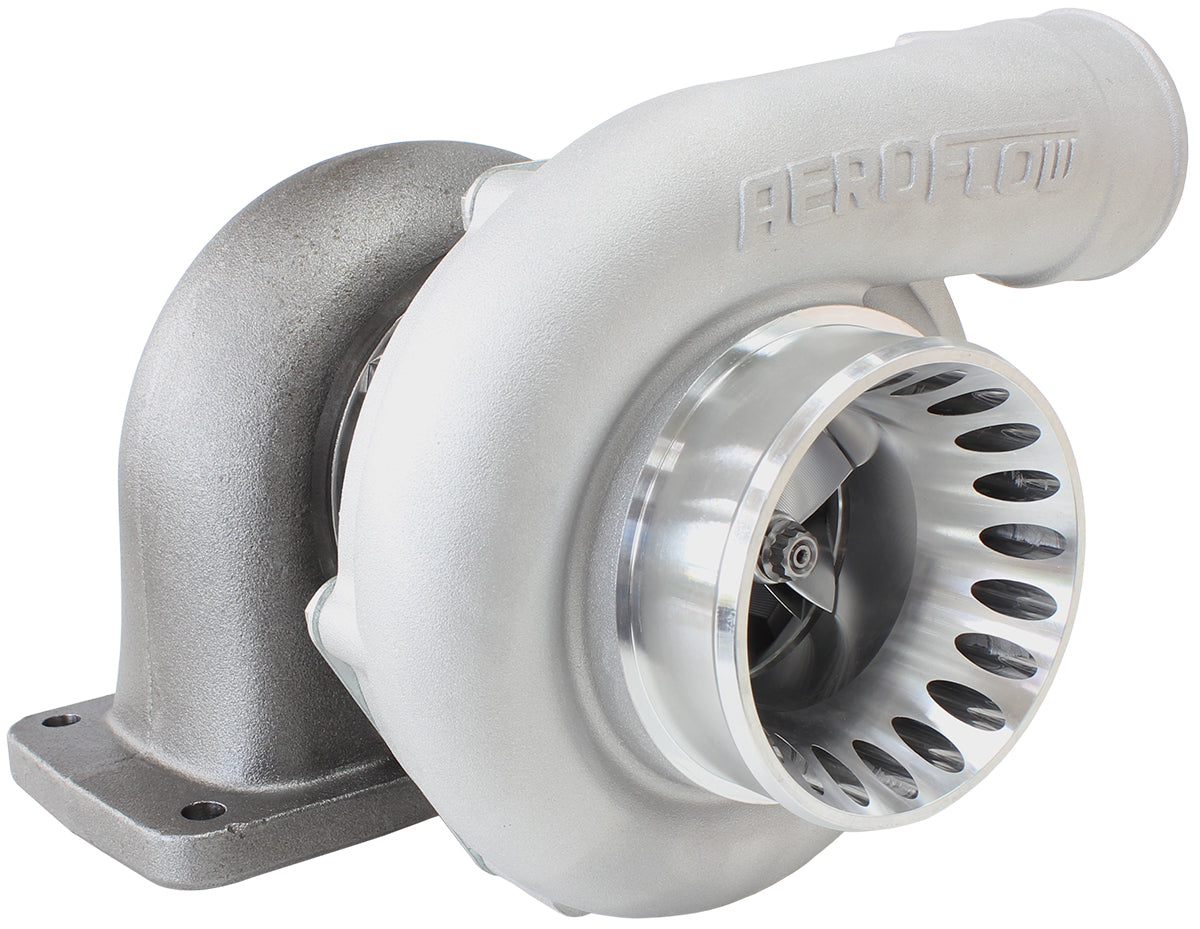

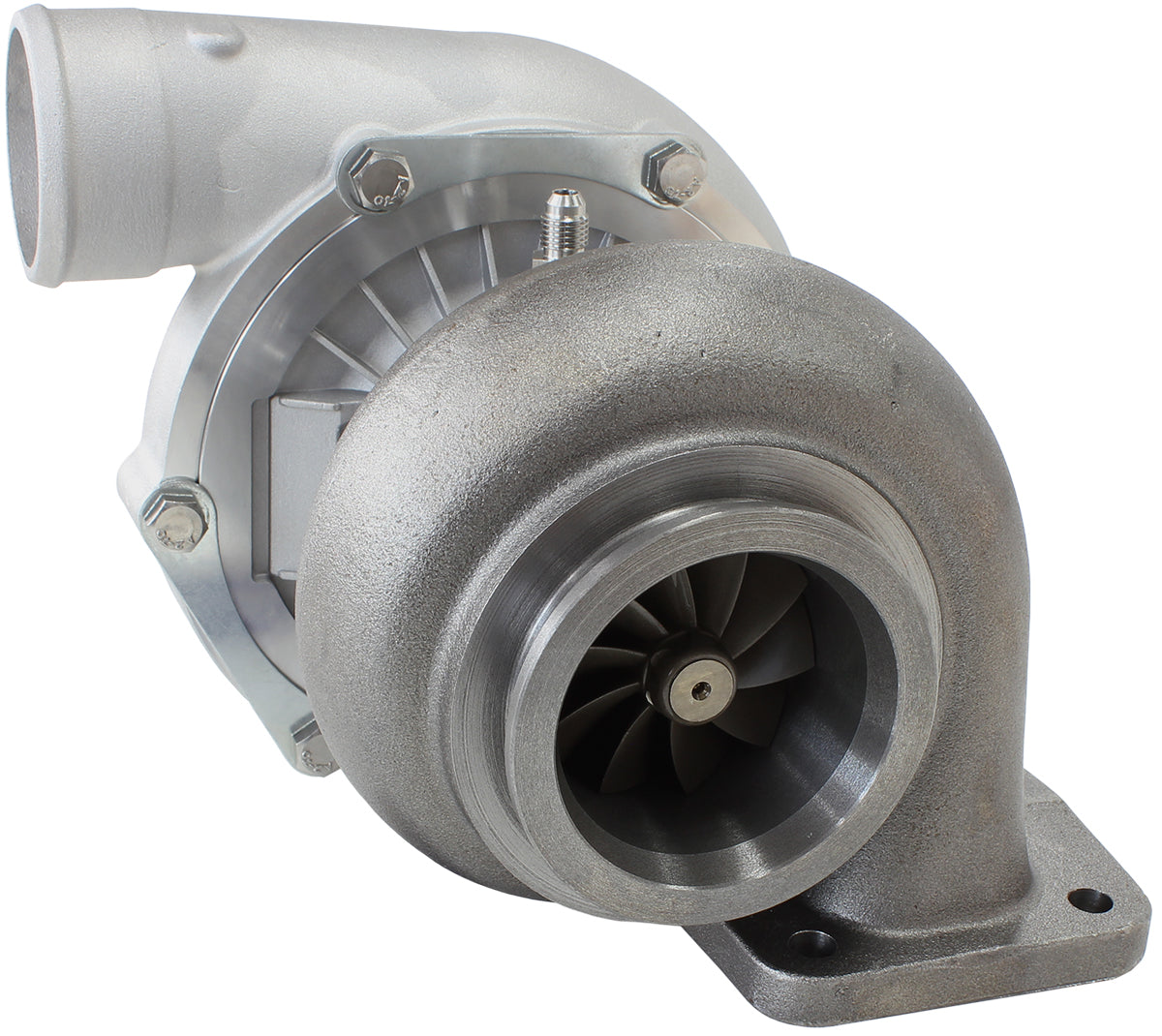

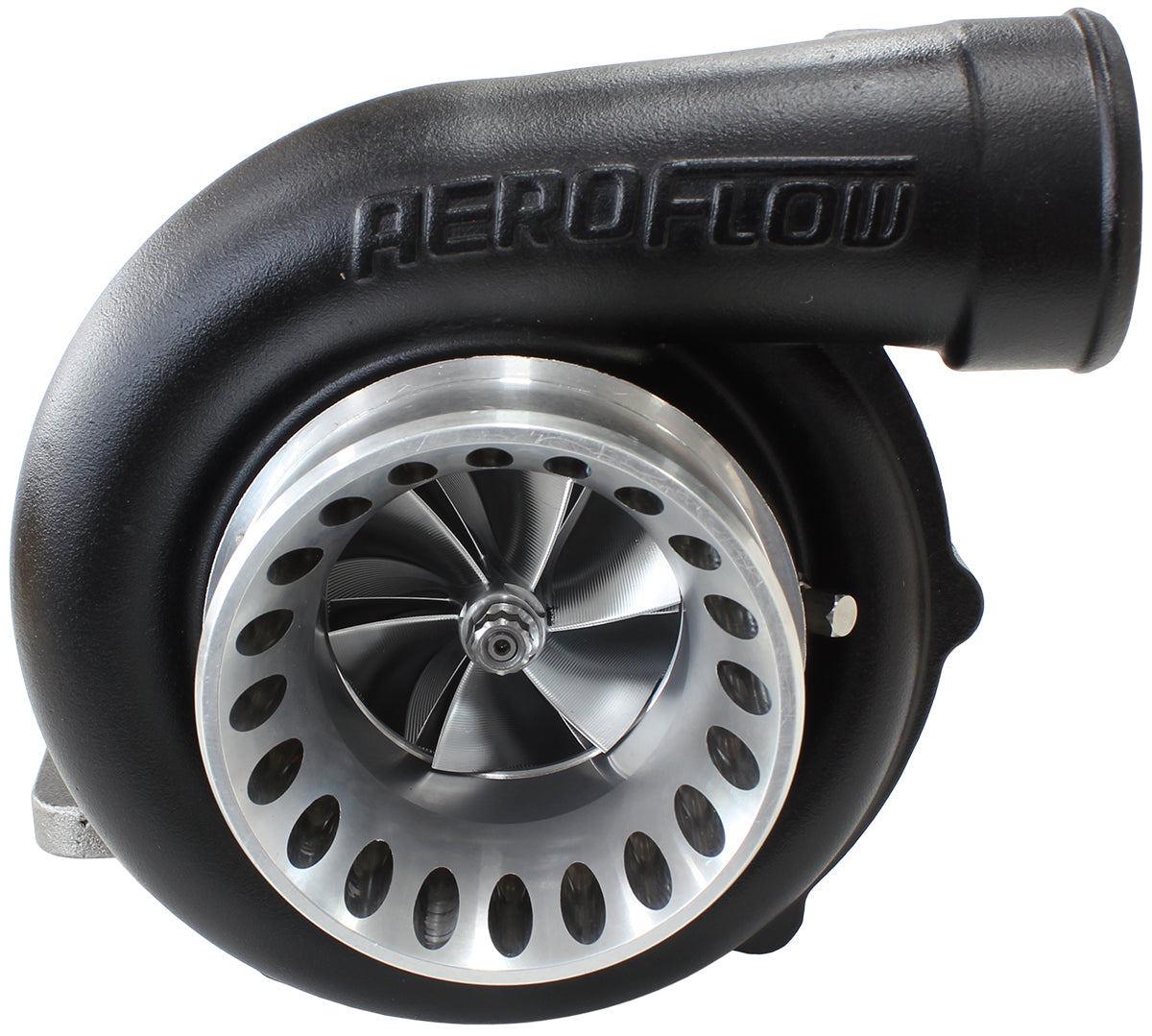

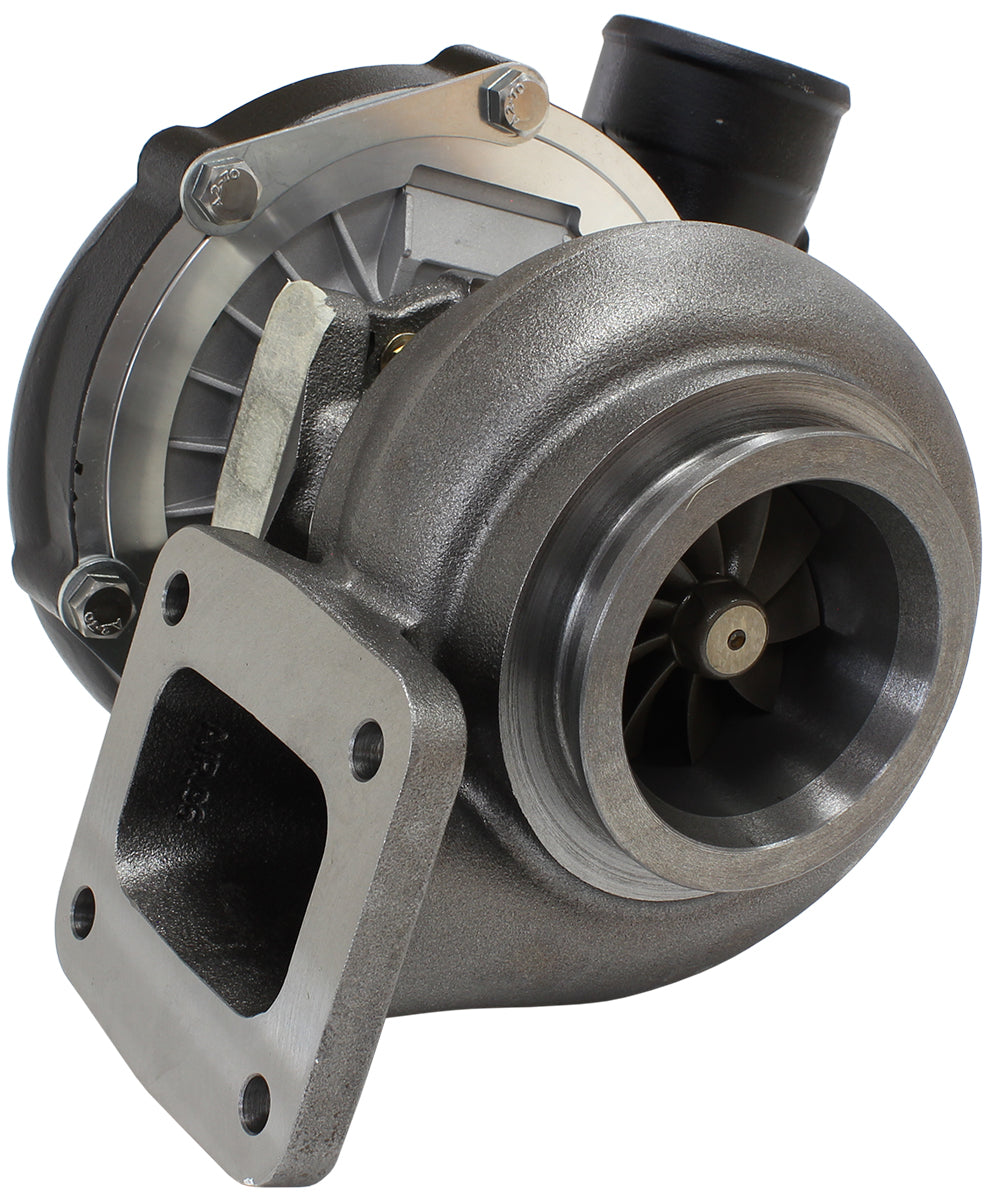

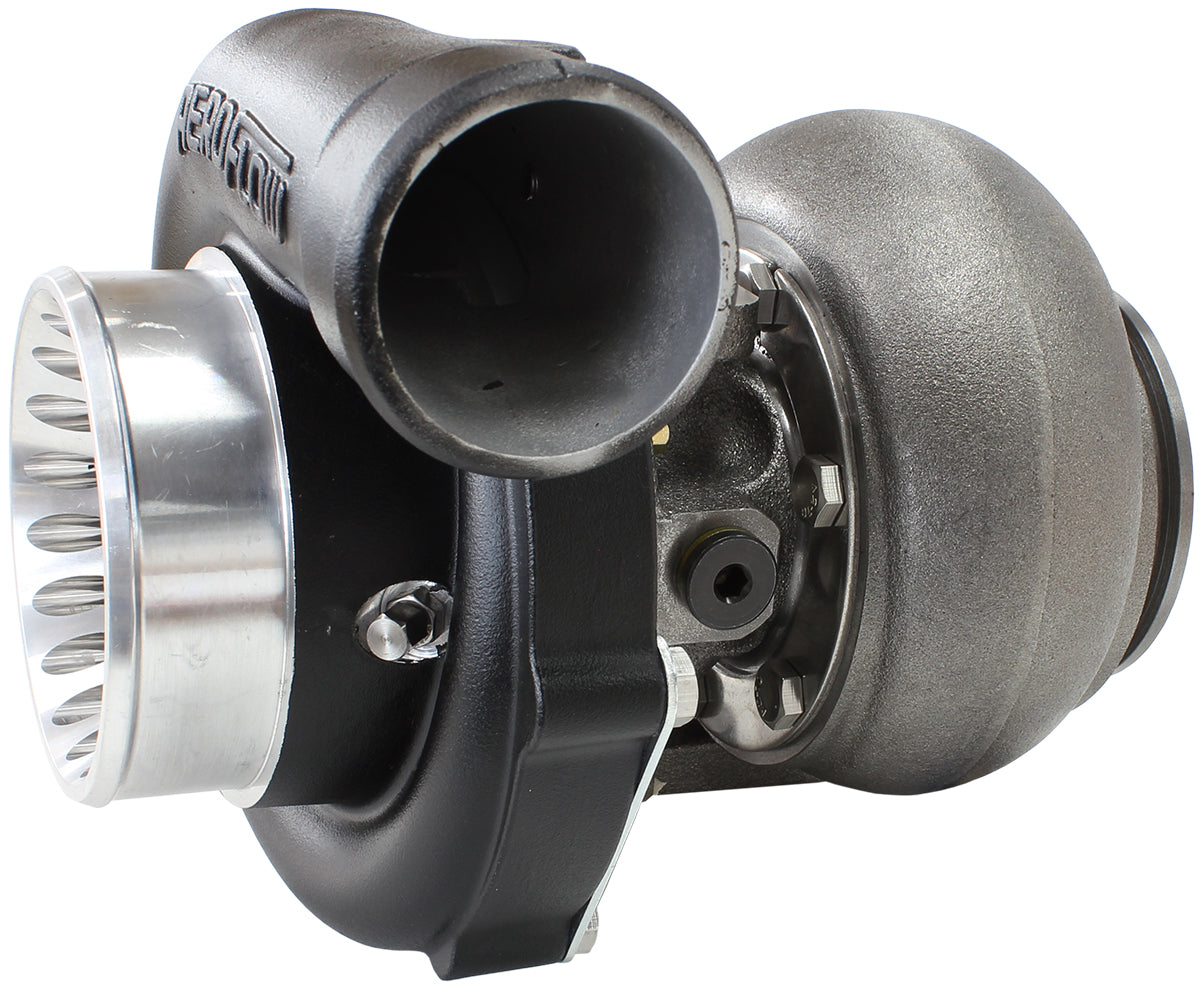

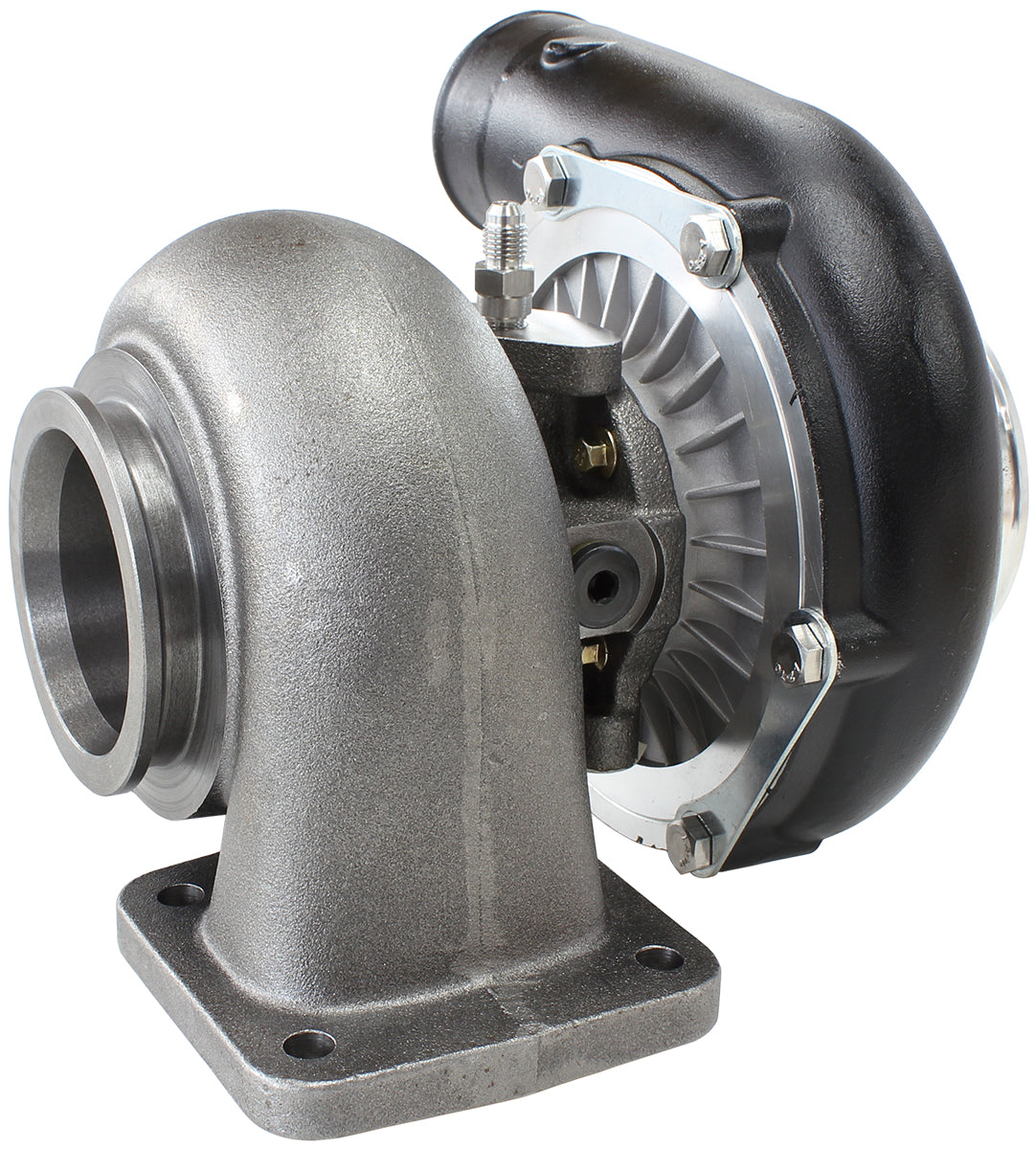

BOOSTED 7170 T4 Turbocharger Specifications Recommended horsepower rating: 500-1150HP Recommended engine displacement: 2.0L to 6.0L - Dual ceramic ball bearing - Point Milled 7075 billet compressor wheel - Ported shroud compressor cover - Speed sensor port included in compressor cover (Speed sensor sold separately, AF8050-1010) - 1/8" NPT boost reference port - External wastegate sold separately - Inlet flange gasket, turbo drain gasket and -4AN turbo oil feed fitting with restrictor included in turbo kit. (Warranty VOID  if not used) - T4 twin entry turbine inlet flange - 9 blade turbine wheel - SiMo-nodular cast iron rear housing - V-Band turbine outlet flange - M14 x 1.5mm coolant port thread - 1/4" NPT to -4AN oil feed fitting with in-built restrictor attached to a 38mm 2-bolt oil feed plate with M8 x 1.25mm thread size - 50.80mm bolt centre turbo drain flange with M8 x 1.25mm thread size Compressor Specifications Inducer: 71mm Exducer: 88mm Extended Tip: 97mm A/R:  0.80 Compressor Inlet: 4" Slip fit Compressor Outlet: 2.5" Slip fit Turbine Specifications Inducer: 77mm Exducer: 70mm A/R: 1.06 Turbine Inlet Flange: T4 Turbine Outlet Flange:  V-Band (AF8080-1001) Wastegate External wastegate
Note: We strive to maintain a wide range of products in stock. However, some items may be ordered on demand, resulting in a lead time. If your order is urgent, please contact Speedspec in advance. sales@speedspec.co.nz
