Aeroflow
SKU:AF8005-4021

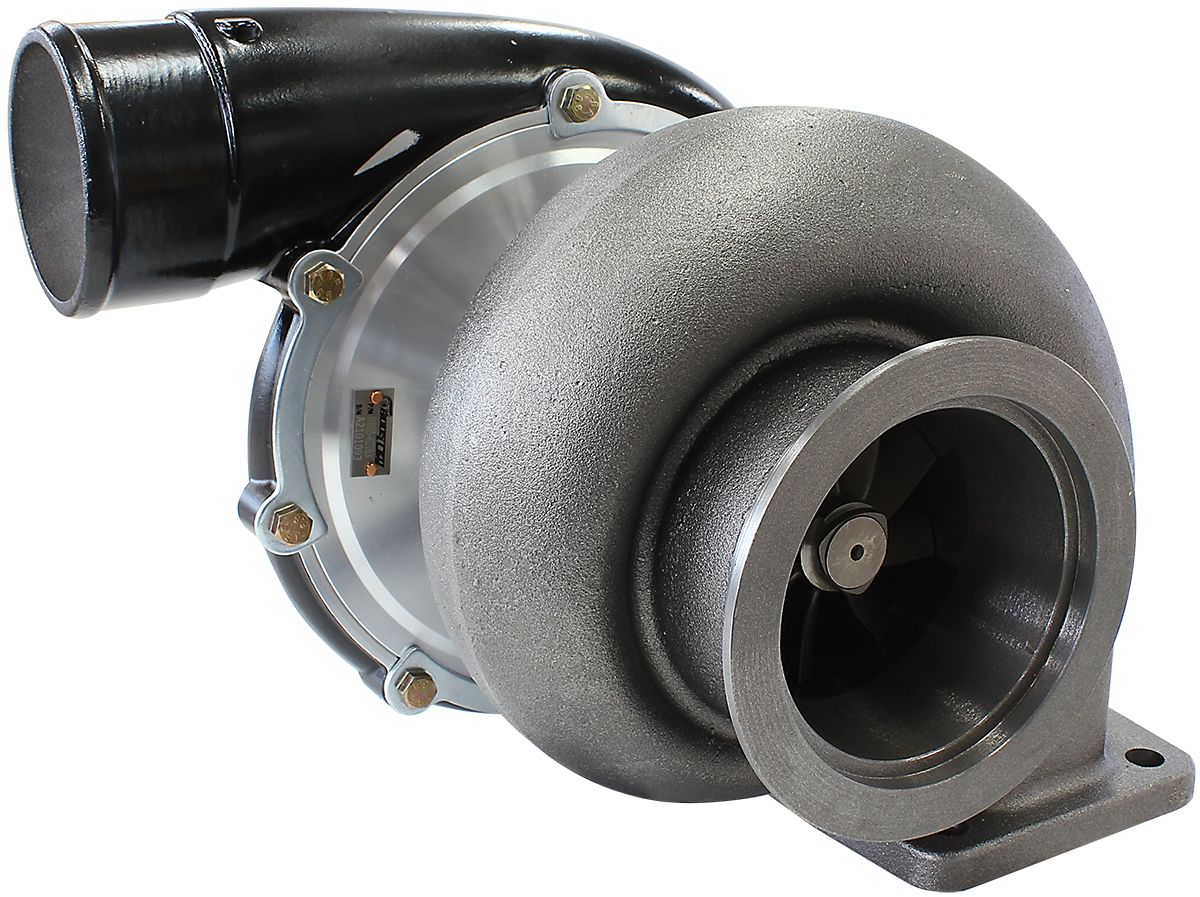

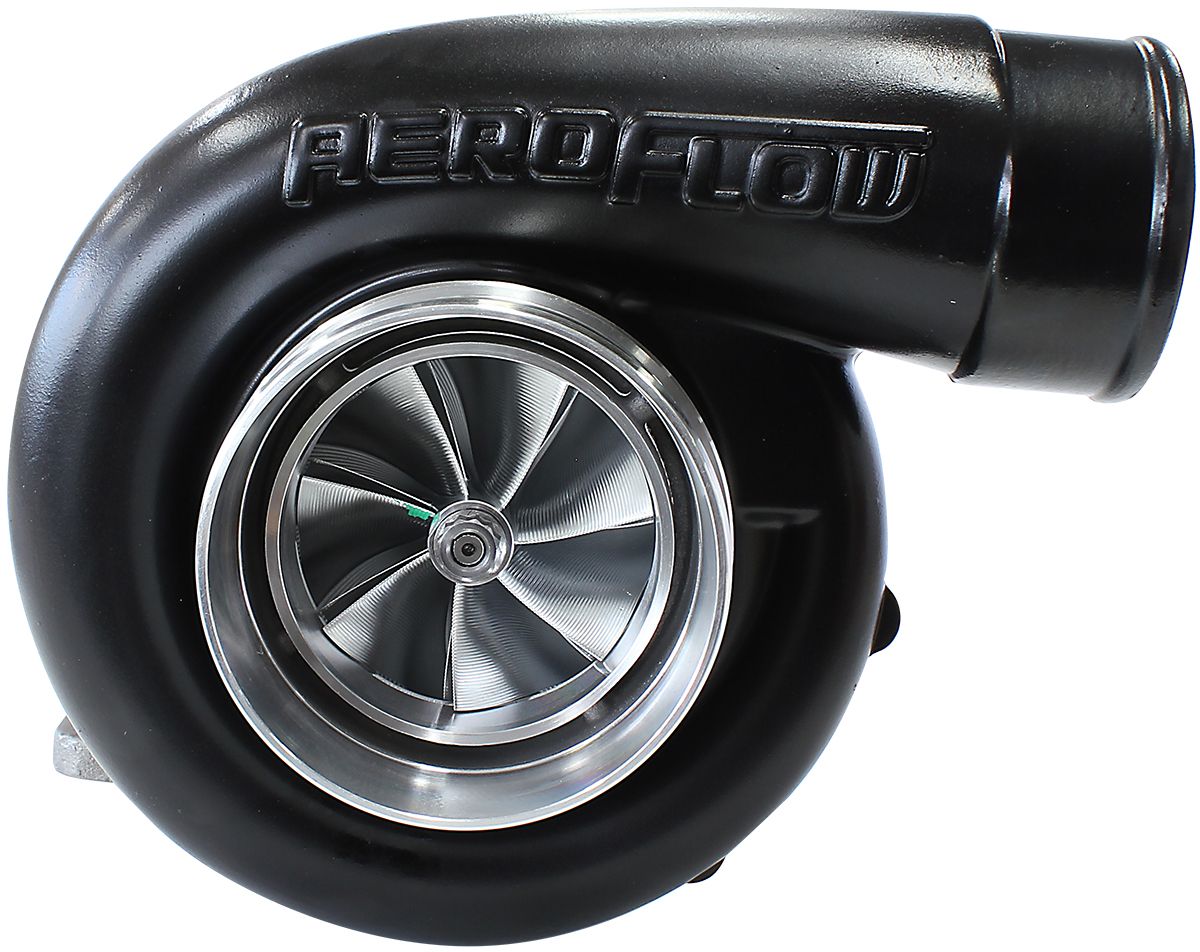

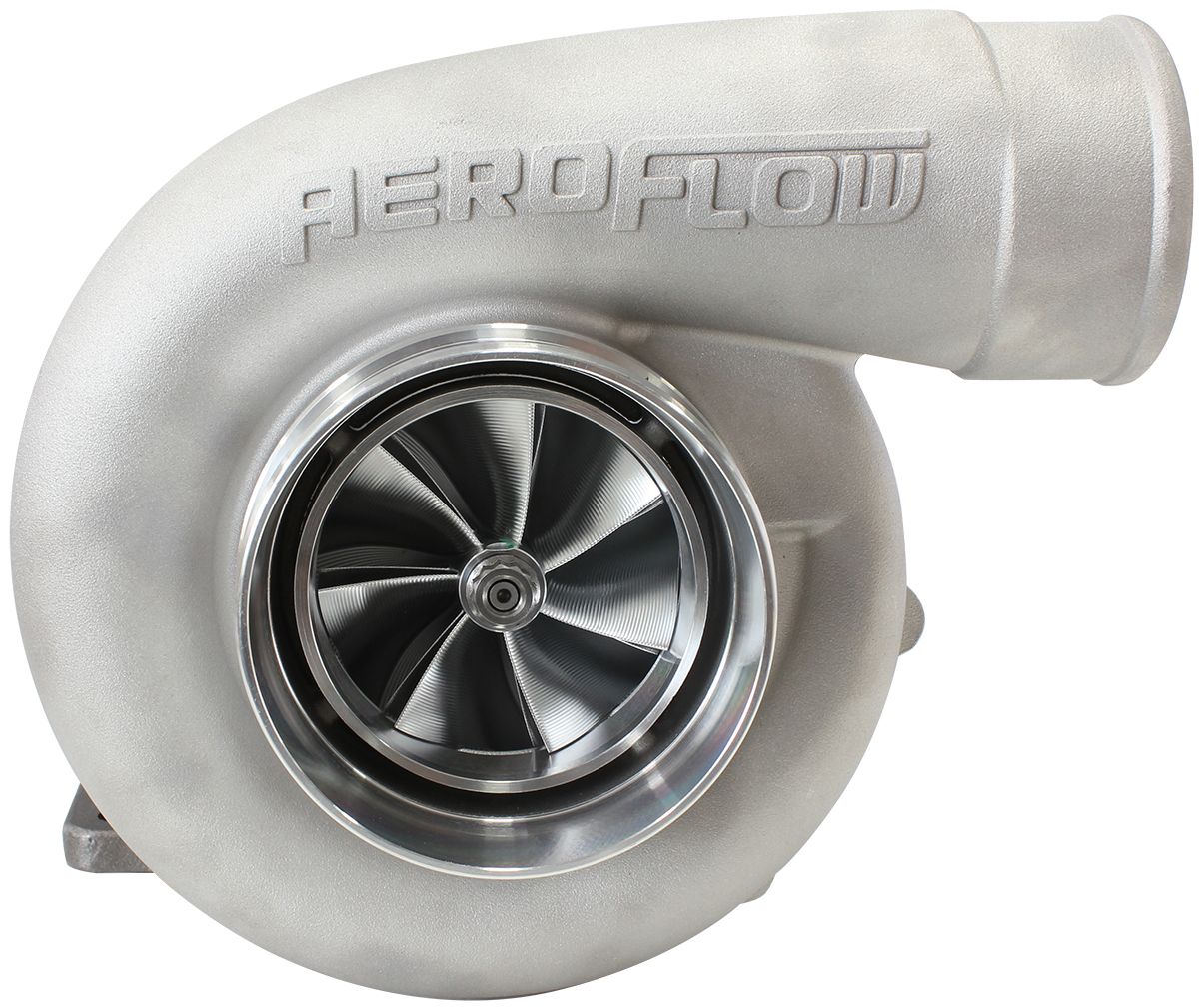

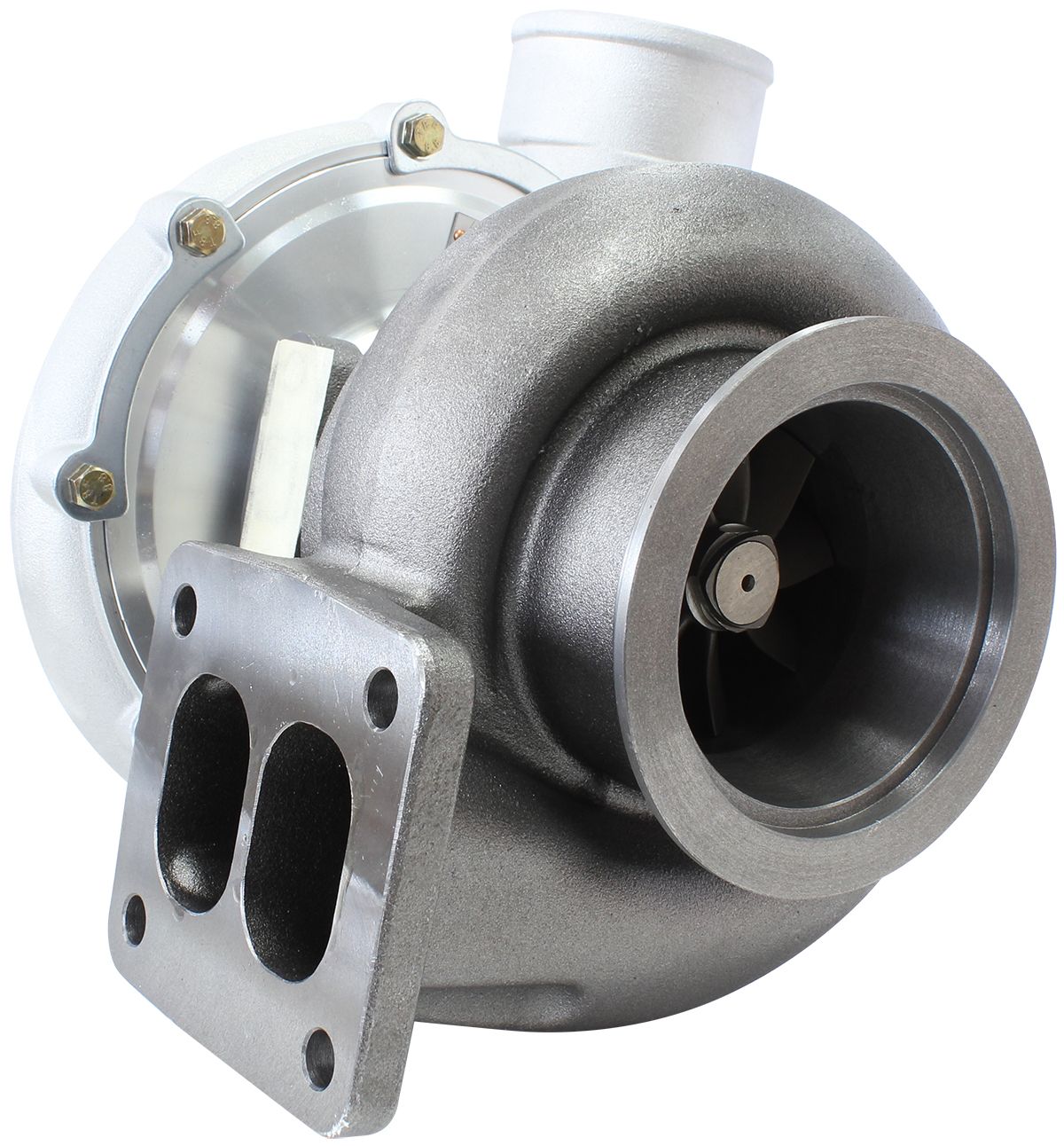

BOOSTED 7875 1.25 T4 FLANGE BB V-BAND OUTLET GTX42
BOOSTED 7875 1.25 T4 FLANGE BB V-BAND OUTLET GTX42
Regular price
$1,860.00NZD
Regular price
$2,000.00NZD
Sale price
$1,860.00NZD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Share
BOOSTED 7875 T4 Turbocharger Specifications
Recommended horsepower rating:Â 500-1050HP
Recommended engine displacement:Â 2.0L to 6.0L
- Dual ceramic ball bearing
- Point Milled 7075 billet 7 + 7 compressor wheel
- Ported shroud compressor cover
- This is an oil cooled turbocharger
- External wastegate sold separately
- Inlet flange gasket, turbo drain gasket and -4AN turbo oil feed fitting with restrictor included in turbo kit. (Warranty VOID if not used)
- T4 twin entry turbine inlet flange
- SiMo-nodular cast iron rear housing
- V-Band turbine outlet flange
- 7/16"-24 to -4AN oil feed fitting with in-built restrictor
- 50.80mm bolt centre turbo drain flange with M8 x 1.25mm thread size
Compressor Specifications
Inducer:Â 78.13mm
Exducer:Â 102.40mm
Extended Tip:Â 106.30mm
A/R: Â 0.75
Compressor Inlet:Â 4" slip fit
Compressor Outlet: 3" slip fit
Turbine Specifications
Inducer:Â 82mm
Exducer:Â 75mm
A/R:Â 1.25
Turbine Inlet Flange: Â T4
Turbine Outlet Flange: Â V-Band (AF8080-1026)
Wastegate
External wastegate
Recommended horsepower rating:Â 500-1050HP
Recommended engine displacement:Â 2.0L to 6.0L
- Dual ceramic ball bearing
- Point Milled 7075 billet 7 + 7 compressor wheel
- Ported shroud compressor cover
- This is an oil cooled turbocharger
- External wastegate sold separately
- Inlet flange gasket, turbo drain gasket and -4AN turbo oil feed fitting with restrictor included in turbo kit. (Warranty VOID if not used)
- T4 twin entry turbine inlet flange
- SiMo-nodular cast iron rear housing
- V-Band turbine outlet flange
- 7/16"-24 to -4AN oil feed fitting with in-built restrictor
- 50.80mm bolt centre turbo drain flange with M8 x 1.25mm thread size
Compressor Specifications
Inducer:Â 78.13mm
Exducer:Â 102.40mm
Extended Tip:Â 106.30mm
A/R: Â 0.75
Compressor Inlet:Â 4" slip fit
Compressor Outlet: 3" slip fit
Turbine Specifications
Inducer:Â 82mm
Exducer:Â 75mm
A/R:Â 1.25
Turbine Inlet Flange: Â T4
Turbine Outlet Flange: Â V-Band (AF8080-1026)
Wastegate
External wastegate
Note: We strive to maintain a wide range of products in stock. However, some items may be ordered on demand, resulting in a lead time. If your order is urgent, please contact Speedspec in advance. sales@speedspec.co.nz
