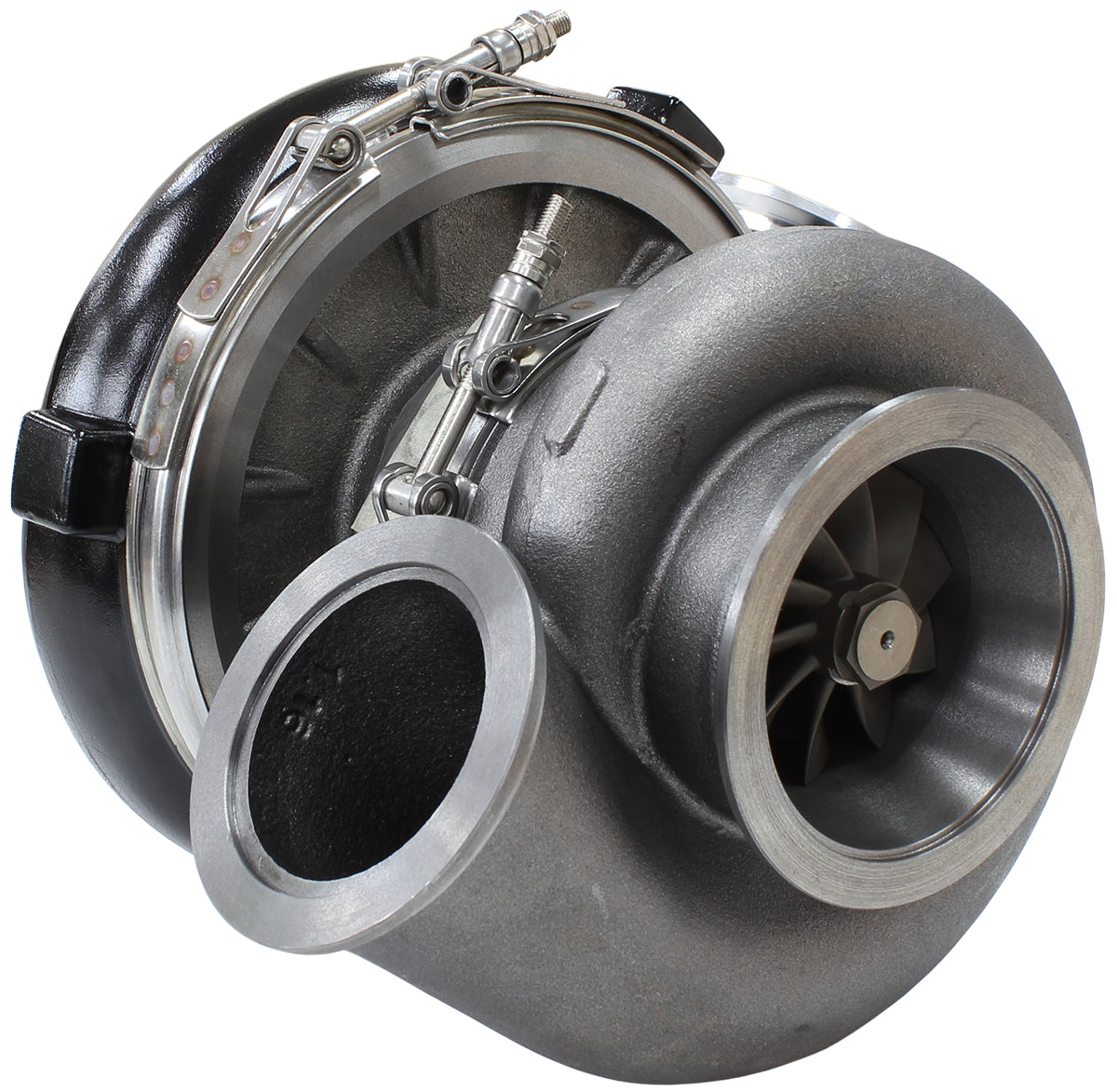

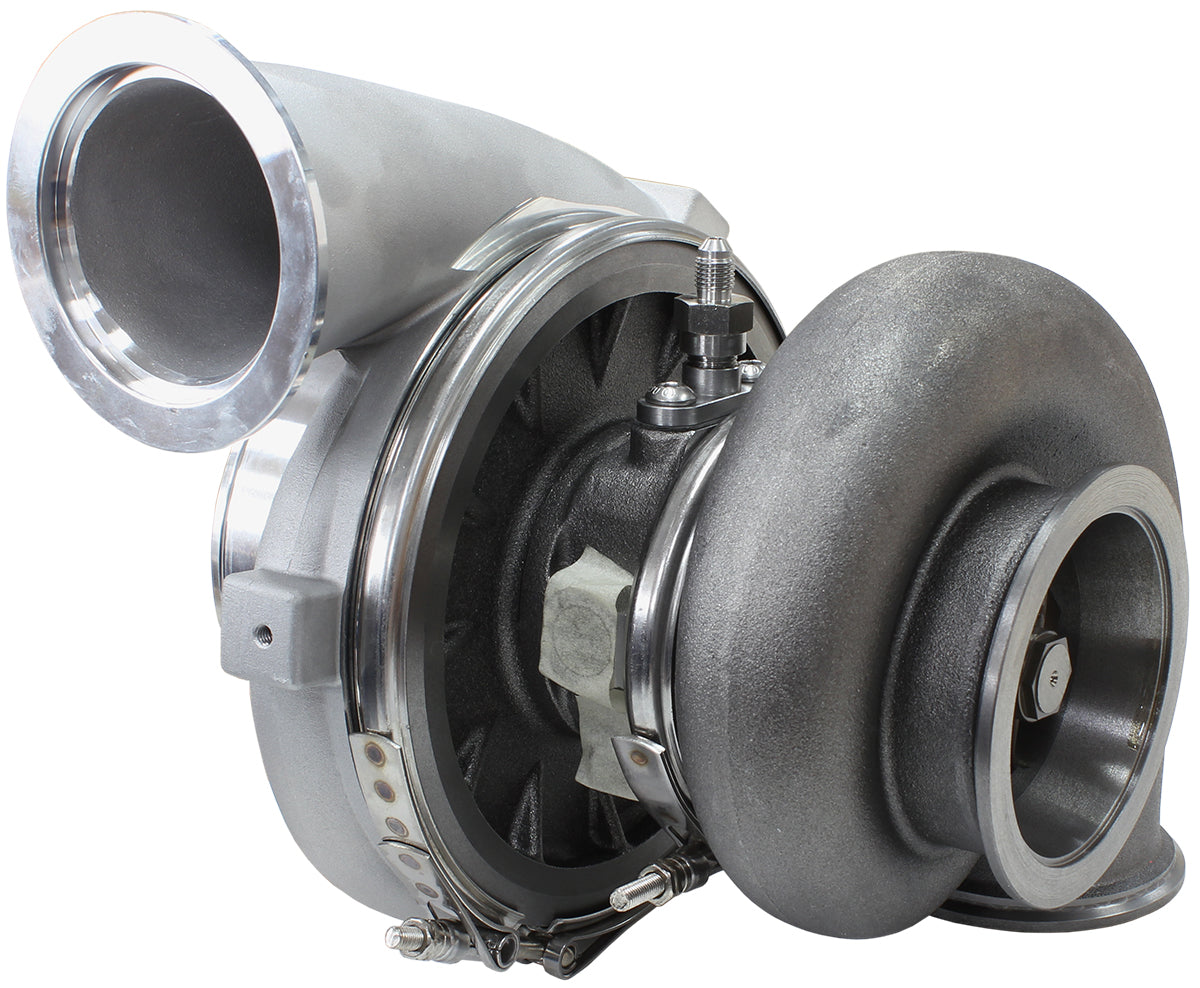

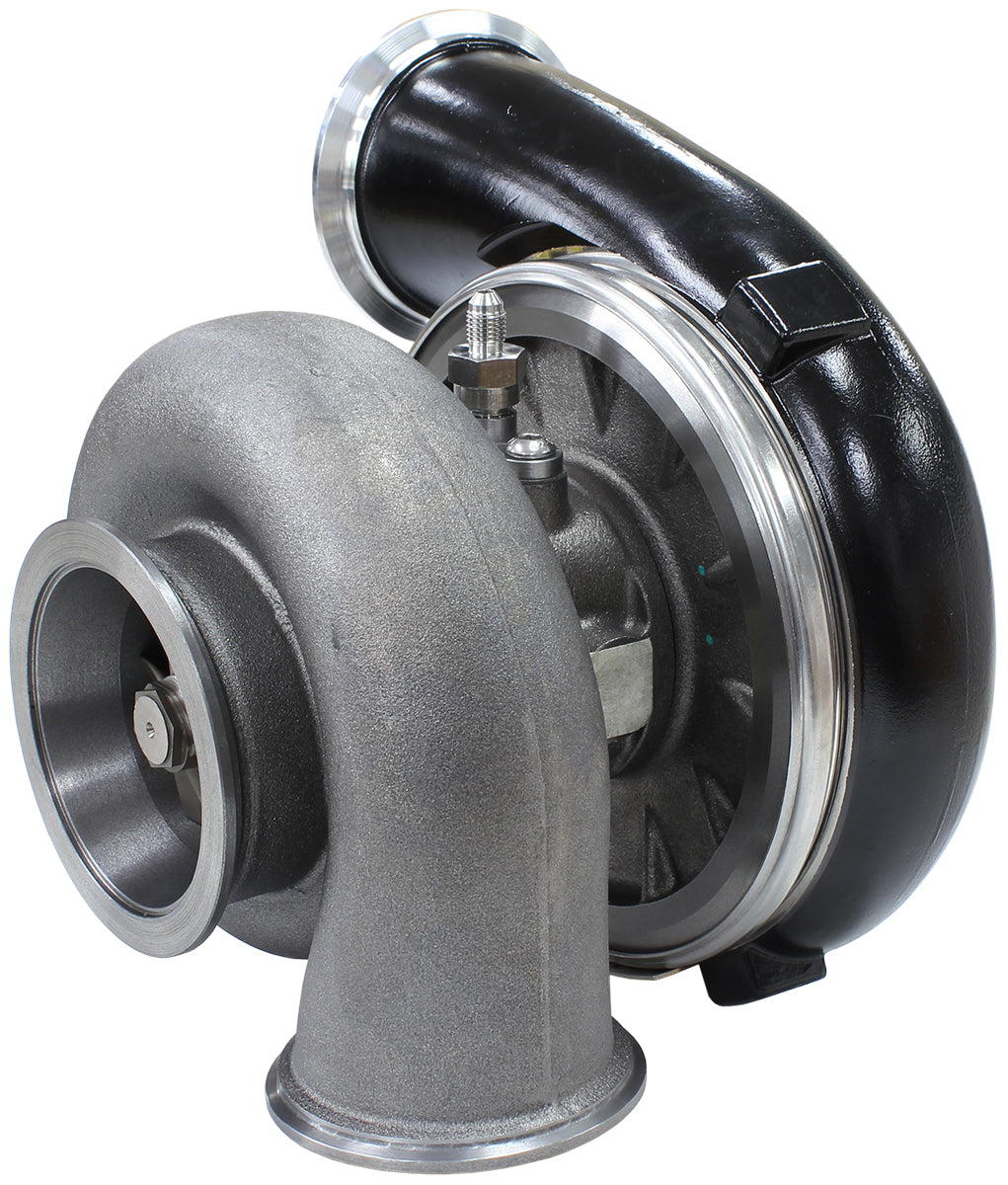

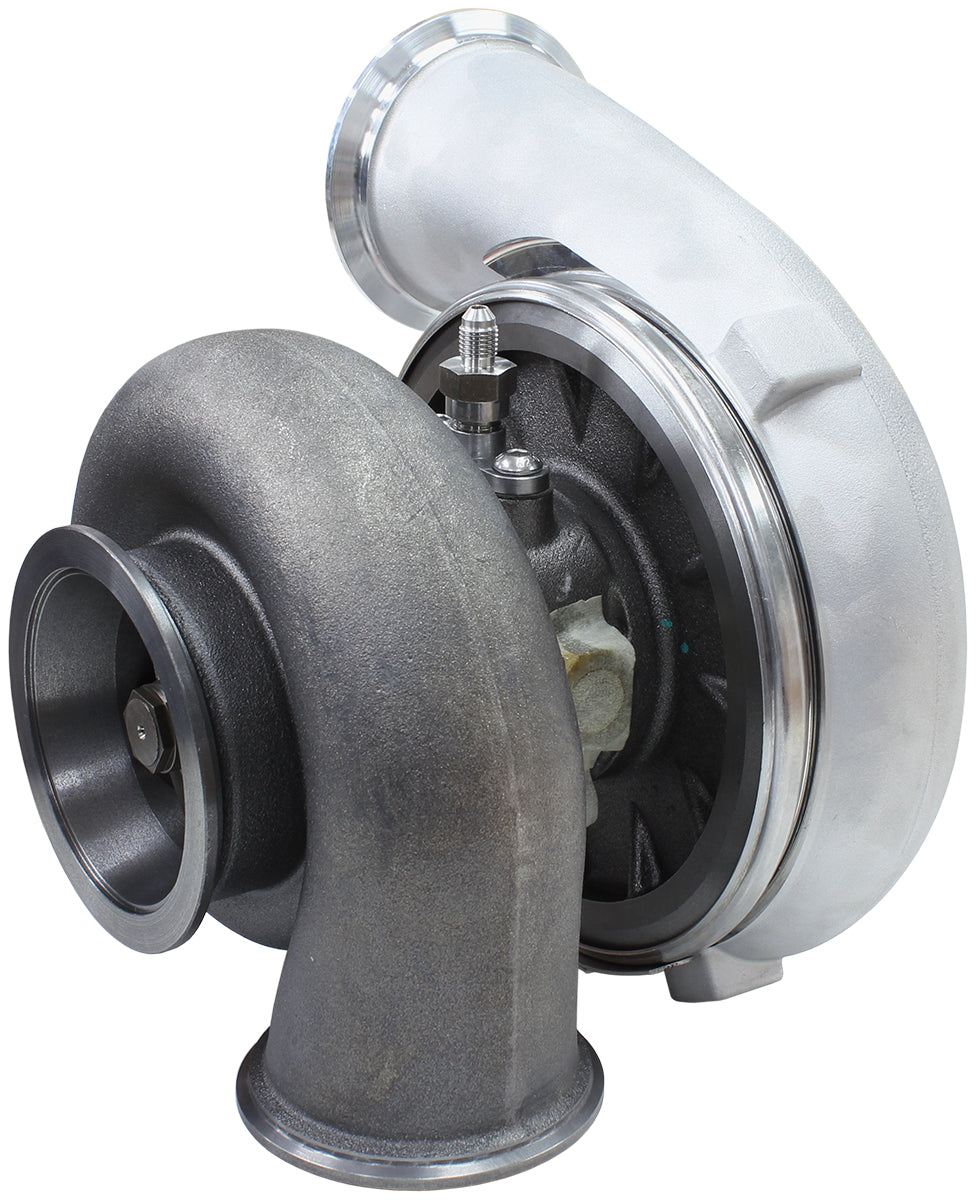

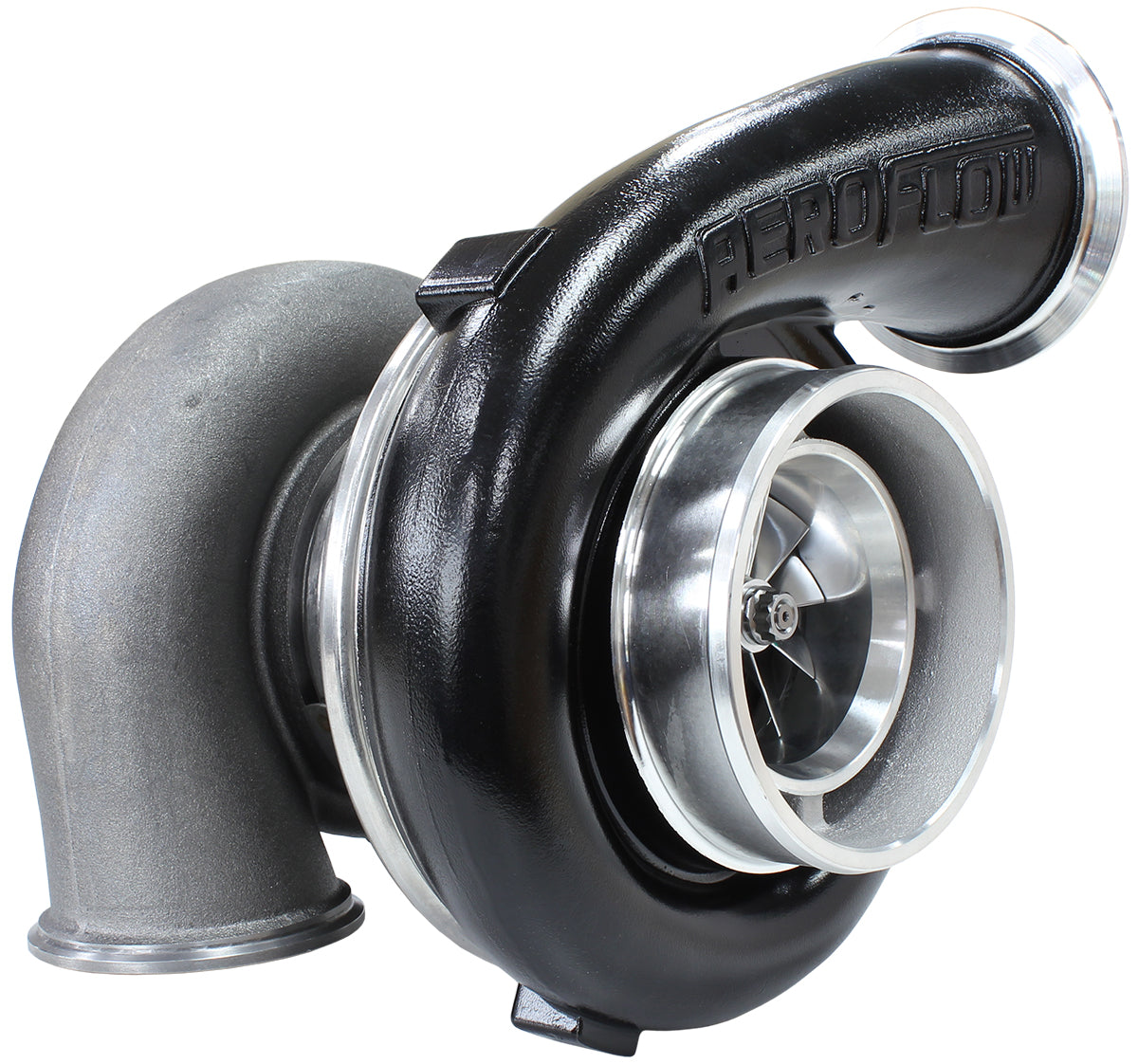

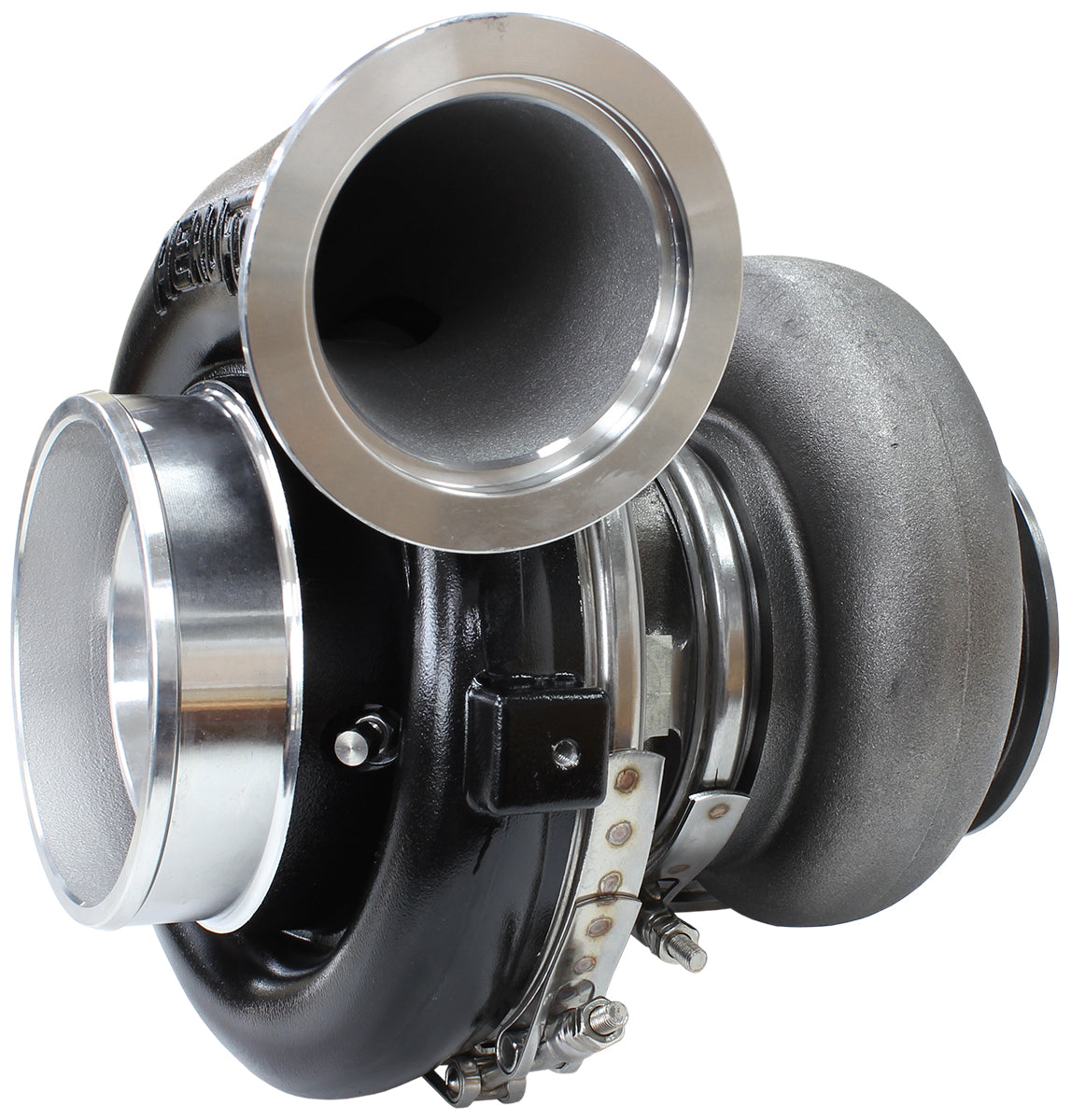

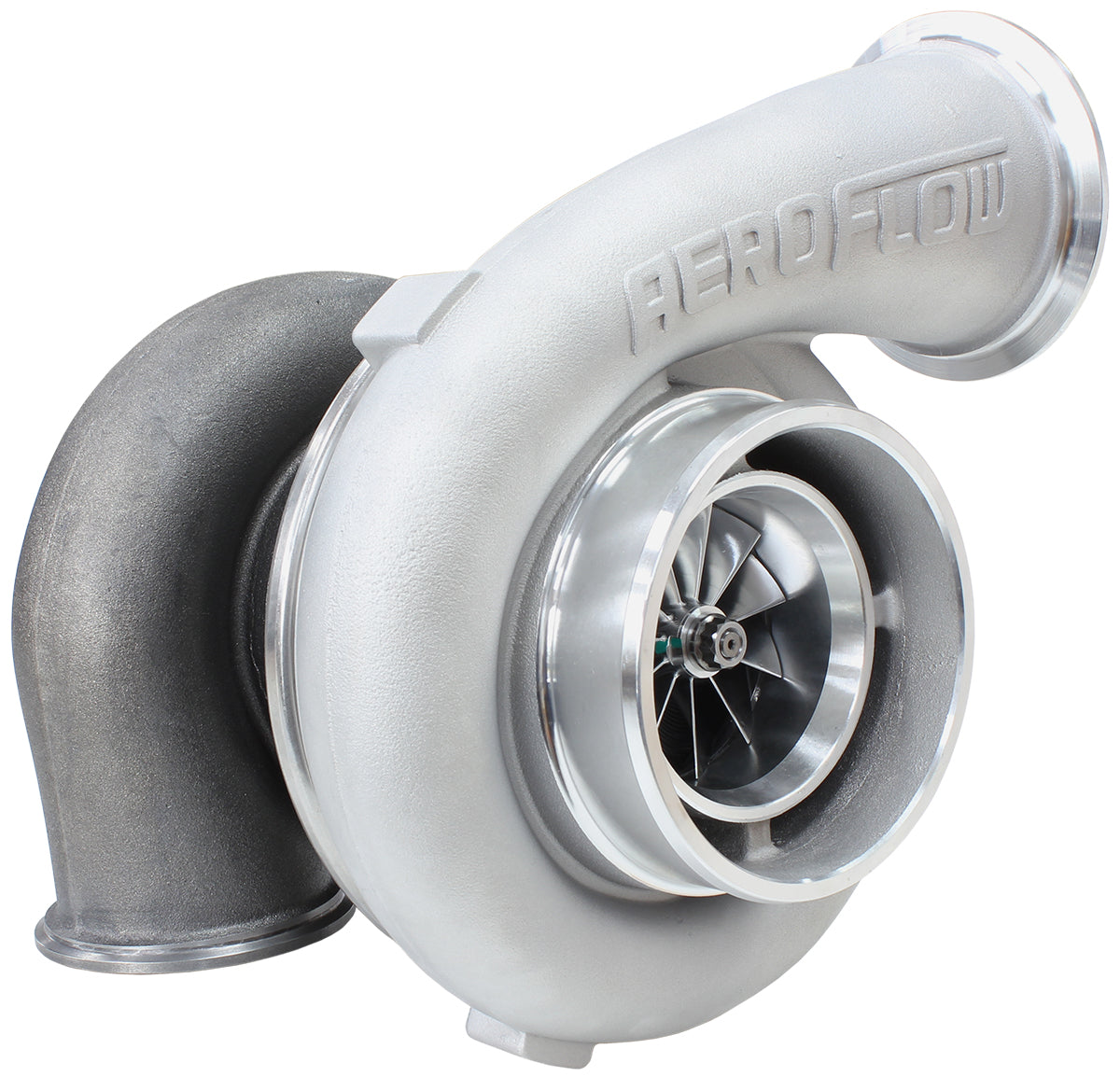

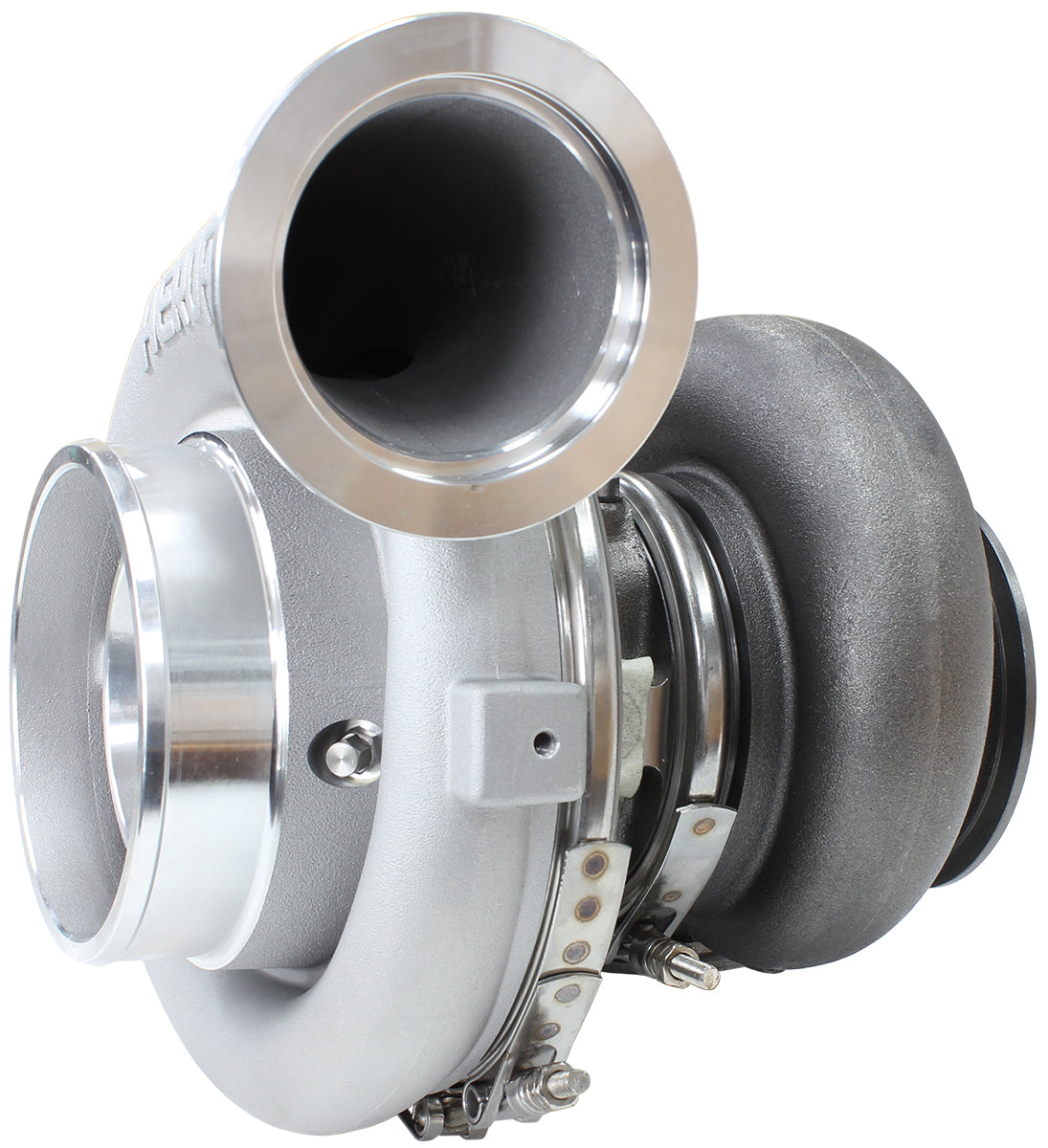

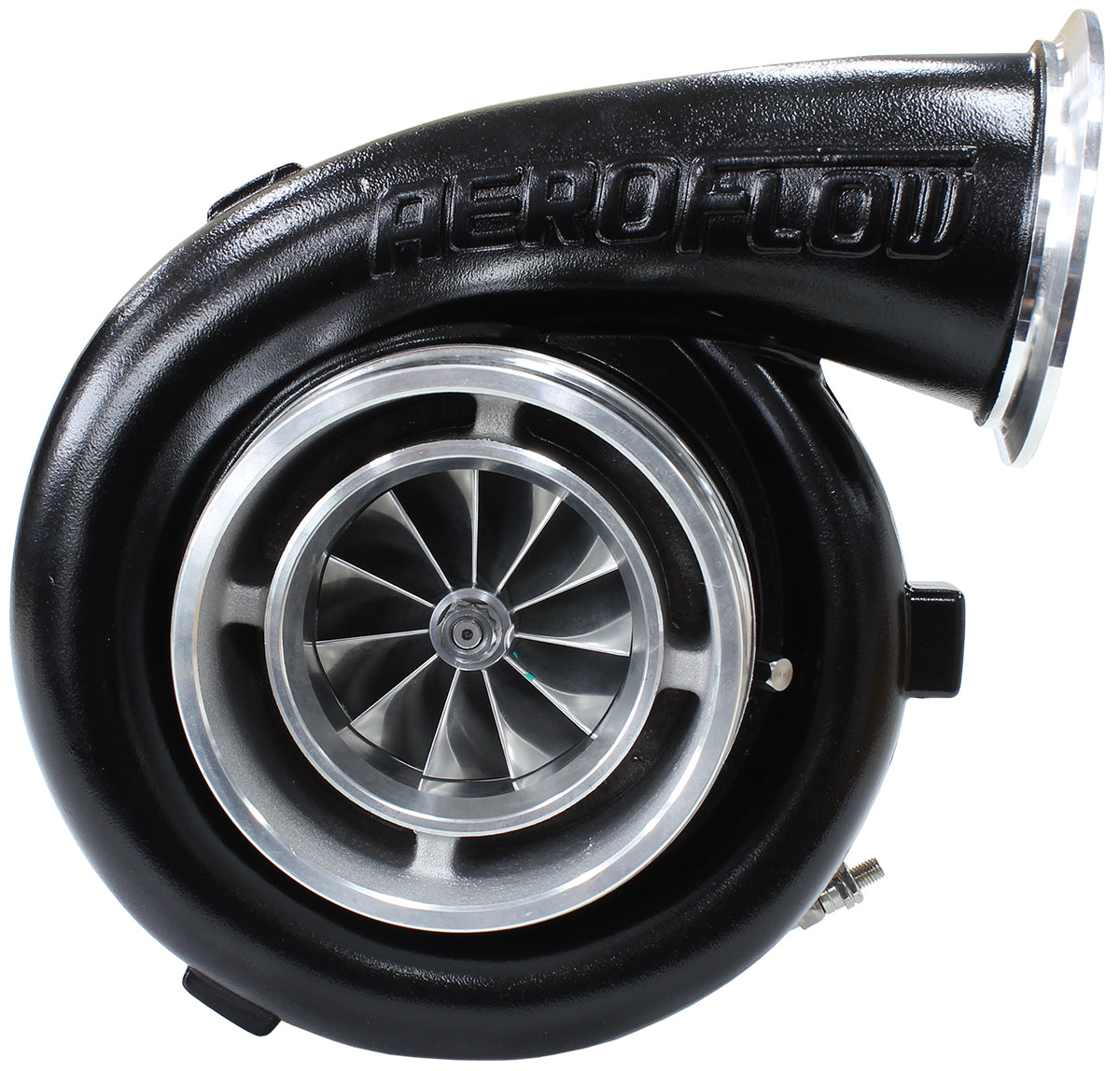

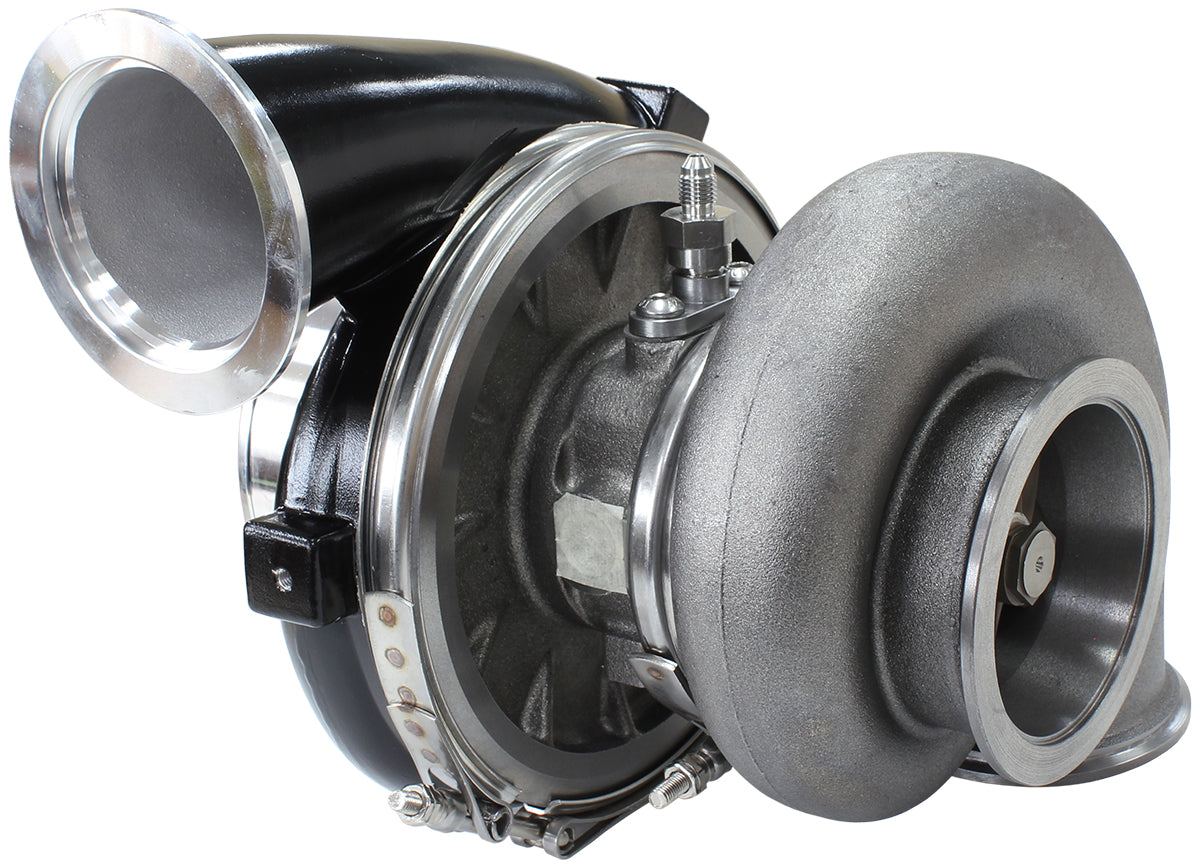

BOOSTED 7675 1.16 V-BAND VBAND OUTLET GTX4202
BOOSTED 7675 1.16 V-BAND VBAND OUTLET GTX4202
Regular price
$2,139.00NZD
Regular price
$2,300.00NZD
Sale price
$2,139.00NZD
Unit price
/
per
Share
BOOSTED 7675 V-Band Turbocharger Specifications
Recommended horsepower rating:Â 525-1120HP
Recommended engine displacement: Â 2.0L to 8.0L
- Dual ceramic ball bearing
- 7075 billet compressor wheel
- Ported shroud compressor cover
- Speed sensor port included in compressor cover (Speed sensor sold separately, AF8050-1010)
- External wastegate sold separately
- Inlet flange gasket, turbo drain gasket and -4AN turbo oil feed fitting with restrictor included in turbo kit. (Warranty VOID if not used)
- V-Band single entry turbine inlet flange
- SiMo-nodular cast iron rear housing
- V-Band turbine outlet flange
- V-Band compressor outlet flange
- M18 x 1.5mm coolant port thread
- 1/4" NPT to -4AN oil feed fitting with in-built restrictor attached to a 38mm 2-bolt oil feed plate with M8 x 1.25mm thread size
- 50.80mm bolt centre turbo drain flange with M8 x 1.25mm thread size
Compressor Specifications
Inducer:Â 76mm
Exducer:Â 102mm
Extended Tip:Â 107mm
A/R: Â 0.60
Compressor Inlet:Â 5" Slip fit
Compressor Outlet: Â V-Band (AF8080-1009)
Turbine Specifications
Inducer:Â 82mm
Exducer:Â 75mm
A/R:Â 1.16
Turbine Inlet Flange: V-Band (AF8080-1021)
Turbine Outlet Flange: Â V-Band (AF8080-1001)
Wastegate
External wastegate
Recommended horsepower rating:Â 525-1120HP
Recommended engine displacement: Â 2.0L to 8.0L
- Dual ceramic ball bearing
- 7075 billet compressor wheel
- Ported shroud compressor cover
- Speed sensor port included in compressor cover (Speed sensor sold separately, AF8050-1010)
- External wastegate sold separately
- Inlet flange gasket, turbo drain gasket and -4AN turbo oil feed fitting with restrictor included in turbo kit. (Warranty VOID if not used)
- V-Band single entry turbine inlet flange
- SiMo-nodular cast iron rear housing
- V-Band turbine outlet flange
- V-Band compressor outlet flange
- M18 x 1.5mm coolant port thread
- 1/4" NPT to -4AN oil feed fitting with in-built restrictor attached to a 38mm 2-bolt oil feed plate with M8 x 1.25mm thread size
- 50.80mm bolt centre turbo drain flange with M8 x 1.25mm thread size
Compressor Specifications
Inducer:Â 76mm
Exducer:Â 102mm
Extended Tip:Â 107mm
A/R: Â 0.60
Compressor Inlet:Â 5" Slip fit
Compressor Outlet: Â V-Band (AF8080-1009)
Turbine Specifications
Inducer:Â 82mm
Exducer:Â 75mm
A/R:Â 1.16
Turbine Inlet Flange: V-Band (AF8080-1021)
Turbine Outlet Flange: Â V-Band (AF8080-1001)
Wastegate
External wastegate
Note: We strive to maintain a wide range of products in stock. However, some items may be ordered on demand, resulting in a lead time. If your order is urgent, please contact Speedspec in advance. sales@speedspec.co.nz
