BOOSTED 7375 1.15 V-BAND V-BAND OUTLET G42

SKU: AF8005-4008
Original price $2,100.00 - Original price $2,100.00
Original price $2,100.00
$2,100.00
$2,100.00 - $2,100.00
Current price $2,100.00
COLOUR: CAST
Description

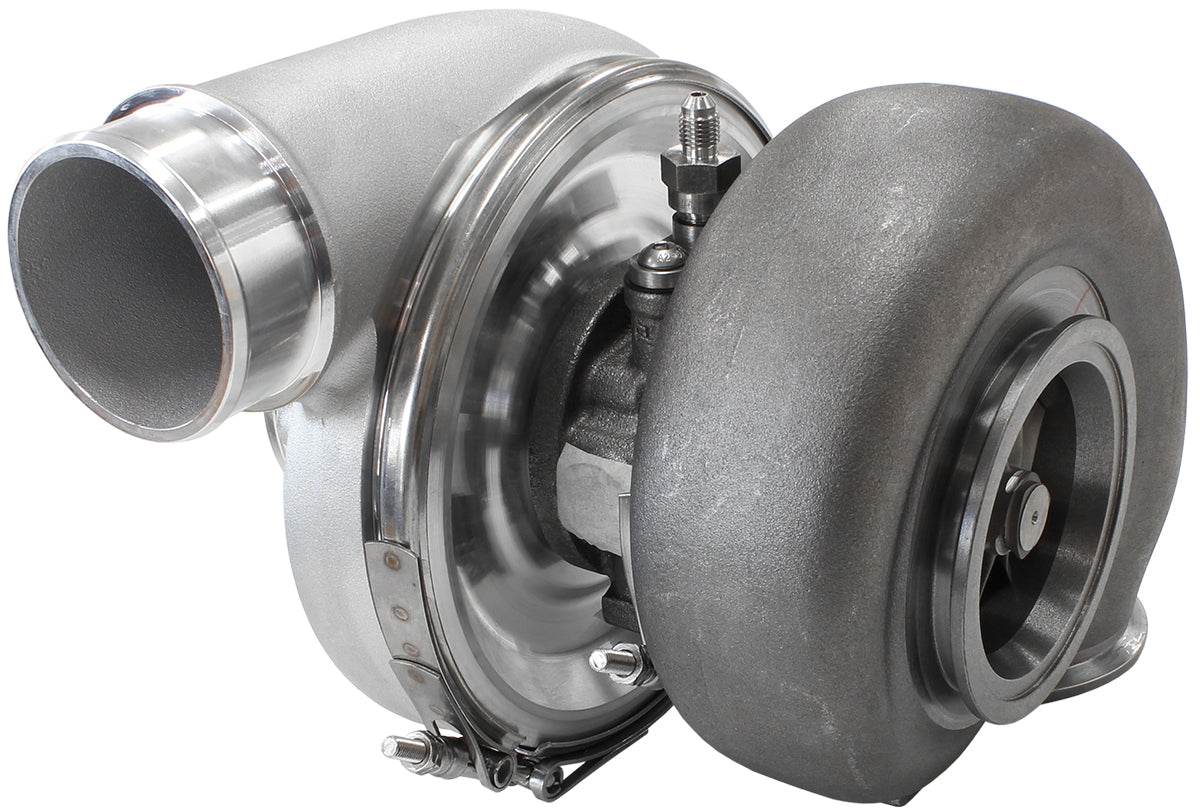

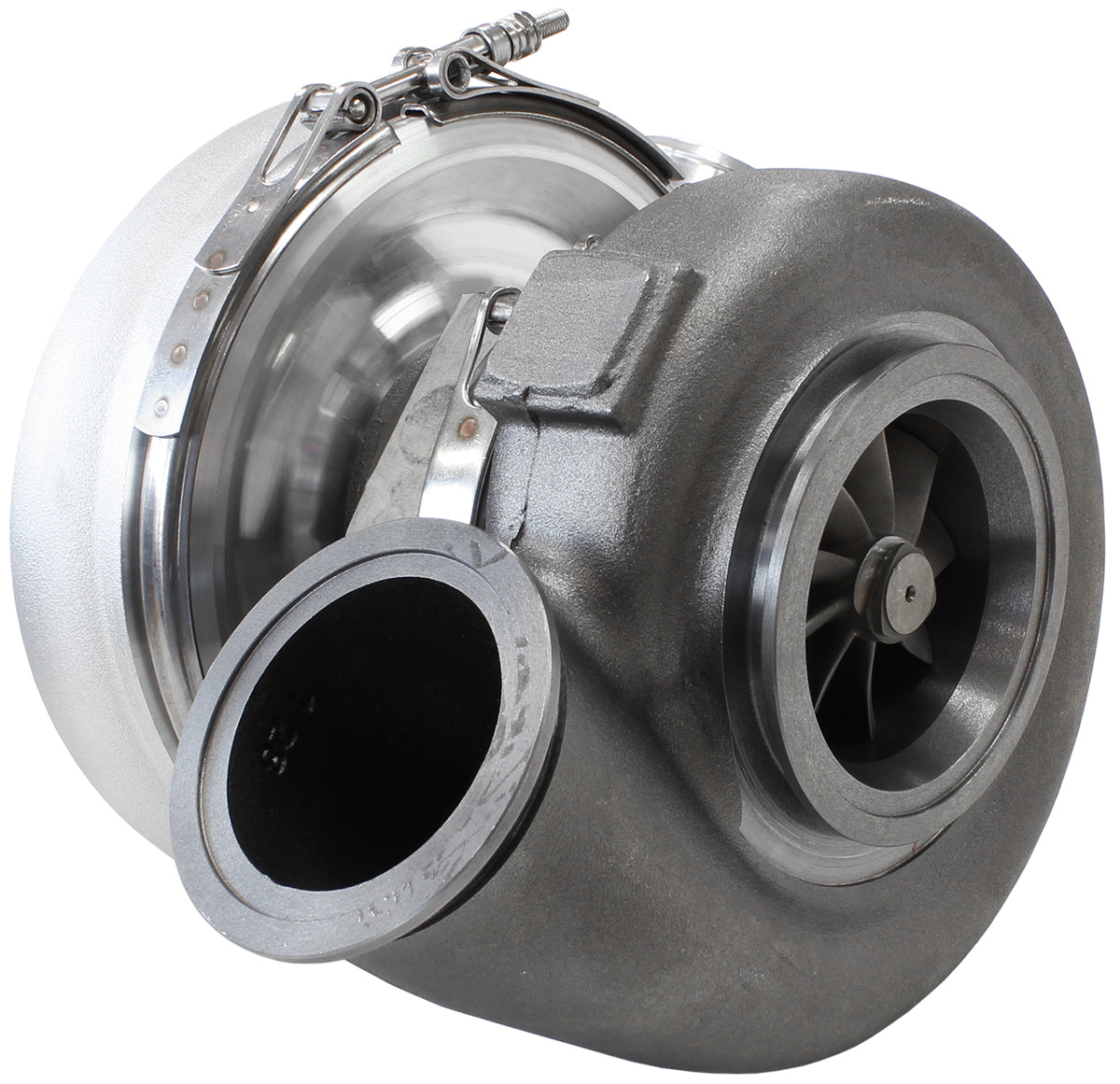

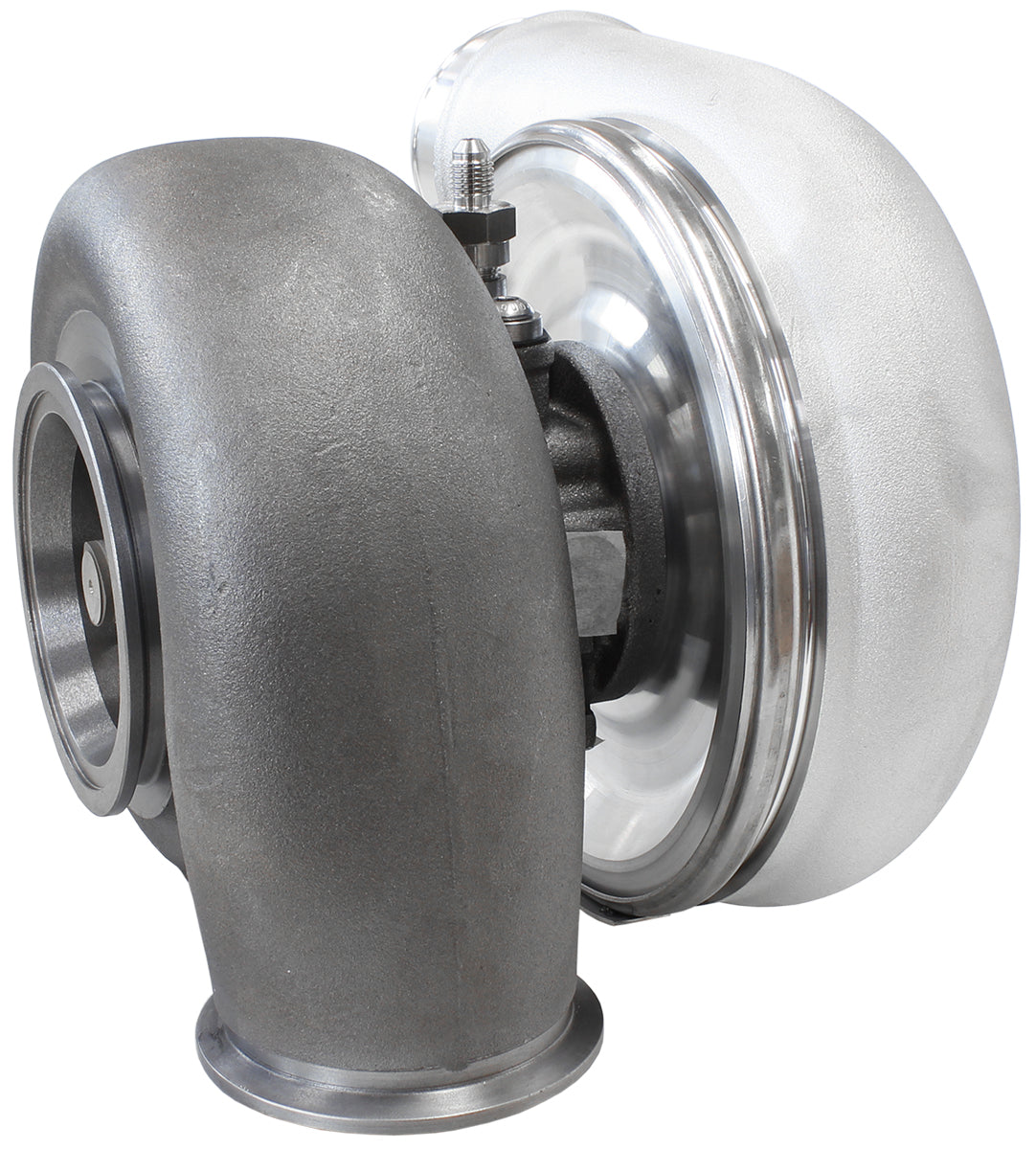

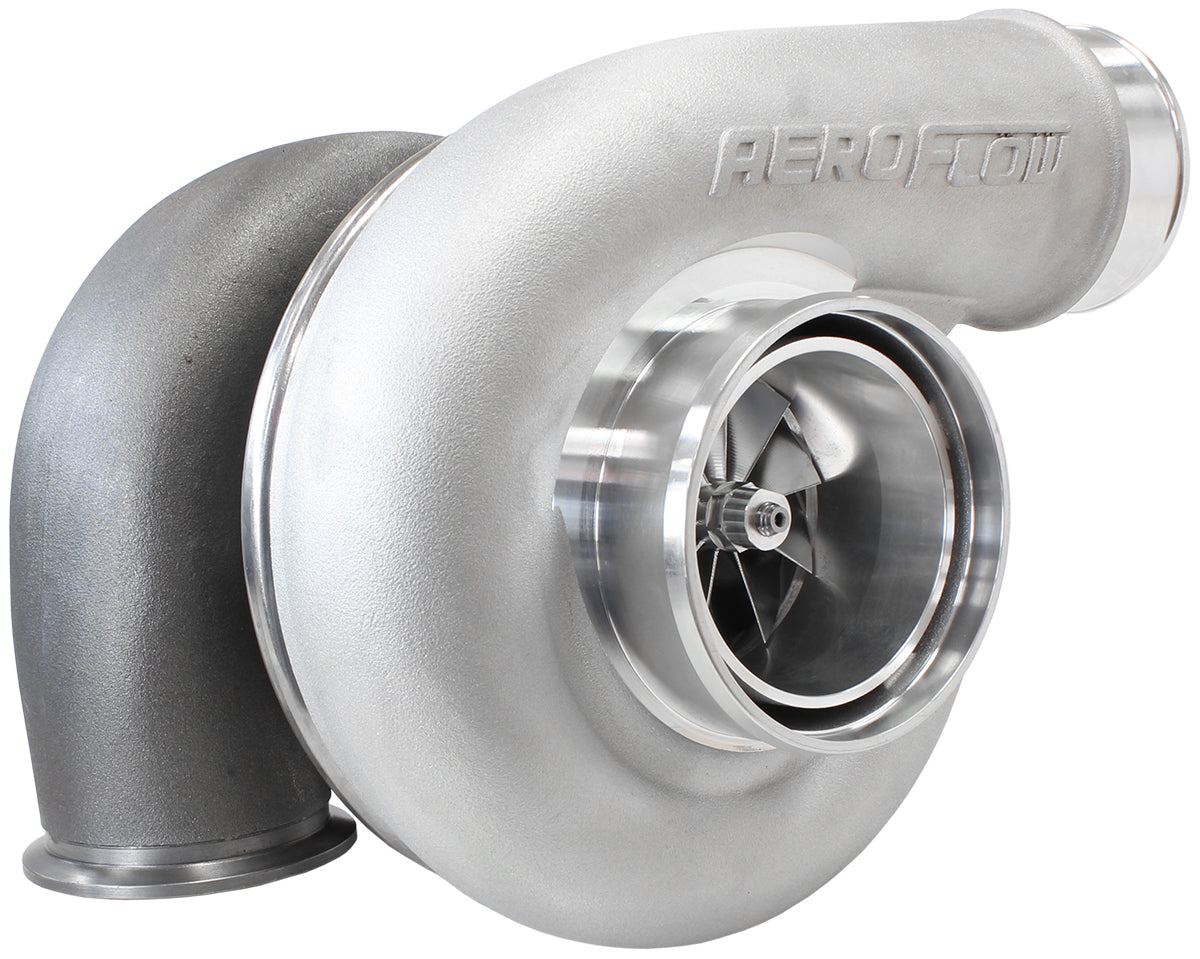

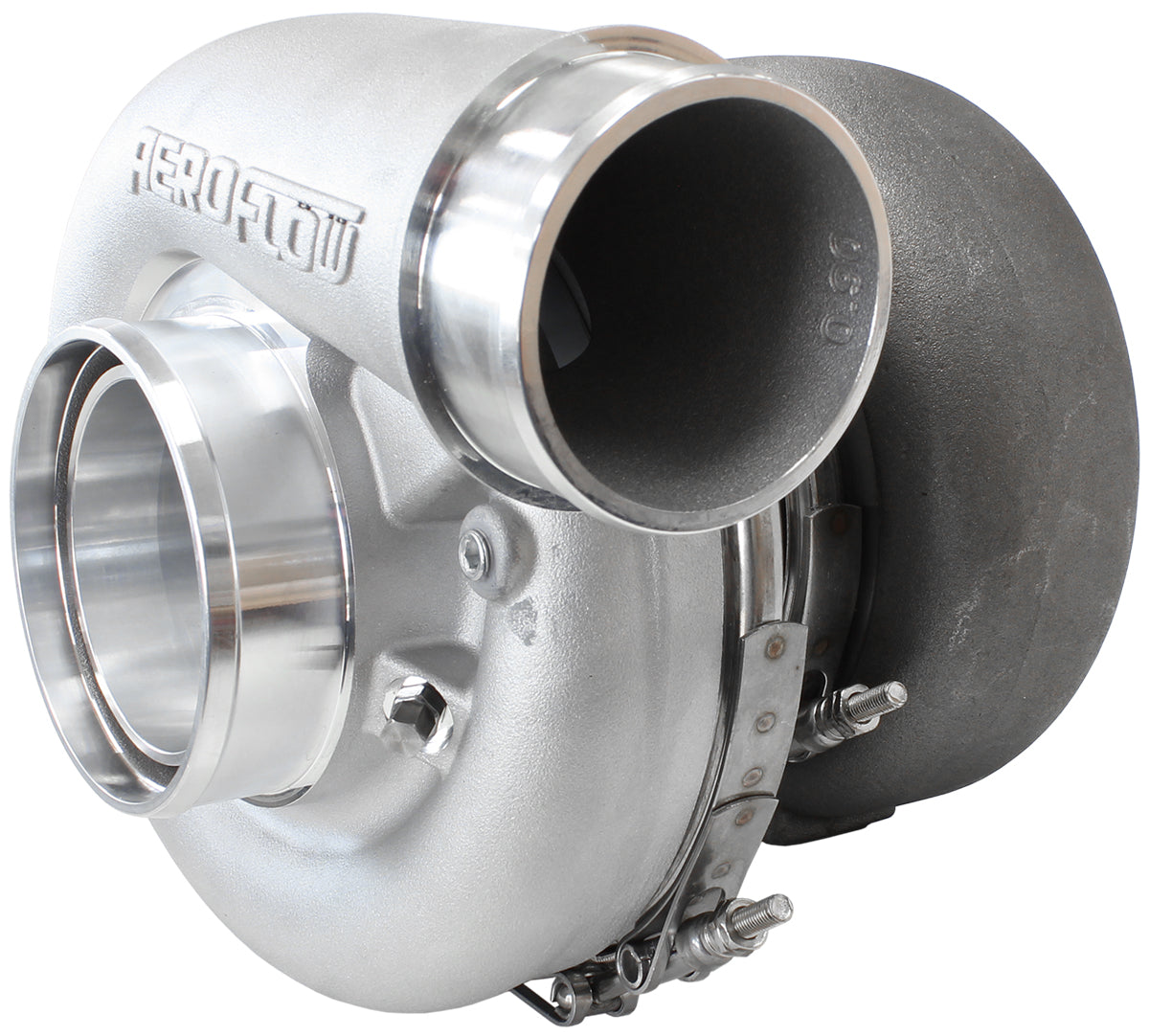

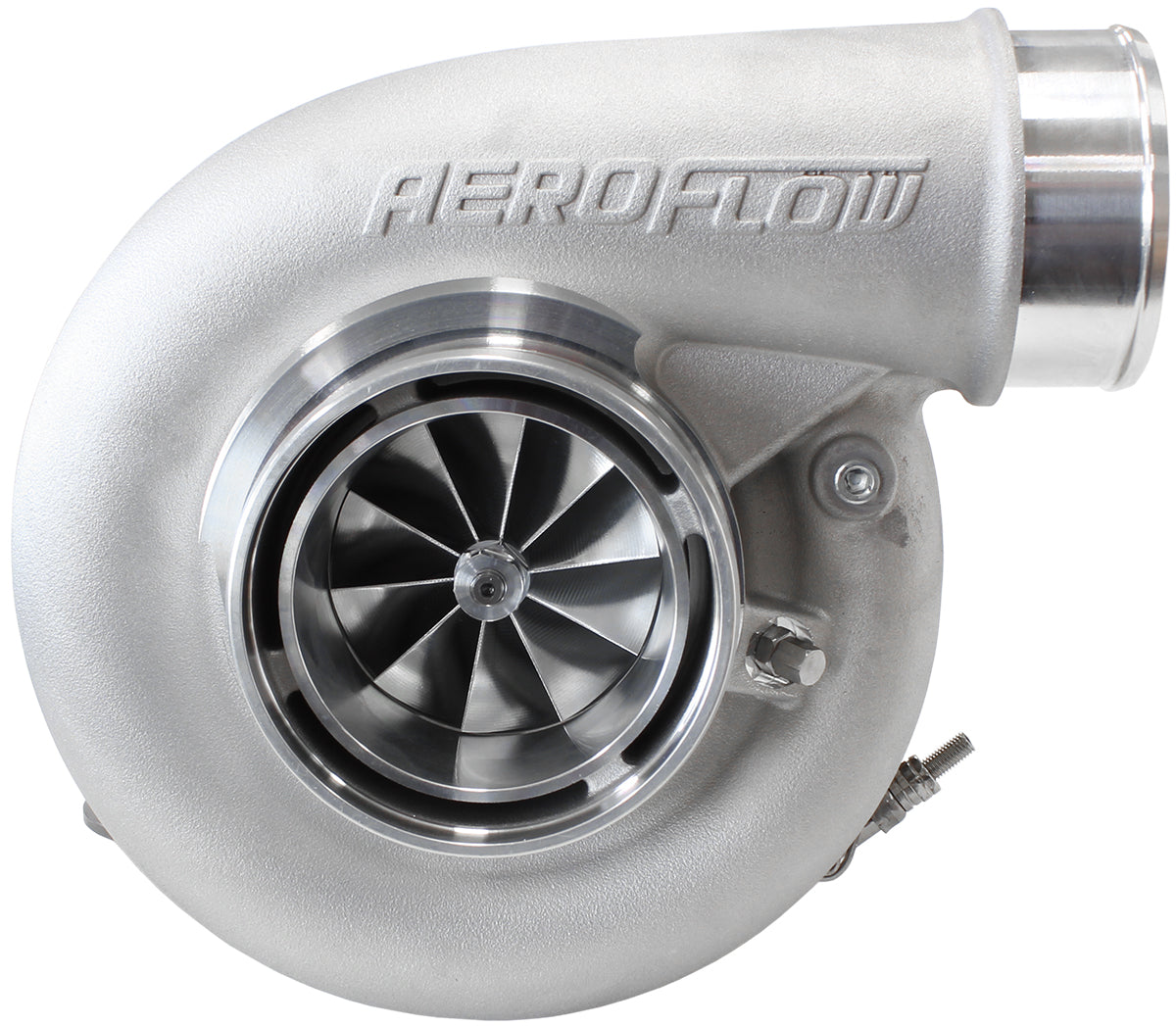

BOOSTED 7375 V-Band Turbocharger Specifications

Recommended horsepower rating:  475-1200HP
Recommended engine displacement:  2.0L to 7.0L

- Dual ceramic ball bearing
- Point Milled 7075 billet compressor wheel
- Ported shroud compressor cover
- Speed sensor port included in compressor cover (Speed sensor sold separately, AF8050-1010)
- 1/8" NPT boost reference port
- External wastegate sold separately
- Turbo drain gasket and -4AN turbo oil feed fitting with restrictor included in turbo kit. (Warranty VOID if not used)
- V-Band single entry turbine inlet flange
- 9 blade turbine wheel
- SiMo-nodular cast iron rear housing
- V-Band turbine outlet flange
- M14 x 1.5mm coolant port thread
- 1/4" NPT to -4AN oil feed fitting with in-built restrictor attached to a 38mm 2-bolt oil feed plate with M8 x 1.25mm thread size
- 50.80mm bolt centre turbo drain flange with M8 x 1.25mm thread size

Compressor Specifications
Inducer:  73mm
Exducer:  91mm
Extended Tip:  96mm
A/R:  0.90
Compressor Inlet:  4" Slip fit
Compressor Outlet:  3" Slip fit

Turbine Specifications
Inducer:  82mm
Exducer:  75mm
A/R:  1.15
Turbine Inlet Flange: V-Band (AF8080-1019)
Turbine Outlet Flange:  V-Band (AF8080-1020)

Wastegate
External wastegate
Product Specifications
BrandAeroflow
Product typeCar accessories
