Recommended horsepower rating:Â 700-1250HP Recommended engine displacement: Â 2.0L to 8.0L

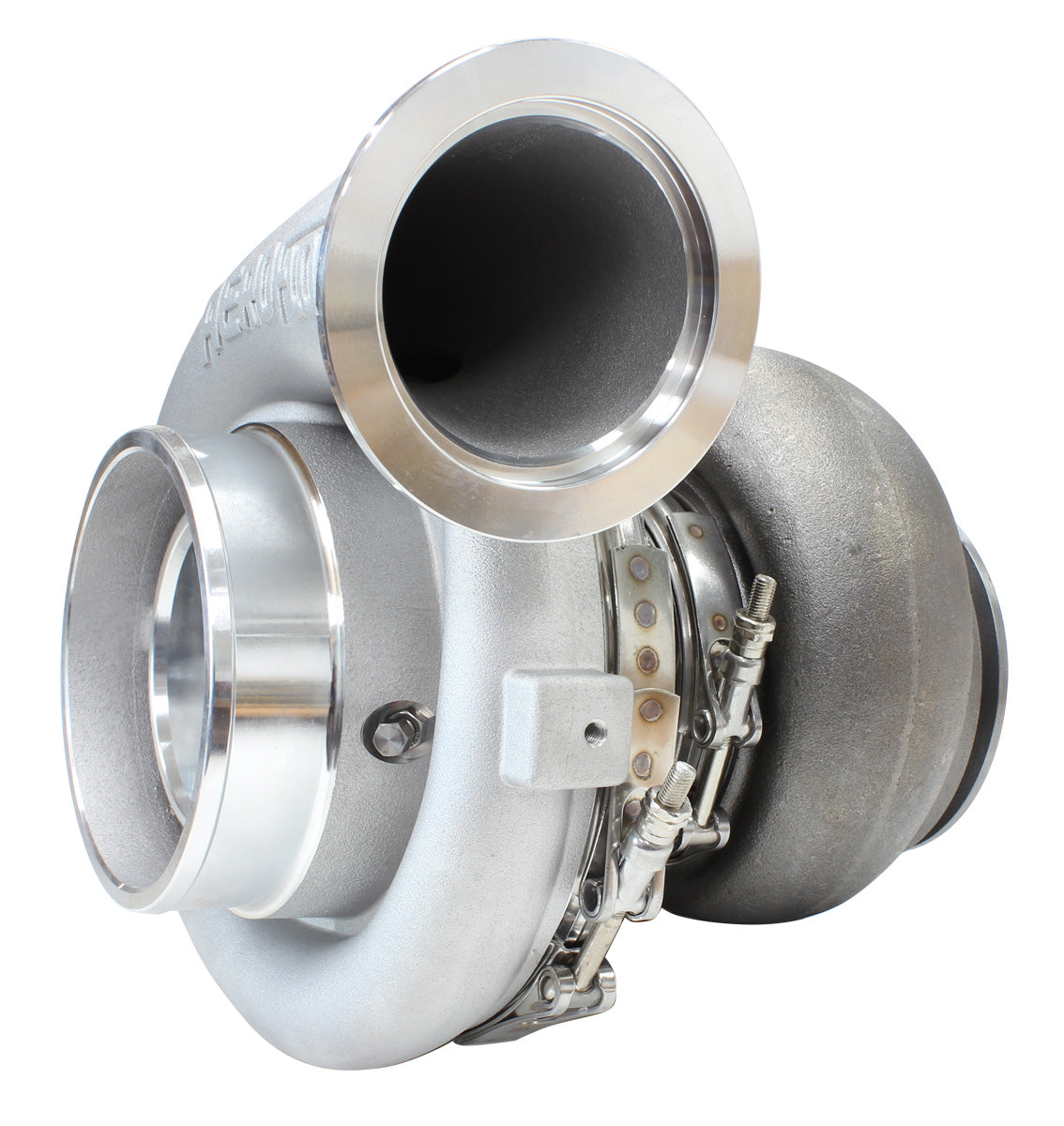

- Dual ceramic ball bearing - 7075 billet compressor wheel - Ported shroud compressor cover - Speed sensor port included in compressor cover (Speed sensor sold separately, AF8050-1010) - External wastegate sold separately - Inlet flange gasket, turbo drain gasket and -4AN turbo oil feed fitting with restrictor included in turbo kit. (Warranty VOID if not used) - T4 twin entry turbine inlet flange - SiMo-nodular cast iron rear housing - V-Band turbine outlet flange - V-Band compressor outlet flange - M18 x 1.5mm coolant port thread - 1/4" NPT oil feed fitting with in-built restrictor attached to a 38mm 2-bolt oil feed plate with M8 x 1.25mm thread size - 50.80mm bolt centre turbo drain flange with M8 x 1.25mm thread size

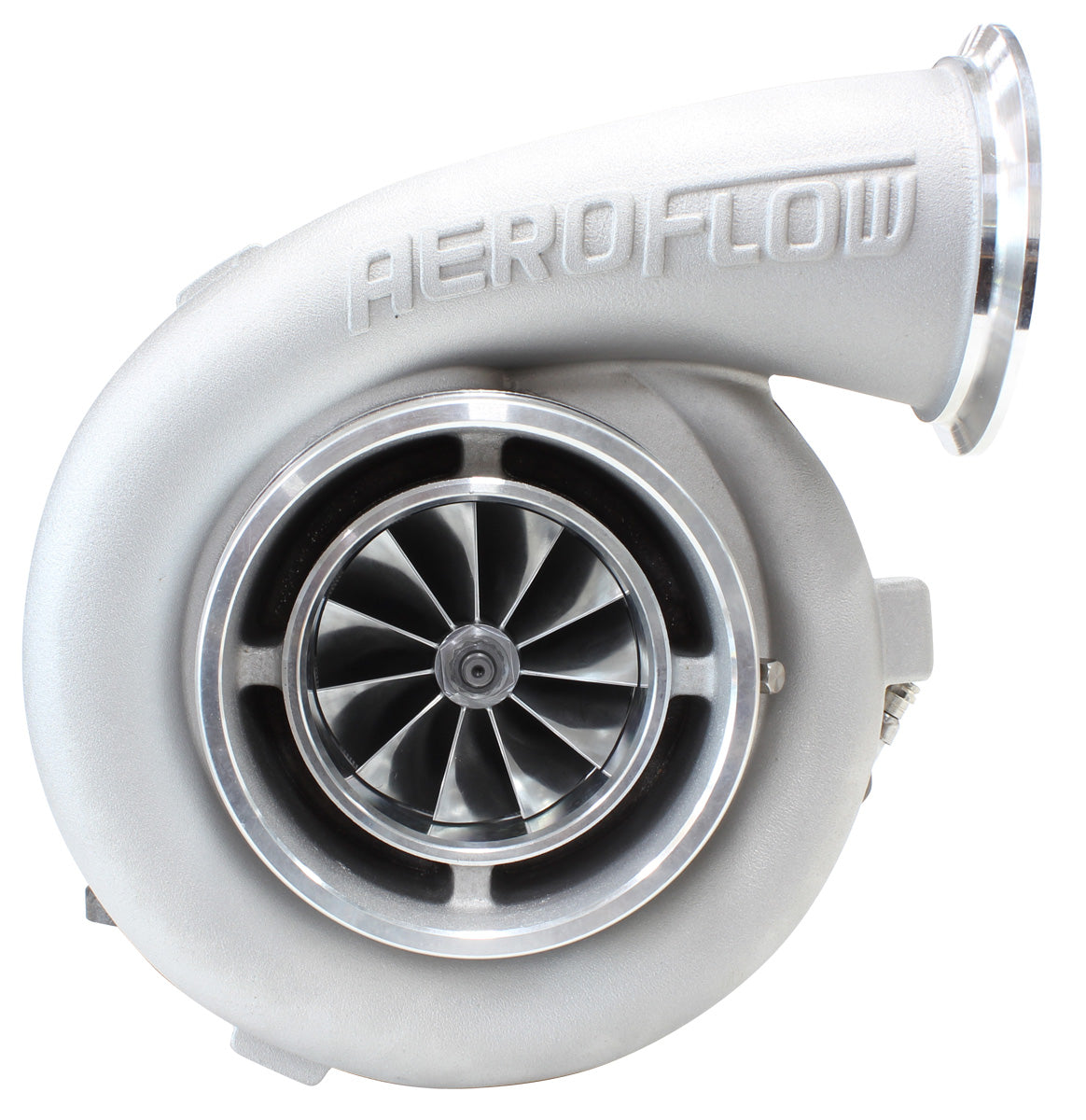

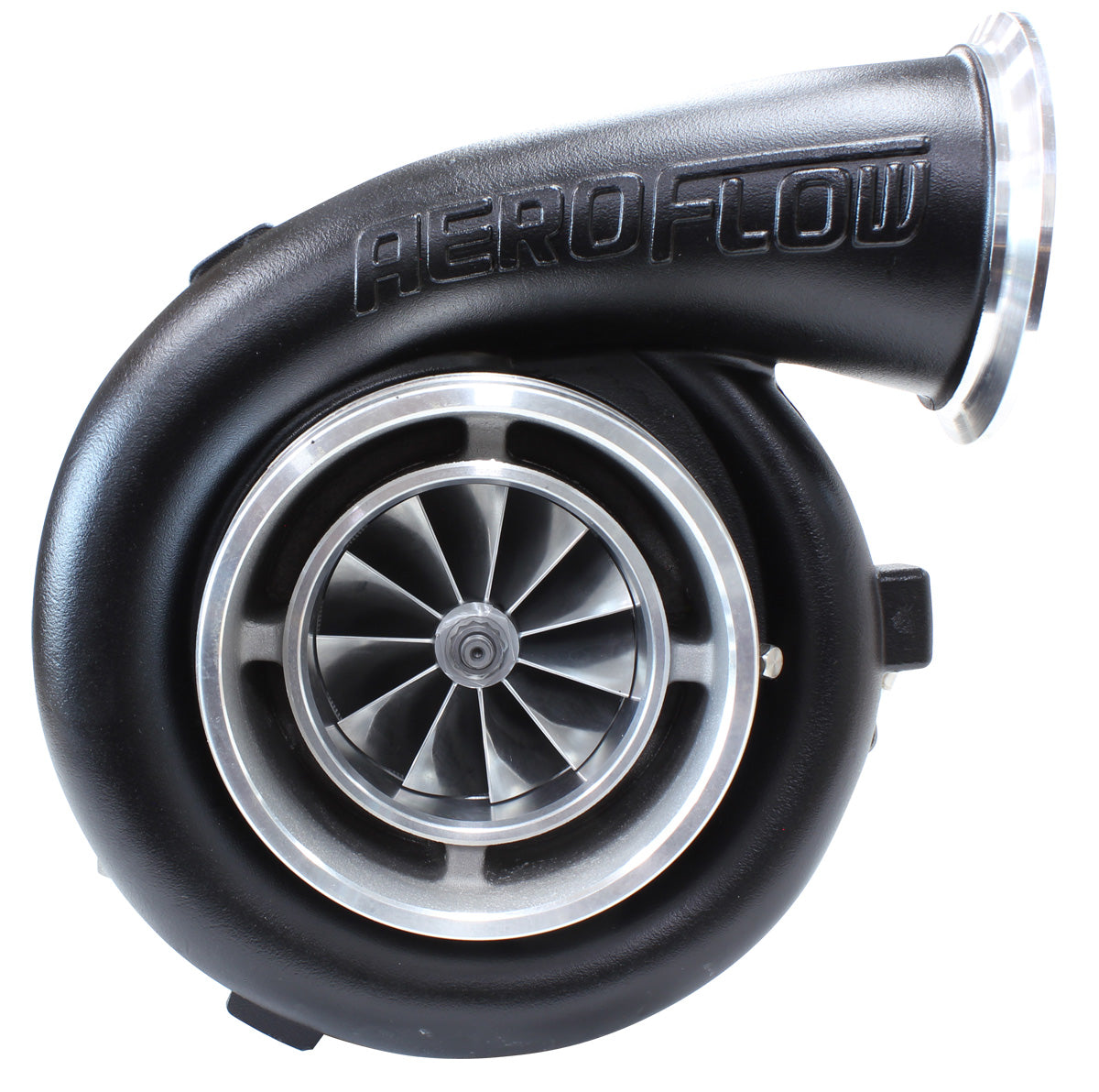

Compressor Specifications Inducer:Â 79.80mm Exducer:Â 108.40mm Extended Tip:Â 113mm A/R: Â 0.69 Compressor Inlet:Â 5" Slip fit Compressor Outlet: Â V-Band (AF8080-1009)

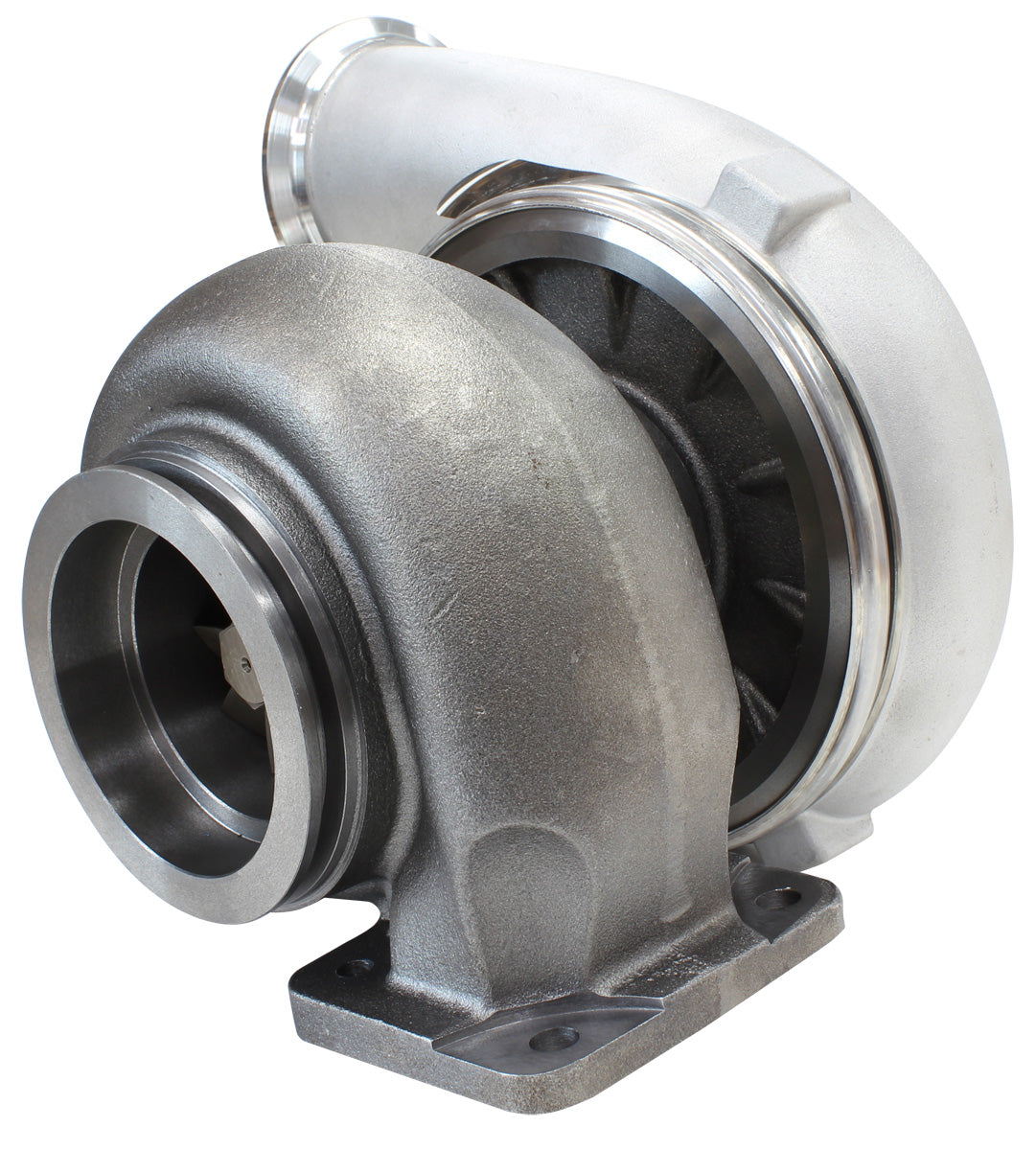

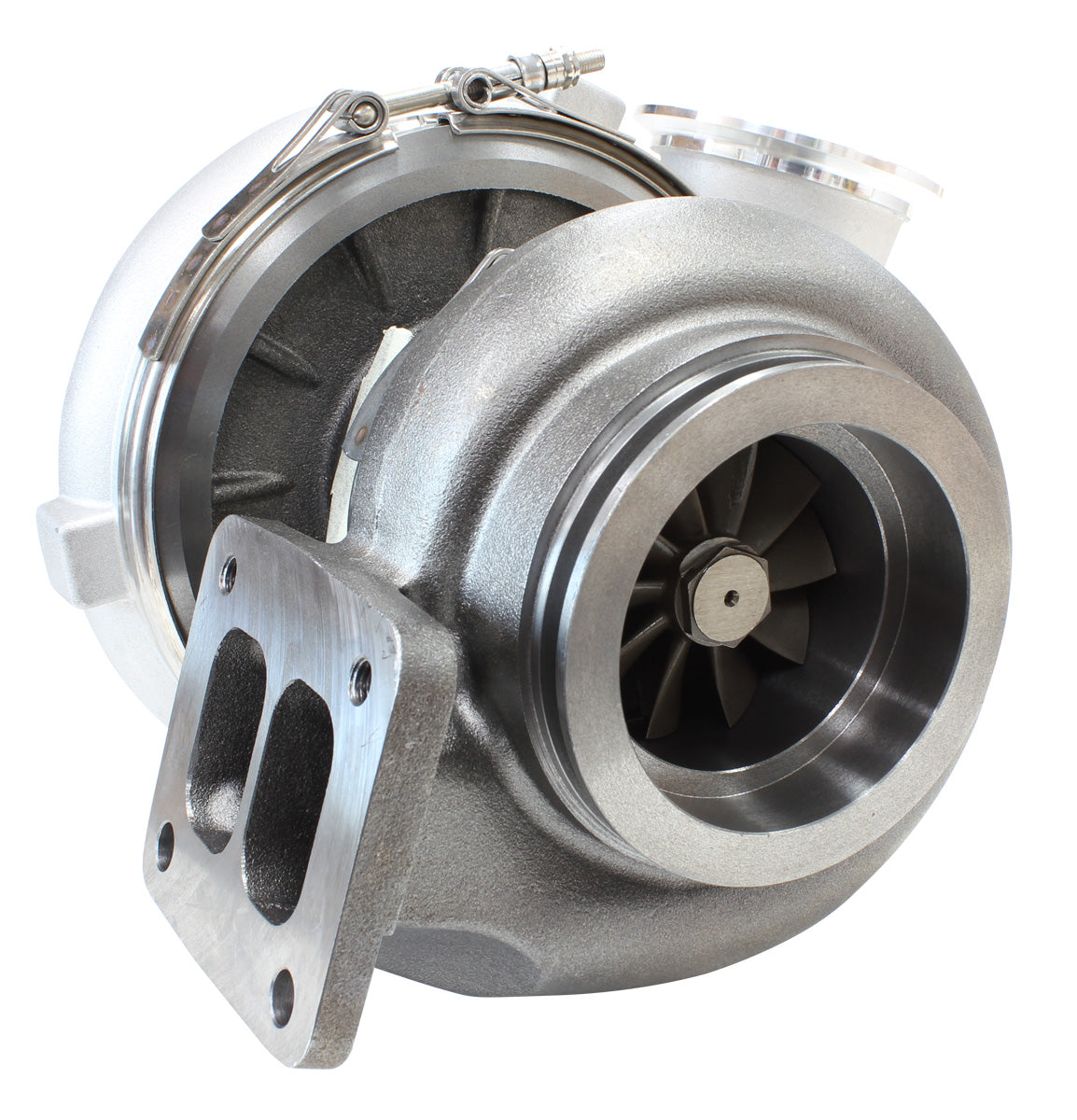

Turbine Specifications Inducer:Â 88.90mm Exducer:Â 77.40mm A/R:Â 1.15 Turbine Inlet Flange: Â T4 Turbine Outlet Flange: Â V-Band (AF8080-1001)
Wastegate External wastegate
