Aeroflow

SKU:AF8005-3174

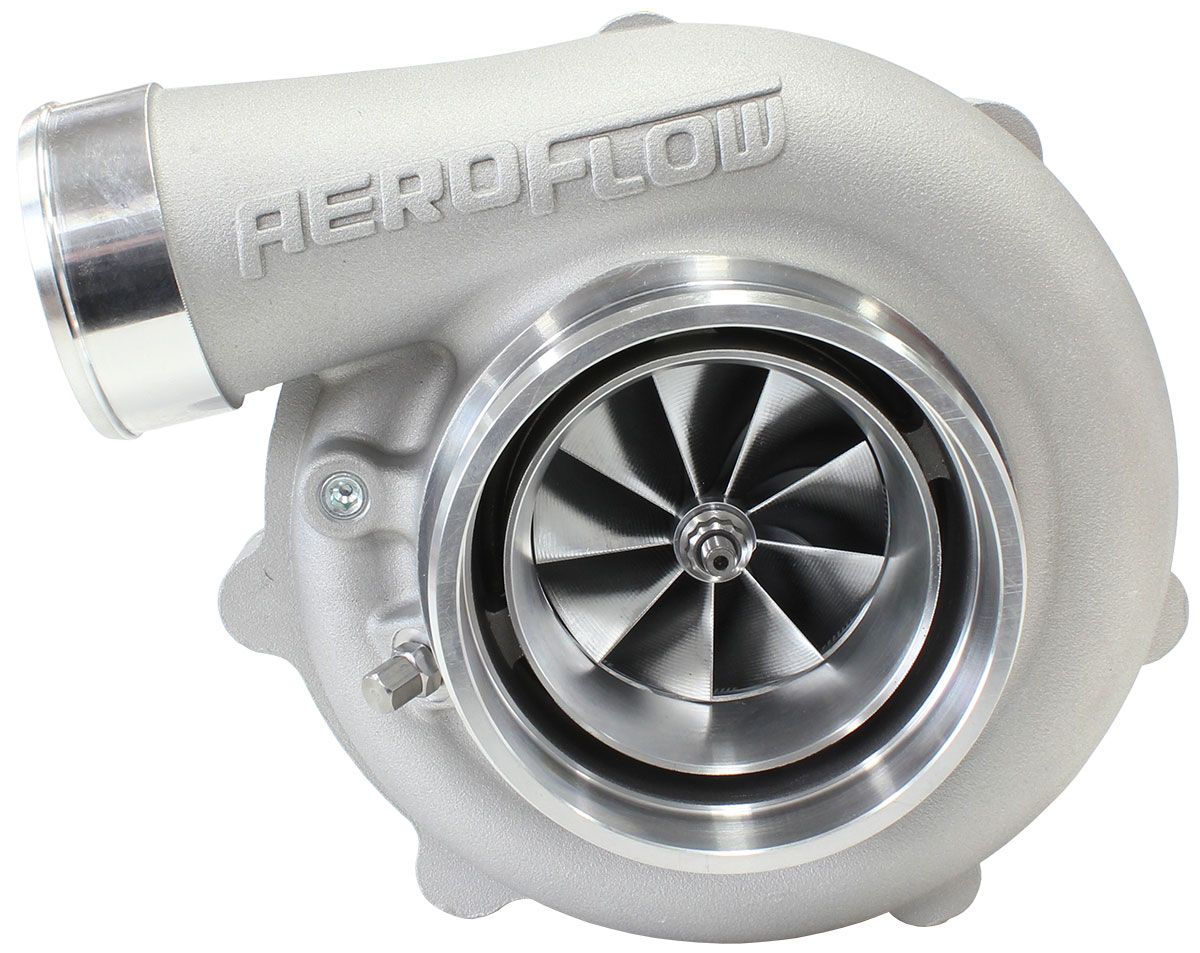

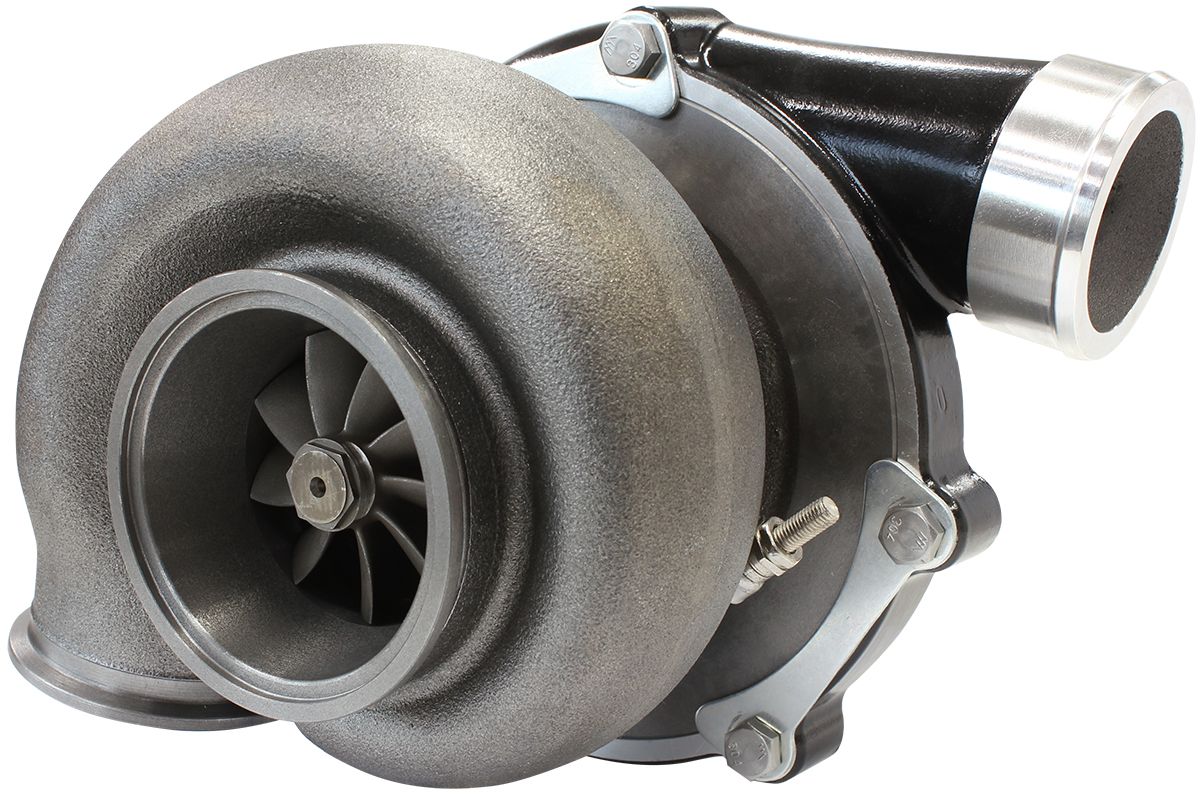

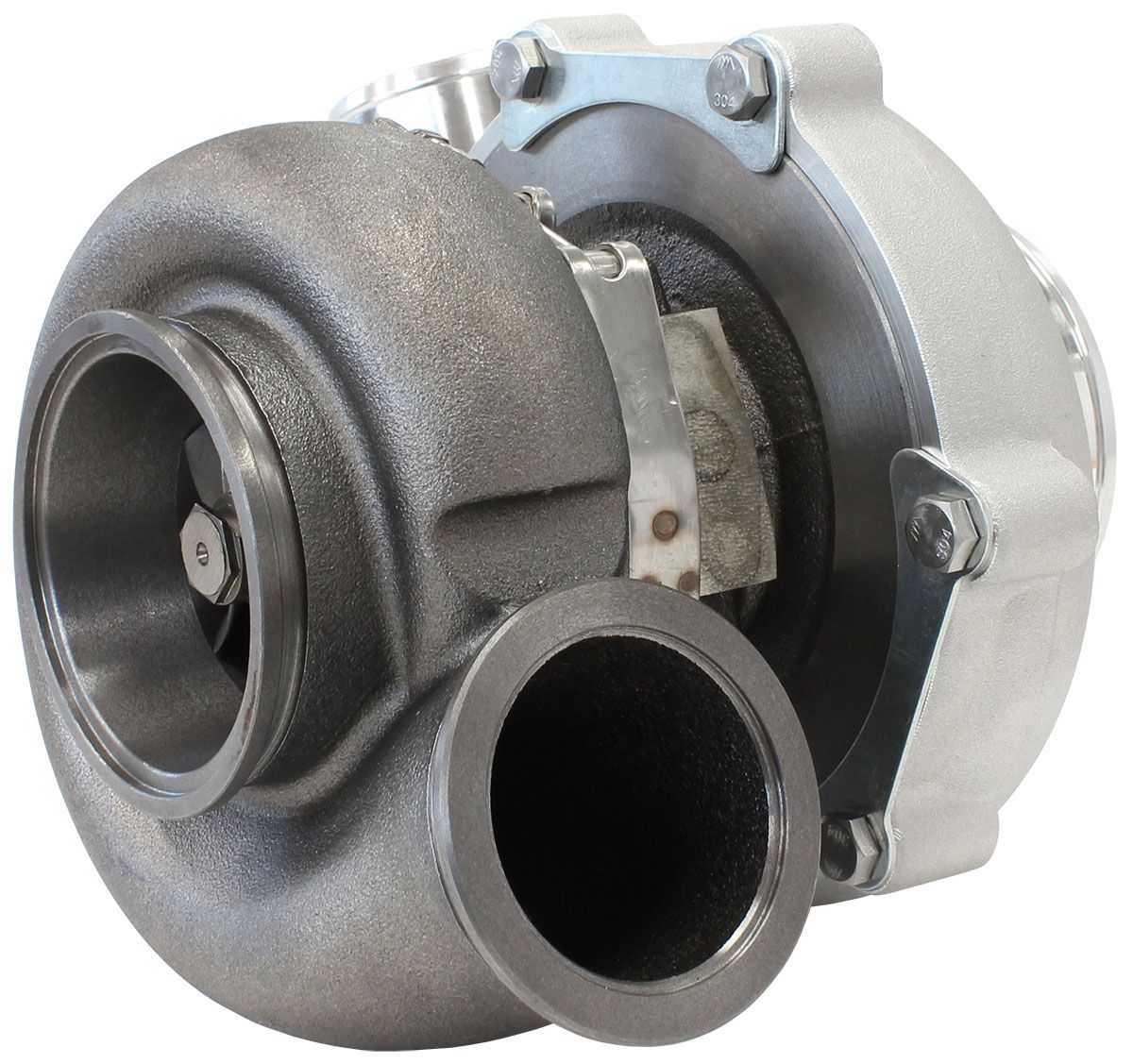

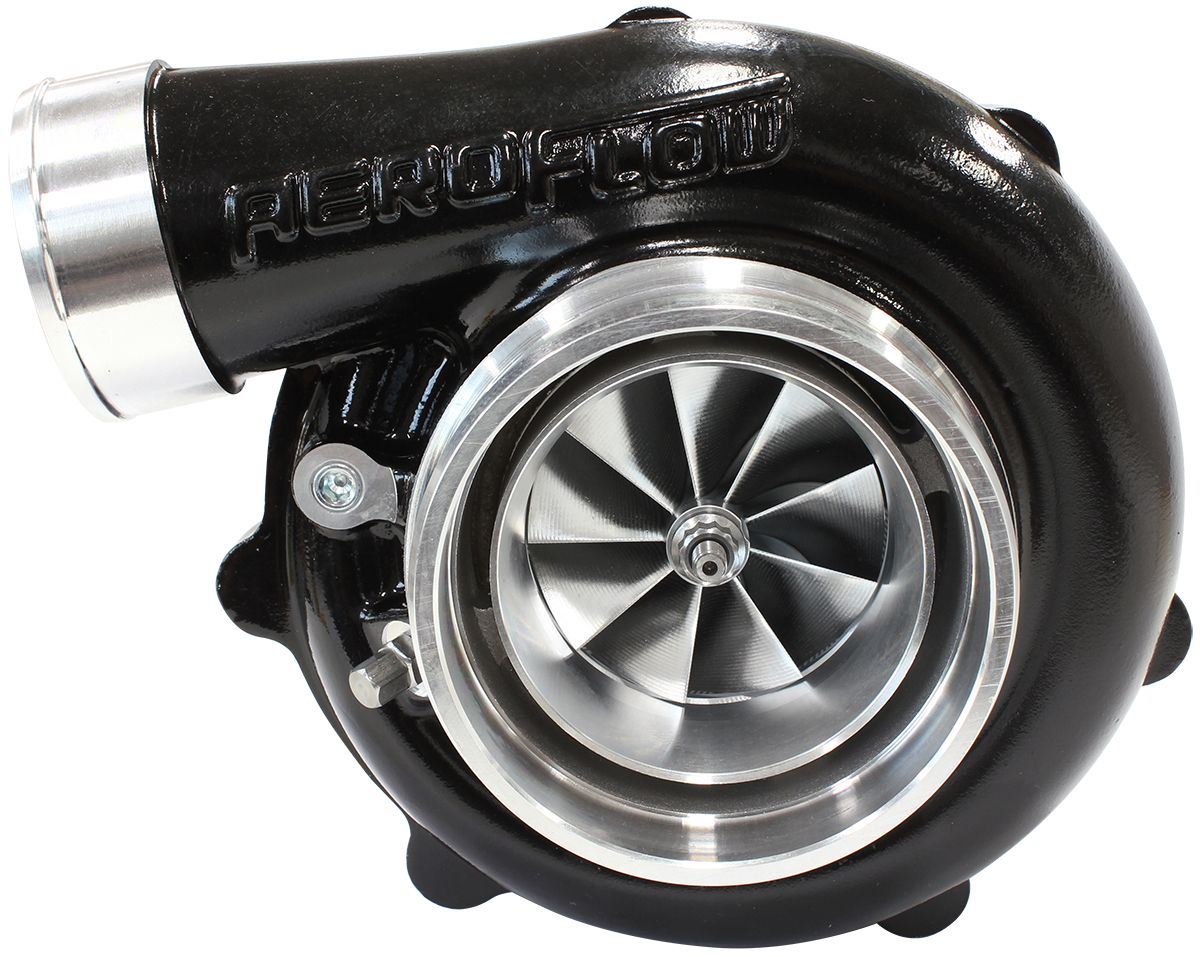

BOOSTED 6862 1.21 VBAND REVERSE V-BAND OUTLET G35 1050

BOOSTED 6862 1.21 VBAND REVERSE V-BAND OUTLET G35 1050

Regular price $1,860.00NZD
Regular price $2,000.00NZD Sale price $1,860.00NZD
Sale Sold out
Shipping calculated at checkout.
COLOUR
BOOSTED 6862 V-Band Reverse Rotation Turbocharger Specifications

This is a reverse rotation turbocharger for applications that want the perfect twin turbo installation or a single reverse rotation turbo with installation restrictions. Matches Boosted 6862 (AF8005-3073BLK) standard rotation turbocharger.

Recommended horsepower rating:  700-1050HP
Recommended engine displacement:  2.0L to 5.5L

- Dual ceramic ball bearing
- Point Milled 7075 billet compressor wheel
- Ported shroud compressor cover
- Speed sensor port included in compressor cover (Speed sensor sold separately, AF8050-1010)
- 1/8" NPT boost reference port
- External wastegate sold separately
- Turbo drain gasket and -4AN turbo oil feed fitting with restrictor included in turbo kit. (Warranty VOID if not used)
- V-Band single entry turbine inlet flange
- 9 blade turbine wheel
- SiMo-nodular cast iron rear housing
- V-Band turbine outlet flange
- 4 x M14 x 1.5mm coolant ports (Must install water lines on opposite sides of the core)
- 7/16"-24 oil feed fitting with in-built restrictor
- 38mm bolt centre turbo drain flange with M8 x 1.25mm thread size

Compressor Specifications
Inducer:  68mm
Exducer:  84.3mm
Extended Tip:  87.06mm
A/R:  0.75
Compressor Inlet:  4" Slip fit
Compressor Outlet:  2.5" Slip fit

Turbine Specifications
Inducer:  68mm
Exducer:  62mm
A/R:  1.21
Turbine Inlet Flange: V-Band (AF8080-1016)
Turbine Outlet Flange:  V-Band (AF8080-1000)

Wastegate
External wastegate

Note: We strive to maintain a wide range of products in stock. However, some items may be ordered on demand, resulting in a lead time. If your order is urgent, please contact Speedspec in advance. sales@speedspec.co.nz
