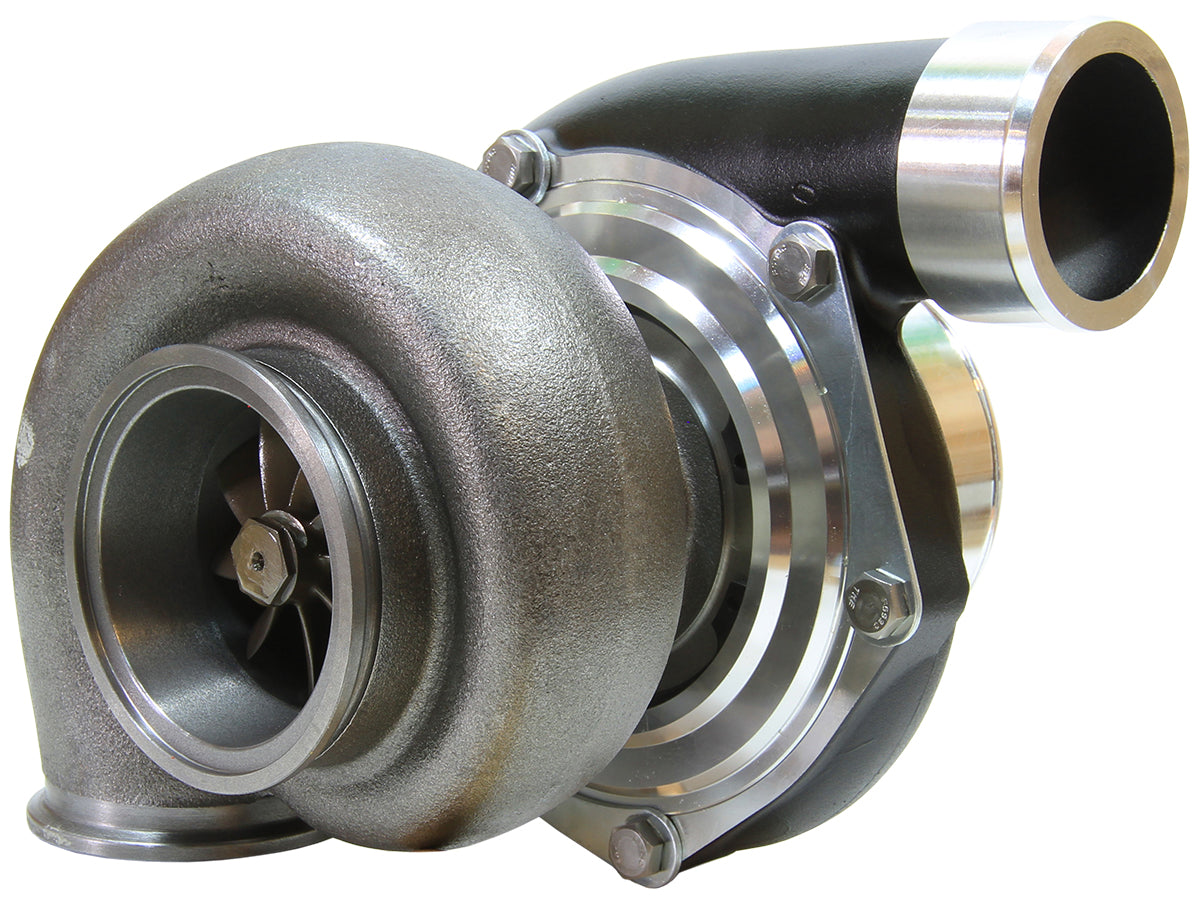

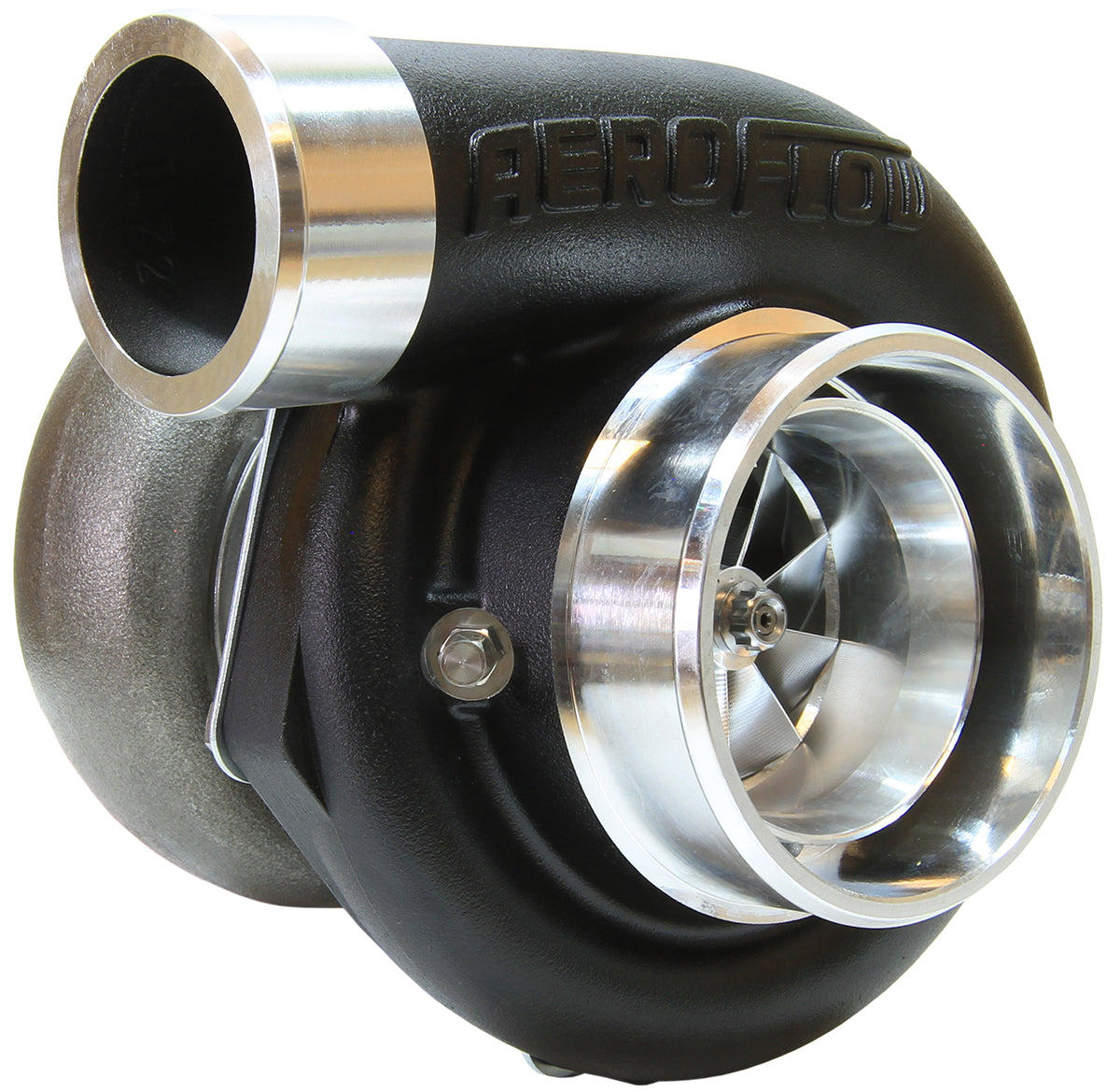

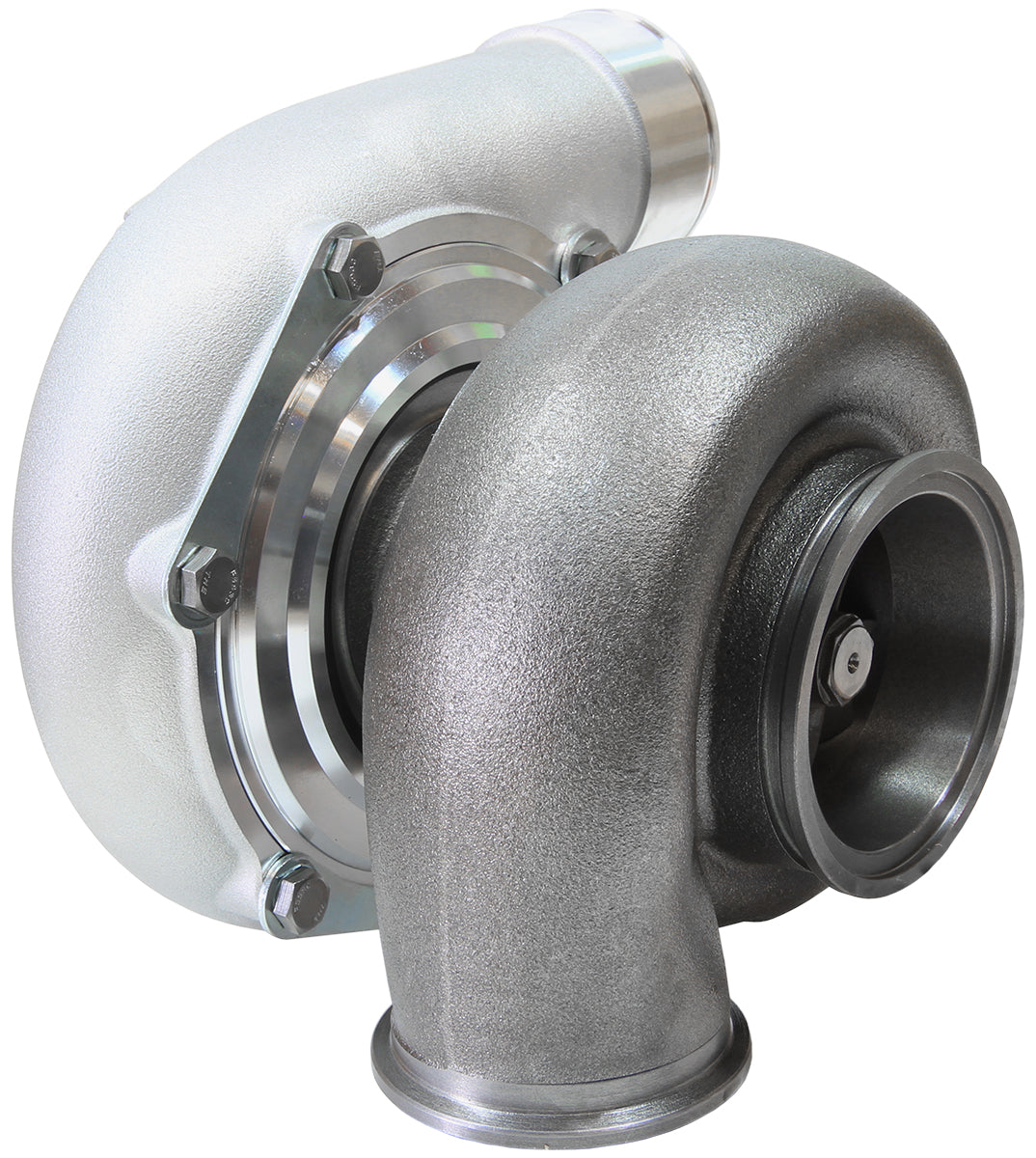

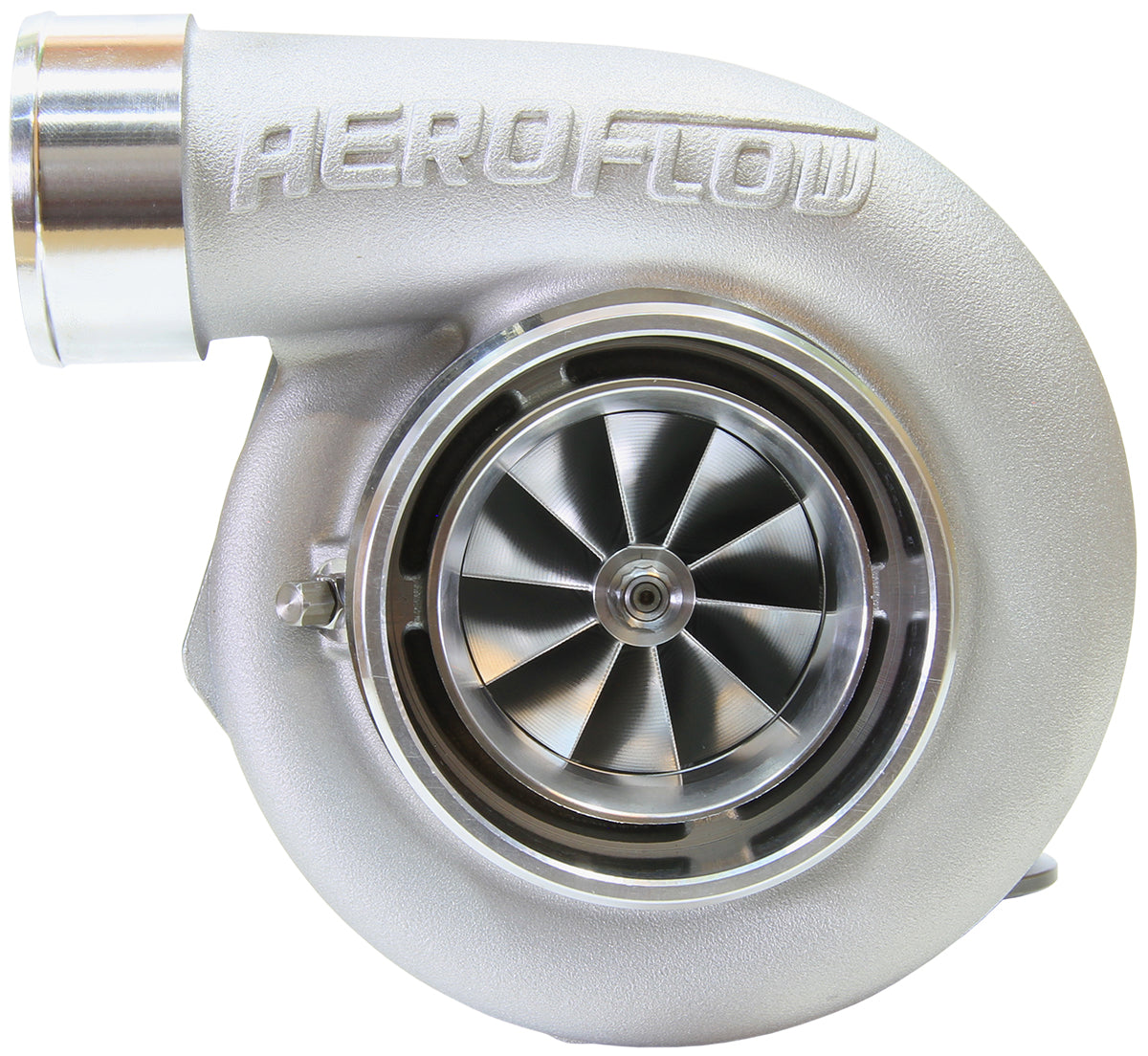

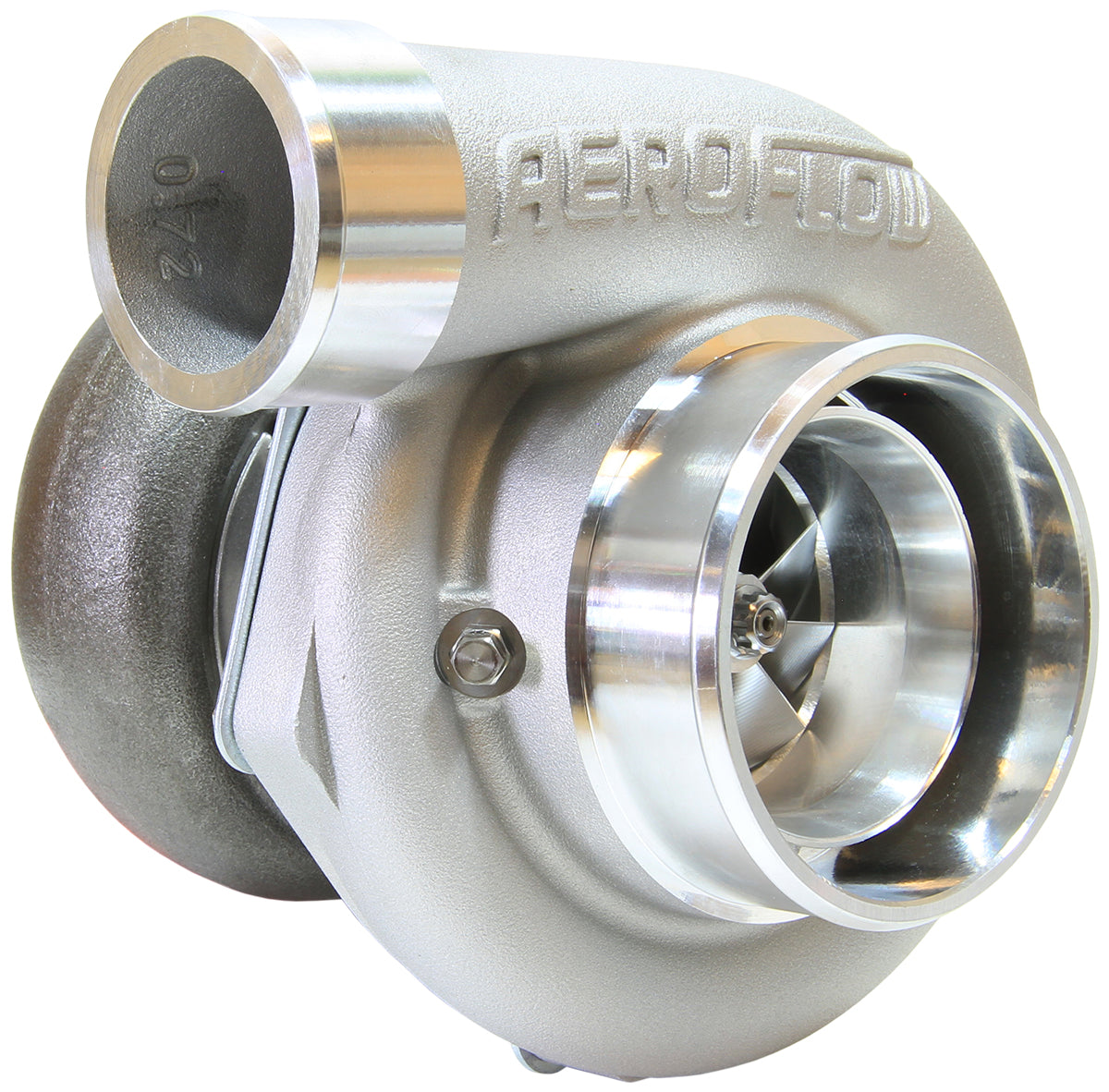

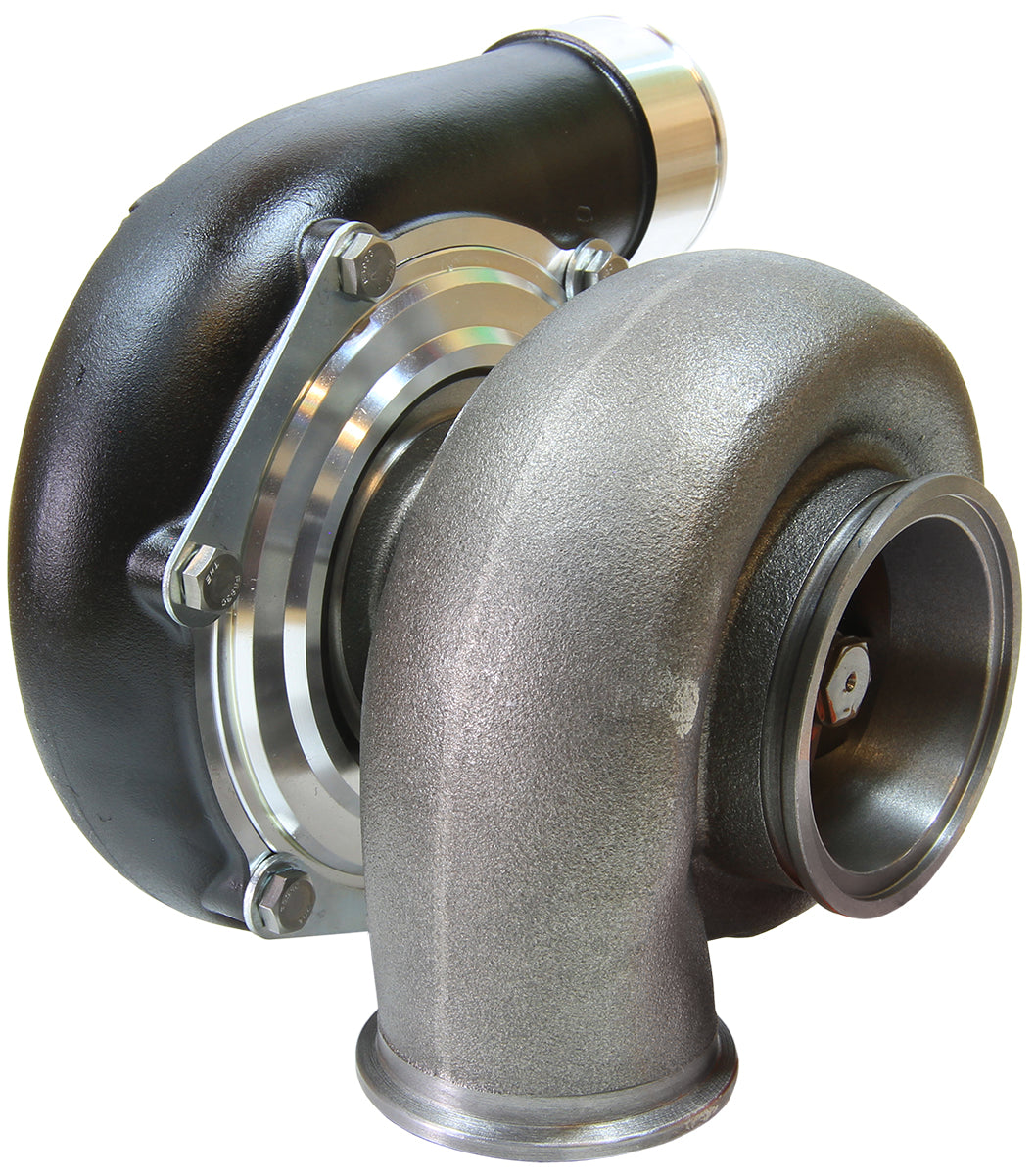

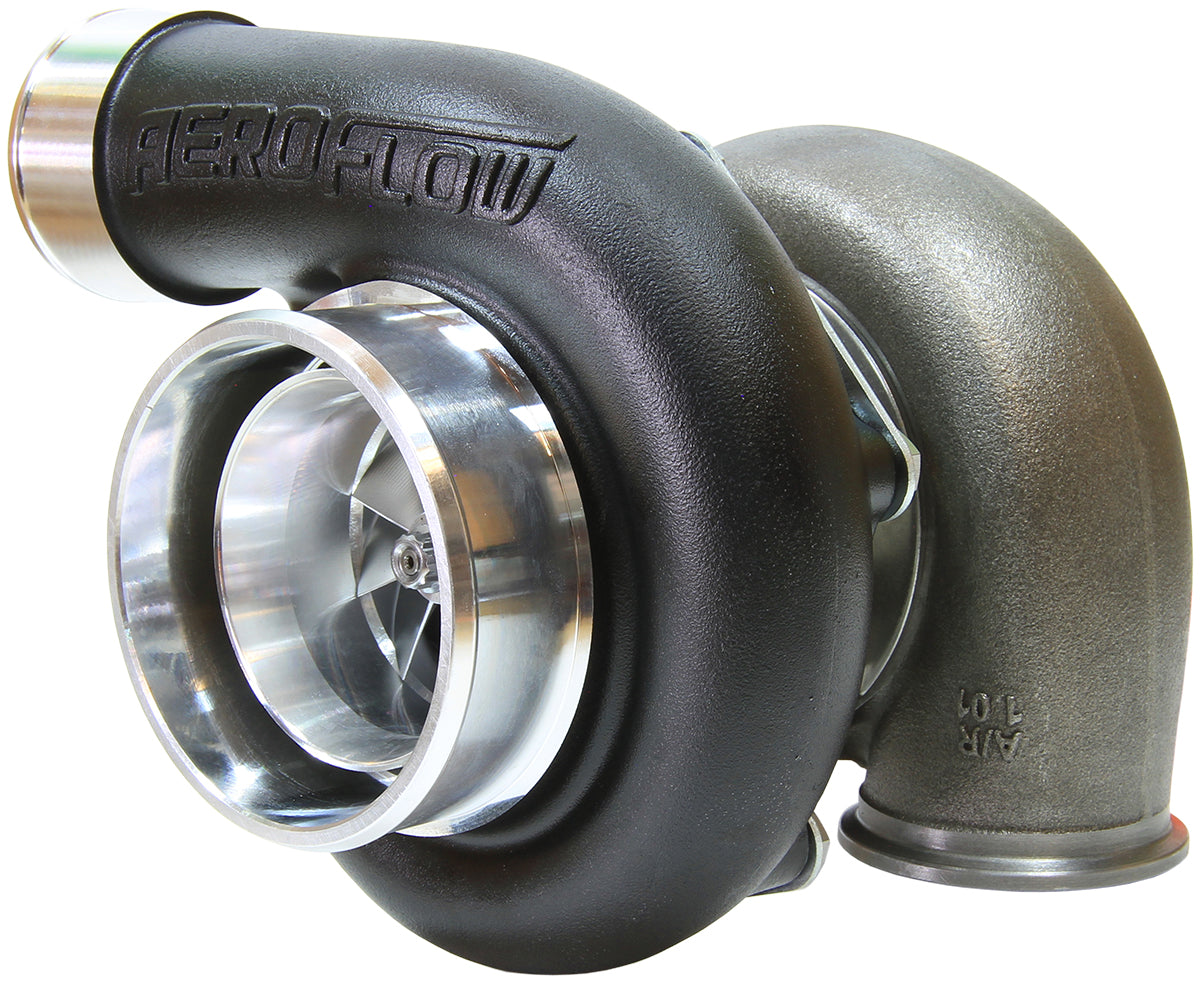

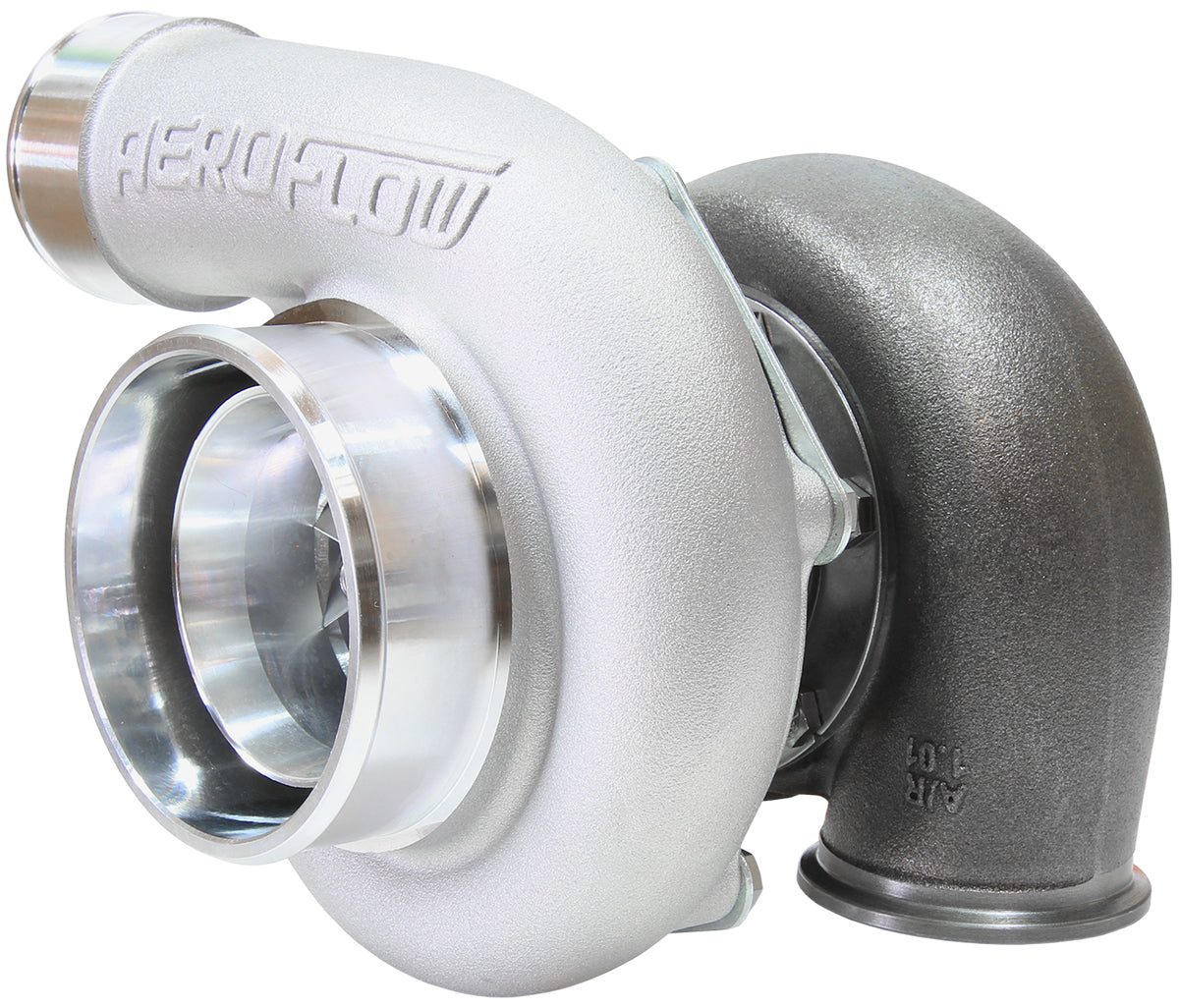

BOOSTED 6762 1.0 V-BAND REVERSE V-BAND OUTLET GTX3584
BOOSTED 6762 1.0 V-BAND REVERSE V-BAND OUTLET GTX3584
Regular price
$1,581.00NZD
Regular price
$1,700.00NZD
Sale price
$1,581.00NZD
Unit price
/
per
Share

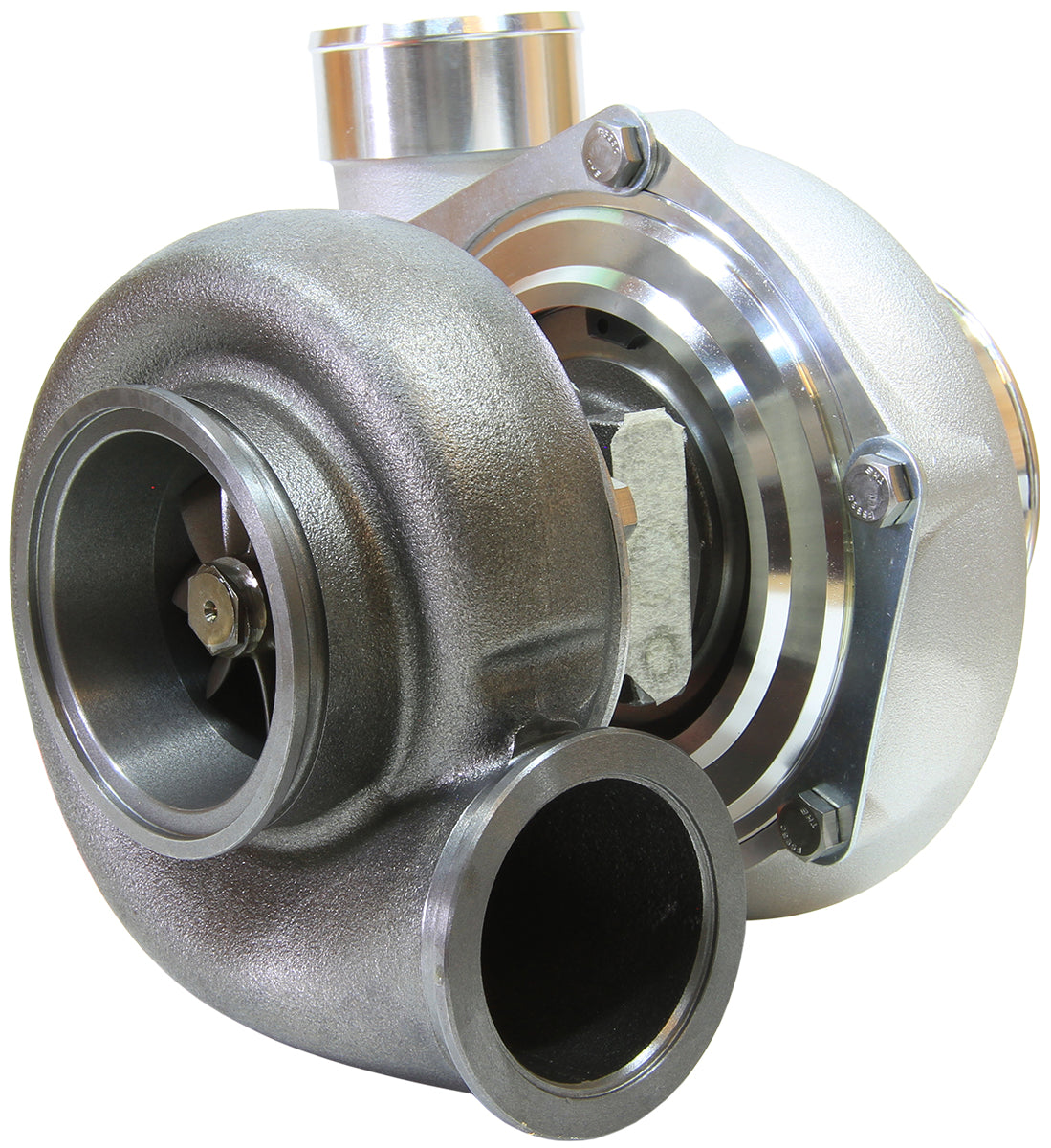

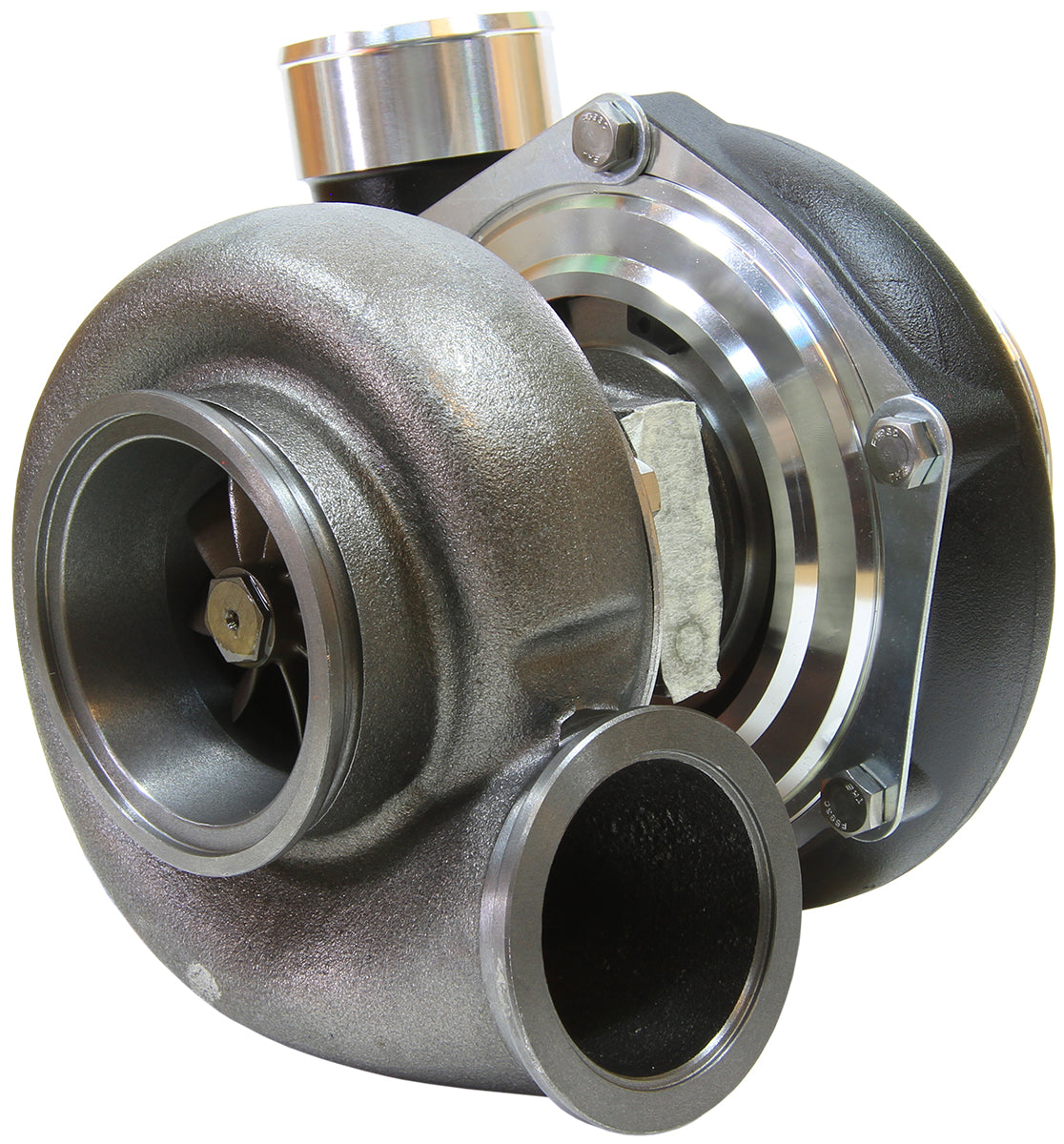

BOOSTED 6762 V-Band Reverse Rotation Turbocharger Specifications
This is a reverse rotation turbocharger for applications that want the perfect twin turbo installation or a single reverse rotation turbo with installation restrictions. Matches Boosted 6762 (AF8005-3026) standard rotation turbocharger.
Recommended horsepower rating: Â 550-950HP
Recommended engine displacement: Â 2.0L to 5.5L
- Dual ceramic ball bearing
- Point Milled 7075 billet compressor wheel
- Ported shroud compressor cover
- Speed sensor port included in compressor cover (Speed sensor sold separately, AF8050-1010)
- External wastegate sold separately
- Turbo drain gasket and -4AN turbo oil feed fitting with restrictor included in turbo kit. (Warranty VOID if not used)
- V-Band single entry turbine inlet flange
- 9 blade turbine wheel
- SiMo-nodular cast iron rear housing
- V-Band turbine outlet flange
- M14 x 1.5mm coolant port thread
- 7/16"-24 oil feed fitting with in-built restrictor
- 38mm bolt centre turbo drain flange with M8 x 1.25mm thread size
Compressor Specifications
Inducer: Â 67mm
Exducer: Â 84mm
Extended Tip: Â 87.5mm
A/R: Â 0.72
Compressor Inlet: Â 4" Slip fit
Compressor Outlet: Â 2.5" Slip fit
Turbine Specifications
Inducer: Â 68mm
Exducer: Â 62.3mm
A/R: Â 1.01
Turbine Inlet Flange: Â V-Band (AF8080-1016)
Turbine Outlet Flange: Â V-Band (AF8080-1000)
Wastegate
External wastegate
This is a reverse rotation turbocharger for applications that want the perfect twin turbo installation or a single reverse rotation turbo with installation restrictions. Matches Boosted 6762 (AF8005-3026) standard rotation turbocharger.
Recommended horsepower rating: Â 550-950HP
Recommended engine displacement: Â 2.0L to 5.5L
- Dual ceramic ball bearing
- Point Milled 7075 billet compressor wheel
- Ported shroud compressor cover
- Speed sensor port included in compressor cover (Speed sensor sold separately, AF8050-1010)
- External wastegate sold separately
- Turbo drain gasket and -4AN turbo oil feed fitting with restrictor included in turbo kit. (Warranty VOID if not used)
- V-Band single entry turbine inlet flange
- 9 blade turbine wheel
- SiMo-nodular cast iron rear housing
- V-Band turbine outlet flange
- M14 x 1.5mm coolant port thread
- 7/16"-24 oil feed fitting with in-built restrictor
- 38mm bolt centre turbo drain flange with M8 x 1.25mm thread size
Compressor Specifications
Inducer: Â 67mm
Exducer: Â 84mm
Extended Tip: Â 87.5mm
A/R: Â 0.72
Compressor Inlet: Â 4" Slip fit
Compressor Outlet: Â 2.5" Slip fit
Turbine Specifications
Inducer: Â 68mm
Exducer: Â 62.3mm
A/R: Â 1.01
Turbine Inlet Flange: Â V-Band (AF8080-1016)
Turbine Outlet Flange: Â V-Band (AF8080-1000)
Wastegate
External wastegate
Note: We strive to maintain a wide range of products in stock. However, some items may be ordered on demand, resulting in a lead time. If your order is urgent, please contact Speedspec in advance. sales@speedspec.co.nz
