Recommended horsepower rating:Â 550-900HP Recommended engine displacement:Â 2.0L to 5.5L

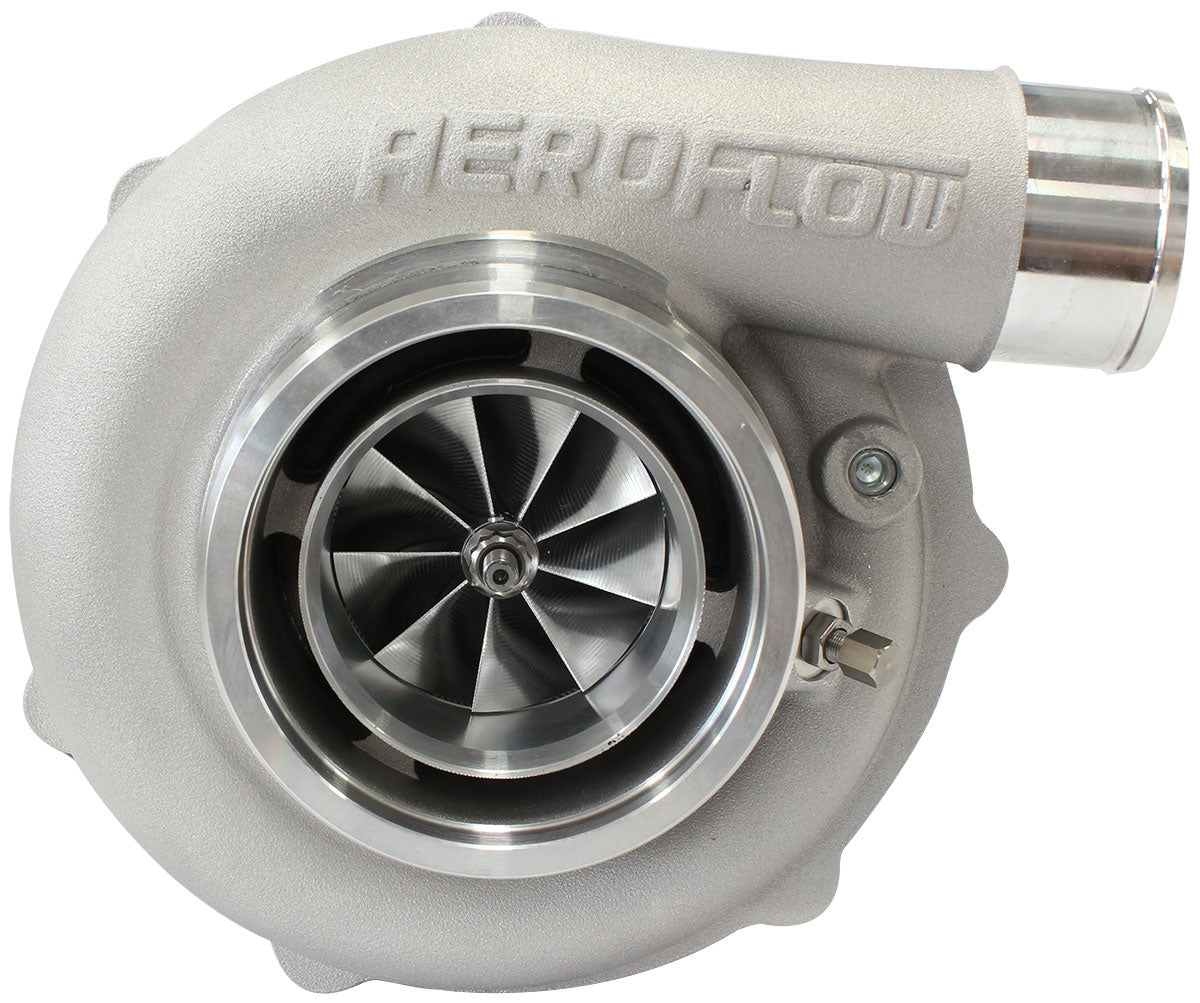

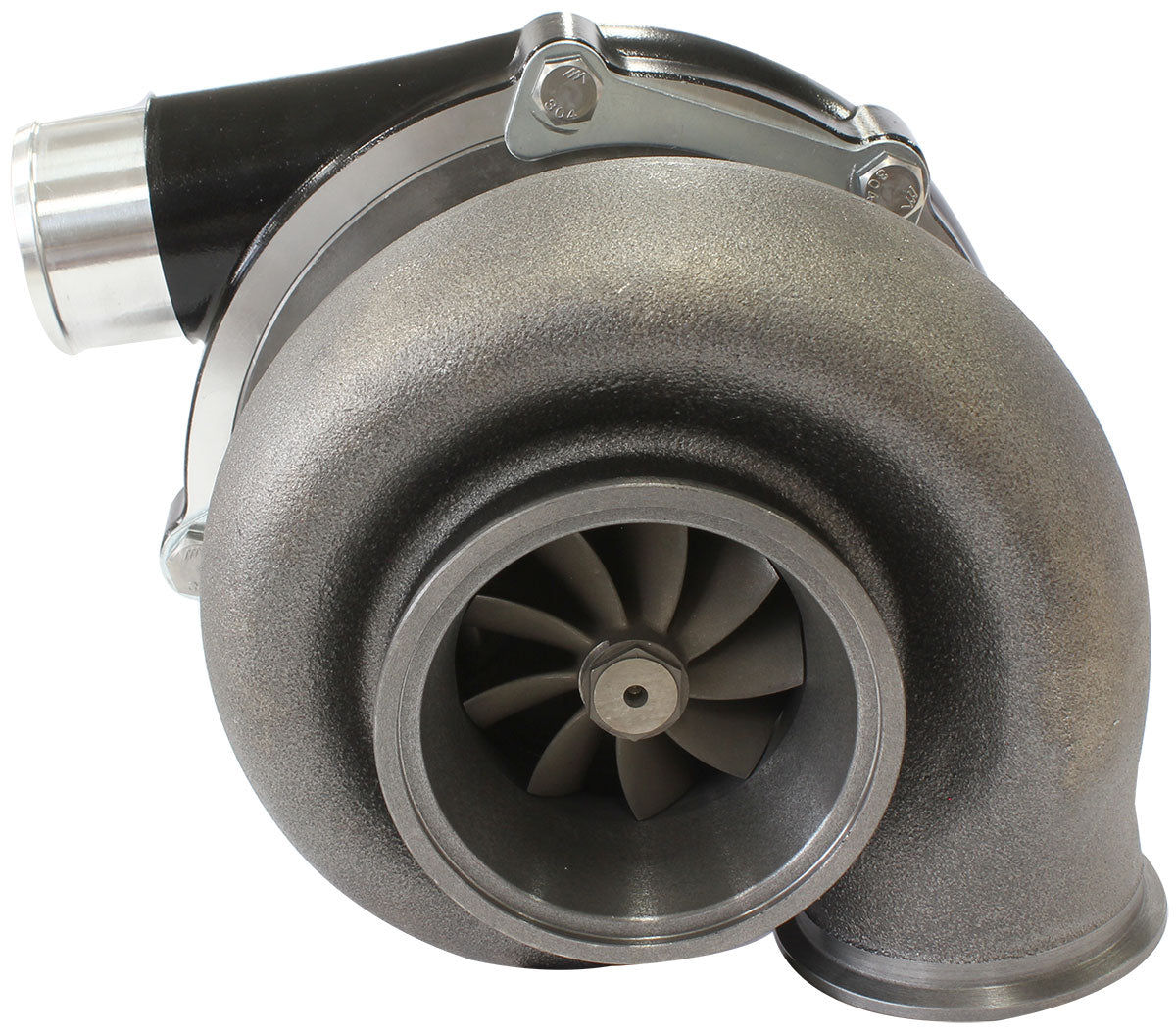

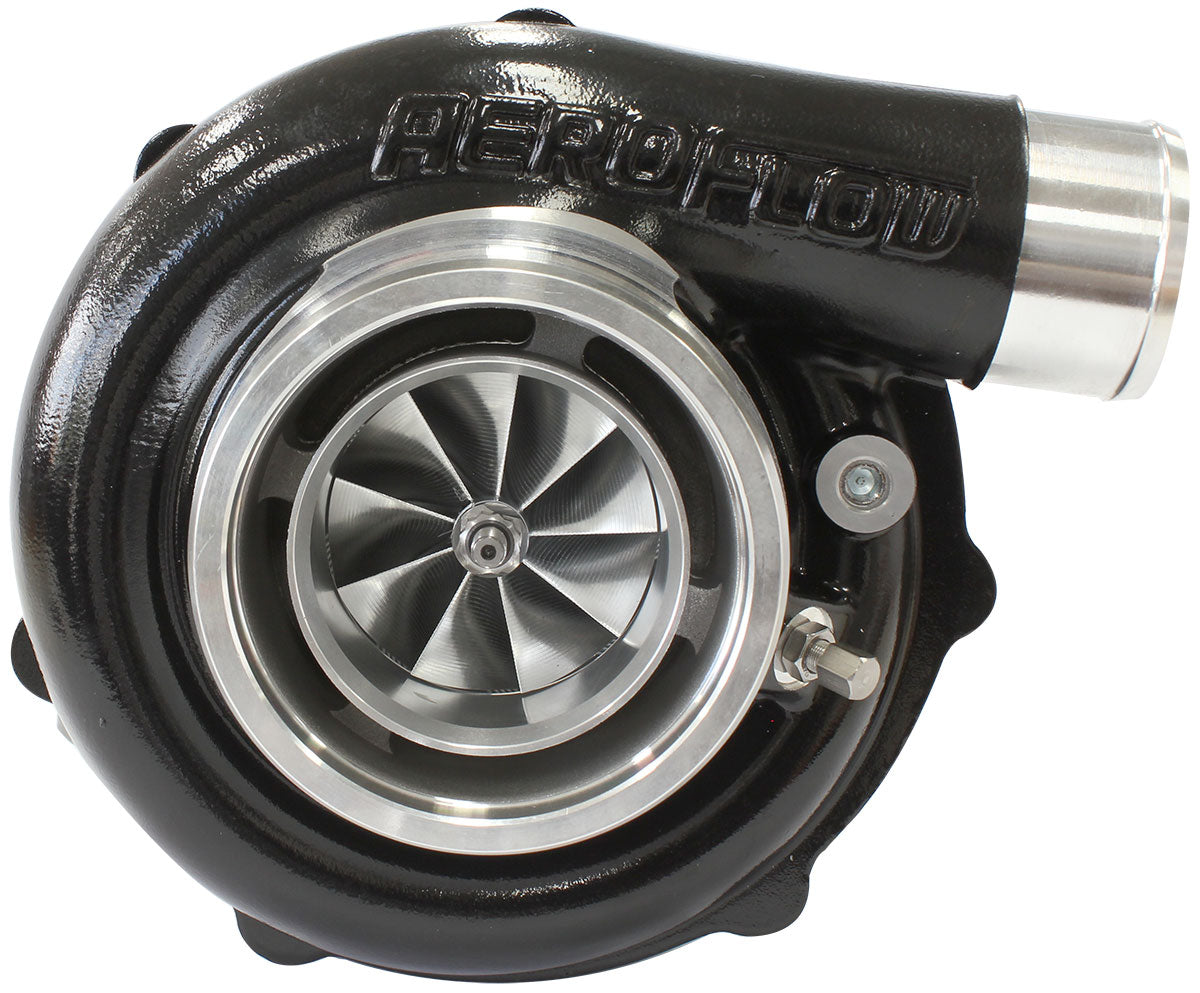

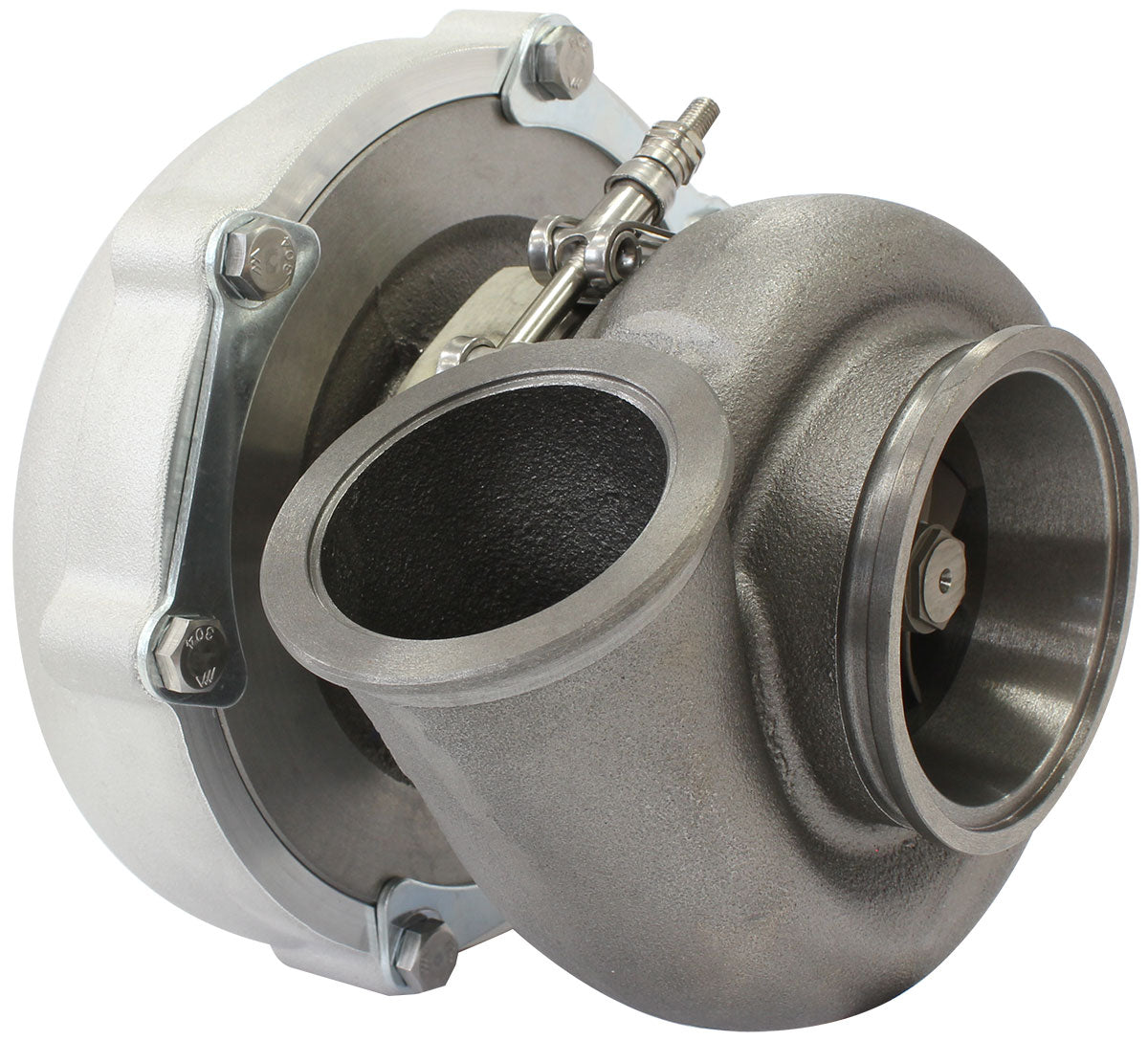

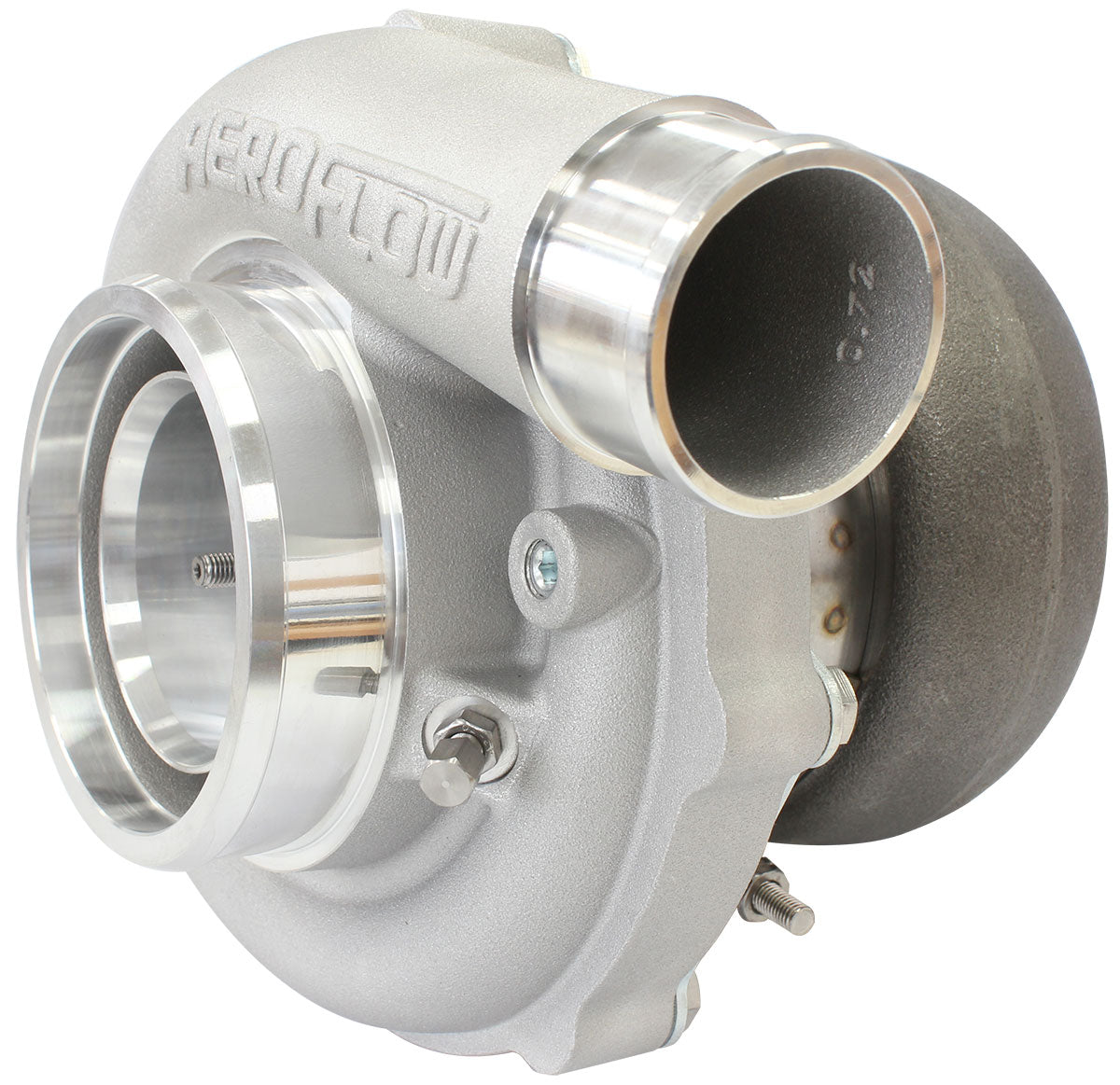

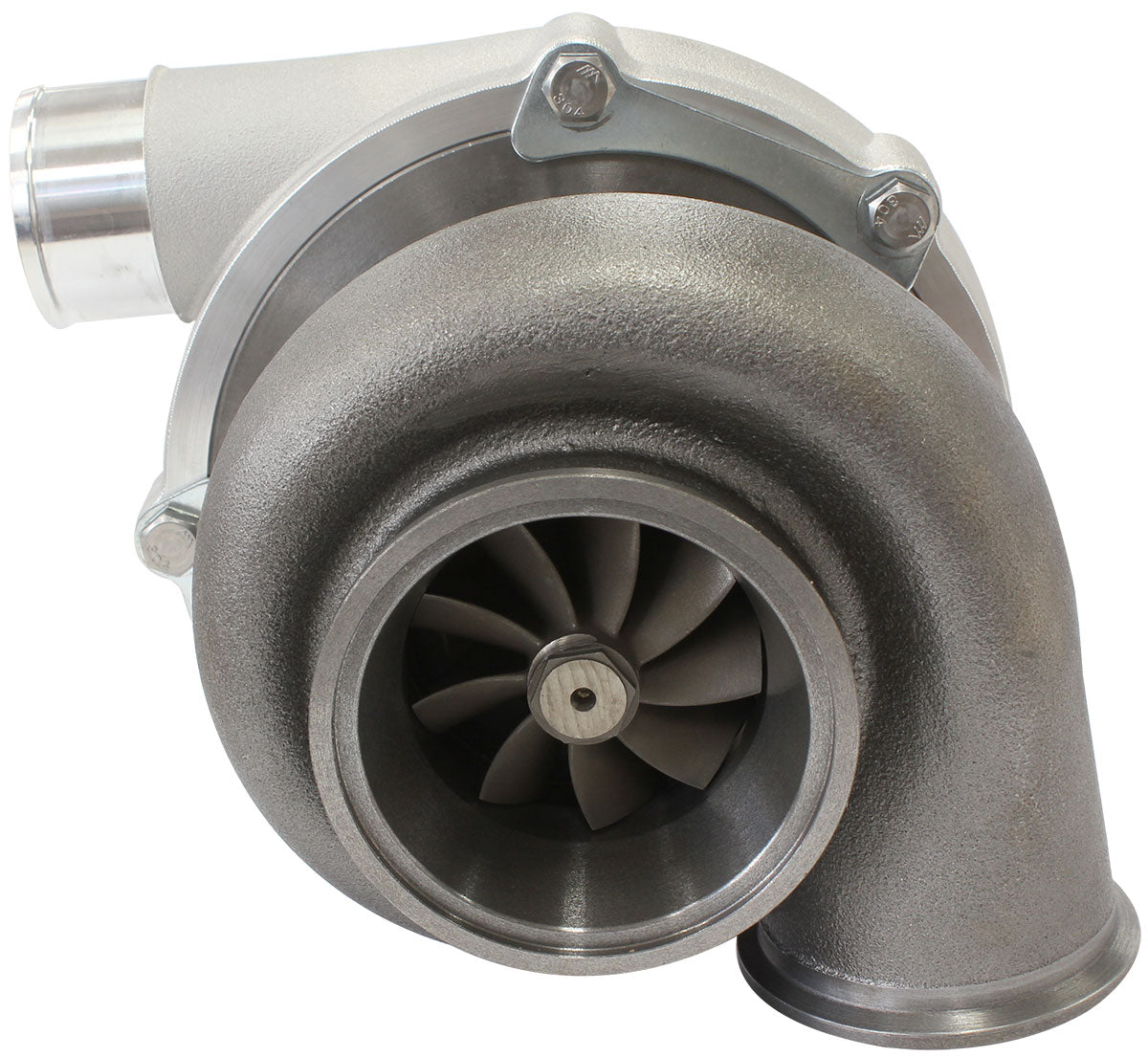

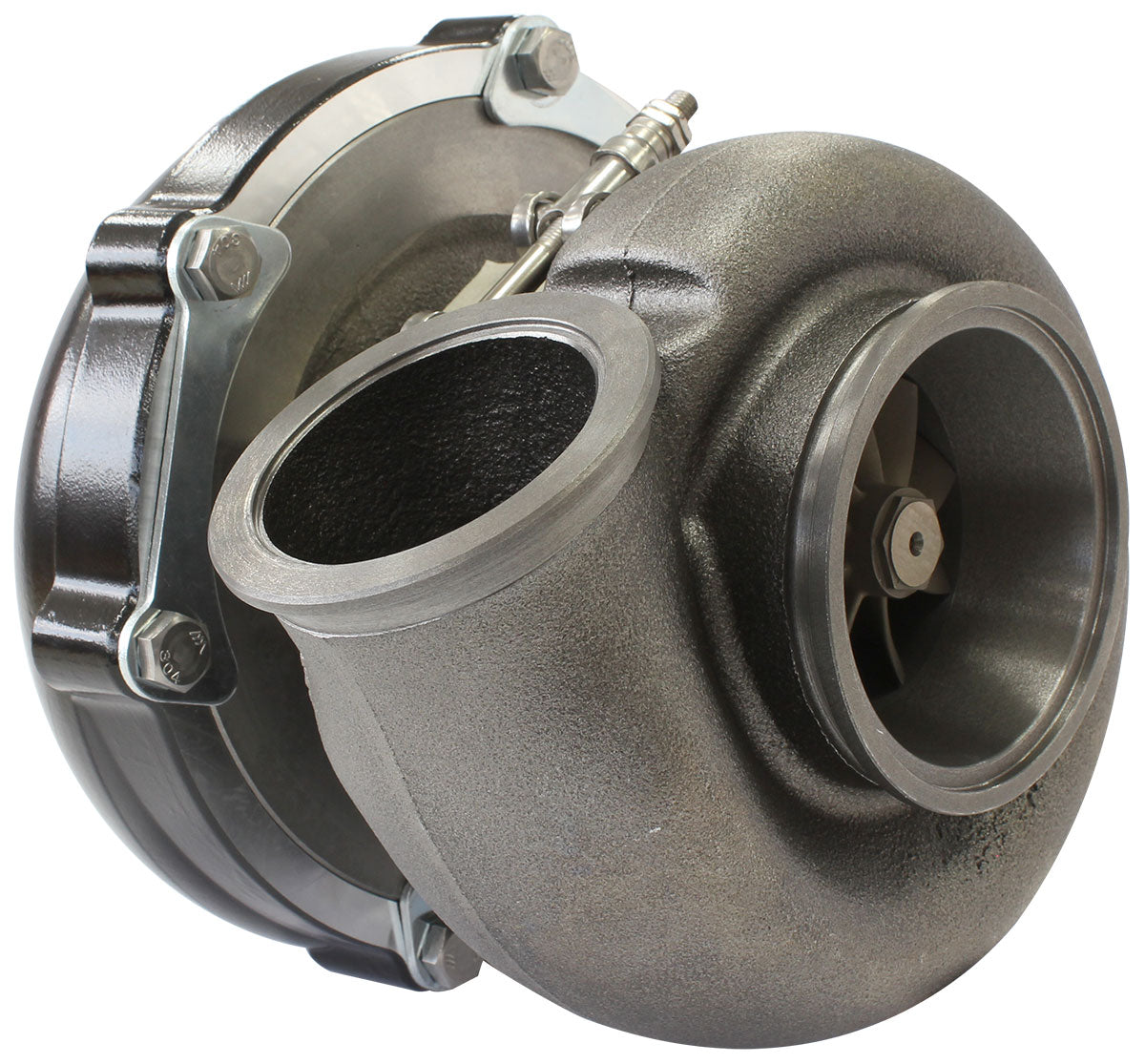

- Dual ceramic ball bearing - Point Milled 7075 billet compressor wheel - Ported shroud compressor cover - Speed sensor port included in compressor cover (Speed sensor sold separately, AF8050-1010) - 1/8" NPT boost reference port - External wastegate sold separately - Turbo drain gasket and -4AN turbo oil feed fitting with restrictor included in turbo kit. (Warranty VOID if not used) - V-Band single entry turbine inlet flange - 9 blade turbine wheel - SiMo-nodular cast iron rear housing - V-Band turbine outlet flange - 4 x M14 x 1.5mm coolant ports (Must install water lines on opposite sides of the core) - 7/16"-24 oil feed fitting with in-built restrictor - 38mm bolt centre turbo drain flange with M8 x 1.25mm thread size
Compressor Specifications Inducer:Â 62mm Exducer:Â 76.6mm Extended Tip:Â 79.42mm A/R: Â 0.72 Compressor Inlet: Â 4" Slip fit Compressor Outlet: Â 2.5" Slip fit
