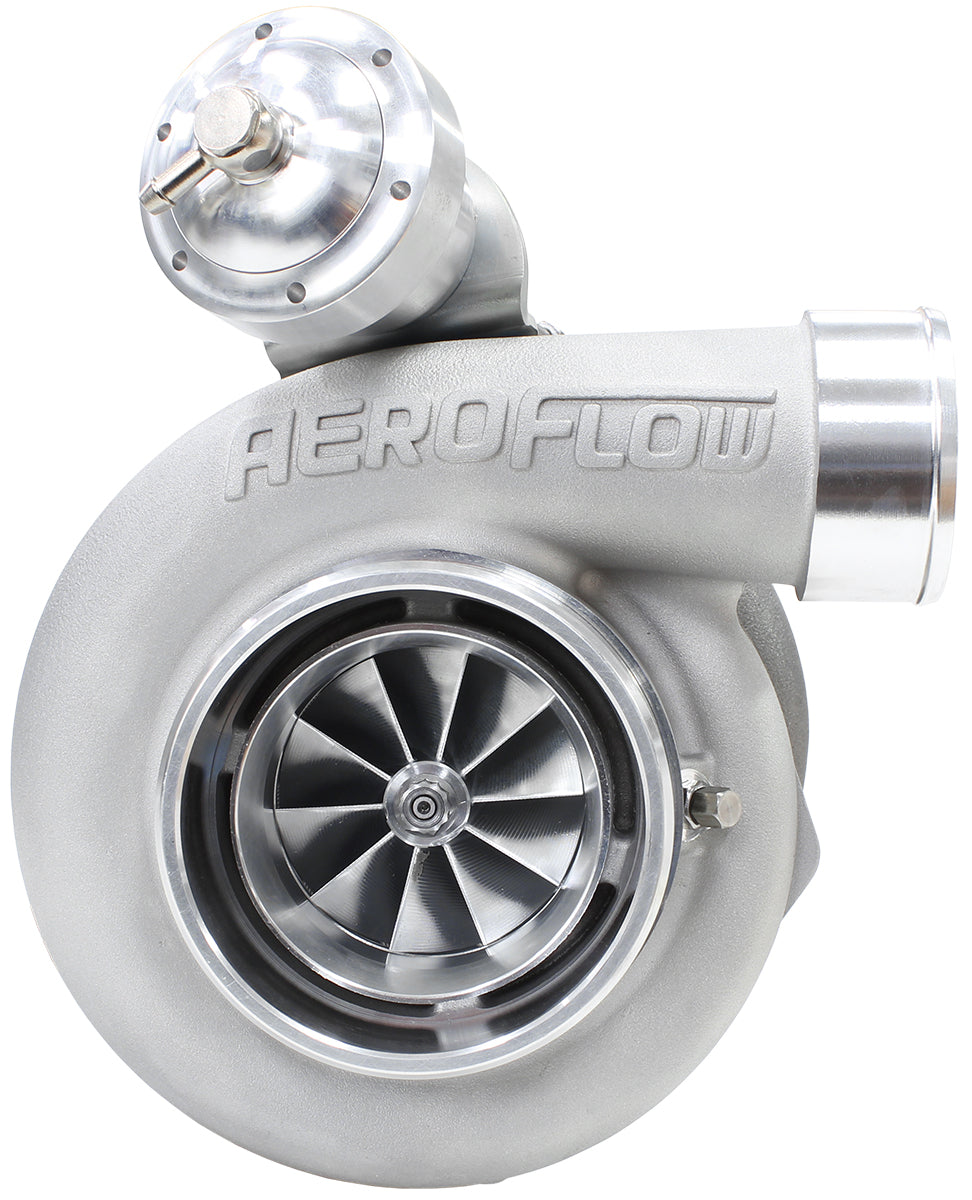

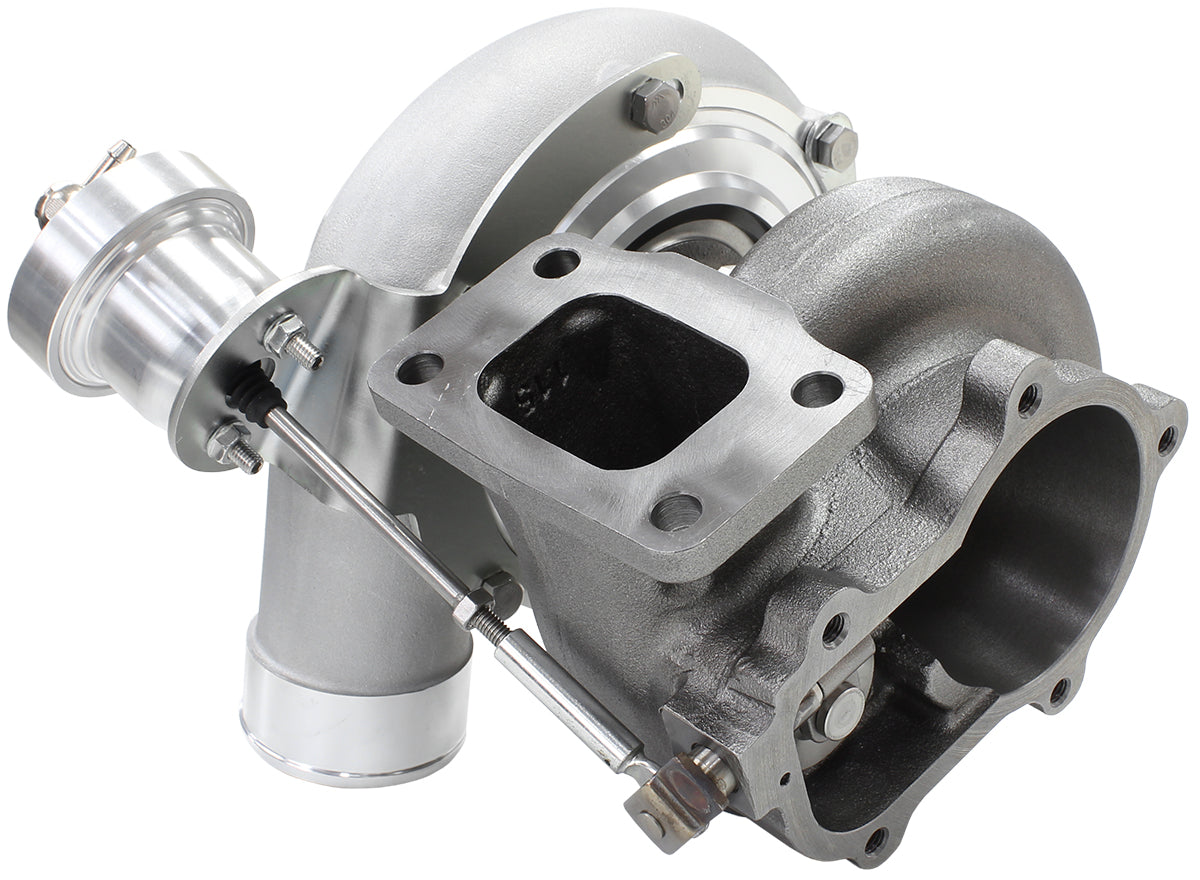

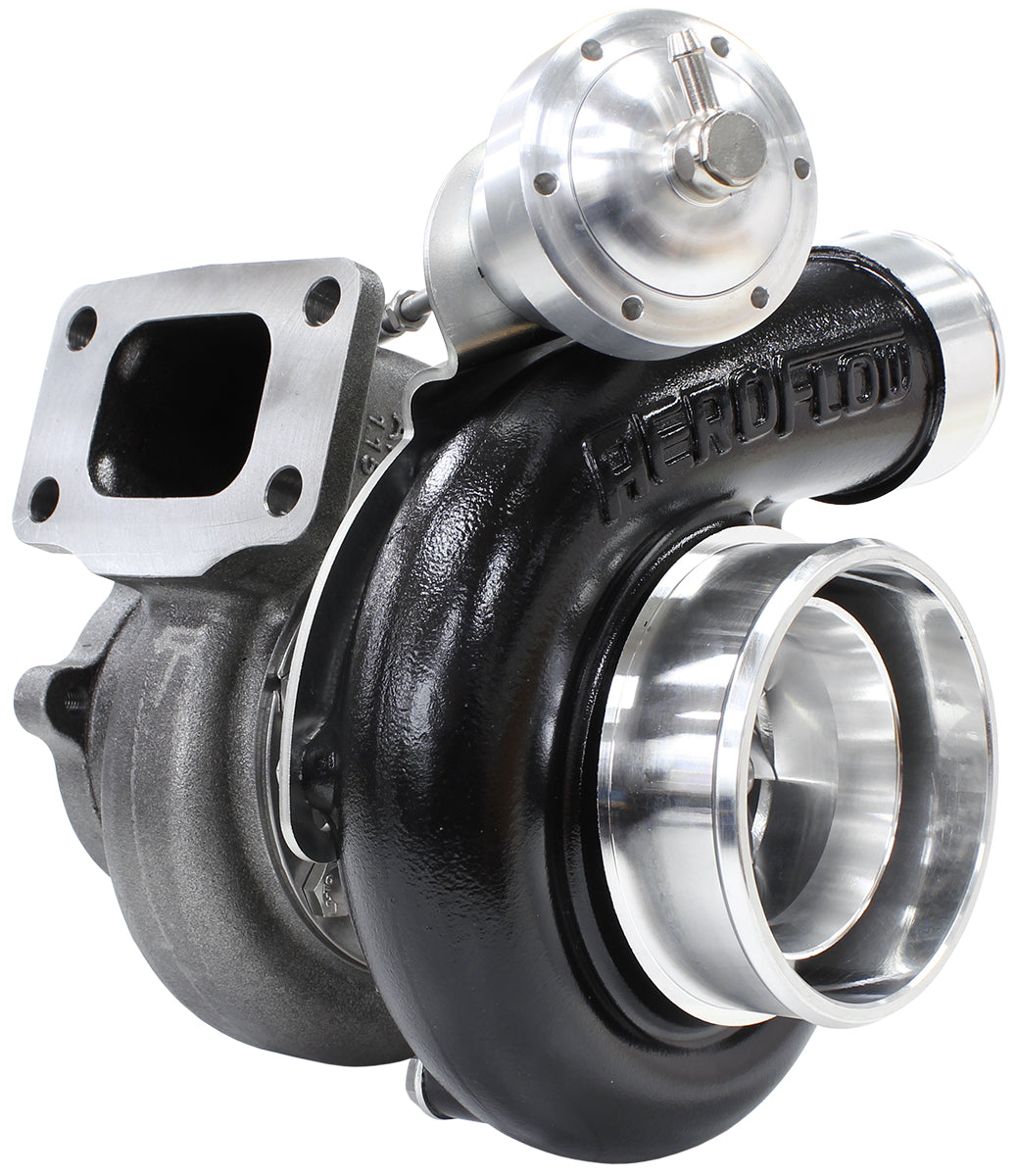

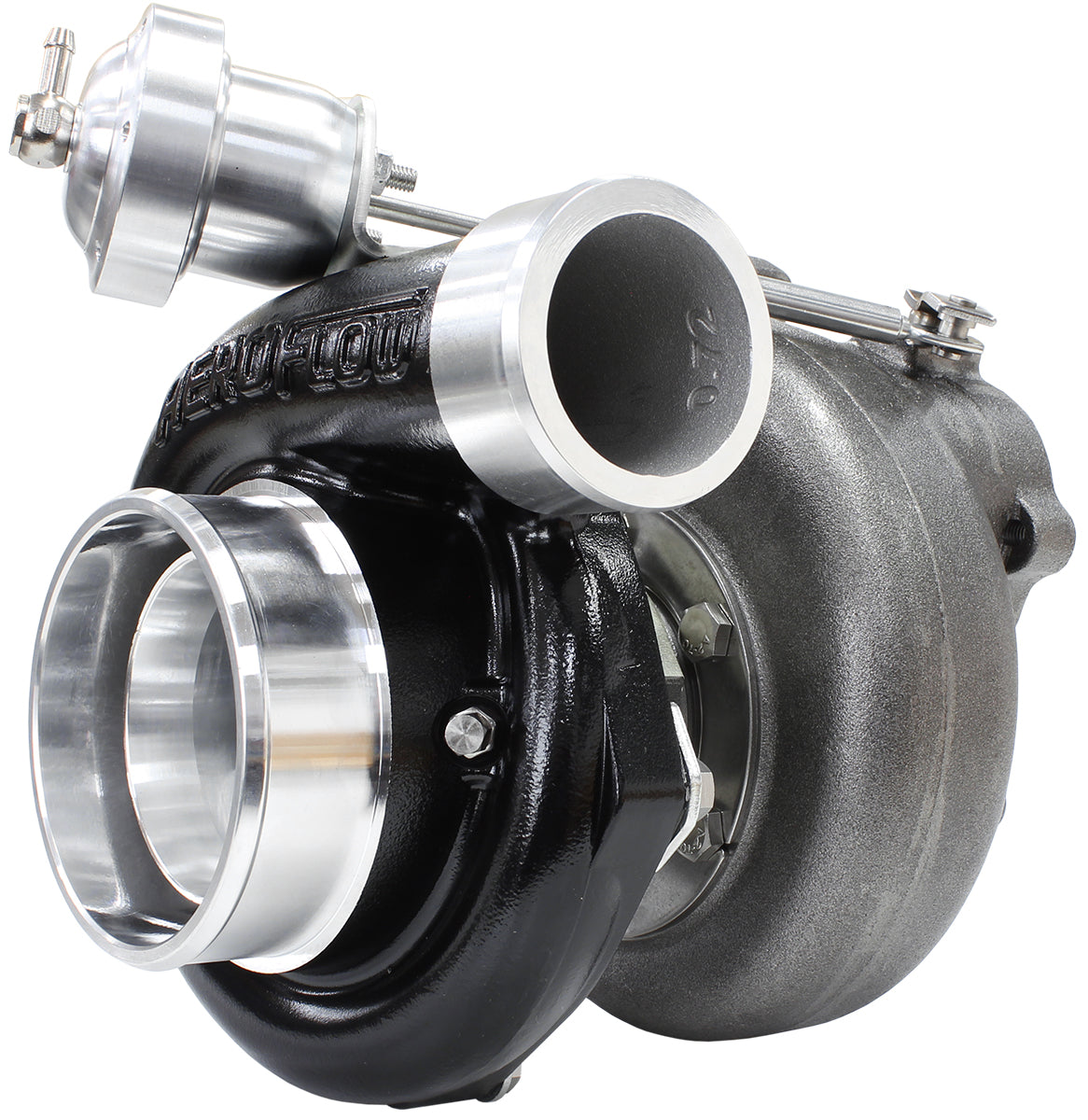

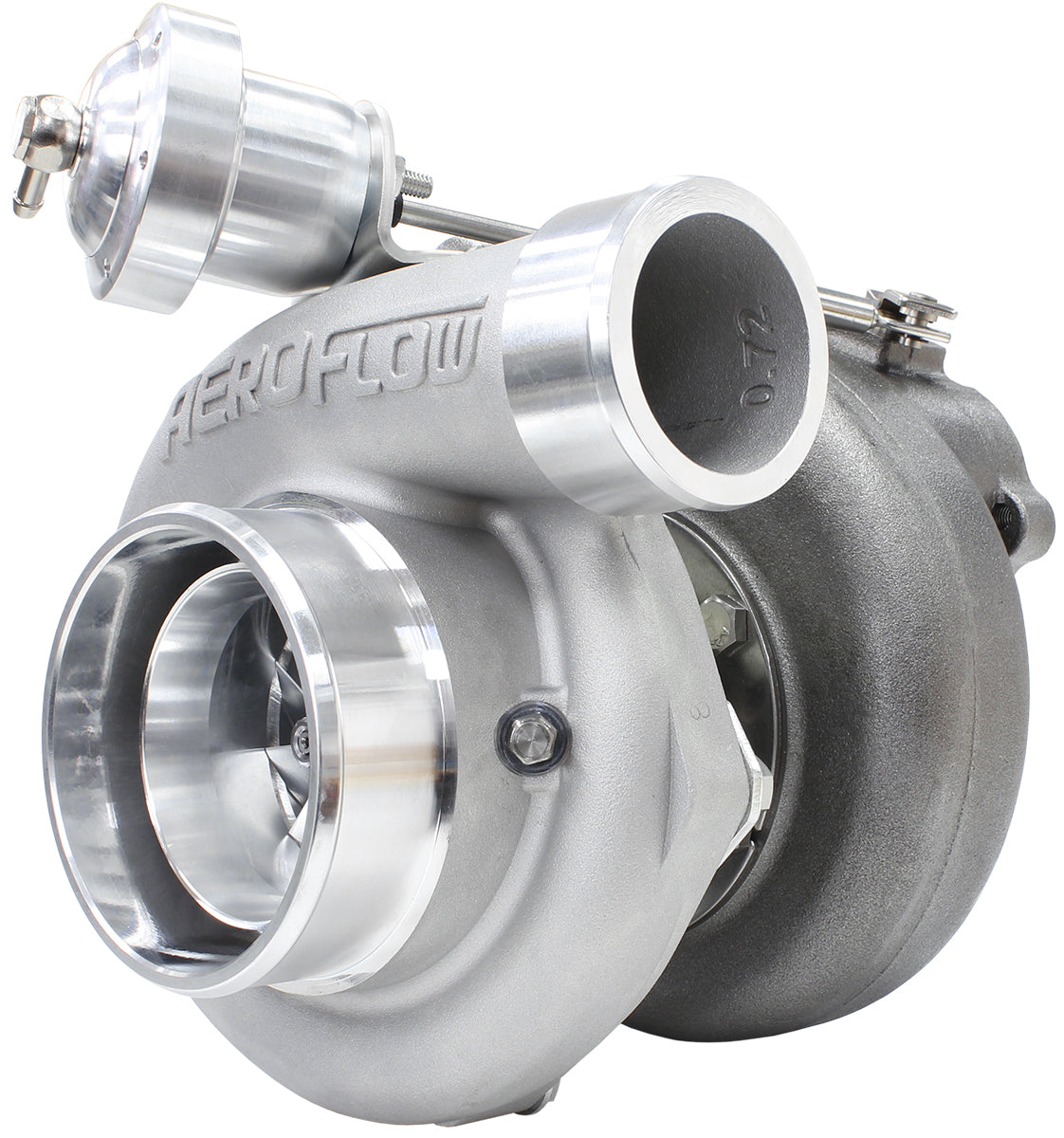

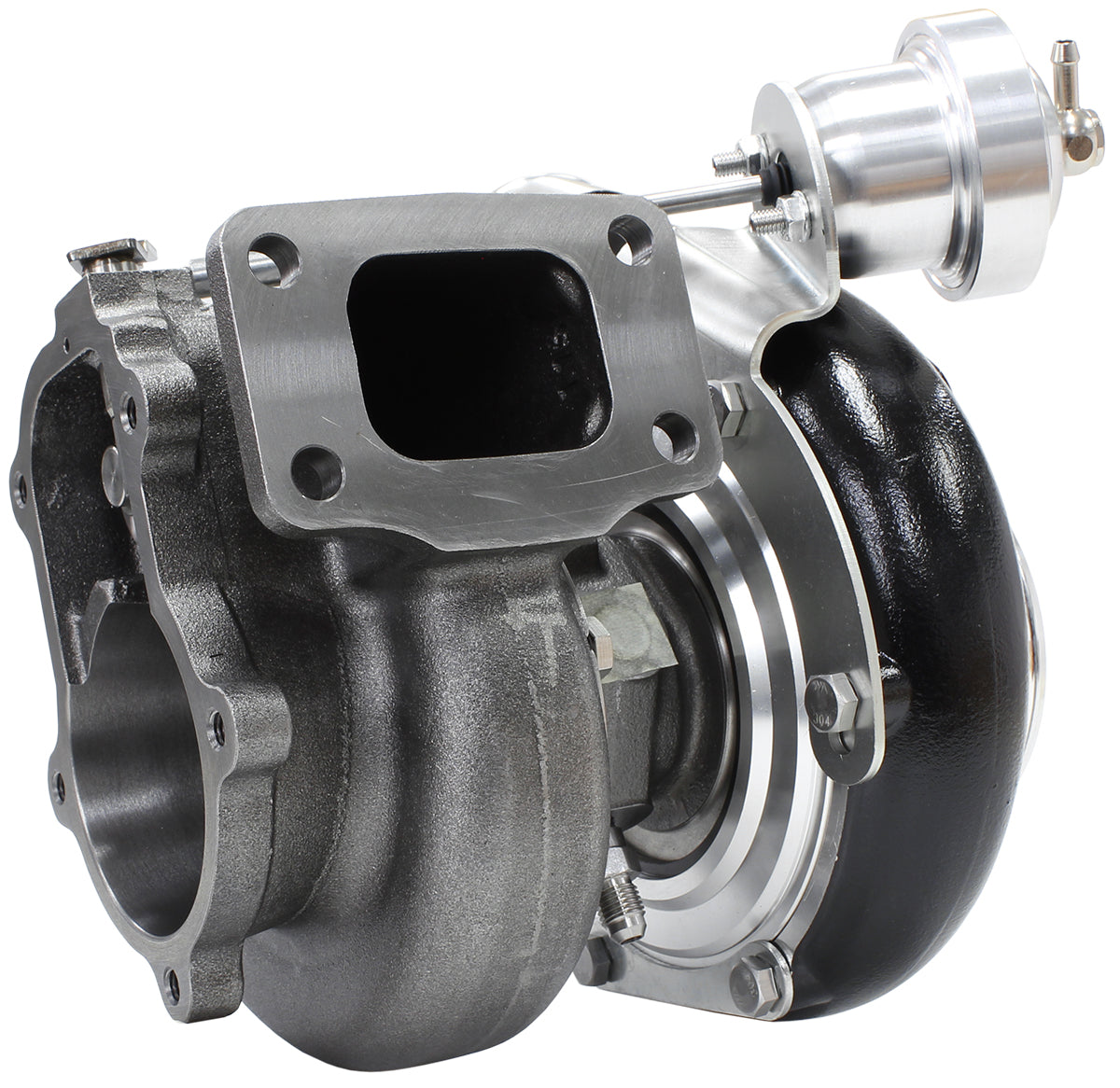

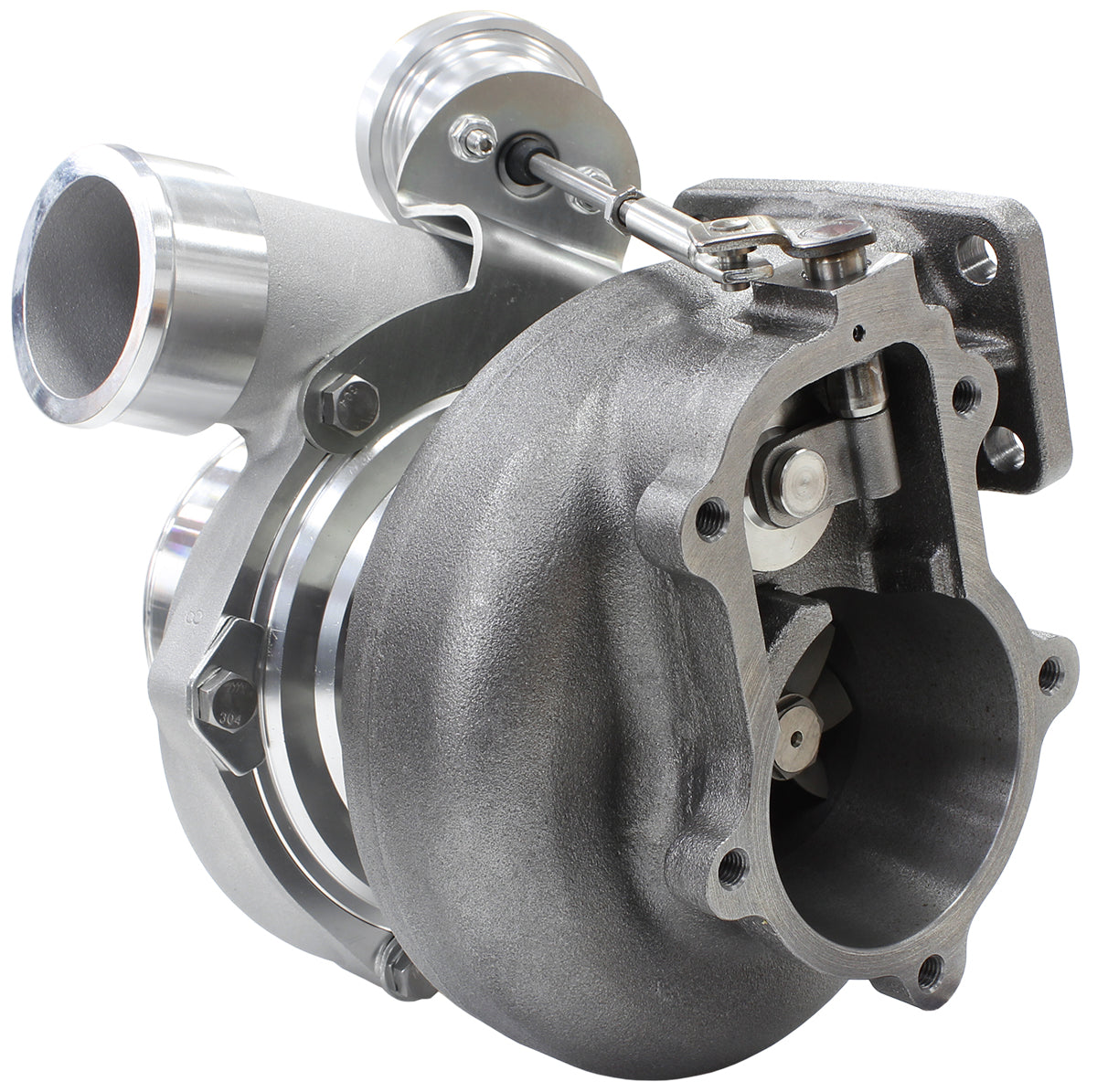

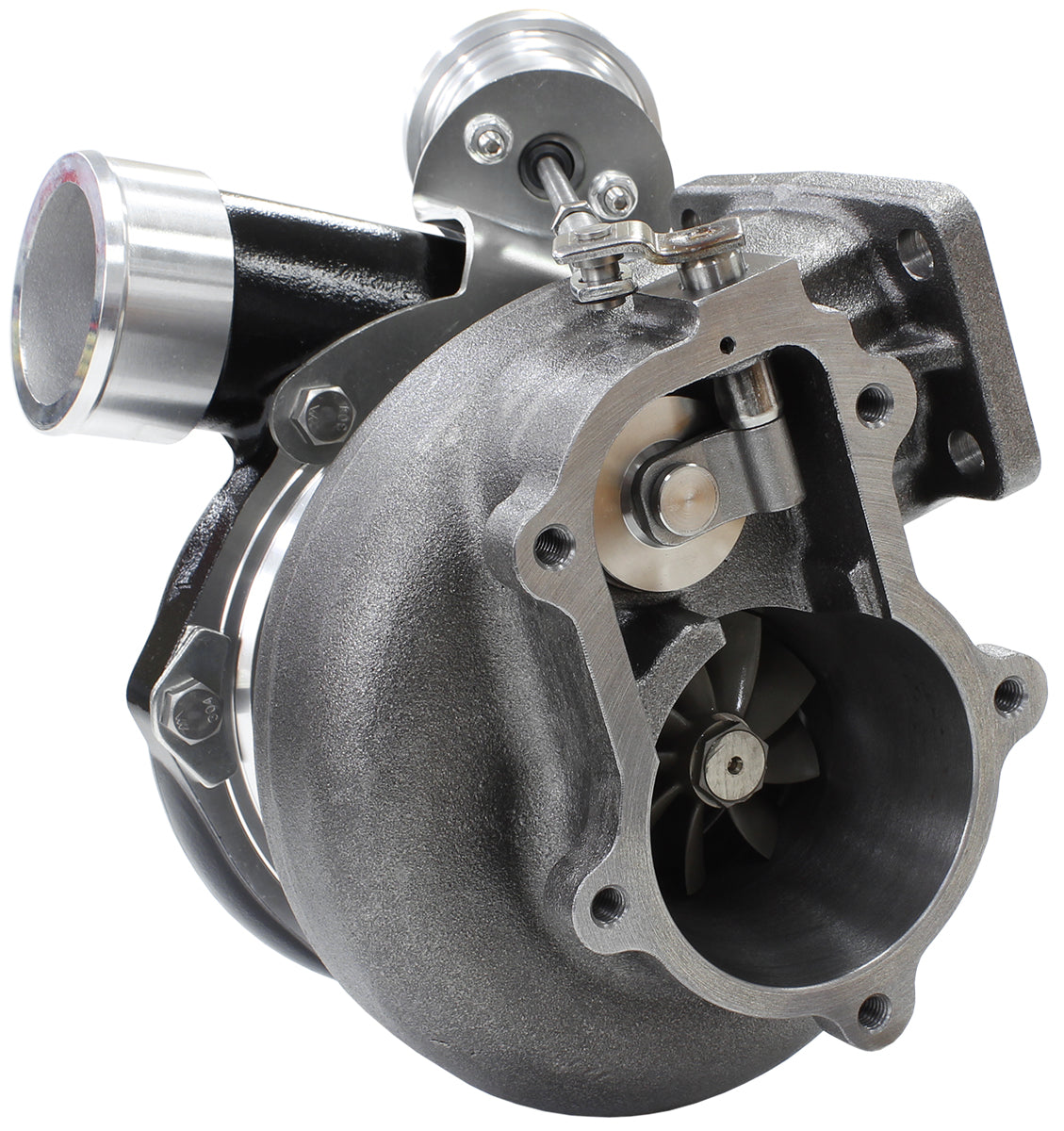

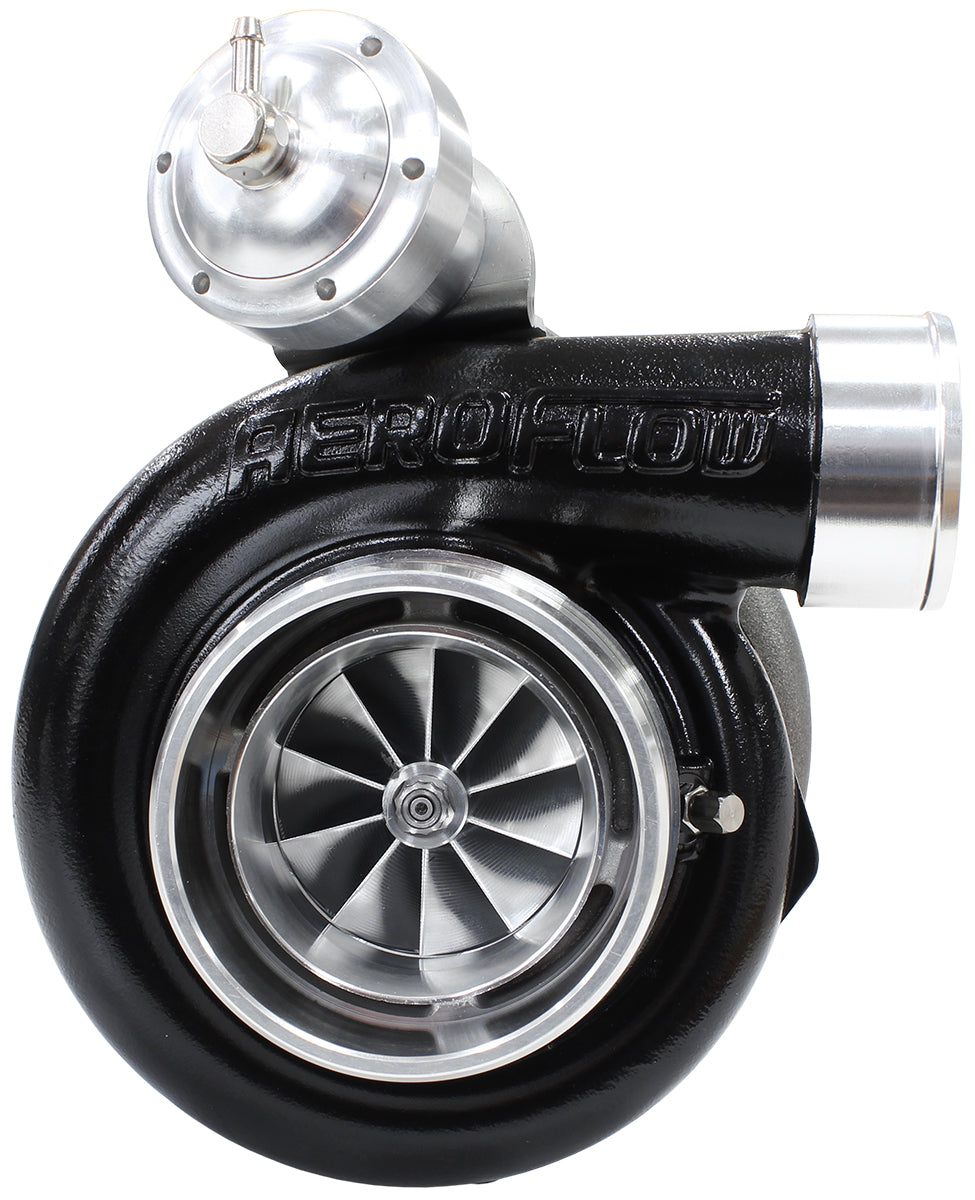

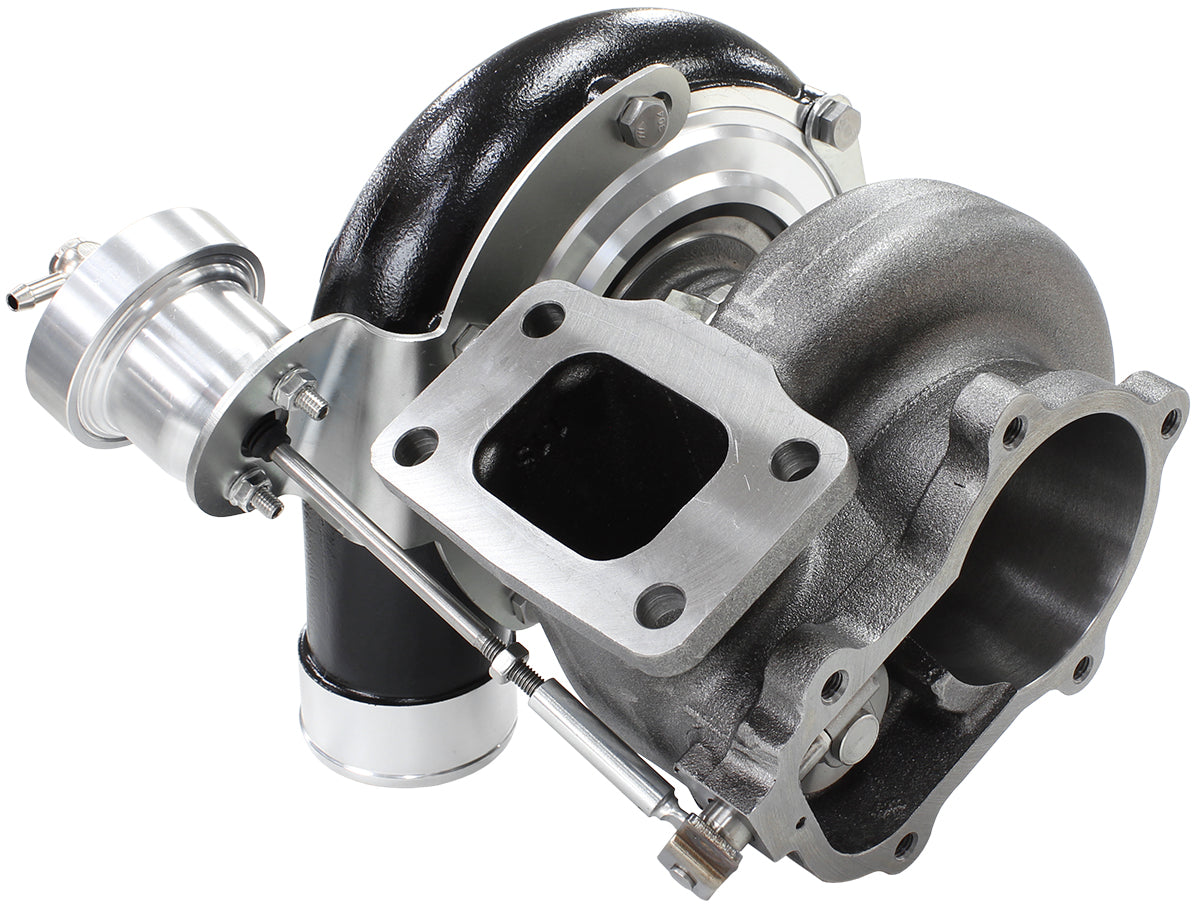

BOOSTED 6762 1.15 T3 XR6 BA BF5 BOLT OUTLET GTX3584

SKU: AF8005-3018
Original price $1,550.00 - Original price $1,550.00
Original price $1,550.00
$1,550.00
$1,550.00 - $1,550.00
Current price $1,550.00
COLOUR: CAST
Description
BOOSTED 6762 XR6 Turbocharger Specifications

Recommended horsepower rating:  550-1000HP
Recommended engine displacement:  2.0L to 5.5L

- Dual ceramic ball bearing
- Point Milled 7075 billet compressor wheel
- Ported shroud compressor cover
- Speed sensor port included in compressor cover (Speed sensor sold separately, AF8050-1010)
- SiMo-nodular cast iron rear housing
- Standard 5-Bolt XR6 turbine outlet flange
- T3 single entry turbine inlet flange
- M14 x 1.5mm coolant port thread
- 7/16"-24 oil feed fitting with in-built restrictor (Warranty VOID if not used)
- 38mm bolt centre turbo drain flange with M8 x 1.25mm thread size
- Suits both Ford XR6 BA/BF and FG. Turbo housing will be supplied in BA/BF configuration
- Billet Internal wastegate actuator with 9psi spring (different rate springs sold separately)
- Internal wastegate hole size is 32mm
- New boost reference port is required for this turbocharger. Install boost reference port into front compressor cover or intercooler piping to suit the OEM boost controller

Compressor Specifications
Inducer:  67mm
Exducer:  84mm
Extended Tip:  87.5mm
A/R:  0.72
Compressor Inlet:  4" Slip fit
Compressor Outlet:  2.5" Slip fit

Turbine Specifications
Inducer:  68mm
Exducer:  62.3mm
A/R:  1.15
Turbine Inlet Flange:  T3
Turbine Outlet Flange:  BA-BF XR6 5-Bolt

Wastegate
Internal wastegate featuring 32mm port and 9psi actuator
Product Specifications
BrandAeroflow
Product typeCar accessories
