Recommended horsepower rating: Â 450-900HP Recommended engine displacement: Â 2.0L to 4.5L
- Dual ceramic ball bearing - Point Milled 7075 billet compressor wheel - Ported shroud compressor cover - Speed sensor port included in compressor cover (Speed sensor sold separately, AF8050-1010) - External wastegate sold separately - Inlet flange gasket, turbo drain gasket and -4AN turbo oil feed fitting with restrictor included in turbo kit. (Warranty VOID if not used) - T3 single entry turbine inlet flange - SiMo-nodular cast iron rear housing - V-Band turbine outlet flange - M14 x 1.5mm coolant port thread - 7/16"-24 oil feed fitting with in-built restrictor - 38mm bolt centre turbo drain flange with M8 x 1.25mm thread size

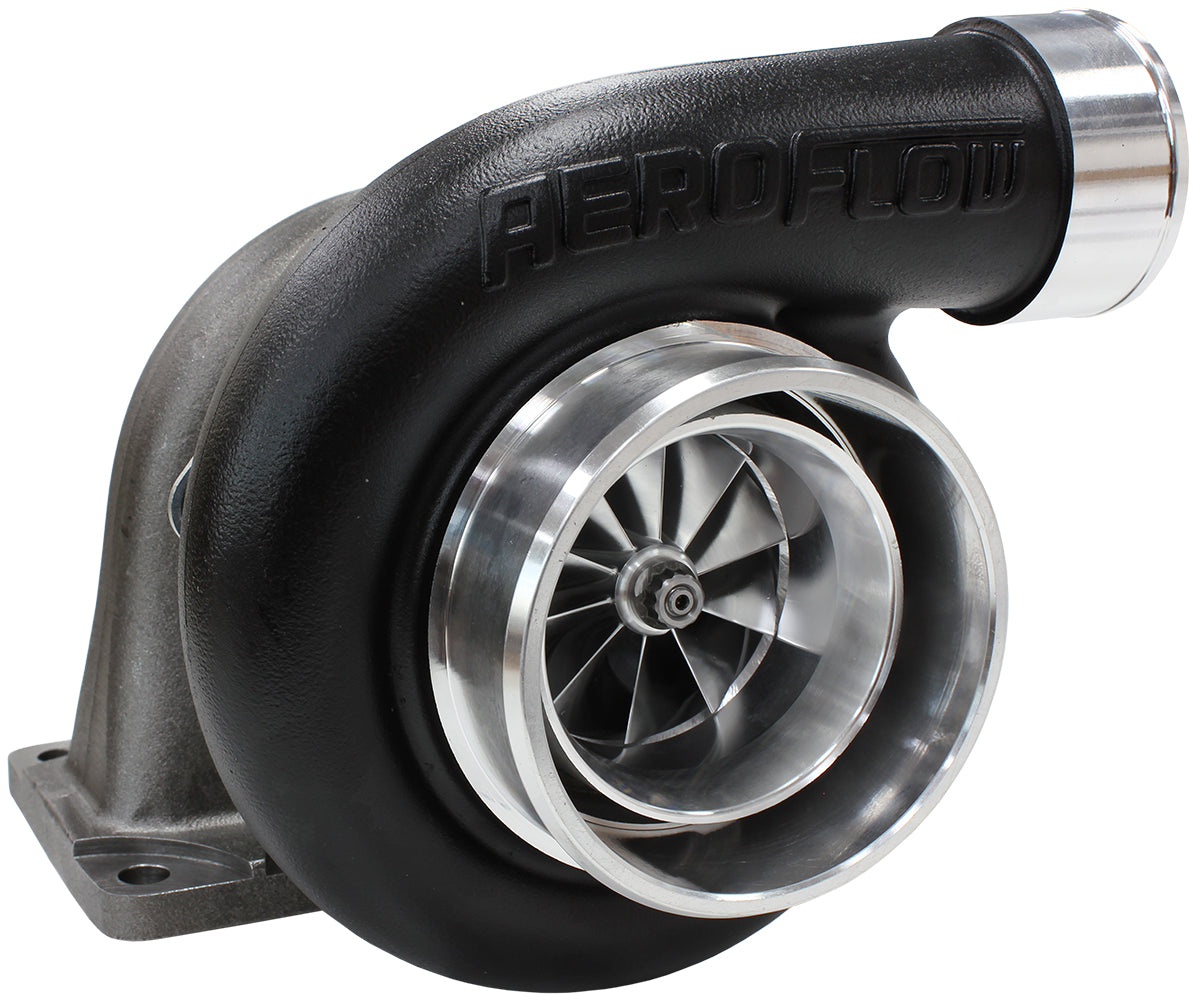

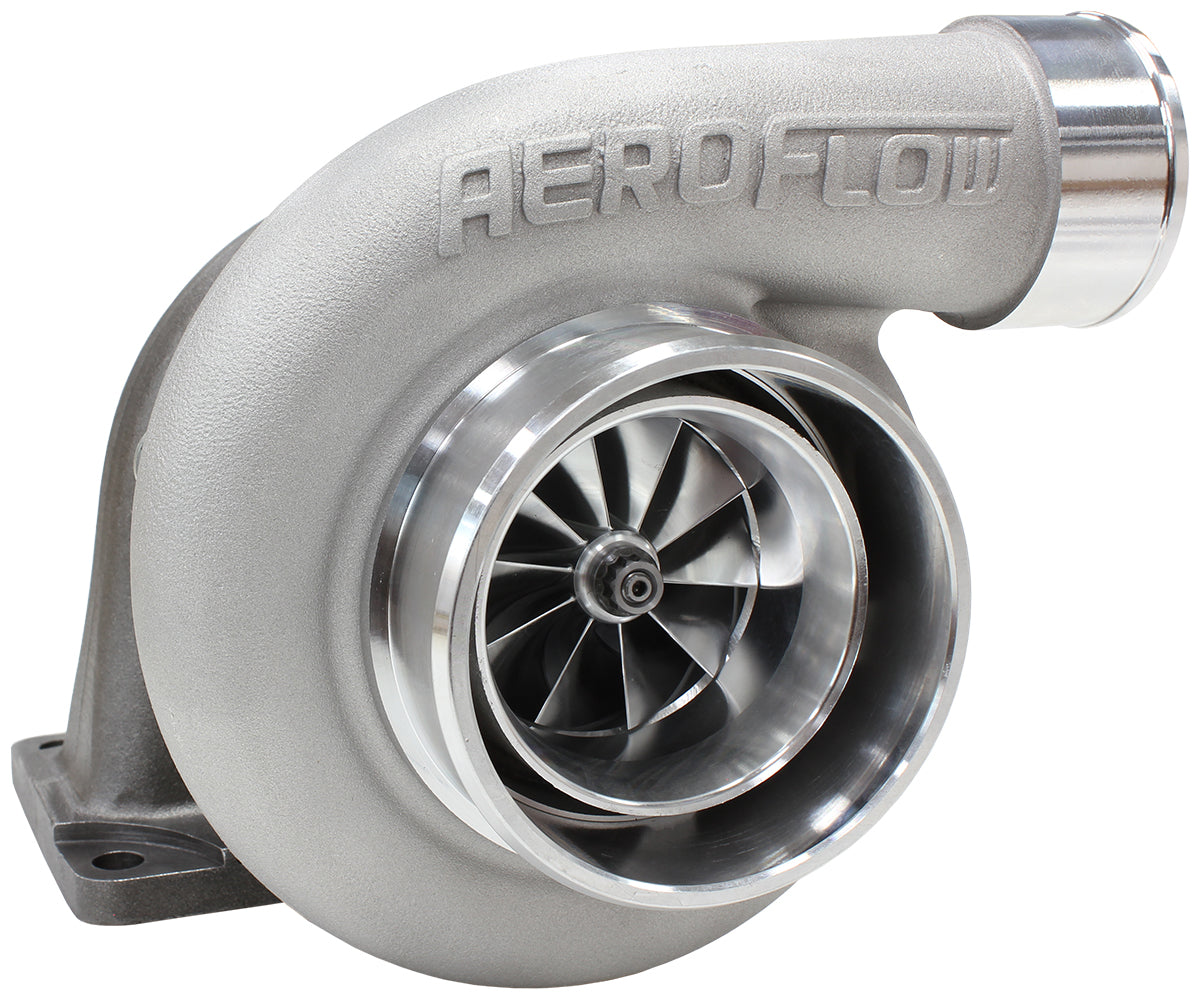

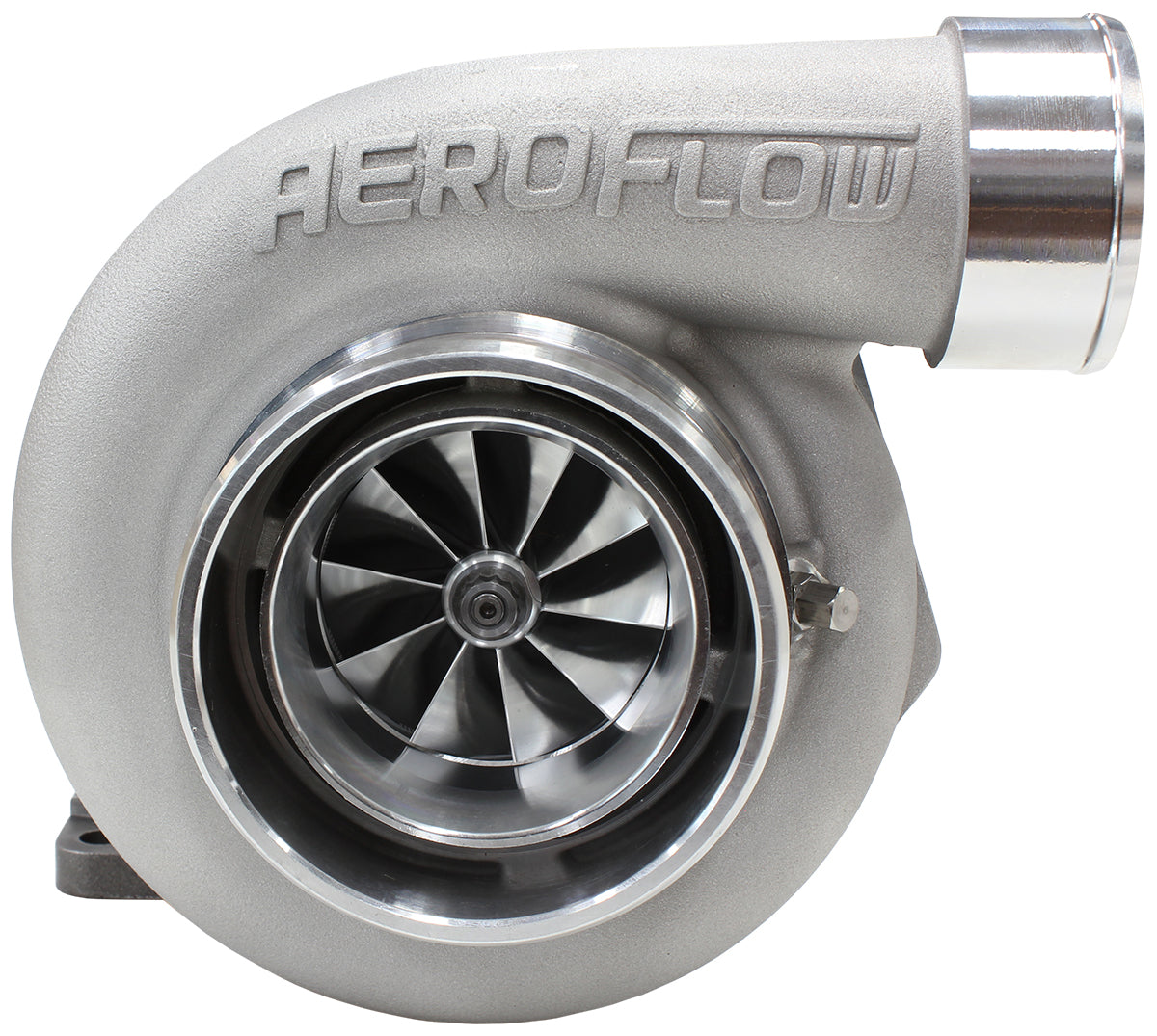

Compressor Specifications Inducer: Â 66mm Exducer: Â 82mm Extended Tip: Â 87.5mm A/R: Â 0.72 Compressor Inlet: Â 4" Slip fit Compressor Outlet: Â 2.5" Slip fit

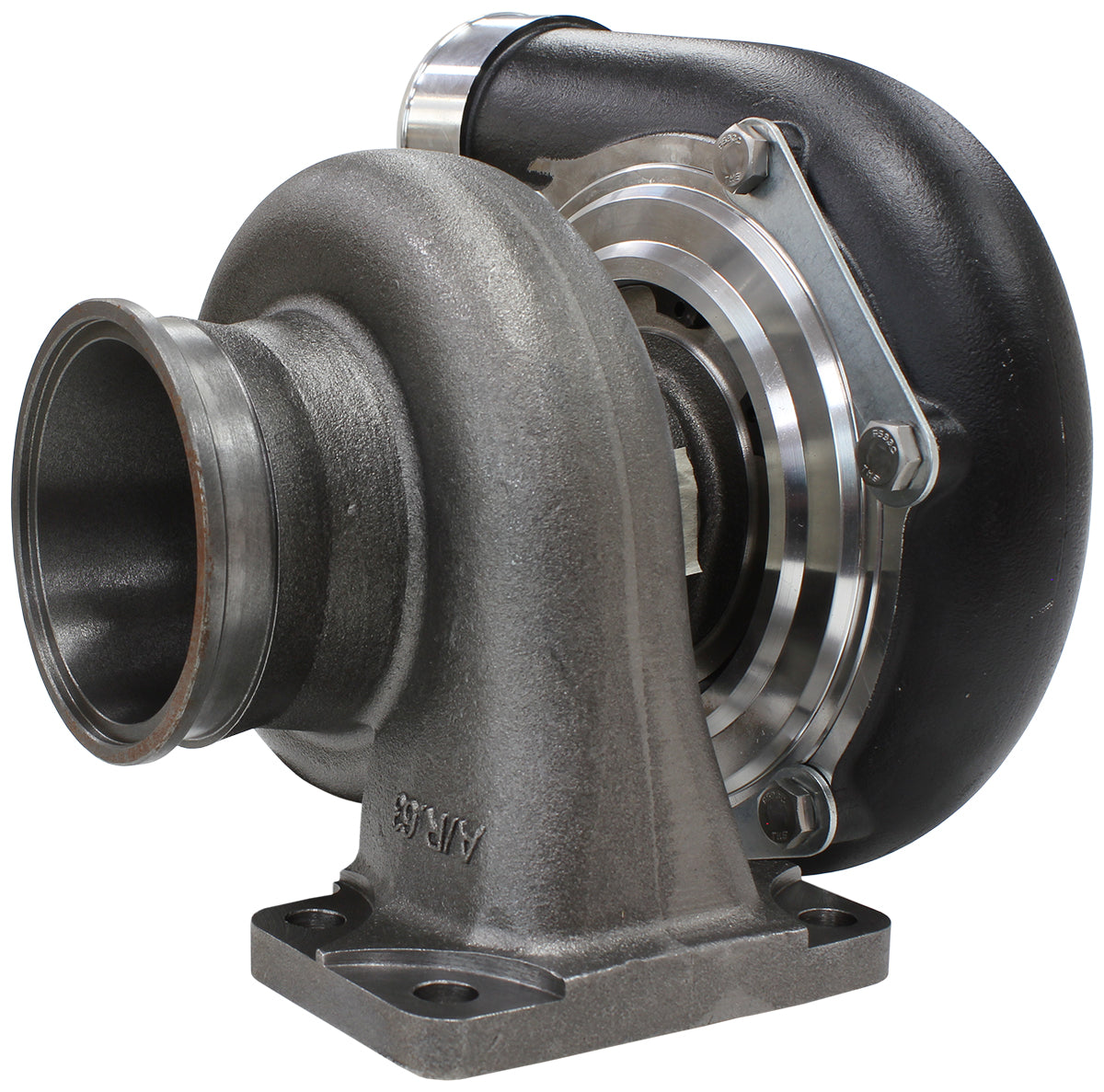

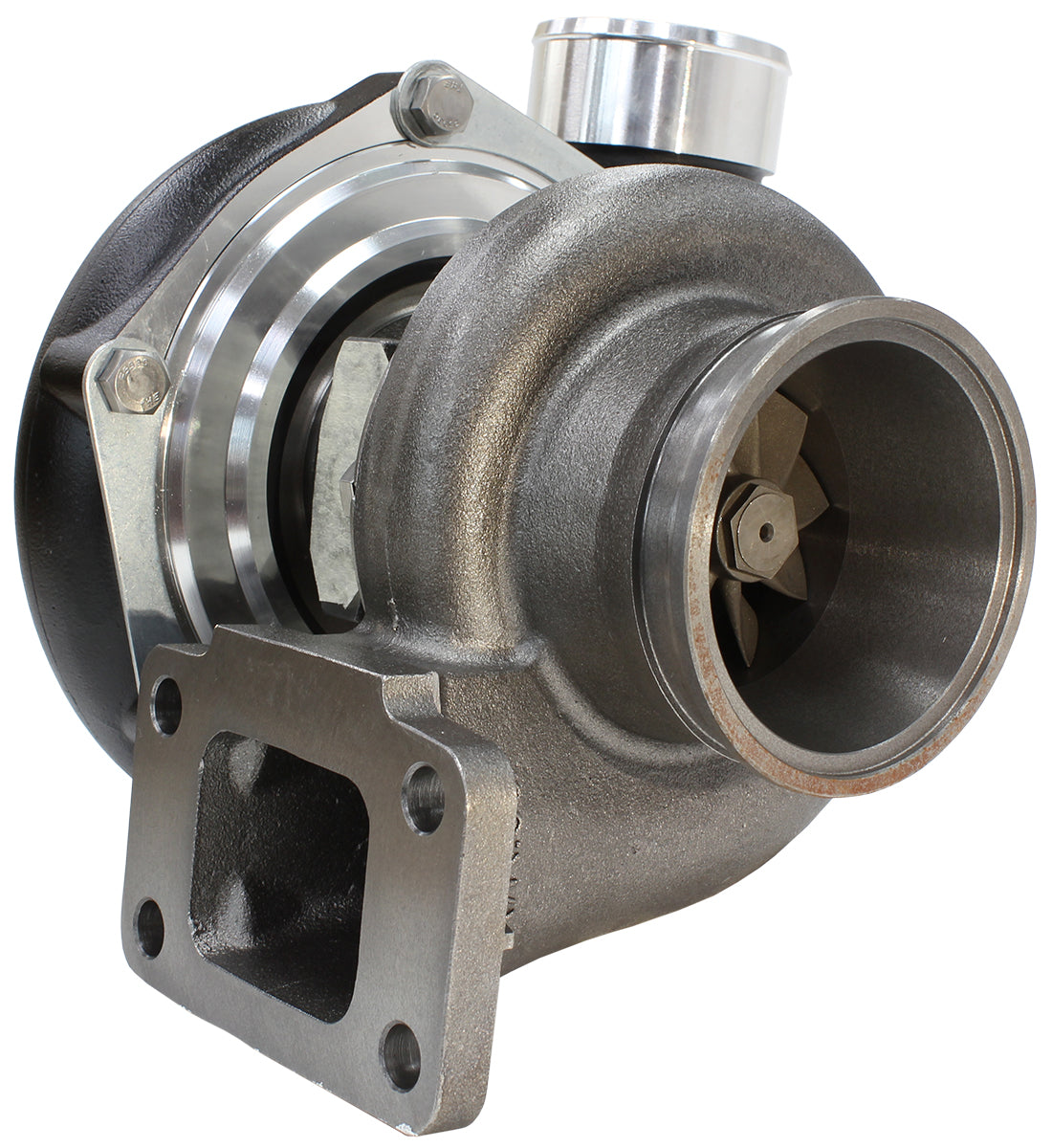

Turbine Specifications Inducer: Â 68mm Exducer: Â 62.3mm A/R: Â 0.63 Turbine Inlet Flange: Â T3 Turbine Outlet Flange: Â V-Band (AF8080-1000)
Wastegate External wastegate
