Recommended horsepower rating: Â 400-750HP Recommended engine displacement: Â 2.5L to 4.5L

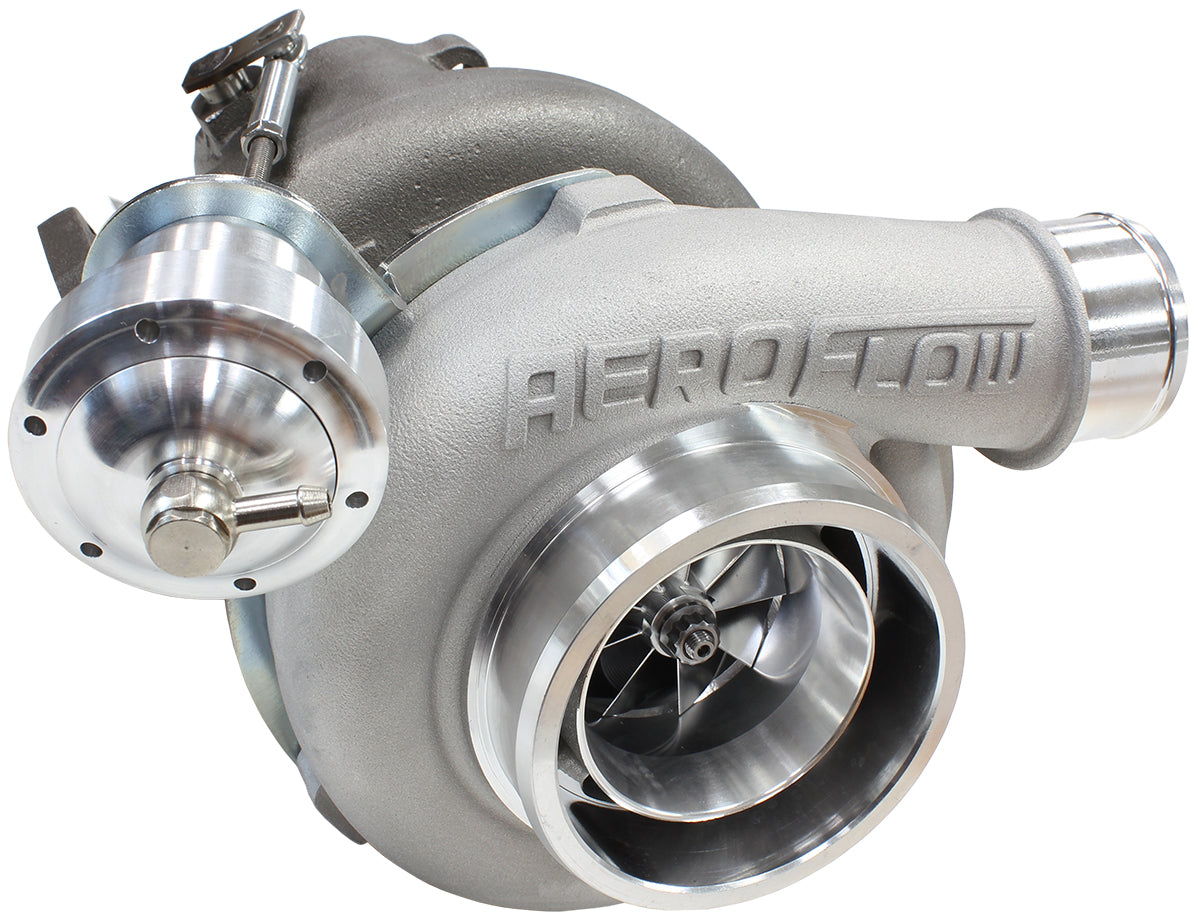

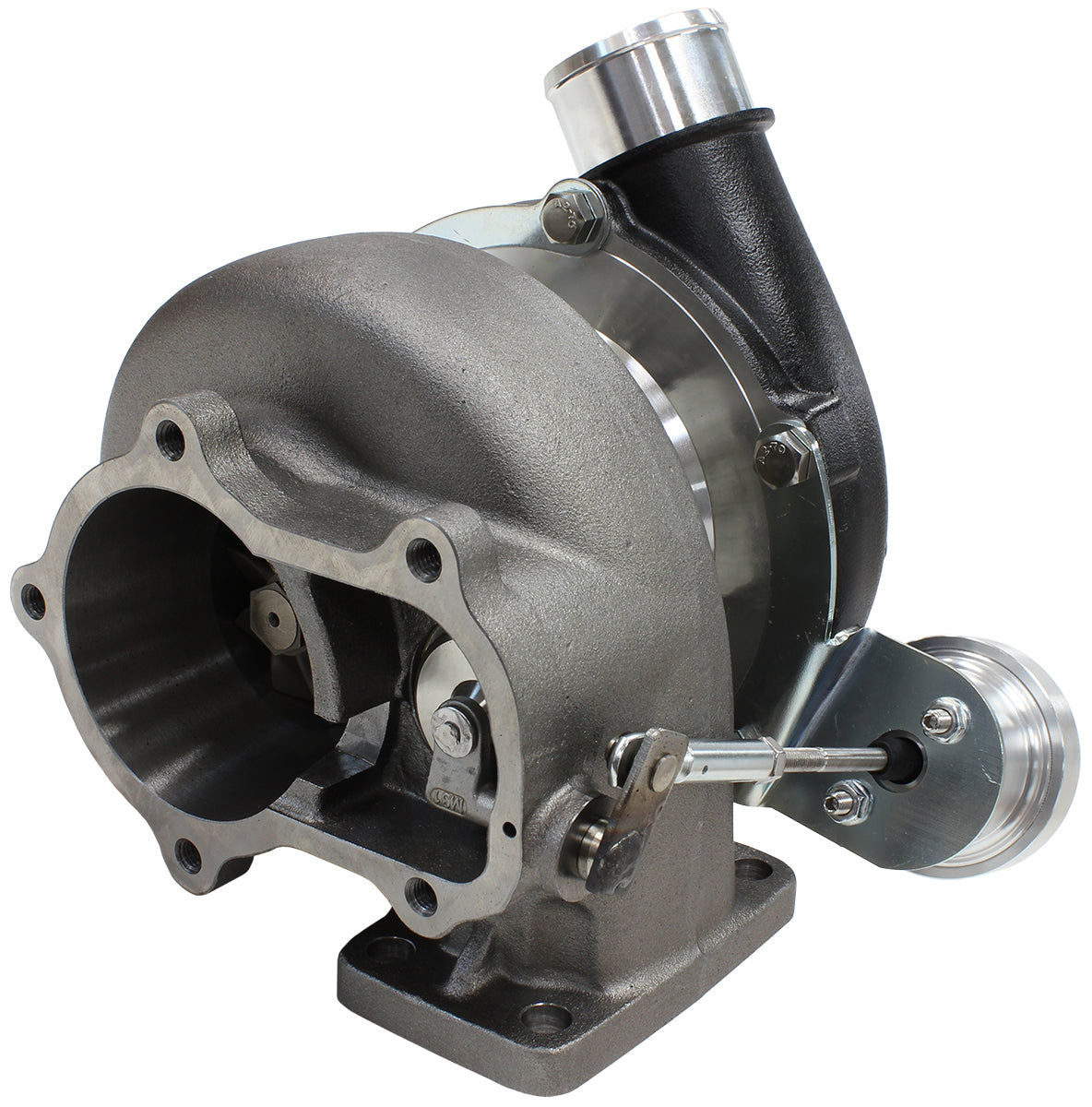

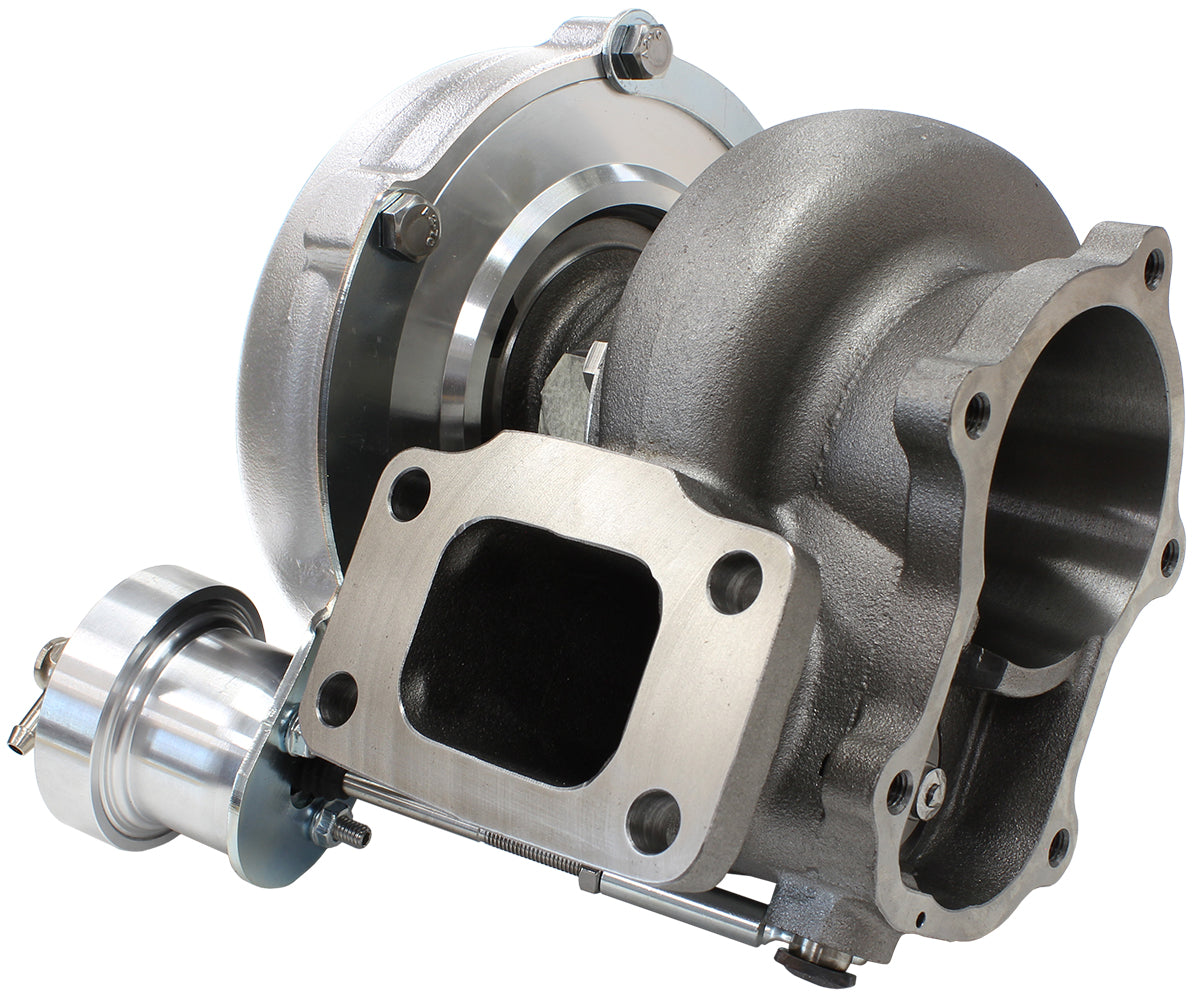

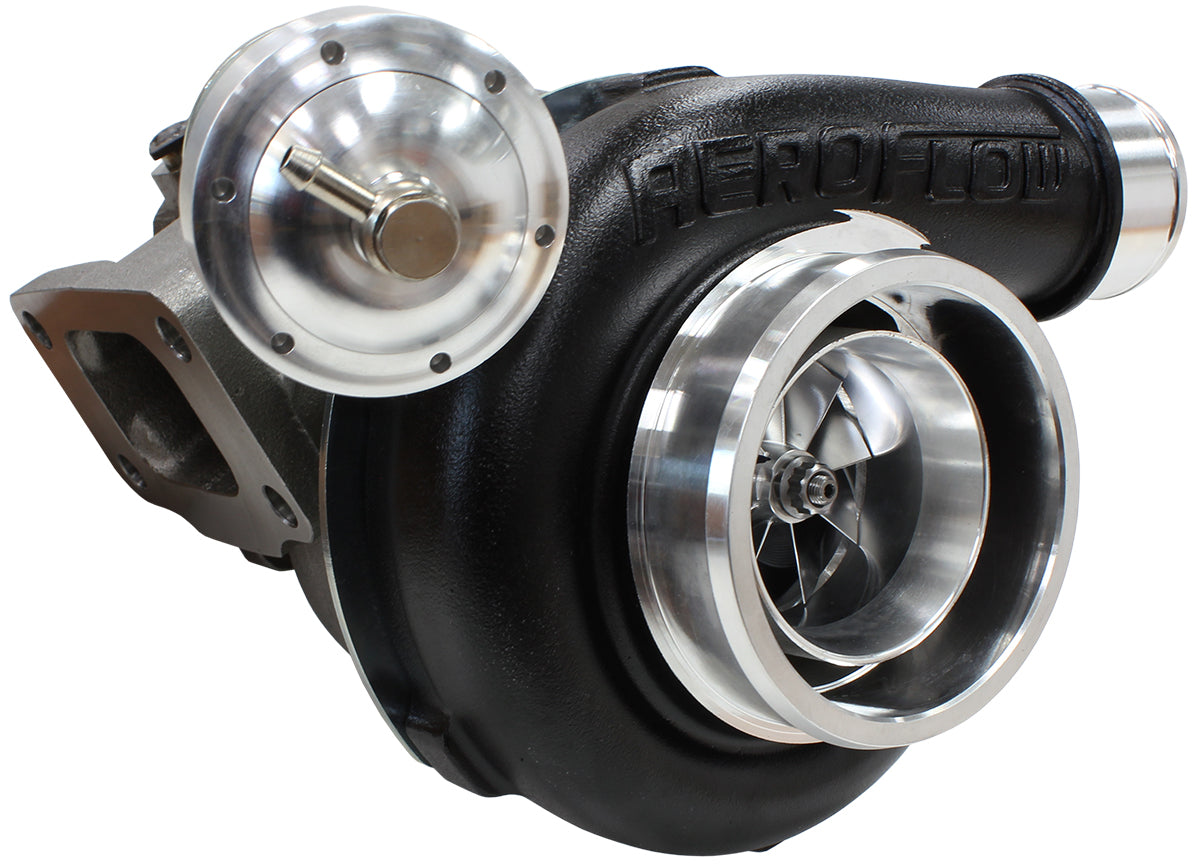

- Dual ceramic ball bearing - Point Milled 7075 billet compressor wheel - Ported shroud compressor cover - Speed sensor port included in compressor cover (Speed sensor sold separately, AF8050-1010) - SiMo-nodular cast iron rear housing - Standard 5-Bolt XR6 turbine outlet flange - T3 single entry turbine inlet flange - M14 x 1.5mm coolant port thread - 7/16"-24 oil feed fitting with in-built restrictor (Warranty VOID if not used) - 38mm bolt centre turbo drain flange with M8 x 1.25mm thread size - Suits both Ford XR6 BA/BF and FG. Turbo housing will be supplied in FG configuration - Billet Internal wastegate actuator with 9psi spring (different rate springs sold separately) - Internal wastegate hole size is 32mm - New boost reference port is required for this turbocharger. Install boost reference port into front compressor cover or intercooler piping to suit the OEM boost controller
Compressor Specifications Inducer: Â 58mm Exducer: Â 76.2mm Extended Tip: Â 80.42mm A/R: Â 0.60 Compressor Inlet: Â 4" Slip fit Compressor Outlet: Â 2" Slip fit
Turbine Specifications Inducer: Â 68mm Exducer: Â 62.3mm A/R: Â 1.06 Turbine Inlet Flange: Â T3 Turbine Outlet Flange: Â XR6 5-Bolt
Wastegate Internal wastegate featuring 32mm port and 9psi actuator
