Aeroflow
SKU:AF8005-2022

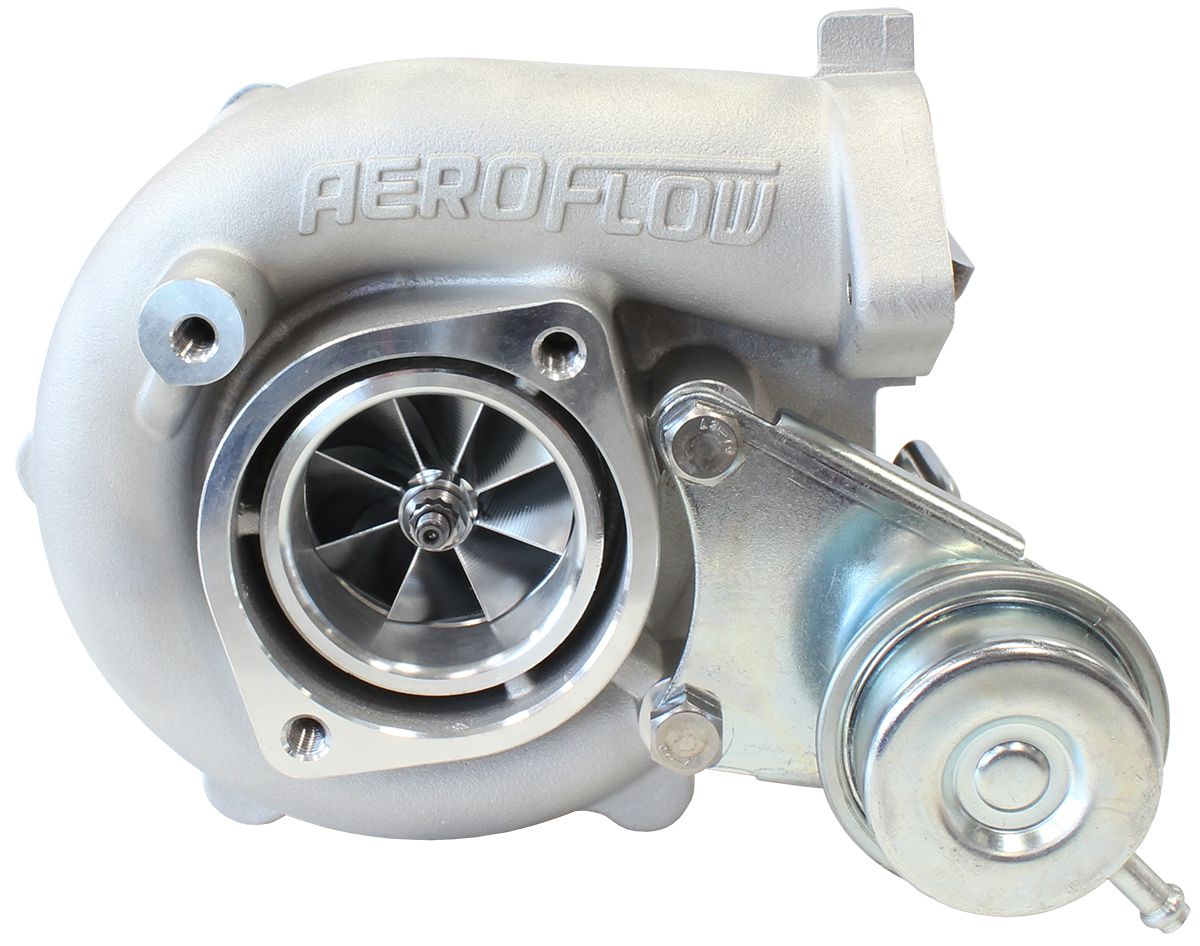

BOOSTED 5047 .64 NISSAN S15 T28 5 BOLT OUTLET GTX2867
BOOSTED 5047 .64 NISSAN S15 T28 5 BOLT OUTLET GTX2867
Regular price
$1,422.38NZD
Regular price
$1,422.38NZD
Sale price
$1,422.38NZD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Share
BOOSTED 5047 NISSAN Turbocharger Specifications
Recommended horsepower rating: Â 275-550HP
Recommended engine displacement: Â 1.4L to 2.5L
- Dual ceramic ball bearing
- Point Milled 7075 billet compressor wheel
- Nissan S14 / S15 2-Bolt compressor cover inlet
- Nissan S14 / S15 3-Bolt compressor cover outlet
- T25 / T28 single entry turbine inlet flange
- Aftermarket oil feed line & turbo line restrictor must be used with this turbo
- Will suit standard coolant lines or M14 x 1.5mm coolant fittings sold separately
- Will suit standard turbo drain or turbo drain adapter (Sold separately, AF463-01 or AF463-05)
- 5-Bolt Nissan turbine outlet flange (M8 x 1.25mm thread size)
- SiMo-nodular cast iron rear housing
- M14 x 1.5mm coolant fitting port thread
- 7/16"-24 oil feed fitting with in-built restrictor MUST BE USED
- 38mm bolt centre turbo drain plate with M8 x 1.25mm thread size
- Internal wastegate with 8.7psi spring
Compressor Specifications
Inducer:Â 50mm
Exducer:Â 67mm
Extended Tip: Â 69.64mm
A/R: Â 0.60
Compressor Inlet: Â Nissan S14 / S15 2-Bolt
Compressor Outlet: Â Nissan S14 / S15 3-Bolt
Turbine Specifications
Inducer: Â 53.9mm
Exducer: Â 47mm
A/R: Â 0.64
Turbine Inlet Flange: Â T25 / T28
Turbine Outlet Flange: Â 5-Bolt
Wastegate
Internal wastegate with 8.7psi actuatorÂ
Recommended horsepower rating: Â 275-550HP
Recommended engine displacement: Â 1.4L to 2.5L
- Dual ceramic ball bearing
- Point Milled 7075 billet compressor wheel
- Nissan S14 / S15 2-Bolt compressor cover inlet
- Nissan S14 / S15 3-Bolt compressor cover outlet
- T25 / T28 single entry turbine inlet flange
- Aftermarket oil feed line & turbo line restrictor must be used with this turbo
- Will suit standard coolant lines or M14 x 1.5mm coolant fittings sold separately
- Will suit standard turbo drain or turbo drain adapter (Sold separately, AF463-01 or AF463-05)
- 5-Bolt Nissan turbine outlet flange (M8 x 1.25mm thread size)
- SiMo-nodular cast iron rear housing
- M14 x 1.5mm coolant fitting port thread
- 7/16"-24 oil feed fitting with in-built restrictor MUST BE USED
- 38mm bolt centre turbo drain plate with M8 x 1.25mm thread size
- Internal wastegate with 8.7psi spring
Compressor Specifications
Inducer:Â 50mm
Exducer:Â 67mm
Extended Tip: Â 69.64mm
A/R: Â 0.60
Compressor Inlet: Â Nissan S14 / S15 2-Bolt
Compressor Outlet: Â Nissan S14 / S15 3-Bolt
Turbine Specifications
Inducer: Â 53.9mm
Exducer: Â 47mm
A/R: Â 0.64
Turbine Inlet Flange: Â T25 / T28
Turbine Outlet Flange: Â 5-Bolt
Wastegate
Internal wastegate with 8.7psi actuatorÂ
Note: We strive to maintain a wide range of products in stock. However, some items may be ordered on demand, resulting in a lead time. If your order is urgent, please contact Speedspec in advance. sales@speedspec.co.nz
