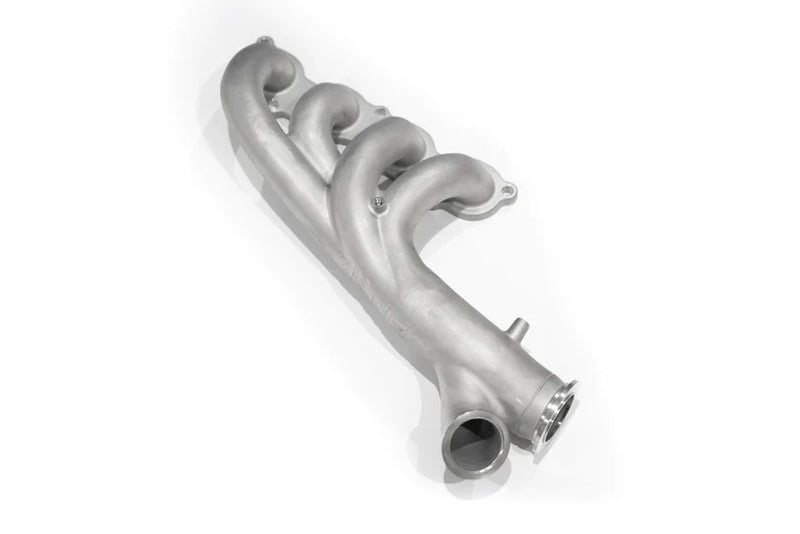

ARTEC PERFORMANCE HONDA K SERIES SIDEWINDER V-BAND EXHAUST MANIFOLD

ARTEC Performance Honda K Series Sidewinder V-Band Exhaust Manifold

Turbo design: Turbo inlet kept square to the engine, not facing the center line
Boost control: Aimed for best-in-class control without requiring a massive wastegate
Manifold machined to accommodate 44/45/46mm wastegate range
Option to cut the flange and use a 50mm wastegate
Internal sizing and flow surpass a 50mm wastegate unit
Industry-first feature: 4" downpipe with clearance for LHD brake master cylinders and booster
Enables wastegate plumb back and provision for wideband screw-in
Turbo system support: Mount near the turbo flange for additional brace to support weight
Material: SUS347 Stainless Steel Investment Cast Construction
Dump and manifold provisions:
Option to run a brace to alleviate weight on V-Band flange
Dump specifics: Machined for 3.5" V-Band flange
Facilitates easy fabrication of a full 3.5" exhaust or 3" system
Innovative V-Band mounting system:
Manifold includes a 50-55mm V-Band mounting system
Allows for turbos ranging from G25 to 6870
Future release of a weld-on piece to support 70mm V-Band flanges
Enables use of larger turbos such as Garrett G40, G42, G45, and Precision 6870 to 8685
