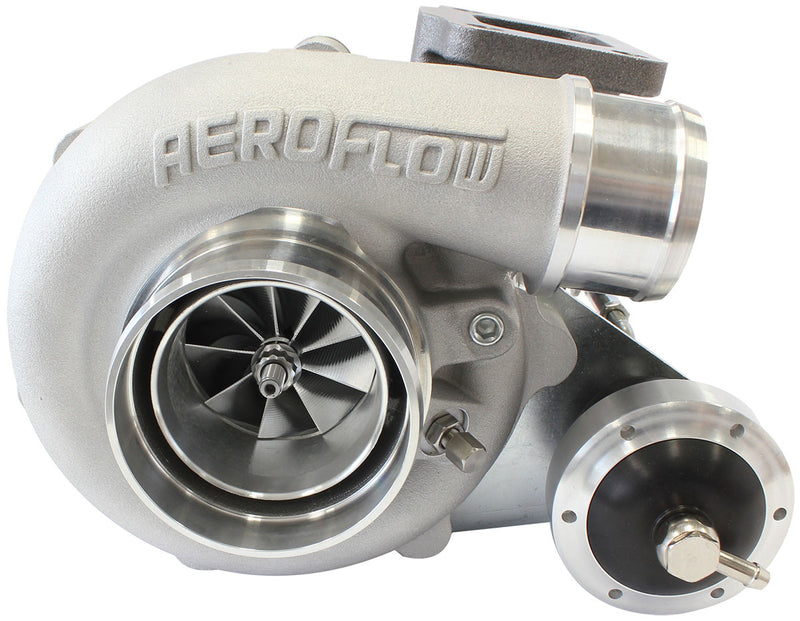

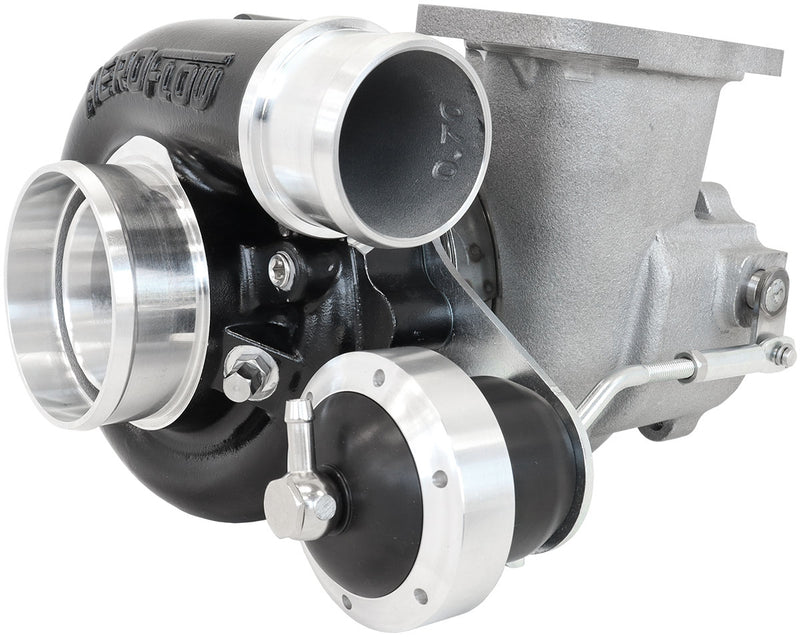

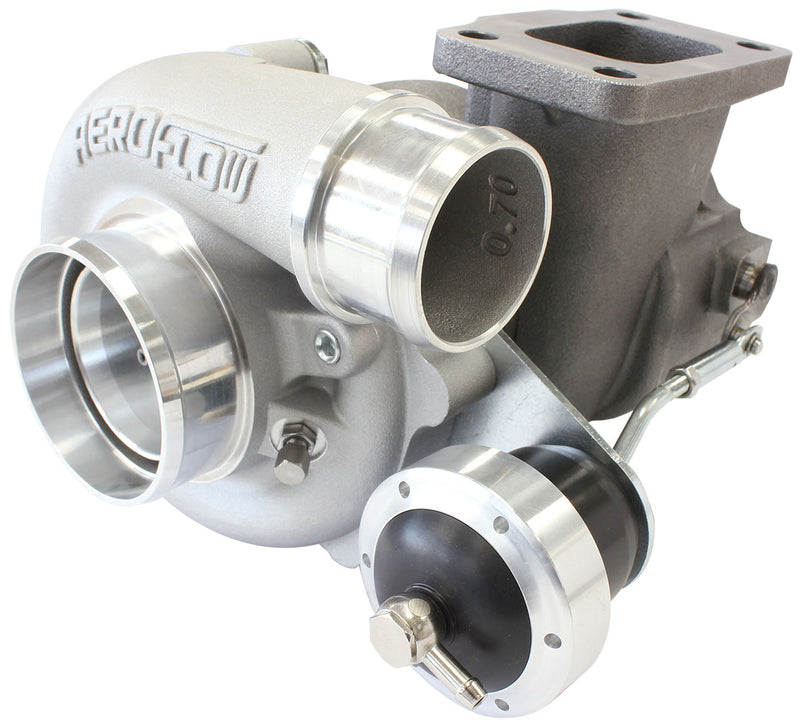

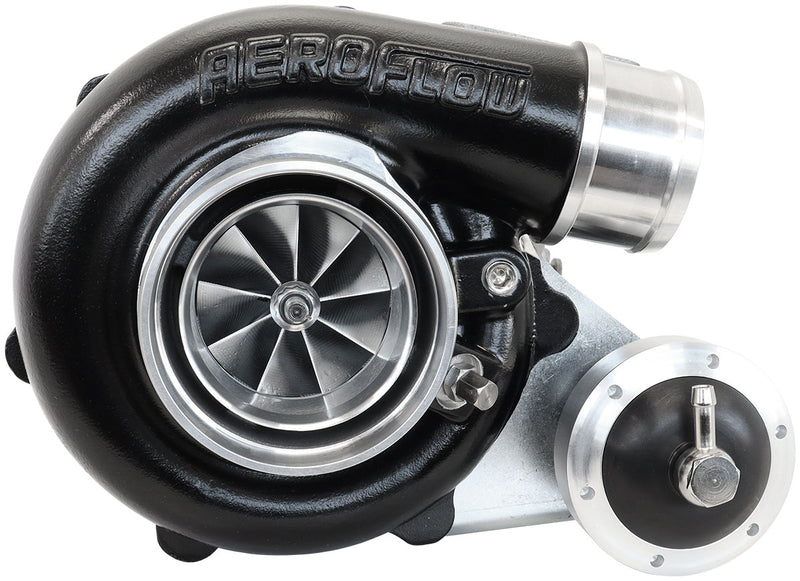

BOOSTED B5455 T3 INTERNAL WASTEGATE TURBOCHARGER SPECIFICATIONS - RB25 UPGRADE
SKU AF8005-3076BLK
Original price
$1,750.00
-
Original price
$1,750.00
Original price
$1,750.00
$1,750.00
$1,750.00
-
$1,750.00
Current price
$1,750.00
Availability:
Available from supplier allow 2–10 days to ship
Availability:
Available from supplier allow 2–10 days to ship
BOOSTED B5455 T3 Internal Wastegate Turbocharger Specifications
Recommended horsepower rating: Â 350-660HP
Recommended engine displacement: Â 1.4L to 3.0L
- Dual ceramic ball bearing
- Point Milled 7075 billet compressor wheel
- Ported shroud compressor cover
- Speed sensor port included in compressor cover (Speed sensor sold separately, AF8050-1010)
- 1/8" NPT boost reference port
- External wastegate sold separately
- Inlet flange gasket, turbo drain gasket and -4AN turbo oil feed fitting with restrictor included in turbo kit. (Warranty VOID if not used)
- T3 single entry turbine inlet flange
- 9 blade turbine wheel
- SiMo-nodular cast iron rear housing
- 5-Bolt Ford XR6 turbine outlet flange
- 4 x M14 x 1.5mm coolant ports (Must install water lines on opposite sides of the core)
- 7/16"-24 oil feed fitting with in-built restrictor
- 38mm bolt centre turbo drain flange with M8 x 1.25mm thread size
- Billet Internal wastegate actuator with 9psi spring (different rate springs sold separately)

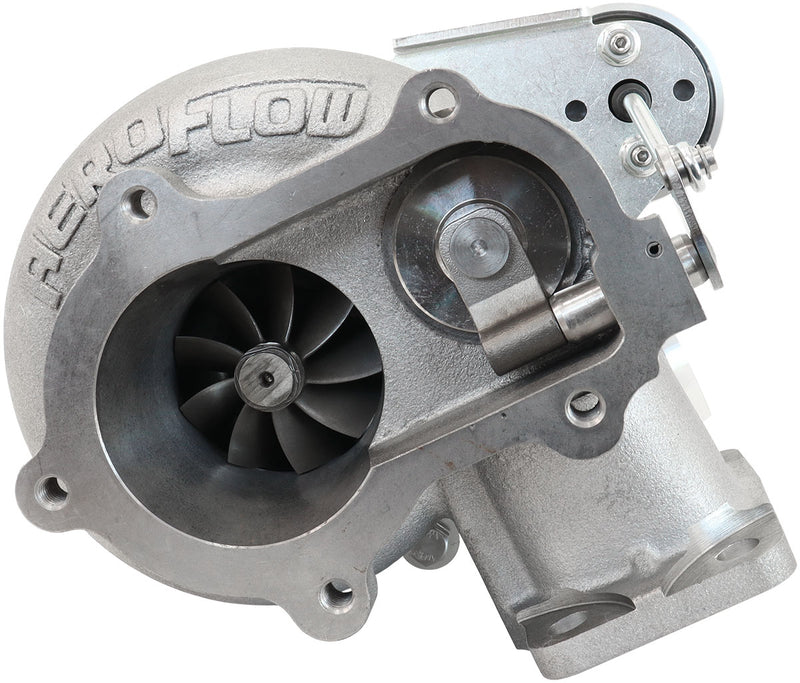

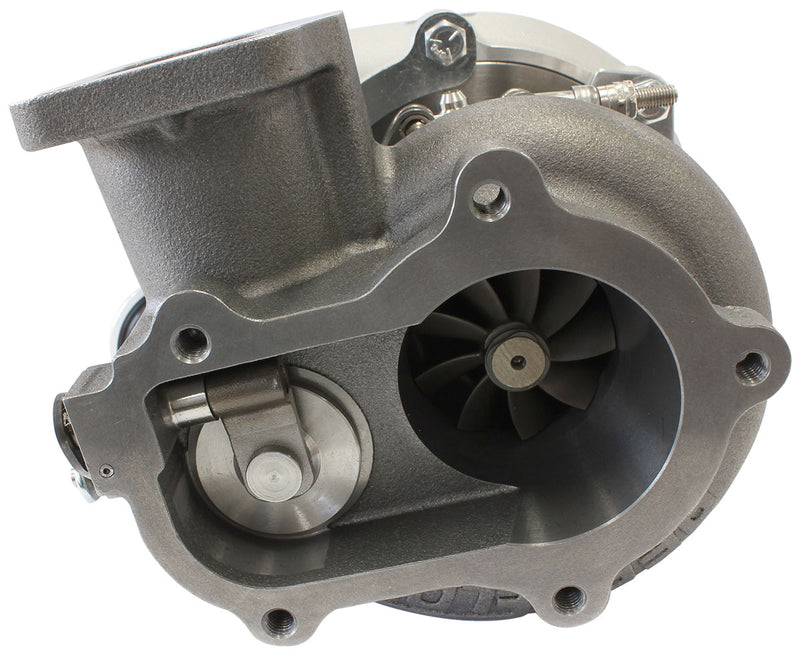

- Internal wastegate hole size is 32mm
Compressor Specifications
Inducer: Â 54.25mm
Exducer:Â 67.40mm
Extended Tip:Â 69.76mm
A/R: Â 0.70
Compressor Inlet: Â 3" Slip fit
Compressor Outlet: Â 2" Slip fit
Turbine Specifications
Inducer: Â 60mm
Exducer: Â 55mm
A/R:Â 0.82

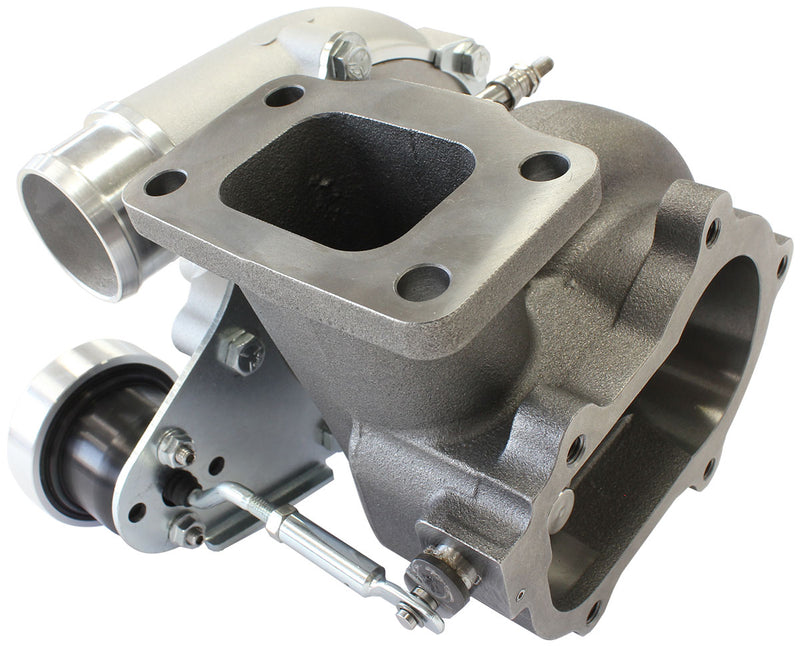

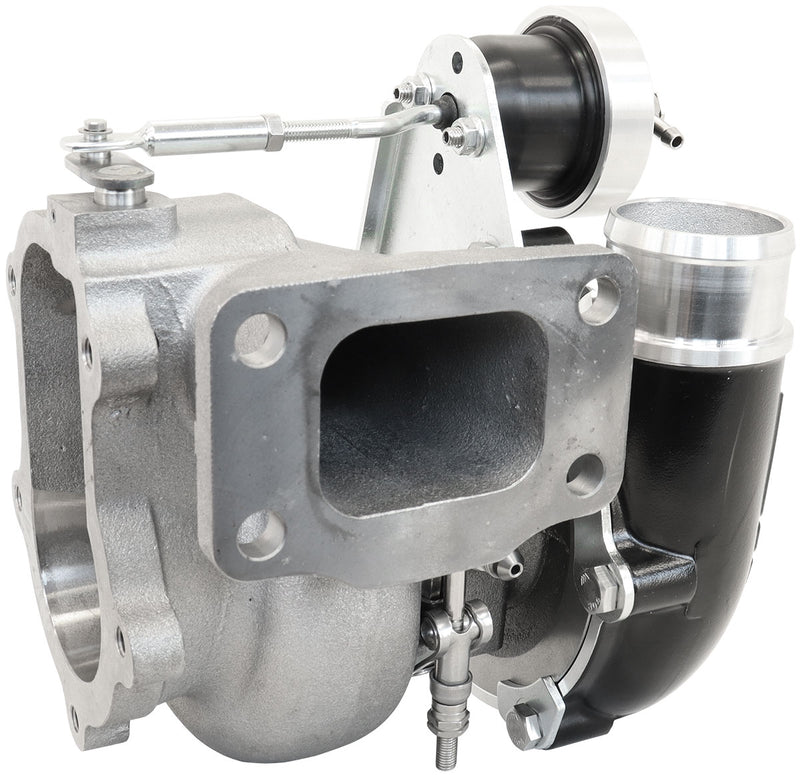

Turbine Inlet Flange: Â T3
Turbine Outlet Flange: Â BA-BF XR6 5-Bolt
Wastegate
Internal wastegate featuring 32mm port and 14psi actuator
