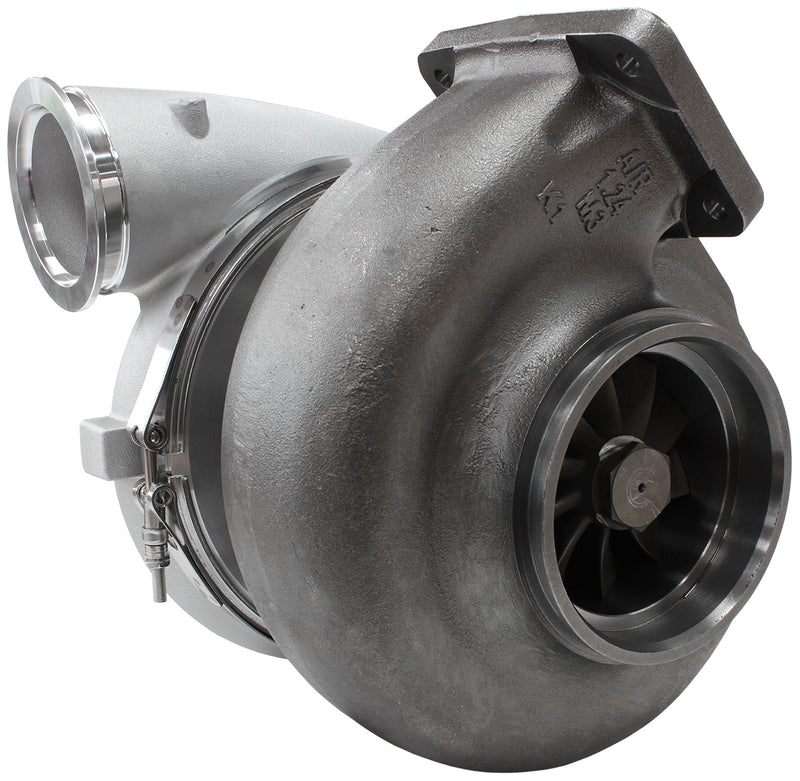

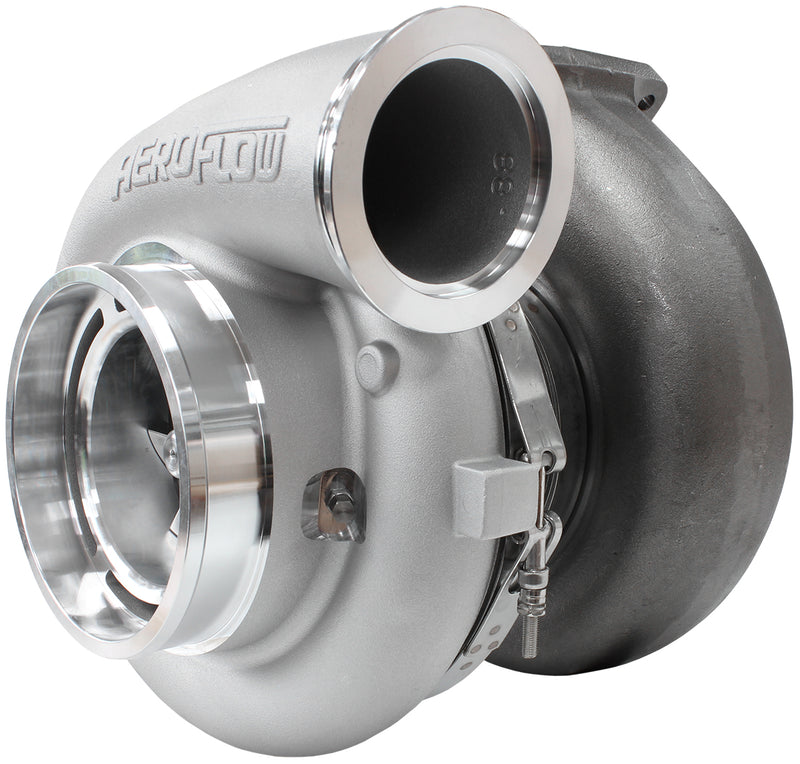

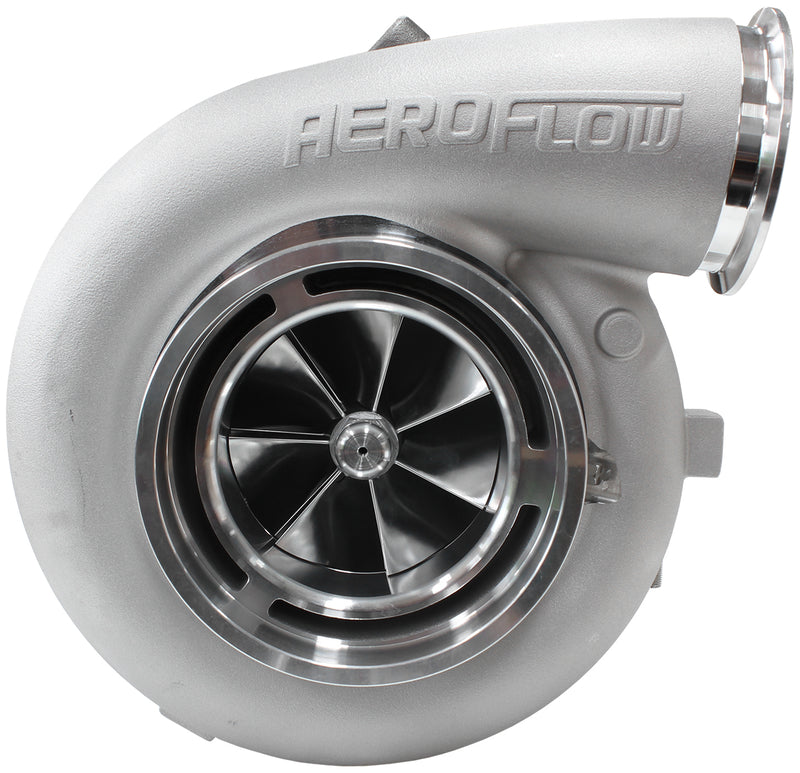

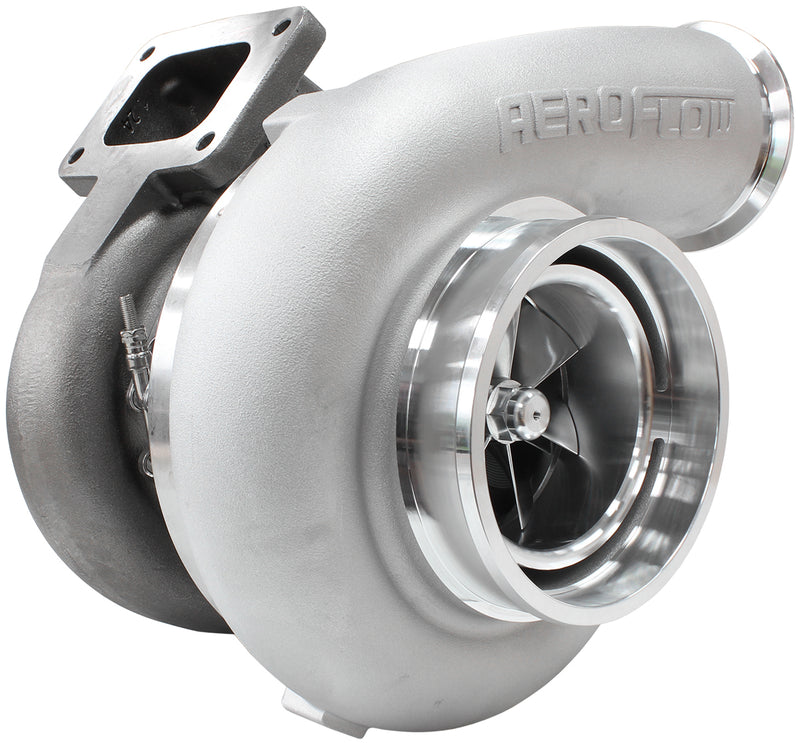

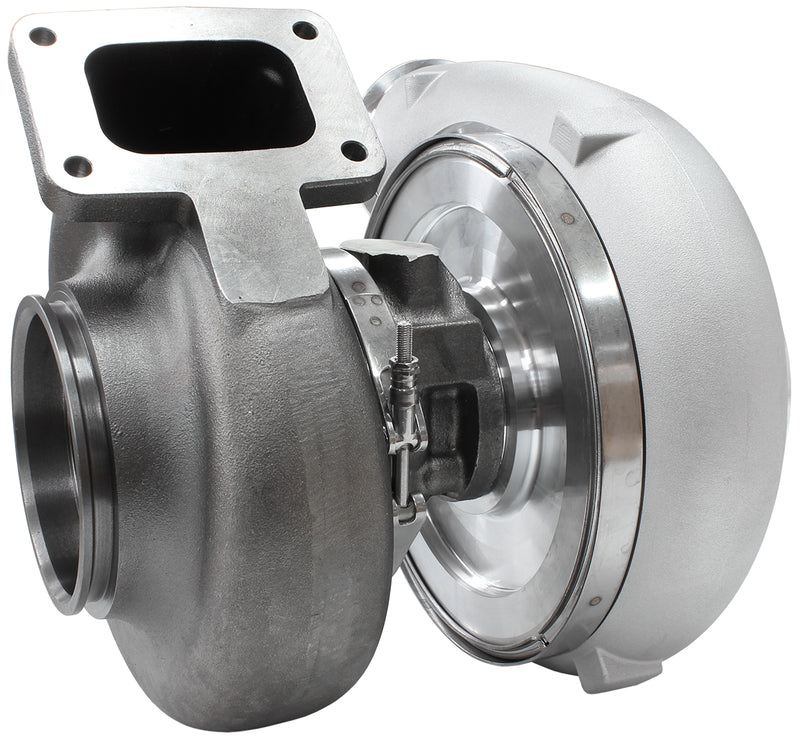

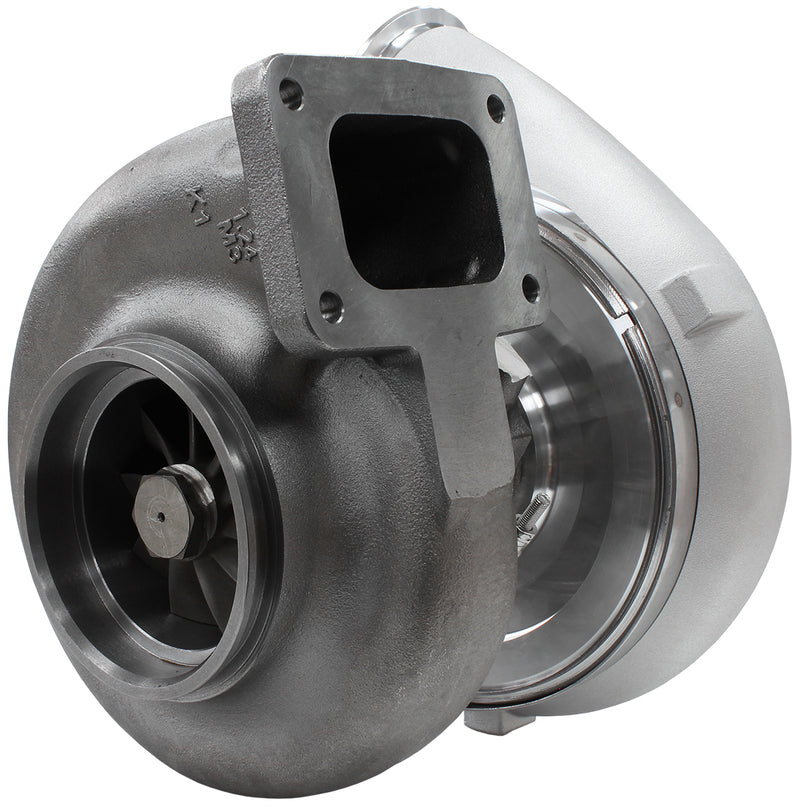

BOOSTED 106102 1.24 A/R T6 V-BAND OUTLET GTX5544
SKU AF8006-6013
Original price
$2,275.00
-
Original price
$2,275.00
Original price
$2,275.00
$2,275.00
$2,275.00
-
$2,275.00
Current price
$2,275.00
Availability:
Available from supplier allow 2–10 days to ship
BOOSTED 106102 T6 Turbocharger Specifications
Recommended horsepower rating:Â 1000-2500HP
Recommended engine displacement:Â 3.0L to 7.0L
- 360° journal bearing
- 7075 billet 7 + 7 compressor wheel
- Ported shroud compressor cover
- This is an oil cooled turbocharger
- Speed sensor port included in compressor cover (Speed sensor sold separately, AF8050-1010)
- External wastegate sold separately
- Inlet flange gasket and turbo drain gasket included in turbo kit
- Must use a -6AN oil feel line to maintain core temperature (Warranty VOID if not used)
- T6 single entry turbine inlet flange
- SiMo-nodular cast iron rear housing
- V-Band turbine outlet flange
- V-Band compressor outlet flange
- 1/4" NPT oil feed fitting (sold separately) or a 38mm 2-bolt oil feed plate with M8 x 1.25mm thread size
- 50.80mm bolt centre turbo drain flange with M8 x 1.25mm thread size
Compressor Specifications
Inducer:Â 106mm
Exducer:Â 144mm
Extended Tip:Â 148mm
A/R: Â 0.88
Compressor Inlet:Â 6" slip fit
Compressor Outlet: V-Band (AF8080-1007)
Turbine Specifications
Inducer:Â 112mm
Exducer:Â 102mm
A/R:Â 1.24
Turbine Inlet Flange: T6
Turbine Outlet Flange: Â V-Band (AF8080-1008)
Wastegate
External wastegate
