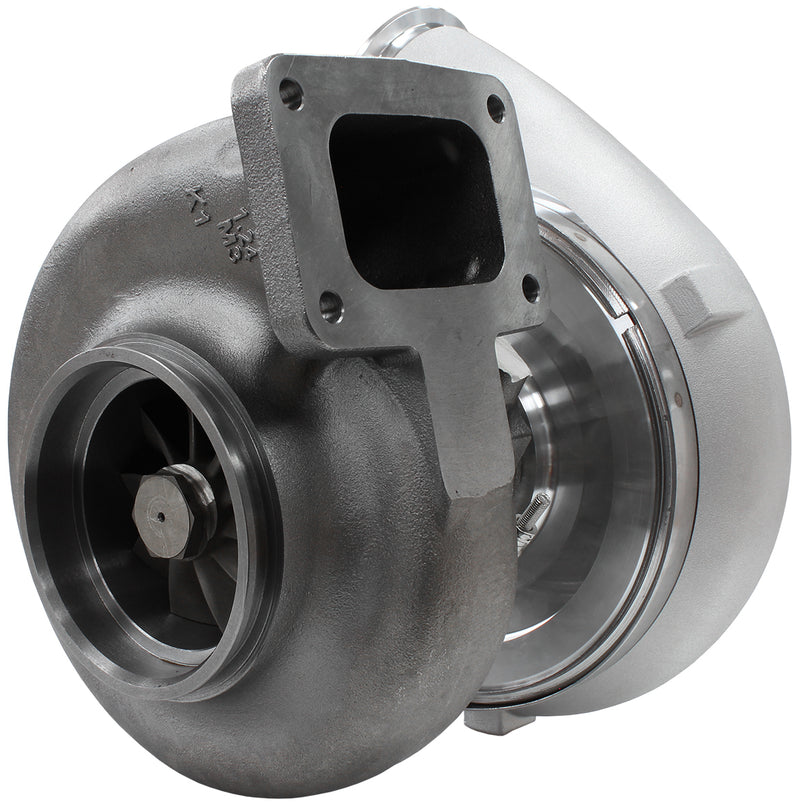

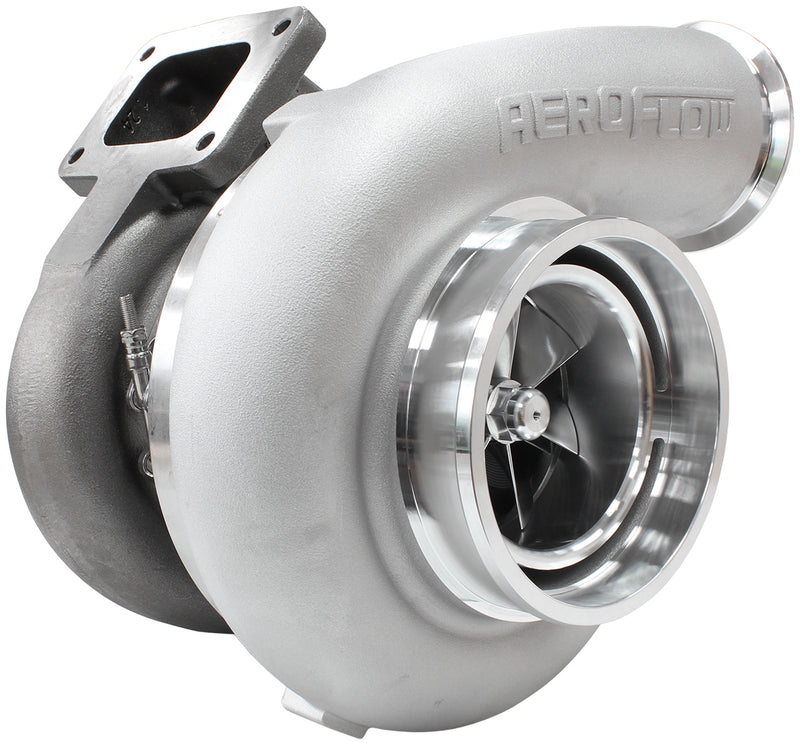

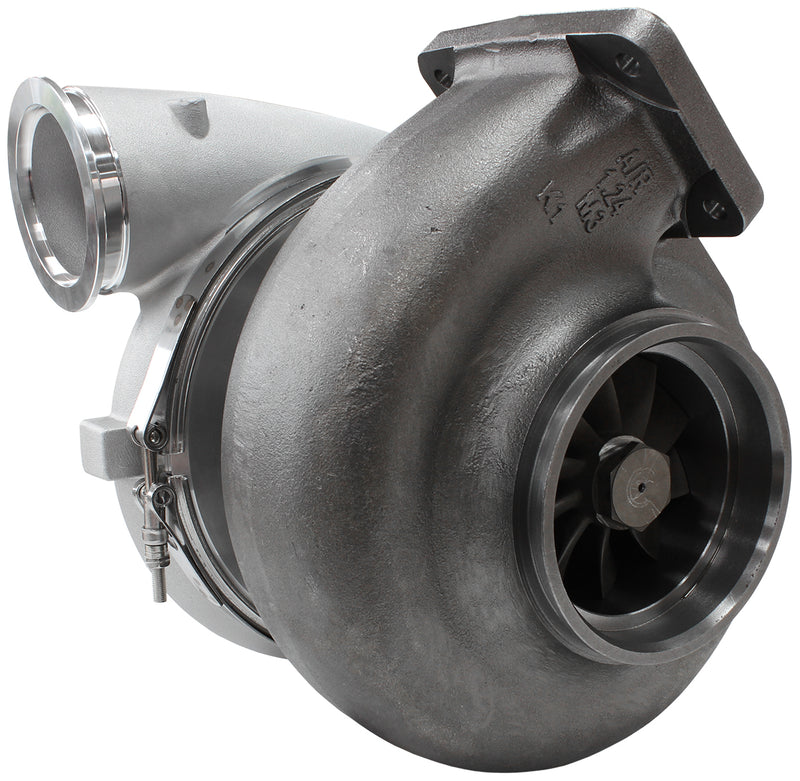

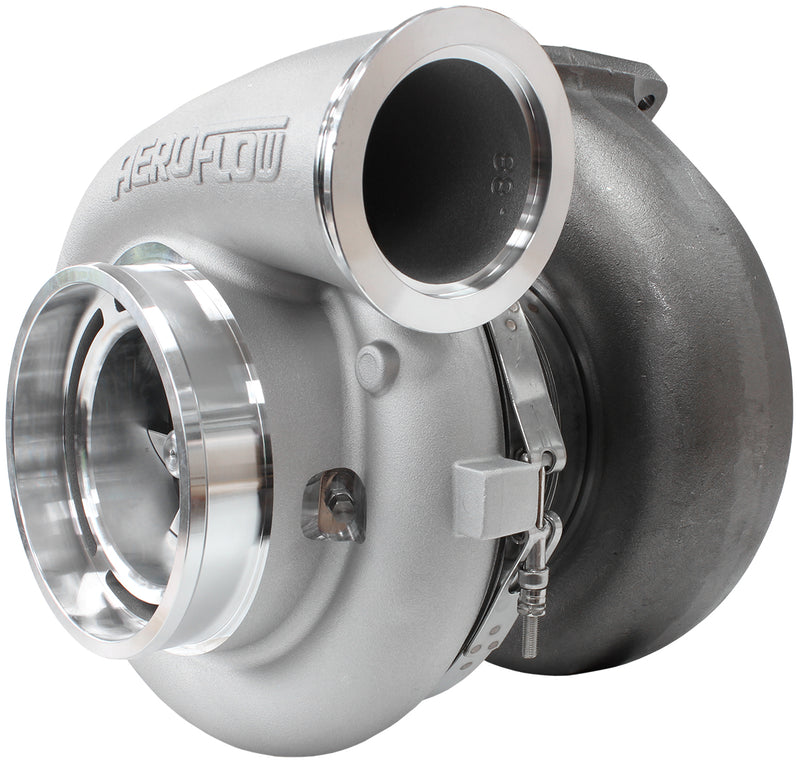

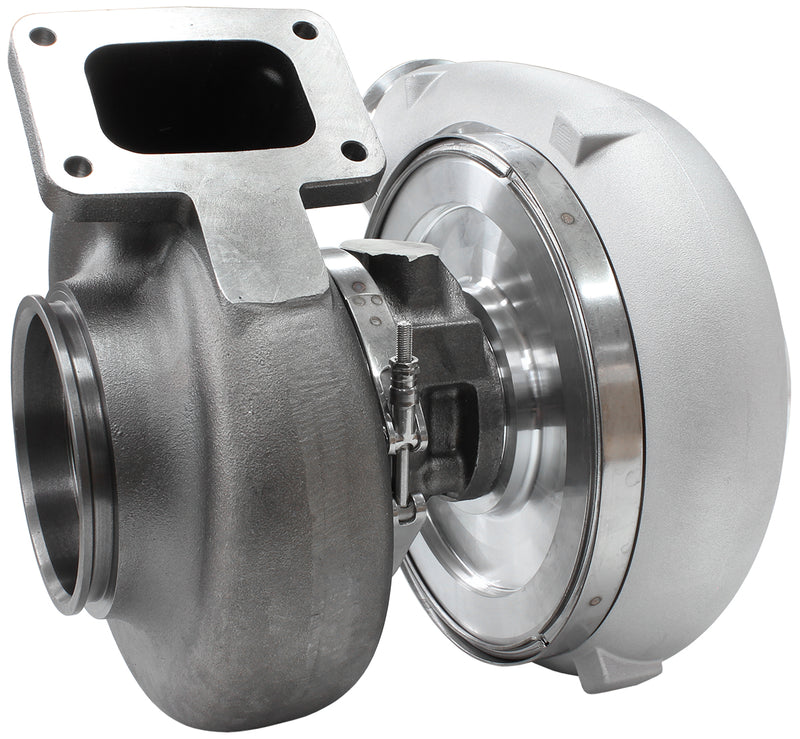

BOOSTED 98102 1.24 A/R T6 VBAND OUTLET GTX5533

BOOSTED 98102 T6 Turbocharger Specifications

Recommended horsepower rating: 1000-2500HP
Recommended engine displacement: 3.0L to 7.0L

- 360° journal bearing
- 7075 billet 7 + 7 compressor wheel
- Ported shroud compressor cover
- This is an oil cooled turbocharger
- Speed sensor port included in compressor cover (Speed sensor sold separately, AF8050-1010)
- External wastegate sold separately
- Inlet flange gasket and turbo drain gasket included in turbo kit
- Must use a -6AN oil feel line to maintain core temperature (Warranty VOID if not used)
- T6 single entry turbine inlet flange
- SiMo-nodular cast iron rear housing
- V-Band turbine outlet flange
- V-Band compressor outlet flange
- 1/4" NPT oil feed fitting (sold separately) or a 38mm 2-bolt oil feed plate with M8 x 1.25mm thread size
- 50.80mm bolt centre turbo drain flange with M8 x 1.25mm thread size

Compressor Specifications
Inducer: 98mm
Exducer: 133mm
Extended Tip: 138mm
A/R: 0.88
Compressor Inlet: 6" slip fit
Compressor Outlet: V-Band (AF8080-1007)

Turbine Specifications
Inducer: 112mm
Exducer: 102mm
A/R: 1.24
Turbine Inlet Flange: T6
Turbine Outlet Flange: V-Band (AF8080-1008)

Wastegate
External wastegate
