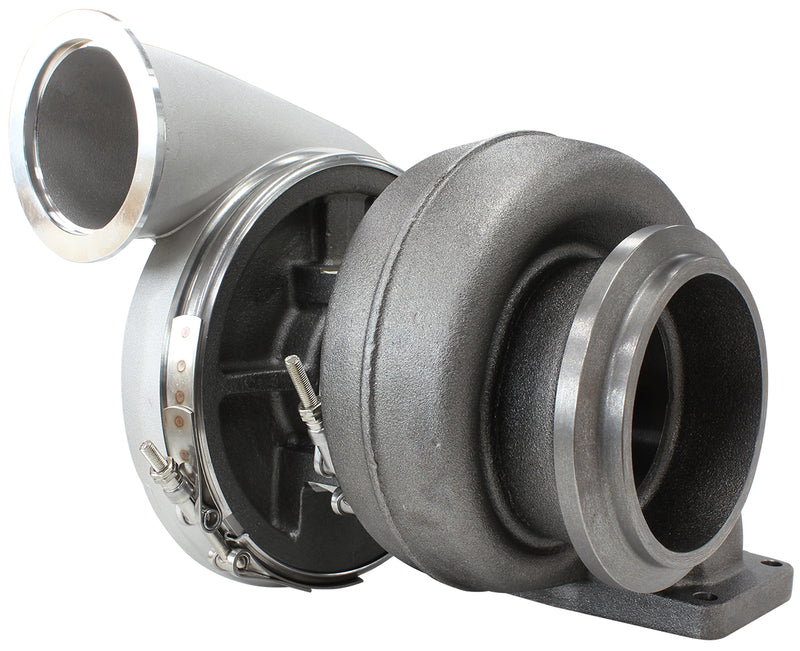

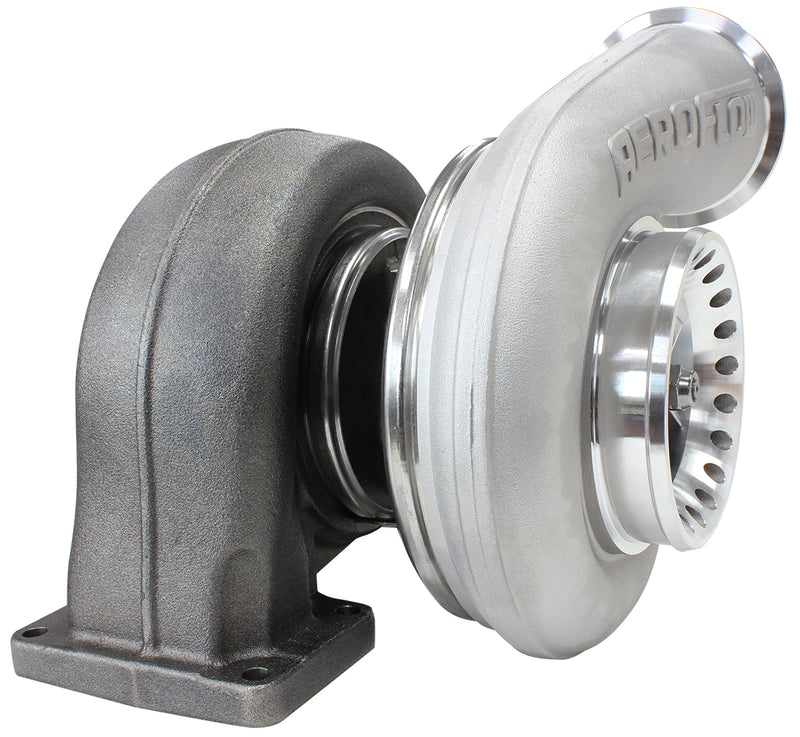

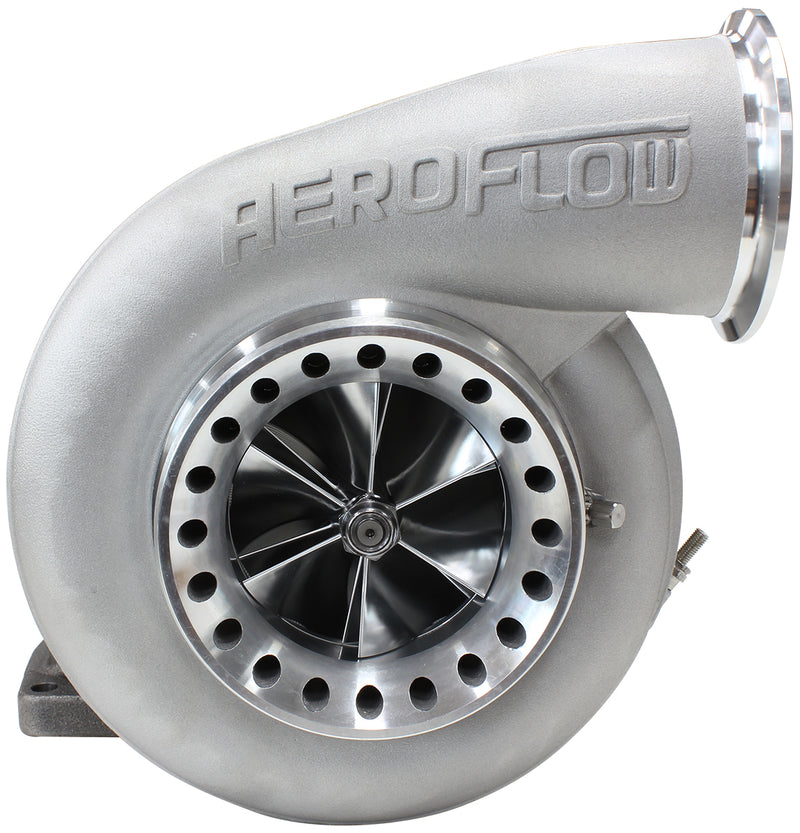

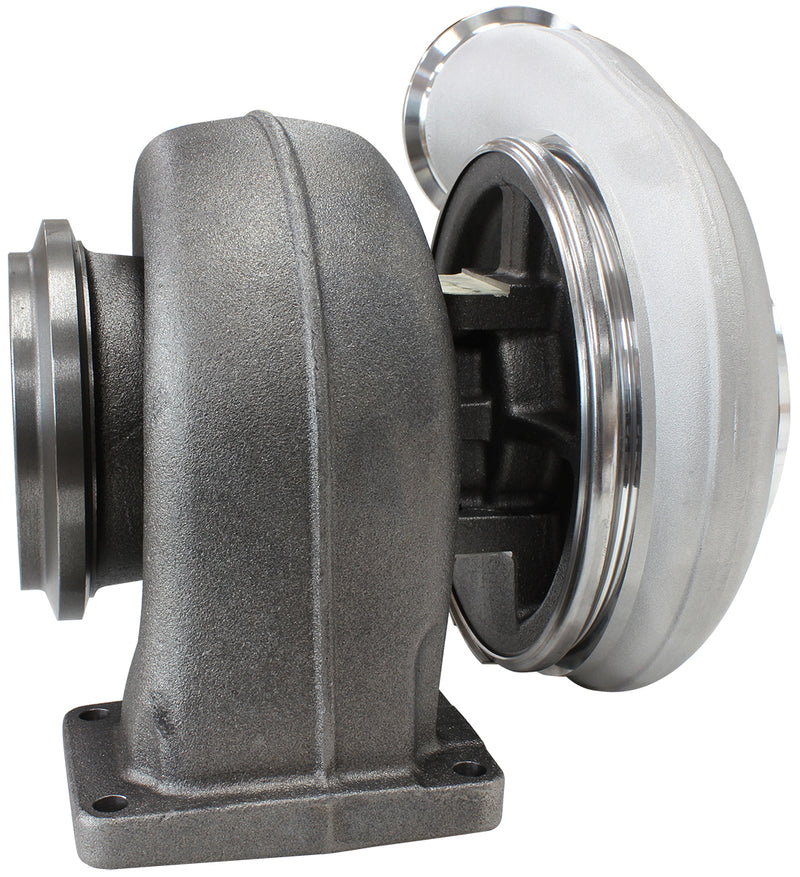

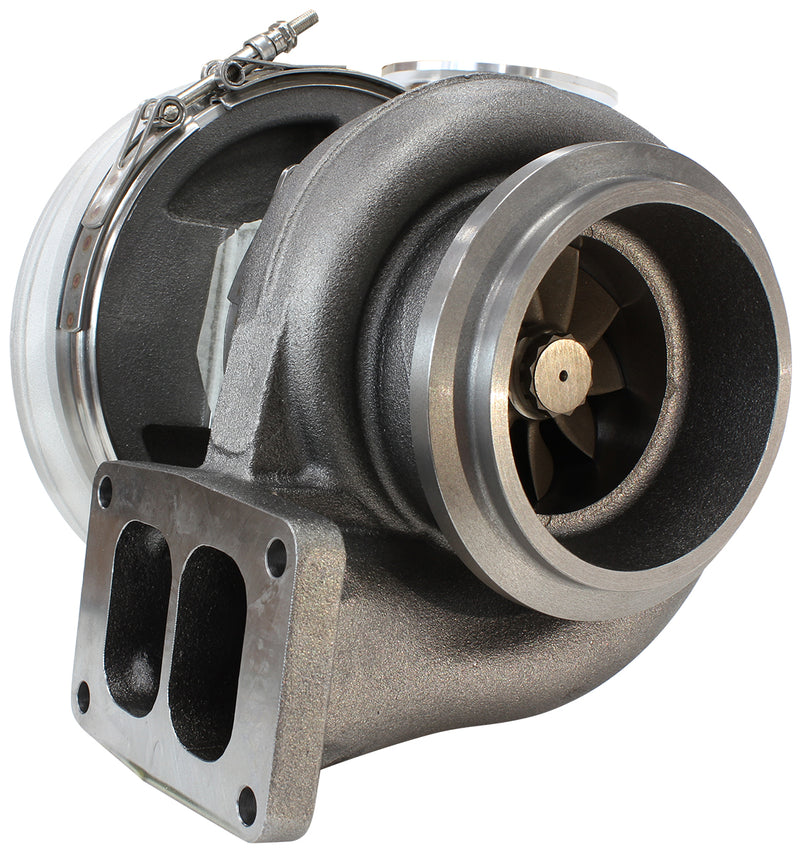

BOOSTED 8888 1.32 T6 TWIN ENTRY V-BAND OUTLET BW S475
SKU AF8006-6001
Original price
$1,800.00
-
Original price
$1,800.00
Original price
$1,800.00
$1,800.00
$1,800.00
-
$1,800.00
Current price
$1,800.00
Availability:
Available from supplier allow 2–10 days to ship
BOOSTED 8888 T6 Turbocharger Specifications
Recommended horsepower rating:Â 1200-1600HP
Recommended engine displacement:Â 3.0L to 7.0L
- 360° journal bearing
- 7075 billet 7 + 7 compressor wheel
- Ported shroud compressor cover
- This is an oil cooled turbocharger
- Speed sensor port included in compressor cover (Speed sensor sold separately, AF8050-1010)
- External wastegate sold separately
- Inlet flange gasket and turbo drain gasket included in turbo kit
- Must use a -6AN oil feel line to maintain core temperature (Warranty VOID if not used)
- T6 twin entry turbine inlet flange
- SiMo-nodular cast iron rear housing
- V-Band turbine outlet flange
- V-Band compressor outlet flange
- 1/4" NPT oil feed fitting (sold separately) or a 38mm 2-bolt oil feed plate with M8 x 1.25mm thread size
- 50.80mm bolt centre turbo drain flange with M8 x 1.25mm thread size
Compressor Specifications
Inducer:Â 88mm
Exducer:Â 117.36mm
Extended Tip:Â 124.40mm
Compressor Inlet:Â 5" slip fit
Compressor Outlet: V-Band (AF8080-1006)
Turbine Specifications
Inducer:Â 95.71mm
Exducer:Â 88mm
A/R:Â 1.32
Turbine Inlet Flange: Â T6
Turbine Outlet Flange: Â V-Band (AF8080-1005)
Wastegate
External wastegate
Recommended horsepower rating:Â 1200-1600HP
Recommended engine displacement:Â 3.0L to 7.0L
- 360° journal bearing
- 7075 billet 7 + 7 compressor wheel
- Ported shroud compressor cover
- This is an oil cooled turbocharger
- Speed sensor port included in compressor cover (Speed sensor sold separately, AF8050-1010)
- External wastegate sold separately
- Inlet flange gasket and turbo drain gasket included in turbo kit
- Must use a -6AN oil feel line to maintain core temperature (Warranty VOID if not used)
- T6 twin entry turbine inlet flange
- SiMo-nodular cast iron rear housing
- V-Band turbine outlet flange
- V-Band compressor outlet flange
- 1/4" NPT oil feed fitting (sold separately) or a 38mm 2-bolt oil feed plate with M8 x 1.25mm thread size
- 50.80mm bolt centre turbo drain flange with M8 x 1.25mm thread size
Compressor Specifications
Inducer:Â 88mm
Exducer:Â 117.36mm
Extended Tip:Â 124.40mm
Compressor Inlet:Â 5" slip fit
Compressor Outlet: V-Band (AF8080-1006)
Turbine Specifications
Inducer:Â 95.71mm
Exducer:Â 88mm
A/R:Â 1.32
Turbine Inlet Flange: Â T6
Turbine Outlet Flange: Â V-Band (AF8080-1005)
Wastegate
External wastegate
