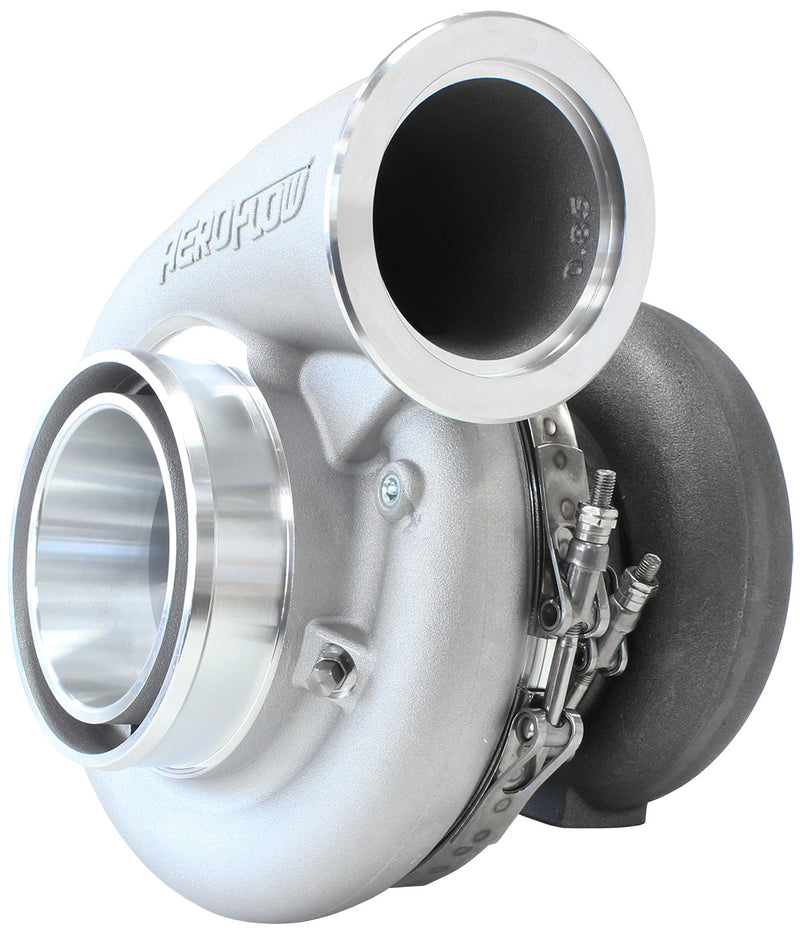

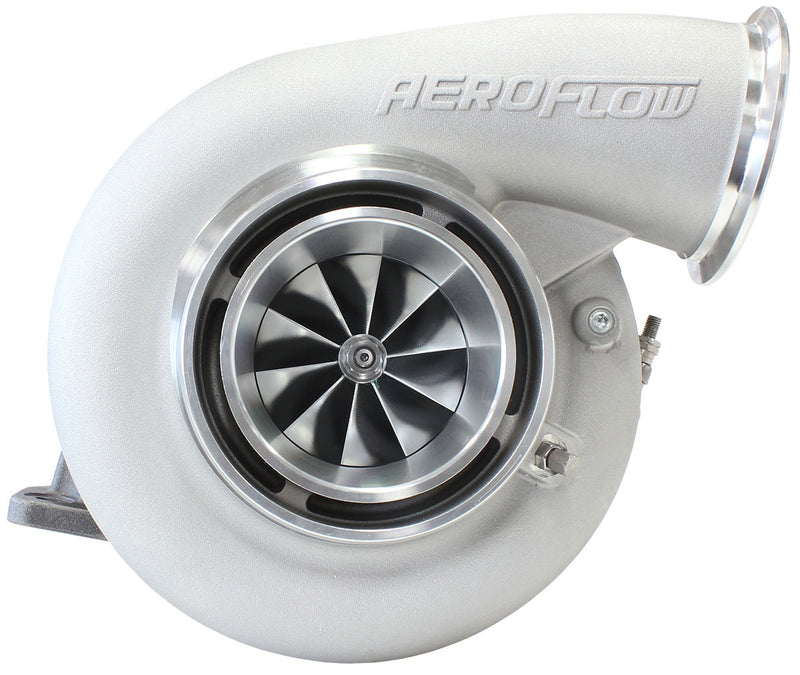

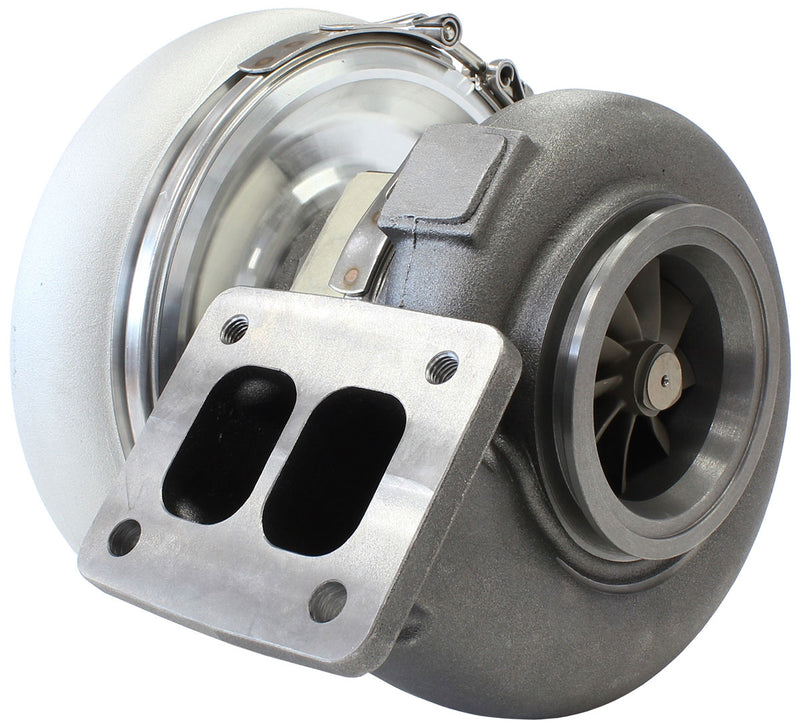

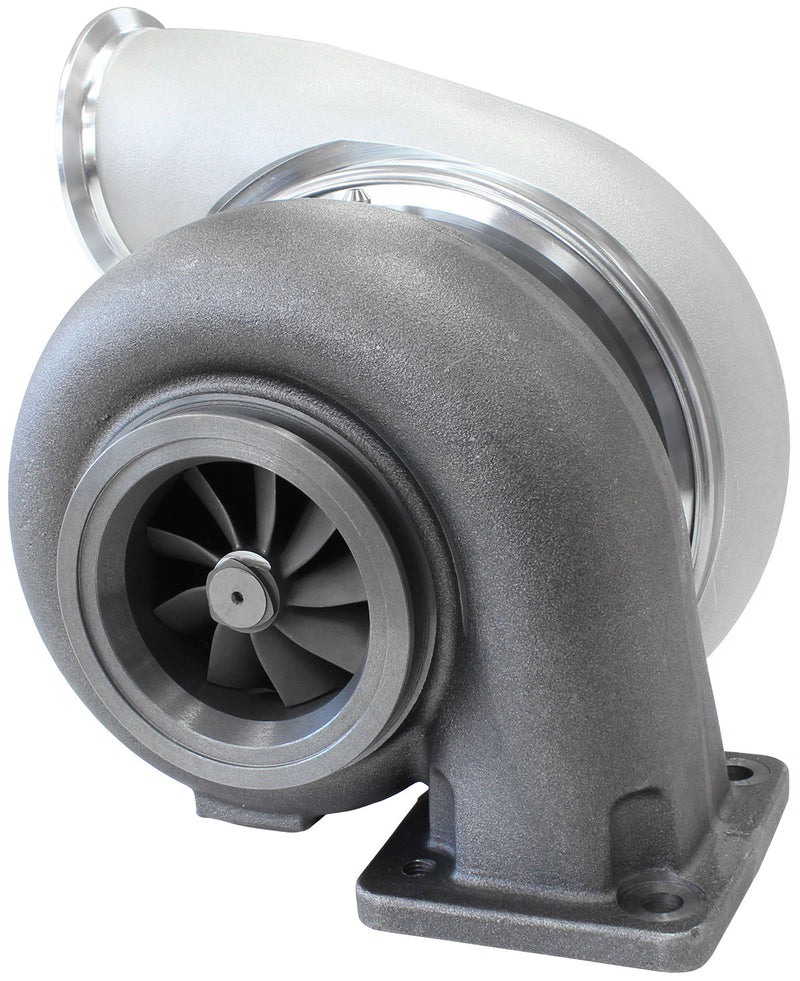

BOOSTED 7975 1.15 T4 V-BAND OUTLET G42
SKU AF8005-4041
Original price
$2,300.00
-
Original price
$2,300.00
Original price
$2,300.00
$2,300.00
$2,300.00
-
$2,300.00
Current price
$2,300.00
Availability:
Available from supplier allow 2–10 days to ship
BOOSTED 7975 T4 Turbocharger Specifications
Recommended horsepower rating:Â 475-1450HP
Recommended engine displacement:Â 2.0L to 8.0L
- Dual ceramic ball bearing
- Point Milled 7075 billet compressor wheel
- Ported shroud compressor cover
- Speed sensor port included in compressor cover (Speed sensor sold separately, AF8050-1010)
- 1/8" NPT boost reference port
- External wastegate sold separately
- Inlet flange gasket, turbo drain gasket and -4AN turbo oil feed fitting with restrictor included in turbo kit. (Warranty VOID if not used)
- T4 twin entry turbine inlet flange
- 9 blade turbine wheel
- SiMo-nodular cast iron rear housing
- V-Band turbine outlet flange
- M14 x 1.5mm coolant port thread
- 1/4" NPT to -4AN oil feed fitting with in-built restrictor attached to a 38mm 2-bolt oil feed plate with M8 x 1.25mm thread size
- 50.80mm bolt centre turbo drain flange with M8 x 1.25mm thread size
Compressor Specifications
Inducer:Â 79mm
Exducer:Â 98mm
Extended Tip:Â 103mm
A/R: Â 0.85
Compressor Inlet:Â 5" Slip fit
Compressor Outlet: V-Band (AF8080-1009)
Turbine Specifications
Inducer:Â 82mm
Exducer:Â 75mm
A/R:Â 1.15
Turbine Inlet Flange: T4
Turbine Outlet Flange: Â V-Band (AF8080-1020)
Wastegate
External wastegate
Recommended horsepower rating:Â 475-1450HP
Recommended engine displacement:Â 2.0L to 8.0L
- Dual ceramic ball bearing
- Point Milled 7075 billet compressor wheel
- Ported shroud compressor cover
- Speed sensor port included in compressor cover (Speed sensor sold separately, AF8050-1010)
- 1/8" NPT boost reference port
- External wastegate sold separately
- Inlet flange gasket, turbo drain gasket and -4AN turbo oil feed fitting with restrictor included in turbo kit. (Warranty VOID if not used)
- T4 twin entry turbine inlet flange
- 9 blade turbine wheel
- SiMo-nodular cast iron rear housing
- V-Band turbine outlet flange
- M14 x 1.5mm coolant port thread
- 1/4" NPT to -4AN oil feed fitting with in-built restrictor attached to a 38mm 2-bolt oil feed plate with M8 x 1.25mm thread size
- 50.80mm bolt centre turbo drain flange with M8 x 1.25mm thread size
Compressor Specifications
Inducer:Â 79mm
Exducer:Â 98mm
Extended Tip:Â 103mm
A/R: Â 0.85
Compressor Inlet:Â 5" Slip fit
Compressor Outlet: V-Band (AF8080-1009)
Turbine Specifications
Inducer:Â 82mm
Exducer:Â 75mm
A/R:Â 1.15
Turbine Inlet Flange: T4
Turbine Outlet Flange: Â V-Band (AF8080-1020)
Wastegate
External wastegate
