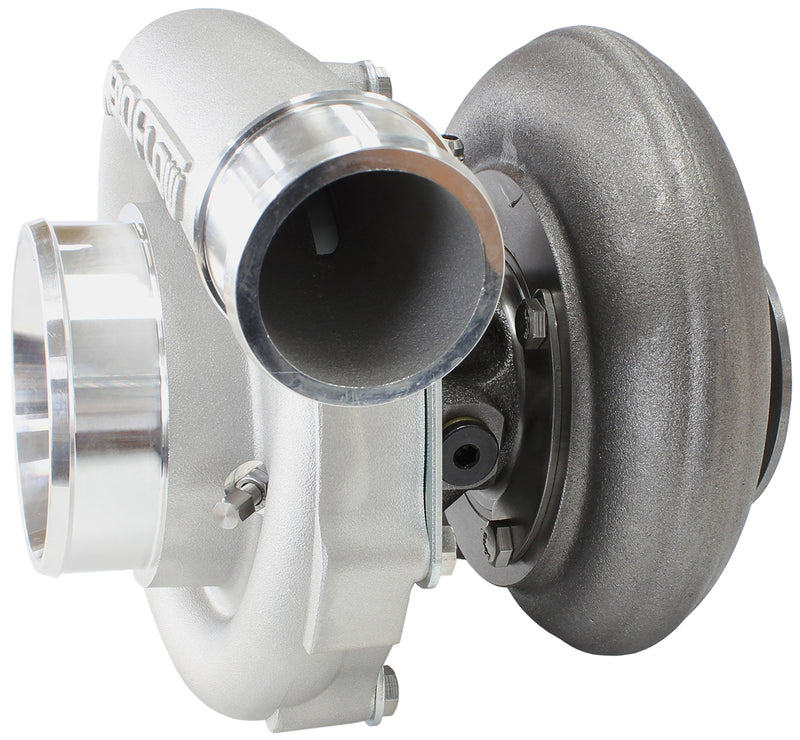

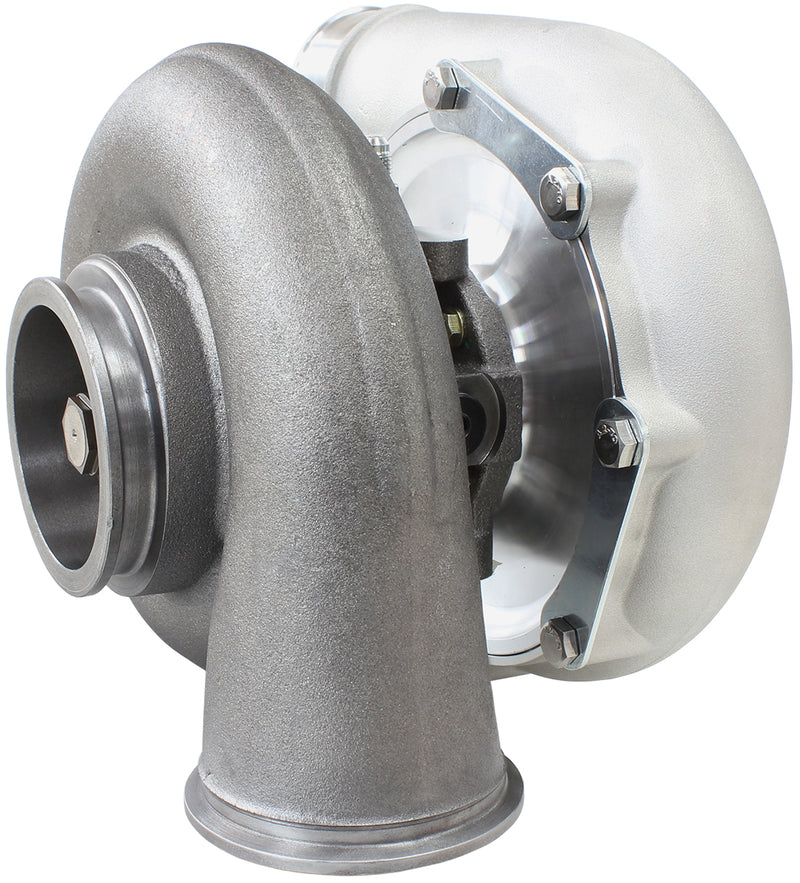

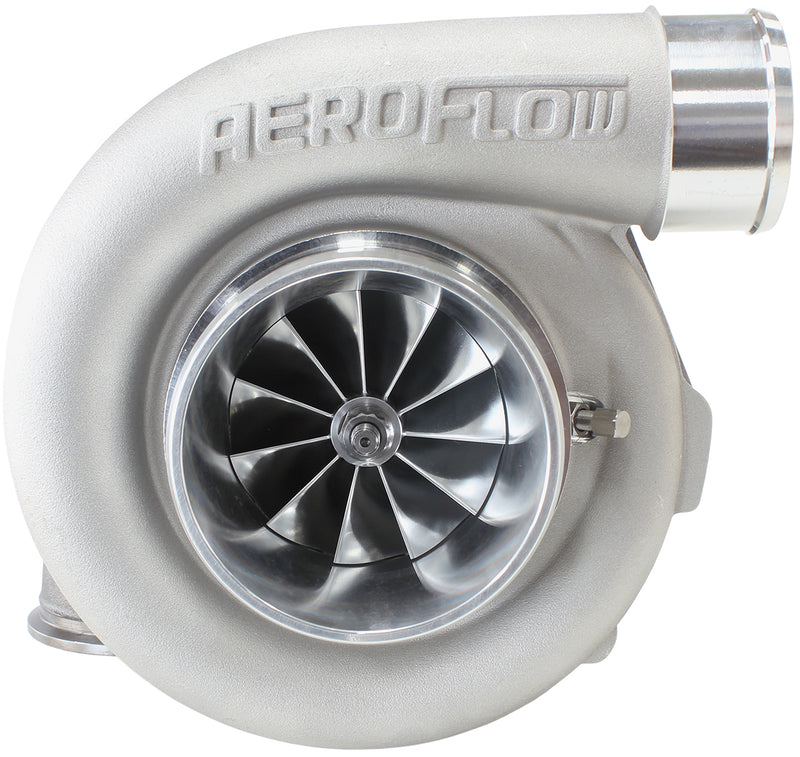

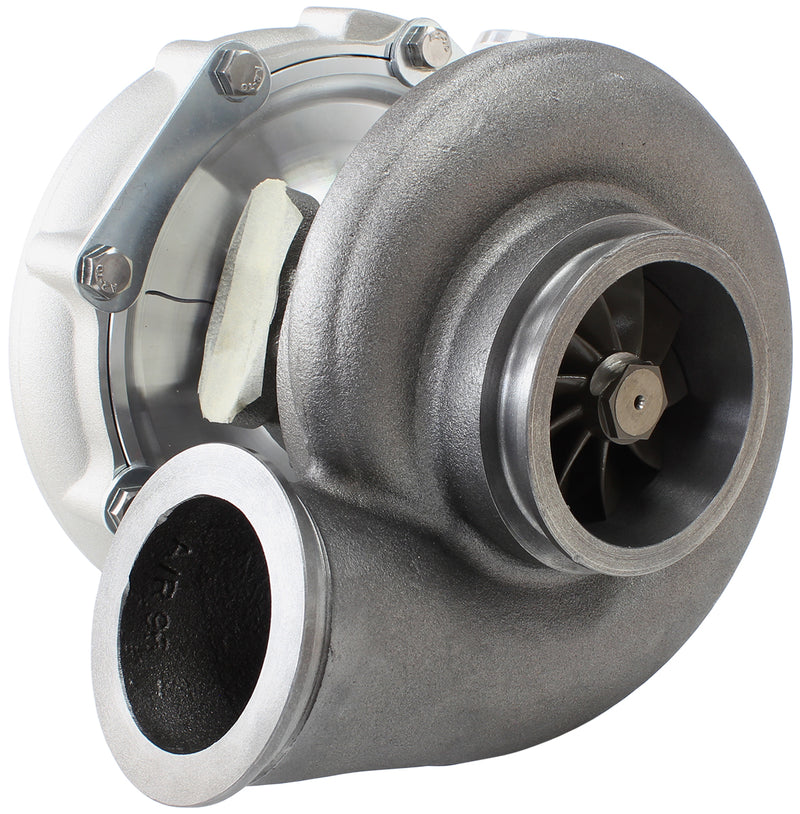

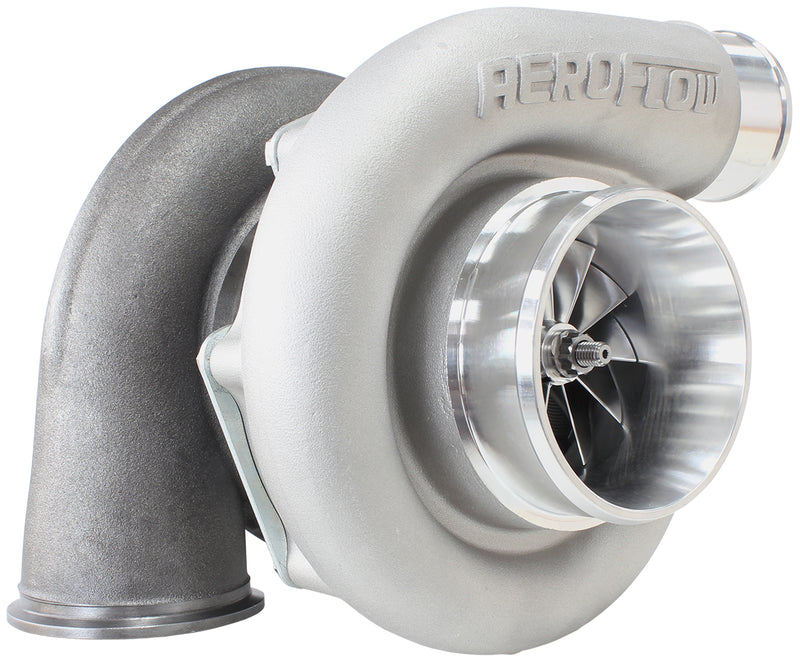

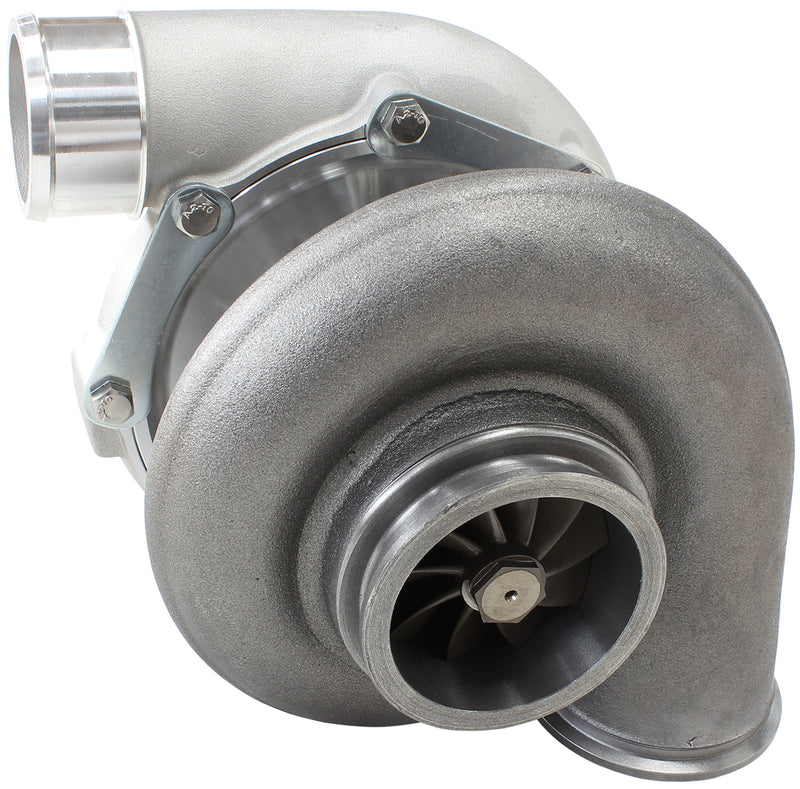

BOOSTED 7875 .96 V-BAND FLANGE V-BAND OUTLET GTX42
SKU AF8005-4030
Original price
$1,900.00
-
Original price
$1,900.00
Original price
$1,900.00
$1,900.00
$1,900.00
-
$1,900.00
Current price
$1,900.00
Availability:
Available from supplier allow 2–10 days to ship
BOOSTED 7875 V-Band Turbocharger Specifications
Recommended horsepower rating:Â 500-1050HP
Recommended engine displacement:Â 2.0L to 6.0L
- Dual ceramic ball bearing
- 7075 billet compressor wheel
- Ported shroud compressor cover
- Speed sensor port included in compressor cover (Speed sensor sold separately, AF8050-1010)
- External wastegate sold separately
- Turbo drain gasket and -4AN turbo oil feed fitting with restrictor included in turbo kit. (Warranty VOID if not used)
- V-Band single entry turbine inlet flange
- SiMo-nodular cast iron rear housing
- V-Band turbine outlet flange
- M14 x 1.5mm coolant port thread
- 7/16"-24 oil feed fitting with in-built restrictor
- 50.80mm bolt centre turbo drain flange with M8 x 1.25mm thread size
Compressor Specifications
Inducer:Â 78.13mm
Exducer:Â 102.40mm
Extended Tip:Â 106.30mm
Compressor Inlet:Â 4" slip fit
Compressor Outlet: 2.5" slip fit
Turbine Specifications
Inducer:Â 82mm
Exducer:Â 75mm
A/R:Â 0.96
Turbine Inlet Flange: V-Band (AF8080-1023)
Turbine Outlet Flange: Â V-Band (AF8080-1024)
Wastegate
External wastegate
