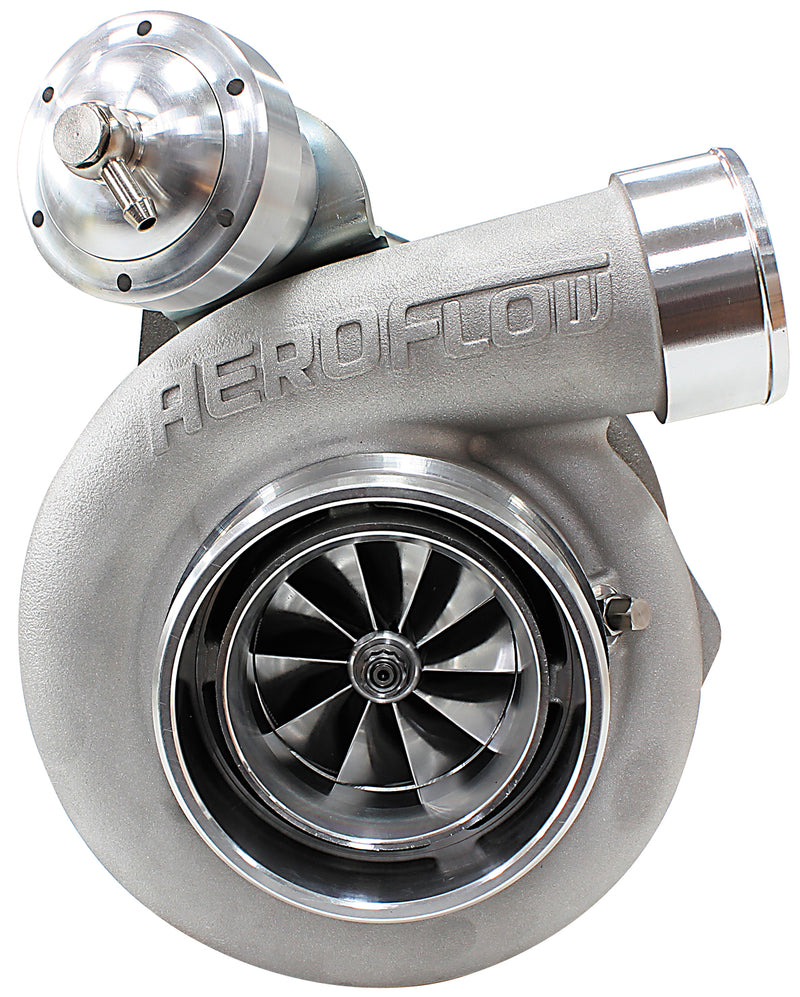

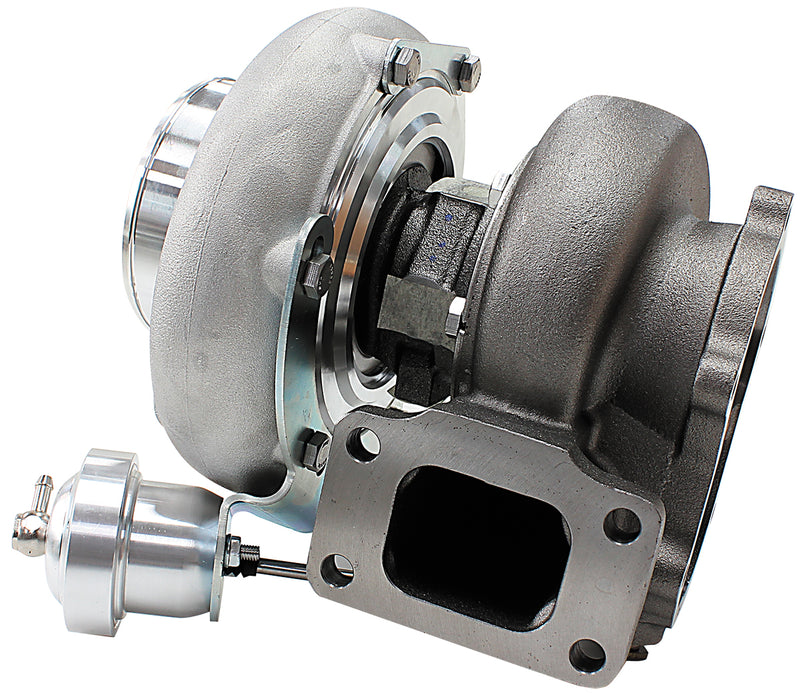

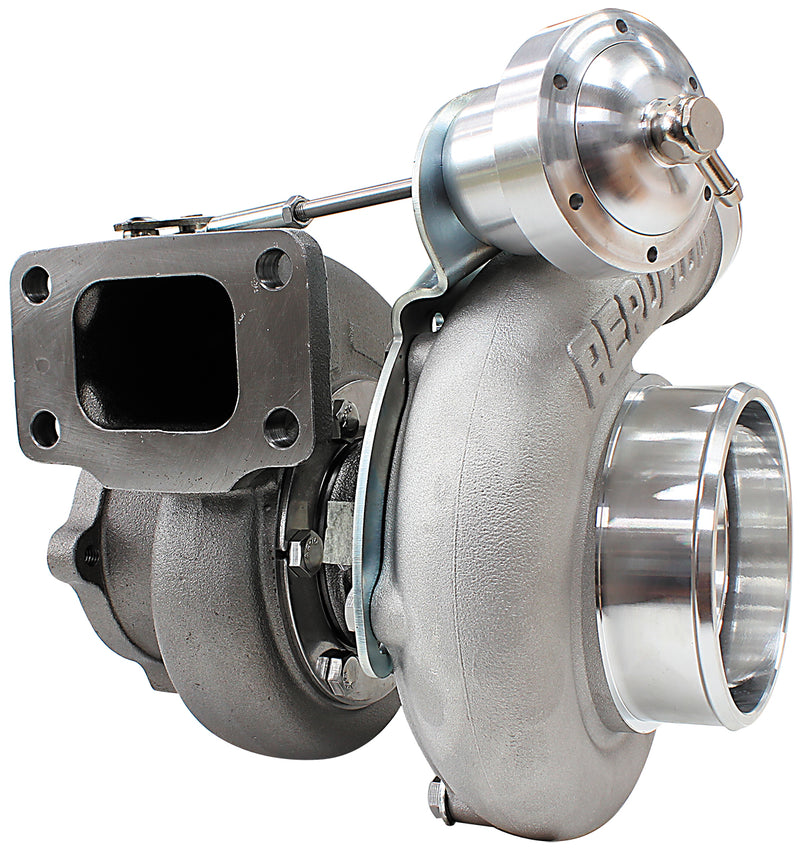

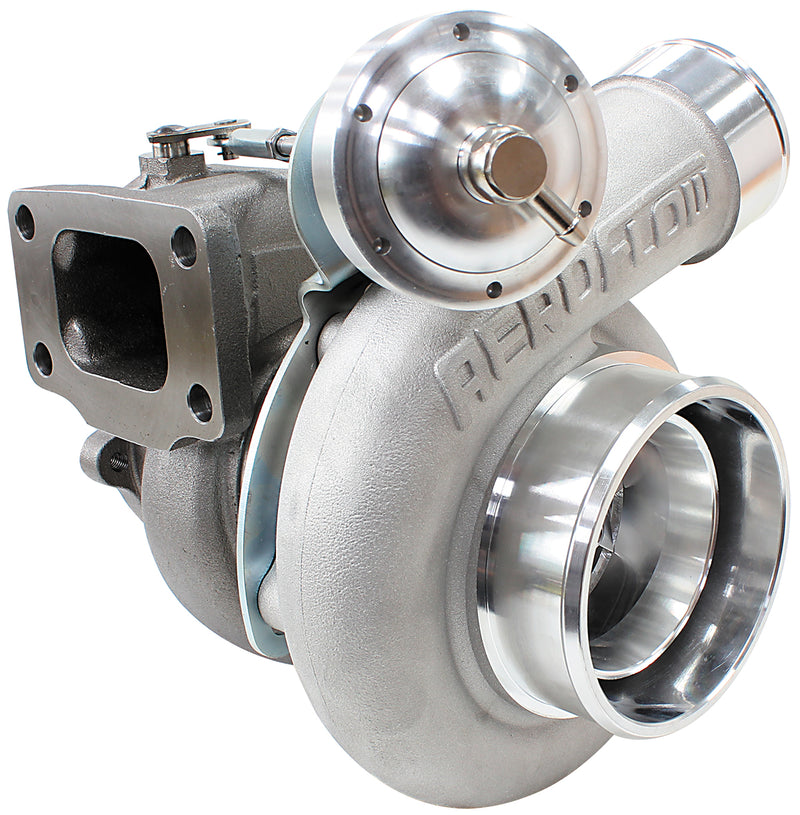

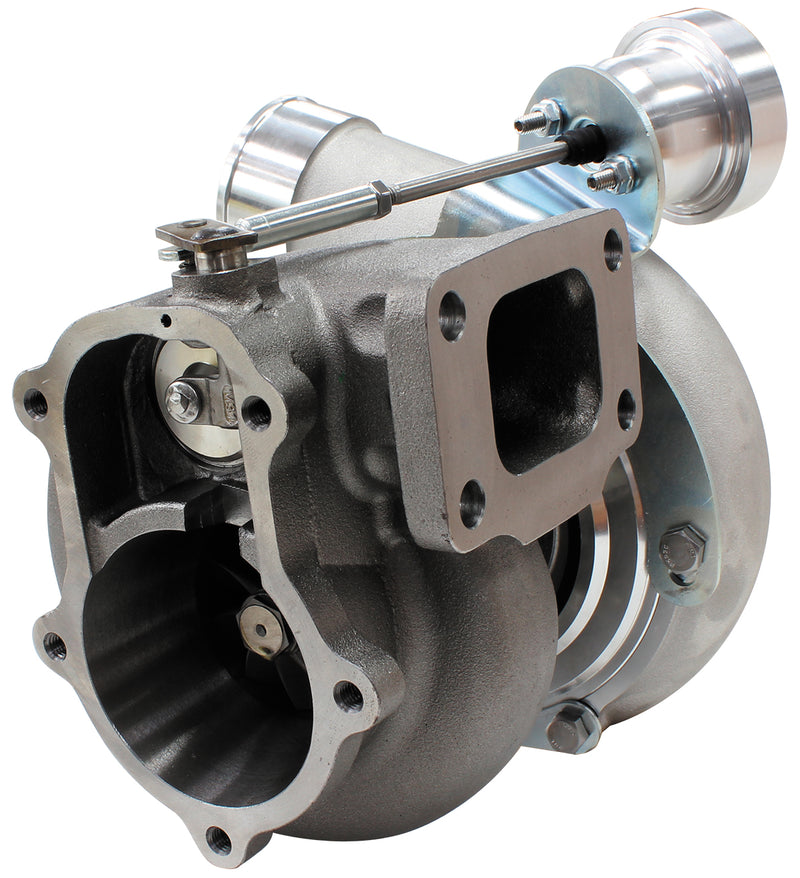

BOOSTED 6662 1.06 T3 XR6 BA BF5 BOLT OUTLET GTX3582
SKU AF8005-3014
Original price
$1,350.00
-
Original price
$1,350.00
Original price
$1,350.00
$1,350.00
$1,350.00
-
$1,350.00
Current price
$1,350.00
Availability:
Available from supplier allow 2–10 days to ship
BOOSTED 6662 XR6 Turbocharger Specifications
Recommended horsepower rating: Â 425-825HP
Recommended engine displacement: Â 2.5L to 4.5L
- Dual ceramic ball bearing
- Point Milled 7075 billet compressor wheel
- Ported shroud compressor cover
- Speed sensor port included in compressor cover (Speed sensor sold separately, AF8050-1010)
- SiMo-nodular cast iron rear housing
- Standard 5-Bolt XR6 turbine outlet flange
- T3 single entry turbine inlet flange
- M14 x 1.5mm coolant port thread
- 7/16"-24 oil feed fitting with in-built restrictor (Warranty VOID if not used)
- 38mm bolt centre turbo drain flange with M8 x 1.25mm thread size
- Suits both Ford XR6 BA/BF and FG. Turbo housing will be supplied in BA/BF configuration
- Billet Internal wastegate actuator with 9psi spring (different rate springs sold separately)
- Internal wastegate hole size is 32mm
- New boost reference port is required for this turbocharger. Install boost reference port into front compressor cover or intercooler piping to suit the OEM boost controller
Compressor Specifications
Inducer: Â 66mm
Exducer: Â 82mm
Extended Tip: Â 86mm
A/R: Â 0.72
Compressor Inlet: Â 4" Slip fit
Compressor Outlet: Â 2.5" Slip fit
Turbine Specifications
Inducer: Â 68mm
Exducer: Â 62.3mm
A/R: Â 1.06
Turbine Inlet Flange: Â T3
Turbine Outlet Flange: Â BA-BF XR6 5-Bolt
Wastegate
Internal wastegate featuring 32mm port and 9psi actuator
