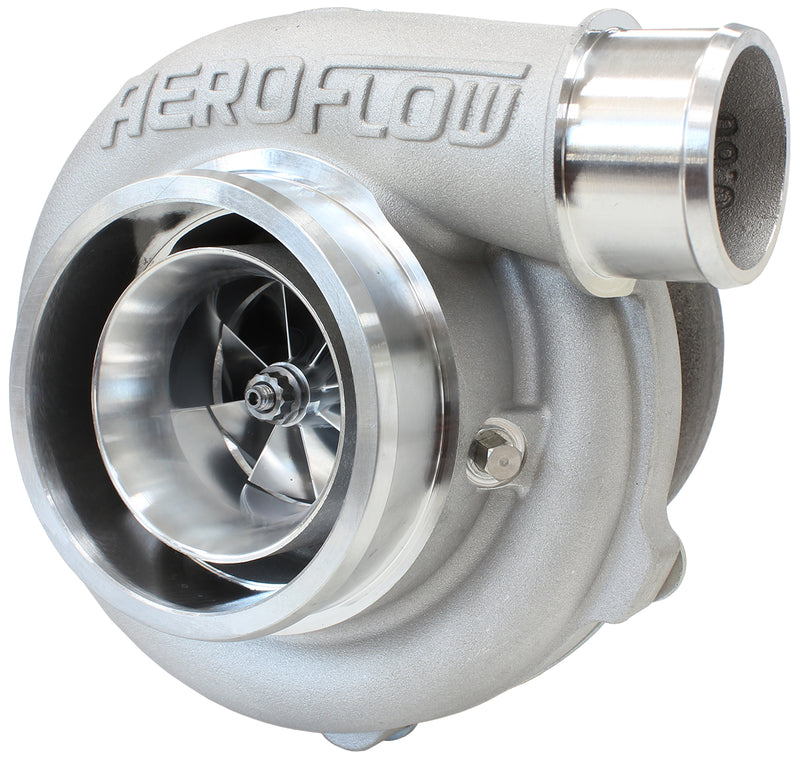

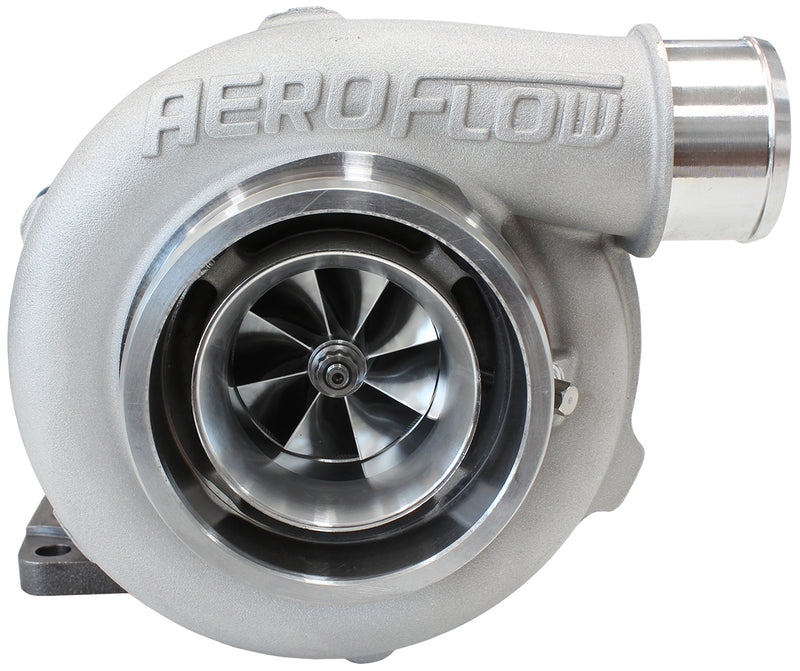

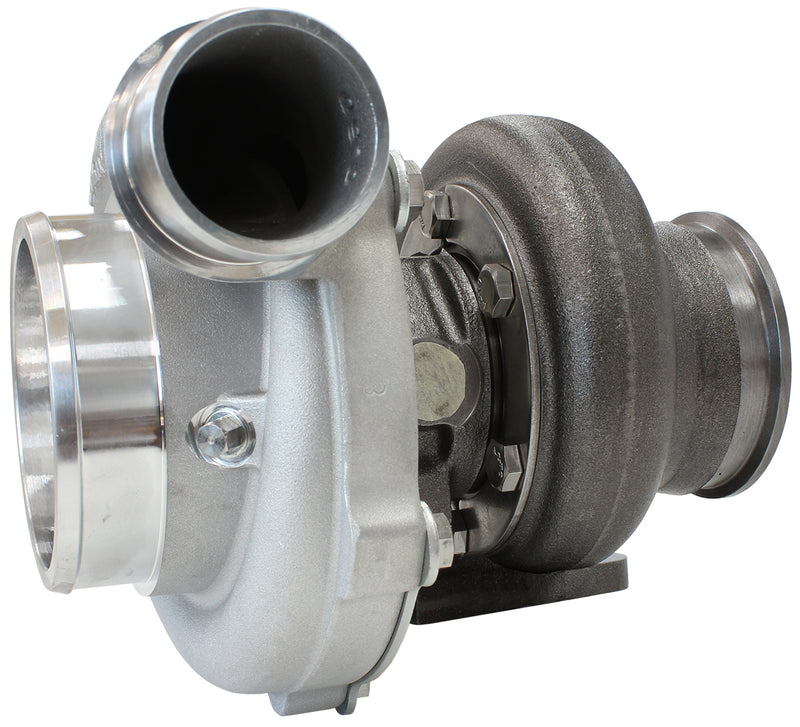

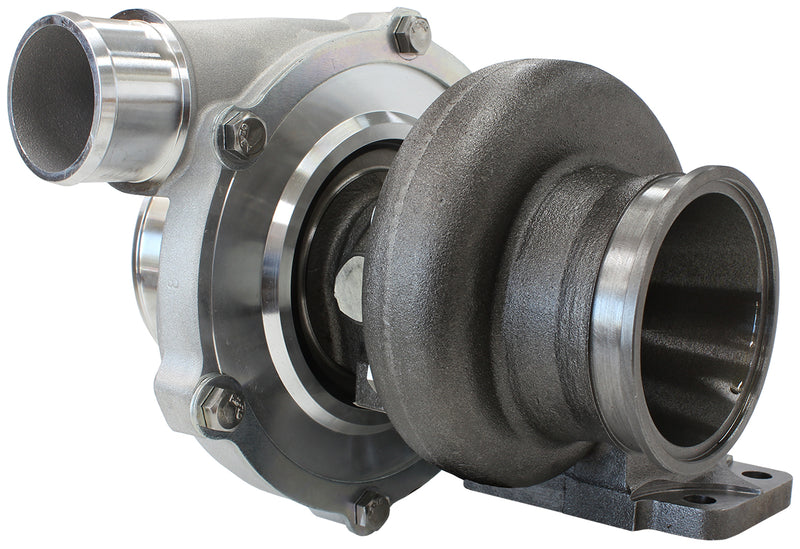

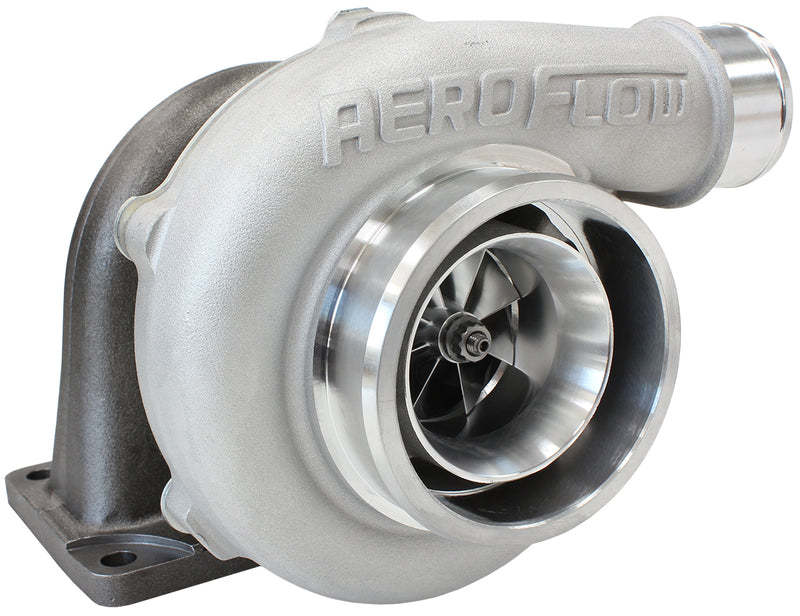

BOOSTED 5455 .82 T3 FLANGE V-BAND OUTLET GTX3071
SKU AF8005-3001
Original price
$1,350.00
-
Original price
$1,350.00
Original price
$1,350.00
$1,350.00
$1,350.00
-
$1,350.00
Current price
$1,350.00
Availability:
Available from supplier allow 2–10 days to ship
BOOSTED 5455 Turbocharger Specifications
Recommended horsepower rating: Â 340-650HP
Recommended engine displacement: Â 1.8L to 3.0L
- Dual ceramic ball bearing
- Point Milled 7075 billet compressor wheel
- Ported shroud compressor cover
- Speed sensor port included in compressor cover (Speed sensor sold separately, AF8050-1010)
- External wastegate sold separately
- Inlet flange gasket, turbo drain gasket and -4AN turbo oil feed fitting with restrictor included in turbo kit. (Warranty VOID if not used)
- T3 single entry turbine inlet flange
- SiMo-nodular cast iron rear housing
- V-Band turbine outlet flange
- M14 x 1.5mm coolant port thread
- 7/16"-24 oil feed fitting thread
- 38mm bolt centre turbo drain flange with M8 x 1.25mm thread size
Compressor Specifications
Inducer: Â 54mm
Exducer: Â 71mm
Extended Tip: Â 73.79mm
A/R: Â 0.60
Compressor Inlet: Â 4" Slip fit
Compressor Outlet: Â 2" Slip fit
Turbine Specifications
Inducer: Â 60mm
Exducer: Â 55mm
A/R: Â 0.82
Turbine Inlet Flange: Â T3
Turbine Outlet Flange: Â V-Band (AF8080-1000)
Wastegate
External wastegate
Recommended horsepower rating: Â 340-650HP
Recommended engine displacement: Â 1.8L to 3.0L
- Dual ceramic ball bearing
- Point Milled 7075 billet compressor wheel
- Ported shroud compressor cover
- Speed sensor port included in compressor cover (Speed sensor sold separately, AF8050-1010)
- External wastegate sold separately
- Inlet flange gasket, turbo drain gasket and -4AN turbo oil feed fitting with restrictor included in turbo kit. (Warranty VOID if not used)
- T3 single entry turbine inlet flange
- SiMo-nodular cast iron rear housing
- V-Band turbine outlet flange
- M14 x 1.5mm coolant port thread
- 7/16"-24 oil feed fitting thread
- 38mm bolt centre turbo drain flange with M8 x 1.25mm thread size
Compressor Specifications
Inducer: Â 54mm
Exducer: Â 71mm
Extended Tip: Â 73.79mm
A/R: Â 0.60
Compressor Inlet: Â 4" Slip fit
Compressor Outlet: Â 2" Slip fit
Turbine Specifications
Inducer: Â 60mm
Exducer: Â 55mm
A/R: Â 0.82
Turbine Inlet Flange: Â T3
Turbine Outlet Flange: Â V-Band (AF8080-1000)
Wastegate
External wastegate
