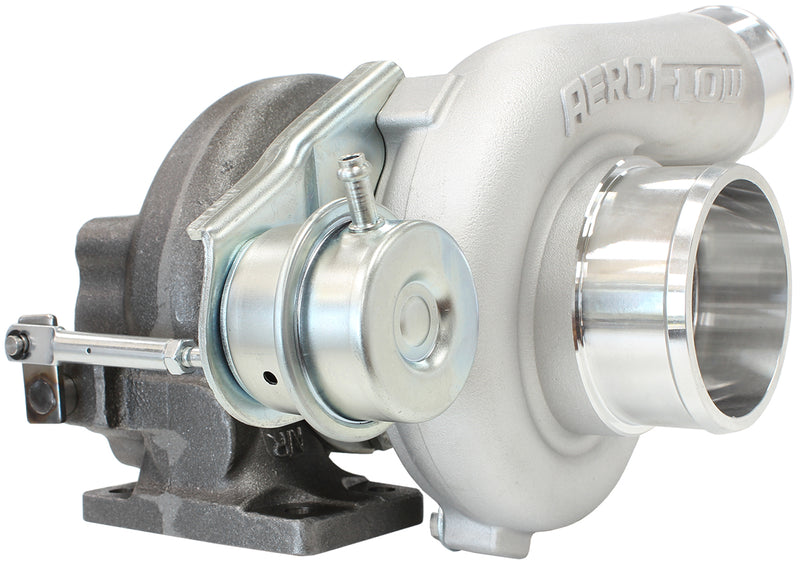

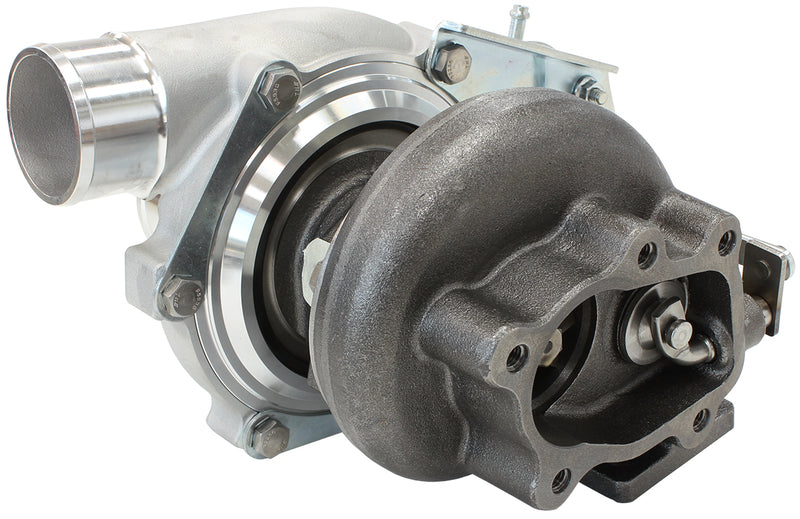

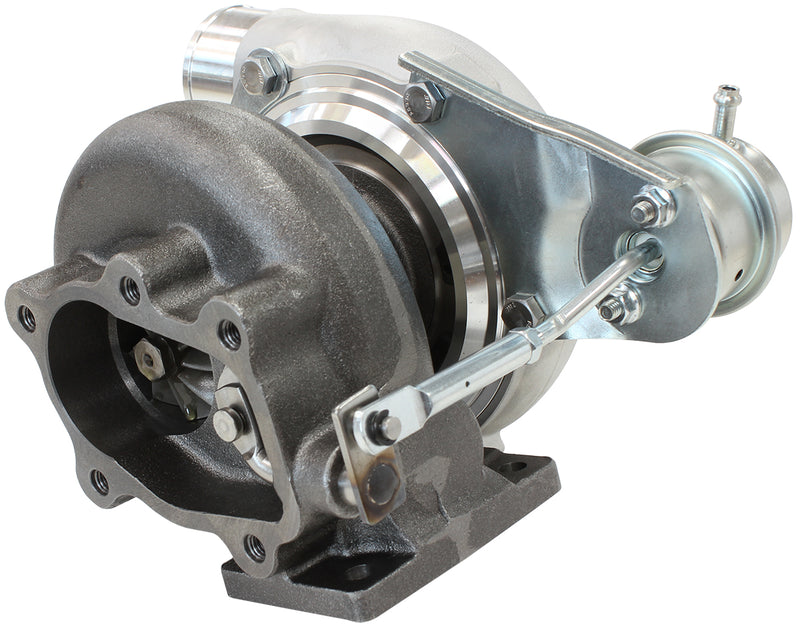

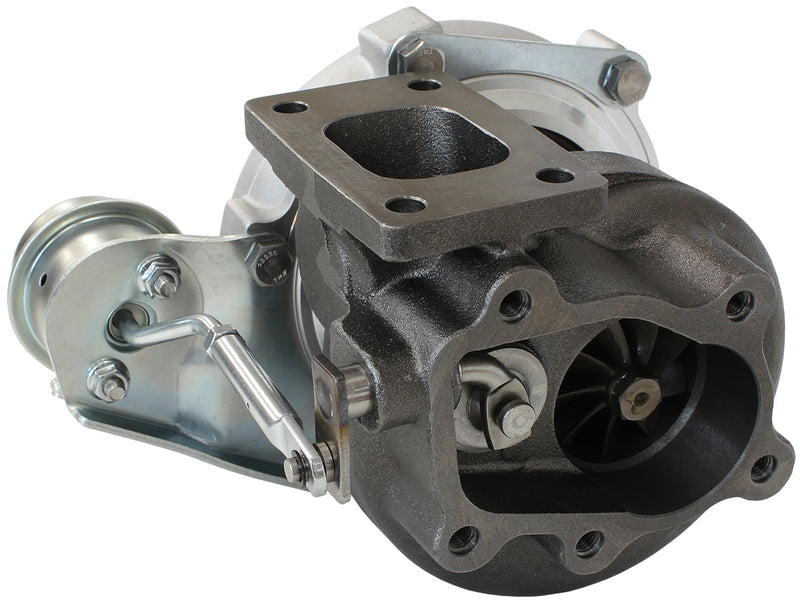

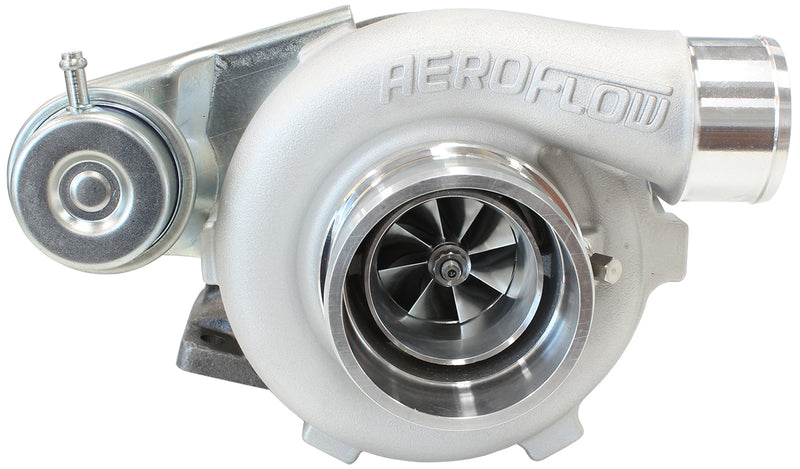

BOOSTED 4647 .64 T28 FLANGE 5 BOLT OUTLET GTX2860
SKU AF8005-2001
Original price
$1,350.00
-
Original price
$1,350.00
Original price
$1,350.00
$1,350.00
$1,350.00
-
$1,350.00
Current price
$1,350.00
Availability:
Available from supplier allow 2–10 days to ship
BOOSTED 4647 Turbocharger Specifications
Recommended horsepower rating: Â 200-475HP
Recommended engine displacement: Â 1.4L to 2.5L
- Dual ceramic ball bearing
- Billet aluminium compressor wheel
- Ported shroud compressor cover
- Speed sensor port included in compressor cover (Speed sensor sold separately, AF8050-1010)
- Inlet flange gasket, turbo drain gasket and -4AN turbo oil feed fitting with restrictor included in turbo kit. (Warranty VOID if not used)
- T25 / T28 single entry turbine inlet flange
- SiMo-nodular cast iron rear housing
- 5-bolt turbine outlet flange
- M14 x 1.5mm coolant port thread
- 7/16"-24 oil feed fitting thread
- 38mm bolt centre turbo drain flange with M8 x 1.25mm thread size
- M8 x 1.25mm 5-bolt turbine outlet flange
- Internal wastegate actuator with 8.7psi spring
Compressor Specifications
Inducer: Â 46mm
Exducer: Â 60.1mm
Extended Tip: Â 62.24mm
A/R: Â 0.60
Compressor Inlet: Â 3" Slip fit
Compressor Outlet: Â 2" Slip fit
Turbine Specifications
Inducer: Â 53.9mm
Exducer: Â 47mm
A/R: Â 0.86
Turbine Inlet Flange: Â T25 / T28
Turbine Outlet Flange: Â 5-Bolt
Wastegate
Internal wastegate with 8.7psi actuator
Recommended horsepower rating: Â 200-475HP
Recommended engine displacement: Â 1.4L to 2.5L
- Dual ceramic ball bearing
- Billet aluminium compressor wheel
- Ported shroud compressor cover
- Speed sensor port included in compressor cover (Speed sensor sold separately, AF8050-1010)
- Inlet flange gasket, turbo drain gasket and -4AN turbo oil feed fitting with restrictor included in turbo kit. (Warranty VOID if not used)
- T25 / T28 single entry turbine inlet flange
- SiMo-nodular cast iron rear housing
- 5-bolt turbine outlet flange
- M14 x 1.5mm coolant port thread
- 7/16"-24 oil feed fitting thread
- 38mm bolt centre turbo drain flange with M8 x 1.25mm thread size
- M8 x 1.25mm 5-bolt turbine outlet flange
- Internal wastegate actuator with 8.7psi spring
Compressor Specifications
Inducer: Â 46mm
Exducer: Â 60.1mm
Extended Tip: Â 62.24mm
A/R: Â 0.60
Compressor Inlet: Â 3" Slip fit
Compressor Outlet: Â 2" Slip fit
Turbine Specifications
Inducer: Â 53.9mm
Exducer: Â 47mm
A/R: Â 0.86
Turbine Inlet Flange: Â T25 / T28
Turbine Outlet Flange: Â 5-Bolt
Wastegate
Internal wastegate with 8.7psi actuator
